   Proliant ML310 G2 QuickSpecs  US QuickSpecs
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Overview

HP ProLiant ML310 Generation 2 (G2)

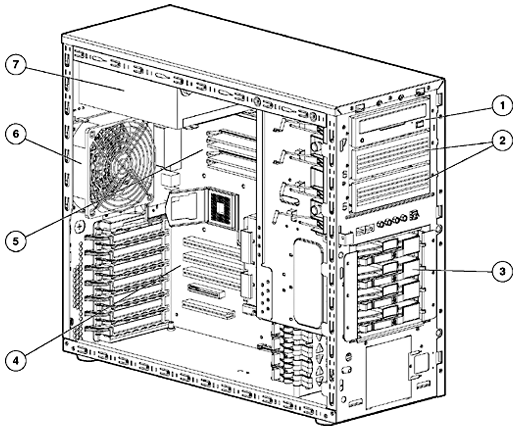

1. 48x IDE (ATAPI) CD-ROM 5. Four DIMM Sockets, for up to 4GB DDR memory
2. Removable Media Bays 6. System Fan
3. Four Hot-Plug (shown) or Four Non hot-plug (not shown) Drive Bays 7. 350W Power Supply
4. Four Expansion Slots (Two PCI-X, One PCI, and One PCI Express)

At A Glance
  • Supports a single 3.0 GHz, 3.20 GHz, or 3.40 GHz Intel® Pentium® 4 processor with 1MB or 2MB cache size or a single 2.8 GHz Intel Celeron processor with 256KB cache size.
  • Intel® Pentium® 4 processors include support for Hyper-Threading
  • Intel E7221 Chipset supporting 800MHz FSB (with Pentium 4 processor) or 533MHz FSB (with Celeron processor)
  • PC3200 400MHz DDR SDRAM with advanced unbuffered ECC capabilities and optional interleaving (expandable up to 4 GB)
  • Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
  • Four Expansion Slots: Two PCI-X 64-bit/100MHz, One PCI 32-bit/33MHz slot, One PCI Express slot (X8 connector, x4 speed)
  • SCSI models include
    • Single Channel Ultra320 SCSI Adapter in PCI-X slot
  • SATA models include
    • Integrated four Channel SATA Controller
  • Four USB 2.0 ports - Two on front, two on rear
  • ROM Based Setup Utility (RBSU) and PXE support
  • Protected by HP Services including a one-year, Next Business Day limited global warranty - Certain restrictions and exclusions apply.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Standard Features

Processor
One of the following
Intel Pentium 4 - 3.4 GHz/800-2MB L2
NOTE: See "Configuration Information - Factory Integrated Models" section
Intel Pentium 4 - 3.2 GHz/800-2MB L2
Intel Pentium 4 - 3.4 GHz/800-1MB L2
Intel Pentium 4 - 3.2 GHz/800-1MB L2
Intel Pentium 4 - 3.0 GHz/800-1MB L2
NOTE: See "Configuration Information - Factory Integrated Models" section
Intel Celeron 2.8 GHz/533-256KB L2
NOTE: See "Configuration Information - Factory Integrated Models" section

Cache Memory
One of the following depending on Model
Integrated 1MB level 2 ECC cache (Pentium 4 models)
Integrated 2MB level 2 ECC cache (Pentium 4 models)
Integrated 256KB level 2 ECC cache (Celeron models)

Memory Protection Advanced ECC

Memory Type
PC3200 DDR SDRAM (400MHz)
Standard
512 MB (1 x 512 MB)
Maximum 4 GB

Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter

Expansion Slots
Slot Number
Bus Speed
Maximum Card Length
Hot Plug

PCI Voltage

1
64-bit/100MHz PCI-X
12.3
No
3.3V
2
64-bit/100MHz PCI-X
12.3
No
3.3V
3
PCI Express x4
(x8 connector)
12.3
No
N/A
4
32-bit/33MHz PCI
12.3
No
3.3V

Storage Controllers Single Channel Ultra320 SCSI Adapter (SCSI Models) OR
Integrated four port SATA controller with integrated SATA RAID 0, 1 (SATA Models)
NOTE: Integrated SATA RAID functionality supports 2 hard drives.
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations

Storage Diskette Drive Optional
1.44 MB Diskette Drive
Optical Drive 48x IDE (ATAPI) CD-ROM Drive

Maximum Internal StorageHot Plug SCSI 1.2TB 4 x 300GB Ultra320
Non-Hot Plug SCSI587GB
4 x 146GB Ultra320
Hot Plug SAS (3.5")
587GB4 x 146GB SAS
Hot Plug SATA (3.5")2.0TB 4 x 500GB SATA
Non-Hot Plug SATA320GB4 x 80GB SATA
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA and SAS drive configurations

Interfaces Parallel 1
Serial 1
Pointing Device (Mouse) 1
Graphics 1
Keyboard 1
USB 4 (2 front, 2 rear)
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
Dedicated USB 1 (available for USB tape connectivity)
Network RJ-45 (Ethernet) 1

Graphics Integrated ATI RAGE XL Video Controller with 8MB SDRAM Video Memory

Form Factor Tower (5U) (Tower to Rack Enabling Option Kit (PN 238547-B22) available)

ProLiant Essentials Foundation Pack Software

HP Systems Insight Manager
HP's new HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. HP SIM are both easy to set up work with the Insight Management Agents, integrated Lights-Out and Remote Insight Lights-Out Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration. With HP SIM customers will also be able to take advantage of role-based security; the ability to manage ProLiant, Integrity, and HP 9000 systems; and plug-ins for storage, client, printer, and power management as well as server rapid deployment, performance management, and workload management. For more details on HP SIM visit http://www.hp.com/go/hpsim.
Management AgentsThe Management Agents form the foundation for HP's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to HP Systems Insight Manager and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management Web site at http://www.hp.com/servers/manage.
SmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/manage.
SmartStart version supported (minimum): SmartStart 7.20.
Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and configuration utilitiesThe latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics utilitiesThe most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value PacksOptional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:
  • Rapid Deployment Pack - an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Microsoft® Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).

NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.

NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Industry Standard Compliance ACPI V1.0b Compliant
PCI 2.2 Compliant
PCI-X 1.0 Compliant
PCI-Express 1.0a Compliant
PXE Support
WOL Support
Microsoft Logo certifications
Novell Logo certifications
USB2.0

Manageability HP Systems Insight Manager
Online ROM Flash Utility
Automatic Server Recovery-2 (ASR-2)
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and SCSI hard drives)
BIOS Serial Console

Security Power-on password
Setup password
Diskette boot control
Power switch security
Intruder Alert Message

Server Power Cords All models ship with one 6' standard low-line country specific power cord.

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Power Specifications
To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/powercalcs.asp

Power Supply 350 Watts, PFC (Power Factor Correcting)

System Fans 1 - Non-hot plug, Non-redundant system fan
NOTE: Does not include fans in CPU heatsink or power supply.

Required CablingFor required cabling information, refer to the Web site at
http://h18000.www1.hp.com/products/servers/ProLiantML310/.

OS Support Microsoft Windows Server 2003 (Standard & Web Edition)
Microsoft Small Business Server 2003
Microsoft Windows 2000 Server
Novell NetWare
Linux (Red Hat, SuSE, and UnitedLinux)
VMware Virtualization Software
NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant ML310, please see: http://h18023.www1.hp.com/support/files/server/us/index.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html

Rack Airflow Requirements

Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: http://h18000.www1.hp.com/products/servers/ProLiantdl760/index.html.

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.


Custom Builder Please see the Enterprise Configurator for configuration assistance at: http://www.hp.com/products/configurator.

HP ProLiant Smart
Buys
The HP Smart Buy program offers mainstream business solutions at competitive prices with excellent availability and superior HP quality. It offers a wide range of industry-leading HP products at compelling prices, allowing you to receive richer configurations with additional options.

NOTE: For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf

Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Limited warranty includes 1 year parts, 1 year labor, 1 year on-site support.

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us at: http://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Models

NOTE: For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf.
ML310T02 3.4/800-1M HP-SCSI
376793-001
Processor(s) (1) Intel Pentium 3.40 GHz (standard)
Cache Memory 1MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Single Channel Ultra320 SCSI controller in PCI slot
Hard Drives None ship standard (up to 4 hot plug SCSI drives supported)
Internal Storage 1.20 TB maximum hot plug SCSI (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)

ML310T02 3.4/800-1M HP-SATA/SAS
376794-001
Processor(s) (1) Intel Pentium 3.40 GHz (standard)
Cache Memory 1MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Four port Integrated SATA Controller
Hard Drives None ship standard (up to 4 hot plug SATA or SAS drives supported)
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA and SAS drive configurations
Internal Storage 2.0 TB maximum hot plug SATA (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)

ML310T02 3.4/800-1M NHP-SCSI
378247-002
Processor(s) (1) Intel Pentium 3.40 GHz (standard)
Cache Memory 1MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Single Channel Ultra320 SCSI controller in PCI slot
Hard Drives (1) 36.4 GB Ultra320 SCSI
Internal Storage 587.2 GB maximum NHP SCSI (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)

ML310T02 3.4/800-1M NHP SATA80
381833-002
Processor(s) (1) Intel Pentium 3.40 GHz (standard)
Cache Memory 1MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Four port Integrated SATA Controller
Hard Drives (1) 80GB Non hot plug SATA drive
Internal Storage 320 GB maximum NHP SATA (with optional drives)
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)

ML310T02 3.2/800-2M HP SCSI
381839-001

Processor(s) (1) Intel Pentium 3.20 GHz (standard)
Cache Memory 2MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Single Channel Ultra320 SCSI controller in PCI slot
Hard Drives None ship standard (up to 4 hot plug SCSI drives supported)
Internal Storage 1.20 TB maximum hot plug SCSI (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)

ML310T02 3.2/800-2M HP SATA/SAS
381838-001


Processor(s) (1) Intel Pentium 3.20 GHz (standard)
Cache Memory 2MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Four port Integrated SATA Controller
Hard Drives None ship standard (up to 4 hot plug SATA or SAS drives supported)
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA and SAS drive configurations
Internal Storage 2.0 TB maximum hot plug SATA (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)

ML310T02 3.2/800-1M HP-SCSI
376871-001
Processor(s) (1) Intel Pentium 3.20 GHz (standard)
Cache Memory 1MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Single Channel Ultra320 SCSI controller in PCI slot
Hard Drives None ship standard (up to 4 hot plug SCSI drives supported)
Internal Storage 1.2 TB maximum hot plug SCSI (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)

ML310T02 3.2/800-1M HP-SATA/SAS
376852-001
Processor(s) (1) Intel Pentium 3.20 GHz (standard)
Cache Memory 1MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Four port Integrated SATA Controller
Hard Drives None ship standard (up to 4 hot plug SATA or SAS drives)
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA and SAS drive configurations
Internal Storage 2.0 TB maximum hot plug SATA (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)

ML310T02 3.2/800-1M NHP SCSI
378279-002
Processor(s) (1) Intel Pentium 3.20 GHz (standard)
Cache Memory 1MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Single Channel Ultra320 SCSI controller in PCI slot
Hard Drives (1) 36.4 GB Ultra320 SCSI
Internal Storage 320 GB maximum (with optional hard drives)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)

ML310T02 3.2/800-1M NHP SATA80
381832-002
Processor(s) (1) Intel Pentium 3.20 GHz (standard)
Cache Memory 1MB Level 2 cache
Memory 512 MB (Standard) to 4 GB (Maximum) of Advanced ECC PC3200 DDR SDRAM DIMM Memory
Network Controller Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Storage Controller Four port Integrated SATA Controller
Hard Drives (1) 80GB Non hot plug SATA drive
Internal Storage 320 GB maximum non hot plug SATA (with optional hard drives)
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive None ship standard (Optional 1.44 MB Diskette Drive)
Form Factor Tower (5U) (Tower to Rack Enabling Option Kit available)
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: All configure-to-order servers must start with a CTO Chassis. Use the following section to order a server customized to your requirements with options integrated at the factory. The options you select in steps 2 and 3 will be integrated with the base configuration you select in step 1. Additional options selected in Step 4 will also be integrated when applicable.
NOTE: Standard models of this product offering (see previous section of this document) do not support HP Factory Express Server Configuration Level 1.
Step 1: Base Configuration
Models HP ProLiant ML310 Tower CTO Chassis NHP SCSI
381850-405
HP ProLiant ML310 Tower CTO Chassis NHP SATA
381851-405
HP ProLiant ML310 Tower CTO Chassis HP-SCSI
378559-405
HP ProLiant ML310 Tower CTO Chassis HP-SATA/SAS
378560-405
Factory Integrated Models ship with:
Embedded NC7761 PCI 10/100/1000T Gigabit network adapter
Integrated four Channel SATA Controller (included with 381851-405 and 378560-405 ONLY)
350 Watts, PFC (Power Factor Correcting)
Keyboard
Mouse
Tower 5U Form Factor

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted
ProcessorsCeleron Processor 2.80-GHz/533 MHz Front Side Bus, FIO
383872-L22
Pentium Processor 3.00-GHz/800 MHz Front Side Bus, FIO
390813-L22
Pentium Processor 3.20-GHz/ 800 MHz Front Side Bus, 1MB FIO
383871-L22
Pentium Processor 3.20-GHz/ 800 MHz Front Side Bus, 2MB FIO
383870-L22
Pentium Processor 3.40-GHz/ 800 MHz Front Side Bus, 1MB FIO
383869-L22
Pentium Processor 3.40-GHz/ 800 MHz Front Side Bus, 2MB FIO
383868-L22
Base Memory
256 MB Advanced ECC PC3200 DDR SDRAM DIMM Kit (1 x 256 MB)
354557-B21
512 MB Advanced ECC PC3200 DDR SDRAM DIMM Kit (1 x 512 MB)
1024 MB Advanced ECC PC3200 DDR SDRAM DIMM Kit (1 x 1024 MB)
Optical DriveCD-RW/DVD-ROM Combo Drive Option Kit
HP ProLiant 48X CD w/SCREWS
337863-B21
16X DVD-ROM Drive Option Kit (Carbon)
Base Hard DrivesNon-Hot Plug U320 SCSI Drives
NOTE: For use in Non-Hot Plug SCSI base configurations P/N 381850-405 or 381805-B21.
HP 36GB U320 15K NHP HDD
HP 72GB U320 10K NHP HDD
Hot Plug U320 SCSI Drives
NOTE: For use in Hot Plug SCSI base configurations P/N 378559-405 or 378559-B21.
HP 72GB U320 10K Universal HDD
HP 146GB U320 10K Universal HDD
HP 36GB U320 15K Universal HDD
HP 72GB U320 15K Universal HDD
Non-Hot Plug SATA Drives
NOTE: For use in Non-Hot Plug SATA base configurations P/N 381851-405 or 381851-B21.
HP 80GB 1.5G SATA 7.2K NHP 3.5" HDD
HP 160GB 1.5G SATA 7.2K NHP 3.5" HDD, FIO
399164-B21
HP 250GB 1.5G SATA 7.2K NHP 3.5" HDD, FIO
399165-B21
HP 500GB 1.5G SATA 7.2K 3.5" HDD
Hot Plug SATA Drives
NOTE: For use in Hot Plug SATA/SAS base configurations P/N 378560-405 or 378560-B21.
HP 80GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 250GB 1.5G SATA 7.2K 3.5" HDD
Hot Plug SAS 3.5" Drives
NOTE: for use in Hot Plug SATA/SAS base configurations P/N 378560-405 or 378560-B21.

HP 36GB 3G SAS 15K 3.5" HDD
HP 72GB 3G SAS 15K 3.5" HDD
HP 146GB 3G SAS 15K 3.5" HDD

Step 3: Choose Additional Factory Integratable Options
Controllers Smart Array 641 Controller
Smart Array 642 Controller
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Options

ProLiant Essentials
Value Pack Software
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372906-B21

NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12062_na/12062_na.HTML
ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at http://www.hp.com/products/pmp.

306696-B21

NOTE: For additional ProLiant Intelligent Networking Pack - Windows License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12062_na/12062_na.HTML
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
397004-B21
NOTE: For additional ProLiant Intelligent Networking Pack - Linux License Kits please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12327_na/12327_na.HTML

ProLiant Essentials Rapid Deployment Pack Windows Edition and Linux Edition Release
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-B21

NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.HTML
http://h18000.www1.hp.com/products/quickspecs/11713_na/11713_na.HTML
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372214-B21

ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
375345-B21
NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.HTML
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12111_na/12111_na.HTML
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Memory
(SDRAM DIMMs)

1024 MB Advanced ECC PC3200 DDR SDRAM DIMM (1 x 1024 MB)
512 MB Advanced ECC PC3200 DDR SDRAM DIMM (1 x 512 MB)
256 MB Advanced ECC PC3200 DDR SDRAM DIMM (1 x 256 MB)
354557-B21

Optical Drives



16X DVD-ROM Drive Option Kit (Carbon) 217053-B21 217053-B21
CD-RW/DVD-ROM Combo Drive Option Kit
NOTE: The DVD-ROM drive is supported in the CD-ROM bay and in the removable media bay. If placed in the removable media bay, it requires the 2-Device IDE cable (PN 305381-B21).
HP DVD+R/RW 16X Half Height

Diskette Drives 1.44MB Floppy Drive Option Kit
379257-B21

Serial Port Kit HP ProLiant 2nd Serial port option kit
390390-B21

Hard DrivesUltra320 - Universal Hot Plug (SCSI Hot Plug Models Only)
HP 300GB U320 10K Universal HDD
HP 146GB U320 10K Universal HDD
HP 72GB U320 10K Universal HDD
HP 146GB U320 15K Universal HDD
HP 72GB U320 15K Universal HDD
HP 36GB U320 15K Universal HDD
Ultra320 - Non-Hot Plug (SCSI Non Hot Plug Models Only)
HP 146GB U320 10K NHP HDD
HP 72GB U320 10K NHP HDD
HP 36GB U320 15K NHP HDD

NOTE: Please see the Wide Ultra320 Universal Hot Plug QuickSpecs for additional technical information on the hard drives Support details, please see the following:
http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.HTML

Serial-Attached SCSI (SAS) Hot Plug Hard Drive (SATA/SAS Hot Plug Models Only)
HP 146GB 3G SAS 15K 3.5" HDD
HP 72GB 3G SAS 15K 3.5" HDD
HP 36GB 3G SAS 15K 3.5" HDD
Serial-ATA (SATA) Hot Plug Hard Drive (SATA/SAS Hot Plug Models Only)
HP 250GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 80GB 1.5G SATA 7.2K 3.5" HDD
Serial-ATA (SATA) Non Hot Plug Hard Drive (SATA Non Hot Plug Models Only)
HP 80GB 1.5G SATA 7.2K NHP 3.5" HDD
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.HTML

Hard Drive Cables HP 4-port SATA/SAS cable (target fan cable)
389653-B21
NOTE: This cable is required when the HP 6-port SATA RAID controller is installed on hot plug SATA/SAS models of the ML310 G2. See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations.
HP 2-port SATA Cable
379093-B21
NOTE: This cable is required when the HP 6-port SATA RAID controller is installed on non-hot plug SATA/SAS models of the ML310 G2. See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations.

Storage Controllers

SCSI Controllers

NOTE: The following Storage Controllers are qualified for SCSI drives only. They do not support SATA or SAS Drives.

Smart Array 6402/128 Controller

Smart Array 6404/256 Controller

Smart Array 641 Controller

Smart Array 642 Controller

128MB Battery-Backed Cache Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
Ultra320 Expansion Module for SA-6402

64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter

64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
http://h18000.www1.hp.com/products/quickspecs/12067_na/12067_na.HTML
(Smart Array 641)
http://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.HTML
(Smart Array 642)
http://h18000.www1.hp.com/products/quickspecs/10429_na/10429_na.HTML
(Dual Channel SCSI Adapter)
http://h18000.www1.hp.com/products/quickspecs/11943_na/11943_na.HTML
(Single Channel SCSI HBA)
SAS Controllers
Smart Array P600 Controller
NOTE: Serial SCSI/ATA.
512MB DDR BBWC Upgrade
NOTE: Please see the following Controller QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
http://h18000.www1.hp.com/products/quickspecs/12247_na/12247_na.HTML
(Smart Array P600 Controller)

SAS HBA

HP 8 Internal Port SAS HBA with RAID
NOTE: Please see the HBA QuickSpecs for additional information:
http://h18000.www.1.hp.com/products/quickspecs/12332_div/12332_div.HTML

SATA Controller
HP 6-port SATA RAID Controller
NOTE: See the "Storage" section of these QuickSpecs for information on controllers and cables required to support SATA drive configurations

Communications HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC310F PCI-X 1000SX Gigabit Server Adapter
HP NC320T PCI Express 1000T Gigabit Server Adapter
HP NC1020 PCI 1000T Gigabit Server Adapter
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter

HP NC7771 PCI-X 1000T Gigabit Server Adapter

290563-B21 290563-B21

NOTE: NC61XX, NC71XX, NC77XX, or NC1020 network adapter (NIC) can be used for redundancy with the embedded NC7761 NIC. When either the embedded NC7761 or the NC1020 is teamed with other HP NICs, Jumbo Frames and LSO features are automatically disabled.

Management Options

Remote Insight Lights-Out Edition II

227251-001 227251-001


Tape Drives

NOTE: For the complete listing of Tape Drive offerings for this server, please visit:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:

USB Tape Drives
HP StorageWorks DAT 40 USB Internal Tape Drive (Carbonite)
DW022A
HP StorageWorks DAT 40 USB External Tape Drive (Carbonite)
DW023A
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)
DW026A
HP StorageWorks DAT 72 USB External Tape Drive (Carbonite)
Internal, External, and Rack-Mount Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
HP StorageWorks Ultrium 232 External Tape Drive (Carbonite)
HP StorageWorks Ultrium 448 Internal Tape Drive (Carbonite)
DW016A
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect.
Internal, External, and Rack-Mount DAT Drives
HP StorageWorks DAT 72 SCSI Internal Tape Drive (Carbon)
Q1522B
HP StorageWorks DAT 72 SCSI External Tape Drive (Carbon)
Q1523B
HP StorageWorks 1U Rack-mount kit with one DAT 72 (Carbon)
A7443A
NOTE: Please see the DAT Tape Drive QuickSpecs for controllers, media, and other options:
http://h18000.www1.hp.com/products/quickspecs/11883_na/11883_na.HTML
http://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html
For an up-to-date listing of the latest O/S and software support details for HP DAT drives, please visit: http://www.hp.com/go/connect.
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U Rack-Mount Kit
NOTE: The 1U Rack-mount Kit can support up to (2) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232 and Ultrium 448 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
1U USB Cable Option Kit
NOTE: Converts a 1U SCSI rack-mount kit to a USB interface to support the USB tape drives.
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.HTML

Tape Autoloaders
DAT Autoloader
HP StorageWorks DAT 72x6 Autoloader (Internal) Q1566A Q1566A
HP StorageWorks DAT 72x6 Autoloader (External)Q1567A Q1567A
NOTE: Please see the DAT 72x6 Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media:
http://h18006.www1.hp.com/products/quickspecs/11905_na/11905_na.html

HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 960 Tape Autoloader AF204A AF204A
HP StorageWorks 1/8 Ultrium 448 Tape Autoloader AF203A AF203A
HP StorageWorks 1/8 Ultrium 232 Tape AutoloaderAF202A AF202A
1/8 Tape Autoloader Rackmount Kit
NOTE: Required to install the unit in a standard 19-inch rack; includes rails and rackmount instructions
C9268R C9268R
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs

Tape Libraries HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library AG115A AG115A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library AG117A AG117A
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library AD606A AD606A
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library AD608A AD608A
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library AD607A AD607A
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609A AD609A
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library AD598A AD598A
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library AD600A AD600A
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library AD599A AD599A
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601A AD601A
NOTE: Please reference the MSL2024 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs.

Magneto-Optical Jukeboxes HP StorageWorks 9.1 GB Optical Jukeboxes
600mx, 4 drive, 64 slot jukebox
C1160M
1200mx, 4 drive, up to 128 slots
C1104M
2200mx, 6 drive, up to 238 slots
C1107M
NOTE: Please see the HP StorageWorks Magneto-Optical Products data sheet for a complete listing of available jukeboxes at: http://www.hp.com/products1/storage/products/archivalprod/brochures/
MO_family_pb.pdf

NOTE: Please reference the Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical for additional information needed to create a complete solution.

Ultra Density Optical Jukeboxes 1900ux, 4 drive, 64 slot jukebox AA966A
3800ux, 4 drive, 128 slot jukebox AA969A
7100ux, 6 drive, 238 slot jukebox AA971A
NOTE: Please see the HP StorageWorks Ultra Density Optical Jukeboxes QuickSpecs for a complete listing of available jukeboxes at:
http://h18006.www1.hp.com/products/quickspecs/11944_na/11944_na.html
NOTE: Please reference the Ultra Density Optical Jukebox QuickSpecs at http://www.hp.com/go/optical for additional information needed to create a complete solution


HP StorageWorks Modular Smart Array 30HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 Hot Plug Hard Drives.

Uninterruptible Power Systems – Tower Supply

HP T500 UPS 120 V
361475-001
HP UPS Model T700 (700VA, 500 Watt), Low Voltage
204015-001
HP T750 UPS
378439-D71
HP UPS Model T1000 XR (1000VA, 700 Watt), Low Voltage
204155-001
HP UPS Model T1500 XR (1440VA, 1050 Watt), Low Voltage

Uninterruptible Power Systems – Rack

HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage 326529-D71 326529-D71
HP UPS R1500 XR (100 to 127)
HP UPS R3000 XR (120V)
HP UPS R3000 XR (208V)
HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage
UPS R12000 XR N+ x (200-240V) (hardwired)
207552-B22
NOTE: The UPS R12000 XR has a hardwired input and output connection.

Modular PDUs 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
NOTE: This mPDU (252663-D71 252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.
252663-D71 252663-D71
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) 252663-D72 252663-D72
HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC)
NOTE: This mPDU (252663-B21 252663-B21), 40A model has a hardwired input.
252663-B21 252663-B21
HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC)
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR and R6000. Need to order cable PN 340653-001.
252663-B24 252663-B24
NOTE:Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.HTML

Rack Enabling Kit

ProLiant ML310/ML330 G2 Rack Enabling Kit
238547-B22
NOTE: Support for racks with round or square mounting holes (including all Compaq and HP Rack System /E and HP Systems), with an adjustment range of 24" – 36".

Other Internal to External SCSI Cable Option Kit (HD68)
159547-B22
Internal to External SCSI Cable Option Kit (VHDCI)
333370-B21
Telco Rack Option Kit
251243-B21
NOTE: Support for all 2-post Telco racks requires the use of the standard four post rack kit and an additional option kit from HP.

USB Options USB Optical Scroll Mouse (Carbonite) DD441B
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B

HP Rack 5000 Series (Graphite Metallic) HP 5642 Rack-Unassembled

Rack Options for Rack 5000 Series Stabilizer Kit for 5642 Rack (Graphite Carbon)
NOTE: The stabilizing kit is used to prevent rack from tipping over.
374493-B21
Baying Kit for 5642 Rack (Graphite Carbon)
NOTE: The baying kit is used to join two or more HP 5642 racks.
374499-B21

HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10642 G2 (42U) Rack Cabinet, without door - Shock Pallet
AF005A
10642 G2 (42U) Rack Cabinet - with Extension, without door - Shock Pallet
AF006A
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet , with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet
AF015A
10636 G2 (36U) Rack Cabinet, with Extension, without door - Shock Pallet
AF016A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.HTML

NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

Rack Options for Rack 10000 G2 SeriesHP 10642 G2 Front Door
AF009A
HP 10636 G2 Front Door
AF019A
10642 G2 (42U) Side Panels (set of two) (Graphite Metallic)
AF054A
10636 G2 (36U) Side Panels (set of two) (Graphite Metallic)
AF056A
10636 G2 Rear Extension Kit
AF060A
600mm G2 Stabilizer Option Kit (Graphite)
AF062A
600mm G2, Heavy Duty Stabilizer Option Kit (Graphite)
AF064A
800mm G2 Stabilizer Option Kit (Graphite)
AF066A
800mm G2, Heavy Duty Stabilizer Option Kit (Graphite)
NOTE: Supports 10000 G2 Series only.
AF068A
HP 10000 G2 Rack Grounding Kit
AF074A
600W 10K G2 Rack Tie Down
AF076A
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)
HP Rack S10614 (14U) Rack Cabinet - Shock Pallet
HP Rack 10842 (42U) Rack Cabinet - Pallet
HP Rack 10842 (42U) Rack Cabinet - Shock Pallet
HP Rack 10647 (47U) – Pallet
HP Rack 10647 (47U) – Crated
245160-B23
HP Rack 10642 (42U) – Pallet
HP Rack 10642 (42U) – Shock Pallet
HP Rack 10642 (42U) – Crated
245161-B23
HP Rack 10636 (36U) – Pallet
HP Rack 10636 (36U) – Shock Pallet
HP Rack 10636 (36U) – Crated
245162-B23
HP Rack 10622 (22U) – Pallet
HP Rack 10622 (22U) – Shock Pallet
HP Rack 10622 (22U) – Crated
245163-B23
NOTE: -B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks

NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML

NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/racks/index.html.

Rack Options for Rack 10000 Series

HP Rack Light Kit (Neon)
HP Rack Plinth Kit (Carbon)
42U Side Panel - Graphite Metallic
36U Side Panel - Graphite Metallic
47U Side Panel - Graphite Metallic
TFT7210R Rack Mounted 17" Monitor
NOTE: For a complete list of Monitors please view the following URL:
http://www.hp.com/go/kvm.
TFT5600 Rack Keyboard Monitor
NOTE: For a complete list of Monitors please view the following URL:
http://www.hp.com/go/kvm.
1U Rack Keyboard & Drawer (Carbon)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.

HP KVM Switch Options IP Console Switch Box (KVM/IP), 3 x 1 x 16
IP Console Switch Box (KVM/IP), 1 x 1 x 16
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x 4 USB/PS2 KVM Switch, TT
371301-D71
HP PS2 KVM Cable with audio, 6', 2-pack
371730-B21
HP USB KVM Cable with audio, 6', 2-pack
371729-B21
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

HP Serial Console Server Options HP 16 Port Serial Console Server
HP 48 Port Serial Console Server
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
U4445E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4446E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4447E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4448E
Installation & Start-up Services
Hardware Installation, Electronic
U4456E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4457E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4458E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4459E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U6306E

Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8328E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Memory

HP ProLiant ML310 G2 All Models

Standard Memory - Pentium 4 Models
512 MB PC3200 Unbuffered ECC DDR SDRAM installed (1 x 512 MB SDRAM DIMM)

Standard Memory Replaced with Optional Memory
Up to 4096 MB memory is available with the optional installation of PC3200 Unbuffered ECC DDR SDRAM DIMM Memory kits.



These systems support PC3200 DDR memory and come standard with a single PC3200
DIMM installed.

The system board provides four DIMM sockets:

  • Socket 1 (blue connector), channel A
  • Socket 2 (black connector), channel A
  • Socket 3 (blue connector), channel B
  • Socket 4 (black connector), channel B

DIMMs do not need to be installed in pairs although installation of pairs (an equal DIMM for each channel) provides the best performance. The BIOS will detect the DIMM population and set the system accordingly as follows:

  • Single-channel mode - DIMMs installed for one channel only
  • Dual-channel asymmetric mode - DIMMs installed for both channels but of unequal channel capacities.
  • Dual-channel interleaved mode (recommended) - DIMMs installed for both channels and offering equal channel capacities, proving the highest performance.

These systems require DIMMs with the following parameters:

  • Unbuffered
  • 256 MB, 512 MB, and 1 GB memory technology
  • PC3200
  • ECC DIMMs only

The first DIMM should be installed in Socket 1. A DIMM should not be installed in Socket 2 without a DIMM in Socket. Likewise a DIMM should not be installed in Socket 4 without a DIMM in Socket 3. A DIMM need not be installed in Socket 2 in order to install a DIMM in Socket 3.

The table below shows some of the suggested memory configurations for these systems.

NOTE: Table below does not list all possible configurations. Balanced-capacity, dual-channel loading yields best performance.

Channel A

Channel B

Total

Mode

Socket 1 Socket 2

Socket 3

Socket 4

256 MB

none
none
none
256 MB
Single-channel
256 MB
none
256 MB
none
512 MB
Dual-channel interleaved
512 MB
none
none
none
512 MB
Single-channel
512 MB
none
512 MB
none
1 GB
Dual-channel interleaved
1 GB
none
none
none
1 GB
Single-channel
1 GB
none
1 GB
none
2 GB
Dual-channel interleaved
1 GB
1-GB
1 GB
none
3 GB
Dual-channel asymmetric
1 GB
1-GB
1 GB
1 GB
4 GB
Dual-channel interleaved
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Storage

A,
48x IDE (ATAPI) CD-ROM
B, C
Removable Media Bays (1.6" each)
0, 1, 2, 3 Four Non-Hot Plug Drive Bays, or Four Hot Plug Drive Bays



Drive Support




Quantity
Supported

Position
Supported


Controller

Removable Media


1.44-MB Diskette DriveUp to 1 A, B, or C Integrated
IDE (ATAPI) CD-ROM DriveUp to 2 A, B, or C Integrated IDE (ATAPI)
DVD-ROM Drive Option KitUp to 2 A, B, or C Integrated IDE (ATAPI)

Hard Drives

Ultra320 SCSI - Non-Hot Plug (Non-Hot Plug SCSI models only)


Quantity
Supported

Position
Supported


Controller

36.4GB U320 15K
72.8GB U320 15K
146.8GB U320 15K

Up to 40,1, 2, or 3

Single Channel Ultra320 SCSI Adapter (SCSI Models)
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter


Ultra320 SCSI -Hot Plug (Hot Plug SCSI models only)


Quantity
Supported

Position
Supported


Controller

300GB U320 10K
146.8GB U320 10K
72.8GB U320 10K
146.8GB U320 15K
72.8GB U320 15K
36.4GB U320 15K

Up to 40,1, 2, or 3Single Channel Ultra320 SCSI Adapter (SCSI Models)
Smart Array 6404/256 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter

Hot Plug SAS - (Hot Plug SATA/SAS Models Only)


Quantity
Supported

Position
Supported


Controller

36GB 3G SAS 15K
72GB 3G SAS 15K
146GB 3G SAS 15K

Up to 4 0, 1, 2, 3

Smart Array P600 Controller

NOTE: Use of SAS hard drives in SATA/SAS models requires installation of the Smart Array P600.

Hot Plug Serial ATA - (Hot Plug SATA/SAS Models Only)


Quantity
Supported

Position
Supported


Controller

80GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
Up to 4*
0, 1
Integrated four port SATA Controller  with RAID 0/1

Up to 2*

0, 1, 2, 3Integrated four port SATA Controller with RAID 0/1
Up to 40, 1, 2, 3HP 6-port SATA RAID controller
*NOTE: A maximum of two hard drives are supported when integrated RAID is enabled. Use of hot plug SATA hard drives in positions 2 and/or 3 requires either a non-RAID configuration or installation of the HP 6-port SATA RAID controller (P/N 372953-B21 372953-B21) and the HP 4-port SATA/SAS target fan cable (P/N 389653-B21).
NOTE: Hot plug capability and drive LED status support requires installation of the HP 6-port SATA RAID controller.

Non-Hot Plug SATA - (Non-Hot Plug SATA models only)


Quantity
Supported

Position
Supported


Controller

80GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
Up to 2*
0, 1Integrated four port SATA Controller
Up to 4*
0, 1, 2, 3
Integrated four port SATA Controller with RAID 0/1
Up to 4*0, 1, 2, 3HP 6-port SATA RAID controller
*NOTE: A maximum of two hard drives are supported when integrated RAID is enabled. Use of non-hot plug SATA hard drives in positions 2 and/or 3 requires either a non-RAID configuration or installation of the HP 6-port SATA RAID controller (P/N 372953-B21 372953-B21) and two of the HP 2-port SATA/SAS cables (P/N 379093-B21).
NOTE: Drive LED status support requires installation of the HP 6-port SATA RAID controller.

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

Modular Smart Array 30 Family   External Smart Array 642 Controller

Maximum Storage Capacity - SATA Models (SCSI Attached (Enclosure))

Internal

1.0TB (4 x 250GB)
External29.40TB (14 x 300GB) x 7 (Requires additional SCSI controllers in slots)
Total30.40TB


Maximum Storage Capacity - SCSI Models (SCSI Attached (Enclosure))

Internal

1.2TB (4 x 300GB hot-plug hard drives)
External29.40TB (14 x 300GB) x 7
Total30.60TB

Tape Drives, Tape Autoloaders & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/North_America/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/North_America/10809.html

NOTE: For complete listing of tape drive offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

  Quantity
Supported
Position
Supported


Controller

HP StorageWorks Tape Drives, USB Internal
DAT 40 USB
DAT 72 USB

1
B,C Embedded USB port


HP StorageWorks Tape Drives, USB External
DAT 24 USB
DAT 40 USB
DAT 72 USB

1 per USB port External USB port

HP StorageWorks Tape Drives, Internal
Ultrium 232
Ultrium 448
Ultrium 460
Ultrium 960
DAT 40
DAT 72
DLT VS80
DLT VS160
SDLT 320
SDLT 600
1 B,C64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Drives, Internal
Ultrium 232
Ultrium 448
Ultrium 460
Ultrium 960
DAT 40
DAT 72
DLT VS80
DLT VS160
SDLT 320
SDLT 600
1 B,C64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Drives, External
Ultrium 960
SDLT 600
1 per SCSI Channel External64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Autoloaders, Internal
DAT 72x6 Tape Autoloader
1 B,C64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Autoloaders, External
DAT 72x6 Tape Autoloader
1/8 Tape Autoloader
1 autoloader per SCSI channel External64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 960-based)
MSL2024 (Ultrium 448-based)
MSL6000 (Ultrium 960-based)
MSL6000 (SDLT 600-based)
MSL6000 (Ultrium 460-based)
MSL5026S2 (SDLT 320-based)
MSL5052S2 (SDLT 320-based)
Please reference the MSL Tape Library QuickSpecs to determine configuration requirementsExternalPlease consult the EBS connectivity matrix at http://www.hp.com/go/ebs for detailed connectivity information.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Technical Specifications

System Unit Dimensions (HxWxD) 17.0 x 7-7/8 x 22 in (43.0 x 20.0 x 55.0 cm)
Weight(approximate) 37 lb (16.8 kg)
Input Requirements
(per power supply)
Range Line Voltage 100-127V and 200-240V
Normal Line Voltage115 to 230 VAC
Line Frequency 50 to 60 Hz
Rated Input Current < 6A RMS at 90VAC with maximum load
BTU Rating1,560 BTU
SCSI Connectors
(SCSI Models only)
One internal HD68 connectors
NOTE: Support for either one internal or one external SCSI channel is available. This is achieved using an internal to external SCSI cable option kit (PN 159547-B22) and SCSI knockout bracket.
Power Supply Output PowerRated Steady-State Power 350W
Maximum Peak Power 370W
Temperature RangeOperating50° to 93° F (10° to 35° C)
Shipping-40° to 150° F (-40° to 66° C)
Relative Humidity
(non-condensing)
Operating20% to 80%
Non-operating5% to 90%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.7
L pAm (dBA)
40
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
5.7
L pAm (dBA)
40

Non-Hot Plug Wide Ultra320 SCSI Hard Drives 36.4 GB 15K Capacity 36419.2 MB
357012-B21 357012-B21 Height 1 in (2.54 cm)
  Width 4 in (10.16 cm)
  Interface Ultra320 SCSI
  Transfer Rate Synchronous
(Maximum)
320 MB/s
  Seek Time
(typical reads, including settling)
Single Track 0.4 ms

Average 3.8 ms
Full-Stroke 8 ms
Rotational 15,000 rpm
  Physical Configuration Bytes/Sector
512
Logical Blocks 71,132,000
  Operating Temperature 50° to 95° F (10° to 35° C)

Non-Hot Plug SATA/100
Hard Drives

80 GB 7.2K
Capacity 80,000 MB
383410-B21 383410-B21 Height 1.028 in/2.611cm
  Width 4.0 in/10.16 cm
  Interface Serial ATA
  Transfer Rate Synchronous
(Maximum)
1.5 Gb/s
  Seek Time
(typical reads, including settling)
Single Track 0.9 ms
Average 9.0 ms
Full-Stroke 17.0 ms
Rotational 7,200 rpm
  Physical Configuration Bytes/Sector
512
Logical Blocks 156,301,488
  Operating Temperature 41° to 131° F (5° to 55° C)

48X Max IDE (ATAPI)
CD-ROM Drive

Disk

Applicable Disk

CD-ROM, CD-XA, CD-DA (Mode 1, Mode 2, Form 1 and 2)
  Photo CD (Single and Multi-session)
  Mixed Mode (Audio and Data combined)
    CD-R


Capacity

540 MB (Mode 1, 12 cm)
    650 MB (Mode 2, 12 cm)

Block Size

Mode 1

2,048 bytes


Mode 2

2,340 bytes, 2,336 bytes


CD-DA

2,352 bytes
 CD-XA2,328 bytes

Interface

IDE (ATAPI)



Access Times (typical)

Random

<100 ms

Full-Stroke

<150 ms

Data Transfer Rate

Sustained

3000 to 7200 KB/s (20X to 48X)
Burst150 KBps to 7,200 KBps

Bus Rate

16.7 MBps

Cache Buffer

128 KB



Start-up Time (typical)

< 7seconds


Stop Time< 4seconds

Laser Parameters

TypeSemiconductor Laser GaA1As

Wave Length

780 ± 25 nm

Operating Conditions

Temperature

41° to 113° F (5° to 45° C)

Humidity

10% to 80%

Dimensions

(HxWxD, maximum)

1.7 x 5.85 x 8.11 in (4.29 x 14.86 x 20.60 cm)


Weight

2.09 lb (0.95 kg)

Embedded NC7761 PCI 10/100/1000T Gigabit network adapter

Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method 32-bit bus-master PCI
Network Transfer Rate 10Base-T(Half-Duplex) 10 Mb/s
10Base-T(Full-Duplex) 20 Mb/s
100Base-TX(Half-Duplex) 100 Mb/s
100Base-TX(Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)

Integrated 4 Channel SATA Controller
(SATA NHP Models only)

Drives Supported Up to 4 SATA hard drives (1 drive/channel)
Channels 4
Storage Capacity 1 TB
Maximum SATA Channel Transfer Rate 150 MB/s per channel
SATA Protocols SATA-1a
Internal SATA Connectors One 4-lane connector (all four channels)

Single Channel Ultra320 SCSI Adapter
(SCSI Models only)

Drives Supported Up to 15 SCSI devices Wide
Data Transfer Method 64-bit/100-MHz PCI bus-master
SCSI Channel Transfer Rate 320 MB/s per channel
Maximum Transfer Rate per PCI Bus (peak) 1033 MB/s per channel
SCSI Protocols Ultra320, Wide Ultra3, Wide Ultra2, Wide Ultra SCSI-3, Fast-Wide SCSI-2, and Fast SCSI-2
Fast SCSI-2
Electrical Protocol Low Voltage Differential (LVD)
SCSI Termination Active Termination
External SCSI Connectors None.
NOTE: To implement an external SCSI connection, install an optional controller or internal to external SCSI option kit (part number 159547-B22 for HD68 or 333370-B21 for VHDCI).
Internal SCSI Connectors One 68-Pin Wide Ultra SCSI-3 connectors
