HDD

• Support for Intel® Xeon® 5600, X5690, X5675, E5649, E5645, X5687, X5672, E5607, E5606 and E5603 processor kits

Microsoft Windows Server
Oracle Solaris
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
Citrix Essentials for XenServer (Retail)

32MB shared supporting all display resolutions up to 1600x1200 16bpp@75Hz
NOTE: 8MB is dedicated to video memory.

HP LO100 with Optional LO100 Advanced Licenses for Virtual KVM and Virtual Media.

Features:

• Embedded IPMI standard reporting
  System event log access
• Remote Serial console (serial redirection)
• Browser, Telnet access
• SMASH-CLP compliant
• IPMI 2.0 compliant
• Secure Socket Layer Encryption
• Secure Shell Encryption
• Virtual media (Floppy, CD, USB 2.0) with Advanced License
• Virtual KVM with Advanced License

NOTE: For more information, see: http://www.hp.com/go/lo100

HP Insight Control for Linux, as a product option, delivers essential lifecycle management that can help save time and money by integrating discovery, server deployment, firmware updates & provisioning, health & performance management, remote management, and virtualization. This makes it easy to optimize your IT infrastructure through a single, simple management console. The IC-Linux installs and licenses software modules that are integrated into HP System Insight Manager (HP SIM).

HP Insight Control for Linux serves environments requiring a Linux-based management console. See www.hp.com/go/ic-linux.

HP Insight Control for Linux includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options; downloaded from Software and Drivers download pages website at: http://www.hp.com/go/support and from www.hp.com/servers/easysetup. Contains the following:

• HP Insight Management Agents for Systems Insight Manager (SIM) Integration
• HP Systems Management Homepage
• Array Configuration Utility (ACU)
• Array Diagnostics Utility (ADU)
• HP Insight Diagnostics

HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator.

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and ROI
When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and network infrastructures with our packaged HP Care Pack Services for servers and storage.

Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good news that can also create problems stemming from depending on standard warranties designed to only protect against product defects and some downtime causes. Using a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks and provides operational consistency for mission-critical and standard business computing.

HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software support services suite sold separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition with HP Proactive Select, you can acquire the specific proactive constancy and technical services. HP Proactive Select menu offers a broad set of service options that you can mix and match depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software, environment and education services.

HP server and storage lifecycle support services offers a full spectrum of customer care-from technology support to complex migrations to complete managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server and storage investments. HP Financial solutions extend innovative financing and cost-effective asset management programs-from purchase to equipment retirement.

Learn more: www.hp.com/services/servers and www.hp.com/services/storage

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

• Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
• Customers purchasing from a commercial reseller can find HP Care Pack Services at
  www.hp.com/go/lookuptool

3-Year HP Hardware Support Onsite Service, 4-hour response, 13x5
Delivers increased equipment availability and productivity with rapid-response onsite and remote support for your HP server and storage hardware.

The benefits include:

• Help improve or maintain system uptime
• Convenient onsite support
• Committed response time

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

3-Year HP Hardware Support Onsite Service, Next-day response (9x5)
Provides high-quality remote assistance and onsite support for your covered hardware, helping you to improve product uptime.

The benefits include:

• Help improve or maintain system uptime
• Convenient onsite support
• Reliable response time

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

HP ProLiant Server Hardware Installation
HP ProLiant Server Hardware Installation. Provides for the basic installation of HP branded servers, storage devices and networking options.

The benefits include:

• Expedited installation, with all service prerequisites met before the installation is performed
• Installation in accordance with manufacturer's specifications, enhancing the supportability of your HP-installed hardware and software
• Service delivery at a mutually scheduled time
• Allows your IT resources to stay focused on their core tasks and priorities
• Availability of an HP service specialist to answer questions during the onsite delivery of this service

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN

3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
As an alternative to our recommended support level, for customers who need same day response service level 24x7.

Provides you with an HP authorized representative who will arrive at the Customer's site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service -6 or 24-hour CTR
As an alternative to our recommended support level, for customers who need committed call-to-repair for server hardware.

Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 or 24 hours of the initial service request to the HP Global Solution Center.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN

HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services and education courses.
Provides a flexible way to purchase HP best-in-class consultancy and services. You can buy Proactive Select Service Credits when you purchase your hardware then use the credits over the next 12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

• Access to self-solve tools (including search technical knowledge base)
• Efficient logging and tracking of support cases
• Collaboration with other business and IT professionals
• Download of patches and drivers
• Access to diagnostic tools
• Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24 X 7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world. In many cases, you can avoid problems before they occur.

HP Education Services
In today's cost-conscious business environment, IT professionals, developers, consultants and users face an interesting challenge: how to keep up with the latest technologies and expand important skills while delivering profitable results on current projects. To help address this challenge, HP offers innovative training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related topics-while spending less time away from business-critical activities.

HP Technology Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction.

To learn more on HP ProLiant servers, HP BladeSystem servers and HP StorageWorks storage products, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/proliant or www.hp.com/services/bladesystem or http://www.hp.com/hps/storage

Non-Hot Plug Serial ATA (SATA) Pre-configured Models
NOTE: Non-Hot Plug models are not upgradeable to Hot Plug.
NOTE: The addition of a Smart Array controller and the HP NHP Internal Mini SAS/SATA 4 port cable kit (P/N 487734-B21) is required to support SAS Non-Hot Plug hard drives.

HP DL160G6 E5504 NHP SATA, 4GB
490427-xx1

HP DL160G6 L5520 NHP SATA, 4GB
490432-xx1

Hot Plug Serial ATA (SATA)/ Serial Attached SCSI (SAS) Pre-configured Models
NOTE: To enable Hot Plug functionality for P/N's 590159-xx1 and 590160-xx1 use a HP Smart Array P210 Controller or HP Smart Array P410 Controller or HP Hot Plug Advance Pack

HP DL160G6 L5630 Cold Plug, 4GB
590159-xx1

HP DL160G6 E5506 Cold Plug, 4GB
590160-xx1

HP DL160G6 E5620 Hot Plug, 4LFF, 8GB
590161-xx1

HP DL160G6 X5650 Hot Plug, 24GB, 2P
590162-xx1

HP DL160G6 E5606 1P 4GB Entry Svr
637235-xx1

HP DL160G6 E5504 Hot Plug, 4GB
490442-xx1

HP DL160G6 E5520 Hot Plug, 6GB
490454-xx1

HP DL160G6 X5550 Hot Plug, 4LFF, 12GB, 2P
490455-xx1

HP Unique Options

HP Drive Cage Options

HP Optical Drives

HP Security - TPM

HP I/O Accelerator Options

HP Graphics Options

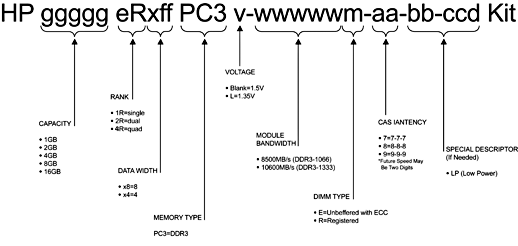

DIMM slot and configuration diagrams
Basic memory slot & population diagram

• Population order; start with "A" first, "B" second, "C" third, etc.

Standard memory configuration (1 CPU model)

• 6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs

Standard memory plus optional memory (1 CPU model)

• 54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs
• 3x 2GB dual-rank PC3-10600 RDIMMs
• 6x 8GB dual-rank PC3-10600 or PC3-8500 RDIMMs

Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration

• 96GB, consisting of six (6) 16GB quad-rank PC3-8500R-7 RDIMMs

UDIMM maximum configuration (1 CPU model)

• 24GB, consisting of six (6) 4GB dual-rank PC3-10600 UDIMMs

Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration

• 192GB, consisting of twelve (12) 16GB quad-rank PC3-8500R-7 RDIMMs DDR3 Registered (RDIMM) memory, operating at 800MHz when populated at 2 DIMMs per Channel in 12 slots.

UDIMM maximum configuration (2 CPU model)

• 48GB, consisting of twelve (12) 4GB dual-rank PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when populated at 2 DIMMs per Channel in 12 slots.

External Storage

HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive

Smart Array P410/410i Controller

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
