   Proliant BL20p G4 QuickSpecs  US QuickSpecs
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Overview

HP ProLiant BL20p Generation 4 (G4) Server Blade

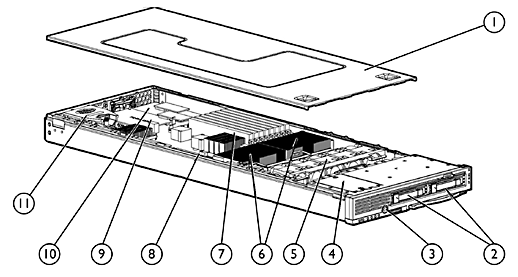

HP ProLiant BL20p G4 Server Blade
1.
Access Panel
7.
Eight (8) PC2-5300 Fully Buffered DIMMs (DDR2-667) Memory Slots
2.
Support for up to two SFF SAS/SATA hard drives
8.
Smart Array E200i SAS RAID Controller
3.
Power On/Standby button
9.
Fibre-channel mezzanine card (optional)
4.
Optional 128MB battery-back write cache and internal USB connector
10.
NIC Mezzanine card (optional)
5.
Fan Assembly for chassis cooling
11.
Power converter modules
6.
Up to 2 Dual-Core Intel Xeon 5100 Sequence Processors


What's New
  • One year of 24 x 7 HP Software Technical Support and Update Service included with Insight Control management suites and select ProLiant Essentials Licenses.

At A Glance

This document covers the HP ProLiant BL20p G4 server blade only. For more information on HP BladeSystems p-Class Infrastructure and HP BladeSystem p-Class Interconnect Components, please see the following QuickSpecs:
HP BladeSystem p-Class Infrastructure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.HTML
and HP BladeSystem p-Class Interconnect Components QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12331_div/12331_div.HTML

  • Performance dual processor server blade designed with enterprise availability
  • HP ProLiant BL20p Generation 4 server blade includes:
  • Processors:
    • Up to two Quad-Core Intel® Xeon™ processors 5300 Sequence
    • Intel 5000p Chipset
  • Memory:
    • 1048 MB or 2048 MB PC2-5300 Fully Buffered DIMMs (DDR2-667) (at 533 MHz on processors with 1066 MHz Front Side Bus (FSB) memory standard, (2 x 1 Interleaved Memory), 8 DIMM slots, expandable to 32 GB maximum with optional Online Spare and memory mirroring support.
  • Storage Controller:
    • Smart Array E200i SAS RAID Controller (with optional battery-backed write cache) with RAID 0, 1 and 0+1 support
  • Internal Drive Support:
    • Supports up to two SFF SAS hot plug hard drives. (Support for SATA hard drives via Factory Integration Only)
  • Network Controller:
    • Two embedded NC373i Multifunction Gigabit Server Adapters with TCP/IP Offload Engine
  • Expansion Slots:
    • Two additional ports available with one of two optional mezzanine cars:
      • NC320m Dual Port PCI Express Gigabit Server Adapter
      • NC374m Dual Port PCI Express Multifunction Gigabit Server Adapter with TCP/IP Offload Engine
    • Dual-Port Fibre Channel Adapter (2-Gb) option for SAN connectivity
    • Emulex-based or QLogic based Fibre Channel Mezzanine card for HP p-Class BladeSystem
    • One additional 10/100 NIC dedicated to iLO2 Management
  • USB Ports:
    • I/O cable with two USB ports, one video port, one iLO2 port and kernel debug port. The cable was specifically designed to aid in initial server image deployment.
  • Redundancy:
    • Five fans for sufficient cooling
  • Form Factor:
    • HP ProLiant BL20p G4 server blade plugs vertically into 6U enclosure
  • Management:
    • Integrated Lights-Out 2 featuring Integrated Remote console with high-performance Virtual KVM and embedded system health
    • New Power Regulator for ProLiant delivering server level, policy based power management with industry leading energy efficiency and savings on system power and cooling costs.
    • Deployment/Serviceability:
    • Integrated Access Tool for blade management and enhanced server blade documentation including Best Practices and Common Procedures guides
  • Warranty:
    • Protected by HP Services and a worldwide network of resellers and service providers. Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Standard Features (Server Blade)

NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA0-5754ENW.pdf
Processor Quad-Core Intel Xeon process X5355 (2.66 GHz, 1333 FSB)
Quad-Core Intel Xeon process E5345 (2.33 GHz, 1333 FSB)
Quad-Core Intel Xeon processor E5320 (1.86 GHz, 1066 FSB)
Quad-Core Intel Xeon processor E5310 (1.60 GHz, 1066 FSB)
Dual-Core Intel Xeon processor 5160 (3.00 GHz, 1333 FSB)
Dual Core Intel Xeon processor 5150 (2.66 GHz, 1333 FSB)
Dual Core Intel Xeon processor 5148 (2.33 GHz LV, 1333 FSB)
Dual-Core Intel Xeon processor 5140 (2.33 GHz, 1333 FSB)
Dual-Core Intel Xeon processor 5130 (2.00 GHz, 1333 FSB)
Dual-Core Intel Xeon processor 5120 (1.86 GHz, 1066 FSB)
Dual-Core Intel Xeon processor 5110 (1.60 GHz, 1066 FSB)
Dual-Core Intel Xeon processor 5080 (3.73 GHz, 1066 FSB)
Dual-Core Intel Xeon processor 5060 (3.2 GHz, 1066 FSB)
Dual-Core Intel Xeon processor 5050 (3.0 GHz, 667 FSB)

Upgradeability Upgradeable to dual processing (2 Processors)

Cache Memory
2x4MB Level 2 Cache memory (5300 Sequence)
1x4MB Level 2 cache memory (5100 Sequence)
1x4MB Level 2 cache memory (5100 Sequence)

Chipset Intel 5000p chipset
NOTE: For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/

Memory Protection Advanced ECC (multi-bit error protection)
Online spare and Mirroring
2-way interleaving

Memory Type PC2-5300 Fully Buffered DIMMs DDR2-667 (at 533MHz on processors with 1066 MHz FSB)
Standard 1024 MB or 2048 MB
(Depending on model)
Maximum 32 GB (8x4GB)

Network Adapter Five network adapters total:
Two NC373i PCI-X Gigabit Multifunction NICs (embedded) with WOL and PXE
One 10/100 iLO2 NIC dedicated to management
NOTE: Must use HP BladeSystem p-class server blade enclosure with enhanced backplane to utilize all four NIC's (281404-B22).

Expansion Slots No PCI slots all features are integrated
I/O cable connectors:
(2)USB ports, (1) video port, (1) iLO port and (1) kernel debug port
(2) I/O cable ships with every server blade enclosure
Tested USB devices (keyboard, mouse, floppy) are listed in the "Options" section of this QuickSpecs

Integrated Manageability Integrated Lights-Out 2 (iLO 2) Standard Blade Edition (includes virtual KVM and graphical remote console at no additional cost)

Internal Storage Hard Drives None ship standard

Maximum Internal Storage SAS 292GB (internal drive cage)
(2 x 146GB SAS SFF, drives)
SATA 240GB (internal drive cage) (2x120GB SATA SSF drives)

Graphics Integrated ATI Rage XL Video Controller with 8-MB SDRAM Video Memory

Graphics Resolution Supported Resolution Color Depths Depths 1280 x 1024, 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16

Fiber Channel on the
HP ProLiant BL20p G4 server blade
Two optional fiber channel adapters are supported by the HP ProLiant BL20p G4. Both adapters are mezzanine circuit boards which connect directly to the server blade system board. These optional fiber channel adapters are available via option kits and must be ordered separately
  • QLogic based
  • Utilizes a QLogic ISP2312 chipset
    • The Qlogic BL20pG4 dual-port Fibre Channel Adapter (P/N 361426-B21 361426-B21) is compatible with the HP ProLiant BL20p G4 server blade. Cannot be used for HP ProLiant BL20p G2 or HP ProLiant BL25p/30p/35p/40p/45p server blades)
    • Includes two small form factor pluggable transceivers with LC connectors for installation into the Patch Panel 2, CGESM or GbE2 Interconnect Switch (with the Storage Connectivity Kit)
  • Emulex-based
    • Utilizes an Emulex Thor chipset
    • The Emulex based HP ProLiant 20p G4 Dual Port Fibre Channel HBA (P/N 394757-B21 394757-B21) is compatible with the HP ProLiant BL20p, server blade. It cannot be used with HP ProLiant BL25p/30p/35p/40p/45p server blades.
    • There are no SFP's included in the Emulex mezzanine kit for use with ProLiant BL p-Class Fibre Channel pass-through interconnects. If you require SFPs for use with an Emulex mezzanine and a FC pass through interconnect please order an SFP option kit (P/N 397577-B21 397577-B21) which will provide 2 FC SFPs per option kit.
  • Two ports on each Dual-port Fibre Channel Mezzanine Card provide a redundant Fibre Channel connection to each server blade
  • Supports up to 2 Gb/s Fibre Channel equipment
  • The HP ProLiant BL20p G4 server blade can be ordered with the Dual-port Fibre Channel Adapter installed or the Dual-port Fibre Channel Adapter Option Kit can be ordered separately.
Compatible SAN

HP ProLiant BL20p G4 server blades are optimized for StorageWorks arrays

  • HSG80 (MA8000, EMA12000, EMA16000); EVA5000; EVA3000; XP48, XP128, XP512, XP1024; HP StorageWorks Modular Smart Array 1000

HP ProLiant 20p G4 server blades are compatible with select 3rd party SANs (please see blade storage page for more details: http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/storage.html)

contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Standard Features

ProLiant Essentials Foundation Pack Software for the ProLiant BL Server

HP Systems Insight Manager HP Systems Insight Manager (HP SIM) help maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. HP SIM is easy to set up to work with the Insight Management Agents, integrated Light-Out and Remote Insight Light-Out Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration. With HP Systems Insight Manager customers will also be able to take advantage of role-based security; the ability to manage ProLiant, Integrity, and HP9000 systems; and plug-ins for storage, client, printer, and power management as well as server rapid deployment, performance management, and workload management. For more details on HP Systems Insight Manager visit http://www.hp.com/go/hpsim.
ProLiant Essentials Rapid Deployment Pack

Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the Altiris Deployment Solution and ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP CD includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with blade servers. For more information, visit http://www.hp.com/servers/rdp.

Management Agents The Management Agents form the foundation for HP's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to HP Systems Insight Manager and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management Web site at http://www.hp.com/servers/manage.
Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest drivers and firmware fully optimized and tested for your ProLiant server and options, available on the RDP Media kit, SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at http://www.hp.com/go/support
Insight Diagnostics Online Edition The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials

Optional ProLiant Essentials Value Packs

Starting July 9, 2007, HP Insight Control management suites and most HP ProLiant Essentials will include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. From more information about this service, please visit: http://www.hp.com/services/insight.

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Performance Management Pack (offered exclusively through the Insight Control suites) - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources
  • Server Migration Pack - P2P Edition: Upgrading or replacing your existing server? Effortlessly transition to new servers with automated, accurate and affordable migration of OS, application and data.
  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
  • Virtualization Management Software - Get the most out of server virtualization by unifying the management of physical and virtual servers in HP Systems Insight Manager. The Virtual Machine Management Pack plug-in provides central management and control of VMware and Microsoft virtual machines and provides physical host to virtual machine association. The Server Migration Pack plug-in automates the manual task of migrating servers between physical or virtual platforms.
  • Vulnerability and Patch Management Pack (offered exclusively through the Insight Control suites) - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats.

NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.


Optional Remote Management
  • Insight Control Environment for BladeSystem - is based on HP Systems Insight Manager and ProLiant Essentials software, and brings the value of Insight Control to ProLiant customers by delivering comprehensive health and performance monitoring, remote control, vulnerability scanning and patch management as well as flexible deployment and power management through an integrated installation package and streamlined licensing. For more information, visit: http://www.hp.com/go/ice
  • Integrated Lights-Out Select Pack - upgrades the iLO 2 processor with enhanced console sharing and replay, virtual media (floppy, CD/DVD, USB key), virtual folders, historical power reporting, power capping and enterprise security (directory services and two-factor authentication) for servers managed using remote consoles available in iLO 2 Standard and iLO 2 Standard Blade Edition.

SmartStart SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and consistent server configurations. SmartStart 7.00 and later can now deploy the HP ProLiant BL20P G4 and HP ProLiant BL40P server blades, using the I/O port with an attached USB CD-ROM device. To obtain a copy of SmartStart for your blade server, redeem the coupon that is included with your Blade server or order your copy from the SmartStart web site. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.51

OS Support Microsoft Windows 2000 Server
Microsoft Windows 2000 Advanced Server
Windows Server 2003, Standard Edition
Windows Server 2003, Enterprise Edition
Red Hat Enterprise Linux
SUSE Linux Enterprise Server

NOTE: For a more complete and up-to-date listing of supported RoHS and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the ProLiant BL p-Class, please see: http://www.compaq.com/support/files/server/us/index.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux website at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & Bladesystem Server Linux matrix http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html


Supported Software Options

VMware Virtualization Software

NOTE: For more information on HP's Certified and Supported HP ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html


Intelligent Manageability

Integrated Lights-Out 2 (iLO2) Standard blade Edition (integrated on motherboard)

  • Virtual KVM based remote console
  • Virtual media (single server, browser based access only)
  • Remote Serial Console
  • Virtual Power Button Control
  • Virtual Unit ID control
  • Integrated Remote Console
  • Dedicated network connectivity
  • Embedded system health
  • Browser, command line and scripted access
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell security (SSH)
  • OS independent hardware health status
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege
  • Single sign-on from HP BladeSystem Onboard Administrator

Availability

Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
Two hot-plug SAS hard drive bays and a Smart Array E200i SAS RAID Controller on every server (Battery-backed write cache is optional.)
Redundant ROM on each server blade
ECC Memory
Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)


Security Power-on password
Administrator's password
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services on your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.


HP Enterprise Configurator

The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.


Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
NOTE: Server Blade Limited Warranty includes 3 year Parts, 1 year Labor, 1-year on-site support. This warranty supports the HP ProLiant BL30p and HP ProLiant BL35p Server Blades.
NOTE: Server Blade Enclosure Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
NOTE: Server Blade Interconnect Limited Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support

The HP Care Pack service part numbers below for ProLiant BL p-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

HP Care Pack services for HP BladeSystem p-Class server blade enclosure covers the enclosure including patch panels, HP supported Ethernet interconnects, power enclosure with power supplies and power distribution.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalize on your HP BladeSystem servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vendor support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a HP BadeSystem server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years.

Continuance Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years.

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of HP BladeSystem servers - and free customers IT support staff to focus on what they do best, their business.

  • Installation & Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced Network Installation and Start-UP as per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

For a complete listing of service offerings and information visit:
http://www.hp.com/services/bladesystemservices
http://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Models

Quad-Core Models

HP BL20pG4 X5355 2GB (1P)
435553-B21

HP ProLiant BL20pG4 E5345 2GB (1P)
435552-B21

HP ProLiant BL20pG4 E5320 2GB (1P)
435551-B21

HP ProLiant BL20pG4 E5310 1GB (1P)
435550-B21

Processor(s) (1) Quad-Core Intel Xeon process X5355 (2.66 GHz, 1333 FSB) (Up to 2 supported)
(1) Quad-Core Intel Xeon process E5345 (2.33 GHz, 1333 FSB) (Up to 2 supported)
(1)Quad-Core Intel Xeon processor E5320 (1.86 GHz, 1066 FSB) (Up to 2 supported)
(1) Quad-Core Intel Xeon processor E5310 (1.60 GHz, 1066 FSB) (up to 2 supported)
Cache Memory 2x4MB Level 2 cache
Memory

2GB (2x1GB of 2-way interleaved PC2-5300 Fully Buffered DIMMs DDR2-667 (at 533 MHz on processors with 1066 MHz FSB) with Advanced ECC, mirrored and online spare memory capabilities
1GB (2x512MB of 2-way interleaved PC2-5300 Fully Buffered DIMMs DDR2-667 (at 533 MHz on processors with 1066 MHz FSB) with Advanced ECC, mirrored and online spare memory capabilities

Network Adapter Two Embedded HP NC373i PCI express Multifunction Gigabit Server Adapter
Storage Controller Smart Array E200i SAS RAID Controller
Hard Drives None ship standard
Internal Storage Up to 292GB maximum (with optional hard drives)
Optical Drive None
Form Factor Plugs vertically into ProLiant BL p-Class Server Blade Enclosure

Dual-Core Models
HP ProLiant BL20p G4 5160, 2GB (1P)
416782-B21

HP ProLiant BL20p G4 5150, 2GB (1P)
416781-B21

HP ProLiant BL20p G4 5148, 2GB (1P)

HP ProLiant BL20p G4 5140, 2GB (1P)
416780-B21

HP ProLiant BL20p G4 5110, 1GB (1P)
416779-B21

HP ProLiant BL20p G4 5060, 2GB (1P)
408745-201

Processor(s) (1) Dual-Core Intel Xeon processor 5160 (3.0 GHz/1333 FSB) (up to 2 supported)
(1) Dual-Core Intel Xeon processor 5150 (2.66 GHz, 1333 FSB) (up to 2 supported)
(1) Dual-Core Intel Xeon processor 5148 (2.33 GHz, 1333 FSB) (Up to 2 supported)
(1) Dual-Core Intel Xeon processor 5140 (2.33 GHz, 1333 FSB) (up to 2 supported)
(1) Dual-Core Intel Xeon processor 5110 (1.60 GHz/1066 FSB) (up to 2 supported)
(1) Dual-Core Intel Xeon processor 5060 (3.2 GHz, 1066 FSB) (up to 2 supported)
Cache Memory 2x2MB Level 2 cache memory (5000 Sequence)
1x4MB Level 2 cache memory (5100 Sequence)
Memory

2GB (2x1GB of 2-way interleaved PC2-5300 Fully Buffered DIMMs DDR2-667 (at 533 MHz on processors with 1066 MHz FSB) with Advanced ECC, mirrored and online spare memory capabilities

1GB (2x512MB of 2-way interleaved PC2-5300 Fully Buffered DIMMs DDR2-667 (at 533 MHz on processors with 1066 MHz FSB) with Advanced ECC, mirrored and online spare memory capabilities

Network Adapter Two Embedded HP NC373i PCI express Multifunction Gigabit Server Adapters
Storage Controller Smart Array E200i SAS RAID Controller
Hard Drives None ship standard
Internal Storage Up to 292GB maximum (with optional hard drives)
Optical Drive None
Form Factor Plugs vertically into ProLiant BL p-Class Server Blade Enclosure
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Configuration Information Factory Integrated Models (North America only)

NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Blade.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option is only available as a Factory Installable Option.
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.

Step 1: Base Server Blade Configuration

Models HP ProLiant BL20p G4 CTO Blade (North America) 405912-B21
Configurable Model ships with:
Two embedded HP NC374i PCI express Multifunction Gigabit Server Adapter
One additional 10/100 NIC dedicated to iLO 2 Management
Smart Array E200i SAS RAID Controller

Step 2: Choose Required Options (one of the following from each list unless otherwise noted):
Processors Quad-Core Process Option Kits

Quad-Core Intel Xeon process X5355 (2.66 GHz, 1333 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 435571-B21 435571-B21 and one 435571-B21 435571-B21
435571-B21 435571-B21
Quad-Core Intel Xeon process E5345 (2.33 GHz, 1333 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 435570-B21 435570-B21 and one 435570-B21 435570-B21
435570-B21 435570-B21
Quad-Core Intel Xeon processor E5320 (1.86 GHz, 1066 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 435569-B21 435569-B21 and one 435569-B21 435569-B21
435569-B21 435569-B21
Quad-Core Intel Xeon processor E5310 (1.60 GHz, 1066 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 435568-B21 435568-B21 and one 435568-B21 435568-B21
435568-B21 435568-B21
Dual-Core Process Option Kits
Dual Core Intel Xeon processor 5160 (3.0 GHz, 1333 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 416835-B21 416835-B21 and one 416835-B21 416835-B21
Dual Core Intel Xeon processor 5150 (2.66 GHz, 1333 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 416834-B21 416834-B21 and one 416834-B21 416834-B21
Dual Core Intel Xeon processor 5148 (2.33 GHz, 1333 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 432345-B21 432345-B21 and one 432345-B21 432345-B21
432345-B21 432345-B21
Dual Core Intel Xeon processor 5140 (2.33 GHz, 1333 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 417139-B21 417139-B21 and one 417139-B21 417139-B21
Dual Core Intel Xeon processor 5130 (2.00 GHz MV, 1333 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 416832-B21 416832-B21and one 416832-B21 416832-B21
Dual Core Intel Xeon processor 5120 (1.86 GHz, 1066 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 416788-B21 416788-B21and one 416788-B21 416788-B21
Dual Core Intel Xeon processor 5110 (1.60 GHz, 1066 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 416787-B21 416787-B21and one 416787-B21 416787-B21
Dual Core Intel Xeon processor 5080 (3.73 GHz, 1066 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 405039-B21 405039-B21 and one 405039-B21 405039-B21
Dual Core Intel Xeon processor 5060 (3.2 GHz, 1066 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 405037-B21 405037-B21and one 405037-B21 405037-B21
Dual Core Intel Xeon processor 5050 (3.0 GHz, 667 FSB) Option Kit FIO BASE
NOTE: If 2 processors are desired, select one 405040-B21 405040-B21and one 405040-B21 405040-B21
Memory 1GB FBD PC2-5300 2X512MB Kit
2GB FBD PC2-5300 2X1GB Kit
4GB FBD PC2-5300 2x2GB Kit
8GB FBD PC2-5300 2x4GB
Controller Cache HP Smart Array E200 64MB FIO Cache
128MB Battery-Backed Write Cache with Battery Housing

Step 3: Choose Additional Options for Factory Integration
NOTE: For additional options, including server blade enclosure with enhanced backplanes, interconnect options and power subsystem options, please refer to the "Options" section below. Some options may not be available for factory integration. Please contact an HP sales representative for additional information.
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Options

Communications HP ProLiant BL20p Dual NC320m Gigabit Network Adapter

405095-B21

HP ProLiant BL20p Dual NC374m Multifunction Network Adapter
NOTE: Accelerated iSCSI is not yet supported for Linux environments, and RDMA is not yet supported for Windows or Linux environments.
405094-B21

HP ProLiant BL20p G4 - Fibre Channel Adapter Emulex based BL20p Dual Port Fibre Channel HBA
Dual port Fibre Channel Adapter (2-Gb) for ProLiant BL20p G4*

361426-B21 361426-B21

HP 2-2Gb SFP for Fibre Channel pass through kit
NOTE: Must select if SFP for use with pass through SAN switches is required when ordering Emulex based Fibre Channel Mezzanine card for HP p-Class BladeSystem (p/N 394757-B21 394757-B21).
*NOTE: When using this card, the Patch Panel 2 , CGESM or GbE2 Interconnect Switch (with Storage Connectivity Kit) must be used to provide the Fibre Channel pass through).
*NOTE: The HP ProLiant BL20p G2 dual-port Fibre Channel adapter is not compatible with the HP ProLiant BL20p G4.

ProLiant Essentials
Value Pack Software
ProLiant Essentials Rapid Deployment Pack
ProLiant Essentials Rapid Deployment Pack No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via RDP.
452151-B21
NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.HTML



ProLiant Essentials Server Migration Pack
ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 P2V, V2P, or V2V migration. Contains one license with a unique license activation key and documentation

435663-B21

NOTE: For additional ProLiant Server Migration Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12238_div.HTML
ProLiant Essentials Virtual Machine Management Pack
ProLiant Essentials Virtual Machine Management Pack, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
452153-B21
NOTE: For additional ProLiant Virtual Machine Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12238_div.HTML



NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12111_div/12111_div.HTML
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Remote Management HP Insight Control Environment for BladeSystems
HP Insight Control Environment for BladeSystem, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: Contains 1 license for each of RDP, PMP, VPM, IPM and iLO Select. Includes one year of 24 x 7 HP Software Technical Support and Update Service.
413122-B21
NOTE: For additional HP Insight Control Environment License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.HTML
ProLiant Essentials Integrated Lights-Out Select Pack
ProLiant Essentials Integrated Lights-Out Select Pack, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
452158-B21
Integrated Lights-Out Pack 8-Blade License
452161-B21
Featuring: sophisticated remote control and security features for HP BladeSystem servers and ProLiant ML/DL servers.
NOTE: For additional ProLiant Essentials Integrated Lights-Out Value Packs License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.HTML


HP Insight Control Linux Edition for HP BladeSystem HP Insight Control Linux Edition 1.6 -No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows one (1) server blade to be deployed and managed via HP Insight Control Linux Edition.
452155-B21
HP Insight Control Linux Edition 1.6,No Media, 8-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows eight (8) server blades to be deployed and managed via HP Insight Control Linux Edition.
452156-B21
HP Insight Control Linux Edition 1.6, No Media, Flexible-Quantity License, including 1 year of 24x7 Technical Support and Updates
NOTE: For use with multiple servers (minimum of 5). This part number allows you to specify the license quantity. When ordering this part number, the quantity ordered will be the number of licenses embedded in a single activation key. A single kit containing that key is then delivered to you.
452157-B21
NOTE: For additional HP Insight Control Linux Edition License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12431_div/12431_div.HTML

Processor Quad-Core Process Option Kits
Quad-Core Intel Xeon process X5355 (2.66 GHz, 1333 FSB) Option Kit
Quad-Core Intel Xeon process X5345 (2.33 GHz, 1333 FSB) Option Kit
Quad-Core Intel Xeon processor E5320 (1.86 GHz, 1066 FSB) Option Kit
Quad-Core Intel Xeon processor E5310 (1.60 GHz, 1066 FSB) Option Kit
Dual-Core Process Option Kits
Dual Core Intel Xeon processor 5160 (3.0 GHz, 1333 FSB) Option Kit
Dual Core Intel Xeon processor 5150 (2.66 GHz, 1333 FSB) Option Kit
Dual Core Intel Xeon processor 5148 (2.33 GHz, 1333 FSB) Option Kit
416833-B21
Dual Core Intel Xeon processor 5140 (2.33 GHz, 1333 FSB) Option Kit
Dual Core Intel Xeon processor 5130 (2.00 GHz, 1333 FSB) Option Kit
Dual Core Intel Xeon processor 5120 (1.86 GHz, 1066 FSB) Option Kit
Dual Core Intel Xeon processor 5110 (1.60 GHz, 1066 FSB) Option Kit
Dual Core Intel Xeon processor 5080 (3.73 GHz, 1066 FSB) Option Kit
Dual Core Intel Xeon processor 5060 (3.2 GHz, 1066 FSB) Option Kit

405037-B21 405037-B21

Dual Core Intel Xeon processor 5050 (3.0 GHz, 667 FSB) Option Kit

Memory
(SDRAM DIMMs)

1GB FBD PC2-5300 2X512MB Kit
2GB FBD PC2-5300 2X1GB Kit
4GB FBD PC2-5300 2x2GB Kit
8GB FBD PC2-5300 2x4GB

Storage Controllers 128MB Battery-Backed Write Cache with Battery Housing
NOTE: Please see the following Controller QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
http://h18000.www1.hp.com/products/quickspecs/12030_div/12030_div.HTML (Smart Array E200)

HP BladeSystem Entry Bundle HP BladeSystem Entry Bundle
390738-B21
Bundle Contents:
Server Blade Enclosure

Server Blade Enclosure with enhanced backplane components

Power Subsystem 1U Power Enclosure with 2 power supplies
NOTE: This bundle includes the 1U Power Enclosure with 2 power supplies and a server blade enclosure with enhanced backplane components.

Tape Libraries

HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library AG115A AG115A
HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Library AG326B
HP StorageWorks MSL2024 1 Ultrium 920 Drive Library
AH169A
HP StorageWorks MSL2024 2 Ultrium 920 Drive Library AH170A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library AG117A AG117A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library AG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library AG321A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library AG322A
HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Library AG324A
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library AG323A AG323A
HP StorageWorks MSL4048 2 Ultrium 960 4GB FC Library AG325A
HP StorageWorks MSL4048 2 Ultrium 920 Tape Library AH172A
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library
AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library AD599B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601B
NOTE: Please reference the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks Virtual Library Systems
HP StorageWorks 300 Virtual Library System Gateway Base Unit
AH138A
HP StorageWorks 1002i 2TB Virtual Library System AG124A
HP StorageWorks 6105 Virtual Library System
AF728A
HP StorageWorks 6510 Virtual Library System
AF729A
HP StorageWorks 6840 Virtual Library System AG051A
HP StorageWorks 6109 Virtual Library System AG167A
HP StorageWorks 6518 Virtual Library System AG168A
HP StorageWorks 6870 Virtual Library System AG169A
NOTE: Please reference the Virtual Library Systems QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution. Reference current compatibility information at http://www.hp.com/go/ebs

HP StorageWorks Modular Smart Array 1000HP StorageWorks Modular Smart Array 1000201723-B22 201723-B22
NOTE: Please see the StorageWorks Modular Smart Array 1000 QuickSpecs for additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML (Worldwide)


Cluster Options NOTE: For configuration/certification options for the HP Parallel Database Cluster for Oracle RAC please go to: http://www.hp.com/solutions/highavailability/oracle
NOTE: For additional information regarding the HP ProLiant Cluster for HA/F500 please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/10232_div/10232_div.html (Worldwide)
HP Serviceguard for Linux ProLiant Cluster, A.11.18 (2 license version - Red Hat EL 4&5, SUSE SLES9&10)
307754-B27
HP Serviceguard for Linux A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (single license version)
307754-B26
HP Serviceguard for Linux, A.11.18 (single license version - Red Hat EL 4&5, SUSE SLES9&10) 305199-B27

HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (2 node license cluster kit)

305199-B26

NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html (Worldwide)


USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
HP USB 04 Standard Keyboard DT528A#xxx
USB 2.0 4-port HUB DG954A
HP 1GB USB 2.0 Floppy Drive Key 442085-B21
HP 256MB USB 2.0 Floppy Drive Key 442084-B21

HP Rack 5000 Series
(Graphite Metallic)
HP 5642 Rack - Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 G2 Series (Graphite Metallic) 10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet
10622 G2 (22U) Rack Cabinet - Pallet
AF021A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
NOTE: Please see the Rack 10000 G2 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

Rack 10000 Series
(Graphite Metallic)

HP S10614 (14U) Rack Cabinet - Shock Pallet
NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels).
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed.

NOTE: Please see the Rack 10000 QuickSpecs for additional part number and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower


Monitors and Keyboards

TFT7210R Rack Mounted 17" Monitor
TFT7600 Rackmount Keyboard Monitor US
TFT7600 Rackmount Keyboard Monitor UK
AG053A
TFT7600 Rackmount Keyboard Monitor GR
AF054A
TFT7600 R Rackmount Keyboard Monitor FR
AG055A
TFT7600 Rackmount Keyboard Monitor IT
AF056A
TFT7600 Rackmount Keyboard Monitor SP
AG057A
TFT7600 Rackmount Keyboard Monitor DEN
AG058A
TFT7600 Rackmount Keyboard Monitor NOR
AG059A
TFT7600 Rackmount Keyboard Monitor SE/FI
AF060A
TFT7600 Rackmount Keyboard Monitor SWI
AG061A
TFT7600 Rackmount Keyboard Monitor PORT
AF062A
TFT7600 Rackmount Keyboard Monitor BEL
AG063A
TFT7600 Rackmount Keyboard Monitor JPN2
AF064A
TFT7600 Rackmount Keyboard Monitor RUS
AG065A
TFT7600 Rackmount Keyboard Monitor INTL
AG066A
1U Rackmount Keyboard with USB, US
1U Rackmount Keyboard with USB, UK
AG073A
1U Rackmount Keyboard with USB, GR
AG074A
1U Rackmount Keyboard with USB, FR
AG075A
1U Rackmount Keyboard with USB, ITL
AG076A
1U Rackmount Keyboard with USB, SP
AG077A
1U Rackmount Keyboard with USB, DEN
AG078A
1U Rackmount Keyboard with USB, NOR
AG079A
1U Rackmount Keyboard with USB, SE/FI
AG080A
1U Rackmount Keyboard with USB, SWI
AG081A
1U Rackmount Keyboard with USB, PORT
AG082A
1U Rackmount Keyboard with USB, BEL
AG083A
1U Rackmount Keyboard with USB, JPN2
AG084A
1U Rackmount Keyboard with USB, RUS
AG085A
1U Rackmount Keyboard with USB, INTL
AG086A
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower

HP KVM Switch Options

4x1x16 IP Console Switch with Virtual Media
2x1x16 IP Console Switch with Virtual media
0x2x16 Server Console Switch with Virtual Media
PS2 Virtual Media Interface Adapter
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1-pack
PS/2 Interface Adapter, 8-pack
USB Interface Adapter, 1-pack
Serial Interface Adapter, 1-pack with power supply
HP BladeSystem p-Class KVM Interface Adapter
AF100A
NOTE: Cat5e cables are required to connect Interface Adapters to Consoles Switches. Cat52 cables can be found at the following URL: http://www.hp.com/go/kvm
NOTE For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm

HP Serial Console Server Options

HP 16 Port Serial Console Server (worldwide)
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)

NOTE: The HP Care Pack service part numbers below for ProLiant BL p-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

Hardware Services On-site Service



4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UD187E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD188E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD189E
NOTE: The HP Care Pack service part numbers below for HP BladeSystem p-Class server blade enclosure covers the enclosure including patch panels, HP supported Ethernet interconnects, power enclosure with power supplies and power distribution.
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
HC031E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC032E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC033E
NOTE: The HP Care Pack service part numbers below covers the HP BladeSystem Brocade and McData SAN Switches.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage,
3 Years, Electronic
UC007E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UC008E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC009E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC023E

Installation & Start-up Services

HP Installation & Startup Service for HP BladeSystem Infrastructure, Electronic
NOTE: Provides for an integrated hardware and software implementation that includes remote service planning, onsite deployment of hardware and software, installation verification testing and customer orientation. Hardware deployment covers the installation of a single BladeSystem enclosure that include server blades (up to 16), Ethernet network interconnect, and power options. Software deployment covers the installation and configuration of HP Systems Insight Manager (SIM), HP Rapid Deployment Pack (RDP), and deploy up to two operating system editions of either Windows or Linux, using scripted operating system installation software.

UC905E

ProLiant BL p-Class Blade Server Hardware Installation, Electronic

UA219E

ProLiant BL p-Class Enclosure and Server Blade Hardware Installation, Electronic

U4971E

Provides for the Installation and Start-up of ProLiant Essentials Rapid Deployment Pack, Electronic
NOTE: Provides installation on a Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days.
U5683E
Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment Pack (Basic) (Electronic)
UA042E
HP ProLiant Essentials Vulnerability and Patch Management Pack Installation and Startup Service, Electronic
NOTE: Service coverage: onsite installation of the Vulnerability and Patch Management (VPM) software on a customer designated server, configuration of the VPM software to acquire security patches, enabling the VPM software to scan up to five (5) systems, applying the security patches to the designated servers, generating a report from VPM that shows the vulnerability assessment results, and providing customer with an orientation to the software.
UC929E
Provides for the Installation and Start-up of System Insight Manager (Electronic)
UA041E
Provides for the Installation and Start-up of System Insight Manager (Electronic)
UA040E
NOTE: For more information, customer/resellers can contact http://www.hp.com/hps/carepack/services/
Software Operating Environment Care Packs
Microsoft Software Operating Environment Software Telephone 9x5 - 3 incident (Electronic)
U8169E
Red Hat Software Operating Environment Software Telephone 9x5 - 10 incident (Electronic)
U3402E
SUSE Software Operating Environment Software Telephone 9x5 - 3 incident (Electronic)
U9615E
ProLiant Essentials Operating Environment, - 5 Day, 8x5,1 year, 3 incident (Electronic)
U8222E
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription
T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription
T2798AA#003
NOTE: For more information, customer/resellers can contact http://www.hp.com/hps/carepack/services/



contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

DIMM installation guidelines:

  1. All DIMMs must be Fully Buffered DIMMS PC2-5300 at 667 MHz (at 533 MHz for processors with 1066 MHz FSB).
  2. Both DIMM slots in a memory bank must be populated.
  3. Both DIMMs in a memory bank must be identical. Install identical DIMMs as pairs only, starting with DIMM socket 1, bank A.
  4. Populate both slots in a bank at the same time: DIMMs 1 and 2 reside in bank A, and DIMMs 3 and 4 reside in bank B.

HP ProLiant BL20p G4 Server Blade (2048 MB Memory Model)

Standard Memory
2048 MB PC2-5300 ECC DDR2 FBDIMMs installed (2 x 1 GB) (at 533 MHz for processors with 1066 MHz FSB).

Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 3A must match. DIMMs 5B and 7B, DIMMs 2C and 4C and DIMMs 6D and 8 D must match and must be installed as a pair. When DIMMs 1A and 3A are populated the system is automatically configured for 2:1 interleaving. When four or six DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving.

Standard Memory Plus Optional Memory
Up to 14336 MB ECC DDR2 FBDIMM memory is available with the installation of optional ECC DDR2 FBDIMMs memory expansion kits.

Standard Memory Replaced with Optional Memory
Up to 16384 MB of ECC DDR2 FBDIMM memory is available with the removal of standard memory and the installation of optional ECC DDR2 FBDIMM memory expansion kits.

NOTE: Chart does not represent all possible configurations.

Memory

Slot



1

2

3

4

5
6
7
8

Standard

2048 MB

1024 MB

1024 MB

Empty

Empty

Empty

Empty

Empty

Empty

Optional

14336 MB

1024 MB

1024 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

Maximum
16384 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

NOTE: In the online spare configuration, the ROM automatically configures the last populated bank as the spare memory. If only banks A and B are populated, bank B is the spare bank. If banks A, B, and C are populated, bank C is the spare bank, Online spare memory is configured through RBSU.

Following are memory options available from HP:
  • 1GB FBD PC2-5300 2X512MB Kit
397409-B21 397409-B21
  • 2GB FBD PC2-5300 2X1GB Kit
  • 4GB FBD PC2-5300 2x2GB Kit
  • 8GB FBD PC2-5300 2x4GB
397415-B21 397415-B21

HP ProLiant BL20p G4 Server Blade (1024 MB Memory Model)

Standard Memory
1024 MB PC2-5300 ECC DDR2 FBDIMMs installed (2x512 MB) (at 533 MHz on processors with 1066 MHz FS B)

Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 3A must match. DIMMs 5B and 7B, DIMMs 2C and 4C and 6D and 8D must match and must be installed as a pair. When DIMMs 1A and 3A are populated the system is automatically configured for 2:1 interleaving. When four or six DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving.

Standard Memory Plus Optional Memory
Up to 13312 MB of ECC DDR2 FBDIMM memory is available with the installation of optional ECC DDR2 FBDIMMs memory expansion kits.

Standard Memory Replaced with Optional Memory
Up to 16384 MB of ECC DDR2 FBDIMM memory is available with the removal of standard memory and the installation of optional ECC DDR2 FBDIMM memory expansion kits.

NOTE: Chart does not represent all possible configurations.

Memory

Slot



1

2

3

4

5
6
7
8

Standard

1024 MB

512 MB

512 MB

Empty

Empty

Empty

Empty

Empty

Empty

Optional

13312 MB

512 MB

512 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

Maximum
16384 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

2048 MB

NOTE: In the online spare configuration, the ROM automatically configures the last populated bank as the spare memory. If only banks A and B are populated, bank B is the spare bank. If banks A, B, and C are populated, bank C is the spare bank, Online spare memory is configured through RBSU.

Following are memory options available from HP:
  • 1GB FBD PC2-5300 2X512MB Kit
397409-B21 397409-B21
  • 2GB FBD PC2-5300 2X1GB Kit
397411-B21 397411-B21
  • 4GB FBD PC2-5300 2x2GB Kit
397413-B21 397413-B21
  • 8GB FBD PC2-5300 2x4GB
397415-B21 397415-B21
NOTE: Online Spare Memory is not supported when using 2-rank DIMMs. A total of 8 ranks are supported on the HP ProLiant BL20p G4, A maximum of 4, 2-rank DIMMs can be populated. If you plan to mix DIMM types, 2-rank DIMMs must be installed in the first bank, 1 rank DIMMs can then be installed in subsequent banks.
The following is the memory population rules for the HP ProLiant BL20p G4.
Key: S denotes single rank kit, D denotes Dual rank kit, and X denotes no install.

Bank A
Bank B
Bank C
NOTES:
S
X
X

S
S
X

S
S
S

D
X
X
Online spare not supported
D
S
X
Online spare not supported
D
S
S
Online spare not supported
D
D
X
Online spare not supported
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Storage

1,2
2 x Small Form Factor Serial Attached SAS Hot Pluggable Hard Drive Bays
Drive Support

SFF 2.5" SAS Hard Drives Hot Plug
  Quantity
Supported
Position
Supported

Controller
2.5-inch
72GB 3G SAS SFF 2.5" SP 15K
36GB 3G SAS SFF 2.5" SP 15K
146GB 3G SAS SP 10K
72GB 3G SAS SFF 2.5" SP 10K
36GB 3G SAS SFF 2.5" SP 10K
2 1-2
Smart Array E200i Controller (with optional battery-backed write cache), RAID 0,1, 0+1 support

SFF 2.5" SATA Hard Drives Hot Plug
  Quantity
Supported
Position
Supported

Controller
2.5-inch
120GB 1.5 SATA
60GB 1.5G SATA
2 1-2
HP embedded 2 Port SATA Controller with RAID 0/1/0+1 support

Maximum Storage Capacity - (SAS drives)
External
4.20TB (1 x (14 x 300 GB (Ultra320 Drives))
Total 4.3 TB
NOTE: In order to implement integrated SATA RAID with Smart Start 7.4 on Windows 2000/2003, the use of a floppy drive is necessary
Maximum Storage Capacity - (SATA Drives)
External 6.00TB (1 x (12 x 500GB 3.5"SATA Drives))

Tape Drives, Tape Autoloaders, & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/Division/10233.html (Worldwide)

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/Division/10809.html (Worldwide)

NOTE: For complete listing of tape drive offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For details on connecting tape drives to this server, see the following:


Position
Supported

Position
Controller

Controller/HBA Option
Kit Part Number
HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 448, Ultrium 920 and 960-based)
MSL4048 (Ultrium 448, Ultrium 920 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
External
Please consult the EBS connectivity matrix at http://www.hp.com
/go/ebs
for detailed connectivity information
N/A
HP StorageWorks Virtual Library Systems
300 VLS
1002i VLS
6105 VLS
6109 VLS
6515 VLS
6840 VLS
6870 VLS
External
Please consult the EBS connectivity matrix at http://www.hp.com
/go/ebs
for detailed connectivity information
N/A

Power Specifications

To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls
To drill down to calculators:

  • Click on: "ProLiant Servers"
  • Click on the Server of interest. Example: BL20p G4
  • Click on: "Power Calculator" link. (You may need to scroll down to see it)
contents
 Overview      Standard Features (Server Blade)      Standard Features      Models      Configuration Information Factory Integrated Models (North America only)      Options      Memory      Storage      Technical Specifications images/line.gif (50 bytes)

Technical Specifications

HP ProLiant BL20p G4 Server Blade

Dimensions

Height

10.29 in (26.14 cm)

Depth

1.69 in (4.29 cm)

Width

28 in (71.10 cm)

Weight

Maximum

20.8 lbs (9.43 kg)

Temperature Range*



Operating
10°C to 35°C (50°F to 95°F)

Non-Operating

-40°C to 60°C (-40°F to 140°F)

Storage
-20°C to 60°C (-4°F to 140°F)
Maximum Wet Bulb Temperature-30°C (86°F)
Operating
10% to 90%

Relative Humidity**

Shipping
10% to 90%
Storage10% to 95%
*NOTE: All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia.
**NOTE: Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

Smart Array E200i Controller Disk Drive and Enclosure Interface 3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors 2 internal (SFF8484) x4 wide port connectors
Cache Memory Speed DDR-1/266 MHz provides up to 4.2 GB/s maximum bandwidth.
Server Interface x4 2.5G PCIe provides 2GB/s maximum bandwidth.
SAS Speed x8 3G SAS provides 2.4GB/s maximum bandwidth.
Cache Memory 40-bit 64MB or 128MB cache: ECC protection, battery-backed, and transportable
Logical Volumes Supported Up to 32 logical volumes
Maximum Volume Capacity 3TB (6 x 500GB)
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID Support RAID 5 (Distributed Data Guarding) requires 128MB BBWC option
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware Upgradeable Firmware

One Dual port NC374i PCI-X Multifunction Gigabit NICs (embedded) Server Adapter

Network Interface

10/100/1000-T



Compatibility

IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX



Data Transfer Method

64-bit/133MHz PCI-X

Network Transfer Rate

10Base-T (Half-Duplex)
10Base-T (Full-Duplex)
100Base-TX (Half-Duplex)
100Base-TX (Full-Duplex)
1000Base-T (Full and Half-Duplex)
10 Mb/s
20 Mb/s
100 Mb/s
200 Mb/s
2000 Mb/s
