   Proliant BL25p G1 QuickSpecs  US QuickSpecs
  BL25p G1 Hard Drives   BL25p G1 Processors   BL25p G1 Memory
  BL25p G1 Controllers   BL25p G1 Networking   BL25p G1 Power Supplies
  BL25p G1 Quickspecs   BL25p G1 Quickspecs-Options   BL25p G1 Options
contents
 Overview      Standard Features       Models      Configuration Information Factory Integrated Models (North America only)      BL25p G1 Options      BL25p G1 Memory      BL25p G1 QuickSpecs images/line.gif (50 bytes)

Proliant BL25p G1 Overview

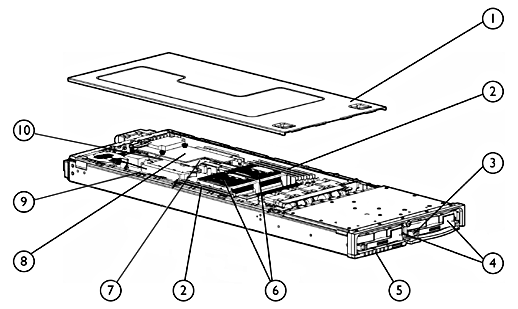

HP ProLiant BL25p Server Blade

1.

Access Panel

6.

Up to two single- or dual-core AMD Opteron™ 200 series processors

2.

Memory banks 1 and 2 (4 DIMM slots per bank, 8 total DIMM slots)

7.

PCI-X Gigabit NIC Mezzanine Card (contains two NC7781 single port Gigabit NICs )

3.

Power On/Standby Button

8.
Dual port Fibre Channel Adapter (optional)
4.

Up to two Ultra320 hot-plug hard disk drives (optional)

9.
Smart Array 6i Controller
5.

Front panel LEDs

10.

Smart Array 6i Battery-Backed Write Cache Enabler (optional)


What's New
  • Support for ProLiant Essentials Rapid Deployment Pack, Flatpack - single server license
  • Support for HP 1x4 Server Console Switch

At A Glance

This QuickSpecs provides information for the HP ProLiant BL25p server blade only. For more information on HP BladeSystems p-Class Infrastructure and HP BladeSystem p-Class Interconnect Components, please see the following QuickSpecs:
HP BladeSystem p-Class Infrastructure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.HTML and HP BladeSystem p-Class Interconnect Components QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12331_div/12331_div.HTML

  • Performance dual processor server blade designed with enterprise availability and scalability to run existing 32-bit applications, while providing a simplified migration path to 64-bit computing.
  • AMD Opteron™ 200 series single-core and dual-core processors (dual capability)
    • Dual-Core: Models 285 (2.6 GHz), 280 (2.4 GHz), 275 (2.2 GHz), 270 (2.0 GHz), and 265 (1.8 GHz)
    • Single-Core: Models 254 (2.8 GHz) and 252 (2.6 GHz)
  • HP ProLiant BL25p Dual Port Fibre Channel Adapter (2-Gb) options for SAN connectivity
  • AMD 8131 and 8111 Chipsets
  • 1024 MB or 2048 MB PC3200 Registered ECC 400MHz DDR memory, 2 x 1 Interleaved Memory, 8 DIMM slots, expandable to 16 GB (using optional PC3200 DDR) or 32 GB max (using optional PC2700 DDR)
  • Five total network ports:
    • Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual port NC7782
    • One additional 10/100 NIC dedicated to Integrated Lights-Out (iLO) Management
  • HP Smart Array 6i - Integrated (on system board) RAID controller with optional battery-backed write cache
  • Ultra320 SCSI Drive Cage (standard) supports up to two Ultra320 hot-plug hard disk drives
  • Integrated Lights-Out (iLO) Advanced Management (ASIC on system board)
  • Plugs vertically into 6U enclosure, 8 BL25p server blades per enclosure
  • Integrated Access Tool for server blade management and enhanced server blade documentation including Best Practices and Common Procedures guides
  • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
contents
 Overview      Standard Features       Models      Configuration Information Factory Integrated Models (North America only)      BL25p G1 Options      BL25p G1 Memory      BL25p G1 QuickSpecs images/line.gif (50 bytes)

Standard Features


BL25p Hard Drives Ultra320 SCSI – Universal Hot Plug Hard Drives
300-GB 15,000 rpm U320 Universal Hot Plug Hard Drive
300-GB 10,000 rpm U320 Universal Hot Plug Hard Drive
146.8-GB 15,000 rpm U320 Universal Hot Plug Hard Drive
146.8-GB 10,000 rpm U320 Universal Hot Plug Hard Drive
72.8-GB 15,000 rpm U320 Universal Hot Plug Hard Drive
72.8-GB 10,000 rpm U320 Universal Hot Plug Hard Drive
36.4-GB 15,000 rpm U320 Universal Hot Plug Hard Drive
36.4-GB 10,000 rpm U320 Universal Hot Plug Hard Drive
NOTE: All U320 Universal Hot Plug Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller to support U320 transfer rates.
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
U320 Hard Drive QS:
http://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.html (Worldwide)
http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.html
(North America)

Processors Single-Core AMD Opteron™ processor Model 254 (2.8 GHz/1MB L2 cache/1 GHz HyperTransport)
Single-Core AMD Opteron™ processor Model 252 (2.6 GHz/1MB L2 cache/1 GHz HyperTransport)
Dual-Core AMD Opteron™ processor Model 285 (2.6 GHz/1MB L2 cache per core for 2MB total/1 GHz HyperTransport)
Dual-Core AMD Opteron™ processor Model 280 (2.4 GHz/1MB L2 cache per core for 2MB total/1 GHz HyperTransport)
Dual-Core AMD Opteron™ processor Model 275 (2.2 GHz/1MB L2 cache per core for 2MB total/1 GHz HyperTransport)
Dual-Core AMD Opteron™ processor Model 270 ( 2.0 GHz/1MB L2 cache per core for 2MB total/1 GHz HyperTransport)
Dual-Core AMD Opteron™ processor Model 265 (1.8 GHz/1MB L2 cache per core for 2MB total/1 GHz HyperTransport)

Upgradeability Upgradeable to dual processing.

Cache Memory 1MB Level 2 Cache per core
(2MB total for Dual-Core models)

Chipset AMD 8131 and 8111 chipsets

Memory Type 2-way interleaved PC3200 DDR SDRAM running at 400 MHz or PC2700 DDR SDRAM running at 333 MHz
Standard 1024 MB 400-MHz PC3200
depending on model)
2048 MB 400-MHz PC3200
(depending on model)
Maximum 32 GB max (using optional 333 MHz PC2700 DDR)
16 GB max (using optional 400 MHz PC3200 DDR)
NOTE: Memory must be installed in pairs.
NOTE: PC2700 and PC3200 memory should not be mixed within the server blade and is not an HP supported configuration.

Network Adapter Five network ports total:
Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual port NC7782
One 10/100 iLO NIC dedicated to management
NOTE: Must use a HP BladeSystem p-class server blade enclosure with enhanced backplane to utilize all four NIC ports (HP P/N's 281404-B22, 243564-B22 or 380625-B22 380625-B22).

Expansion Slots No PCI slots; all features are integrated
I/O cable connectors:
(2)USB 1.1 ports, (1) video port, (1) iLO port and (1) kernel debug port
(2) I/O cables ship with every server blade enclosure
Tested USB devices (keyboard, mouse, floppy) are listed in the "Options" section of this QuickSpecs

Integrated Manageability Integrated Lights-Out (iLO) Management Advanced (ASIC on the System Board)

Internal Storage Hard Drives None ship standard
Maximum Internal Storage 600-GB (internal drive cage) 2 x 300-GB Ultra320, drive

Graphics Integrated ATI Rage XL Video Controller with 8-MB SDRAM Video Memory

Graphics Resolution Supported Resolution Color Depths Depths 1280 x 1024, 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16

Fiber Channel on the
HP ProLiant BL25p server blade

Two optional fiber channel adapters are supported by the HP ProLiant BL25p. Both adapters are mezzanine circuit boards which connect to the top of a standard NIC adapter board, which in turn, connects directly to the server blade system board. These optional fiber channel adapters are available via option kits and must be ordered separately.

  • QLogic-based
    • Utilizes a QLogic chipset
    • The HP ProLiant BL25/45p dual-port Fibre Channel Adapter (P/N 381881-B21 381881-B21) is compatible with the HP ProLiant BL25p and BL45p server blades. It cannot be used with HP ProLiant BL20p or HP ProLiant BL35p server blade.
    • Includes two small form factor pluggable transceivers with LC connectors for installation into the Patch Panel 2, CGESM or GbE2 Interconnect Switch (with the Storage Connectivity Kit.)
  • Emulex-based
    • Utilizes an Emulex Thor chipset
    • The Emulex-based FC Mezzanine for HP p-Class BladeSystem dual port Fibre Channel HBA (P/N 394588-B21) is compatible with the HP ProLiant BL25p, 35p SATA model, and 45p server blades. It cannot be used with an HP ProLiant BL20p or HP ProLiant BL35p SAS model server blade.
    • There are no SFP's included in the Emulex mezzanine kit for use with ProLiant BL p-Class Fibre Channel pass-through interconnects. If you require SFPs for use with an Emulex mezzanine and a FC pass through interconnect please order an SFP option kit (P/N 397577-B21 397577-B21) which will provide 2 FC SFPs per option kit.
  • Two ports on each Dual-port Fibre Channel Mezzanine Card provide a redundant Fibre Channel connection to each server blade.
  • Supports up to 2 Gb/s Fibre Channel equipment.
Compatible SAN

HP ProLiant BL25p server blades are optimized for StorageWorks arrays:


ProLiant Essentials Foundation Pack Software for the ProLiant BL Server Blades

HP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms.

Through a single management view, HP SIM provides core management services that include device discovery and identification, event views, health monitoring, inventory data collection, software version control and reporting. HP SIM is built on industry standards and is extensible with value-added ProLiant Essentials, Integrity Essentials and Storage Essentials software to meet individual management needs. For more details on HP SIM visit http://www.hp.com/go/hpsim.

HP SIM provides organizations with the following benefits:

  • Simplifies and consolidates infrastructure lifecycle management using task and query based functionality
  • Provides the foundation for infrastructure automation and virtualization
  • Enables IT management based on business processes not hardware platforms
  • Lowers infrastructure maintenance cost and frees resources for innovation
  • Maximizes resource utilization with virtualization technologies
  • Provides a central point of integration between infrastructure and Enterprise management tools such as HP OpenView
ProLiant Essentials Rapid Deployment Pack

Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP disc includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit: http://www.hp.com/servers/rdp.

Insight Management Agents Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack. For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at http://www.hp.com/servers/manage

Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available in the RDP CD, SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at http://www.hp.com/go/support.
Insight Diagnostics The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials

Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP disc includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit: http://www.hp.com/servers/rdp
  • Server Migration Pack - P2P Edition: Upgrading or replacing your existing server? Effortlessly transition to new servers with automated, accurate and affordable migration of OS, application and data.
  • Virtualization Management Software - Get the most out of server virtualization by unifying the management of physical and virtual servers in HP Systems Insight Manager. The Virtual Machine Management Pack plug-in provides central management and control of VMware and Microsoft virtual machines and provides physical host to virtual machine association. The Server Migration Pack plug-in automates the manual task of migrating servers between physical or virtual platforms.
  • Vulnerability and Patch management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms and other blended threats.
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.

NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.


SmartStart SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and consistent server configurations. SmartStart 7.30 and later can now deploy all HP ProLiant BL25p server blades, using the I/O port with an attached USB CD-ROM device. To obtain a copy of SmartStart for your blade server, redeem the coupon that is included with your Blade server or order your copy from the SmartStart web site. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.20

OS Support:
Single-Core

2.6 GHz and 2.8 GHz models

Microsoft Windows 2000 Server
Microsoft Windows 2000 Advanced Server
Windows Server 2003, Standard Edition
Windows Server 2003, Enterprise Edition
Windows Server 2003, Web Edition
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Solaris 10 32/64-bit

NOTE: For a complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant BL p-Class, please see: http://h18004.www1.hp.com/support/files/server/us/family/model/5342.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
NOTE: For more Linux OS support & certification information, please visit our the ProLiant & Bladesystem Server Linux matrix http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html


OS Support:
Dual-Core

1.8 GHz, 2.0 GHz, 2.2 GHz, 2.4 GHz and 2.6 GHz models

Microsoft Windows 2000 Server (licensed by core)
Microsoft Windows 2000 Advanced Server (licensed by core)
Windows Server 2003, Standard Edition (licensed by processor socket)
Windows Server 2003, Enterprise Edition (licensed by processor socket)
Windows Server 2003, Web Edition (licensed by processor socket)
Red Hat Enterprise Linux 3 Update 5 (or greater)
Red Hat Enterprise Linux 4 Update 2 (or greater)
SuSE Linux Enterprise Server 9 SP1 (or greater)
Solaris 10 32/64-bit

NOTE: For a complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant BL p-Class, please see: http://h18004.www1.hp.com/support/files/server/us/family/model/5342.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at: http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.


Supported Software Options VMware Virtualization Software
Red Hat Enterprise Linux and management bundle for HP BladeSystems
NOTE: For more information on HP's Certified and Supported HP ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html
NOTE: For a more complete and up-to-date information on Linux for HP BladeSystems support, please visit HP Linux website at: http://h18000.www1.hp.com/products/quickspecs/12321_div/12321_div.HTML

Intelligent Manageability

Integrated Lights-Out Advanced (iLO)

Virtual Text and Graphical Remote Console*
Virtual CD-ROM*
Virtual Floppy*
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privileges

Automatic Server Recovery-2 (ASR-2)
Insight Manager 7
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
ROM Based Setup Utility (RBSU)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server and Interconnect Switch Health Logs
Redundant Power Supply Utility
Pre-Failure Warranty (covers processors, as well as hard drives and memory)
Integrated Management Log (IML)
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Network adapter teaming set-up utility
*NOTE: Advanced features such as Graphical Remote Console and Virtual Floppy are included with the BL p-Class server.

Availability

Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
Two hot-plug Ultra320 SCSI hard drive bays and integrated, hardware RAID (Smart Array 6i) on every server blade (battery-backed write cache is optional.)
Redundant ROM on each server blade
ECC Memory
Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)


Security Power-on password
Administrator's password
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging and custom packaging. HP products supported through Factory Express include: a wide array of servers and storage: HP Integrity, HP ProLiant & HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.


Service and Support This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Blade Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. This warranty supports the HP ProLiant BL20p, HP ProLiant 25p, and HP ProLiant 45p Server Blades.
NOTE: Server Blade Limited Warranty includes 3 year Parts, 1 year Labor, 1-year on-site support. This warranty supports the HP ProLiant 35p Server Blade.
NOTE: Server Blade Enclosure Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
NOTE: Server Blade Interconnect Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support
NOTE: The p-Class SAN switch limited warranty s is unique to the SAN switch which includes 1 year warranty that is upgradeable to 3 years via Care Pack.

Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

The HP Care Pack service part numbers below for ProLiant BL p-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

HP Care Pack services for HP BladeSystem p-Class server blade enclosure covers the enclosure including patch panels, HP supported Ethernet interconnects, power enclosure with power supplies and power distribution.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP BladeSystem servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a HP BadeSystem server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years.

Continuance Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years.

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services.

Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of HP BladeSystem servers - and free customers IT support staff to focus on what they do best, their business.

Installation & Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced Network Installation and Start-UP as per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

For a complete listing of service offerings and information visit:
http://www.hp.com/services/bladesystemservices
http://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features       Models      Configuration Information Factory Integrated Models (North America only)      BL25p G1 Options      BL25p G1 Memory      BL25p G1 QuickSpecs images/line.gif (50 bytes)

Models

Dual-Core Models
ProLiant BL25p 0285 2.6GHz-1MB,DC 2GB (2P)
406425-xx1
Processor(s) (2) Dual-Core AMD Opteron™ processors Model 285, 2.6 GHz standard (up to 2 supported)
Cache Memory 1MB Level 2 cache per core/2-MB total
Memory 2048 MB (Standard) of PC3200 DDR SDRAM 400 MHz
16 GB (Maximum) of PC3200 DDR SDRAM 400 MHz
32 GB (Maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 8 DIMM slots
Network Adapter Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual port NC7782
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional, U320 hard disk drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure

ProLiant BL25p 0280 2.4GHz-1MB,DC 2GB (2P)
399598-xx1
Processor(s) (2) Dual-Core AMD Opteron™ processors Model 280, 2.4 GHz standard (up to 2 supported)
Cache Memory 1MB Level 2 cache per core/2-MB total
Memory 2048 MB (Standard) of PC3200 DDR SDRAM 400 MHz
16 GB (Maximum) of PC3200 DDR SDRAM 400 MHz
32 GB (Maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 8 DIMM slots
Network Adapter Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual port NC7782
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional, U320 hard disk drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure

ProLiant BL25p 2.2GHz-1MB, DC 2GB (2P)
392439-B21



Processor(s) (2) Dual-Core AMD Opteron™ processors Model 275, 2.2 GHz standard (up to 2 supported)
Cache Memory 1MB Level 2 cache per core/2-MB total
Memory 2048 MB (Standard) of PC3200 DDR SDRAM 400 MHz
16 GB (Maximum) of PC3200 DDR SDRAM 400 MHz
32 GB (Maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 8 DIMM slots
Network Adapter Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual port NC7782
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional, U320 hard disk drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure

ProLiant BL25p 2.0GHz-1MB, DC 2GB (2P)
392441-xx1
Processor(s) (2) Dual-Core AMD Opteron™ processors Model 270, 2.0 GHz standard (up to 2 supported)
Cache Memory 1MB Level 2 cache per core/2-MB total
Memory 2048 MB (Standard) of PC3200 DDR SDRAM 400 MHz
16 GB (Maximum) of PC3200 DDR SDRAM 400 MHz
32 GB (Maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 8 DIMM slots
Network Adapter Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual port NC7782
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional, U320 hard disk drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure

ProLiant BL25p 1.8GHz-1MB,DC 1GB (1P)
392443-B21


Processor(s) (1) Dual-Core AMD Opteron™ processor Model 265, 1.8 GHz standard (up to 2 supported)
Cache Memory 1MB Level 2 cache per core (2-MB total)
Memory 1024 MB (Standard), 2-way interleaved, 8 DIMM slots
16 GB (Maximum) of PC3200 DDR SDRAM 400 MHz
32 GB (Maximum) of PC2700 DDR SDRAM 333 MHz
Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual port NC7782
One additional 10/100 NIC dedicated to iLO Management
Network Adapter Four Gigabit NICs (embedded) with WOL and PXE
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional, U320 hard disk drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure

Single-Core Models
ProLiant BL25p O254 2.8GHz-1MB,SC 2GB (2P)
397817-B21
Processor(s) (2) Single-Core AMD Opteron™ processors Model 254, 2.8 GHz standard (up to 2 supported)
Cache Memory 1MB Level 2 cache per core
Memory 2048 MB (Standard) of PC3200 DDR SDRAM 400 MHz
16 GB (Maximum) of PC3200 DDR SDRAM 400 MHz
32 GB (Maximum) of PC2700 DDR SDRAM 333 MHz
2-way interleaved, 8 DIMM slots
Network Adapter Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual port NC7782
One additional 10/100 NIC dedicated to iLO Management
Storage Controller Smart Array 6i Controller (integrated on system board)
Hard Drives None ship standard
Internal Storage Up to 600-GB maximum (with optional, U320 hard disk drives)
Optical Drive None
Form Factor Plugs vertically into HP BladeSystem p-Class Server Blade Enclosure

Country Code Key
xx = B2 Worldwide
xx = 20 Brazil only
contents
 Overview      Standard Features       Models      Configuration Information Factory Integrated Models (North America only)      BL25p G1 Options      BL25p G1 Memory      BL25p G1 QuickSpecs images/line.gif (50 bytes)

Configuration Information Factory Integrated Models (North America only)

NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.

Step 1: Base Server Blade Configuration

ModelsHP ProLiant BL25p CTO Blade (North America) 382731-405
Configurable Model ships with:
Two (2) PCI-X Gigabit embedded ports consisting of one (1) NC7782 Gigabit Dual Port PCI-X LOM
One additional 10/100 NIC dedicated to iLO Management
Smart Array 6i Controller (integrated on system board)

Step 2: Choose Required Options (one of the following from each list unless otherwise noted)
Processors HP BL25p O285 2.6 GHz DC FIO Base
NOTE: If 2 processors are desired, select one 406426-B21 406426-B21 and one 406426-B21 406426-B21
406426-B21 406426-B21
HP BL25p O280 2.4 GHz DC FIO Base
NOTE:
If 2 processors are desired, select one 399599-B21 399599-B21 and one 399599-B21
399599-B21 399599-B21
HP BL25p 0265 1.8 GHz DC FIO Base
NOTE:
If 2 processors are desired, select one 392444-B21 392444-B21 and one 392444-B21 392444-B21
392444-B21 392444-B21
HP BL25p 0270 2.0 GHz DC FIO Base
NOTE:
If 2 processors are desired, select one 392442-B21 and one 392442-B21
392442-B21
HP BL25p 0275 2.2 GHz DC FIO Base
NOTE:
If 2 processors are desired, select one 392440-B21 392440-B21 and one 392440-B21 392440-B21
392440-B21 392440-B21
HP BL25p O254 2.8 GHz SC FIO Base
NOTE:
If 2 processors are desired, select one 397819-B21 397819-B21 and one 397819-B21 397819-B21
397819-B21 397819-B21
HP BL25p O252 2.6 GHz SC FIO Base
NOTE:
If 2 processors are desired, select one 381588-B21 381588-B21 and one 351588-B21
381588-B21 381588-B21
BL25p G1 Memory NOTE: Two-way memory interleaving is enabled when an identical pair of DIMMs is installed.
1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
NOTE: Must install in pairs
2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
NOTE: Must install in pairs
4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
NOTE: Must install in pairs
8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)
NOTE: Must install in pairs
Communications NOTE: Must select one communications adapter, either the HP ProLiant BL25p/35/45p NIC Mezzanine or the HP ProLiant BL25p/35p/45p Dual NC370i Multifunction Network Adapter.
HP ProLiant BL25/35/45p NIC Mezz FIO Base
NOTE: HP ProLiant BL25p/35/45p NIC Mezz contains two (2) NC7781 single port Gigabit NICs.
382850-B21
Or upgrade to:
HP ProLiant BL25p/35p/45p Dual NC370i Multifunction Network Adapter
NOTE: Accelerated iSCSI is not yet supported for Linux environments; RDMA and iSCSI boot is not yet supported for Windows or Linux environments. Future support is planned for all of these features.
384043-B21
NOTE: A minimum of 1 GB of memory per port is required for NC370x adapters, with a maximum of two NC370x ports permitted in a server.

Step 3: Choose Additional Factory Integratable Options
Fibre Channel Options HP ProLiant BL25/45p dual-port Fibre Channel Adapter
NOTE: The BL25p/45p FC adapter is Qlogic-based.
381881-B21 381881-B21
Emulex-based 25p/35/45p Dual Port Fibre Channel HBA
NOTE:
SFPs for use with pass through SAN switches not included with the Emulex based Fibre Channel Mezzanine card. If SFPs required please order the SFP option kit (P/N 397577-B21 397577-B21) which includes 2 2Gb SFPs per option kit.
394588-B21
HP 2-2Gb SFP for Fibre Channel pass through kit
NOTE: Must select if SFP for use with pass through SAN switches is required when ordering Emulex based Fibre Channel Mezzanine card for HP p-Class BladeSystem (P/N 394757-B21 394757-B21).
397577-B21 397577-B21

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, including server blade enclosure with enhanced backplanes, interconnect options and power subsystem options, please refer to the "Options" section below.
contents
 Overview      Standard Features       Models      Configuration Information Factory Integrated Models (North America only)      BL25p G1 Options      BL25p G1 Memory      BL25p G1 QuickSpecs images/line.gif (50 bytes)

Options

ProLiant Essentials
Value Pack Software
ProLiant Essentials Intelligent Networking Pack Window Edition and Linux Edition
ProLiant Essentials Intelligent Networking Pack Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372906-B21

ProLiant Essentials Intelligent Networking Pack Linux Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
397004-B21
NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12062_div/12062_div.HTML
http://h18000.www1.hp.com/products/quickspecs/12327_div/12327_div.HTML
ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at http://www.hp.com/products/pmp.

306696-B21

NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11925_div/11925_div.HTML
ProLiant Essentials Rapid Deployment Pack Windows
ProLiant Essentials Rapid Deployment Pack, Flatpack - single server license
NOTE: This license allows 1 server to be deployed and managed via RDP.
434560-B21
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-B21

Rapid Deployment Pack, Single-Server License (Japan)
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-291

NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.HTML
ProLiant Essentials Server Migration Pack
ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.

375345-B21

NOTE: For additional ProLiant Server Migration Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.HTML
ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition
HP ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition. 1 Year Unlimited Migration License
412982-B21
ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition, Single-Migration License
412978-B21
NOTE: For additional ProLiant Server Migration Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12467_div/12467_div.HTML
ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition
ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition, Single-Migration License
412978-B21
NOTE: For additional ProLiant Server Migration Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12467_div/12467_div.HTML
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11452_div/11452_div.HTML
ProLiant Essentials Virtual Machine Management Pack
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

372214-B21

NOTE: For additional ProLiant Virtual Machine Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.HTML
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12111_div/12111_div.HTML
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

HP Control Tower BladeSystem p-class Management Software HP Control Tower for HP BladeSystem, Single Server License. No media included.
NOTE: For use with a single blade server. Contains one license with a single unique license activation key.
412957-B21
HP Control Tower for HP BladeSystem, Eight-pack (8-pack) Server License. No media included.
NOTE: For use with eight (8) blade servers. Contains eight (8) licenses with a single unique license activation key.
412958-B21
HP Control Tower for HP BladeSystem, Flexible License. No media included.
NOTE: For use with multiple servers (minimum of 5). This part number can be used to purchase multiple licenses with a single activation key. The quantity ordered for this part number will be the quantity of licenses included in the kit in the form of a corresponding activation key. Use the same key to activate all licenses in the actual quantity ordered. For a given order, one kit will be delivered with the activation key.
412959-B21

Processor HP BL25p Opteron™ 2.6 GHz-1M DC Processor Option Kit
HP BL25p Opteron™ 2.4 GHz-1M DC Processor Option Kit
HP BL25p Opteron™ 2.2 GHz-1M DC Processor Option Kit
HP BL25p Opteron™ 2.0 GHz-1M DC Processor Option Kit
392442-B21
HP BL25p Opteron™ 1.8 GHz-1M DC Processor Option Kit
HP BL25p Opteron™ 2.8 GHz-1M SC Processor Option Kit
HP BL25p Opteron™ 2.6 GHz-1M SC Processor Option Kit

BL25p Hard Drives Ultra320 SCSI – Universal Hot Plug Hard Drives
300-GB 15,000 rpm U320 Universal Hot Plug Hard Drive
300-GB 10,000 rpm U320 Universal Hot Plug Hard Drive
146.8-GB 15,000 rpm U320 Universal Hot Plug Hard Drive
146.8-GB 10,000 rpm U320 Universal Hot Plug Hard Drive
72.8-GB 15,000 rpm U320 Universal Hot Plug Hard Drive
72.8-GB 10,000 rpm U320 Universal Hot Plug Hard Drive
36.4-GB 15,000 rpm U320 Universal Hot Plug Hard Drive
36.4-GB 10,000 rpm U320 Universal Hot Plug Hard Drive
NOTE: All U320 Universal Hot Plug Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller to support U320 transfer rates.
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
U320 Hard Drive QS:
http://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.html (Worldwide)
http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.html
(North America)

BL25p G1 Memory
(SDRAM DIMMs)

1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
NOTE: Must install in pairs
2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
NOTE: Must install in pairs
4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
NOTE: Must install in pairs
8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)
NOTE: Must install in pairs

Communications HP ProLiant BL25p/35p/45p Dual NC370i Multifunction Network Adapter
384043-B21
NOTE: Accelerated iSCSI is not yet supported for Linux environments; RDMA and iSCSI boot is not yet supported for Windows or Linux environments. Future support is planned for all of these features.
NOTE: A minimum of 1 GB of memory per port is required for NC370x adapters, with a maximum of two NC370x ports permitted in a server.

Storage Controllers 128MB Battery-Backed Write Cache with Battery Housing

346914-B21 346914-B21

NOTE: Please see the following Controller QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
http://h18000.www1.hp.com/products/quickspecs/12030_div/12030_div.HTML (Smart Array 6i)

ProLiant BL25 Fibre Channel
Adapter
Emulex based 25p/35/45p Dual Port Fibre Channel HBA
394588-B21
Dual port Fibre Channel Adapter (2-Gb) for HP ProLiant BL25p/45p server blade (shared with the HP ProLiant BL45p server blade)

381881-B21 381881-B21

NOTE: When using this card, the Patch Panel 2, CGESM, or GbE2 Interconnect Switch (with Storage Connectivity Kit) must be used to provide the Fibre Channel pass through.
NOTE: For more information on HP BladeSystem p-Class Interconnect Components please visit: http://h18000.www1.hp.com/products/quickspecs/12331_div/12331_div.HTML
NOTE: The BL35p and BL20p dual-port Fibre Channel adapters are not compatible with the HP ProLiant BL25p server blade.

HP BladeSystem p-Class Other Options HP BladeSystem p-Class Diagnostic Station
NOTE: The Diagnostic Station allows access to the HP ProLiant p-Class server blades and the BL p-Class interconnect switch outside of the server blade enclosure. The option provides power and a data interface so that "offline" upgrade and diagnostic functions may be performed.

Tape Libraries

HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library
AD601B
NOTE: Please reference the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks Virtual Library Systems
HP StorageWorks 6105 Virtual Library System
AF728A
HP StorageWorks 6510 Virtual Library System
AF729A
HP StorageWorks 6840 Virtual Library System AG051A
HP StorageWorks 6109 Virtual Library System AG167A
HP StorageWorks 6518 Virtual Library System AG168A
HP StorageWorks 6870 Virtual Library System AG169A
NOTE: Please reference the Virtual Library Systems QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution. Reference current compatibility information at http://www.hp.com/go/ebs

HP StorageWorks Modular Smart Array 1000 HP StorageWorks Modular Smart Array 1000 201723-B22 201723-B22
NOTE: Please see the StorageWorks Modular Smart Array 1000 QuickSpecs for additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML (Worldwide)


HP StorageWorks Modular Smart Array 1500 cs HP StorageWorks Modular Smart Array 1500 AA986A AA986A
NOTE: Please see the StorageWorks Modular Smart Array 1500 cs QuickSpecs for additional options and configuration information at:
http://www.hp.com/go/MSA1500cs


HP StorageWorks Options HP StorageWorks Fibre Channel Mezzanine Host Bus Adapter
394588-B21
NOTE: Support HP ProLiant BL25p/45p Server Blades

Cluster Options NOTE: For configuration/certification options for the HP Parallel Database Cluster for Oracle RAC please go to: http://www.hp.com/solutions/highavailability/oracle
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription
T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription
T2798AA#003
HP Serviceguard for Linux, A.11.16 for SUSE SLES 9 & 10 and Red Hat 3 & 4 (single license version)
307754-B26
HP Serviceguard for Linux ProLiant Cluster, A.11.16 (for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (2 node cluster kit)
305199-B26
NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html (Worldwide)


USB Options HP USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
HP USB 2-Button Optical Mouse (Carbonite/Silver) DC172B DC172B
HP USB 04 Standard Keyboard DT528A#xxx
USB 2.0 4-port HUB DG954A
HP 1GB Drive Key II- USB 2.0 Flash Drive AG382AA
HP 512MB DriveKey II- USB Flash Drive ED516AA
USB Optical Scroll Mouse (Carbonite) DD441B
256MB HP Drive Key II (USB 2.0) PH657A

HP Rack 5000 Series
(Graphite Metallic)
HP 5642 Rack - Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.


HP Rack 10000 G2 Series (Graphite Metallic) 10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
AF002A AF002A
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
AF004A AF004A
10636 G2 (36U) Rack Cabinet - Shock Pallet AF011A AF011A
10636 G2 (36U) Rack Cabinet - Crated AF012A AF012A
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet AF013A AF013A
10636 G2 (36U) Rack Cabinet, without door - Shock Pallet AF014A AF014A
10622 G2 (22U) Rack Cabinet - Pallet
AF021A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet AF042A
10647 G2 (47U) Rack Cabinet - Pallet AF031A
NOTE: Please see the Rack 10000 G2 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.


HP Rack 10000 Series (Graphite Metallic) 10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
379005-001 379005-001
HP S10614 (14U) Rack Cabinet - Shock Pallet
292302-B22 292302-B22
HP 10647 (47U) Rack Cabinet - Shock Pallet
245160-B23
HP 10622 (22U) Rack Cabinet - Crated 245163-B23
NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed.

NOTE: Please see the Rack 10000 QuickSpecs for additional part number and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.HTML (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.


Monitors and Keyboards

TFT7210R Rack Mounted 17" Monitor
TFT7600 Rackmount Keyboard Monitor US
TFT7600 Rackmount Keyboard Monitor UK
AG053A
TFT7600 Rackmount Keyboard Monitor GR
AG054A
TFT7600 Rackmount Keyboard Monitor FR
AG055A
TFT7600 Rackmount Keyboard Monitor IT
AG056A
TFT7600 Rackmount Keyboard Monitor SP
AG057A
TFT7600 Rackmount Keyboard Monitor DEN
AG058A
TFT7600 Rackmount Keyboard Monitor NOR
AG059A
TFT7600 Rackmount Keyboard Monitor SE/FI
AG060A
TFT7600 Rackmount Keyboard Monitor SWI
AG061A
TFT7600 Rackmount Keyboard Monitor PORT
AG062A
TFT7600 Rackmount Keyboard Monitor BEL
AG063A
TFT7600 Rackmount Keyboard Monitor JPN2
AG064A
TFT7600 Rackmount Keyboard Monitor RUS
AG065A
TFT7600 Rackmount Keyboard Monitor INTL
AG066A
1U Rackmount Keyboard with USB, US
1U Rackmount Keyboard with USB, UK
AG073A
1U Rackmount Keyboard with USB, GR
AG074A
1U Rackmount Keyboard with USB, FR
AG075A
1U Rackmount Keyboard with USB, ITL
AG076A
1U Rackmount Keyboard with USB, SP
AG077A
1U Rackmount Keyboard with USB, DEN
AG078A
1U Rackmount Keyboard with USB, NOR
AG079A
1U Rackmount Keyboard with USB, SE/FI
AG080A
1U Rackmount Keyboard with USB, SWI
AG081A
1U Rackmount Keyboard with USB, PORT
AG082A
1U Rackmount Keyboard with USB, BEL
AG083A
1U Rackmount Keyboard with USB, JPN2
AG084A
1U Rackmount Keyboard with USB, RUS
AG085A
1U Rackmount Keyboard with USB, INTL
AG086A
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower.

HP KVM Switch Options

Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Consoles Switches. Cat52 cables can be found at the following URL: http://www.hp.com/go/kvm
HP 1x4 Server Console Switch
HP PS2 Server Console Cable, 6 foot, 2-Pack
HP USB Server Console Cable, 6 foot, 2-Pack
NOTE: required for supporting USB peripherals.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm

HP Serial Console Server Options HP 16 Port Serial Console Server (worldwide)
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
USB Virtual Media Interface Adapter
AF603A
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)

NOTE: The HP Care Pack service part numbers below for HP BladeSystem p-Class server blades cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

Hardware Services On-site Service



4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UD187E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD188E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD189E
NOTE: The HP Care Pack service part numbers below for HP BladeSystem p-Class server blade enclosure covers the enclosure including patch panels, HP supported Ethernet interconnects, power enclosure with power supplies and power distribution.
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
HC031E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC032E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC033E
NOTE: The HP Care Pack service part numbers below covers the HP BladeSystem Brocade and McData SAN Switches.
Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage,
3 Years, Electronic
UC007E
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
UC008E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC009E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC023E

Installation & Start-up Services

HP Installation & Startup Service for HP BladeSystem Infrastructure, Electronic
NOTE: Provides for an integrated hardware and software implementation that includes remote service planning, onsite deployment of hardware and software, installation verification testing and customer orientation. Hardware deployment covers the installation of a single BladeSystem enclosure that include server blades (up to 16), Ethernet network interconnect, and power options. Software deployment covers the installation and configuration of HP Systems Insight Manager (SIM), HP Rapid Deployment Pack (RDP), and deploy up to two operating system editions of either Windows or Linux, using scripted operating system installation software.

UC905E

ProLiant BL p-Class Blade Server Hardware Installation, Electronic

UA219E

ProLiant BL p-Class Enclosure and Server Blade Hardware Installation, Electronic

U4971E

Provides for the Installation and Start-up of ProLiant Essentials Rapid Deployment Pack, Electronic
NOTE: Provides installation on a Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days.
U5683E
Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment Pack (Basic) (Electronic)
UA042E
HP ProLiant Essentials Vulnerability and Patch Management Pack Installation and Startup Service, Electronic
NOTE: Service coverage: onsite installation of the Vulnerability and Patch Management (VPM) software on a customer designated server, configuration of the VPM software to acquire security patches, enabling the VPM software to scan up to five (5) systems, applying the security patches to the designated servers, generating a report from VPM that shows the vulnerability assessment results, and providing customer with an orientation to the software.
UC929E
Provides for the Installation and Start-up of System Insight Manager (Electronic)
UA041E
Provides for the Installation and Start-up of System Insight Manager (Electronic)
UA040E
Software Operating Environment Care Packs
Microsoft Software Operating Environment Software Telephone 9x5 - 3 incident (Electronic)
U8169E
Red Hat Software Operating Environment Software Telephone 9x5 - 10 incident (Electronic)
U3402E
SUSE Software Operating Environment Software Telephone 9x5 - 3 incident (Electronic)
U9615E
ProLiant Essentials Operating Environment, - 5 Day, 8x5,1 year, 3 incident (Electronic)
U8222E
NOTE: For more information, customer/resellers can contact http://www.hp.com/hps/carepack/services/



contents
 Overview      Standard Features       Models      Configuration Information Factory Integrated Models (North America only)      BL25p G1 Options      BL25p G1 Memory      BL25p G1 QuickSpecs images/line.gif (50 bytes)

Memory

HP ProLiant BL25p Server Blade (2P Models)

DIMM Installation Rules:

  1. All DIMMs must be either PC3200 DDR 400 MHz SDRAM DIMMS or PC2700 DDR 333 MHz SDRAM DIMMS.
  2. Both DIMM slots in a memory bank must be populated.
  3. Both DIMM slots in a memory bank must be identical.
  4. Processor 1 memory bank 1 must always be populated.
  5. Populate DIMMS beginning with the farthest slots from the processor, starting with the SMALLEST DIMM's first, moving in towards the processor.
  6. If only installing 1 GB DIMMs, ensure that the Dual Rank DIMMs are installed closest to the processor. Dual Rank can be determined by looking for the "2R" or "2Rx8" wording on the label of the DIMM.
  7. For optimal performance in most applications, populate memory bank 1 for every populated processor socket.
  8. DIMM banks are active only when the corresponding processor socket is populated.

Standard Memory
2048 MB PC3200 Registered DDR SDRAM DIMM installed (4 x 512 MB SDRAM DIMM)

Standard Memory Plus Optional Memory

Up to 10240 MB of PC3200 DDR SDRAM DIMM memory is available with the installation of optional PC3200 DDR SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory
Up to 16384 MB of PC3200 DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional PC3200 SDRAM DDR DIMM memory expansion kits.

Up to 32768 MB of PC2700 DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional PC2700SDRAM DDR DIMM memory expansion kits.

BL25p G1 Memory
Slot
1
2
3
4
5
6
7
8
Standard 2048 MB
512 MB
512 MB
Empty
Empty
512 MB
512 MB
Empty
Empty
Optional 10240 MB
512 MB
512 MB
2048 MB
2048 MB
512 MB
512 MB
2048 MB
2048 MB
16 GB PC3200 Maximum 16384 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
32 GB PC2700 Maximum 32768 MB
4096 MB
4096 MB
4096 MB
4096 MB
4096 MB
4096 MB
4096 MB
4096 MB

Following are memory options available from HP:
  • 1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
376638-B21 376638-B21
  • 2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
376639-B21 376639-B21
  • 4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
  • 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)

HP ProLiant BL25p Server Blade (1P Model)

Standard Memory
1024 MB PC3200 400 MHz Registered DDR SDRAM DIMM installed

Standard Memory Plus Optional Memory

Up to 5120 MB of PC3200 DDR SDRAM DIMM memory is available with the installation of optional PC3200 DDR SDRAM DIMM memory expansion kits.

Standard Memory Replaced with Optional Memory
Up to 8192 MB of PC3200 DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional PC3200 DDR SDRAM DIMM memory expansion kits.

Up to 16384 MB of PC2700 DDR SDRAM DIMM memory is available with the removal of standard memory and the installation of optional PC2700 DDR SDRAM DIMM memory expansion kits.

BL25p G1 Memory
Slot
1
2
3
4
5
6
7
8
Standard 1024 MB
512 MB
512 MB
Empty
Empty
Empty
Empty
Empty
Empty
Optional 5120 MB
512 MB
512 MB
2048 MB
2048 MB
Empty
Empty
Empty
Empty
8 GB PC3200 Maximum 8192 MB
2048 MB
2048 MB
2048 MB
2048 MB
Empty
Empty
Empty
Empty
16 GB PC2700 Maximum 16384 MB
4096 MB
4096 MB
4096 MB
4096 MB
Empty
Empty
Empty
Empty

Following are memory options available from HP:
  • 1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
376638-B21 376638-B21
  • 2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
376639-B21 376639-B21
  • 4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
  • 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)
contents
 Overview      Standard Features       Models      Configuration Information Factory Integrated Models (North America only)      BL25p G1 Options      BL25p G1 Memory      BL25p G1 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit

Dimensions (HxWxD)

1.69 in (4.29 cm) x 10.29 in (26.14 cm) x 28.00 in (71.1 cm)

Weight (maximum)

20.8 lb (9.43 kg)

Temperature Range*

Operating
50° to 95° F (10° to 35° C)
Shipping
-40° to 140° F (-40° to 60° C)
Storage
-4 to 140° F (-20° to 60° C)

Relative Humidity**
(non-condensing)

Operating
10% to 90%
Shipping
10% to 90%



Storage
10% to 95%

Wet Bulb Temperature

Maximum 86° F (30° C)
*NOTE: All temperature ratings shown are for sea level. An altitude derating of 1° C per 304.8 m (1.8° F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia.
**NOTE: Storage maximum humidity of 95% is based on a maximum temperature of 45° C (113° F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

USAPartsDirect          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
