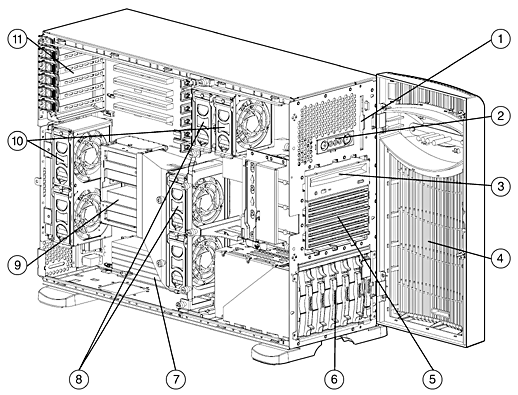

Up to two Intel Xeon Processors with Hyperthreading
Technology
Integrated Dual Channel Wide Ultra3 SCSI Adapter
(Smart Array 6402 controller is standard on High Performance Models)
Maximum 2 GB of 2-way interleaved capable PC2100
DDR SDRAM with Advanced ECC capabilities
NC7781 PCI-X Gigabit NIC (embedded)
Six PCI-X 64Bit/100-MHz expansion slots (Five
available on Array and High Performance Models)
Optional Hot plug redundant power supplies
and cooling fans (Redundant fans standard on High Performance Models)
Up to 8 Hot Plug hard drive bays (An additional
two-bay drive cage standard on High Performance Models)
Tool-free serviceability
Tool-free, spring loaded snap-on slide rails
Diagnostic and Unit ID LEDs
HP Systems Insight Manager
SmartStart
Protected by HP Services, including a three-year,
Next Business Day on-site, limited, Global warranty and extended Pre-Failure
Warranty that covers processors, memory and disk drives - Certain restrictions
and exclusions apply.
Integrated ATI Rage XL Video
Controller with 8MB SDRAM Video Memory
Form Factor
Tower or Rack (5U)
ProLiant
Essentials Foundation Pack Software
HP Systems Insight Manager
HP's new HP Systems Insight
Manager (HP SIM) helps maximize system uptime and performance and
reduce system maintenance costs by providing proactive notification
of problems before those problems result in unplanned downtime or
reduced productivity. HP SIM are both easy to set up work with the
Insight Management Agents, integrated Light-Out and Remote Insight
Light-Outs Edition, and Version Control Agents to deliver robust fault,
configuration, and asset management as well as remote administration.
With HP SIM customers will also be able to take advantage of role-based
security; the ability to manage ProLiant, Integrity, and HP 9000 systems;
and plug-ins for storage, client, printer, and power management as
well as server rapid deployment, performance management, and workload
management. For more details on HP SIM visit http://www.hp.com/go/hpsim.
SmartStart
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please visit the SmartStart
Web site at http://www.hp.com/servers/smartstart. SmartStart version supported (minimum):
SmartStart 6.0
Management Agents
The
Management Agents form the foundation for HP's Intelligent Manageability strategy.
They provide direct, browser-based access to in-depth instrumentation built into
HP servers, workstations, desktops, and portables, and send alerts to Insight
Manager 7 and other enterprise management applications in case of subsystem or
environmental failures. For additional information about the Management Agents
and other management products from, HP please visit the management Web site at
http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's Choice Driver
and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change
notifications for ProLiant products. Sign up at www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and
options available in SmartStart or downloadable from Software and
Drivers download pages, linked from the SmartStart website at www.hp.com/servers/smartstart
Survey
Utility and diagnostics utilities
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional
software offerings that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack – an automated solution for multi-server deployment
and provisioning, enabling companies to quickly and easily adapt to changing business
demands.
Workload Management Pack – provides easier management
of complex environments, improving overall server utilization and enabling Windows
2000 customers for the first time to confidently deploy multiple applications
on a single multiprocessor ProLiant Server.
Integrated Lights-Out
Advanced Pack – upgrades the Integrated Lights-Out processor to full virtual
presence and control with graphical console and virtual media.
Recovery
Server Option Pack – entry-level high availability software that will provide
reliable protection and increased uptime against server hardware and operating
system failures.
Performance Management Pack – a performance
management solution that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better utilize their
valuable resources.
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/ProLiantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information. NOTE: For more information regarding ProLiant Essentials Software, please
see the following URL: http://www.hp.com/servers/ProLiantessentials.
Industry Standard
Compliance
ACPI 1.0b Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
PXE Support
Intelligent Manageability
Insight Manager 7
HP Systems Insight Manager
Management Agent
Redundant ROM
Remote Flash ROM
Integrated Lights-Out Support
Remote Lights-Out Edition II (Optional)
Automatic Server Recovery (ASR)
ROM-Based Setup Utility (RBSU)
Integrated Management Log
Drive Parameter Tracking (with Smart Array controller)
Dynamic Sector Repairing (with Smart Array controller)
Hot Spare Boot
(NOTE: Upon the event of a failed processor or VRM in a multi-processing
environment, the system will automatically reboot and use the remaining
good processor(s).)
Pre-Failure Warranty (covers processors, hard drives and memory)
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock
Server Power Cords
110V NEMA 12ft. (3.66m) cords
included in the United States; localized cables included with geographic
specific models in other world regions. Also included with rack models,
IEC to IEC 10 ft. (3.05m) cords.
Power Supply
500 Watt-CE Mark Compliant Hot
Plug Power Supply
Optional Redundant Capability
System Fans
Three fans ship standard. Redundant
fan kit includes three fans plus cage for CPU fans.
Microsoft Windows NT® Server
Microsoft Windows 2000 Server
Windows Server 2003 Server
Novell NetWare
SCO OpenServer and OpenUNIX
Red Hat Linux
SuSE Linux
United Linux
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If
a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front
and rear doors: If your 42U server rack includes closing front and rear doors,
you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from
top to bottom to permit adequate airflow (equivalent to the required 64 percent
open area for ventilation).
Side: The
clearance between the installed rack component and the side panels of the rack
must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels
to fill all remaining empty front panel U-spaces in the rack. This arrangement
ensures proper airflow. Using a rack without blanking panels results in
improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide
or the Documentation CD provided with the server, or to the server documentation
located in the Support section at the following URL: http://h18000.www1.hp.com/products/servers/ProLiantdl380/index.html.
Installation
of ProLiant ML370 G3 servers with Round Hole, Third Party or Telco Racks
The optional ML370 Round Hole
Rail Kit ( 231122-B21) is required for installation in racks with round holes.
The optional ML370 Telco Rail Kit (231121-B21) is required for installation
into 2-post Telco racks.
Other third part rack solutions for ProLiant servers are available through
the following URL:
http://www.racksolutions.com/compaq/products.html.
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and/or storage products. Customers
can choose how their factory solutions are built, tested, integrated,
shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging
to meet customer needs. HP products supported through Factory Express
include: HP Integrity, HP ProLiant & Blades, HP 9000 servers and the
MSA1000, VA7xxx, EVA3000 & EVA5000, XP, rackable tape libraries and
configurable network switches storage products.
For more information on how to order please contact your sales representative
or go to http://www.hp.com/go/factory-express.
Service and Support
Three-year limited warranty,
including hardware diagnostic support, pre-failure warranty (coverage of
hard drives, memory and processors). The warranty is fully supported by
HP Services and a worldwide network of resellers and service providers.
In addition 90-day's getting started software telephone support may be covered
under the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services.
NOTE: Limited warranty includes 3 year
parts, 3 year labor, 3-year on-site support
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft,
Linux, ProLiant Essentials and VMWare-based IT solutions helping to
deliver high level of application availability. Response times range
from 30 mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support
Solution
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server, purchased at the same time or afterward, internal
to the enclosure, as well as 22" and smaller external monitors and
tower UPS options up to 3kVA; these items will be covered at the same
service level and for the same coverage period as the server. Coverage
of UPS Battery is not included, standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
NOTE: For more information on HP Care
Pack services, contact any of our worldwide sales offices or resellers
or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack
NOTE: For more complete information
on HP Services offerings, customers and resellers, please visit us at:
http://www.hp.com/hps
ProLiant Essentials
Performance Management Pack, Single License NOTE: This license allows 1 server
to be managed by Performance Management Pack.
306696-B21
ProLiant Essentials
Performance Management Pack, 10 Pack Server License
374055-B21
Performance Management
Pack, flexible license kit NOTE: A single pack is shipped with
a single license key for the total number of licenses ordered.
306697-B21
ProLiant Essentials
Integrated Lights-Out Advanced Pack (Featuring: sophisticated virtual administration
features for ultimate control of servers in the data centers and remote
sites)
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
372214-B21
ProLiant Essentials
Virtual Machine Management Pack, Flexible-Quantity License NOTE: For use with multiple servers.
This part number can be used to purchase multiple licenses with a single
activation key.
372215-B21
ProLiant Essentials
Virtual Machine Management Pack, Tracking License NOTE: For use with signed and implemented
Activation Key Agreements only. Purchase of this part number entitles the
customer to deploy additional licenses of the product under the terms of
the existing Activation Key Agreement.
372216-B21
NOTE:
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to http://www.hp.com/servers/ProLiantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/ProLiantessentials.
Processor
Intel Xeon 3.2-2MB/533MHz
Processor Option Kit
352568-B21
Intel Xeon 3.2-1MB/533MHz
Processor Option Kit
333714-B21
Intel Xeon 3.06-1MB/533MHz
Processor Option Kit
333713-B21
Intel Xeon 3.06-512KB/533MHz
Processor Option Kit
257916-B21
Intel Xeon 2.8-1MB/533MHz
Processor Option Kit
352567-B21
Intel Xeon 2.8-512KB/400MHz
Processor Option Kit
257915-B21
NOTE:
Mixing processor speeds and cache sizes is not supported. When operating
with two processors, speed and cache size should match.
Memory
512MB
of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 256 MB)
ML3xx Two Bay Hot Plug SCSI Drive
Cage NOTE:
The drive cage option kit (PN 244059-B21) has one 1" drive bay and
one 1.6" drive bay, installed in two available removable media bays.
CD-RW/DVD ROM combo Drive Option
Kit NOTE: The DVD-ROM drive is supported
in the CD-ROM bay and in the removable media bay. If placed in the removable
media bay, it requires the 2-Device IDE cable (PN 305381-B21).
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller or U320 SCSI HBA to support
U320 transfer rates.
NOTE: Please see
the Hard Drive QuickSpecs for Technical Specifications such as capacity,
height, width, interface, transfer rate, seek time, physical configuration,
and operating temperature:
U320 Hard Drive QS: http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.html
256MB Battery Backed Cache Module NOTE: This 256MB Battery Backed Cache
Module supports the Smart Array 5300 series controllers, HP StorageWorks
Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500.
NOTE:
The RILOE II USB Virtual Media feature is not supported on the 2.40 and 2.80
GHz versions of the ProLiant DL380 G3 and ProLiant ML370 G3 servers. The RILOE
II cannot be used to connect the local client floppy and CD devices as USB virtual
devices to the remote server. All other RILOE II features are supported on these
servers. The non-USB based RILOE II Virtual Floppy feature is still supported,
allowing you to perform functions such as remote ROM upgrades and server deployment.
The Virtual Floppy feature requires loading the floppy image in to the RILOE II.
For more details, please refer to the user guide of the RILOE II.
Tape Drives
NOTE: In
order to install certain tape drives internally, you may need to remove
the rails that come standard on the drives and then re-insert the
screws in the mounting holes. Mounting screws are shipped standard
with server.
NOTE: External
tape devices, including both tape drives and tape arrays/enclosures,
can be directly connected to the VHDCI SCSI port located on the back
of the server. Use of a SCSI adapter to connect these devices is optional,
not required.
Ultrium Tape Drives -
External, Rack-Mount and Array
HP StorageWorks Ultrium
215 Tape Drive, Internal (Carbon)
Q1543A
HP StorageWorks Ultrium
215 Tape Drive, External (Carbon)
HP StorageWorks 1U Rack-Mount
Kit NOTE: The
1U Rack-mount Kit can support up to 2 half-height tape drives and
compatible with multiple Single-Ended and LVD SCSI tape drives including
DAT 24, DAT40, DAT72, DLT VS 80, and Ultrium 215 tape drives.
HP StorageWorks
3U Rack-Mount Kit NOTE: The 3U Rack-Mount Kit
can support up to 2 full-height or 4 half-height tape drives and compatible
with multiple Single-Ended and LVD SCSI tape drives including DAT,
DLT VS80, SDLT 320, Ultrium 215, Ultrium 230, and Ultrium 460 Tape
Drives.
HP StorageWorks 5U Rack-Mount
Kit NOTE: The
5U Rack-Mount Kit can support up to 4 full-height tape drives and
is compatible with SDLT 320, Ultrium 230, and Ultrium 460 tape drives.
NOTE:
The Tape Array 5300 is a 3U enclosure that supports up to 2 full-height
or 4 half-height hot-swap array modules, including DAT and Ultrium
tape drives. Cables and terminators are not included and must be ordered
separately. NOTE: Please see the Tape Array 5300 QuickSpecs for additional
information regarding this product. http://h18000.www1.hp.com/products/quickspecs/11878_na/11878_na.html
Accessories for 3U &
5U Rack-mount Tape Drive Kits
LVD Cable Kit, VHDCI/HD68 NOTE: For use with the 3U Rackmount
Kit and 5U Rackmount Kit only.
NOTE: Required
to install the 1/8 tape autoloader in a standard 19-inch rack NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks SSL1016 Tape
Autoloader
SSL1016 Ultrium 460 Tape Autoloader
330821-B21
SSL1016 SDLT 320 Tape Autoloader
330816-B21
NOTE:
Please reference the SSL1016 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please
reference the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL5026S2 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL5052S2 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL5030 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the MSL5060 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the ESL E-Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
Magneto-Optical Jukeboxes
HP StorageWorks 9.1 GB Entry-level Optical
Storage
220mx, 1 drive, 24 slot jukebox
C1118M
220mx, 2 drive, 24 slot jukebox
C1119M
NOTE: Please reference the
Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical
for additional information needed to create a complete solution
HP StorageWorks 9.1 GB Mid-range Optical
Jukeboxes
300mx, 2 drive, 32 slot jukebox
C1150M
600mx, 4 drive, 64 slot jukebox
C1160M
700mx, 2 drive, 76 slot jukebox
C1170M
NOTE: Please reference the
Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical
for additional information needed to create a complete solution
Ultra Density Optical Jukeboxes
700ux, 1 drive, 24 slot jukebox
AA962A
700ux, 2 drive, 24 slot jukebox
AA963A
1100ux, 2 drive, 38 slot jukebox
AA964A
1000ux, 2 drive, 32 slot jukebox
AA965A
1900ux, 4 drive, 64 slot jukebox
AA966A
1900ux, 4 mixed drive, 64 slot jukebox
AA968A
2300ux, 2 drive, 76 slot jukebox
AA967A
NOTE: Please reference the
Ultra Density Optical Jukebox QuickSpecs at http://www.hp.com/go/optical
for additional information needed to create a complete solution
HP StorageWorks
Modular Smart Array 500
HP StorageWorks Modular Smart
Array 500 Generation 2
HP Serviceguard for Linux ProLiant
Cluster (2 node license cluster kit) A.11.15 NOTE: Kit includes 2 licenses, documentation
and an Ethernet crossover cable.
305199-B24
HP Serviceguard for Linux (single
license version for ordering flexibility and to ease ordering for larger
cluster) A.11.15 NOTE: Kit includes single license
version and documentation.
NOTE: Please see
the StorageWorks Modular SAN Array 1500 QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs
NOTE:
This PDU has a detachable input power cord and allows for adaptability to
country specific power requirements. This model may also be used with the high
volt UPSs R3000 XR and R6000.
NOTE: -B21 (pallet) used to ship empty
racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom
systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks
NOTE: It is mandatory to use a shock
pallet in order to ship racks with equipment installed. Not all HP equipment
is qualified to be shipped in the Rack 10000 series.
Service
and Support Offerings (HP Care Pack Services)
Hardware Services
On-site Service
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years
U4528A
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4528E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years
U4529A
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
U4529E
Installation &
Start-up Services
Hardware Installation
U4538A
Hardware Installation, Electronic
U4538E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays.
U4539A
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4539E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.
U4540A
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4540E
Onsite HW support, 8am-9pm,
M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at
HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays
U4542A
Onsite HW support, 8am-9pm,
M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at
HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4542E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays.
U4541A
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4541E
Onsite HW support 24x7,
4hr response and Linux O/S SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays.
U4543A
Onsite HW support 24x7,
4hr response and Linux O/S SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
1 GB PC2100 Registered DDR SDRAM DIMM Memory comes installed (2 x 512-MB
SDRAM)
Standard Memory Plus Optional Memory
Up to 9,216-MB of memory is available with the optional installation of
8,192-MB PC2100 Registered DDR SDRAM DIMM Memory Option Kit (1 x 512MB)
Standard Memory Replaced with Optional Memory
Up to 12,288-MB of memory is available with the removal of the standard
1024-MB of memory and the optional installation of 12,288 -MB PC2100 Registered
DDR SDRAM DIMM Memory Option Kit (3 x 4,096MB)
NOTE: This chart does not represent
all possible memory configurations.
Memory
Slot
1
2
3
4
5
6
Standard
1,024 MB
512 MB
512 MB
Empty
Empty
Empty
Empty
Optional
9,216 MB
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
12,288 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Following are memory options available from HP:
4096-MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 2048MB)
NOTE: All U320 Universal
Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require
an optional U320 Smart Array Controller or U320 SCSI HBA to support U320
transfer rates.
Maximum Storage Capacity (SCSI Enclosure) (Hot Plug)
Internal
2.40 TB (6 x 300
GB 1" Ultra320 hot plug hard drives with standard internal drive cage
+ 2 x 300 GB 1" Ultra320 hot plug hard drive using the optional ML3xx
Two Bay Hot Plug SCSI Drive Cage)
External
105.00 TB (25 Storage
Works Enclosures, each with 14 x 300 8GB Ultra320 1" drives, utilizing
6 x 4 channel 5300 SCSI controllers, plus integrated external channel for
the 25th channel)
To drill down to calculators: - Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML370 G3 - Click on: "Power
Calculator" link. (You may need to scroll down to see it)
Two Internal
HD68 connectors and One External VHDCI Connector supporting Ultra3
Power Supply Output
Power
Steady State Power
500
W
Maximum Peak Power
550W
Temperature Range
Operating
41°
to 95° F (5° to 35° C)
Shipping
-40°
to 185° F (-40° to 85° C)
Relative
Humidity (non-condensing)
Operating
5%
to 95%
Non-operating
5%
to 95%
Acoustic
Noise
Idle (Fixed Disk
Drives Spinning)
L WAd
(BELS)
5.9
L pAm
(dBA)
41
Operating (Random
Seeks to Fixed Disks)
L
WAd (BELS)
6.0
L
pAm (dBA)
42

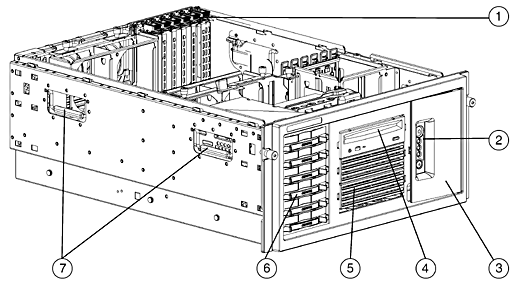

System Unit - Rack
Dimensions
8.69 x 19.0 x 25.75 in (22.07
x 48.26 x 65.43 cm)
Weight
65 lb (29.48) (without hard drives,
no RPS)
Input Requirements
Range Line Voltage
90 to 264 VAC
Rated Input Voltage
90 to 264 VAC
Rated Input Frequency
47 to 63 Hz
Rated Input Current
7.3A (110 V) to 3.6A (220 V)
Rated Input Power
800W
BTU Rating
2,732 BTU/HR
SCSI Connectors
Two Internal HD68 connectors and
One External VHDCI Connector supporting Ultra3
Power Supply Output
Power
Steady State Power
500 W
Maximum Peak Power
550 W
Temperature Range
Operating
41° to 95° F (5° to
35° C)
Shipping
-40° to 185° F (-40°
to 85° C)
Relative Humidity (non-condensing)
Operating
5% to 95%
Non-operating
5% to 95%
Maximum Wet Bulb Temperature
101.7° F (38.7° C)
Acoustic Noise
Idle
(Fixed Disk Drives Spinning)
L WAd (BELS)
5.9
L pAm (dBA)
41
Operating
(Random Seeks to Fixed Disks)
L WAd (BELS)
6.0
L pAm (dBA)
42
Optional Redundant Power Supply
Input Requirements
Rated Input Voltage
90 to 264 VAC
Rated Input Frequency
47 to 63 Hz
Rated Input Current
7.3A (110 V) to 3.6A (220 V)
Rated Input Power
800W
BTU Rating
2,732 BTU/HR
Power Supply Output
Power
Steady State Power
500 W
Maximum Peak Power
550W
Temperature Range
Operating
41° to 95° F (5° to
35° C)
Shipping
-40° to 185° F (-40°
to 85° C)
Relative Humidity (non-condensing)
Operating
5% to 95%
Non-operating
5% to 95%
Maximum Wet Bulb Temperature
101.7° F (38.7° C)
48X Max IDE CD-ROM Drive
Disk
Applicable
Disk
CD-ROM, CD-XA, CD-DA (Mode
1, Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed
Mode (Audio and Data combined)
CD-R
Capacity
540 MB (Mode 1,
12 cm)
650 MB (Mode 2,
12 cm)
Block Size
Mode 1
2,048 bytes, 1024
bytes
Mode 2
2,340 bytes, 2,336
bytes, 1024 bytes
CD-DA
2,352 bytes
CD-XA
2,328
bytes
Interface
IDE (ATAPI)
Access Times (typical)
Random
<100 ms
Full-Stroke
<150
ms
Data
Transfer Rate
Sustained
3000
to 7200 KB/s (20X to 48X)
Burst
150
KBps to 7,200 KBps
Bus
Rate
16.7 MBps
Cache Buffer
128
KB
Start-up Time (typical)
< 7seconds
Stop Time
<
4seconds
Laser Parameters
Type
Semiconductor
Laser GaA1As
Wave
Length
780 ± 25 nm
Operating Conditions
Temperature
41° to 113°
F (5° to 45° C)
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
1.7
x 5.85 x 8.11 in (42.9 x 150 x 208 cm)
Weight
2.09
lb (0.95 kg)
Integrated Dual Channel Wide Ultra3 SCSI Adapter
Drives Supported
Up to 15 SCSI devices per channel
Data Transfer Method
64-bit PCI bus-master
SCSI Channel Transfer Rate
160 MB/s per channel
Maximum Transfer Rate per PCI
Bus (peak)
267 MB/s
SCSI Termination
Active Termination
SCSI Connectors
1 external, 2 internal (68-pin)
NC7781 PCI-X Gigabit NIC (embedded) Server Adapter
Network Interface
10/100/1000-T
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 80.3u 100Base-TX
Data Transfer Method
64-bit/133MHz PCI-X
Network Transfer
Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Full-Duplex)
2000 Mb/s
1000Base-TX (Half and Full-Duplex)
2000 Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to
328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100
m)
Integrated Lights-Out (integrated on system board)
Architecture
32-bit PCI-based health and remote
management ASIC (Application Specific Integrated Circuit)
Processor
32-bit RISC processor core running
at 66MHz
Upgradability
Option firmware upgradable via flash
ROM.
Video Support
Utilizes the host server's embedded
video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600
(256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256
colors)
Interfaces
One Ethernet network connection
(10/100 Mb/s)
Memory
2-MB Flash ROM
8-MB SDRAM
Operating System Support
Microsoft Windows NT 4.0 Server
Windows NT 4.0 Enterprise Edition
Windows 2000 Server
Windows 2000 Advanced Server
Windows Server 2003 Standard Edition
Windows Server 2003 Enterprise Edition
Windows Server 2003 Small Business Edition
Red Hat 7.x
SuSE 7.0
Novell NetWare 5.x, 6.x
Client Browser Support
Microsoft Internet Explorer 5.5
or later.
iLO Standard Features
Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for up to 12 user accounts with customizable access privileges
US Site
DL Quickspecs
Search:
231122-B21
© 2012 Canada PartsDirect
