The HP ProLiant ML310 G4 is an affordable, single processor
tower server designed to provide the solid network foundation essential
to fuel thriving small offices. Dual-Core Intel Xeon, Dual-Core Pentium
D or single-core Celeron D processing power combines with industry-leading
management and essential data protection features for a secure, affordable
platform that helps you run your business efficiently.
Processors:
Dual-Core Intel® Xeon® processor 3000 Sequence
Dual-Core Pentium® D 800 or 900 Series processor
Single-core Celeron D® 300 Sequence processor
1066 MHz or 800 MHz Front Side Bus (FSB)
Intel® 3000 Chipset
Memory:
Up to 8GB of PC2-5300 667MHz unbuffered DDR2 SDRAM with ECC capabilities
and optional interleaving
Storage Controller:
SAS Models: HP 8 Internal Port SAS HBA with RAID 0,1 in a PCI-X
slot
SATA Models: Embedded SATA with integrated SATA RAID 0,1
Internal Drive Support:
Supports up to four hot plug SAS or SATA hard drives for up to
3TB internal storage
This product is covered by a global limited warranty and supported
by HP Services and a worldwide network of HP Authorized Channel
Partners. Hardware diagnostic support and repair is available for
one year from date of purchase. Support for software and initial
setup is available for 90 days from date of purchase. Expanded support
may be covered under the warranty or available for an additional
fee. Enhancements to warranty services are available through HP
Care Pack services or customized service agreements. SATA hard drives
have a one-year warranty. NOTE: Server Warranty includes
one year parts, one year labor, and one year on-site support with
next business day response. Additional information regarding worldwide
limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
NOTE: For a
brief, printer friendly data sheet that describes this product and informs
you of the essential capabilities and specifications, please visit: http://h71028.www7.hp.com/erc/downloads/4aa0-8146enw.pdf.
NOTE: For the Standard Features shipped in the "Factory Integrated
Models", please see the "Configuration Information - Factory Integrated
Models" section.
NOTE:
The processors listed above available via Configure to Order only. Please
see "Configuration Information - Factory Integrated Models" section
of this QuickSpecs.
Integrated 2 x 2MB level 2 ECC
cache (Pentium D 900 Series)
Integrated 2 x 1MB level 2 ECC
cache (Pentium D 800 Series)
Integrated 512KB level 2 ECC
cache (Celeron D 300 Series)
Memory Protection
ECC
Memory One of the following depending on Model
Type
PC2-5300 unbuffered DDR2 SDRAM
(667MHz)
Standard
(Model dependent)
512 MB (1 x 512 MB)
1 GB (1 x 1 GB)
Maximum
8 GB
Network Controller
Embedded NC320i PCIe Gigabit
Server Adapter
Expansion Slots
Slot Number
Bus Speed
Maximum Card Length
Hot Plug
Connector Type
4
PCI Express x4
12.3
No
x8
3
64-bit/100MHz PCI-X
12.3
No
3.3V
2
64-bit/100MHz PCI-X
12.3
No
3.3V
1
PCI Express x1
12.3
No
x8
Storage
Controllers
The HP ProLiant ML310 G4 supports
Serial ATA (SATA) and Serial Attached SCSI (SAS) hard drives. Models described
as SAS models include an 8 port HBA that supports both SATA and SAS hard
drives in non-RAID, RAID 0, or RAID 1 configurations. Models described as
SATA/SAS support SATA hard drives standard and require the installation
of an HBA or controller to support SAS.
HP 8 Internal Port SAS HBA
with RAID (in PCI-X slot) (SAS Models)
Embedded
SATA with integrated SATA RAID 0,1 (SATA/SAS Models) NOTE: Use of the embedded SATA RAID feature with a Linux operating
system requires installation of a driver from a floppy drive. The supported
floppy drive can be a USB drive key, USB floppy drive, half-height internal
floppy drive, or virtual floppy via Integrated Lights-Out 2 (iLO 2).
NOTE: See the
"Storage" section of these QuickSpecs for information on required
to support SATA and SAS hard drive configurations
Storage
Optical
Drive
48x IDE (ATAPI) CD-ROM
Drive
Diskette Drive
Optional
1.44 MB Diskette Drive NOTE: Use of the embedded SATA RAID
feature with a Linux operating system requires installation of a driver
from a floppy drive. The supported floppy drive can be a USB drive key,
USB floppy drive, half-height internal floppy drive, or virtual floppy via
Integrated Lights-Out 2 (iLO 2).

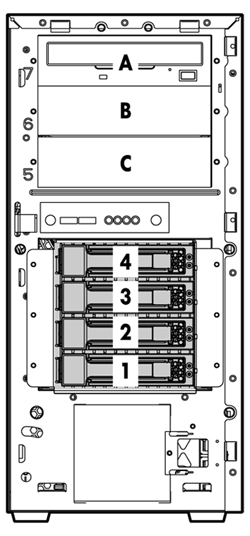

Maximum Internal
Storage
Hot Plug SAS (3.5")
1.2TB
4 x 300GB SAS
Hot Plug SATA (3.5")
3.0TB
4 x 750GB SATA
NOTE:
See the "Storage" section of these QuickSpecs for information
on controllers required to support SATA and SAS hard drive configurations
HP
Insight Control Environment delivers foundation management, including remote monitoring,
hardware resource deployment, health monitoring, software version control, performance
monitoring, vulnerability scanning and patch management, and power management.
HP Insight Control Environment installs and licenses the following components
by default using a wizard-based integrated installer:
HP Systems Insight
Manager
HP iLO Advanced Pack
HP Rapid Deployment Pack
HP
Insight Power Manager
HP Performance Management Pack
HP Vulnerability
and Patch Management Pack
Additional ProLiant Essentials software
and management tools included on the Insight Control Management kit can be installed
manually
HP Server Migration Pack - Universal Edition
HP Open
Service Event Manager
HP Instant Support Enterprise Edition
NOTE:
Server Migration Pack - Universal Edition can be installed from the SMP Universal
CD included in the Insight Control Management media kit. NOTE: For additional
product and licensing information about HP Insight Control Environment, visit:
http://www.hp.com/go/ice.
HP Insight
Control management suites and most HP ProLiant Essentials include a one year of
24 x 7 HP Software Technical Support and Update Service ensuring rapid access
to HP support staff and proactive delivery of software updates. For more information
about this service, please visit: http://www.hp.com/services/insight.
Server
Management Stand Alone Software Product - ProLiant Essentials
HP
Systems Insight Manager
HP
Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based
environment to centrally manage servers, storage and other infrastructure devices,
(both HP and non-HP) across multiple operating system platforms.
ProLiant Essentials Server Migration
Pack - Universal Edition
Upgrading,
replacing, or virtualizing your existing server? Effortlessly transition to new
virtual or physical HP ProLiant servers or BladeSystem with automated, accurate
and affordable migration of OS, application and data. SMP Universal automates
the manual processes required for migrating servers between physical or virtual
platforms, whether migrating to VMware or Microsoft virtual machines. SMP Universal
allows all of the following migrations:
Performance
Management Pack (offered exclusively through the Insight Control suites) - a performance
management solution that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better utilize their
valuable resources
Integrated
Lights-Out Advanced Pack
Upgrades
the iLO 2 processor with comprehensive remote control including Virtual KVM remote
graphical console, enhanced console sharing and replay, virtual media (floppy,
CD/DVD, USB key), virtual folders, and enterprise security (directory services
and two-factor authentication).
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to: http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
Core
Infrastructure Management
SmartStart
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please visit the SmartStart
Web site at: http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.51.
Insight
Management Agents
The Insight
Management Agents should be installed on all HP servers to present system instrumentation,
health and configuration information into HP Systems Insight Manager and the HP
System Management Homepage. The HP System Management Homepage aggregates systems
data from Insight Management Agents and other HP management tools, providing a
consolidated browser-based interface for managing individual servers.
Insight
Management Agents and The HP System Management Homepage are included on ProLiant
Support Packs, and can also be installed using the server profiles provided with
the ProLiant Essentials Rapid Deployment Pack.
For additional information
about the Management Agents and the HP System Management Homepage please visit
the management Web site at: http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's
Choice Driver and Support Alerts/Notifications is a web-based email subscription
service that provides software and driver change notifications for ProLiant products.
Sign up at: http://www.hp.com/go/subscriberschoice and
customize your profile to receive various new alerts as they become available,
on a weekly or monthly basis.
ProLiant
Support Packs and ROMPaq, software
The
latest software, drivers, and firmware fully optimized and tested for your ProLiant
server and options, available through ProLiant Support Packs the ProLiant Essentials
Rapid Deployment Pack, SmartStart or downloaded from software and drivers download
pages website at: http://www.hp.com/go/support.
Industry
Standard Compliance
ACPI V1.0b
and 2.0 Compliant PCI 3.0 Compliant PCI-X 3.0 Compliant PCI-Express
3.0 Compliant PXE Support WOL Support Microsoft Logo certifications
Novell Logo certifications USB 2.0
Remote
Management
Integrated Lights-Out
(iLO 2) Management 2
Virtual Text Remote Console (pre-OS only)
Remote
Serial Console
Virtual Power Button Control
Virtual Unit ID control
Integrated
Remote Console (ActiveX Control client)
Embedded system health
Present
power consumption
Browser, command line and scripted access
Automatic
IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets
Layer (SSL) and Secure Shell security (SSH)
Advanced Encryption Standard
(AES)/Triple Data Encryption Standard (3DES)
OS independent hardware
health status
IML and iLO Event Logging
Support for 12 user accounts
with customizable access privilege
Manageability
HP Systems Insight Manager
Online ROM Flash Utility
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and SAS hard drives)
BIOS Serial Console
Security
Power-on password
Setup password
Diskette boot control
Power switch security
Server
Power Cords
All models ship with one 1.8m
(6 foot) standard low-line, country specific power cord. Localized cables
included with geographic specific models in other world regions. NOTE: HP ProLiant ML310 a C13 to
C14 2.8M jumper cord ships standard. If customers require a local power
cord, they can check the power cord matrix for the appropriate country specific
sku. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
410 Watt PFC (Power Factor
Correcting) non-hot plug non-redundant power supply or 430 Watt PFC hot plug redundant
power supplies (ships with two power supplies)
HP
Factory Express offers configuration, customization, integration and deployment
services for HP servers and storage products. Customers can choose how their factory
solutions are built, tested, integrated, shipped and deployed.
Factory Express
offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such
as image loading, asset tagging, and custom packaging. HP products supported through
Factory Express include a wide array of servers and storage: HP Integrity, HP
ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as
the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific
server model please contact your sales representative or go to http://www.hp.com/go/factory-express.
KVM
Switches, Serial Console Servers, Rackmount Monitors, Keyboards:
For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following
URL: http://www.hp.com/go/kvm.
HP Enterprise Configurator
The HP eCo-Enterprise Configurator
now provides factory default racking for our HP hardware portfolio. This
approach is aligned with our strategic direction to meet the needs and expectations
of our valued customers. If you require "custom" rack configuration,
please contact HP's Customer Business Center or an Authorized Partner for
assistance. http://www.hp.com/products/configurator.
Service
and Support
HP Care Pack
Services provide total care and support expertise with committed response times
designed to meet your IT and business needs.
HP Care Pack services include
coverage for the HP branded hardware options qualified for the server that are
purchased at the same time or afterward and internal to the enclosure. It also
includes the 22-inch and smaller external monitors and tower UPS options up to
3kVA. These items will be covered at the same service level and for the same coverage
period as the server. Coverage of UPS Battery is not included and standard warranty
terms & conditions apply. For servers or storage systems installed within
a rack, service also covers all HP qualified rack options installed within the
same rack.
To fully capitalizing on your HP ProLiant servers' capabilities
requires a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of support solutions
provides a range of support services designed to meet the varying needs of your
business. Whether an SMB, or large global corporation, HP has ProLiant server
support offers to help you speedily deploy and maximize system uptime.
Recommended
Service - simplify ProLiant solution implementation, maintenance, and management.
Support - 3-Year 9x5 Next Business Day coverage, excluding
HP holidays only
Deployment Service - HW Installation only
Enhanced Service - optimize service level to increase IT performance
and availability.
Support - 3-Yyear 13x5 Same Business
Day, 4-Hour response coverage only
Deployment Service - Installation
and Start up only
Refer to the information on the Installation of
a ProLiant on the ProLiant Data Sheet; to be delivered on a scheduled basis 8am-5pm,
M-F, excluding HP holidays.
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section.
Configuration Information - Factory Integrated Models
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the use
of an HP approved configurator. Contact your local sales representative for information
on CTO product offerings and requirements. NOTE: HP does not allow
factory integration of options into standard models listed above. Configure-to-order
servers must start with a CTO Chassis. NOTE: This product offering
does not support HP Factory Express Server Configuration Level 1. NOTE:
FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration
Models
HP
ProLiant ML310 G4 CTO Chassis
419278-B21
Factory
Integrated Models ship with:
Embedded NC320i PCIe Gigabit
Server Adapter
Integrated Four Channel SATA Controller
(HP-SATA/SAS chassis only)
Keyboard and Mouse
Step
2: Choose Required Options (only one of the following from each list unless otherwise
noted)
Processors
Intel®
Celeron D 352 (3.2 GHz/533 - 512KB L2), FIO
431702-B21
Intel®
Pentium D 820 (2.8 GHz/800 - 2 x 1MB L2) DC, FIO
432406-B21
Intel®
Pentium D 945 (3.4 GHz/800 - 2 x 2MB L2) DC, FIO
NOTE:
When SATA hard drives are installed, SATA LED functionality and full SATA
hot-plug capability are not supported with the embedded controller. For full LED
and hot-plug support, an optional SAS RAID controller must be installed.
NOTE: When hot-plug SATA hard drives are installed, SATA LED functionality
and full SATA hot-plug capability are not supported with the embedded controller.
For full LED and hot-plug support, an optional SATA RAID or SAS controller must
be installed. A SAS HBA or Controller is required if SAS hard drives are selected.
SAS HBAs and Controllers support both SAS and SATA hard drives. Some SAS HBAs
and Controllers also have SAS tape support. Please refer to the "Tape Drives,
Tape Autoloader & Tape Libraries" table in the Storage section for a
list of SAS HBAs and Controllers with tape support.
HP 8 Internal Port SAS HBA with
RAID NOTE: RAID 0, 1.
Agere
06 PCI Hi-Speed 56K SftMd NOTE: This
part number must be used for factory integration. For field integration (or as
an additional "ship along" option) choose EK694AA.
440519-B21
Step 4: Choose Additional Options
for Factory Integration
NOTE: For additional
options, please refer to the "Options" section below.
NOTE:
Electronic licensing options are available for Insight Control suites software
products. Please see the appropriate Insight Control QuickSpecs for additional
information.
HP
Insight Control Environment
HP Insight Control Environment, No Media
1-Server License including 1 year of 24x7 Technical Support and Updates
452148-B21
HP Insight Control Management Software Media
Kit NOTE: Insight Control Management
DVD media without licenses. Contains Insight Manager and Essentials software products
and components licensed by Insight Control Management suites. Uses an integrated
installer to perform quick and accurate software installation and updates.
Server
Management Stand Alone Software Product - ProLiant Essentials
NOTE:
Electronic licensing options are available for select ProLiant Essentials
software products. Please see the appropriate ProLiant Essentials QuickSpecs for
additional information.
Deploy
HP Server Migration Pack - Universal
Edition
HP
Server Migration Pack - Universal Edition, No Media, Physical / Virtual to ProLiant
Single Migration License, including 1 year of 24x7 Technical Support and Updates NOTE: This license allows 1 physical to
ProLiant or virtual to ProLiant migration. Customer will receive a printed license
entitlement certificate and documentation via physical shipment. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license
activation key(s). Includes one year of 24 x 7 HP Software Technical Support and
Update Service.
460750-B21
HP Server Migration Pack - Universal Edition,
No Media, Physical / Virtual to Virtual Single Migration License, including 1
year of 24x7 Technical Support and Updates NOTE:
This license allows 1 physical to virtual or virtual to virtual migration.
Customer will receive a printed license entitlement certificate and documentation
via physical shipment. The license entitlement certificate must be redeemed online
or via fax in order to obtain the license activation key(s). Includes one year
of 24 x 7 HP Software Technical Support and Update Service.
460753-B21
HP Server Migration Pack - Universal Edition,
No Media, 1-Year Unlimited Migration License, including 1 year of 24x7 Technical
Support NOTE: This license allows
unlimited migrations (physical to ProLiant, physical to virtual, virtual to virtual,
and virtual to ProLiant) for one year. Customer will receive a printed license
entitlement certificate and documentation via physical shipment. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license
activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: Flexible and volume
quantity license kits are available for ProLiant Essentials Value Packs. Refer
to: http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials QuickSpecs for more information.
SCSI
Controllers for External Drive/Storage Support
64-Bit/133-MHz
Single Channel Ultra320 SCSI HBA G2 NOTE:
If a Non-Hot Plug SCSI Tape Drive is selected in any model, then customer must
add either 374654-B21 or 412911-B21.
For recommended tape drive offerings for this ProLiant server see the following:
USB
Tape Drives
HP StorageWorks DAT 160 USB Internal
Tape Drive
Q1580A
SAS Tape Drives NOTE: : For the ML310 G4, HP recommends purchasing the HP SC44Ge HBA ( 416096-B21)
for a dedicated SAS HBA for tape.
HP
StorageWorks DAT 160 SAS Internal Tape Drive
Q1587A
HP StorageWorks LTO-2 Ultrium
448 SAS Internal Tape Drive
DW085A
HP StorageWorks LTO-3 Ultrium
920 SAS Internal Tape Drive
EH847A
NOTE: Please
refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table
in the Storage section of this document for a list of SAS controllers with tape
support.
SCSI Tape Drives
NOTE:
For the ML310 G4, HP recommends purchasing the HP SC11Xe HBA ( 412911-B21) for
a dedicated SCSI HBA for tape.
HP StorageWorks LTO-1 Ultrium
232 Internal Tape Drive (Carbonite)
HP StorageWorks 1U SCSI Rack-Mount
kit NOTE: The 1U Rack-Mount Kit can
support up to (2) half-height tape drives and is compatible with multiple Single-Ended
and LVD SCSI tape drives including the DAT 40, DAT 72, DAT 160, DLT VS160, LTO-1
Ultrium 232, LTO-2 Ultrium 448 and LTO-3 Ultrium 920 tape drives.
HP
StorageWorks 1U USB Rack-Mount Kit NOTE:
The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is
compatible with the DAT 40 USB, DAT 72 USB and DAT 160 USB tape drives.
HP
StorageWorks 1U SAS Rack-Mount Kit NOTE:
The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and
is compatible with the LTO-2 Ultrium 448 SAS and LTO-3 Ultrium 920 SAS tape drives.
HP StorageWorks 1/8 LTO-3 Ultrium
920 G2 Tape Autoloader
AH165A
HP StorageWorks 1/8 G2 LTO-3
Ultrium 920 SAS Autoloader
AH558A
HP StorageWorks 1/8 LTO-2 Ultrium
448 G2 Tape Autoloader
AH164A
HP StorageWorks
1/8 LTO-1 Ultrium 232 G2 Tape Autoloader
AH163A
HP StorageWorks
1/8 G2 Tape Autoloader Rack Kit NOTE: Required
to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and
rackmount instructions.
AH166A
NOTE: Please
reference the Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference current
compatibility information at: http://www.hp.com/go/ebs.
Tape
Libraries
HP StorageWorks
MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1840 SCSI Drive Library
AJ033A
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1840 4GB FC Library
AJ034A
HP StorageWorks MSL2024
1 LTO-3 Ultrium 960 SCSI Drive Library
HP StorageWorks MSL4048 1 LTO-4
Ultrium 1840 SCSI Drive Library
AJ035A
HP StorageWorks MSL4048 1 LTO-4
Ultrium 1840 4GB FC Library
AJ036A
HP StorageWorks MSL4048 1 LTO-3
Ultrium 960 SCSI Drive Library
AG322A
HP StorageWorks MSL4048 1 LTO-3
Ultrium 960 4GB FC Library
AG324B
HP StorageWorks MSL4048 1 LTO-3
Ultrium 920 SAS Drive Library
AH560A
HP StorageWorks MSL4048 1 LTO-3
Ultrium 920 SCSI Drive Library
AH171A
HP
StorageWorks MSL4048 1 LTO-2 Ultrium 448 SCSI Drive Library
AG320A
HP StorageWorks MSL8096 Tape
Library
HP
StorageWorks MSL8096 2 LTO-4 Ultrium 1840 SCSI Drive Library
AJ039A
HP
StorageWorks MSL8096 2 LTO-4 Ultrium 1840 4GB FC Library
AJ040A
HP StorageWorks MSL8096 2 LTO-3
Ultrium 920 SAS Drive Library
AH561A
HP StorageWorks MSL8096 2 LTO-3
Ultrium 960 4GB FC Library
AH218A
HP StorageWorks MSL8096 2 LTO-3
Ultrium 960 SCSI Drive Library
AH219A
HP StorageWorks MSL6000
Tape Library
LTO-4
Ultrium 1840 technology
HP
StorageWorks MSL6030 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ029A
HP
StorageWorks MSL6030 1 LTO-4 Ultrium 1840 4GB FC Library
AJ030A
HP
StorageWorks MSL6060 2 LTO-4 Ultrium 1840 SCSI Drive Library
AJ031A
HP
StorageWorks MSL6060 2 LTO-4 Ultrium 1840 4GB FC Library
AJ032A
Ultrium 960 technology
HP StorageWorks MSL6030 1 LTO-3
Ultrium 960 SCSI Drive Library
AD606B
HP StorageWorks MSL6030 1 LTO-3
Ultrium 960 4GB FC Library
AD608B
HP StorageWorks MSL6030 2 LTO-3
Ultrium 960 SCSI Drive Library
AD607B
HP StorageWorks MSL6030 2 LTO-3
Ultrium 960 4GB FC Library
AD609B
NOTE:
Please reference the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at:
http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference current
compatibility information at: http://www.hp.com/go/ebs.
Uninterruptible Power Systems – Tower
HP
T500 UPS 120 V (US)
361475-001
HP T750 UPS, Low Voltage (NA/JPN)
378439-D71
HP T750 UPS, High Voltage (INTL)
378439-B31
HP,
T1000 UPS NA
AF403A
HP, T1000 UPS JPN
AF404A
HP,
T1000 UPS INTL
AF405A
HP, T1500 UPS NA
AF406A
HP,
T1500 UPS JPN
AF407A
HP, T1500 UPS INTL
AF408A
HP,
R/T 2200 UPS NA
AF409A
HP, R/T 2200 UPS JPN
AF410A
HP,
R/T 2200 UPS INTL
AF411A
Rack Kits
ProLiant Rack Enabling Kit (RoHS
Compliant)
417705-B21
NOTE: The system
and optional Tower-to-Rack tray occupy 6U. NOTE: Support for racks with round or square mounting holes (including
all Compaq and HP Rack System /E and HP Systems), with an adjustment range
of 24" - 36".
USB Options
HP USB-P/S2 Optical Mouse
DC369A
USB 1.44-MB External Diskette
Drive (Carbonite)
DC141B
HP 1GB USB 2.0 Floppy Drive Key
442085-B21
HP 256MB USB 2.0 Floppy Drive
Key
442084-B21
HP USB 04 Standard Keyboard
DT528A#ABA
Service
and Support Offerings (HP Care Pack Services)
Hardware Services
On-site Service
Next Business Day On-site
Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
U4445E
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4446E
4-Hour
On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4447E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4448E
Installation &
Start-up Services
Hardware Installation, Electronic
U4456E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4457E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4458E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4459E
Onsite HW support 24x7,
4hr response and SuSE Linux SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6306E
Onsite HW support 24x7,
4hr response and Red Hat ES Linux SW Tech support offsite, onsite
at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
NOTE: Memory
configurations listed do not apply to "Factory Integrated Models".
HP ProLiant ML310 G4 Memory Configuration
Standard Memory
All HP ProLiant ML310 G4 models ship with unbuffered, ECC PC2-5300 DDR2
SDRAM running at 667MHz.
SATA/SAS models include a single 512 MB DIMM. SAS models include a single
1GB DIMM.
Factory Integrated Models include the memory capacity of your choice.
Standard Memory Replaced with Optional Memory
Up to 8 GB memory is available with the optional installation of four
2 GB PC2-5300 Unbuffered ECC DDR2 SDRAM DIMM kits.
DIMM upgrades do not need to be installed in pairs although
installation of pairs (an equal size DIMM for each channel) provides the best
performance. The BIOS will detect the DIMM population and initialize the system
accordingly as follows:
Single-channel
mode - DIMMs installed for one channel only
Dual-channel
asymmetric mode - DIMMs installed for both channels but of unequal channel capacities.
Dual-channel
interleaved mode (recommended) - DIMMs installed for both channels and offering
equal channel capacities, providing the highest performance.
The
first DIMM should be installed in Socket 1. A DIMM should not be installed in
Socket 2 without a DIMM in Socket 1. Likewise a DIMM should not be installed in
Socket 4 without a DIMM in Socket 3. A DIMM need not be installed in Socket 2
in order to install a DIMM in Socket 3.
Table 3-1 shows
some of the suggested memory configurations for these systems. NOTE:
Table 3-1 does not list all possible configurations. Balanced-capacity, dual-channel
loading yields best performance.
300GB 3G SAS 15K SP
300GB 3G SAS 15K DP
146GB 3G SAS 15K SP
146GB 3G SAS 15K DP
72GB 3G SAS 10K SP
72GB 3G SAS 15K DP
36GB 3G SAS 10K SP
Up to 4
1-4
HP 8 Internal Port SAS HBA with
RAID
Smart Array E200/128 BBWC Controller
Smart Array E500/256MB Controller
Smart Array P400/256MB Controller
Smart Array P400/512MB BBWC Controller
NOTE:
Use of SAS hard drives in SATA/SAS models requires installation of one of
the controllers or HBAs listed above.
Hot Plug SATA
Quantity
Supported
Position
Supported
Controller
750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
80GB 1.5G SATA 7.2K
Up to 4
1-4
Embedded SATA with integrated SATA RAID 0,1
HP 8 Internal Port SAS HBA with RAID
Smart Array E200/128 BBWC Controller
Smart Array E500/256MB Controller
Smart Array P400/256MB Controller
Smart Array P400/512MB BBWC Controller
NOTE:
Hot plug capability and drive LED status support requires installation of
one of the controllers or HBAs listed above.
NOTE:
SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller
using split cable (supplied with tape drive) deactivates 1 of the hard drive bays.
Actual hard drive bay deactivated depends on where split cable plugs into SAS
drive connector. Example: 3x SAS cable connector plugged into SAS drive connector
(5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.
Position Supported
Controller
Controller Part Number
Internal
USB Tape Drives DAT 40 USB DAT 72 USB DAT 160 USB
B
or C
USB 2.0 Port
N/A
USB Tape Drives, External DAT
40 USB DAT 72 USB DAT 160 USB 1U Rack-Mount Kit
External
USB
2.0 Port
N/A
SCSI Tape Drives, Internal LTO-1
Ultrium 232 LTO-2 Ultrium 448 LTO-3 Ultrium 920 DAT 40 DAT 72 DAT
160 DLT VS160
6.4A
RMS max at 100VAC with maximum load; 3.2A RMS max at 230V with maximum load
BTU Rating
1,560
BTU
Ultra
320 SCSI Connectors
None
NOTE:
Support for either one internal or one external SCSI channel is available.
To use the channel for external connection, order an internal-to-external SCSI
cable option kit (PN 159547-B22 or 333370-B21).
Power
Supply Output Power
Rated
Steady-State Power
350W
Maximum Peak Power
410W
Power Supply Output
Power - RPS
Rated Steady-State
Power
350W
Maximum
Peak Power
430W
Temperature Range
Operating
50°
to 95° F (10° to 35° C)
Shipping
-40°
to 160° F (-40° to 71° C)
Relative
Humidity (non-condensing)
Operating
20%
to 80%
Non-operating
5%
to 95%
Acoustic
Noise
Idle (Fixed Disk
Drives Spinning)
L WAd
(BELS)
5.4
L pAm
(dBA)
34
Operating (Random
Seeks to Fixed Disks)
L
WAd (BELS)
5.4
L
pAm (dBA)
34
Acoustic Noise - RPS
Idle
(Fixed Disk Drives Spinning)
L
WAd (BELS)
5.2
L
pAm (dBA)
37.8
Operating
(Random Seeks to Fixed Disks)
L
WAd (BELS)
5.3
L
pAm (dBA)
39.6
48X Max IDE (ATAPI) CD-ROM Drive
Disk
Applicable Disk
CD-ROM, CD-XA,
CD-DA (Mode 1, Mode 2, Form 1 and 2)
CD (Single and Multi-session)
Mixed
Mode (Audio and Data combined)
CD-R
Capacity
540
MB (Mode 1, 12 cm)
650
MB (Mode 2, 12 cm)
Block Size
Mode
1
2,048 bytes
Mode 2
2,340
bytes, 2,336 bytes
CD-DA
2,352
bytes
CD-XA
2,328
bytes
Interface
IDE (ATAPI)
Access Times(typical)
Random
<100 ms
Full-Stroke
<150
ms
Data
Transfer Rate
Sustained
3000
to 7200 KB/s (20X to 48X)
Burst
150
KBps to 7,200 KBps
Bus
Rate
16.7 MBps
Cache Buffer
128 KB
Start-up Time (typical)
< 7seconds
Stop Time
<
4seconds
Laser Parameters
Type
Semiconductor
Laser GaA1As
Wave
Length
780 ± 25 nm
Operating Conditions
Temperature
41° to 113°
F (5° to 45° C)
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
1.7
x 5.85 x 8.11 in (4.29 x 14.86 x 20.60 cm)
Weight
2.09 lb (0.95 kg)
HP 8 Internal Port SAS Host Bus Adapter with RAID
RAID
Support
RAID 1 (Mirroring) RAID
0 (Striping)
Logical
Drives Supported
Up to 2 Logical
Volumes Up to 10 drives total in all RAID volumes Up to 2 Drives per RAID
1 Up to 8 Drives per RAID 0
Maximum
Capacity
576GB (8 x 72GB)
Data Transfer Method
64-bit
wide, PCI-X 133 MHz (1 GB/s maximum bandwidth)
Port
Transfer Rate
12 Gb/s per x4 Wide
SAS Port (4 x 3 Gb/s)
Simultaneous
Drive Transfer Ports
2 x4 Wide SAS
Connectors
Protocols
3 Gbps SAS (Serial Attached SCSI) 1.5 Gbps SATA (Serial Advanced Technology
Attachment)
External
SAS Connectors
None
Internal SAS Connectors
2
internal SFF8484 x4 SAS Connectors
Upgradeable
Firmware
4MB flashable ROM
Embedded NC320i PCIe Gigabit Server Adapter
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
Single lane (x1), 100MHz PCI Express
Reference Clock
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to
328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100
m)
Environment-friendly Products
and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
DL QuickSpecs
US QuickSpecs
432806-B21
