   Proliant DL785 G5 QuickSpecs  US QuickSpecs
  DL785 G5 Hard Drives   DL785 G5 Processors   DL785 G5 Memory
  DL785 G5 Controllers   DL785 G5 Networking   DL785 G5 Power Supplies
  DL785 G5 Quickspecs   DL785 G5 Quickspecs-Options   DL785 G5 Options
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Proliant DL785 G5 Overview

HP ProLiant DL785 Generation 5 (G5)

The HP ProLiant DL785 G5, the newest and most expandable addition to the award winning HP ProLiant line, is an 8-socket x86 server, supporting up to 8 AMD Opteron™ Quad-Core processors, 512 GB of memory and 11 PCI-e I/O slots. With this highly scalable feature set the DL785 G5, is an ideal choice for the growing enterprise class database, consolidation and virtualization environments seeking to improve server utilization and reduce server sprawl, while continuing to leverage all the familiar and easy to use ProLiant management tools and options.

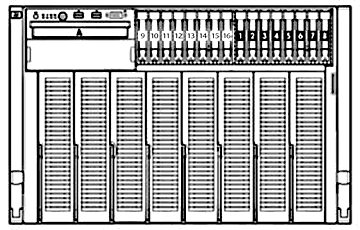

Proliant DL785 G5 Front View: Proliant DL785 G5 Rear View:
1.

Front Panel LED display (internal and external health, Unit ID button & LED, NIC LED and Power Button

1. NIC connector 1
2. Keyboard connector
2.

System Insight Display (SID)

3. USB connector
3.

Slimline Media Bay

4. Video connector
4.

Processor Memory Cells (1 - 8)

5. Serial connector
5. Eight bay Small Form Factor (SFF) Serial Attached SCSI (SAS) drive cage 6. HP Integrated Lights-Out 2 (iLO 2) connector
7. Mouse connector
6. Video Connector 8. NIC connector 2
7. SAS backplane (Standard) 9. PCI Express expansion slots
8. SAS backplane (Optional) 10. Fan 6
9. USB Connectors 11. Fan 5
10. BBWC Battery Pack 12. Fan 4
11. Power Supply Backplane 13. T-15 Torx screwdriver
12. PCI-Express x8 non-hot-plug expansion slot 1 14. Redundant power supply 4 - 6 (optional)
13. PCI-Express x4 non-hot-plug expansion slot 2 15. Power supply 1 - 3
14. PCI-Express x4 non-hot-plug expansion slot 3
15. PCI-Express x4 non-hot-plug expansion slot 4
16. PCI-Express x16 non-hot-plug expansion slot 5
17. PCI-Express x4 non-hot-plug expansion slot 6
18. PCI-Express x4 non-hot-plug expansion slot 7
19. Serial Peripheral Interface (SPI) Board
20. System Maintenance Switch
21. Fan 1
22. Fan 2
23. Fan 3
  Not shown: PCI-Express expansion slots 8 - 11
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
Four or eight of the following depending on Model
Quad-Core Processors
AMD Opteron™ Processor 8393 SE, Quad-Core (3.1 GHz, 105W ACP)
AMD Opteron™ Processor 8389, Quad-Core (2.9 GHz, 75W ACP)
AMD Opteron™ Processor 8387, Quad-Core (2.8 GHz, 75W ACP)
AMD Opteron™ Processor 8381 HE, Quad-Core (2.5 GHz, 55W ACP)
AMD Opteron™ Processor 8378, Quad-Core (2.4 GHz, 75 W ACP)
NOTE: Processor wattage references reflect Average CPU Power (ACP). For more information on ACP visit: http://www.amd.com/powernow.
NOTE: 4 or 8 supported.

Cache Memory
One of the following depending on model
512 KB integrated level 2 cache per core
2 or 6 MB shared level 3 cache per processor (depends on model)

Chipset Serverworks HT-2100 Northbridge and HT-1000 Southbridge chipset

Upgradeability Supports up to 8 processors

Memory Protection Advanced ECC

Memory
One of the following depending on model
Type

PC2-5300 Registered DIMMs at 667 MHz
PC2-6400 Registered DIMMs at 800 MHz

Standard PC2-5300

16GB (16 x 1GB) (8378 Processor)

Standard PC2-6400 32GB (8 x 4GB) (8389, 8387 Processors)
64GB (16 x 4GB) (8393 SE Processor)
Maximum 512GB (64 x 8GB)

Network Controller Two HP NC371i Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit

Expansion Slots
NOTE: 11 total slots: (3) x16 PCI-Express; (3) x8 PCI-Express; (5) x4 PCI-Express. Optional backplane with 9 total slots: (2) x16 HTx; (1) x16 PCI-Express; (1) x8 PCI-Express; (5) x4 PCI-Express.
NOTE: VMware is not supported on DL785 G5 with backplane that has (2) HTx slots and (7) PCI-Express slots
I/O backplane with 11 PCIe slots Expansion Slots Technology Bus Width** Connector Width Bus Number* Device No.** Form Factor Notes
1 PCIe x8 x16 4
0 Full-size
2 PCIe x4 x8 7 0 Full-size
3 PCIe x4 x8 10 0 Full-size
4 PCIe x4 x8 13 0 Full-size
5 PCIe x16 x16 65 0 Full-size
6 PCIe x4 x8 68 0 Full-size
7 PCIe x4 x8 71 0 Full-size
8 PCIe x16 x16 129 0 Full-size
9 PCIe x8 x16 132 0 Full-size
10 PCIe x16 x16 193 0 Full-size
11 PCIe x8 x16 196 0 Full-size
* Default bus assignment (in Decimal format). Inserting cards with PCI bridges may alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector
NOTE: All slots are non-hot-plug Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number. Slots are enumerated differently based on the operating system. Microsoft operating systems enumerate from lowest to highest Device ID by bus (starting with the lowest bus).

I/O backplane with 7 PCIe & 2 HTx slots Expansion Slots Technology Bus Width** Connector Width Bus Number* Device No.** Form Factor Notes
1 PCIe x8 x16 4
0 Full-size
2 PCIe x4 x8 7 0 Full-size
3 PCIe x4 x8 10 0 Full-size
4 PCIe x4 x8 13 0 Full-size
5 PCIe x16 x16 65 0 Full-size
6 PCIe x4 x8 68 0 Full-size
7 PCIe x4 x8 71 0 Full-size
8 HTx x16 N/A 128 N/A Full-Height/Full-Length

No Slot
10 HTx x16 N/A 192 N/A Full-Height/Full-Length

No Slot
* Default bus assignment (in Decimal format). Inserting cards with PCI bridges may alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector
NOTE: All slots are non-hot-plug Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number. Slots are enumerated differently based on the operating system. Microsoft operating systems enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
NOTE: This optional IO backplane with 7 PCIe and 2 HTX slots replaces standard I/O backplane with 11 PCIe slots.
NOTE: VMware is not supported on DL785 G5 with backplane that has (2) HTx slots and (7) PCI-Express slots.

Storage Controllers HP Smart Array P400i Controller

The Battery-Backed Write Cache (BBWC) Enabler for the Smart Array P400i Controller protects up to 512-MB write cache memory from hard boot, power, controller, or system board failures.

  • Battery charge/life: Up to 72 hours/3 years
  • Transportable data protection
  • Increases overall controller performance

NOTE: Safely transport your write cache data to another HP ProLiant DL785 G5 in the data center by removing the BBWC Enabler and Smart Array P400i Controller Memory Module simultaneously (connected by short cable).


Internal Storage Devices Diskette Drive None
Optical Drive Slimline DVD/CD-RW Drive Standard on all models - ejectable for security and serviceability
Hard Drives None ship standard
Hard Drive Bays Standard: Internal SAS backplane supports up to eight SFF hard disk drives
Optional: Adding the optional SAS Option Kit enables the second SAS backplane to support an additional eight SFF hard disk drives

Maximum Internal Storage Hot Plug SAS 8.000TB 16 x 500GB SFF SAS drives

Interfaces Serial 1
Video 1 front, 1 rear
Network RJ-45 2
HP Integrated Lights-Out 2 (iLO 2) 1
Keyboard 1
Pointing Device (Mouse) 1
USB 2.0 Ports 2 front, 2 rear, 1 internal
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.

Industry Standard Compliance ACPI 1.0a. Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE) Support
Microsoft® Logo certifications
USB 2.0 Support

Server Power Cords The HP ProLiant DL785 G5 servers ship standard worldwide with a 6-foot IEC 320-C14 to IEC320-C13 jumper cord. If you require a power cord, please check the Power Specifications below for the appropriate power cord, or consult the Power Cord Matrix: http://www.hp.com/go/powercordmatrix.

Power Supply HP 1200W 12V Hot plug AC Power Supply 910W (low line), 1300W (high line).
Size is 2.8"(H) X 4.9"(W) X 7.5"(L).
NOTE: Three Hot Plug Power Supplies ship standard with the AM431A, AM430A, and AM424A skus. Three optional power supplies may be added for redundancy.
NOTE: Six Hot Plug Power Supplies ship standard with the AM429Askus (the 4th, 5th and 6th power supplies are for redundancy).

System Fans Standard 6 Hot plug, redundant fans
Maximum 6 Hot plug, redundant fans
NOTE: Fans are N+1 hot plug redundant and individually removable.

Required Cabling For required cabling information, refer to the HP Web site at: www.hp.com/servers/dl785

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Microsoft Windows Server Hyper V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Solaris
VMware
Citrix XenServer

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page www.hp.com/support/DL785G5.

Graphics Integrated ATI ES1000 with 32MB memory
Graphics Processing Unit (GPU): Support for Nvidia FX5600 1.5GB PCIe

Form Factor Rack (7U = 12.25 inches), ships with sliding rails and cable management system
Space saving form factor (7U) provides space efficiencies while providing maximum deployment flexibility

HP Insight management software

HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: www.hp.com/go/foundation.

The foundation pack includes:

  • HP SmartStart
  • HP Management DVD
  • HP ProLiant Smart Update Firmware DVD

SmartStart version supported (minimum): SmartStart 8.0
http://www.hp.com/servers/smartstart

NOTE: In an effort to support reducing our environmental impact, the HP Insight Foundation Suite for ProLiant media will be available as a selectable option for this server at time of order of a CTO SKU. This will allow customers to order the number of media kits that best meet their needs and eliminate receiving unnecessary duplicate media.

Integrated Lights-Out (iLO)
(integrated on system board)
HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP iLO functions without additional software and can be accessed from any location via a web browser. HP iLO works hand-in-hand with HP Systems Insight Manager, Insight Control, and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. For more information, visit: www.hp.com/go/iLO

Intelligent Manageability HP Systems Insight Manager software
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support

Security Power-on password
Keyboard password
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Removable Diskette drive (optional)
Removable optical drive

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Optional Features

HP Insight management software HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. As a powerfully integrated by design toolkit to accelerate complex technology projects and simplify daily operations that ultimately enable IT Staff personnel to dynamically keep pace with the organizations changing business requirements. It enables them to plan capacity and power continuously, balance across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a self-service portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP StorageWorks Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics

High Performance Clusters HP Cluster Platforms HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used to manage large-scale Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported specially priced software bundle for the development and deployment of applications on HPC Cluster Platforms. Value Pack includes the Platform LSF workload scheduler, the HP-MPI parallelization library, the HP Unified Parallel C compiler and the HP Shmem library, as well as the execution environments for the libraries and compiler. HP HPC Linux Value Pack

Solutions The very scalable 8-socket x86 ProLiant DL785 G5, with Quad-Core processing power, delivers outstanding flexibility, scalability and performance for customers growing Enterprise class database, consolidation and virtualization environments. Specifically, the HP ProLiant DL785 G5 would be excellent for running the following types of applications:
Typical Usage:
  • High Performance Computing (HPC)
  • Electronic Design Automation (EDA)/Semiconductor
  • Financial
  • Large database applications
  • ERP / CRM
  • Petrochemical
  • Life Science and Material Science
  • Video Rendering

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model, please contact your sales representative or go to: http://www.hp.com/go/factory-express.


HP Enterprise Configurator

The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Service and Support

Service and Support

HP Care Pack services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server and purchased at the same time or afterward that are internal to the enclosure. This also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions, provides a range of support services designed to meet the varying needs of your business. Whether an SMB, or large global corporation, HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service - simplify ProLiant solution implementation, maintenance, and management.

  • Support: 3-Year 4-Hour response 24x7 Same Business Day Coverage only
  • Deployment Service: Installation and Start up only

Enhanced Service - optimize service level to increase IT performance and availability.

  • Support: 3-Year Support Plus 24 only

Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Pre-configured Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
DL785G5 O3.1 GHz, 4P, 64GB,105W
AM429A
Processor(s) (4) AMD Opteron™ Processor 8393 SE, Quad-Core (3.10 GHz, 105 Watts ACP)
Cache Memory 512KB Integrated Level 2 Cache per Core
6MB Shared L3 Cache per processor
Memory 64 GB (16 x 4 GB) of PC2-6400 DDR SDRAM (Standard) to 512 GB
Network Controller Two embedded NC371i Multifunction Gigabit Network Adapters
Storage Controller HP Smart Array P400i/512MB BBWC Controller
Hard Drives None ship standard
Internal Storage 8.0TB max (16 x 500GB SAS)
Optical Drive Slimline CD-RW/DVD-ROM 24x Combo Drive
Power Supply (6) 910W/1300W Power Supplies standard
Fans 6 Hot plug, redundant fans (individually removable)
Integrated Lights Out HP Integrated Lights-Out 2 (iLO 2) management processor: Integrated on system board
Form Factor Rack 7U
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

DL785G5 O2.9 GHz, 4P, 32GB, 75W
AM430A
Processor(s) (4) AMD Opteron™ Processor 8389, Quad-Core (2.90 GHz, 75 Watts ACP)
Cache Memory 512KB Integrated Level 2 Cache per Core
6MB Shared L3 Cache per processor
Memory 32 GB (8 x 4 GB) of PC2-6400 DDR SDRAM (Standard) to 512 GB
Network Controller Two HP NC371i Multifunction Gigabit Network Adapters
Storage Controller HP Smart Array P400i/512MB BBWC Controller
Hard Drives None ship standard
Internal Storage 8.0TB max (16 x 500GB SAS)
Optical Drive Slimline CD-RW/DVD-ROM 24x Combo Drive
Power Supply (3) 910W/1300W Power Supplies standard
Fans 6 Hot plug, redundant fans (individually removable)
Integrated Lights Out HP Integrated Lights-Out 2 (iLO 2) management processor: Integrated on system board
Form Factor Rack 7U
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

DL785G5 O2.8 GHz, 4P, 32GB, 75W
AM431A
Processor(s) (4) AMD Opteron™ Processor 8387, Quad-Core (2.80 GHz, 75 Watts ACP)
Cache Memory 512KB Integrated Level 2 Cache per Core
6MB Shared L3 Cache per processor
Memory 32 GB (8 x 4GB) of PC2-6400 DDR SDRAM (Standard) to 512 GB
Network Controller Two HP NC371i Multifunction Gigabit Network Adapters
Storage Controller HP Smart Array P400i/512MB BBWC Controller
Hard Drives None ship standard
Internal Storage 8.0TB max (16 x 500GB SAS)
Optical Drive Slimline CD-RW/DVD-ROM 24x Combo Drive
Power Supply (3) 910W/1300W Power Supplies standard
Fans 6 Hot plug, redundant fans (individually removable)
Integrated Lights Out HP Integrated Lights-Out 2 (iLO 2) management processor: Integrated on system board
Form Factor Rack 7U
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

DL785G5 O2.4GHz, 4P, 16GB, 105W
AM424A
Processor(s) (4) AMD Opteron™ Processor 8378, Quad-Core (2.40 GHz, 75 Watts ACP)
Cache Memory 512KB Integrated Level 2 Cache per Core
6MB Shared L3 Cache per processor
Memory 16 GB (16 x 1 GB) of PC2-5300 DDR SDRAM (Standard) to 512 GB
Network Controller Two HP NC371i Multifunction Gigabit Network Adapters
Storage Controller HP Smart Array P400i/512MB BBWC Controller
Hard Drives None ship standard
Internal Storage 8.0TB max (16 x 500GB SAS)
Optical Drive Slimline CD-RW/DVD-ROM 24x Combo Drive
Power Supply Three 910W/1300W Power Supplies standard
Fans 6 Hot plug, redundant fans (individually removable)
Integrated Lights Out HP Integrated Lights-Out 2 (iLO 2) management processor: Integrated on system board
Form Factor Rack 7U
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is only available as a factory installable option.
Step 1: Base Configuration
HP Models HP ProLiant DL785 G5 Rack CTO Chassis
AH233A
Factory Integrated Models ship with:

Two embedded NC371i Multifunction Gigabit Network Adapters
HP Smart Array P400i Controller
HP Integrated Lights-Out 2 (iLO 2) management processor management
Six (6) Redundant Hot Plug Fans
Three Hot Plug Power Supply
Rack 7U Form Factor


Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP Processors NOTE: If eight processors are desired, select one xxxxxx-B21 and one xxxxxx-B21.
HP DL785 G5 AMD Opteron™ 8393SE (3.1GHz/4-core/105W) FIO 4-processor Kit 535674-B21
HP DL785 G5 AMD Opteron™ 8389 (2.9GHz/4-core/75W) FIO 4-processor Kit 535675-B21
HP DL785 G5 AMD Opteron™ 8387 (2.8GHz/4-core/75W) FIO 4-processor Kit 535676-B21
HP DL785 G5 AMD Opteron™ 8381HE (2.5GHz/4-core/55W) FIO 4-processor Kit 535677-B21
HP DL785 G5 AMD Opteron™ 8378 (2.4GHz/4-core/75W) FIO 4-processor Kit 508201-B21

HP Memory HP 2GB (2x1GB) Single Rank PC2-5300 (DDR2-667) Registered Memory Kit
HP 4GB (2x2GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit
HP 4GB (2x2GB) Single Rank PC2-6400 (DDR2-800) Registered Memory Kit 497765-B21 497765-B21
HP 8GB (2x4GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit
HP 8GB (2x4GB) Dual Rank PC2-6400 (DDR2-800) Registered Memory Kit 497767-B21 497767-B21
HP 8GB (2x4GB) Dual Rank x4 PC2-6400 (DDR2-800) Registered Low Power Memory Kit 504351-B21 504351-B21
HP 16GB (2x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 408855-B21 408855-B21
HP 64GB (8x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 495605-B21 495605-B21
HP 4GB (2x2GB) Single Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit 483401-B21 483401-B21
HP 8GB (2x4GB) Dual Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit 483403-B21 483403-B21
NOTE: A minimum of two DIMMs (1 kit) must be installed per processor.
NOTE: Memory must be ordered in like-pairs, i.e. two of the same size.
NOTE: When PC2-6400 DIMMs modules are installed with a processor then the memory bus speeds for 4 or fewer, 6 or 8 DIMMs per processor will operate at PC2-6400, PC2-5300 and PC2-4200 respectively. All other processor and memory configurations will operate at PC2-5300 with 4 or fewer DIMMs and PC2-4200 with 6 or more DIMMs.


HP Storage Controllers Optional Upgrades
HP Smart Array P400 256MB FIO Cache Module
NOTE: Supports Smart Array P400 Controller and Smart Array P400i Controller only.
405139-B21 405139-B21
HP 512MB w/Battery Smart Array Battery Back Write Cache Enabler

HP Optical Drives NOTE: Optical drives are ejectable.
HP Slimline CD-RW/DVD-ROM 24X Carbon Combo Drive
HP 8X/24X SlimLine DVD-ROM Drive
HP 8X Slim DVD+RW Drive

Step 3: Choose Additional Factory Integratable Options
HP Insight Software HP Insight Control, No Media 1-Server License Factory-Integratable Option (FIO) including 1 year of 24x7 Technical Support and Updates 582765-B21
HP Insight Control for Linux, No Media 1-Server License Factory-Integratable Option (FIO) including 1 year of 24x7 Technical Support and Updates TC203A

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

DL785 G5 Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Processors HP DL785 G6 AMD Opteron™ 8439SE (2.80GHz/6-core/6MB/105W) Processor Kit 575261-B21
HP DL785 G6 AMD Opteron™ 8431 (2.40GHz/6-core/6MB/75W) Processor Kit 575260-B21
HP DL785 G6 AMD Opteron™ 8425HE (2.10GHz/6-core/6MB/55W) Processor Kit 575259-B21
HP DL785 G5 AMD Opteron™ 8393SE (3.10GHz/4-core/6MB/105W) Processor Kit 535674-B21
HP DL785 G5 AMD Opteron™ 8389 (2.90GHz/4-core/6MB/75W) Processor Kit 535675-B21
HP DL785 G5 AMD Opteron™ 8387 (2.80GHz/4-core/6MB/75W) Processor Kit 535676-B21
HP DL785 G5 AMD Opteron™ 8381HE (2.50GHz/4-core/6MB/55W) Processor Kit 535677-B21
HP DL785 AMD Opteron™ 8376HE (2.30GHz/4-core/6MB/55W) Processor Kit 515101-B21
HP DL785 G5 AMD Opteron™ 8384 (2.70GHz/4-core/6MB/75W) Processor Kit 507530-B21
HP DL785 G5 AMD Opteron™ 8380 (2.50GHz/4-core/6MB/75W) Processor Kit 507528-B21
HP DL785 G5 AMD Opteron™ 8378 (2.40GHz/4-core/6MB/75W) Processor Kit 508201-B21
HP DL785 G5 AMD Opteron™ 8360SE (2.50GHz/4-core/2MB/105W) Processor Kit 468118-B21
HP DL785 G5 AMD Opteron™ 8358SE (2.40GHz/4-core/2MB/105W) Processor Kit 468119-B21
HP DL785 G5 AMD Opteron™ 8356 (2.30GHz/4-core/2MB/75W) Processor Kit 468120-B21
HP DL785 G5 AMD Opteron™ 8354 (2.20GHz/4-core/2MB/75W) Processor Kit 468121-B21

DL785 G5 Memory

HP 2GB (2x1GB) Single Rank PC2-5300 (DDR2-667) Registered Memory Kit 408851-B21 408851-B21
HP 4GB (2x2GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 408853-B21 408853-B21
HP 4GB (2x2GB) Single Rank PC2-6400 (DDR2-800) Registered Memory Kit 497765-B21 497765-B21
HP 8GB (2x4GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 408854-B21 408854-B21
HP 8GB (2x4GB) Dual Rank PC2-6400 (DDR2-800) Registered Memory Kit 497767-B21 497767-B21
HP 8GB (2x4GB) Dual Rank x4 PC2-6400 (DDR2-800) Registered Low Power Memory Kit 504351-B21 504351-B21
HP 16GB (2x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 408855-B21 408855-B21
HP 64GB (8x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 495605-B21 495605-B21
HP 4GB (2x2GB) Single Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit 483401-B21 483401-B21
HP 8GB (2x4GB) Dual Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit 483403-B21 483403-B21
NOTE: A minimum of two DIMMs (1 kit) must be installed per processor.
NOTE: Memory must be ordered in like-pairs, i.e. two of the same size.
NOTE: When PC2-6400 DIMMs modules are installed with a processor then the memory bus speeds for 4 or fewer, 6 or 8 DIMMs per processor will operate at PC2-6400, PC2-5300 and PC2-4200 respectively. All other processor and memory configurations will operate at PC2-5300 with 4 or fewer DIMMs and PC2-4200 with 6 or more DIMMs.


HP Optical Drives NOTE: Optical drives are ejectable.
HP Slimline CD-RW/DVD-ROM 24X Carbon Combo Drive 331903-B21 331903-B21
HP 8X/24X SlimLine DVD-ROM Drive 264007-B21 264007-B21
HP 8X Slim DVD+RW Drive 383975-B21 383975-B21

DL785 G5 Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: All the internal drives in HP ProLiant DL785 G5 will operate at a maximum data transfer rate of 3Gb/s.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507127-B21 507127-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512547-B21 512547-B21
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 507125-B21 507125-B21
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 512545-B21 512545-B21
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21 507610-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
SATA Hot Plug Midline (MDL) Solid State Drives
HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 572071-B21
HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive 572073-B21 572073-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13415_na/13415_na.html


HP Networking

Gigabit Ethernet adapters
HP NC112T PCIe Gigabit Server Adapter 503746-B21 503746-B21
HP NC360T PCI Express Dual Port Gigabit Server Adapter 412648-B21 412648-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter
NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit Server Adapter NICs allowed in this server.
435508-B21 435508-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter 394793-B21 394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter 394791-B21 394791-B21
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter 458492-B21 458492-B21
10 Gigabit Ethernet adapters
NOTE: No more than two 10GbE I/O devices are supported in a single ProLiant server.
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HP NC522SFP Dual Port 10GbE Server Adapter 468332-B21 468332-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs

HP I/O Expansion Options

HP I/O PCI-e & HTx Backplane Upgrade Kit AH262A
NOTE: I/O Backplane with 7 PCIe and 2 HTx slots.
NOTE: VMware is not supported on DL785 G5 with backplane that has (2) HTx slots and (7) PCI-Express slots.


HP Power Supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
NOTE: Three additional power supply units are required for full redundancy.


HP 1200W 12V Hot plug AC Power Supply
437572-B21
NOTE: Three additional power supply units are required for full redundancy.
Power Options
HP High Power Graphics Card Cable Option
NOTE: High Line Voltage is required with this kit. Using Low Line Voltage will halt the system. However if the total power usage is validated using the power calculator, the system halt condition with Low Line Voltage may be overridden by pressing "F9" to enter the RBSU and enabling the "Power Supply Override" setting under "Advanced Options".
AH270A
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software HP Insight Control
HP Insight Control, Single-Server License including 1 year of 24x7 Technical Support and Updates
452148-B22
HP Insight Control suite, No Media, Electronic License including 1 year of 24x7 Technical Support and Updates T9074BAE
HP Insight Control, Electronic License for bundling with ProLiant ML/DL server, including 1 year of 24x7 Technical Support and Updates TC278AAE
HP Insight Control, Tracking License for bundling with ProLiant ML/DL server, including 1 year of 24x7 Technical Support and Updates TC275A
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Insight Control for Linux
HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical Support and Updates, Electronic TC213AAE
HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7 Technical Support and Updates TC209A
HP Insight Control for Linux, Media pack (DVD) - No licenses included TC208A
NOTE: Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux (click on Download button).
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html

HP Integrated Lights-Out (iLO) Advanced
HP Integrated Lights-Out Advanced, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates 512485-B21
HP ProLiant Essentials Integrated Lights-Out Advanced Pack, Electronic, including 1 year of 24x7 Technical Support and Updates TA850AAE
NOTE: This license allows 1 server to be deployed and managed via HP iLO Advanced. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
NOTE: For additional license kits, including electronic delivery options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html

HP Insight Control server deployment
HP Insight Control server deployment Electronic License including 1 year 24x7 Technical Support and Updates T9082AAE
HP Insight Control server deployment 1-Server License including 1 year 24x7 Technical Support and Updates 452151-B21
NOTE: Licenses ship without media. The Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html


High Performance Clusters HP Cluster Management Utility
HP Cluster Management Utility Compute Node Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
436284-B21
HP Cluster Management Utility License and Media
NOTE: Order a minimum of one license per cluster to purchase media including software and documentation, which will be delivered to the customer, and also licenses CMU management. No license key is delivered or required.
433257-B21
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
HP HPC Linux Value Pack
HP High Performance Computing Linux Value Pack 1 Processor Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one socket (a.k.a. processor). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
TC293A
HP High Performance Computing Linux Value Pack Media Kit
NOTE: This part number can be used to purchase media including software and documentation, which will be delivered to the customer.
TC294A
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/13485_na/13485_na.html

HP I/O Accelerator Options HP 160GB SLC PCIe ioDrive
NOTE: A low-profile PCI bracket is included for use in low-profile slots.
600278-B21
HP 320GB MLC PCIe ioDrive
NOTE: A low-profile PCI bracket is included for use in low-profile slots.
600279-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13587_na/13587_na.html


HP Storage Controllers SAS Controller
Smart Array E500 Controller
HP Smart Array E500/256 2-ports Ext PCIe x8 SAS Controller 435129-B21 435129-B21
Smart Array P400 Controller
HP Smart Array P400/256 2-ports Int PCIe x8 SAS Controller 405132-B21 405132-B21
HP Smart Array P400 512MB Battery Kit 411064-B21 411064-B21
Smart Array P800 Controller
HP Smart Array P800/512 BBWC 2-ports Int/2-ports Ext PCIe x8 SAS Controller 381513-B21 381513-B21
Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462828-B21 462828-B21
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462834-B21 462834-B21
Smart Array P410 Controller
HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller 462862-B21 462862-B21
HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller
NOTE: AM436A HP DL785 Smart Array Controller cable option kit is included when ordered on the DL785 with factory integration.
NOTE: AM436A HP DL785 Smart Array Controller cable option kit is required each time the Smart Array P410 Controller is ordered without factory integration and will be used to control internal drives 9-16.
462864-B21 462864-B21
HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller 578230-B21 578230-B21
HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller 572532-B21 572532-B21
Smart Array P411 Controller
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller 462830-B21 462830-B21
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller 462832-B21 462832-B21
HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller 578229-B21 578229-B21
HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller 572531-B21 572531-B21
Smart Array P812 Controller
HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller
NOTE: AM436A HP DL785 Smart Array Controller cable option kit is required each time the Smart Array P812 Controller is ordered without factory integration and will be used to control internal drives 9-16.
487204-B21 487204-B21
Optional Upgrades
HP Smart Array P400 Battery Attach Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the server if a Smart Array E500 is integrated outside of the factory if the BBWC is not pre-installed from the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
417836-B21 417836-B21
HP 512MB w/Battery Smart Array Battery Back Write Cache Enabler
NOTE: For Smart Array P400 Controller only.
NOTE: If you install the 512MB DDR BBWC as an upgrade to a Smart Array P400/256MB Controller, you must also order part 417836-B21 417836-B21 (HP SA-P400 and SA-E500 24 In Battery Cable Kit).
405148-B21 405148-B21
HP Smart Array Cache Battery Kit
NOTE: For Smart Array P400 Controller only.
NOTE: If you install the Battery-backed write cache as an upgrade to a Smart Array P400/256MB Controller, you must also order part 417836-B21 417836-B21 (HP SA-P400 and SA-E500 24 In Battery Cable Kit).
383280-B21 383280-B21
HP 256MB P-series Cache Upgrade
NOTE: Supported on HP Smart Array P212 Controller only.
462968-B21 462968-B21
HP 512MB P-Series Battery Backed Write Cache Upgrade 462967-B21 462967-B21
HP 650 mAh P-Series Battery
NOTE: Option kit not supported for factory integration.
NOTE: To enable BBWC on the 256MB cache.
NOTE: Supported on HP Smart Array P212 Controller, HP Smart Array P410 Controller, and HP Smart Array P411 Controller only.
462969-B21
HP 512MB Flash Backed Write Cache
NOTE: Option kit not supported for factory integration.
NOTE: Supported on HP Smart Array P410 Controller and HP Smart Array P411 Controller only.
534916-B21 534916-B21
HP 1GB Flash Backed Cache
NOTE: Option kit not supported for factory integration.
NOTE: Supported on HP Smart Array P410 Controller and HP Smart Array P411 Controller only.
534562-B21 534562-B21
HP DL785 Smart Array Controller cable option kit
NOTE: Option kit not supported for factory integration
NOTE: Supports internal connection of Smart Array P410 and P812 Controllers. Provides (2) cables to connect the Controller to the Optional SAS Backplane (HP DL785 G5 SAS Option Kit - AH267A). This is required each time one of the Smart Array P410 and P812 Controllers is ordered without factory integration and will be used to control internal drives 9-16.
AM436A
SAS Controller Options
HP DL785 SAS Expander cable option kit
NOTE: Option kit not supported for factory integration
NOTE: Required each time the 468406-B21 468406-B21 HP SAS Expander card is ordered.
Provides (6) cables to connect the Smart Array Controller to the Expander, and the Expander to the Primary and Optional SAS backplanes. The SAS cables provided with the DL785 and the Expander are not used.
AM440A
HP DL785 G5 SAS Option Kit
NOTE: The SAS Option Kit enables the second drive cage to support an additional eight SFF SAS hard disk drives, for a total internal support of sixteen SFF SAS hard disk drives.
NOTE: When choosing the HP DL785 G5 SAS Option Kit, customer must also order one of the following Smart Array Controllers: HP Smart Array P400 Controller, HP Smart Array P800 Controller, HP Smart Array P812 Controller, or the HP Smart Array P410 Controller.
NOTE: The SAS Option Kit enables the second drive cage to support an additional eight SFF SAS hard disk drives, for a total internal support of sixteen SFF SAS hard disk drives.
AH267A
NOTE: Please see the following Controller QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12700_na/12700_na.html
(Smart Array E500 Controller)
http://h18000.www1.hp.com/products/quickspecs/12400_na/12400_na.html
(Smart Array P400 Controller)
http://h18000.www1.hp.com/products/quickspecs/12616_na/12616_na.html
(Smart Array P800 Controller)
http://h18000.www1.hp.com/products/quickspecs/13203_na/13203_na.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_na/13202_na.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13558_na/13558_na.html
(Smart Array P812 Controller)
http://h18004.www1.hp.com/products/quickspecs/13232_na/13232_na.html
(SAS Expander Card)

SAS HBA
HP SC08Ge 2-ports Ext PCIe x8 SAS Host Bus Adapter 488765-B21 488765-B21
HP Modular Smart Array SC44Ge 1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter 416096-B21 416096-B21
NOTE: Please see the following QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/13082_na/13082_na.html
(SC08Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12617_na/12617_na.html
(SC44Ge HBA)

SCSI HBA
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
NOTE: Recommended HBA for SCSI tape drive connect.
412911-B21 412911-B21

Tape Backup NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HP StorageWorks tape backup products see: http://www.hp.com/go/connect.
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation. Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
AK377A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack-Mount Kit (AH166A) for rack installation. Connection using HP Smart Array P212 Controller (462828-B21 462828-B21) recommended.
AH558A
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB drive AG703A
HP StorageWorks DAT 320 USB Tape Drive in 1U USB Rack Kit AP835A
DAT 320 SAS External Tape Drive AJ828A
DAT 320 USB External Tape Drive AJ823A
HP StorageWorks DAT 320 SAS Internal Tape Drive
NOTE: For installation into 1U SAS rack kit (AE459B) or 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
AJ830A
HP StorageWorks Ultrium 448 SAS Internal DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: For installation into 1U SAS rack kit (AE459B) or 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
EH847A
HP StorageWorks LTO-4 Ultrium 1760 Internal Tape Drive
NOTE: For installation into 1U SAS rack kit (AE459B) or 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
EH919A
HP StorageWorks LTO-4 Ultrium 1840 Internal Tape Drive
NOTE: For installation into 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
EH860A
HP StorageWorks LTO-5 Ultrium 3280 Internal Tape Drive
NOTE: For installation into 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
EH899A
HP MSL2024 0-Drive Tape Library AK379A
HP MSL2024 1 LTO-4 Ultr 1760 SAS Library AK378A
HP MSL2024 Ultr 920 SAS Tape Library AH559A
HP MSL4048 0-Drive Tape Library AK381A
HP MSL4048 2 LTO-4 Ultr 1760 SAS Library AK380A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library AH560A
HP StorageWorks MSL8048 0-Drive, 48 Slot Tape Library AU300A
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Tape Library AK382A

Disk Backup NOTE: For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk backup products see: http://www.hp.com/go/connect.
HP StorageWorks D2D Backup Systems with Backup Data Deduplication
HP StorageWorks D2D4112 Backup System
NOTE: 12TB of Disk Storage
EH993A
HP StorageWorks RDX Removable Disk Backup Systems USB
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A A8007A). No peripheral bay available for drive installation into the server. 500GB of disk capacity per data cartridge.
AJ934A
HP StorageWorks RDX500 External Removable Disk Backup System AJ935A
HP StorageWorks RDX750 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A A8007A). No peripheral bay available for drive installation into the server. 750GB of disk capacity per data cartridge.
AW577A
HP StorageWorks RDX 1TB Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A A8007A). No peripheral bay available for drive installation into the server. 1 TB of disk capacity per data cartridge.
BV847A

HP StorageWorks Options StorageWorks Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs
HP StorageWorks 81B PCI-e FC HBA Single Port AP769A AP769A
HP StorageWorks 82B PCI-e FC HBA Dual Port AP770A AP770A
HP StorageWorks 41B 4Gb PCI-e FC HBA AP767A AP767A
HP StorageWorks 42B 4Gb Dual-Port PCI-e FC HBA AP768A AP768A
Emulex Fibre Channel HBAs
HP StorageWorks 81E PCI-e FC HBA Single Port AJ762A AJ762A
HP StorageWorks 82E PCI-e FC HBA Dual Port AJ763A AJ763A
HP StorageWorks FC2142 4Gb PCI-e HBA A8002A A8002A
HP StorageWorks FC2242 Dual Channel 4Gb PCI-e HBA A8003A A8003A
QLogic Fibre Channel HBAs
HP StorageWorks 81Q PCI-e FC HBA Single Port AK344A AK344A
HP StorageWorks 82Q PCI-e FC HBA Dual Port AJ764A AJ764A
HP StorageWorks FC1142 4Gb PCI-e HBA AE311A AE311A
HP StorageWorks FC1242 Dual Channel 4Gb PCI-e HBA AE312A AE312A
StorageWorks SCSI HBA
HP U320e SCSI Host Bus Adapter
NOTE: Recommended HBA for MSL SCSI Tape Library connect.
AH627A AH627A
StorageWorks Converged Network Adapter
HP CN1000E 2P Converged Network Adapter AW520A AW520A

HP Disk Storage Systems

MSA SAN Storage Arrays
HP StorageWorks 50 Modular Smart Array 364430-B21 364430-B21
NOTE: Please see the QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/12245_na/12245_na.html
HP StorageWorks 60 Modular Smart Array 418408-B21 418408-B21
NOTE: Supports 12 SFF drives, and SAS 3 Gb/s and SATA 1.5 Gb/s.
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/12627_na/12627_na.html

HP StorageWorks 70 Modular Smart Array 418800-B21 418800-B21
NOTE: Supports 25 SFF drives, and SAS 3 Gb/s and SATA 1.5 Gb/s.
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/12652_na/12652_na.html

Disk Enclosures
HP StorageWorks D2700 Disk Enclosure AJ941A
NOTE: Please see the QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html

HP Uninterruptible Power Systems

HP Rack-mountable UPS
HP R1500 G2 UPS
HP, R1.5kVA UPS, 1U
AF419A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12507_na/12507_na.html

HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 UPS, Low voltage AF452A
HP R/T3000 UPS, High voltage AF453A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13417_na/13417_na.html

HP Rack-Mountable R5500 UPS
HP R5500 VA UPS AF426A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/11871_na/11871_na.html

NOTE: For additional information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups.
NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com.

NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.

HP Power Distribution Units Monitored PDUs
HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3Ř, 24A
AF503A
HP 8.6 kVA S1324 Monitored PDU- single input, 3Ř, 24A
AF504A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1Ř, 40A
AF505A
HP 8.3 S1140 Monitored PDU- single input, 1Ř, 40A
AF506A
HP Monitored Power Distribution Unit: Half Rack Version
HP 17.3 kVA S348 Monitored PDU- single input, 3Ř, 48A
HP 4.9 kVA S124 Monitored PDU- single input, 1Ř, 24A
AF914A
Modular Power Distribution Units 1U/0U (Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
NOTE: This mPDU (252663-D71 252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.
252663-D71 252663-D71
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) 252663-D72 252663-D72
8.3kVA Model - mPDU, 40A, High (power cord attached) 252663-D73
HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC)
NOTE: This mPDU (252663-B21 252663-B21), 40A model has a hardwired input.
252663-B21 252663-B21
HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC)
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements.
252663-B24 252663-B24
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html
NOTE: For additional information on HP Power Distribution Units including accessories please go to: www.hp.com/go/pdu.

NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.

HP Rack Series HP Rack 10000 G2 Series (Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet - Pallet AF001A AF001A
10642 G2 (42U) Rack Cabinet - Shock Pallet AF002A AF002A
HP 10642G2 1200mm deep Rack cabinet Shock Rack
AF092A
HP 10647G2 1200mm deep Rack cabinet Shock Rack AF094A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html

NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.
NOTE: The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment: Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: Quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment range of 24" - 36". The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.

HP Rack Options

Keyboards and Monitors
HP TFT7600 G2 KVM Console Rackmount Keyboard Monitor AZ870A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13731_na/13731_na.html

TFT7600 Rackmount Keyboard Monitor AG052A AG052A
HP TAA TFT7600 Rkmntkybd 17in Monitor AG067A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12417_na/12417_na.html

1U Rackmount Keyboard with USB
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12465_na/12465_na.html
HP KVM Switch Options
USB Virtual Media, CAC Interface Adapter AF623A
PS2/USB Virtual Media, CAC Interface Adapter, 1 pack
NOTE: Requires PS/2 mouse and keyboard connections and one USB port on server.
AF624A
HP KVM CNSL SRL/PWR G2 ITFC ADPTR AF625A
0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC AF618A
0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC AF619A
1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC AF620A
2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC AF621A
4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC AF622A
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
AF604A AF604A
HP Server console switch 0x2x8 AF616A
HP Server console switch 0x2x16 AF617A
HP TAA Server console switch 0x2x16 AF626A
PS/2 Interface Adapter, 1 pack 262588-B21 262588-B21
PS/2 Interface Adapter, 8 pack 262587-B21 262587-B21
USB Interface Adapter - 1 pack 336047-B21 336047-B21
Serial Interface adapter - 1 Pack with power supply
NOTE: VT100 terminal emulation.
373035-B21 373035-B21
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x4 Server Switch AF611A AF611A
PS2 Server Console Cable, 6 ft, 2 pack AF612A AF612A
USB Server Console Cable, 6 ft, 2 pack AF613A AF613A
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
HP Serial Console Server Options
HP 16 Port Serial Console Server AF101A AF101A
HP 48 Port Serial Console Server AF102A AF102A
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack AF103A AF103A
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack AF110A
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

HP USB and SD Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
HP 2GB USB Flash Media Drive Key Kit
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software like SmartStart. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
608447-B21

HP Care Pack Services Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic UM427E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic UM428E
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic UM429E
Installation & Start-up Services
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic UM451E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic UM430E
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models."
HP ProLiant DL785 G5 4P Models

Standard Memory
8 GB PC2-5300 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory running at 667 MHz with Advanced ECC or
16 GB PC2-5300 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory running at 667 MHz with Advanced ECC or
32 GB PC2-5300 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory running at 667 MHz or 800 MHz with Advanced ECC or 64 GB PC2-6400 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory running at 800 MHz with Advanced ECC or 128 GB PC2-6400 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) memory running at 800 MHz with Advanced ECC or 32 GB PC2-6400 Double Data Rate 2 (DDR2) SDRAM (Registered SDRAM) low power memory running at 800 MHz with Advanced ECC At least one pair of DIMMs must be installed in slots 1A and 2A to operate the server. Observe the following DIMM installation guidelines to add additional memory to the server:

  • DIMMs must be installed in pairs.
  • DIMM installed on the same memory bank must have the same part number.
  • DIMMs installed in different banks can be of different sizes.
  • DIMMs must be installed in decreasing capacity with the largest DIMMs installed in the banks furthest away from each processor.

Standard Memory Configuration (PN: AM424A)
Total Memory = 16GB


1
(Slot furthest from processor)

2

3

4

5

6

7
8
(Slot closest to processor)
Processor 1 Memory Bus
1GB
1GB
1GB
1GB
Empty
Empty
Empty
Empty
Processor 2 Memory Bus
1GB
1GB
1GB
1GB
Empty
Empty
Empty
Empty
Processor 3 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 4 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 5 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 6 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 7 Memory Bus 1GB 1GB 1GB 1GB Empty Empty Empty Empty
Processor 8 Memory Bus 1GB 1GB 1GB 1GB Empty Empty Empty Empty

Standard Memory Configuration (PN: AM429A)
Total Memory = 64GB
  1
(Slot furthest from processor)
2 3 4 5 6 7 8
(Slot closest to processor)
Processor 1 Memory Bus 2GB 2GB 2GB 2GB Empty Empty Empty Empty
Processor 2 Memory Bus 2GB 2GB 2GB 2GB Empty Empty Empty Empty
Processor 3 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 4 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 5 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 6 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 7 Memory Bus 4GB 4GB 4GB 4GB Empty Empty Empty Empty
Processor 8 Memory Bus 4GB 4GB 4GB 4GB Empty Empty Empty Empty

Standard Memory Configuration (PN: AM430A, AM431A)
Total Memory = 32GB


1
(Slot furthest from processor)

2

3

4

5

6

7
8
(Slot closest to processor)
Processor 1 Memory Bus
4GB
4GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 2 Memory Bus
4GB
4GB
Empty
Empty
Empty
Empty
Empty
Empty
Processor 3 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 4 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 5 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 6 Memory Bus Empty Empty Empty Empty Empty Empty Empty Empty
Processor 7 Memory Bus 4GB
4GB
Empty Empty Empty Empty Empty Empty
Processor 8 Memory Bus 4GB 4GB Empty Empty Empty Empty Empty Empty


Examples of other optional configurations include, but are not limited to:
Example #1: Optional Memory Configuration with DIMM mixing
Standard Memory plus Optional Memory and Processors
Total Memory = 64 GB


1

2

3

4

5

6

7
8
Processor 1 Memory Bus
4GB
4GB
2GB
2GB
1GB
1GB
1GB
1GB
Processor 2 Memory Bus
4GB
4GB
2GB
2GB
1GB
1GB
1GB
1GB
Processor 3 Memory BusEmptyEmptyEmptyEmptyEmptyEmptyEmptyEmpty
Processor 4 Memory BusEmptyEmptyEmptyEmptyEmptyEmptyEmptyEmpty
Processor 5 Memory BusEmptyEmptyEmptyEmptyEmptyEmptyEmptyEmpty
Processor 6 Memory BusEmptyEmptyEmptyEmptyEmptyEmptyEmptyEmpty
Processor 7 Memory Bus
4GB
4GB
4GB
4GB
2GB
2GB
1GB
1GB
Processor 8 Memory Bus
2GB
2GB
2GB
2GB
2GB
2GB
1GB
1GB

Example #2: Optional Memory Configuration with Partial Bus Population
Standard Memory plus Optional Memory and Processors
Total Memory = 32GB


1

2

3

4

5

6

7
8
Processor 1 Memory Bus1GB1GB1GB1GBEmptyEmptyEmptyEmpty
Processor 2 Memory Bus1GB1GB1GB1GBEmptyEmptyEmptyEmpty
Processor 3 Memory Bus1GB1GB1GB1GBEmptyEmptyEmptyEmpty
Processor 4 Memory Bus1GB1GB1GB1GBEmptyEmptyEmptyEmpty
Processor 5 Memory Bus1GB1GB1GB1GBEmptyEmptyEmptyEmpty
Processor 6 Memory Bus1GB1GB1GB1GBEmptyEmptyEmptyEmpty
Processor 7 Memory Bus1GB1GB1GB1GBEmptyEmptyEmptyEmpty
Processor 8 Memory Bus1GB1GB1GB1GBEmptyEmptyEmptyEmpty

Example #3: Maximum Memory Configuration
Maximum Memory (Standard replaced with Optional Memory)
Total Memory = 512GB


1

2

3

4

5

6

7
8
Processor 1 Memory Bus 8GB 8GB 8GB 8GB 8GB 8GB 8GB 8GB
Processor 2 Memory Bus 8GB 8GB 8GB 8GB 8GB 8GB 8GB 8GB
Processor 3 Memory Bus 8GB 8GB 8GB 8GB 8GB 8GB 8GB 8GB
Processor 4 Memory Bus 8GB 8GB 8GB 8GB 8GB 8GB 8GB 8GB
Processor 5 Memory Bus 8GB 8GB 8GB 8GB 8GB 8GB 8GB 8GB
Processor 6 Memory Bus 8GB 8GB 8GB 8GB 8GB 8GB 8GB 8GB
Processor 7 Memory Bus 8GB 8GB 8GB 8GB 8GB 8GB 8GB 8GB
Processor 8 Memory Bus 8GB 8GB 8GB 8GB 8GB 8GB 8GB 8GB
The following memory options are available from HP:
HP Memory HP 2GB (2x1GB) Single Rank PC2-5300 (DDR2-667) Registered Memory Kit 408851-B21 408851-B21
HP 4GB (2x2GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 408853-B21 408853-B21
HP 4GB (2x2GB) Single Rank PC2-6400 (DDR2-800) Registered Memory Kit 497765-B21 497765-B21
HP 8GB (2x4GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 408854-B21 408854-B21
HP 8GB (2x4GB) Dual Rank PC2-6400 (DDR2-800) Registered Memory Kit 497767-B21 497767-B21
HP 8GB (2x4GB) Dual Rank x4 PC2-6400 (DDR2-800) Registered Low Power Memory Kit 504351-B21 504351-B21
HP 16GB (2x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 408855-B21 408855-B21
HP 64GB (8x8GB) Dual Rank PC2-5300 (DDR2-667) Registered Memory Kit 495605-B21 495605-B21
HP 4GB (2x2GB) Single Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit 483401-B21 483401-B21
HP 8GB (2x4GB) Dual Rank PC2-5300 (DDR2-667) Registered Low Power Memory Kit 483403-B21 483403-B21
NOTE: A minimum of two DIMMs (1 kit) must be installed per processor.
NOTE: Memory must be ordered in like-pairs, i.e. two of the same size.
NOTE: When PC2-6400 DIMMs modules are installed with a processor then the memory bus speeds for 4 or fewer, 6 or 8 DIMMs per processor will operate at PC2-6400, PC2-5300 and PC2-4200 respectively. All other processor and memory configurations will operate at PC2-5300 with 4 or fewer DIMMs and PC2-4200 with 6 or more DIMMs.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Storage

A

Slimline Media Bay
1-8 Standard 8 SFF hot plug SAS drive bays
9-16 Optional 8 SFF hot plug SAS drive bays



Drive Support



Quantity
Supported

Position
Supported

Controller

Ejectable Slimline Drives

HP 8X/24X SlimLine DVD-ROM Drive
Up to 1
A
Integrated IDE
HP Slimline CD-RW/DVD-ROM 24X Carbon Combo Drive
Up to 1
A
Integrated IDE
HP 8X Slim DVD+RW Drive
Up to 1
A
Integrated IDE

Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: All the internal drives in HP ProLiant DL785 G5 will operate at a maximum data transfer rate of 3Gb/s.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives


Quantity
Supported

Position
Supported


Controller

300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
Up to 8
1-8
HP Smart Array P400i Controller
Up to 8 9-16 HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP P812/1G Flash Backed Cache Controller

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives


Quantity
Supported

Position
Supported


Controller

300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
Up to 16
1-16
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP P812/1G Flash Backed Cache Controller
HP SAS Expander Card
NOTE: SAS Expander card must be used with the HP Smart Array P410 Controller.

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives


Quantity
Supported

Position
Supported


Controller

500GB 6G SAS 7.2K DP
Up to 8
1-8
HP Smart Array P400i Controller
Up to 8 9-16 HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP P812/1G Flash Backed Cache Controller
Up to 16 1-16 HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP P812/1G Flash Backed Cache Controller
HP SAS Expander Card
NOTE: SAS Expander card must be used with the HP Smart Array P410 Controller.

SATA Hot Plug SFF Midline (MDL) Solid State Drives


Quantity
Supported

Position
Supported


Controller

60GB 3.0G SATA SSD 120GB 3.0G SATA SSD
Up to 8
1-8
HP Smart Array P400i Controller
Up to 8 9-16 HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP P812/1G Flash Backed Cache Controller
Up to 16 1-16 HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP P812/1G Flash Backed Cache Controller
HP SAS Expander Card
NOTE: SAS Expander card must be used with the HP Smart Array P410 Controller.

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

50 Modular Smart Array

Up to 4

External

HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
60 Modular Smart Array Up to 4 External HP Smart Array E500/256MB Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
Up to 8 HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
70 Modular Smart Array Up to 2 External HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
Up to 4 HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller

Tape and Disk-Based Backup

NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting models, see: http://www.hp.com/go/tape. For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk and tape backup products see: http://www.hp.com/go/connect.



Position
Supported

Controller

Controller Part Number

HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect


HP StorageWorks USB Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
1U USB Rack-Mount Kit

External
USB 2.0 Port
N/A


HP StorageWorks SAS Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
1U Rack-Mount Kit
3U Rack-Mount Kit

External
HP Modular Smart Array SC44Ge 1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect

HP StorageWorks SCSI Tape Autoloaders
DAT 72x10 Autoloader
1/8 G2 Autoloader
External
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect



HP StorageWorks SCSI Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000

External
HP U320e SCSI Dual Channel Controller
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect


HP StorageWorks SAS Tape Autoloaders and Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096

External

HP Modular Smart Array SC44Ge 1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect


HP StorageWorks Fibre Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000

External Please consult the EBS connectivity matrix at: http://www.hp.com/go/ebs for connectivity information and the supported Fibre Channel HBAs shown in this QuickSpecs. N/A

HP StorageWorks USB RDX Removable Disk Backup System
RDX160
RDX320
RDX500
RDX750
RDX1TB
External

USB 2.0 port

N/A

HP StorageWorks D2D Backup Systems, iSCSI
D2D2500i
D2D4000i
  Embedded Network Controller. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended. N/A

HP StorageWorks D2D Backup Systems, Fibre Channel
D2D4000fc
  Direct server attach is not supported, requires connection via SAN fabric. See: http://www.hp.com/go/connect N/A
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Power Specifications

HP 1200W CS HE Power Supply Kit
Part Number 437572-B21
Input Voltage Range ( V rms ) 100 to 240
Frequency Range (Nominal) ( Hz ) 50/60
Nominal Input Voltage ( Vrms ) 100 120 200 208 220 230 240
Maximum Rated Output Wattage Rating 800 900 1200 1200 1200 1200 1200
Nominal Input Current ( A rms ) 9.7 9.0 7.0 6.8 6.4 6.1 5.9
Maximum Rated Input Wattage Rating ( Watts ) 930 1034 1348 1348 1348 1348 1348
Maximum Rated VA ( Volt-Amp ) 970 1079 1406 1406 1406 1406 1406
Efficiency ( % ) 86 87 89 89 89 89 89
Power Factor 0.97
Leakage Current ( mA ) 0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current ( A peak ) 30
Maximum Inrush Current duration ( mS ) 20
Maximum British Thermal Unit Rating ( BTU-Hr ) 3174 3530 4600 4600 4600 4600 4600
NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor
  • Click on: "ProLiant Servers"
  • Click on the Server of interest. Example: DL785 G5
  • Click on: "Power Calculator" link. (You may need to scroll down to see it)
  • There are certain Dual-core, lowline, max configurations that are not supported. All highline configurations are supported. Consult the Power Calculator to determine if your lowline configuration is supported.

Standard Rack Model Power Cords / Jumper Cords Description



IEC320-C14 to IEC320-C13 Jumper Cord
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      DL785 G5 Core Options      Additional Options      DL785 G5 Memory      Storage      Power Specifications      DL785 G5 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit

Dimensions (H x W x D)
(with bezel)

12.04 x 17.32 x 27.4 in (30.58 x 44 x 69.6cm)

Weight
(approximate)

Maximum
(all hard drives, power supplies, and processors installed)
160lb (72 kg)
Minimum
(one hard drive, 2 power supply, and 4 processor modules installed)
147 lb (67 kg)

Input Requirements
(per 3 power supplies non redundant)

Rated Line Voltage90 - 132 VAC
180 - 264 VAC
Rated Input Current24A @ 100 VAC
14A @ 200 VAC
Rated Input Frequency47 to 63 Hz
Rated Input Power 2400W @ 100-120 VAC
2800W @ 200-240 VAC
BTU RatingMaximum8189 BTU/hr @ 100-120 VAC
9554 BTU/hr @ 200-240 VAC
Power Specifications

NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

  • Click on the system of interest. Example: DL785 G5
  • Follow the instructions of the next screens
Power Supply Output (per power supply)Rated Steady-State Power800 W (at 100 VAC),
1200 W (at 200 VAC)
Maximum Peak Power800 W (at 100 VAC),
1200 W (at 200 VAC)
System Inlet Temperature Operating10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating-30° to 60° (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating 10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non condensing.
AltitudeOperating3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic Noise



Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
L WAd7.6 B
L pAm58 dBa
Operating
L WAd7.6 B
L pAm58 dBa
Emissions Classification (EMC)FCC RatingClass A
Normative StandardsCISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Slimline CD-RW/DVD-ROM 24X Combo Drive

Shipping Dimensions 13.88 x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm)

Shipping Weight

5 lb (2.27 kg)
Disk

Applicable Disk

DVD-ROM

DVD-R (Read Only)

2.6 GB/side DVD-RAM (Read Only)

5.2 GB/side DVD-RAM (Read Only)

CD-ROM Mode-1 data disc

CD-ROM Mode-2 data disc
CD Audio disc
CD-Extra
CD-RW
CD-R
CD Text
PhotoCD
CD-I (mode 2)
CD-I Ready
CD-Bridge

Capacity

DVD-ROM

DVD-SL 4.7 GB/side
DVD-DL 8.5 GB/side
Double Sided 9.40 GB/side
DVD-R   3.95 GB/side
DVD-RAM   2.6 GB/side and 5.2 GB/
CD-ROM Mode-1 650 MB (550 MB)
Mode-2 742 MB (640 MB)
Block Size DVD   2,048 bytes
CD   2,352 (Mode-0)
  2352, 2340, 2336, 2048 bytes
(Mode-1)
  2352, 2340, 2336, 2048 bytes
(Mode-2)

Diameter

120 mm, 80 mm (with adapter at vertical mounting mode)

Loading Mechanism

Tray type



Interface

EIDE (ATAPI)



Access Times (typical)

Random

DVD-ROM < 120 ms, CD-ROM < 110 ms

Full-Stroke

DVD-ROM < 240 ms, CD-ROM < 160 ms

Audio Output Level (typical)

Line-out

CD 0.7 Vrms at 47 Kohms Load

Data Transfer Rate (sustained)

DVD-ROM

Single Layer

10.8 MB/sec. Max.
DVD-RAM 2.77 MB/sec. Max

CD-ROM

7.2 MB/sec. Max.

Cache Buffer

2 MB



Spin-up Time (typical)

less than 10 seconds



MTBF

120,000 Power On Hours (POH)



Ambient Temperature

Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Operating

10% to 80%

Storage/Transportation

5% to 95%

Dimensions

(HxWxD, maximum)

0.5 x 5.04 x 5.1 in (12.7 x 128 x 129.4 mm)

Option Kit Contents DVD-ROM drive with installation guide, warranty card, registration card

HP Integrated Lights-Out 2 (iLO 2) integrated on system board Architecture 32-bit PCI-based health and remote management ASIC (Application Specific Integrated Circuit)
Processor 32-bit RISC processor core running at 66 MHz
Upgradeability Option firmware upgradeable via flash ROM
Video Support Utilizes the host server's embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256 colors)
Interfaces One Ethernet network connection (10/100 Mb/s)
Memory 2-MB Flash ROM
8-MB SDRAM
Operating System Support Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and Windows Server 2003 for Extended Systems Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32bit and 64bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Linux Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Client Browser Support Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
iLO 2 Standard Features Virtual Text Remote Console
Virtual KVM
Virtual Power Button Control
Virtual UID Control
Power Regulator Control
Dedicated LAN Connectivity
Secure access using web browser
Secure access using Secure Shell (SSH) client
Serial connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO2 Event Logging
Support for up to 12 user accounts with customizable access privileges
iLO Advanced Features (optional) Virtual Graphical Remote Console
Virtual Floppy/USB Key drive
Virtual CD-ROM drive
Directory Services Integration
Processor States Reporting
Terminal Services Integration
NOTE: For more information on how to purchase the HP iLO Advanced optional licensed features, visit the iLO QuickSpecs located: www.hp.com/go/iLO

Smart Array P400i Controller

Disk Drive and Enclosure Interface 3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors 2 internal (SFF8484) x4 wide port connectors
Cache Memory Speed DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interface x8 2.5G PCIe provides 2GB/s maximum bandwidth.
SAS Speed x8 3G SAS provides 2.4GB/s maximum bandwidth.
Cache Memory 40-bit 256MB cache (72-bit 512MB module upgrades available); ECC protection, battery-backed, and transportable
Logical Drives Supported Up to 32 logical drives
Maximum Logical Drive Capacity 2TB
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID Support RAID 6 with ADG (Advanced Data Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding)
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping)

Two embedded NC371i Multifunction Gigabit Server Adapters

Network Interface 10/100/1000-T
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method PCI Express, four lanes (x4)
Controller BCM5706
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4, or 5 UTP; up to 328 ft (100 m)
10/100/1000 Base-TX Category 5 UTP up to 328 ft (100 m)

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


USAPartsDirect          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
