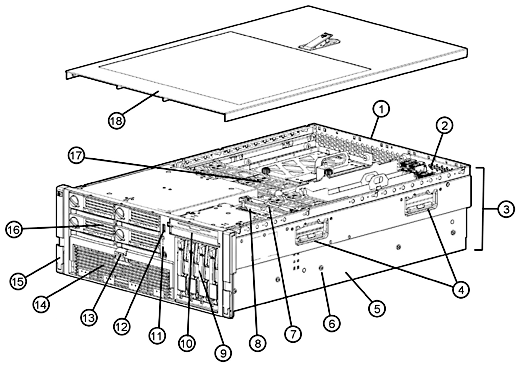

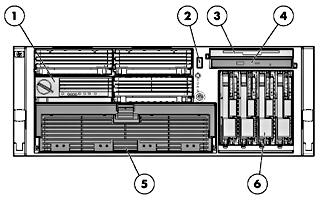

Dual
Hot Plug Redundant Power Supplies (one standard with 1P Models, requires optional
RPS for redundancy)
2.
Up to Seven I/O Slots: 5 Standard 64-bit PCI-X (Three
133MHz and Two 100MHz). Optional Mezzanine adds Two Hot Plug 64-bit/133MHz PCI-X
or two X4 PCI Express, or one X8 PCI Express
3.
4U (7" Height) Rack Form Factor
4.
Server
Lifting Handles
5.
SCSI
Models ship with Smart Array 6i Ultra320 array controller with optional 128MB
Battery Backed Write Cache (BBWC ships standard with some models)
Wide Ultra3/U320 Duplex Drive Cage (can be Simplex configured)
8.
QuickFind
Diagnostic Display
9.
Support for up to four Ultra320 SCSI hot plug hard drives or two hot plug hard

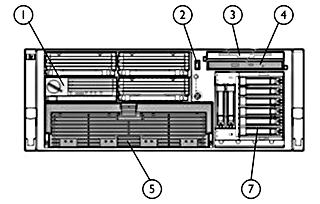

drives and one DAT 40 or DAT 72 hot plug tape drive Serial Attached SCSI(SAS)
Model has support for up to 8 Small Form-Factor (SFF) SAS or Serial ATA (SATA)
drives
10.
Support
for up to Two Slimline Drives (Ejectable, DVD Drive standard, Floppy Drive optional
with all models)
11.
Front Panel LED Display (internal and external health, Two Network Port Status,
Unit ID light) and Power Button
12.
One
front accessible USB 2.0 port, Two rear accessible USB 2.0 ports (all bootable)
13.
Front
accessible Processor drawer (allows access to Processors and Processor Power Modules)
14.
Support
for up to four Dual-core or Single-core 64-bit Intel® Xeon™ MP Processors with
667 MHz FSB and up to 8MB L3 cache
15.
Quick
release levers for fast server access
16.
Front
accessible Hot Plug RAID Memory (One Memory Board ships Standard with all models)
17.
Six Hot Plug Redundant Fans Standard on all models
18.
Quick
Removal Access Panel
What's New
The DL580 G3 now offers dual
core processors including the following:
The DL580 G3 now supports up to 64
GB of memory with the new 8 GB PC2-3200R Memory Kit.
Optional Serial Attached SCSI (SAS) /Serial
ATA Drive Cage upgrade kit and controller for all models
At A Glance
The ProLiant DL580 G3 server is an enterprise class,
4-way server designed for maximum scalability and high availability. Its
radically redesigned chassis offers unsurpassed flexibility and serviceability
in a versatile, rack-optimized form factor.
Based upon the latest industry standard processing,
memory, I/O and networking technologies, the ProLiant DL580 G3 provides
the highest levels of performance demanded by today's compute intensive
applications. Unparalleled high availability features, including front-accessible
Hot Plug RAID Memory, integrated Ultra320 Smart Array 6i controller or
Smart Array P600/256 BBWC Controller (SAS), duplex drive cage, and hot-plug
redundant components, guarantee maximum uptime. Integrated Lights-Out
(iLO) technology allows remote administration from a standard web-browser
without ever having to visit the server. Within the 4U dense form factor,
it's highly expandable architecture provides maximum application deployment
flexibility with the ability to add PCI-Express, hot plug PCI-X or battery-backed
write cache options. Innovative new features, such as the ability to access
processors, memory, hard drives, and power supplies while the unit remains
secured in the rack, enable rapid response to service events, radically
decreasing overall IT costs and server downtime.
Processors:
Supports up to four Dual-core or Single core 64-bit Intel®
Xeon™ MP processors and HT Technology
Dual independent 667MHz Front Side Buses and up to 8MB of L3 cache
Industry Standard Intel E8500 Chipset
Memory:
PC2-3200R 400MHz DDR2 Memory can be configured in Hot Plug Mirrored,
Hot Plug RAID, Online Spare or Advanced ECC modes
Storage Controller:
SCSI Models include integrated Ultra320 Smart Array 6i Controller
with 64MB RAM and optional 128MB Battery-Backed Write Cache (BBWC)
Enabler option kit
SAS Models include HP Smart Array P600/256 BBWC Controller and
8-bay SAS Cage Option
Internal Drive Support:
Internal hot plug hard drive capacity up to 1.2TB (4 x 300GB U320)
Support for up to four Ultra320 SCSI hot plug hard drives or three
hot plug hard drives and one DAT hot plug tape drive
Slimline DVD Drive standard, Floppy Drive optional on all models
(ejectable)
Simplex or Duplex configurable Wide Ultra3/U320 Duplex Drive Cage
Network Controller:
Embedded NC7782 PCI-X Gigabit Server Adapter
Expansion Slots:
Up to 7 Total: (5) Standard 64-bit PCI-X (Three 133MHz and Two
100MHz); Optional Mezzanine adds Two Hot Plug 64-bit/133MHz PCI-X,
Two X4 PCI Express, or One X8 PCI Express
Rear accessible Hot Plug Redundant Power Supplies (RPS optional
on some models)
Hot Plug Fans with full redundancy
Management:
New iLO Shared Network Port enables access to the iLO management
processor through one of the embedded system NIC's (Can be disabled).
This allows access to iLO without requiring a separate, dedicated
network connection for iLO.
HP Power Regulator for ProLiant delivering server level, policy
based power management with industry leading energy efficiency and
savings on system power and cooling costs
Integrated Lights-Out industry leading remote management with
new support for two-factor authentication, schema-free Microsoft
Active Directory integration, Power Regulator p-state reporting,
USB key virtual media and VLAN on the shared network port
Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU),
HP Systems Insight Manager, Status LED's including system health
and UID, and SmartStart
Form Factor:
Rack (4U; 7 inches)
Deployment/Serviceability:
Front accessible Hot Plug RAID Memory (Configurable for Standard,
Mirrored or RAID) provides maximum up-time, flexibility and serviceability
Front accessible Processor and Processor Power Modules allow server
to stay safely secured in the rack during servicing
Quick Deploy Rail System includes sliding universal rails, an
ambidextrous cable management arm and quick release levers for fast
and easy serviceability and in-rack tool-less access to major components
Tool-less access to all system components for easy in rack serviceability
Warranty:
Protected by HP Services and a worldwide network of resellers
and service providers. Three-year Next Business Day, on-site limited
global warranty. Certain restrictions and exclusions apply. Pre-Failure
Notification on processors, memory, and SCSI/SAS hard drives. SATA
hard drives have a one-year warranty.
Utilize
the HP ProLiant DL580 G3 to enable transitions to new industry technologies such
as Dual-core processing, Serial-attached SCSI and SATA drives, and PCI Express
NOTE:
64 GB achieved with use of four memory cartridges and sixteen 4 GB PC2-3200
Memory Modules. The HP ProLiant DL580 G3 will accept both single rank and
dual rank DIMMs in all sockets.
Network Controller
Embedded NC7782 PCI-X Gigabit
Server Adapter
Expansion Slots with
No Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
N/A
N/A
N/A
N/A
Standard
2
N/A
N/A
N/A
N/A
Standard
3
64-bit / 133 MHz PCI-X
12
No
3.3 Volt
Standard
4
64-bit / 133 MHz PCI-X
15
No
3.3 Volt
Standard
5
64-bit / 133 MHz PCI-X
19
No
3.3 Volt
Standard
6
64-bit / 100 MHz PCI-X
22
No
3.3 Volt
Standard
7
64-bit / 100 MHz PCI-X
22
No
3.3 Volt
Standard
Expansion Slots with
PCI-X Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
64-bit / 133 MHz PCI-X
6
Yes
3.3 Volt
Optional
2
64-bit / 133 MHz PCI-X
9
Yes
3.3 Volt
Optional
3
64-bit / 133 MHz PCI-X
13
No
3.3 Volt
Standard
4
64-bit / 133 MHz PCI-X
16
No
3.3 Volt
Standard
5
64-bit / 133 MHz PCI-X
20
No
3.3 Volt
Standard
6
64-bit / 100 MHz PCI-X
23
No
3.3 Volt
Standard
7
64-bit / 100 MHz PCI-X
23
No
3.3 Volt
Standard
Expansion Slots with
PCI Express X4 Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
PCI Express X4
5
No
N/A
Optional
2
PCI Express X4
8
No
N/A
Optional
3
64-bit / 133 MHz PCI-X
12
No
3.3 Volt
Standard
4
64-bit / 133 MHz PCI-X
15
No
3.3 Volt
Standard
5
64-bit / 133 MHz PCI-X
19
No
3.3 Volt
Standard
6
64-bit / 100 MHz PCI-X
22
No
3.3 Volt
Standard
7
64-bit / 100 MHz PCI-X
22
No
3.3 Volt
Standard
Expansion Slots with
PCI Express X8 Mezzanine Option
Bus speed
Bus number
Hot Plug
PCI Voltage
Notes
1
PCI Express X8
5
No
N/A
Optional
2
N/A
N/A
N/A
N/A
Standard
3
64-bit / 133 MHz PCI-X
12
No
3.3 Volt
Standard
4
64-bit / 133 MHz PCI-X
15
No
3.3 Volt
Standard
5
64-bit / 133 MHz PCI-X
19
No
3.3 Volt
Standard
6
64-bit / 100 MHz PCI-X
22
No
3.3 Volt
Standard
7
64-bit / 100 MHz PCI-X
22
No
3.3 Volt
Standard
Manageability
Integrated Lights-Out
(iLO) Standard Management (ASIC on the System Board)
Storage Controllers
Smart Array 6i Controller
(integrated on system board)
HP Smart Array P600/256
BBWC Controller (in a slot) and 8-Bay SAS Drive Cage (SAS models only)
Storage
Data Protection
The
Battery-Backed Write Cache (BBWC) Enabler for the embedded Smart Array 6i Controller
protects up to 128-MB write cache memory from hard boot, power, controller, or
system board failures.
Standard on 2P Models, optional with others
Battery charge/life:
Up to 72 hours/3 years
Transportable data protection
Increases
overall controller performance
NOTE:
Safely transport your write cache data to another HP ProLiant DL580 G3 in
the data center by removing the BBWC Enabler and 6i Controller Memory Module simultaneously
(connected by short cable).
Storage
Diskette Drive
None Standard - Optional Slimline
Floppy Drive available (ejectable)
Optical Drive
Slimline DVD-ROM Drive Standard
on all models (ejectable)
Hard Drives
None ship standard
Hard Disk Drive
Backplane
Internal Wide Ultra3/U320 backplane
supports up to four hard disk drives and is easily configurable to support
simplex (4x1) or duplex mode (2x2)
Standard shipping configuration is the duplex mode.
NOTE: Does
not apply to 8-Bay SAS Drive Cage
Maximum Internal
Storage Type
Hot Plug SCSI
1.20TB
4 x 300GB Ultra320 drives (internal
hot plug Ultra3 drive cage)
Integrated ATI Rage XL Video
Controller with 8-MB SDRAM Video Memory
Form Factor
Rack (4U = 7 inches), ships
with Quick Deploy Sliding Rail System, an ambidextrous cable management
arm and quick release levers for fast and easy serviceability and in-rack
tool-less access to major components.
Space saving form factor (4U) provides space efficiencies while providing
maximum deployment flexibility.
ProLiant Essentials
Foundation Pack Software
HP
Systems Insight Manager
HP Systems Insight Manager (HP SIM) provides a unified, secure
and extensible environment to centrally manage servers, storage
and other infrastructure devices across multiple operating system
platforms.
Through a single management view, HP SIM provides core management
services that include device discovery and identification, event
views, health monitoring, inventory data collection, software version
control and reporting. HP SIM is built on industry standards and
is extensible with value-added ProLiant Essentials, Integrity Essentials
and Storage Essentials software to meet individual management needs.
For more details on HP SIM visit http://www.hp.com/go/hpsim.
HP SIM provides organizations with the following benefits:
Simplifies and consolidates infrastructure lifecycle management
using task and query based functionality
Provides the foundation for infrastructure automation and virtualization
Enables IT management based on business processes not hardware
platforms
Lowers infrastructure maintenance cost and frees resources for
innovation
Maximizes resource utilization with virtualization technologies
Provides a central point of integration between infrastructure
and Enterprise management tools such as HP OpenView
SmartStart
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please visit the SmartStart
Web site at http://www.hp.com/servers/smartstart. SmartStart version supported (minimum): SmartStart
7.20.
Insight
Management Agents
Insight Management Agents
should be installed on all HP servers to present system instrumentation,
health and configuration information into HP Systems Insight Manager
and the HP System Management Homepage. The HP System Management Homepage
aggregates systems data from Insight Management Agents and other HP
management tools, providing a consolidated browser-based interface
for managing individual servers,
Insight Management Agents and The HP System Management Homepage are
included on ProLiant Support Packs, and can also be installed using
the server profiles provided with the ProLiant Essentials Rapid Deployment
Pack. For additional information about the Management Agents and the
HP System Management Homepage please visit the management Web site
at http://www.hp.com/servers/manage
Subscriber's Choice
Subscriber's
Choice Driver and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change notifications
for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available,
on a weekly or monthly basis.
ROMPaq,
support software, and configuration utilities
The
latest software, drivers, and firmware fully optimized and tested for your ProLiant
server and options available in SmartStart or downloadable from Software and Drivers
download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics
utilities
The most advanced
configuration analysis, reporting and troubleshooting utilities used by HP and
at your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional software offerings
that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack (RDP) is an automated deployment and provisioning
solution for all ProLiant servers. RDP includes the ProLiant Integration
Module featuring ProLiant server pre-configured events for OS
installation, and optimized software drivers, firmware and management
agents. Every RDP disc includes 10-node trial licenses for evaluation
purposes. RDP requires a license for each server deployed and
is available for purchase with HP servers. For more information,
visit: http://www.hp.com/servers/rdp.
Workload Management Pack - provides easier management of complex
environments, improving overall server utilization and enabling
Windows® 2000 customers for the first time to confidently
deploy multiple applications on a single multiprocessor ProLiant
Server.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions, plus it provides an extra layer of
protection. The virus throttle feature of the solution slows the
propagation of fast spreading virus.
Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well
operating system configurations that can be exploited by viruses,
worms, and other blended threats.
Virtual Machine Management Pack - provides central management
and control of virtual machines from Microsoft and VMware. Integrated
approach provides the ability to manage both physical and virtual
resources from a single management console.
Server Migration Pack - The Server Migration Pack automates
the manual processes required for migrating servers between physical
or virtual platforms (P2V, V2P, and V2V).
Optional Remote Management
Packs
Integrated Lights-Out Advanced Pack - upgrades the Integrated
Lights-Out processor to full virtual presence and control with
graphical console and virtual media.
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information. NOTE: For more information regarding ProLiant Essentials Software, please
see the following URL: http://www.hp.com/servers/proliantessentials.
Industry Standard
Compliance
ACPI 1.0a. Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE)
Support
Microsoft® Logo certifications
USB 2.0 Support
Remote
Management
Integrated
Lights Out (iLO) Standard Management:
Virtual Text Remote Console
Virtual Power Button Control
Dedicated & shared LAN
Connectivity
Browser and command line access
Automatic
IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure
Sockets Layer (SSL) and Secure Shell Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privilege
Integrated Lights
Out Advanced Pack (optional) Remote Graphical Console:
Microsoft
Remote Desktop for Administrators integration
Virtual media (floppy,
CD, USB key, floppy images and ISO images)
User access management
via Directory Services
Two-factor authentication
Intelligent
Manageability
HP Systems Insight Manager
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SCSI/SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support
Hot Spare Boot NOTE: Upon the event of a failed
processor or VRM in a multi-processing environment, the system will automatically
reboot and use the remaining good processor(s).
Availability
HP Advanced Memory Protection Technology - delivers unsurpassed
memory protection and server availability with the following supported
modes of operation:
Advanced ECC (1 or More Memory Boards)
Advanced ECC Memory is the default memory protection mode for the
HP ProLiant DL580 G3. In Advanced ECC, the server is protected against
correctable memory errors. The server will provide notification
if the level of correctable errors exceeds a predefined threshold
rate. The server does not fail because of correctable memory errors.
Advanced ECC provides additional protection
over Standard ECC in that it is possible to correct certain memory
errors that would otherwise be uncorrectable and result in server
failure. Whereas Standard ECC can correct single-bit memory errors,
Advanced ECC can correct single-bit and multi-bit memory errors if all
failed bits are on the same DRAM device on the DIMM. Advanced ECC is
the only mode in which hot-add operations are supported by adding a
memory board with memory to the server while it is running.
Online Spare Memory (1 or More Memory Boards)
Offers a higher level of memory protection than Advanced ECC alone.
If the number of single-bit correctable errors on a bank exceeds the
pre-defined error threshold, that bank will fail over to the online
spare bank without intervention or server interruption. The failed
memory can then be replaced at the user's convenience during a scheduled
maintenance window.
Online Spare Memory is achieved by protecting active memory with
online spare memory on the same memory board. No operating system
support is required.
Hot Plug Mirrored Memory (2 or 4 Memory Boards)
Hot Plug Mirrored Memory provides a higher level of availability than
Advanced ECC and Online Spare Memory. With Hot Plug Mirrored Memory,
the server is protected against uncorrectable memory errors that would
otherwise result in server failure. Hot Plug Mirrored Memory allows
the server to keep two copies of all memory data on separate memory
boards. If an uncorrectable error is encountered, the proper data
is retrieved from the memory board that did not fail. In addition,
Hot Plug Mirrored Memory allows failed or degraded DIMMs to be replaced
while the server is running without requiring server downtime. The
memory board with the failed DIMMs can be removed from the front of
the server, failed DIMMs replaced, and the board re-inserted into
the server without disengaging the server from the rack or interrupting
the operating system.
Hot Plug RAID Memory (4 Memory Boards)
Hot Plug RAID Memory provides a similar level of protection as Hot
Plug Mirrored Memory but obtains this protection using a smaller percentage
of the installed memory. While Hot Plug Mirrored Memory keeps two
copies of all memory data, Hot Plug RAID Memory keeps only one copy
of all memory data and additional parity information. If an uncorrectable
memory error is encountered, the server can create the proper data
using data from the parity information and the other memory boards
that contain no failures. In a Hot Plug RAID Memory configuration,
75% of the installed memory is available to the Operating System;
50% more than in a Hot Plug Mirrored Configuration. As with Hot Plug
Mirrored Memory, Hot Plug RAID Memory allows failed DIMMs to be replaced
while the server remains running and safely engaged in the rack.
# of Memory Boards Installed
Supported Modes
1 Board
2 Boards
3 Boards
4 Boards
Number of DIMMs Supported
4
8
12
16
Maximum Memory Supported
16 GB
32 GB
48 GB
64 GB
Advanced ECC Memory Protection
Yes
Yes
Yes
Yes
Online Spare Memory
Yes
Yes
Yes
Yes
Hot Plug Mirrored Memory
No
Yes
No
Yes
Hot Plug RAID Memory
No
No
No
Yes
PCI-X Hot Plug Technology (Two 64bit/133-MHz PCI-X hot plug slots
available with the Hot Plug PCI-X Mezzanine Option)
Smart Array 6i Controller with optional Battery Backed Write Cache
(BBWC) Enabler provides transportable data protection and increases
overall controller performance. Up to 128MB Battery Backed Write Cache
protection optional on HP ProLiant DL580 G3 (BBWC Enabler ships standard
with 2P Dual-core 7040 3.00 GHz/2x2M and 3.33 GHz/8M base models)
Hot Plug Redundant Fans - Six Hot Plug Redundant Fans ship standard
with all models.
Front Accessible Chassis - Redesigned chassis allows access to memory,
processors and hard drives from the front of the server while it remains
safely engaged in the rack. This provides easier serviceability and
lowers the chance of interfering with neighboring servers' cables and
components.
Hot Plug Universal Drives - Up to four Hot Plug Universal drives are
supported with ability to configure for Duplex or Simplex Backplane
functionality.
Hot Plug Redundant Power Supplies - Two Hot Plug Redundant Power Supplies
ship standard with all 2P base models (2nd Hot Plug Redundant Power
Supply is optional with 1P base models)
Serviceability
Front and Rear accessibility provides unsurpassed serviceability
by allowing the server to remain safely secured in the rack while maintaining
Hot Plug RAID Memory, Hot Plug Universal Hard Drives, Hot Plug Redundant
Power Supplies, as well as Processors and Processor Power Modules.
Innovative Diagnostic Lighting
QuickFind Diagnostic Display - precisely depicts all major subsystems
of the server (PCI-X I/O, Memory, CPU, Redundant Cooling, Interlock,
Thermtrip) and gives instant visual indication of fault status. Located
on top front of server.
LED display on front panel indicates power, internal health, external
health, Unit ID light.
LED display on Memory board indicates Memory status, health, and protection
mode.
LED display on Processor board indicates Processor and Processor Power
Module health.
Tool-less, virtually cable-less interior design
Tool-less access to interior of server
Up to two, Slimline media drives are removable without the use
of tools (ejectable)
Rear Access to Hot Plug Redundant Power Supplies
PCI Card Guides locks full length PCI cards in place
SCSI Duplex/Simplex Drive Cage connects directly to system board
- no cables. NOTE: Configure your SCSI
Duplex/Simplex Drive Cage by means of simple switch (duplex to simplex) located on the cage itself. System
ships standard in Duplex mode.
Six individually removable fans connect without cables to the
system board
Processor/PPM Retention Cage securely locks Processors into their
sockets
Tool-less removal of system board
Quick Deploy Rails
Tool-less design "snap in" rail and ambidextrous cable
management arm
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
Network Server Mode
Serial interface control
Administrator's password
Disk configuration lock
Removable Diskette drive (optional)
Removable CD-ROM or DVD drive
Power Regulator
Power Regulator is a new operating
system-independent power management feature of HP ProLiant servers that
enables dynamic or static changes in CPU performance and power states. In
dynamic power mode, Power Regulator automatically adjusts the server's power
usage and performance to match CPU application activity. This improves server
energy efficiency by giving CPUs full power for applications when they need
it and enabling power savings without performance degradation when application
activity is reduced.
Power Supply
910W (low line), 1300W (high
line) with 12V main output. Size is 2.8"(H) X 4.9"(W) X 7.5"(L).
NOTE: One Hot Plug Power Supply ships
standard with 1P base models (optional Redundant Hot Plug Power Supply Option
Kit). NOTE: Two Hot Plug Power Supplies ship standard with 2P base models.
Windows Server 2003
Microsoft Windows 2000
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Novell Netware
Sun Solaris Intel Platform Edition
VMware Virtualization Software
NOTE: For a
more complete and up-to-date listing of supported OSs and versions, please
visit our OS Support Matrix at: http://www.hp.com/go/supportos.
NOTE: For
an up-to-date listing of the latest drivers available for the HP ProLiant
DL580, please see: http://www.hp.com/support.
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If
a third-party rack is used, observe the following additional requirements
to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing
front and rear doors, you must allow 5,350 sq cm (830 square inches)
of hole evenly distributed from top to bottom to permit adequate airflow
(equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component
and the side panels of the rack must be a minimum of 7 cm (2.75 inches).
CAUTION: Always
use blanking panels to fill all remaining empty front panel U-spaces in
the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation
Guide or the Documentation CD provided with the server, or to the server
documentation located in the Support section at the following URL: http://www5.HP.com/products/servers/proliantdl580/index.html.
Rack Mounting Requirements
HP ProLiant DL580 G3 rack models provide tool-free support for racks
with square or round mounting holes (including Compaq/HP 7000, 9000, 10000,
HP/E series and H9 series) with an adjustment range from 24" - 36"
in depth. The ambidextrous cable management arm can be mounted on either
the left or right side for improved cable management. NOTE: Cable management arm must
be removed to access Hot Plug Power Supplies when the cable management
arm is mounted on the right.
HP ProLiant DL580 G3 in Telco Racks
Support for all 2-post Telco racks requires the use of the standard rack
kit and an additional option kit from Rack Solutions (http://www.racksolutions.com/hp/)
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eCo-Enterprise Configurator now provides factory
default racking for our HP hardware portfolio. This approach is aligned
with our strategic direction to meet the needs and expectations of our
valued customers. If you require "custom" rack configuration,
please contact HP's Customer Business Center or an Authorized Partner
for assistance.
Service and Support
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of resellers and service providers.
Hardware diagnostic support and repair is available for three years from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Additional support may be covered under
the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements.
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server, purchased at the same time or afterward, internal
to the enclosure, as well as 22" and smaller external monitors and
tower UPS options up to 3kVA; these items will be covered at the same
service level and for the same coverage period as the server. Coverage
of UPS Battery is not included, standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
HP services provide continuous care and support expertise with committed
response designed to meet your IT and business needs.
To fully capitalizing on your HP ProLiant servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a ProLiant server support offer to help you speedily
deploy and maximize system uptime.
Enhanced Care - Minimum recommended service support offer designed to
ensure customers have access to expert assistance, whenever they need
it.
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
Continuous Care - Recommended service delivering cost-effective support
options designed to extend HP Services committed response and guaranteed
fix times, designed to speed problem identification and resolution.
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage,
3 Years
Total Care - Highest HP Support service level recommend to help increase
IT performance and availability with comprehensive, integrated hardware
and software services
Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft
O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response
time incl. HP holidays
Deployment Services - HP Installation and Start Up services designed
to take time, risk, and worry out of the deployment of ProLiant servers
- and free customers IT support staff to focus on what they do best, their
business.
Installation & Start-Up of a ProLiant server and Microsoft
or Linux O/S per the Customer Description and/or Data Sheet. To be delivered
on a scheduled basis 8am-5pm, M-F, excl. HP holidays
The HP ProLiant DL580 G3 server is an enterprise class, 4-way server designed
for maximum scalability and high availability. It's radically redesigned chassis
offers unsurpassed flexibility and serviceability in a versatile, rack-optimized
form factor. Based upon the latest industry standard processing, memory, I/O
and networking technologies, the HP ProLiant DL580 G3 provides the highest levels
of performance demanded by today's compute intensive applications. Unparalleled
high availability features, including Hot Plug RAID Memory technology, an integrated
U320 Smart Array 6i controller, duplex drive cage, and hot-plug redundant components
guarantee maximum uptime. The HP ProLiant DL580 G3's Integrated Lights-Out technology,
allows remote administration from a standard web-browser without ever having to
visit the server. Within the 4U dense form factor, the HP ProLiant DL580 G3's
highly expandable architecture provides maximum application deployment flexibility
with the ability to add PCI-Express, hot plug PCI-X or battery-backed write cache
options. Innovative new features, such as the ability to access processors, memory,
hard drives, and power supplies while the unit remains secured in the rack, enable
rapid response to service events, radically decreasing overall IT costs and server
downtime.
Typical Usage:
Space-constrained corporate data
centers and service providers
With up to 1.2TB of internal
storage, 16 DIMM sockets and PCI-Express or hot-plug PCI-X mezzanine options;
the HP ProLiant DL580 G3 packs the storage, memory, and I/O you need in a versatile,
4U chassis
Ambidextrous cable management and a quick deploy rail
solution make racking a snap
Availability features including hot
plug RAID memory, hot plug redundant power, hot plug redundant fans, hot plug
PCI-X and hot plug RAID hard drives keep environments up and running and users
productive
Database, Messaging and Business Applications
The latest 64-bit Intel® Xeon™ processors with Hyper-Threading,
DDR-2 memory, and large internal storage capacity provide scalability for everything
from web apps to mail servers to databases
Five standard full-length
PCI-X slots and the ability to add either two additional X4 PCI Express, one additional
X8 PCI Express, or two additional hot plug PCI-X slots, provide powerful and flexible
I/O alternatives
Integrated dual-port 10/100/1000 gives you the connectivity
and bandwidth needed in today's database or business applications environments
Easily attach to SAN or NAS and manage from one location
Server
Consolidation
Scalability, availability and built-in serviceability
make the HP ProLiant DL580 G3 the perfect platform for server consolidation solutions
The ProLiant HP DL580 G3 and ProLiant Essentials make it easy to deploy,
manage, and migrate virtualized servers with VMware or Microsoft Virtual Server
Integrated Lights-Out enables administrators to manage the HP ProLiant
DL580 G3 from remote locations
Configuration Information - Factory Integrated Models
NOTE:
HP does not allow factory integration of options into standard models
listed above.
Configure-to-order servers must start with a CTO Chassis. NOTE: This product offering does not support HP Factory Express Server
Configuration Level 1. NOTE: FIO indicates that this option only available as a Factory
Installable Option.
Step
1: Base Configuration
Models
HP ProLiant DL580
G3 Highly Serviceable Rack Chassis
364636-405
Factory Integrated
Model ships with:
Embedded
NC7782 PCI-X Gigabit Server Adapter
Ultra320 Smart Array
6i Controller (integrated on system board)
Five Standard 64-bit
non-hot plug PCI-X slots (3 x 133MHz, 2 x 100MHz)
One (1) Hot Plug
Power Supply with one (1) low line NEMA power cord and One high-line IEC
power cord
Six (1) Redundant
Hot Plug Fans
Wide Ultra3/U320
Duplex Drive Cage (can be Simplex configured)
Integrated Lights-Out
(iLO) Standard Management
Rack (4U), 7-inch
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
Processors
64-bit Dual-core
Intel® Xeon™ 7040 (3.00GHz, 2x2M L2) 580 G3 FIO NOTE: If more than one processor
is desired, additional processor selections would be 399889-B21. If High
Performance Pack features are desired, select 404082-001 and any desired
additional processors.
399889-L22
64-bit Dual-core
Intel® Xeon™ 7020 (2.66GHz, 2x1M L2) 580 G3 FIO NOTE: If more than one processor
is desired, additional processor selections would be 399888-B21.
399888-L22
64-bit Intel® Xeon™
3.33-8M 580 G3 FIO NOTE: If more than one processor
is desired, additional processor selections would be 348111-B21. If High
Performance Pack features are desired, select 391717-001 and any desired
additional processors.
348111-L22
64-bit Intel® Xeon™
3.00-8M 580 G3 FIO NOTE: If more than one processor
is desired, additional processor selections would be 348110-B21. If High
Performance Pack features are desired, select 391718-001(U320) or 393768-001(SAS)
and any desired additional processors.
348110-L22
64-bit Intel® Xeon™
2.83-4M 580 G3 FIO NOTE: If more than one processor
is desired, additional processor selections would be 348109-B21.
348109-L22
64-bit Intel® Xeon™
3.66-1M 580 G3 FIO NOTE: If more than one processor
is desired, additional processor selections would be 385903-B21.
385903-L22
64-bit Intel® Xeon™
3.16-1M 580 G3 FIO NOTE: If more than one processor
is desired, additional processor selections would be 375369-B21.
375369-L22
Base
Memory
8 GB (2 x 4 GB 2RANK)
PC2-3200R 400MHz DDR2 Option Kit NOTE: Requires baffled Memory Board
Replacement Cover - included in kit.
4 GB (2 x 2 GB 2RANK)
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities NOTE: If 2GB DIMM's are desired,
2GB 2RANK DIMM's are recommended with the HP ProLiant DL580 G3. However,
2GB 1RANK DIMM's are also supported for commonality with other HP ProLiant
servers.
4 GB (2 x 2 GB 1RANK)
PC2-3200R 400MHz DDR2 with Advanced ECC and online spare memory capabilities.
NOTE: If 2GB DIMM's are desired,
2GB 2RANK DIMM's are recommended with the HP ProLiant DL580 G3. However,
2GB 1RANK DIMM's are also supported for commonality with other HP ProLiant
servers.
The HP ProLiant DL580 G3 Performance Packs include the latest performance technologies
and enterprise class availability features pre-installed for convenience and value.
In addition to the standard features listed in Step 1, the Performance Packs include
the following:
2nd Intel Xeon Processor MP and Processor Power
Module
2nd Rear Accessible Hot Plug Redundant Power Supplies
The X7040
DC and 3.33 GHz Performance Packs also include the 128MB Battery Backed Write
Cache for the embedded Smart Array 6i controller
The HP ProLiant DL580 G3
SAS Performance Pack includes the Smart Array P600 Controller
NOTE: 8-Bay SAS/SATA Cage (379090-B21)
not included but is required, please include in order. SAS Performance pack
includes the Smart Array P600/256 BBWC Controller.
DL580G3 X3.00 GHz/667-8MB
HPM SAS Performance Pack NOTE: 8-Bay SAS/SATA Cage (379090-B21)
not included but is required, please include in order. SAS Performance pack
includes the Smart Array P600/256 BBWC Controller.
393768-001
SAS
Options
8-Bay SAS/SATA
Cage Option Kit NOTE: Required to configure
all SAS models. NOTE: May be ordered with a SAS/SATA
Controller such as the Smart Array P600/256 BBWC Controller and the desired
quantity of SFF SAS Universal Hard Drives/SFF SATA hard drives OR may be
ordered with one of the following SAS Starter Kits.
379090-B21
SAS
Starter Kit - 36 GB NOTE: Includes Smart Array P600/256
BBWC Controller and (2) 36GB SFF SAS Universal Hard Drives.
396221-B21
SAS
Starter Kit - 72 GB NOTE: Includes Smart Array P600/256
BBWC Controller and (2) 72GB SFF SAS Universal Hard Drives.
396220-B21
Step 4: Choose
Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Options" section
below.
NOTE:
Some options may not be integrated at the factory. Contact your local sales
representative for additional information.
ProLiant
DL580 Unique Options
Hot Plug 64-bit/133MHz
PCI-X Mezzanine Option NOTE: Adds two Hot Plug PCI-X slots.
377520-B21
PCI Express X4 Mezzanine
Option NOTE: Adds two PCI Express (X4) I/O
slots. Each slot will accept PCI Express cards with X1 through X8 connectors
and utilize X4 lanes.
377522-B21
PCI Express X8 Mezzanine
Option NOTE: Adds one PCI Express (X8) I/O
slot. The slot will accept PCI Express Cards with X1 through X8 connectors
and utilize X8 lanes.
389876-B21
DL580 G3 Memory Board NOTE: The HP ProLiant DL580 G3 utilizes
up to four Memory Boards that support up to four DIMMs each. These memory
boards are Front accessible providing unsurpassed levels of memory protection
as well as scalability for the most memory-intensive applications. See Memory
Configuration Diagram. NOTE: One Memory Board ships standard
with all models.
364639-B21
ProLiant
Essentials
Value Pack Software
ProLiant Essentials
Intelligent Networking Pack
ProLiant Essentials
Intelligent Networking Pack - Windows Edition, Single Server License NOTE: For use with a single server. Contains one license with a unique
license activation key and documentation.
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
435661-B21
ProLiant Essentials
Server Migration Pack, Single-Migration License NOTE: Contains one license, enabling
1 server migration, with a unique license activation key and documentation. NOTE: This license allows 1 server to be migrated from a physical
server to a virtual machine. Or this license can be used to migrate a virtual
machine from one virtualization layer i.e. VMware GSX to a different virtualization
layer such as VMware ESX or Microsoft Virtual Server 2005.
435663-B21
HP ProLiant Essentials
Server Migration Pack - Physical to ProLiant Edition. 1 Year Unlimited Migration
License
412982-B21
ProLiant Essentials
Server Migration Pack - Physical to ProLiant Edition, Single-Migration License
ProLiant Essentials
Vulnerability and Patch Management Pack
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
NOTE:
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Remote
Management
Integrated Lights-Out
Advanced Pack
Integrated Lights-Out
Advanced Pack, 1 server Featuring: Sophisticated
virtual administration features for ultimate control of servers in the data
centers and remote sites.
Dual-core Intel Xeon 7040 (3.00GHz-2x2MB)
Processor Option Kit NOTE: This processor option kit (PN
399889-B21) supports the HP ProLiant ML570 G3 and the HP ProLiant DL580
G3.
399889-B21
Dual-core Intel Xeon 7020 (2.66GHz-2x1MB)
Processor Option Kit NOTE: This processor option kit (PN
399888-B21) supports the HP ProLiant ML570 G3 and the HP ProLiant DL580
G3.
399888-B21
HP DL580 G3 DC Processor Blank
Kit NOTE: This kit contains 3 processor
blanks. These blanks are required only when a HP ProLiant DL580 G3 server
is being upgraded and will be populated with less than 4 Dual-core processors.
407556-B21
Intel Xeon MP X3.33 GHz-8MB Processor
Option Kit
348111-B21
Intel Xeon MP X3.00 GHz-8MB Processor
Option Kit
348110-B21
Intel Xeon MP X2.83 GHz-4MB Processor
Option Kit
348109-B21
Intel Xeon MP X3.66 GHz-1MB Processor
Option Kit
385903-B21
Intel Xeon MP X3.16 GHz-1MB Processor
Option Kit
375369-B21
Memory (DIMMs)
8 GB (2 x 4 GB 2RANK) PC2-3200R
400MHz DDR2 Option Kit NOTE: Requires baffled Memory Board
Replacement Cover - included in kit.
4 GB (2 x 2 GB 2RANK) PC2-3200R
400MHz DDR2 Option Kit NOTE: With Advanced ECC and online
spare memory capabilities.2GB 2RANK
DIMM's are recommended with the HP ProLiant DL580 G3. However, 2GB 1RANK
DIMM's are also supported for commonality with other HP ProLiant servers.
DL580 G3 Memory Board NOTE:The HP ProLiant DL580 G3 utilizes
up to four Memory Boards that support up to four DIMMs each. These memory
boards are Front accessible providing unsurpassed levels of memory protection
as well as scalability for the most memory-intensive applications. See Memory
Configuration Diagram. NOTE: One Memory Board ships standard with all models.
8-Bay SAS/SATA Cage Option Kit NOTE: The SAS/SATA Cage can
be used in conjunction with a SAS/SATA Controller such as the Smart Array
P600/256
BBWC Controller to upgrade all U320 models to SAS. The SAS Model ships
standard with these items.
NOTE: SATA drives
have a 1 year warranty. Please see the SATA Hard Drive QuickSpecs for Technical
Specifications such as capacity, height, width, interface, transfer rate,
seek time, physical configuration, and operating temperature: http://h18000.www1.hp.com/products/quickspecs/11940_na/11940_na.HTML
Storage Controllers
SAS Controllers
Smart Array P600 Controller
HP Smart Array P600/256 BBWC Controller NOTE: The Smart Array P600 Controller
supports internal and external Serial Attached SCSI and Serial ATA drives.
It is supported in all HP ProLiant DL580 G3 Models. Ships standard on SAS
Model. NOTE: Internal usage of the Smart Array P600 Controller requires
the 8-Bay SAS/SATA Drive Cage Option Kit. Ships standard on SAS Model.
128MB Battery-Backed Write Cache
with Battery Housing NOTE: This Battery-Backed Write Cache
Enabler Option Kit is for the integrated Smart Array 6i Controller. This
BBWC ships standard on 2P Model with 3.33GHz/8MB processors.
DL580
G3 Cable Assembly, SCSI, Ultra3, LVDS NOTE: All HP ProLiant DL580 G3 models ship standard with the integrated
Smart Array 6i Controller, which has been designed to deliver maximum performance
and availability across the internal SCSI Duplex backplane.
288874-B21
The Ultra3 SCSI cable is required only if the customer chooses to
bypass the Smart Array 6i Controller and connect slot-based SCSI adapters
or RAID controllers to the internal SCSI Duplex backplane.
Two cables are required to maintain the standard, duplexed configuration
of the backplane. One cable is required if the simplex configuration
is chosen.
The backplane is easily
configured to simplex mode by means of a simple switch duplex to simplex)
located on the top of the backplane itself.
NOTE: The following tape drives are recommended for use
with this HP ProLiant server.
USB Tape Drives
HP StorageWorks Ultrium
232 Internal Tape Drive (Carbonite) NOTE: HP recommends combining this tape drive with the 1U SCSI
Rack-Mount kit ( A7445B) for a complete rack-mount solution.
HP StorageWorks 3U SCSI
Rack-mount kit with one Ultrium 960 (Carbonite)
Q1595B
HP StorageWorks Ultrium
232 Internal Tape Drive (Carbonite) NOTE: HP recommends combining this tape drive with the 1U SCSI
Rack-Mount kit ( A7445B) for a complete rack-mount solution.
For an up-to-date
listing of the latest O/S and software support details for HP Ultrium
tape drives, please visit: http://www.hp.com/go/connect
Rack-Mount Tape Drive
Enclosures
HP StorageWorks 1U SCSI
Rack-Mount kit NOTE: The 1U Rack-Mount Kit can support up to (2) half-height
tape drives and is compatible with multiple Single-Ended and LVD SCSI
tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160,
Ultrium 215, Ultrium 232, Ultrium 448 and Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount
Kit NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height
tape drives and is compatible with the DAT 24 USB, DAT 40 USB and
DAT 72 USB tape drives.
HP StorageWorks 3U Rack-mount
kit NOTE: The 3U Rack-mount Kit can support up to (2) full-height
or (4) half-height tape drives and compatible with multiple LVD SCSI
tape drives including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600,
Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920 and Ultrium 960
tape drives.
HP StorageWorks 1/8 Ultrium 920
G2 Tape Autoloader
AH165A
HP StorageWorks 1/8 Ultrium 448
G2 Tape Autoloader
AH164A
HP StorageWorks 1/8 Ultrium 232
G2 Tape Autoloader
AH163A
HP StorageWorks 1/8 G2 Tape Autoloader
Rack Kit NOTE: Required to install the 1/8
G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount
instructions
AH166A
NOTE:
Please reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium
960 Drive Library
HP StorageWorks MSL4048 2 Ultrium
960 4GB FC Drive Library
AG325B
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium
960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium
960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium
960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium
960 Dr FC Library
AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium
460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium
460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium
460 Dr LVDS Library
AD599B
HP StorageWorks MSL6030 2 Ultrium
460 Dr FC Library
AD601B
NOTE: Please reference
the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
HP Data Protector Express Software
HP
DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP
DP Express Package for Microsoft Small Business Server
NOTE:
To obtain a free licensed copy of HP Data Protector Express for ProLiant edition
software, please visit the "Protect Your Data" link accessible from
your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5
or later).
NOTE: Please see
the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs
HP 4.9kVA S124 Monitored PDU-
single input, 1U, 24A
AF914A
Modular Power Distribution Units 1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets
shipped with
the unit (optimized for 10000 and 9000 series racks).
NOTE: xxxxxx-B21 (pallet) used to ship
empty racks shipped on a truck. -B22 (shock pallet) used to ship racks
with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23
(crated) used for air shipments of empty racks.
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
Service and Support Offerings (HP
Care Pack Services)
Hardware
Services On-site Service
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4607E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
U4608E
6-Hour
Call to Repair, On-site Service 7-Day x 24-Hour Coverage, 3 Years
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4609E
Installation &
Start-up Services
Hardware Installation, Electronic
U4617E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4618E
Installation and Startup
for Essentials Rapid Deployment Pack, Electronic
U5683E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4619E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4620E
Onsite HW support 24x7,
4hr response and RedHat AS O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U9239E
Onsite HW support 24x7,
4hr response and SuSE O/S SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
HP ProLiant DL580
G3 2P Models including SAS Models NOTE: Memory configurations listed do not apply to "Factory
Integrated Models".
Standard Memory
2
GB 400MHz DDR-2 SDRAM (PC2-3200R Registered SDRAM Memory with Advanced
ECC functionality)
Standard Memory Plus Optional Memory and Optional
Memory Boards
Up to 58 GB of memory is available with the optional installation of PC2-3200R
Registered SDRAM Memory kits and the use of all four optional memory boards.
Standard Memory Replaced with Optional Memory and Optional memory board
Up to 64 GB of memory is available with the removal of the standard 1
GB or 2 GB of memory, the optional installation of PC2-3200R Registered
SDRAM Memory Kits and the use of all four optional memory boards.
NOTE: Memory must be added in
banks of two DIMMS. This chart does not represent all possible memory
configurations. Additional requirements may apply to enable Advanced Memory
Protection features.
Standard Memory
Standard Memory Board (Slots)
Standard
2 GB
1
2
3
4
1 GB
1 GB
Empty
Empty
Optional Memory Summary
Standard Memory Board (Slots)
Optional (Standard Memory Plus Optional
Memory Boards and Optional Memory)
58 GB
1
2
3
4
1 GB
1 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Maximum Memory Summary
Standard Memory Board (Slots)
Maximum (Standard Memory Replaced with Optional
Memory with Optional Memory board)
64 GB
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
HP ProLiant DL580
G3 1P Models NOTE: Memory configurations listed do not apply to "Factory
Integrated Models".
Standard
Memory 1 GB 400MHz DDR-2 SDRAM (PC2-3200R Registered SDRAM Memory with
Advanced ECC functionality)
Standard Memory
Plus Optional Memory and Optional Memory Boards Up to 57 GB of memory
is available with the optional installation of PC2-3200R Registered SDRAM Memory
kits and the use of all four optional memory boards.
Standard Memory
Replaced with Optional Memory and Optional memory board Up to 64 GB of
memory is available with the removal of the standard 1 GB or 2 GB of memory, the
optional installation of PC2-3200R Registered SDRAM Memory Kits and the use of
all four optional memory boards. NOTE: Memory must be added in banks of two DIMMS. This chart does not represent
all possible memory configurations. Additional requirements may apply regarding
the configuration of single-rank/dual-rank DIMMs and to enable Advanced Memory
Protection features.
Standard Memory
Standard Memory Board (Slots)
Standard
1 GB
1
2
3
4
512MB
512MB
Empty
Empty
Optional Memory Summary
Standard Memory Board (Slots)
Optional (Standard Memory Plus Optional Memory
Boards and Optional Memory)
57 GB
1
2
3
4
512MB
512MB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Third Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Fourth Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Maximum Memory Summary
Standard Memory Board (Slots)
Maximum (Standard Memory Replaced with Optional Memory
with Optional Memory board)
64 GB
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
Optional Second Memory Board (Slots)
1
2
3
4
4 GB
4 GB
4 GB
4 GB
The following memory options are available from HP:
1 GB (2 x 512 MB 1RANK) PC2-3200R 400MHz DDR2 with Advanced ECC and
online spare memory capabilities
NOTE: The HP ProLiant
DL580 G3 utilizes up to four Memory Boards that support up to four DIMMs
each. These memory boards are Front accessible providing unsurpassed levels
of memory protection as well as scalability and serviceability for the most
memory-intensive applications. NOTE: One Memory Board ships standard with all models.
Front-accessible DL580 G3 Processor
Board (allows front access to processors and Processor Power Modules)
6
Ultra320 Drive Cage (Duplex or
Simplex configurable). Duplex is standard shipping configuration OR
7
8-Bay SAS/SATA Drive Cage. Supports
up to 8 Small Form Factor (SFF) SAS or SATA Hot Plug Drives.
Drive Support
Quantity
Supported
Position
Supported
Controller
Slimline Drives (ejectable)
1.44-MB Slimline Diskette Drive
Up to 2
3 or 4
Integrated
IDE slimline CD-ROM Drive
Up to 2
3 or 4
Integrated IDE
Slimline DVD-ROM Drive (8X/24X)
Option Kit
Up to 2
3 or 4
Integrated IDE
NOTE: The HP ProLiant
DL580 G3 can support a maximum of two Slimline drives (ejectable). Additional
configuration settings may be required if running 2 Diskette Drives. When
running 1 diskette drive, the top bay is the default location, but can be
changed with additional configuration settings.
NOTES:
To review typical system power ratings use the Active Answers Power
Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/powercalcs.asp.
To drill down to calculators:
Click on: "ProLiant Servers"
Click on the Server of interest. Example: DL580 G3
Click on: "Power Calculator" link. (You may need to
scroll down to see it)
There are certain Dual-core, lowline, max configurations that
are not supported. All highline configurations are supported. Consult
the Power Calculator to determine if your lowline configuration
is supported.
Standard Rack Model Power Cords / Jumper
Cords
Description
Nema 5-15P to IEC320-C19
IEC320-C14 to IEC320-C19 Jumper Cord
Optional Power Cords and Jumper Cords
Description
Option Kit Part Number
Nema 5-15P to IEC320-C19
235603-001
Nema 6-20P to IEC320-C19
235604-001
IEC320-C19, 20A, 250V
340653-001
IEC320-C19 to IEC320-C14 Jumper
(10A, IEC,
6 ft/2.0m)
313227-B21
IEC320-C19 to IEC320-C14 Jumper
(10A, IEC, 12ft/3.7m)
313228-B21
IEC320-C19 to IEC320-C20 Jumper
(16A, IEC, 8ft/2.5m)
NOTE: Listed are
the declared A-weighted sound power levels LWAd and the declared average
bystander position sound pressure levels LpAm when operating in a 23°
C ambient environment. Noise emissions were measured in accordance with
ECMA 74 and declared in accordance with ECMA 109.
Idle (Fixed Disk Drives Spinning)
L WAd (BELS)
7.8
L pAm (dBA)
60
NOTE:
These values apply to 4U rack configuration. The configuration tested
included 4 processors, 4 15,000 rpm hard drives, (also 8 SFF SAS hard drives),
2 power supplies, and 6 system fans.
24X Max (or higher) IDE CD-ROM Drive Slim Line
Disk
Applicable Disk
CD-DA, CD-ROM (Mode 1 and 2)
CD-XA, CD-I (Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
Capacity
540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Diameter
4.7 x 3.15 in (12 x 8 cm)
Rotational Speed
4200 rpm maximum
Center Hole
0.6 in (15 mm) diameter
Thickness
0.05 in (1.2 mm)
Track Pitch
1.6 µm
Block Size
Mode 1
2,048
Mode 2
2,340, 2,336, 1,024 bytes
CD-DA
2,352 bytes
CD-XA
2,328 bytes
Interface
IDE (ATAPI)
Access Times (typical)
Random
100 ms
Full-Stroke
2000 ms
Audio Output Level
Line-Out
0.7 VRMS at 47 kOhms
Headphone
0.6 VRMS at 32 kOhms (maximum volume)
Data Transfer Rate
Sustained
150 KB/s (sustained 1X)
Burst
2100 to 3600 KB/s
Cache Buffer
128 KB
Start-up Time (typical)
< 7seconds
Stop Time
< 4seconds
Laser Parameters
Type
Semiconductor Laser GaA1As
Wave Length
780 ± 25 nm
Divergence Angle
53.5° ± 1.5°
Output Power
0.14 mW
Operating Conditions
Temperature
41° to 113° F (5° to 45° C)
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
1.69 x 5.75 x 8.19 in (4.29 x 15
x 20.8 cm)
Weight
2.66 lb (1.2 kg)
Slimline CD-RW/DVD-ROM 24X Combo Drive (Multibay)
Shipping
Dimensions
13.88 x 11.38
x 9.25 in (35.26 x 28.91 x 23.50 cm)
Shipping Weight
5 lb (2.27
kg)
Disk
Applicable Disk
DVD-ROM
DVD-R (Read Only)
2.6 GB/side DVD-RAM
(Read Only)
5.2 GB/side DVD-RAM
(Read Only)
CD-ROM Mode-1 data
disc
CD-ROM
Mode-2 data disc
CD
Audio disc
CD-Extra
CD-RW
CD-R
CD
Text
PhotoCD
CD-I
(mode 2)
CD-I
Ready
CD-Bridge
Capacity
DVD-ROM
DVD-SL
4.7
GB/side
DVD-DL
8.5
GB/side
Double
Sided
9.40 GB/side
DVD-R
3.95
GB/side
DVD-RAM
2.6
GB/side and 5.2 GB/
CD-ROM
Mode-1
650
MB (550 MB)
Mode-2
742
MB (640 MB)
Block
Size
DVD
2,048
bytes
CD
2,352
(Mode-0)
2352,
2340, 2336, 2048 bytes (Mode-1)
2352,
2340, 2336, 2048 bytes (Mode-2)
Diameter
120 mm (4.7 in), 80 mm (3.1 in)(with adapter at vertical mounting mode)
Loading
Mechanism
Tray type
Interface
EIDE (ATAPI)
Access Times
(typical)
Random
DVD-ROM < 120 ms, CD-ROM < 110 ms
Full-Stroke
DVD-ROM < 240 ms, CD-ROM < 160 ms
Audio Output Level (typical)
Line-out
CD
0.7 Vrms at 47 Kohms Load
Data
Transfer Rate (sustained)
DVD-ROM
Single Layer
10.8 MB/sec.
Max.
DVD-RAM
2.77
MB/sec. Max
CD-ROM
7.2
MB/sec. Max.
Cache
Buffer
2 MB
Spin-up Time (typical)
less than 10 seconds
MTBF
120,000 Power On Hours (POH)
Ambient Temperature
Operating
-22°
to 140° F (-30° to 60° C)
Relative
Humidity
Operating
10% to 80%
Storage/Transportation
5%
to 95%
Dimensions
(HxWxD, maximum)
0.5 x 5.04 x 5.1 in (12.7 x 128 x 129.4 mm)
Option
Kit Contents
DVD-ROM
drive with installation guide, warranty card, registration card
Integrated Lights-Out
Standard (integrated on system board)
Architecture
32-bit PCI-based health and remote
management ASIC (Application Specific Integrated Circuit)
Processor
32-bit RISC processor core running
at 66 MHz
Upgradability
Option firmware upgradable via flash
ROM.
Video Support
Utilizes the host server's embedded
video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600
(256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256
colors)
Interfaces
One Ethernet network connection
(10/100 Mb/s)
Memory
2-MB Flash ROM
8-MB SDRAM
Operating System Support
Microsoft Windows NT 4.0 Server
Windows NT 4.0 Enterprise Edition
Windows 2000 Server
Windows 2000 Advanced Server
Red Hat 7.x
SuSE 7.0
Novell NetWare 5.x, 6.x
Client Browser Support
Microsoft Internet Explorer 5.5
or later.
iLO Standard Features
Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Secure access using web browser
Secure access using Secure Shell
(SSH) client
Serial connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure
Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for up to 12 user accounts
with customizable access privileges
US Site
DL Quickspecs
Search:
404122-B21
© 2012 Canada PartsDirect
