New Compaq ProLiant äDL580 900 MHz Model
offers improved performance and increased availability including:
- Two IntelÒ PentiumÒ III Xeonä 900 MHz Processors with 2-MB L2 Cache
- Two Hot Plug, Redundant Power Supplies standard (450-Watt)
- 1024 MB PC100 ECC SDRAM Memory standard (with Advanced ECC functionality)
At A Glance
Rack optimized (4U = 7") 4-way computing power for your data center or ISP/ASP
environments
Intel Pentium III Xeon 900 MHz or 700 MHz Processors (up to 4) with 1-MB (700 MHz only),
or 2-MB L2 Cache (900 MHz)
ServerWorks Enterprise ServerSet III HE chipset
1024 MB (900 MHz Models) or 512 MB (700 MHz Models) PC100 ECC SDRAM Memory with Advanced
ECC functionality, expandable to 16 GB

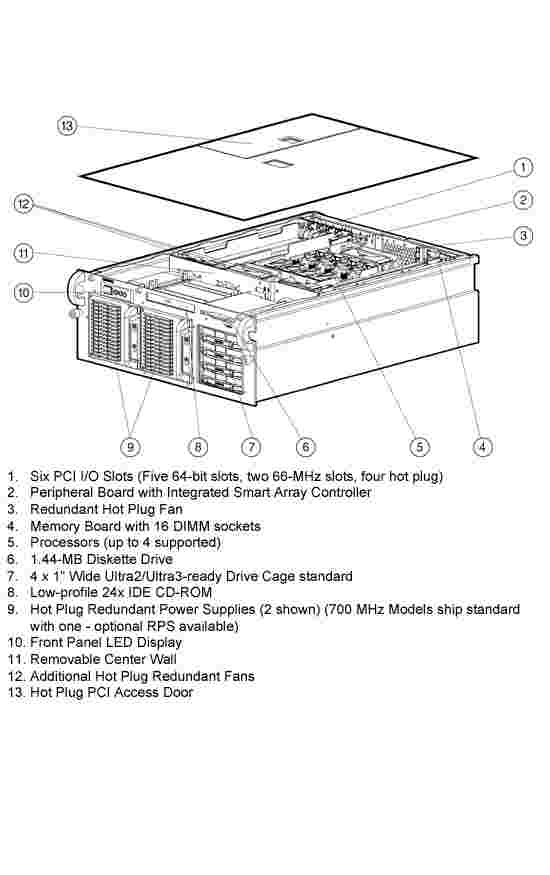

Six PCI slots, 4 Hot Pluggable:
Two 64-bit/66-MHz Hot Plug
Two 64-bit/33-MHz Hot Plug
One 64-bit/33-MHz Non-Hot Plug
One 32-bit/33-MHz Non-Hot Plug
Integrated Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Base 10/100 in a slot (upgradable
to Gigabit)
Integrated Smart Array Controller (Two channel - embedded on the peripheral board)
Internal Hot Plug Drive Storage of up to 587.2 GB with 146.8-GB 1" Ultra320 hard
drives
Industry-Standard PCI Hot Plug with push button functionality
7 x 24 cooling provided by 8 Hot Plug Redundant System Fans
450W Hot Plug Redundant Power Supplies (2 std on 900 MHz, 1 std on 700 MHz with optional
RPS)
Toolless internal design for easy access to system components, improved Serviceability
and Intelligent Manageability
Protected by HP Services, including a three-year, Next Business Day on-site, limited,
Global warranty and extended Pre-Failure Warranty that covers processors, memory and disk
drives — Certain restrictions and exclusions apply. Consult the Customer Support
Center at
1-800-345-1518 for details.
NOTE: Advanced ECC Memory Technology protects the data even in the
event of an entire SDRAM component failure. Embedded in the chipset design, this feature
allows the use of Industry-Standard Registered DIMMs.
Network Controller
Integrated
Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Base 10/100 in a slot (upgradable to Gigabit)
Expansion Slots
I/O (6 Total, 5
Available)
PCI Voltage:
64-bit/66-MHz PCI Hot
Plug
2, 1 available
3.3 Volt Only
64-bit/33-MHz PCI Hot
Plug
2, 2 available
5 Volt or 3.3 Volt
64-bit/33-MHz PCI
Non-Hot Plug
1, 1 available
5 Volt or 3.3 Volt
32-bit/33-MHz PCI
Non-Hot Plug
1, 1 available
5 Volt Only
Storage Controller
Integrated
Smart Array Controller (Two channel) (supports Internal RAID 0, 1, 0+
1, 5 and external tape devices) NOTE: The Integrated Smart Array
Controller is embedded on the peripheral board.
Storage
Diskette Drives
1.44 MB
CD-ROM
24x IDE
CD-ROM Drive (slim line)
Hard Drives
None
Maximum Internal
Storage
587.2 GB
(4 x 146.8 GB Ultra320 1² drives) (internal hot plug
Ultra2/Ultra3-ready drive cage)
Interfaces
Parallel
1
Serial
1 (NOTE: You can configure a second serial
device to your ProLiant DL580 server by installing the auxiliary serial connector that
ships with the server. The auxiliary connector attaches to a serial port B on the
peripheral board and exits the rear of the server through the auxiliary serial knockout
located directly above the dual power feeds.)
Pointing Device
(Mouse)
1
Graphics
1
Hot Plug Keyboard
1
External Wide Ultra2
SCSI
1
Network RJ-45
2
Graphics
Integrated
1280 x 1024, 16M color on PCI local bus, 4-MB video memory
Form Factor
Rack (4U
= 7 inches), ships with sliding rails and cable management arm
ProLiant
Essentials Foundation Pack Software
Insight Managerä7
Insight
Manager 7 helps maximize system uptime and performance and reduces the cost of maintaining
the IT infrastructure by providing proactive notification of problems before those
problems result in costly downtime and reduced productivity. Insight Manager 7 is easy to
set up and provides rapid access to detailed fault and performance information gathered by
the Management Agents. One-click access to the Integrated Lights-Out or Remote Insight
Lights Out Edition board allows systems administrators to take full graphical control of
ProLiant servers in remote locations or lights-out data centers. Finally, Insight Manager
7 in concert with the Version Control Agents and Version Control Repository Manager
enables systems administrators to version manage and update system software across groups
of ProLiant servers.
SmartStartä
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable and
consistent server configurations. For more information, please visit the SmartStart
website at http://www.hp.com/servers/smartstart
Minimum SmartStart version supported: 4.70
(700 MHz Models)
Minimum SmartStart version supported: 5.00 (900 MHz Models)
Management Agents
The
Management Agents form the foundation for HP’s Intelligent Manageability strategy.
They provide direct, browser-based access to in-depth instrumentation built into HP
servers, workstations, desktops, and portables, and send alerts to Insight Manager 7 and
other enterprise management applications in case of subsystem or environmental failures.
For additional information about the Management Agents and other management products from
HP, please visit the management website at http://www.hp.com/servers/manage.
ActiveUpdateä
ActiveUpdate
is a web-based application that keeps IT managers directly connected to HP for proactive
notification and delivery of the latest software updates.
ROMPaqä, support software, and configuration utilities
The
latest software, drivers, and firmware fully optimized and tested for your ProLiant server
and options.
Survey Utilityäand diagnostics utilities
The most
advanced configuration analysis, reporting and troubleshooting utilities used by HP and at
your fingertips.
Optional
ProLiant Essentials Value Packs
Optional
software offerings that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack – an automated solution for multi-server deployment and
provisioning, enabling companies to quickly and easily adapt to changing business demands.
Workload Management Pack – provides easier management of complex environments,
improving overall server utilization and enabling WindowsÒ
2000 customers for the first time to confidently deploy multiple applications on a single
multiprocessor ProLiant Server.
Recovery Server Option Pack – entry-level high availability software that will
provide reliable protection and increased uptime against server hardware and operating
system failures.
Performance Management Pack – a performance management solution that identifies and
explains hardware performance bottlenecks on ProLiant servers and attached options
enabling users to better utilize their valuable resources.
NOTE: Flexible and volume quantity license kits are available for
ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/ProLiantessentials or the various ProLiant Essentials Value Pack
product QuickSpecs for more information. NOTE: For more information regarding ProLiant Essentials Software, please see the
following URL: http://www.hp.com/servers/proliantessentials. NOTE: These Web sites are available in English only.
Industry
Standard
Compliance
ACPI 2.0
Compliant
PCI 2.2
Compliant
PXE
Support (Optional when configured with
a PXE-enabled slot-based NIC)
WOL
Support
Physical
Address Extension (PAE) Support
MicrosoftÒ Logo certifications
Intelligent
Manageability
Remote
Insight Lights-Out Edition support
Automatic Server Recovery-2 (ASR-2)
Insight Manager 7
Integrated Remote Console (IRC) (with an internal modem)
Integrated Management Log (IML)
Hot Spare Boot (NOTE: Upon the event of
a failed processor or VRM in a multi-processing environment, the system will automatically
reboot and use the remaining good processor(s).)
Dynamic sector repairing and drive parameter tracking (with Smart Array
controllers)
Redundant/adaptive load balancing NIC Support
Availability
PCI Hot
Plug with push button functionality
7 x 24 cooling provided by 8 Hot Plug Redundant System Fans
Integrated Smart Array Controller for RAID data protection/performance and maximum data
bandwidth
Advanced Error Checking and Correcting (ECC) Technology NOTE: Advanced ECC Memory Technology
protects the data even in the event of an entire SDRAM component failure. Embedded in the
chipset design, this feature allows the use of Industry-Standard Registered DIMMs.
Hot Plug Ultra2/Ultra3 Drive Bays
Redundant Hot Plug Power Supplies (standard on
900 MHz Models; available on 700 MHz Models with optional RPS)
Redundant NIC support
Pre-Failure Warranty (covers processors, hard drives, and memory)
Serviceability
Internal
Diagnostics Display (IDD) numerically indicates specific DIMM or processor failure.
LED display on front panel indicates power/interlock, fan, and memory/microprocessor
health
Spring-loaded memory board release latches prevent unseating incidents
PCI Card Guide locks full length PCI cards in place during transit
Customer driven interior system fan design (all system fans interior to chassis)
Removable, internal center panel eases access to the power supply and hard drive backplane
boards
Optional High Voltage PDU cable exits chassis at a right angle to simplify cable
management at rear of chassis
Security
Power-on
password
Hot plug keyboard password
Diskette drive control
Diskette boot control
Network Server Mode
Parallel and serial interface control
Administrator’s password
Disk configuration lock
Power Supply
450-Watt
Hot Plug Power Supply NOTE: One 450-Watt Hot Plug Power
Supply ships standard with 700 MHz Models (optional Redundant Hot Plug Power Supply Option
Kit). NOTE: Two 450-Watt Hot Plug Power
Supplies ship standard with 900 MHz Models.
System Fans
8 Hot
Plug Redundant System Fans ship standard (8 internal fans maximum supported).
Microsoft
Windows NTÒ Server
Microsoft Windows 2000
NovellÒ NetWareÒ
SCOÒ OpenServerÒ
SCO UnixWareÒ
IBM OS/2 Warp Family
LINUXÒ (Red HatÒ , SuSEÒ , TurboLinux Server, CalderaÒ eServer)
Sun™ Solaris™ Intel Platform Edition
NOTE: For a more complete and up-to-date listing of supported
OSs and versions, please visit our OS Support Matrix at:
The increasing power of new high-performance processor technology requires increased
cooling efficiency for rack-mounted servers. The Compaq 9000 Series Rack and the new 10000
Series Racks provides enhanced airflow for maximum cooling, allowing these racks to be
fully loaded with servers using the latest processors.
Rack 7000 series Cabinets
When installing a server with processors running at speeds of 550 MHz or greater in
Compaq Rack 7000 series racks with glass doors (165753-001 (42U), and 163747-001 (22U)),
the new processor technology requires the installation of Compaq’s new High Airflow
Rack Door Inserts ( 327281-B21 (42U), 327281-B22 (42U 6 pack), or 157847-B21 (22U)) to
promote enhanced airflow for maximum cooling.
CAUTION: If a third-party
rack is used, observe the following additional requirements to ensure adequate airflow and
to prevent damage to the equipment:
Front and rear doors:
If your 42U server rack includes closing front and rear doors,
you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to
bottom to permit adequate airflow (equivalent to the required 64 percent open area for
ventilation).
Side:
The clearance between the installed rack component and the side panels of the
rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel
U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE:
For additional information, refer to the Setup and Installation Guide or the Documentation
CD provided with the server, or to the server documentation located in the Support section
at the following URL: http://www5.compaq.com/products/servers/ProLiantdl580/index2.html.
Service and
Support
HP
Services provides a three-year, limited warranty, including Pre-Failure Warranty (coverage
of hard drives, memory and processors) fully supported by a worldwide network of resellers
and service providers. HP technical assistance is available 7x24, toll free in the United
States and Canada. Telephone support services may be covered under warranty or available
for an additional fee. NOTE: Limited Warranty includes 3 year
Parts, 3 year Labor, 3-year on-site support.
A full range of CarePaqäpackaged hardware and software services:
Installation and start up
Extended coverage hours and enhanced response times
System management and performance services
Availability and recovery services
NOTE: For more information,
customer/resellers can contact
ProLiant Essentials Performance
Management Pack v2.0, Single License
306696-B21
ProLiant Essentials Recovery
Server Option Pack
280189-B21
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials Value
Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for
more information. NOTE: For more information regarding ProLiant Essentials Software, please see the
following URL: http://www.hp.com/servers/proliantessentials. NOTE: These Web sites are available in English only.
Software – Secured
Solutions
InterScan/Immunix Secured
Solution for HP ProLiant servers
307039-B21
NetServer to ProLiant
integrations services
HP NetServer to ProLiant
integration and assessment service NOTE: HP identifies current levels of NetServer support,
services, and management. This service helps maximize customer’s ability to add
ProLiant platforms into their current environment.
304164-002
HP TopTools to Insight Manager 7
installation and startup service NOTE: Provides on-site review, installation and configuration
services for Insight Manager 7. HP will also re-create, as closely as possible, the views
and reports from the customer’s current TopTools configuration. This service assures
a smooth transition to the ProLiant Essentials software.
304163-002
HP NetServer to ProLiant
Essentials Rapid Deployment Pack installation and startup service NOTE: Install and configure Rapid Deployment Pack in a test
environment, then deploy a server image to a maximum of 250 systems in the production
environment. This service helps to assure successful system deployment.
304162-002
Processor
Pentium III Xeon X900-2MB
Processor Option Kit NOTE: This processor option kit (PN 222627-B21) supports the
ProLiant DL580 and the ProLiant ML570 servers.
Pentium III Xeon X700-2MB
Processor Option Kit NOTE: This processor option kit (PN 174449-B21) supports the
ProLiant DL580 and the ProLiant ML570 servers.
Pentium III Xeon X700-1MB
Processor Option Kit NOTE: This processor option kit (PN 174448-B21) supports the
ProLiant DL580 and the ProLiant ML570 servers.
NOTE: All
U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require
an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
256-MB Battery-Backed Cache
Module NOTE: This 256-MB Battery-Backed Cache Module supports the
Smart Array 5300 series controllers, MSA 1000 and the Smart Array Cluster Storage.
3U Rackmount Kit NOTE: The 3U Rackmount Kit (PN 274338-B21) can support up to
(2) full-height or (4) half-height tape drives and compatible with multiple Single-Ended
and LVD SCSI Tape Drives including the 12/24-GB DAT, 20/40-GB DAT, 20/40-GB DAT DDS-4 8
Cassette Autoloader, AIT 35-GB LVD, AIT 50 GB, 20/40-GB DLT, 40/80-GB DLT, and the SDLT
110/220-GB Tape Drives.
5U Rackmount Kit NOTE: The 5U Rackmount Kit (PN 274339-B21) can support up to
(4) full-height tape drives and is compatible with all Compaq DLT/SDLT tape drives
including the 20/40-GB DLT, 35/70-GB DLT, 40/80-GB DLT, and the SDLT 110/220-GB tape
drives.
64-Bit/66-Mhz Dual Channel Wide
Ultra3 SCSI Adapter NOTE: 64-Bit/66-Mhz Dual Channel
Wide Ultra3 SCSI Adapter is required to support the LVD based libraries (ESL9595SL).
NOTE:
Options include controller, solution kits, ACS. MA8000/EMA12000 includes controller shelf,
drive shelves and cabinet. Packaging upgrade to RA8000/ESA12000.
NOTE:
Models include: Dual HSG80 controllers in each Model 2200 enclosure (2 pairs per single
bus configuration, 4 pairs per dual bus configuration) with 1GB cache per controller pair,
and 12 14-bay drive enclosures with redundant power supplies. Configure-to-Order (CTO)
builds are available. Options include ACS, platform kits and software by HP. NOTE: Please see the StorageWorks EMA16000 QuickSpecs for FC switches, platform
software, host adapters, disks and options for complete solutions at: http://www5.compaq.com/products/quickspecs/10812_na/
10812_na.html (North America) http://www5.compaq.com/products/quickspecs/10812_div/
10812_div.html (division/World Wide)
Rack-Mountable
PDUs –1U/0U (Up to 12 outlets)
NOTE: 0U mounting brackets shipped with the unit (separate
option kit for 1U mounting).
Compaq Power Distribution
Unit-16A (200 to 240V) (WW) NOTE: The 16A PDU also connects to the high volt models of
the UPS R3000 XR (need cable PN 340653-001 (NA)) and the UPS R6000 models. Cable PN
340653-001 required if connecting to UPS R3000 XR ( 192186-002 NA-High Volt model only).
207590-B21
Compaq Power Distribution
Unit-32A (200 to 240V) (Int’l)
207590-B31
Compaq Power Distribution
Unit-40A (200 to 240V) (WW)
HP Modular Power Distribution
Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW) NOTE: This PDU has a detachable input power cord and allows
for adaptability to country specific power requirements. This model may also be used with
the high volt UPSs R3000 XR and R6000.
Third Party PDU Mounting Kit NOTE: This kit allows you to
mount the Modular PDUs in racks other than the 9000/10000 Series racks (any racks using
the standard 19" rail). For more details please refer the Modular PDU QuickSpecs.
NOTE:
-B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs
and Channels)
-B23 (crated) used for air shipments of empty racks
NOTE:
-B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs
and Channels)
-B23 (crated) used for air shipments of empty racks
9000/10000 Series Offset Baying
Kit NOTE: This kit can be used to connect 9000 and 10000 series
racks of the same U height together. Kit contents include hardware for connecting racks
and a panel to cover the 100mm gap at the rear of the two racks.
Rack Blanking Panels (4U) NOTE: The Rack Blanking Panels (PN 189453-B24) contains 10
each of (4U).
189453-B24
Rack Blanking Panels (5U) NOTE: The Rack Blanking Panels (PN 189453-B25) contains 10
each of (5U).
189453-B25
9000/10000 Series Offset Baying
Kit NOTE: This kit can be used to connect 9000 and 10000 series
racks of the same U height together. Kit contents include hardware for connecting racks
and a panel to cover the 100mm gap at the rear of the two racks.
Input Device
Adjustable Rails NOTE: Input Device Adjustable Rails (287139-B21) are for use
ONLY with the TFT5110R, TFT5600RKM and integrated keyboard/drawer which is used in
mounting into third party racks.
287139-B21
Input Device Telco
Rail NOTE: Input Device Telco Rails ( 287138-B21) are for use ONLY
with the TFT5110R, TFT5600RKM and integrated keyboard/drawer which is used in mounting
into third party racks.
4-Hour
On-site Service, 5-Day x 9-Hour Coverage,
3 Years (6-3 Part Number for U.S.)
401783-002
4-Hour
On-site Service, 5-Day x 9-Hour Coverage,
3 Years (6-3 Part Number for Canada)
401783-122
4-Hour
On-site Service, 5-Day x 9-Hour Coverage,
3 Years (6-3 Part Number for EMEA)
324418-002
4-Hour
On-site Service, 7-Day x 24-Hour Coverage,
3 Years (6-3 Part Number for U.S.)
401782-002
4-Hour
On-site Service, 7-Day x 24-Hour Coverage,
3 Years (6-3 Part Number for Canada)
401782-122
4-Hour
On-site Service, 7-Day x 24-Hour Coverage,
3 Years (6-3 Part Number for EMEA)
376911-022
Installation
& Start-up Services
Hardware
Installation (6-3 Part Number for U.S.)
401793-002
Hardware
Installation (6-3 Part Number for Canada)
401793-122
Hardware
Installation (6-3 Part Number for EMEA)
Quote
Pre-installation
planning; unpack equipment, install most current Compaq HW options internal to server at
same time of server installation; assemble & test; basic user information provided;
Install & configure basic functionality of Win NT Operating System plus up to 1 day
start-up activity, configure print & network access services, and orientation (6-3
Part Number for U.S.)
240015-002
Pre-installation
planning; unpack equipment, install most current Compaq HW options internal to server at
same time of server installation; assemble & test; basic user information provided;
Install & configure basic functionality of Novell NetWare Operating System plus up to
1 day start-up activity, configure print & network access services, and orientation
(6-3 Part Number for U.S.)
240010-002
Server Installation
and Set-Up (Installation of the server, installation of the appropriate service tools,
check to ensure device SW and firmware is loaded and installation of the operating system
software (6-3 Part Number for EMEA)
204564-022
CarePaq Priority Services
for ProLiant Servers - Priority Level
9 x 5 HW, 4-hr
response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for
Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next
Available Specialist (6-3 Part Number for U.S.)
239936-002
9 x 5 HW, 4-hr
response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for
Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)
239976-002
5 x 9 4-hour H/W, 5 x
9 2-hour O/S (NT & NetWare), Three Years (6-3 Part Number for Canada)
155325-122
5 x 9 4-hour H/W, 5 x
9 2-hour O/S (NT & NetWare), Three Years (6-3 Part Number for EMEA)
118311-022
CarePaq Priority Services
for ProLiant Servers - Priority 24 Level
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Windows NT,
Windows 2000, Professional, Server or Advanced Server Operating System, Next Available
Specialist (6-3 Part Number for U.S.)
239938-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Novell
NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)
239978-002
7 x 24 4-hour H/W, 7
x 24 2-hour O/S (NT & NetWare), Three years (6-3 Part Number for EMEA)
118317-022
CarePaq Priority Services
for ProLiant Servers - Priority Plus Level
7 x 24 4-hour H/W, 7
x 24 1-hour O/S (NT & NetWare), SPS account review, Three Years (6-3 Part Number for
Canada)
155333-122
CarePaq
Priority Services for ProLiant Servers - Priority Silver
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday –
Friday, 8AM – 5PM local time, 2-hr response after hours for Windows NT, Windows 2000,
Professional, Server or Advanced Server Operating System, Technical Account Manager,
Technical Newsletter, SW activity review, proactive patch notification, 1 System
Healthcheck per year (6-3 Part Number for U.S.)
239940-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Windows NT,
Windows 2000, Professional, Server or Advanced Server Operating System (6-3 Part Number
for U.S.)
239942-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday –
Friday, 8AM – 5PM local time, 2-hr response after hours for Novell NetWare Operating
System, Technical Account Manager, Technical Newsletter, SW activity review (6-3 Part
Number for U.S.)
239980-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Novell NetWare
Operating System (6-3 Part Number for U.S.)
239982-002
CarePaq Priority Services
for ProLiant Servers - Priority Gold
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical),
1-hr response (non-critical), for Windows NT, Windows 2000, Professional, Server or
Advanced Server Operating System, Technical Account Manager, Technical Newsletter, SW
activity review, proactive revision management, Upgrade impact planning, 2 System
Healthcheck per year (6-3 Part Number for U.S.)
239944-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Windows NT, Windows
2000, Professional, Server or Advanced Server Operating System (6-3 Part Number for U.S.)
239946-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical),
1-hr response (non-critical), for Novell NetWare Operating System, Technical Account
Manager, Technical Newsletter, SW activity review, Upgrade impact planning (6-3 Part
Number for U.S.)
239984-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Novell NetWare
Operating System (6-3 Part Number for U.S.)
239986-002
CarePaq Priority Services
for ProLiant Servers - Priority Gold Executive
24 x 7 HW, 2-hr
response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical),
1-hr response (non-critical), for Windows NT, Windows 2000, Professional, Server or
Advanced Server Operating System, Technical Account Manager, Technical Newsletter, SW
activity review, proactive revision management, Upgrade impact planning, 2 System
Healthcheck per year (6-3 Part Number for U.S.)
239948-002
24 x 7 HW, 2-hr
response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Windows NT, Windows
2000, Professional, Server or Advanced Server Operating System (6-3 Part Number for U.S.)
239950-002
24 x 7 HW, 2-hr
response, Named HW engineer; 24 x 7 Gold Software Support, 30 minute response (critical),
1-hr response (non-critical), for Novell NetWare Operating System, Technical Account
Manager, Technical Newsletter, SW activity review, Upgrade impact planning (6-3 Part
Number for U.S.)
239988-002
24 x 7 HW, 2-hr
response, Named HW engineer; 24 x 7 Gold Subsequent System Support for Novell NetWare
Operating System (6-3 Part Number for U.S.)
239990-002
CarePaq Priority Services
for ProLiant Servers – Priority Premier Level
7 x 24 2-hour H/W, 7
x 24 1-hour O/S (NT & NetWare), SPS Account Review, Proactive Management Review, named
S/w rep, Three Years (6-3 Part Number for Canada)
155337-122
CarePaq Priority Services
for ProLiant Servers – Priority Executive Premier Level
7 x 24 2-hour H/W, 7
x 24 30-minute O/S (NT & NetWare), SPS Account Review, Proactive Management Review,
named S/w rep, Three Years (6-3 Part Number for Canada)
Standard Memory 1024-MB PC100-MHz Advanced ECC SDRAM DIMM installed (4 x 256-MB SDRAM DIMM)
Standard
Memory Plus Optional Memory
Up to 13,312-MB memory is available with the optional installation of PC100-MHz
Advanced ECC SDRAM DIMM memory kits.
Standard Memory Replaced with Optional Memory
Up to 16,384-MB memory is available with the removal of the standard 1024-MB of memory
and the optional installation of PC100-MHz Advanced ECC SDRAM DIMM memory kits.
NOTE: Memory must be added in
banks of four DIMMS. This chart does not represent all possible memory configurations.
Memory
Slot
1
2
3
4
5
6
7
8
Standard
1024MB
256
MB
256
MB
256
MB
256
MB
Empty
Empty
Empty
Empty
Optional
13,312 MB
256
MB
256
MB
256
MB
256
MB
1024
MB
1024
MB
1024
MB
1024
MB
Maximum
16,384 MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
Memory
Slot
9
10
11
12
13
14
15
16
Standard
1024MB
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Optional
13,312 MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
Maximum
16,384 MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
Following are memory
options available from Compaq:
Up to 12,800-MB memory is available with the optional installation of PC100-MHz
Advanced ECC SDRAM DIMM memory kits.
Standard Memory Replaced with Optional Memory
Up to 16,384-MB memory is available with the removal of the standard 512-MB of
memory and the optional installation of PC100-MHz Advanced ECC SDRAM DIMM memory kits.
NOTE: Memory must be added in
banks of four DIMMS. This chart does not represent all possible memory configurations.
Memory
Slot
1
2
3
4
5
6
7
8
Standard
512MB
128
MB
128
MB
128
MB
128
MB
Empty
Empty
Empty
Empty
Optional
12,800 MB
128
MB
128
MB
128
MB
128
MB
1024
MB
1024
MB
1024
MB
1024
MB
Maximum
16,384 MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
Memory
Slot
9
10
11
12
13
14
15
16
Standard
512MB
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Optional
12,800 MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
Maximum
16,384 MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
1024
MB
Following are memory
options available from Compaq:
NOTE: All
U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require
an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
Internal AIT 100-GB, Hot Plug
Internal AIT 50-GB, Hot Plug
Internal AIT 35-GB, LVD, Hot Plug
Internal 20/40-GB DAT, Hot Plug
Up to 1
0 & 1 or
2 & 3
Integrated Smart Array Controller
NOTE: The Integrated Smart Array
Controller does not support the AIT 100-GB Hot Plug Tape Drive.
Smart Array 532 Controller NOTE: The Smart Array 532
Controller does not support the AIT 100-GB Hot Plug Tape Drive.
Smart Array 5302/128 Controller
Smart Array 5304/256 Controller
Smart Array 5312 Controller
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter
64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
External AIT 100-GB Tape Drive
External AIT 50-GB Tape Drive
External AIT 35-GB, LVD Tape Drive
To
drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL580
- Click on: "Power Calculator" link (You may need to
scroll down to see it.)
Read/Write Capacity per
Diskette (high/low density)
1.44 MB/720 KB
Drive Supported
One
Drive Height
One-third
Drive Rotation
300 rpm
Transfer Rate (high/low)
500/250 Kb/s
Bytes/Sector
512
Sectors/Track (high/low)
18/9
Tracks/Side (high/low)
80/80
Access Times
Track-to-Track
(high/low)
3/6 ms
Average (high/low)
169/94 ms
Settling Time
15 ms
Latency Average
100 ms
Cylinders (high/low)
80/80
Read/Write Heads
Two
24X Max (or
higher) IDE
CD-ROM Drive Slim Line
Disk
Applicable Disk
CD-ROM (Mode 1 and 2)
CD-DA, CD-XA (Mode 2, Form 1 and
2)
Photo CD (Single and
Multi-session)
Mixed Mode (Audio and Data
combined)
Capacity
540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Diameter
4.7 in, 3.15 in/12 cm, 8 cm
Rotational Speed
4200 rpm maximum
Center Hole
0.6 in/15 mm diameter
Thickness
1.2 mm
Track Pitch
1.6 µm
Block Size
Mode 1
2,048
Mode 2
2,340, 2,336, 1,024 bytes
CD-DA
2,352 bytes
CD-XA
2,328 bytes
Interface
IDE (ATAPI)
Access Times (typical)
Random
100 ms
Full-Stroke
2000 ms
Audio Output Level
Line-Out
0.7 VRMS at 47 kOhms
Headphone
0.6 VRMS at 32 kOhms (maximum
volume)
Data Transfer Rate
Sustained
150 KB/s (single)
Burst
2100 to 3600 KB/s
Cache Buffer
128 KB
Start-up Time (typical)
< 7 seconds
Stop Time
< 4 seconds
Laser Parameters
Type
Semiconductor Laser GaA1As
Wave Length
780 ±
25 nm
Divergence Angle
53.5° ±
1.5°
Output Power
0.14 mW
Operating
Conditions
Temperature
41° to 113°F/5° to 45°C
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
1.69 x 5.75 x 8.19 in/4.29 x 15 x
20.8 cm
Weight
2.66 lb/1.2 kg
Integrated Smart
Array Controller
Data Compatible with all Smart
Array Controllers
Yes
Instant Upgrades to other
Smart Array Controllers
Yes
Consistent Software
Manageability Tools
Yes
PCI Bus
32-bit, 33 MHz (integrated on
peripheral board)
PCI Peak Data Transfer Rate
133 MB/s
SCSI Protocols Supported
Ultra2, Wide-Ultra
SCSI Peak Data Transfer Rate
80 MB/s
NOTE: For ProLiant servers having TWO internal drive bays on
separate SCSI ports: SCSI Peak Data Transfer Rate is 160 MB/s total; 80 MB/s per channel
and Channels is 2.
Channels
2
NOTE: For ProLiant servers having two internal drive bays on
separate SCSI ports: SCSI Peak Data Transfer Rate is 160 MB/s total; 80 MB/s per channel
and Channels is 2. The second channel on the DL580 is for external tape support only.
SCSI Ports (external/internal)
1/1
NOTE: For ProLiant servers having two internal drive bays on
separate SCSI ports: SCSI Peak Data Transfer Rate is 160 MB/s total; 80 MB/s per channel
and Channels is 2. The DL580 has a SCSI port at the back of the server for external tape
support only.
Drives Supported (maximum)
Maximum = total number of drives
NOTE: Maximum is the total number of internal drives on each
specific ProLiant server.
Cache
8-MB read only
RAID Support
0, 1, 1+
0, 5
Logical Drives (maximum)
32
Online Configuration
Yes
Online Capacity Expansion
Yes
Logical Drive Capacity
Extension
Yes
Online Stripe Size Migration
Yes
Online RAID Level Migration
Yes
Online Spare Support
Yes
Automatic Data Recovery
Yes
Drive Roaming
Yes
Redundant Controllers
No
Compaq NC3134 Fast
Ethernet NIC 64 PCI Dual Base 10/100
Network Interface
10Base-T/100Base-TX
Compatibility
PCI v2.2, IEEE
802.3/802.3u compliant
Data Transfer Method
64-bit/66-MHz
bus-master PCI
Network Transfer Rate
10Base-T
(Half-Duplex),
10Base-2
10 Mb/s
10Base-T
(Full-Duplex)
20 Mb/s
100Base-TX
(Half-Duplex)
100 Mb/s
100Base-TX
(Full-Duplex)
200 Mb/s
Connector
Dual RJ-45
I/O Address and Interrupt
Automatic Configuration
Cable Support
10Base-T/100Base-TX
Categories 3, 4 or 5 UTP
(2 or 4 pair);
up to 328 ft/100 m
US Site
DL Quickspecs
Search:
327281-B21
© 2012 Canada PartsDirect
