The DL385 introduces a new processor speed:

• Support for model 285 (2.6 GHz), which is a Dual-core processor and is supported on both SCSI and SAS models

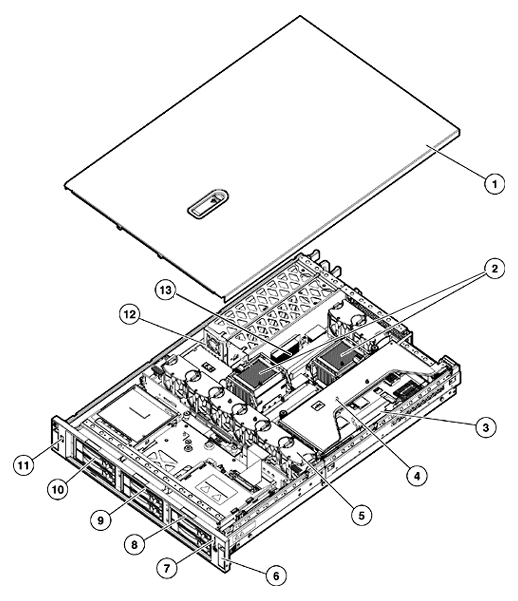

The HP ProLiant DL385 delivers on the DL380's history of design excellence with enterprise-class uptime and manageability, proven 2-way AMD Opteron performance, and 2U density for a variety of rack deployments and applications.

• Processors:

  • SCSI Models:

    • Up to two AMD Opteron processors model 285 (2.6 GHz Dual-core), 280 (2.4 GHz Dual-core), 275 (2.2 GHz Dual-core), 270 (2.0 GHz Dual-core), 265 (1.8 GHz Dual-core), 254 (2.8 GHz Single-core), 252 (2.6 GHz Single-core) and 250 (2.4 GHz Single-core) with 1MB L2 cache per core

  • SAS Models:

  • Up to two AMD Opteron processors model 285 (2.6 GHz Dual-core), 280 (2.4 GHz Dual-core), 275 (2.2 GHz Dual-core) and 265 (1.8 GHz Dual-core) with 1MB L2 cache per core

• AMD chipset

• Memory:

  • 1 GB PC3200 400MHz DDR Memory (2 x 512 MB)

• Storage Controller:

  • SCSI Models:

    • Integrated Ultra320 Smart Array 6i Controller with 64MB RAM and optional 128MB Battery-Backed Write Cache (BBWC) Enabler option kit

  • SAS Models:

    • HP Smart Array P600/256 BBWC Controller (in PCI slot)

• Internal Drive Support:

  • SCSI Models:

    • Support for up to six Ultra320 SCSI hot plug hard drives or for five hot plug hard drives and one DAT hot plug tape drive

    • Internal hot plug capacity 1.8TB standard (6 x 300GB U320 HDD)

  • SAS Models:

    • Support for up to eight SFF SAS hot plug hard drives (internal tape not supported)

    • Internal hot plug capacity 1.168TB standard (8 x 146GB SAS HDD)

  • SCSI/SAS Models:

    • Optional dual channel drive backplane (2/4 split)

    • Optional floppy disk drive

• Network Controller:

  • Embedded NC7782 PCI-X Gigabit Server Adapter

• Expansion Slots:

  • 3 Total: (2) 64-bit/100MHz PCI-X non-hot plug; (1) 64-bit/133MHz PCI-X non-hot plug

• USB 1.1 Ports:

  • 3 Total: (1) front; (2) rear accessible ports

• Redundancy:

  • Hot Plug Fans with optional full redundancy

  • Hot Plug Power Supply with optional redundancy

• Management:

  • Integrated Lights-Out (iLO) Standard Management on system board

  • Support for new iLO Shared Network Port enables access to the iLO management processor through one of the embedded system NICs

  • Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU), HP System Insight Manager, Status LEDs including system health and UID and SmartStart

• Form Factor:

  • Rack (2U), (3.5-inch)

• Deployment/Serviceability:

  • Tool-less access to all system components for easy in rack serviceability

  • Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release levers for fast and easy serviceability and in-rack tool-less access to major components

• Warranty:

  • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI/SAS hard drives. SATA hard drives have a one-year warranty.

Integrated Lights Out (iLO) Standard Management:

• Virtual Text Remote Console
• Virtual Power Button Control
• Dedicated & shared LAN Connectivity
• Browser and command line access
• Automatic IP Configuration via DHCP/DNS/WINS
• Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell Security
• IML and iLO Event Logging
• Support for 12 user accounts with customizable access privilege
• Integrated Lights Out Advanced Pack (optional)
• Remote Insight Lights-Out Edition II (optional)

Microsoft Windows Server 2000
Microsoft Windows Server 2003
Novell NetWare
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware Virtualization Software
Solaris 10 32/64-bit

Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

• Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
• Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.

The HP Smart Buy program offers mainstream business solutions at competitive prices with excellent availability and superior HP quality. It offers a wide range of industry-leading HP products at compelling prices, allowing you to receive richer configurations with additional options.

NOTE: For detailed specification information on ProLiant Smart Buys please click on the following link: ftp://ftp.compaq.com/pub/products/servers/smartbuys.pdf

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

• 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years


Continuous Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

• 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years


Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

• Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays


Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers - and free customers IT support staff to focus on what they do best, their business.

• Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack

435661-B21

364026-B22

HP StorageWorks Modular Smart Array 1000

 201723-B22

Modular Smart Array 1500 Controller Shelf

AA986A

 252663-D71

 252663-D72

 252663-B21

Standard Memory
1 GB PC3200 DDR SDRAM running at 400MHz comes installed (2 x 512 MB SDRAM)

Standard Memory Plus Optional Memory
Up to 25 GB memory is available with the optional installation of PC3200 Registered DDR SDRAM DIMM Memory Option Kit
(This assumes using 2 processors)

Standard Memory Replaced with Optional Memory
Up to 32 GB of memory is available with the removal of the standard 512 MB of memory and the optional installation of PC2700 (4GB DIMMS) Registered DDR SDRAM DIMM Memory Option Kit

DIMM Installation Guidelines:

1. All DIMMS must be PC3200 DDR 400 MHz SDRAM DIMMs or PC2700 DDR 333 MHz SDRAM DIMMs.

2. Both DIMM slots in a memory bank must be populated.

3. Both DIMMs in a memory bank must be identical.

4. Processor 1 memory bank 1 must always be populated.

5. Populate DIMMs beginning with the farthest slots from the processor, starting with the SMALLEST DIMMs first, moving in towards the processor.

6. If only installing 1GB DIMMs, ensure that the Dual Rank DIMMs are installed closest to the processor. Dual Rank can be determined by looking for the "2R" or "2R x8" wording on the label of the DIMM.

7. For optimal performance in most applications, populate memory bank 1 for every populated processor socket.

8. DIMM banks are active only when the corresponding processor socket is populated.


NOTE: Chart does not represent all possible memory configurations (slots 5 - 8 are available when second processor is added).

Maximum

Following are memory options available from HP:

• 1 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 512 MB)

• 2 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 1 GB)

• 4 GB PC3200 DDR SDRAM DIMM Memory Kit (2 x 2 GB)

• 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB)
  NOTE: The Redundant Fan Option Kit (PN 293048-B21) is required to be installed when the 8 GB PC2700 DDR SDRAM DIMM Memory Kit (2 x 4 GB) (PN  395409-B21) is used.

Removable Media

Hard Drives

300GB U320 10K
146GB U320 10K
72GB U320 10K
300GB U320 15K
146GB U320 15K
72GB U320 15K
36GB U320 15K

External Storage

Maximum Storage Capacity - (Modular Smart Array SCSI Attached)

Internal

HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 448, Ultrium 920 and 960-based)
MSL4048 (Ultrium 448, Ultrium 920 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
