The HP ProLiant DL180 G6 is a
low cost high capacity storage optimized 2-way server that delivers on a
history of design excellence and 2U density for a variety of rack deployments
and applications.
Front View:
Rear View:
1.
Access panel
1.
Redundant Power Supply Bay (Optional)
2.
Front LED Indicators
2.
Power Supply Cable Socket
3.
Power on/off
3.
Low Profile Card Slot
4.
Optional DVD-RW or DVD-ROM drive
4.
PCI Expansion Card Slot
5.
Front USB Ports (2)
5.
PCI Expansion Card Slot
6.
Non-Hot Plug Non Redundant fans (4 fans)
6.
UID LED Button
7.
Air Baffle
7.
(Optional) LO100i 10/100 Mbps
LAN port for IPMI management (RJ-45)
8.
PCI Cage
9.
System Board
8.
LAN Port
9.
LAN Port
10.
2 Rear USB 2.0 Ports
11.
VGA Port
12.
Serial Port
What's New
Support for Intel X5675, X5672, E5649, E5645, E5606 and E5603 Processor
Kits
Support for Low Voltage 16 GB dual rank PC3L-10600R-9 Memory Kit
NOTE:
For the Standard Features shipped in the Factory Integrated Models, please
see the "Configuration Information - Factory Integrated Models"
section.
Processor One of the following depending on Model
Six-Core Processors
Intel® Xeon® Processor
X5675 (3.06 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
X5670 (2.93 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
X5660 (2.80 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/2/2/3/3) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
E5649 (2.53 GHz, 12MB L3 Cache, 80W, DDR3-1333, HT, Turbo 1/1/1/1/2/2) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
E5645 (2.4 GHz, 12MB L3 Cache, 80W, DDR3-1333, HT, Turbo 1/1/1/1/2/2) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
L5640 (2.26GHz, 12MB L3 Cache, 60W, DDR3-1333, HT, Turbo 2/2/3/3/4/4) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
E5640 (2.66 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
E5630 (2.53 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
E5603 (1.6 GHz, 8MB L3 Cache, 80W, DDR3-1066) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
L5630 (2.13 GHz, 12M L3 Cache, 40W, DDR3-1066, HT, Turbo 1/1/2/2/) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
L5630 (2.13 GHz, 12ML L3 Cache, 40W, DDR3-1066, HT, Turbo 1/1/2/2/) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
Intel® Xeon® Processor
E5503 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800) FIO NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
NOTE: HT indicates
that the processor model supports Intel® Hyper-Threading Technology. NOTE: Turbo indicates the maximum potential frequency increment when
using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active. NOTE: DDR3 speed is the maximum memory speed of the processor. Actual
memory speed may depend on the quantity and type of DIMMs installed. NOTE: For the Intel 5000 Series, the letter preceding the model number
indicates the performance/wattage of the processor. "X" denotes
High Performance/Wattage; "E" denotes Enterprise Performance/Wattage
(Mainstream); and "L" denotes Lower Wattage.
NOTE:
Half DIMM slots are available when one processor is installed. NOTE: Depending on the memory configuration and processor model,
the memory speed may run at 1333MHz, 1066MHz, or 800MHz. Please see the
Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.
Network Controller
HP NC362i Integrated Dual Port
Gigabit Server Adapter
Expansion Slots
Slot Number
Bus Speed
Bus Number*
Device Number**
Hot Plug
(Y/N)
Notes
1
x16 PCI-Express
6
0
N
Low Profile
2
x8 PCI-Express
5
0
N
Full Length
Full Height
3
x8 PCI-Express
4
0
N
Full Length
Full Height
4
x4 PCI-Express
3
0
N
Full Length
Full Height
2
PCI-X***
Dynamic
1
N
Full Length
Full Height
3
PCI-X***
Dynamic
2
N
Full Length
Full Height
NOTE:
All slots can accept universal keyed PCI cards.
NOTE:
Support is limited to PCI-X cards only.
* Default
bus assignment. Inserting cards with PCI bridges may alter the actual bus
assignment number.
** Slots
are enumerated differently based on OS. MS OS's enumerate from lowest to
highest Device ID by bus (starting with the lowest bus).
*** PCI-X
bus speed will be 100MHz in maximum and support two PCI-X/100MHz cards.
**** Slot
2 contains bus 4 and bus 5 because BIOS configures this x16 PCI-express.
NOTE:
PCI-X support is limited to PCI-X cards only.
NOTE:
Slot to two x8 PCI-express slot for production riser, this is valid only
on Option1: 2 PCIe2x8 full-length/full-height PCI-Express slots (Optional)
or Option 4: 2 PCIe2x8 and 1 PCIex8 (4) full-length/full-height slots (Optional).
Storage Controller
4HDD Models
HP Smart Array B110i SATA RAID NOTE: To enable RAID on Embedded
SATA, use the HP Smart Array B110i SATA RAID Controller, To enable use of
the B110i, enter the ROM based setup utility(RBSU). The option for enabling
RAID can be found in the Advanced section of the RBSU. NOTE: Embedded SATA controller support transfer rate up to 3Gb/s NOTE: A diskette drive or virtual FDD using LO100 Advanced Pack is
needed to install storage controller drivers during a Windows operating
system installation from a CD.
8HDD Models
HP Smart Array P410/256MB Controller
(RAID 0/1/1+0/5/5+0) NOTE: Support transfer rate up to
6Gb/s SAS or 3Gb/s SATA
12HDD Models
HP Smart Array P212/256MB Controller
(RAID 0/1/1+0/5/5+0) NOTE: Available upgrades: P410 with
FBWC, 256MB with BBWC, 512MB with FBWC, Battery kit upgrade (for the 256MB
cache), and Smart Array Advanced Pack (SAAP). NOTE: Support transfer rate up to 3Gb/s SAS or 3Gb/s SATA
25HDD Models
HP Smart Array P410/256MB Controller
(RAID 0/1/1+0/5/5+0) NOTE: Available upgrades: P410, 512MB
with FBWC, Battery kit upgrade (for the 256MB cache), and Smart Array Advanced
Pack (SAAP). NOTE: Support transfer rate up to 6Gb/s SAS or 3Gb/s SATA
NOTE:
A minimum of 256 MB cache, battery kit, and Smart Array Advanced Pack License
Key upgrade (P/N: 516471-B21) is required to enable RAID 6, 6+0 NOTE: To achieve highest possible stated transfer rate please make
sure the firmware on the drive bays (backplanes) and HP Smart Array controller
up to date. Latest firmware are available to download from HP support web
site. NOTE: All Hard drive bay options except 4LFF require HP Smart Array
P410 or P212 controller. NOTE: Full Height/ Full Length Riser Option is
not available when the Rear 2LFF drive bays is selected for the system.
Internal Storage
Devices
Diskette Drives
Via USB only
Optical Drives
Optional HP Slim SATA DVD-ROM
Optical Drive
Optional HP Slim SATA DVD RW
Optical Drive
NOTE: Support
in 4, 8, and 12 drive models. Optical drives can only be installed in 12
drive model and 25SFF drive bay system with rear option kit (P/N 515826-B21).
Drive Bays
Up to 14 Hot Plug SAS/SATA
3.5" drives
Up to 25 Hot Plug SAS/SATA 2.5"
drives
NOTE: 4 Drive
Models are Non-Hot Pluggable. Smart Array Controller must be added for Hot
Plug drive capability. 4 Drive Models can be upgraded with the addition
of a Smart Array Controller and a SAS/SATA Multi-lane cable (496013-B21). NOTE: The addition of a Smart Array Controller requires the addition
of a SAS/SATA Multi-lane cable (P/N 496013-B21).
Maximum Internal
Storage
Hot Plug 3.5" SATA
28.0TB (14 x 2TB)
Hot Plug 3.5" SAS
28.0TB (14 x 2TB)
Hot Plug 2.5" SATA
12.5TB (25 x 500GB)
Hot Plug 2.5" SAS
15.0TB (25 x 600GB)
Interfaces
Network RJ-45 (Ethernet)
2 10/100/1000 NIC ports (plus
1 dedicated for the HP ProLiant Lights Out 100i Remote Management)
Serial
1
Graphics
1
USB
5 total ports: (2) front, (2)
rear, (1) optional internal NOTE: In order to connect a USB device
internally, the internal USB Cable G6 Kit must be used (P/N 536769-B21). NOTE: Please see the following URL for additional information regarding
USB support: http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0 Compliant
Server Power Cords
One 6' Highline (IEC-IEC) power
cord ships standard NOTE: HP ProLiant DL servers no longer
ship standard with NEMA power cords (P/N 163719-002) that allow connection
to 110V US wall outlets in a home or office. ProLiant DL servers are primarily
connected to PDU's in data center racks so they now ship standard with a
PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server
using a 110V receptacle (NEMA-15), the NEMA power cord (P/N 227099-001)
must be ordered separately.
If customers require a local power cord, they can check the power cord matrix
for the appropriate cord. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix
NOTE: Rack models
ship standard with an IEC cable.
Localized cables included with geographic specific models in other world
regions.
Power Supply
HP has a new design for ProLiant
power. The new Common Slot Power Supply bay. This design provides the customer
with commonality in power supplies across multiple platforms to save on
the cost of spares and allows HP to offer multiple power solutions to fit
the customers' needs. Many HP ProLiant Servers come with Common Slot, High
Efficiency and Right-Size Power Supplies. Common Slot (CS) designates commonality
of the power supply across multiple ProLiant servers. HP's new Common Slot
power supplies are designed for highest efficiency to provide power efficiency
without degrading performance of the ProLiant. Power Supplies will have
efficiency ratings up to 92%. There are three Right Size power options available,
depending on the configuration of your server. To make sure you select the
correct power supply to meet your configuration, we suggest that you use
the HP Power Advisor to decide the "Right-Size" for your configuration.
All HP Common Slot power sources are UL, CE Mark Compliant, Hot Plug and
Redundant.
Common Slot ProLiant
It is highly recommended that you use the HP Power Advisor in defining
the "Right-Size" power supply for your needs. HP offers Power
Supply Options:
460Watts, Common Slot, 92% Efficiency
750Watts, Common Slot, 92% Efficiency
460Watts, Common Slot, 94% Efficiency
750Watts, Common Slot, 94% Efficiency
HP's ProLiant Common Slot Power supplies (460W & 750W) meet multiple
Energy Efficiency Initiatives. Climate Savers Computing Initiative GOLD,
ECOS Consulting 80PLUS GOLD and plans on offering models that meet the
Energy Star for Server requirements when they are published.
HP's ProLiant Common Slot Power supplies (1200W) meet multiple Energy
Efficiency Initiatives. Climate Savers Computing Initiative Bronze, ECOS
Consulting 80PLUS Bronze Power Supply requirements.
Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be
purchased through power supply option kits.
System Fans
4 system fans ship standard;
Non-hot plug, Non-redundant NOTE: Redundant fan kit (P/N 516009-B21)
available for purchase.
Operating
Systems and Virtualization Software Support for ProLiant Servers
NOTE: For more
information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available
for your server, including how to purchase from HP, please visit our OS
Support Site at: http://www.hp.com/go/supportos
and our driver download page http://www.hp.com/support/DL180G6
Graphics
32MB* shared supporting all display resolutions up to 1600x1200 16bpp@75Hz NOTE: 8MB is dedicated to video
memory.
Form Factor
Rack (2U), (3.5 in/8.89 cm)
Embedded Manageability
HP Lights-Out 100 (LO100) Advanced
HP LO100 with Optional LO100 Advanced Licenses for Virtual KVM and Virtual
Media.
Features:
Embedded IPMI standard reporting
System event log access
Remote Serial console (serial redirection)
Browser, Telnet access
SMASH-CLP compliant
IPMI 2.0 compliant
Secure Socket Layer Encryption
Secure Shell Encryption
Virtual media (Floppy, CD, USB 2.0) with Advanced License
HP provides management solutions that are designed to simplify a server's
installation, configuration, and maintenance throughout the entire server
lifecycle. This provides the customers with higher levels of operational
efficiency and highly reliable systems.
While ProLiant 100 series G6 servers do not support the Insight Foundation
Suite for ProLiant, they support a key subset of this important suite
software tools and utilities which are very suitable for this class of
server: SIM, SMH, agents, providers, and a SmartStart 'like' deployment
CD called Easy Set-up which greatly simplifies server set-up. Additionally
the DL100 and SL100 G6 models support the SmartStart Scripting Toolkit
(SSSTK), an automated scalable deployment utility.
Information on core management supported on ProLiant 100 series G6 servers
can be found at these URLS:
HP Systems Insight Manager (HP SIM) provides
a unified, secure and extensible standards-based environment to centrally
manage servers, storage and other infrastructure devices, (both HP and non-HP)
across multiple operating system platforms.
Insight Management Agents
HP Insight Management Agents and Insight Management Providers are
available for HP Systems Insight Manager (SIM) Integration.
ProLiant 100-series G6 servers can use the same SNMP based Insight Management
Agents supported by other ProLiant servers. As a result, administrators
can use HP Systems Insight Manager (SIM) 5.3 and greater to manage ProLiant
100-series G6 servers. Administrators can also use any other SNMP- based
management tool. These agents are obtained as part of the ProLiant 100-series
model-specific "Easy Set-up" CDs, or through: www.hp.com/servers/easysetup
The following capabilities are enabled on the 100-series G6 servers
by the SNMP agents:
Health monitoring capabilities, including monitoring for drives, fans,
network, power supplies, and temperature
Alerting capabilities, including basic alert notification for Smart
Array drive pre-failure only
Performance monitoring capabilities providing information on processor,
memory, disk free space, network utilization
Easy Set-up CDs are available on all 100-series G6 servers and are also
available as an ISO image web download. HP ProLiant Easy Set-up CDs provide
easy, step-by-step, single and multi-server server utilities for the ProLiant
100-series G6 servers to streamline server setup for 100-series G6 servers.
The user experience is consistent with SmartStart and offers the following
capabilities:
Boot environment and GUI
Assisted Installation: Windows 2003 Server and Windows 2008 Server
drivers
Manual installation: Windows 2003 Server, Windows 2008 Server, and
Linux drivers (specific OS support varies by server. Refer to each server's
QuickSpecs for supported versions)
HP Insight Diagnostics
AutoRun
Array Configuration Utility (ACU) has been combined with Array Diagnostics
Utility (ADU) to offer both configuration of array controllers and storage
devices and testing of array controller hardware
SmartStart Scripting Toolkit (SSSTK) and Smart Components for software
and drivers for DL100 and SL100 servers
NOTE: OS and SW available for Manual
Installation are listed on each servers' QuickSpecs.
SmartStart Scripting Toolkit (SSSTK)
The SmartStart Scripting Toolkit is a server
deployment product that delivers an unattended automated installation for
high-volume server deployments. The SmartStart Scripting Toolkit includes
a set of utilities for configuring and deploying servers in a customized,
predictable, and unattended manner. These utilities enable you to duplicate
the configuration of a source server on target servers with minimum user
interaction.
The Toolkit is designed for IT experts with experience in scripting operating
system installations and configuring ProLiant server hardware.
Subscriber's Choice Driver and Support Alerts/Notifications
is a web-based email subscription service that provides software and driver
change notifications for ProLiant products. Sign up at: http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, software and latest drivers
The latest software, drivers, and firmware fully optimized and tested
for your ProLiant server and options; downloaded from Software and Drivers
download pages website at: http://www.hp.com/go/support
and from www.hp.com/servers/easysetup.
Contains the following:
HP Insight Management Agents for Systems Insight Manager (SIM) Integration
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of HP Authorized Channel Partners.
Hardware diagnostic support and parts replacement is available for three
years from date of purchase. Support for software and initial setup is
available for 90 days from date of purchase. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements. Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details. NOTE: Server Warranty includes
3-Years Next Business Day Parts replacement, 0-Years Labor, 0-Years Onsite
support. Additional information regarding worldwide limited warranty and
technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP Insight Control for Linux,
as a product option, delivers essential infrastructure management that can
help save time and money by making it easy to deploy, monitor, remote control,
and optimize your IT infrastructure through a single, simple management
console. The Insight Control for Linux installs and license software modules
that are integrated into HP System Insight Manager.
The HP Insight Control for Linux (IC-Linux) serves environments requiring
a Linux-based management consoles. See www.hp.com/go/ic-linux
HP Insight Control include one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, please
visit: http://www.hp.com/services/insight
Insight Control server deployment
HP Insight Control server deployment
is a deployment solution for HP ProLiant and Integrity servers hosted on
a Windows CMS. It automates the process of deploying and provisioning server
software, enabling companies to quickly and easily adapt to changing business
demands. Insight Control server deployment includes software optimizations
for HP servers, including the HP scripting toolkits, configuration jobs
for leading industry-standard operating systems, sample unattended files,
and HP server support packs that include software drivers, management agents,
and important documentation. Deploying servers can be accomplished either
through imaging or through scripting.
Insight Control server deployment is hosted on a Windows server and is intended
for heterogeneous environments deploying Windows, Linux, VMware ESX and
Microsoft Hyper-V systems.
Insight Control server deployment includes one year of 24 x 7 HP Software
Technical Support and Update Service ensuring rapid access to HP support
staff and proactive delivery of software updates. For more information about
this service, please visit: http://www.hp.com/services/insight.
High Performance
Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically
engineered, factory-integrated large-scale ProLiant clusters optimized for
High Performance Computing, with a choice of servers, networks and software.
Operating system options include specially priced offerings for Red Hat
Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server.
A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC)
interconnect technologies are available for this server as part of the HP
Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects
are fully supported by HP when integrated within an HP cluster. Flexible,
validated solutions can be defined with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility
HP Cluster Management Utility
(CMU) is an HP-licensed and HP-supported suite of tools that are used to
manage large-scale Linux ProLiant systems. CMU includes software for the
centralized provisioning, management and monitoring of nodes. CMU makes
the administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
HP HPC Linux Value Pack
HP HPC Linux Value Pack (Value
Pack) is an HP-licensed and HP-supported specially priced software bundle
for the development and deployment of applications on HPC Cluster Platforms.
Value Pack includes the Platform LSF workload scheduler, the HP-MPI parallelization
library, the HP Unified Parallel C compiler and the HP Shmem library, as
well as the execution environments for the libraries and compiler. HP
HPC Linux Value Pack
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure Enterprise
Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs
and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. http://www.hp.com/products/configurator.
HP Care Pack Services: Packaged server and storage services for increased
uptime, productivity and ROI
When you buy HP server and storage products and solutions, it's also a
good time to think about what levels of support you may need. Our portfolio
of service options reduce deployment and management worries while helping
you get the most out of your server and storage investments. We take a
holistic approach to your environment, bridging servers, blades, storage,
software and network infrastructures with our packaged HP Care Pack Services
for servers and storage.
Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment
warranties have matured along with technology. Good news that can also
create problems stemming from depending on standard warranties designed
to only protect against product defects and some downtime causes. Using
a standard approach to warranty uplifts, such as HP Care Pack Services,
helps reduce downtime risks and provides operational consistency for mission-critical
and standard business computing.
HP Care Pack Services: Upgrading or extending standard server and
storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software
support services suite sold separately, or combined with our Support Plus
and Support Plus 24 services. The portfolio also provides a combination
of integrated proactive and reactive services, such as Proactive 24 Service
and Critical Service. In addition with HP Proactive Select, you can acquire
the specific proactive constancy and technical services. HP Proactive
Select menu offers a broad set of service options that you can mix and
match depending on your specific requirements. Proactive service options
include offers for server, storage, network, SAN device, software, environment
and education services.
HP server and storage lifecycle support services offers a full spectrum
of customer care-from technology support to complex migrations to complete
managed services. HP Factory Express provides customization, integration
and deployment services for turnkey solutions. HP Education Services offer
flexible, comprehensive training on to help your IT staff get the most
out of your server and storage investments. HP Financial solutions extend
innovative financing and cost-effective asset management programs-from
purchase to equipment retirement.
Recommended
HP Care Pack Services for optimal satisfaction with your HP product
Recommended
Services
3-Year HP Hardware Support Onsite Service, 4-hour response, 13x5
Delivers increased equipment availability and productivity with rapid
remote support and onsite response for your HP server and storage hardware.
3-Year HP Hardware Support Onsite Service, next-day response, 9x5
Provides high-quality remote assistance and onsite support for your covered
hardware if required, helping you to improve product uptime.
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner.
Expedited installation, with all service prerequisites met before
the installation is performed
Installation in accordance with manufacturer's specifications, enhancing
the supportability of your HP-installed hardware and software
Service delivery at a mutually scheduled time
Allows your IT resources to stay focused on their core tasks and priorities
Availability of an HP service specialist to answer questions during
the onsite delivery of this service
Optional
HP Care Pack Services that will enhance your HP product experience
Optional
Services
3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
As an alternative to our recommended support level, for customers who
need same day response service level 24x7.
Provides you with rapid remote support and if required an HP authorized
representative who will arrive on site any time and day of the year to
begin hardware maintenance service within 4 hours of the service request
being logged.
3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6-
or 24-hour
As an alternative to our recommended support level, for customers who
need committed call-to-repair for server hardware.
Provides your IT manager with a team of support specialists who will quickly
begin troubleshooting the system to help return the hardware to operating
condition within 6 or 24 hours of the initial service request to the HP
Global Solution Center.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN
HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services
and education courses
Provides a flexible way to purchase HP best-in-class consultancy and technical
services. You can buy Proactive Select Service Credits when you purchase
your hardware and then use the credits over the next 12 months.
HP eSupport is a portfolio of technology-based services that assist you
with managing your business environment - from the desktop to the data
center.
Support Portal
The HP support portal provides one-stop access to the information, tools
and services you need to manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service
agreement. To access the support portal, visit: http://www.hp.com/support
HP Insight Remote Support software delivers secure remote support for
your HP Servers and Storage, 24 X 7, so you can spend less time solving
problems and more time focused on your business. You can have your systems
remotely monitored for hardware failure using secure technology that's
been proven at thousands of companies around the world. In many cases,
you can avoid problems before they occur.
Customer Technical
Training
In today's cost-conscious business environment, IT professionals, developers,
consultants and users face an interesting challenge: how to keep up with
the latest technologies and expand important skills while delivering profitable
results on current projects. To help address this challenge, HP offers
innovative training solutions that help keep you up-to-date on virtualization,
server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related
topics-while spending less time away from business-critical activities.
HP Services Awards
HP Technology Services continues to be recognized for service and support
excellence by customers, partners, industry organizations and publications
around the world. Recent honors and award reflect our services team's
dedications, technical expertise, professionalism and uncompromising commitment
to customer satisfaction.
Four Drive Serial ATA (SATA) Models NOTE: For the Standard Features
shipped in the "Factory Integrated Models", please see the "Configuration
Information - Factory Integrated Models" section. NOTE: Pre-configured models ship with the configurations below.
Options can be selected from the Core or Additional options section of
this QuickSpecs. NOTE: HP does not allow factory integration of options into pre-configured
models. Any additional options purchased will be shipped separately. NOTE: If you desire a custom configuration please see "Configuration
Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: Not all models are available in all regions. Check with your
local country HP offices for availability. NOTE: Upgrading from 4 Non-Hot Plug SATA hard drives to 4 Hot Plug
SATA/SAS hard drives requires the addition of a storage controller and
one Internal mini-SAS cable (P/N 496013-B21). NOTE: Upgrading to 8 Hot Plug SATA/SAS hard drives requires the
addition of a HP 2U G6 8HDD LFF DL18X KIT (P/N 506924-B21), storage controller
(Smart Array P410/256MB recommended), and two Internal SATA/SAS cables
(mini-SAS cable (P/N 496013-B21).

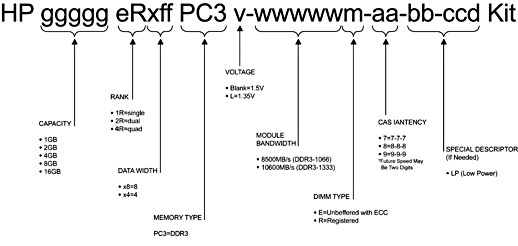

8GB (2 x 4GB) PC3-10600R-9
(RDIMM) NOTE: Total 12 DIMM slots
Network Controller
HP NC362i Integrated Dual Port
Gigabit Server Adapter
Storage Controller
HP Smart Array P212 /256MB BBWC
Controller (RAID 0/1/1+0/5/5+0) NOTE: Smart Array Advanced Pack License
Key upgrade (P/N 516471-B21) is required to enable RAID 6, 6+0
Hard Drive
None ship standard (up to 12
Hot Plug SATA or SAS drives supported)
Internal Storage
24.0TB (12 x 2TB Hot Plug 3.5"
SATA hard drives), Maximum
24.0TB (12 x 2TB Hot Plug 3.5" SAS hard drives), Maximum NOTE: Internal Storage expandable
to 14 SAS/SATA drives with 2 Rear Drive Option Kit (P/N 488234-B21)
Optical Drive
None ship standard
Power Supply
750W common slot, high efficiency
power supply
Form Factor
Rack (2U)
Warranty
Server Warranty includes 3-Years
Next Business Day Parts replacement, 0-Years Labor, 0-Years Onsite support
12GB (6 x 2GB) PC3-10600R (RDIMM) NOTE: Total 12 DIMM slots
Network Controller
HP NC362i Integrated Dual Port
Gigabit Server Adapter
Storage Controller
HP Smart Array P212 /256MB Controller
(RAID 0/1/1+0/5/5+0) NOTE: The minimum of 256 MB cache,
battery kit, and Smart Array Advanced Pack License Key upgrade (P/N 516471-B21)
is required to enable RAID 6, 6+0
Hard Drive
None ship standard (up to 12
Hot Plug SATA or SAS drives supported)
Internal Storage
24.0TB (12 x 2TB Hot Plug 3.5"
SATA hard drives), Maximum
24.0TB (12 x 2TB Hot Plug 3.5" SAS hard drives), Maximum NOTE: Internal Storage expandable
to 14 SAS/SATA drives with 2 Rear Drive Option Kit (P/N 488234-B21)
Optical Drive
None ship standard
Power Supply
750W common slot, high efficiency
power supply
Form Factor
Rack (2U)
Warranty
Server Warranty includes 3-Years
Next Business Day Parts replacement, 0-Years Labor, 0-Years Onsite support
6GB (3 x 2GB) PC3-10600E (UDIMM) NOTE: Total 12 DIMM slots
Network Controller
HP NC362i Integrated Dual Port
Gigabit Server Adapter
Storage Controller
HP Smart Array P212 /256MB Controller
(RAID 0/1/1+0/5/5+0) NOTE: The minimum of 256 MB cache,
battery kit, and Smart Array Advanced Pack License Key upgrade (P/N 516471-B21)
is required to enable RAID 6, 6+0
Hard Drive
None ship standard (up to 12
Hot Plug SATA or SAS drives supported)
Internal Storage
24.0TB (12 x 2TB Hot Plug 3.5"
SATA hard drives), Maximum
24.0TB (12 x 2TB Hot Plug 3.5" SAS hard drives), Maximum NOTE: Internal Storage expandable
to 14 SAS/SATA drives with 2 Rear Drive Option Kit (P/N 488234-B21)
Optical Drive
None ship standard
Power Supply
750W common slot, high efficiency
power supply
Form Factor
Rack (2U)
Warranty
Server Warranty includes 3-Years
Next Business Day Parts replacement, 0-Years Labor, 0-Years Onsite support
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure
a Factory Integrated Model. To ensure only valid configurations are ordered,
HP recommends the use of an HP approved configurator. Contact your local
sales representative for information on CTO product offerings and requirements. NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis. NOTE: FIO indicates that this option is only available as a factory
installable option.
Step
1: Base Configuration (choose one of the following configurable models)
Hot Plug LFF Models
HP ProLiant DL180
G6 Configure-to-order Rack Server
507168-B21
Factory Integrated
Model ships with:
HP NC362i Integrated
Dual Port Gigabit Server Adapter
NOTE:
Optional PCI-X option kit includes: Slot 1 and 2: full-length/full-height
PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card
is installed in the server. NOTE: Optional FL/FH option kit includes: Slot 1: full length/full
height slot.
One HP SATA Embedded
Cable Kit
One Highline IEC
Power Cord
4 Non-Hot Plug Fans
Rack (2U), (3.5 in/8.89
cm)
Tool-less Fixed Rails
Hot Plug SFF Models
HP ProLiant DL180
G6 SFF Configure-to-order Server
594911-B21
Factory Integrated
Model ships with:
HP NC362i Integrated
Dual Port Gigabit Server Adapter
NOTE:
Optional PCI-X option kit includes: Slot 1 and 2: full-length/full-height
PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card
is installed in the server. NOTE: Optional FL/FH option kit includes: Slot 1: full length/full
height slot.
One HP SATA Embedded
Cable Kit
One Highline IEC
Power Cord
4 Non-Hot Plug Fans
Rack (2U), (3.5 in/8.89
cm)
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
HP
Processors
NOTE:
If 2 processors are desired, select one xxxxxx-B21 and one xxxxxxB21.
Six-Core Processors
HP DL180 G6 Intel®
Xeon® X5675 (3.06GHz/6-core/12MB/95W) FIO Processor Kit
636204-B21
HP DL180 G6 Intel®
Xeon® X5670 (2.93GHz/6-core/95W/12MB) FIO Processor Kit
590619-B21
HP DL180 G6 Intel®
Xeon® X5660 (2.80GHz/6-core/95W/12MB) FIO Processor Kit
590617-B21
HP DL180 G6 Intel®
Xeon® X5650 (2.66GHz/6-core/95W/12MB) FIO Processor Kit
590615-B21
HP DL180 G6 Intel®
Xeon® E5649 (2.53GHz/6-core/12MB/80W) FIO Processor Kit
636205-B21
HP DL180 G6 Intel®
Xeon® E5645 (2.53GHz/6-core/12MB/80W) FIO Processor Kit
636206-B21
HP DL180 G6 Intel®
Xeon® L5640 (2.26GHz/6-core/60W/12MB) FIO Processor Kit
590607-B21
Quad-Core Processors
HP DL180 G6 Intel®
Xeon® X5672 (3.20GHz/4-core/12MB/95W) FIO Processor Kit
635692-B21
HP DL180 G6 Intel®
Xeon® E5640 (2.66GHz/4-core/80W/12MB) FIO Processor Kit
590613-B21
HP DL180 G6 Intel®
Xeon® E5630 (2.53GHz/4-core/80W/12MB) FIO Processor Kit
590611-B21
HP DL180 G6 Intel®
Xeon® E5620 (2.40GHz/4-core/80W/12MB) FIO Processor Kit
590609-B21
HP DL180 G6 Intel®
Xeon® E5606 (2.13GHz/4-core/4MB/80W) FIO Processor Kit
635583-B21
HP DL180 G6 Intel®
Xeon® E5603 (2.00GHz/2-core/4MB/80W) FIO Processor Kit
NOTE:
There is a maximum support limitation of 8 ranks per memory channel (maximum
of 2 quad rank DIMMs per channel)
HP
Drive Cage Options
HP 2U G6 4HDD CAGE
Kit, FIO
506926-B21
HP 2U G6 8HDD CAGE
Kit, FIO
506927-B21
HP 2U G6 12HDD CAGE
Kit, FIO
506928-B21
HP 2U 8SFF HDD CAGE
& BKPLN G6 FIO
534958-B21
HP 2U G6 25 SFF CAGE
FIO Kit NOTE: Selection of the 12 LFF or
25 SFF drive cage requires an HP Smart Array P212, P410 (any except Zero
Memory) or P812 controller.
516011-B21
HP 2U Rear 2-Bay
LFF Hard Drive Kit
488234-B21
HP
Power Supplies
NOTE:
Many HP ProLiant Servers now offer new power options, including Common Slot
Power Supplies. These power supplies come in multiple power ratings and
higher efficiency levels to offer the Right Size solution to fit your configuration.
This provides improved power delivery and the advantage of reclaiming lost
power. Prior to making a power supply selection it is "highly recommended"
that the "HP Power Advisor" is run to determine the right size
power supply for your server configuration. The HP Power Advisor is located
at: www.hp.com/go/proliant-energy-efficient
CAUTION:
Optional Power Supplies used for Redundancy "MUST" match the original
supplied power supply. Upgrades for more power headroom, when replacing
the original power supplies must match if purchased for redundancy. Option
Kits contain optional power supply, an IEC power cable and PDU IEC cables.
In ProLiant Servers that have more than one power slot (bay), same size
power supplies are recommended. If non-matched power supplies are inserted
you will get errors and operation will fail.
Step
3: Choose Additional Factory Integratable Options (only one from each list
unless otherwise noted)
HP
Storage Controller
HP Smart Array P410/ZM
2-ports Int PCIe x8 FIO SAS Controller
NOTE:
Some options may not be integrated at the factory. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator.
Contact your local sales representative for additional information.
HP Unique Options
HP DL180G6 Redundant Fan Kit
516009-B21
HP DL180G6 Rear DVD Cage Kit NOTE: The x16 low profile slot is
not available when this option is configured.
515826-B21
HP Dedicated Management Port Kit
516006-B21
HP Internal USB Cable G6 Kit NOTE: This option required to connect
a USB device internally.
536769-B21
HP DL180 G6 3PCI-E x8, Full Height
Kit NOTE: This option provides two x8
full-length/full-height slots as well as an additional x8 (x4 electrically)
slot. This allows the DL180G6 to have a maximum of four (4) slots.
577668-B21
HP PCI-X Full Riser DL180 G6 Kit
NOTE: This option kit replaces the
three internal expansion slots listed in step 1 base configuration. NOTE: Optional PCI-X option kit includes: Slot 1: full-length/full-height
PCI-X 100; Slot 2: Full length/Full-height PCI-X 100. PCI-X slots are 64
bits; 133 MHz capable if only one PCI-X card is installed in the server.
488230-B21
HP 2U G6 8HDD LFF DL18X KIT NOTE: Upgrading to 8 Hot Plug SATA/SAS
hard drives requires the addition of a storage controller (Smart Array P410/256MB
recommended), two Internal ATA/SAS cables, (mini-SAS cable (496013-B21).
506924-B21
HP DL180G6 Rear 2LFF Kit NOTE: Supports 12 hard drive server
models only. Hard Drives not included. NOTE: This option replaces the 2 Full Length, Full Height x8 PCIe
slots.
488234-B21
HP KIT 2PCI-E x8, FH, DL180G6 NOTE: This option provides 2 Full
Length, Full Height x8 PCIe slots.
497145-B21
HP KIT PCI-E x16, DL180G6 NOTE: This option replaces the 2
Full Length, Full Height x8 PCIe slots.
497143-B21
HP Processors
Six-Core Processors
HP DL180 G6 Intel® Xeon®
X5675 (3.06GHz/6-core/95W/12MB) Processor Kit
636204-B21
HP DL180 G6 Intel® Xeon®
X5670 (2.93GHz/6-core/12MB/95W) Processor Kit
590619-B21
HP DL180 G6 Intel® Xeon®
X5660 (2.80GHz/6-core/12MB/95W) Processor Kit
590617-B21
HP DL180 G6 Intel® Xeon®
X5650 (2.66GHz/6-core/12MB/95W) Processor Kit
590615-B21
HP DL180 G6 Intel® Xeon®
E5649 (2.53GHz/6-core/12MB/80W) Processor Kit
636205-B21
HP DL180 G6 Intel® Xeon®
E5645 (2.53GHz/6-core/12MB/80W) Processor Kit
636206-B21
HP DL180 G6 Intel® Xeon®
L5640 (2.26GHz/6-core/12MB/60W) Processor Kit
590607-B21
Quad-Core Processors
HP DL180 G6 Intel® Xeon®
E5672 (3.2GHz/4-core/95W/12MB) Processor Kit
635692-B21
HP DL180 G6 Intel® Xeon®
E5640 (2.66GHz/4-core/12MB/80W) Processor Kit
590613-B21
HP DL180 G6 Intel® Xeon®
E5630 (2.53GHz/4-core/12MB/80W) Processor Kit
590611-B21
HP DL180 G6 Intel® Xeon®
E5620 (2.40GHz/4-core/12MB/80W) Processor Kit
590609-B21
HP DL180 G6 Intel® Xeon®
E5606 (2.13GHz/4-core/4MB/80W) Processor Kit
635583-B21
HP DL180 G6 Intel® Xeon®
E5603 (2.00GHz/2-core/4MB/80W) Processor Kit
636207-B21
HP DL180 G6 Intel® Xeon®
L5630 (2.13GHz/4-core/12MB/40W) Processor Kit
590605-B21
HP DL180 G6 Intel® Xeon®
L5520 (2.26GHz/4-core/8MB/60W) Processor Kit
508344-B21
HP DL180 G6 Intel® Xeon®
E5540 (2.53GHz/4-core/8MB/80W) Processor Kit
508343-B21
HP DL180 G6 Intel® Xeon®
E5520 (2.26GHz/4-core/8MB/80W) Processor Kit
508342-B21
HP DL180 G6 Intel® Xeon®
E5506 (2.13GHz/4-core/4MB/80W) Processor Kit
573909-B21
HP DL180 G6 Intel® Xeon®
E5504 (2.00GHz/4-core/4MB/80W) Processor Kit
508341-B21
Two-Core Processors
HP DL180 G6 Intel® Xeon®
E5503 (2.0GHz/2-core/80W/4MB) Processor Kit
594118-B21
NOTE: HT indicates
that the processor model supports Intel® Hyper-Threading Technology. NOTE: Turbo indicates the maximum potential frequency increment when
using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active. NOTE: DDR3 speed is the maximum memory speed of the processor. Actual
memory speed may depend on the quantity and type of DIMMs installed. NOTE: For the Intel 5000 Series, the letter preceding the model number
indicates the performance/wattage of the processor. "X" denotes
High Performance/Wattage; "E" denotes Enterprise Performance/Wattage
(Mainstream); and "L" denotes Lower Wattage.
NOTE: Optical
drives can be installed in front, on 4 & 8 bay hard drive models. NOTE: Optical drives can be installed in 12 and 25 drive model with
the addition of rear option kit (P/N 515826-B21).
HP Hard Drives
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise
(ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch)
Dual Port Enterprise 3yr Warranty Hard Drive
SAS Hot Plug LFF (3.5-inch) Enterprise
(ENT) Drives NOTE: 3G Hard Drives will operate
at up to 3.0 Gb/s in 4 drive models that use the embedded controller.
HP 600GB 6G SAS 15K
rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
NOTE: If selecting
more than 4 hard drives or if using SAS hard drives, a Smart Array controller
and two SAS/SATA cables (P/N 464830-B21) are required.
SAS Hot Plug SFF (2.5-inch) Midline
(MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch)
Dual Port Midline 1yr Warranty Hard Drive
SAS Hot Plug LFF (3.5-inch) Midline
(MDL) Drives NOTE: 3G Hard Drives will operate
at up to 3.0 Gb/s in 4 drive models that use the embedded controller.
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch)
Dual Port Midline 1yr Warranty Hard Drive
10 Gigabit Ethernet Adapters NOTE: No more than two10GbE I/O devices
are supported in a single ProLiant server. NOTE: A minimum of two Gigabytes (2 GB) of server memory is required
per each adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber
transceivers and cables for fiber-optic environments must be purchased separately.
NOTE:
Some options may not be integrated at the factory. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator.
Contact your local sales representative for additional information.
HP Entry-Level
Server Management
HP LO100i Advanced Pack, No Media 1-Server
License including 1 year of 24x7 Technical Support and Updates NOTE: For additional License Kits
please see the Lights-Out 100i QuickSpecs at: www.hp.com/go/lo100.
530521-B21
HP
Insight Software
HP Insight Control for Linux
HP Insight Control for Linux including 1yr
24x7 Support Electronic License NOTE: This part number can be purchased
as a single license or as multiple licenses with a single activation key.
Customer will receive a license entitlement certificate via e-mail. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Electronic software is available in all countries except China
and Japan. For China and Japan should order the physical equivalent.
TC213AAE
HP Insight Control for Linux including 1yr
24x7 Support Single Server License
TC209A
HP Insight Control for Linux Media Kit NOTE: This optional Media pack DVD
contains the ISO image for HP Insight Control for Linux, HP Systems Insight
Manager, HP Insight Control power management, HP Insight Control virtual
machine management, and an integrated installer. Servers must be acquired
separately. NOTE: This Media pack is optional because the latest ISO image and
latest updates may be downloaded at no cost from: http://www.hp.com/go/ic-linux
(click on Download button).
TC208A
NOTE: Licenses ship without
media. The Media Kit for Insight Control for Linux can be ordered separately,
or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic software is available in all countries except China
and Japan. For China and Japan should order the physical equivalent. NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Insight Control server deployment
HP Insight Control Server Deployment including
1yr 24x7 Support Electronic License
T9082AAE
HP Insight Control Server Deployment including
1yr 24x7 Support Single Server License
452151-B21
NOTE: Licenses ship without
media. The Insight Control Media Kit can be ordered separately, or can be
downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic software is available in all countries except China
and Japan. For China and Japan should order the physical equivalent. NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: For additional license kits please see the Insight Control
QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html
High
Performance Clusters
HP Cluster Management Utility
HP Cluster Management Utility Compute Node
Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one node (server). Customer will receive a printed
end user license agreement and license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online in
order to obtain a license key.
436284-B21
HP Cluster Management Utility License and
Media NOTE: Order a minimum of one license
per cluster to purchase media including software and documentation, which
will be delivered to the customer, and also licenses CMU management. No
license key is delivered or required NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html
433257-B21
HP HPC Linux Value Pack
HP High Performance Computing Linux Value
Pack 1 Processor Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one socket (a.k.a. processor). Customer will receive
a printed end user license agreement and license entitlement certificate
via physical shipment. The license entitlement certificate must be redeemed
online in order to obtain a license key.
TC293A
HP High Performance Computing Linux Value
Pack Media Kit NOTE: This part number can be used
to purchase media including software and documentation, which will be delivered
to the customer. NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html
TC294A
HP
I/O Accelerator Options
HP 160GB SLC PCIe ioDrive NOTE: A low-profile PCI bracket is
included for use in low-profile slots.
600278-B21
HP 320GB MLC PCIe ioDrive NOTE: A low-profile PCI bracket is
included for use in low-profile slots.
HP Graphic Card Power Adapter
Kit NOTE: The kit is applicable for 4LFF,8LFF
and 8SFF cages . NOTE: The Graphic Power Adapter Kit can support up to 150 Watts.
533955-B21
HP Security - TPM
HP Trusted Platform Module Option
Kit
488069-B21
NOTE: The TPM
(Trusted Platform Module) is a microcontroller chip that can securely store
artifacts used to authenticate the server platform. These artifacts can
include passwords, certificates and encryption keys. Windows® BitLocker™
Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities
of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker
to help protect user data and to ensure that a server running Windows Server
2008 has not been tampered with while the system was offline. NOTE: For more information about TPM, including a white paper, go
to www.hp.com/go/TPM NOTE: ProLiant OS pre-installed units will come with the partition
required for TPM deployment. NOTE: The TPM key is unique to every TPM deployed server and must
be retained. Misplacing or losing the key could result in data loss.
HP Storage Controllers
SAS Controllers
HP Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports
Int/1-ports Ext PCIe x8 SAS Controller
HP 650 mAh P-Series Battery NOTE: To enable BBWC on the 256MB
cache. NOTE: Supported on HP Smart Array P212 Controller, HP Smart Array
P410 Controller, and HP Smart Array P411 Controller only.
462969-B21
HP 8484 to Mini SAS 33in Cable
Assembly NOTE: Cable for use connecting the
Smart Array P800 Controller to internal hard disk drives on select HP ProLiant
G6 Servers.
591734-B21
HP Smart Array Hot Plug Advance
Pack for B110i w/1y 24x7 Supp Physical 1 Svr LTU
TC421A
HP Smart Array Advanced Pack including
1yr 24x7 Technical Support and Updates Single Server License NOTE: This part number can be used
to purchase a single license or to order multiple licenses with a single
activation key. Customers will receive a license entitlement certificate
via e-mail. The license entitlement certificate must be redeemed online
or via fax in order to obtain the license activation key(s). Include one
year of 24x7 HP Software Technical Support Services.
HP Modular Smart Array SC08e 2-ports
Ext PCIe x8 SAS Host Bus Adapter NOTE: This is a 2 x4 External Port
HBA. NOTE: This is only approved for the HP Storage Works P2000 G3 SAS
Modular Smart Array. NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18000.www1.hp.com/products/quickspecs/13651_div/13651_div.html
NOTE: For the complete range of StorageWorks tape drives, autoloaders,
libraries and media see: http://www.hp.com/go/tape.
For hardware and software compatibility of HP StorageWorks tape backup
products see: http://www.hp.com/go/connect.
HP StorageWorks DAT 160 SAS Internal
Tape Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server. Connection using the HP
P212 SAS Smart Array Controller ( 462828-B21) HP SC44Ge SAS Host Bus Adapter
( 416096-B21) recommended.
Q1587A
HP StorageWorks DAT 320 USB (1)
in 1U Rack-mount Kit
AP835A
HP StorageWorks DAT 320 SAS Internal
Tape Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server. Connection using the HP
P212 SAS Smart Array Controller ( 462828-B21) HP SC44Ge SAS Host Bus Adapter
( 416096-B21) recommended.
AJ830A
HP StorageWorks Ultrium 448 SAS
Internal Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server. Connection using the HP
P212 SAS Smart Array Controller ( 462828-B21) recommended.
DW085A
HP StorageWorks Ultrium 920 SAS
Internal Tape Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server. Connection using the HP
P212 SAS Smart Array Controller ( 462828-B21) HP SC44Ge SAS Host Bus Adapter
( 416096-B21) recommended.
EH847A
HP StorageWorks 1/8 G2 Ultrium
920 SAS Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack-Mount Kit (AH166A) for rack installation. Connection using the HP P212
SAS Smart Array Controller ( 462828-B21) recommended.
AH558A
HP StorageWorks MSL2024 Ultrium
920 SAS Tape Library NOTE: Connection using the HP P212
SAS Smart Array Controller ( 462828-B21) recommended.
HP StorageWorks D2D Backup Systems
with Backup Data Deduplication
HP StorageWorks D2D2502i Backup
System NOTE: 1.5TB of usable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ001B
HP StorageWorks D2D2504i Backup
System NOTE: 3.0TB of usable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ002B
USB Removable Media RDX Disk Backup
Systems
HP RDX 1TB Int Removable Disk
Backup System
BV847A
HP StorageWorks RDX320 Internal
Removable Disk Backup System NOTE: For installation into 1U USB
Rack-Mount Kit ( A8007A). No peripheral bay available for drive installation
into the server. 320GB of disk capacity per data cartridge.
AJ767A
HP StorageWorks RDX500 Internal
Removable Disk Backup System NOTE: For installation into 1U USB
Rack-Mount Kit ( A8007A). No peripheral bay available for drive installation
into the server. 500GB of disk capacity per data cartridge.
HP R1500 G2 1440VA Low Voltage
NA 1U Rackmount Uninterruptible Power System
AF419A
HP R1500 G2 1440VA INTL 1U Rackmount
Uninterruptible Power System
AF418A
HP R1500 G2 1200kVA Low Voltage
JP 1U Rackmount Uninterruptible Power System
AF421A
HP R/T3000 UPS
HP R/T3000 3300VA High Voltage
NA/JPN 2U Rackmount Uninterruptible Power System
AF453A
HP R/T3000 3300VA INTL 2U Rackmount
Uninterruptible Power System
AF454A
HP Rack-Mountable R5500 UPS
HP R5500 6000VA INTL 3U Rackmount
Uninterruptible Power System
AF416A
HP R5500 5000kVA NA/JP 3U Rackmount
Uninterruptible Power System
AF426A
NOTE: For additional
information on all HP Uninterruptible Power Systems and accessories please
go to: www.hp.com/products/ups
(Worldwide)
NOTE: For additional
information on sizing your server, please reference: http://www.upssizer.com
NOTE: Please see
the UPS and PDU cable matrix's on the HP Power Protection and Management
page. Under Power Cords, click on the "HP Power Cord Matrix" link.
That link will list cable descriptions, requirements, and specifications
for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
HP Power Distribution Units
Monitored PDUs
HP Monitored Power Distribution
Unit: Full Rack Version
HP 8.6 kVA S1324 Monitored PDU-
single input, 3Ø, 24A (NA/JPN)
AF504A
HP 16.6 kVA S2140 Monitored PDU-
dual input, 1Ø, 40A (NA/JPN)
AF505A
HP 8.3 S1140 Monitored PDU- single
input, 1Ø, 40A (NA/JPN)
AF506A
HP 11 kVA S1316 Monitored PDU-
single input, 3Ø, 16A (INTL)
AF508A
HP 7.3 kVA S1132 Monitored PDU-
single input, 1Ø, 32A (INTL)
AF510A
HP Monitored Power Distribution
Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU-
single input, 1Ø, 24A (NA/JPN)
AF914A
HP 7.3 kVA S132 Monitored PDU-
single input, 1Ø, 32A (INTL)
NOTE: Please see
the UPS and PDU cable matrix's on the HP Power Protection and Management
page. Under Power Cords, click on the "HP Power Cord Matrix" link.
That link will list cable descriptions, requirements, and specifications
for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
HP Rack Series
HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
NOTE: The increasing power of new high-performance processor technology
requires increased cooling efficiency for rack-mounted servers. The 10000
G2 Series Racks provide enhanced airflow for maximum cooling, allowing
these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional
requirements to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front
and rear doors, you must allow 830 square inches (5,350 sq cm) of hole
evenly distributed from top to bottom to permit adequate airflow (equivalent
to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side
panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty
front panel U-spaces in the rack. This arrangement ensures proper airflow.
Using a rack without blanking panels results in improper cooling that
can lead to thermal damage.
NOTE: HP ProLiant
DL rack models have fixed rails which provide support for racks with round
mounting holes and tool-free support for racks with square mounting holes
(including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment
range of 26" - 36". NOTE: Support for all 2 and 4 post Telco racks and threaded hole
racks requires an additional option kit from Rack Solutions. The Rack Solutions
brackets can be purchased at: www.hp.com/go/rackandpower.
HP Rack Options
HP KVM Switch Options
HP 0x2x8 KVM Server Console G2
Switch
AF616A
HP 0x2x16 KVM Server Console G2
Switch
AF617A
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: http://www.hp.com/go/kvm.
HP Serial Console Server Options
0x2x16 KVM Server Console G2 Switch
with Virtual Media and CAC
AF618A
0x2x32 KVM Server Console G2 Switch
with Virtual Media and CAC
AF619A
1x1Ex8 KVM IP Console Switch G2
with Virtual Media and CAC
AF620A
2x1Ex16 KVM IP Console Switch
G2 with Virtual Media and CAC
AF621A
4x1Ex32 KVM IP Console Switch
G2 with Virtual Media and CAC
AF622A
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
Rack Kits
HP Rack Cable Management Velcro
Clips
379820-B21
HP USB and SD Options
HP USB-PS/2 Mouse
DC369A
HP USB 04 Standard Keyboard
DT528A#ABA
HP Care
Pack Services
Hardware Services 4-Hour On-site
Service
13-Hour x 5-Day Coverage, 3 Years,
Electronic
UH271E
24-Hour x 7-Day Coverage, 3 Years,
Electronic
UH272E
Hardware Services Next Business
Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
UH270E
Hardware Services 6-Hour Call
to Repair On-Site Service
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
Some DIMM installation guidelines are summarized below:
For servers with twelve (12) memory slots
There are three (3) channels per processor; six (6) channels per server
There are two (2) DIMM slots for each memory channel; twelve (12)
total slots
Memory channel 1 consists of the two (2) DIMMs that are closest to
the processor
Memory channel 3 consists of the two (2) DIMMs that are furthest from
the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the corresponding processor is not installed
If only one processor is installed in a 2CPU system, only half of
the DIMM slots are available
To maximize performance, balance the total memory capacity between
all installed processors
It is not required, but it is recommended to load the channels similarly
if possible
If any Quad rank DIMMs are installed, all channels are limited to
only 2 DIMMs per channel.
You can only install two quad-rank DIMMs per channel
You can install two UDIMMs per channel; if available, the third slot
in the channel must remain empty
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank)
within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest
from the chipset
If mixing DIMM voltage is a requirement, please note that the DIMMs
will run at 1.5V since all 1.35V are capable of supporting 1.5V operations
Low Voltage DIMMs can only be used with Intel Xeon 5600 series processors.
For memory mirroring mode, channel 3 must be unpopulated. Channels
1 and 2 are populated identically
For lock-step mode, channel 3 must be unpopulated. DIMMs in channels
1 and 2 will be installed in pairs. The paired slots will be 1,4; 2,5;
3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
DIMM Type ->
Registered
DIMMS (RDIMMs)
Unbuffered
with ECC DIMMs (UDIMMs)
DIMM Rank ->
Single
Rank (1R)
Dual
Rank (2R)
Quad
Rank (4R)
Single
Rank (1R)
Dual
Rank (2R)
DIMM Capacity ->
4GB
2GB
4GB
8GB
16GB
4GB
16GB
1GB
2GB
4GB
DIMM Native Speed (MHz) ->
1333
1333
1333
1333
1333
1066
1066
1333
1333
1333
Voltage
LV/Std
Std
Std
LV/Std
LV/Std
Std
Std
Std
Std
Std
SLOTS THAT
CAN BE POPULATED
12 slot servers
12
12
12
12
12
12
12
12
12
12
MAXIMUM CAPACITY
(GB)
12 slot servers
48
24
48
96
192
48
192
12
24
48
POPULATED
DIMM SPEED (MHz)
1 DIMM Per Channel
1333
1333
1333
1333
1333
1066
1066
1333
1333
1333
2 DIMM Per Channel
1333*
1333*
1333*
1333*
1066/
1033**
800
800
1066
1066
1066
* Supported
with BIOS update via ROM Based Setup Utility (RBSU). UDIMM support
is on 12-slot server.
**2DPC: LV runs at 1066, Std voltage runs at 1333
NOTES:
PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have
a maximum speed of 1066MHz
Mixing DIMM speeds is allowed, but the system processor speed rules
always override the DIMM capabilities.
If you do mix DIMM speeds, the memory bus will default to the minimum
clock rate of all DIMMs in the system - even if the slower DIMM is on
the other processor.
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in
channel 2, the maximum speed will be 1066MHz.
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with
1 DIMM Per Channel (DPC) in each of the other channels, the maximum
speed will be 1066MHz.
If you install 3DPC in one channel (if applicable) and 1DPC in all
other channels, you run at 800MHz.
Maximum memory speed will also depend on the processor installed.
References to the above MHz speeds are for the various speeds of DDR3
DIMMs; 1333 refers to DDR3-1333, etc.
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second,
"C" third, etc.
12
DIMM SLOTS (6 per CPU node)
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D
1
D
Chnl 1
2
A
2
A
Chnl 2
3
E
3
E
Chnl 2
4
B
4
B
Chnl 3
5
F
5
F
Chnl 3
6
C
6
C
Standard memory configuration (1 CPU model)
6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: empty
1
D: empty
Chnl 1
2
A: 2GB DIMM
2
A: empty
Chnl 2
3
E: empty
3
E: empty
Chnl 2
4
B: 2GB DIMM
4
B: empty
Chnl 3
5
F: empty
5
F: empty
Chnl 3
6
C: 2GB DIMM
6
C: empty
Standard memory plus optional memory (1 CPU model)
30GB, consisting of three (3) 2GB RDIMMs plus three (3) 8GB RDIMMs
3x 2GB dual-rank PC3-10600 RDIMMs
3x 8GB dual-rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 8GB DIMM
1
D: empty
Chnl 1
2
A: 2GB DIMM
2
A: empty
Chnl 2
3
E: 8GB DIMM
3
E: empty
Chnl 2
4
B: 2GB DIMM
4
B: empty
Chnl 3
5
F: 8GB DIMM
5
F: empty
Chnl 3
6
C: 2GB DIMM
6
C: empty
Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration
96GB, consisting of six (6) 16GB quad-rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 16GB DIMM
1
D: empty
Chnl 1
2
A: 16GB DIMM
2
A: empty
Chnl 2
3
E: 16GB DIMM
3
E: empty
Chnl 2
4
B: 16GB DIMM
4
B: empty
Chnl 3
5
I: 16GB DIMM
5
I: empty
Chnl 3
6
C: 16GB DIMM
6
C: empty
UDIMM maximum configuration (1 CPU model)
24GB, consisting of six (6) 4GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 4GB DIMM
1
D: empty
Chnl 1
2
A: 4GB DIMM
2
A: empty
Chnl 2
3
E: 4GB DIMM
3
E: empty
Chnl 2
4
B: 4GB DIMM
4
B: empty
Chnl 3
5
F: 4GB DIMM
5
F: empty
Chnl 3
6
C: 4GB DIMM
6
C: empty
Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration
192GB, consisting of twelve (12) 16GB quad-rank PC3-8500 RDIMMs and
twelve (12) 16 GB dual rank PC3L-10600R-9 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 16GB DIMM
1
D: 16GB DIMM
Chnl 1
2
A: 16GB DIMM
2
A: 16GB DIMM
Chnl 2
3
E: 16GB DIMM
3
E: 16GB DIMM
Chnl 2
4
B: 16GB DIMM
4
B: 16GB DIMM
Chnl 3
5
F: 16GB DIMM
5
F: 16GB DIMM
Chnl 3
6
C: 16GB DIMM
6
C: 16GB DIMM
UDIMM maximum configuration (2 CPU model)
48GB, consisting of twelve (12) 4GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
D: 4GB DIMM
1
D: 4GB DIMM
Chnl 1
2
A: 4GB DIMM
2
A: 4GB DIMM
Chnl 2
3
E: 4GB DIMM
3
E: 4GB DIMM
Chnl 2
4
B: 4GB DIMM
4
B: 4GB DIMM
Chnl 3
5
F: 4GB DIMM
5
F: 4GB DIMM
Chnl 3
6
C: 4GB DIMM
6
C: 4GB DIMM
NOTE: Capacity references are rounded to the common Gigabyte values.
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, and the server backplane)
should operate at the same data transfer rate or the system bandwidth will
be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SATA Hot Plug SFF
(2.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8 with 8 drive cage
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
Up to 25 with 25
drive cage
1-25
NOTE:
Smart Array P212 Controllers recommended.
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array Hot Plug Advance Pack for B110i
SATA Hot Plug LFF
(3.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 8 with 8 drive cage
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
Up to 14 with 12
drive cage + Rear Drive Cage
1-14
NOTE:
Smart Array P212 Controllers recommended.
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array Hot Plug Advance Pack for B110i
SATA Hot Plug LFF
(3.5-inch) Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8 with 8 drive cage
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
Up to 14 with 12
drive cage + Rear Drive Cage
1-14
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array Hot Plug Advance Pack for B110i
SATA Hot Plug Midline
(MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8 with 8 drive cage
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
Up to 25 with 25
drive cage
1-25
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array Hot Plug Advance Pack for B110i
SATA Hot Plug 3.5"
Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8 with 8 drive cage
1-8
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array B110i Hot Plug Advance Pack for B110i
SAS Hot Plug SFF (2.5-inch) Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K
Up to 8 with 8
drive cage
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
Up to 25 with 25
drive cage
1-25
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
SAS Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 72K
1TB 6G SAS 7.2K
Up to 8 with 8 drive cage
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
Up to 14 with 12
drive cage + Rear Drive Cage
1-14
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G 10K SAS
450GB 6G 19K SAS
300GB 6G 10K SAS
146GB 6G 15K SAS
146GB 6G 10K SAS
72GB 6G 15K SAS
Up to 8 with 8 drive cage
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
Up to 25 with 25
drive cage
1-25
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
SAS Hot Plug LFF (3.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
300GB 6G SAS 15K
Up to 8 with 8 drive cage
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
Up to 14 with 12
drive cage + Rear Drive Cage
1-14
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P812/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
External Storage
Quantity
Supported
Position
Supported
Controller
60 Modular Smart Array
Up to 4
External
HP Smart Array P212/256 MB Controller
HP Smart Array P800/512 BBWC Controller
Up to 8
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 FBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP Smart Array P800/512 BBWC Controller
70 Modular Smart Array
Up to 2
External
HP Smart Array P212/256 MB Controller
Up to 4
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP Smart Array P800/512 BBWC Controller
Tape and Disk Backup
NOTE: For the complete range of StorageWorks
tape drives, autoloaders, libraries and media, including the internal
fitting models, see: http://www.hp.com/go/tape.
For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape
backup products see: http://www.hp.com/go/connect.
Position
Recommended Controller
Part Number
HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Ultra320 Single Channel/
PCIe x4 SCSI Host Bus Adapter
HP StorageWorks Fibre Channel
Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity
matrix at: http://www.hp.com/go/ebs
for connectivity information and the supported Fibre Channel HBAs shown
in this QuickSpecs.
HP StorageWorks USB RDX Removable
Disk Backup System
RDX160
RDX320
RDX500
RDX750
External
USB 2.0 port
N/A
HP StorageWorks D2D Backup Systems,
iSCSI
D2D2500i
D2D4000i
External
Embedded Network Controller. If
the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host
Bus Adapter is recommended.
HP StorageWorks D2D Backup Systems,
Fibre Channel
D2D4000fc
Click on the system of interest. Example: DL180 G6
Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State Power
460 W (at 100 VAC)
750 W (at 100 VAC)
460 W (at 200 VAC)
750 W (at 200 VAC)
Maximum Peak Power
460 W (at 100 VAC)
750 W (at 100 VAC)
460 W (at 200 VAC)
750 W (at 200 VAC)
System Inlet Temperature
Operating
10° to 35°C
(50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum
of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change
is 10°C/hr (18°F/hr). The upper limit may be limited by the type
and number of options installed.
System performance may be reduced if operating with a fan fault or above
30°C (86°F).
Non-operating
-30° to 60°C
(-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative
humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating
5 to 95% relative
humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude
Operating
3050 m (10,000 ft).
This value may be limited by the type and number of options installed. Maximum
allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft).
Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared
A-Weighted sound power levels (LWAd) and declared average bystander position
A-Weighted sound pressure levels (LpAm) when the product is operating in
a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
5.3 B
LpAm
38 dBA
Operating
LWAd
5.3 B
LpAm
38 dBA
NC362i Integrated Dual
Port Gigabit Server Adapter
Network Interface
Integrated 10/100/1000BASE-T
Transceiver
Combines a triple-speed
IEEE 802.3TM - Compliant Media Access
Controller (MAC) with a triple-speed Ethernet transceiver.
Data Transfer Method
Compliant to x1 PCIe
Specification
Controller
Intel® 82576
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000 Mb/s
Connector
RJ-45
Cable Support
Performs all the physical
layer functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethernet on standard
Category 5 UT
HP 160GB 3G SATA 7.2K rpm LFF
(3.5-inch) Entry 1yr Warranty Hard Drive
458945-B21
Capacity
160,041MB
Height
1.04 in (26.4 mm)
Width
4.36 in (110.7 mm)
Depth
7.25 in (184.2 mm)
Interface
Serial ATA
Transfer Rate (Maximum)
3Gb/s
Native Command Queuing
Supported
Seek Time
(typical reads, including settling)
Single Track
2.0 ms
Average
<11 ms
Full-Stroke
23.0 ms
Rotational Speed
7,200 rpm
Physical Configuration
Bytes/Sector
512
Logical Blocks
312,581,808
Operating Temperature
41° to 131°
F (5° to 55° C)
Smart Array P212 Controller
Disk Drive and Enclosure
Interface
3G SAS (Serial Attached SCSI)
1.5G SATA (Serial ATA)
SAS Connectors
1 internal/1 external (Mini-SAS)
x8 wide port connectors
Cache Memory Speed
DDR-2/533 MHz with 40 or 72-bit
wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interface
x8 2.5G PCIe 2.0 provides 2GB/s
maximum bandwidth.
SAS Speed
x8 3G SAS provides 2.4GB/s maximum
bandwidth.
Cache Memory
40-bit 256MB ECC protected cache;
transportable with battery-backed upgrade. NOTE: The 256MB cache is not battery-backed
or transportable.
Logical Drives Supported
Up to 32 logical volumes
Host Memory Addressing
64-bit, supporting greater than
4GB server memory space
RAID Support
RAID 6, 6+0 (Advanced Data Guarding) NOTE: A minimum of 256 MB cache,
battery kit, and Smart Array Advanced Pack License Key upgrade is required
to enable RAID 6, 6+0
RAID 5, 5+0 (Distributed Data Guarding) NOTE: The 256 MB & Battery Kit
upgrade is required to enable RAID 5, 5+0 support
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Smart Array P410/410i Controller
Disk Drive and Enclosure
Interface
6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal (Mini-SAS) x8 wide
port connectors
Cache Memory Speed
DDR2-533MHz with 40 or 72-bit
wide bus provides up to 4.2 GB/s maximum bandwidth.
64-bit, supporting greater than
4GB server memory space
RAID Support
RAID 6, 6+0 (Advanced Data Guarding) NOTE: The minimum of 256 MB cache,
battery kit, and Smart Array Advanced Pack License Key upgrade is required
to enable RAID 6, 6+0
RAID 5, 5+0 (Distributed Data Guarding) NOTE: The 256 MB is required to enable
RAID 5, 5+0 support of the Smart Array P410i
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Environment-friendly Products
and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment
information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
500656-B21
© 2012 Canada PartsDirect
