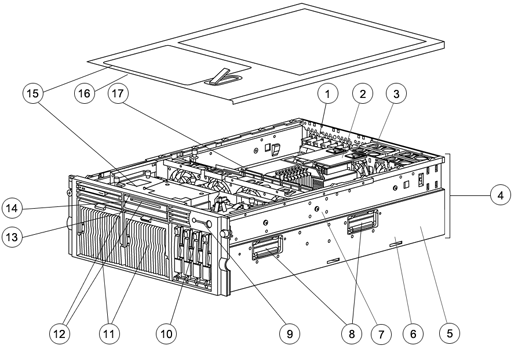

HP ProLiant DL585

1. Eight 64-bit PCI-X I/O Slots (Six 100 MHz, two 133 MHz)
2. 2 or 4 processors/memory boards
3. 2 or 4 AMD Opteron 800 Series Processors
4. Up to 128 GB of PC2700 DDR SDRAM with Advanced ECC, running at 266 MHz, 64 GB of PC2700 running at 333 MHz or 32 GB of PC3200 running at 400 MHz
5. Hot Plug Redundant Fans (standard)
6. 4U (7" Height) Rack Form Factor

7. Tool-less "Snap In" rail solution

8. Server Lifting Handle
9. Front Panel LED Display (internal and external health, Unit ID light) and Power Button
10. Ultra320 Drive Cage, capable of simplex or duplex configuration, upgradeable to Small Form Factor (SFF) Serial Attached SCSI (SAS) drive technology
11. Dual 870-Watt Hot Plug Redundant Power Supplies (hi/lo line auto-sensing
12. Two Universal Media Bays: 24X CD-ROM IDE and 1.44 MB Diskette Drive (standard)
13. Multi-Bay floppy and CD-ROM drives, standard on most models
14. QuickFind Diagnostic Display (viewable through the Top Access Panel)
15. Removable Top Access Panel

16. Integrated Lights-Out (iLO)- not shown

17. Dual Port NC7782 embedded NIC - not shown

What's New
  • Support for Dual-Core AMD Opteron Model 885 processor, running at 2.6 GHz (two or four processors supported) with PC3200 or PC2700 memory

At A Glance

The ProLiant DL585, the best performing x86 4-processor server in the industry, now supports the new AMD Opteron Dual-Core processor further increasing the performance leadership of this system. Dual-Core AMD Opteron processors enable a huge boost in performance. Depending on the application and environment, customers can expect to see anywhere from 15 to 65% performance improvement in the same 4U chassis!

The DL585 was the first Tier 1 server in the industry supporting 4 AMD Opteron processors and the first platform which demonstrated Dual-Core Opteron processors in August 2004. It continues to maintain performance leadership, especially with a variety of 32-bit benchmarks. The 128GB memory footprint enables most applications to run faster or support more users than other systems. The DL585 combines AMD Opteron processor technology, best-in-class management and outstanding uptime features in an enterprise-class system ideal for large data center deployments.

  • Processors:
    • AMD Opteron 800 series up to 2.6 GHz Dual-Core processors OR
    • AMD Opteron 800 series up to 2.8 GHz single core processors
    • Two or four total processors supported
    • AMD Opteron 8000 chipset supporting up to 1 GHz HyperTransport
  • Memory:
    • 4 GB of PC3200 DDR SDRAM, running at 400 MHz, expandable to 32 GB
    • 2 GB of PC2700 DDR SDRAM, running at 333 MHz, expandable to 128 GB with support for PC2700 DDR with Advanced ECC SDRAM (64 GB running at 333 MHz or 128 GB running at 266 MHz)
  • Storage Controller:
    • Integrated Smart Array 5i Plus Controller (Dual Channel, Ultra3) with 64 MB total memory on 5i Plus Memory Module
    • Transportable Battery-Backed Write Cache Enabler module
  • Internal Drive Support:
    • Choice of Internal Hot Plug Drive Storage:
      • Up to 1.20TB (4 x 300GB Ultra320 SCSI hard drives)
      • Up to 1.168TB (8 x 146GB SFF SAS hot plug drives)
      • Or support for one DAT hot plug tape drive and two hot plug hard drives
    • Multi-Bay floppy and CD-ROM drives
  • Network Controller:
    • Embedded NC7782 PCI-X Gigabit Server Adapter
  • Expansion Slots:
    • Eight total full length slots: six 64-bit/100 MHz PCI-X; two 64-bit/133 MHz PCI-X
  • USB 1.0 Ports:
    • Two total: 2 rear ports
  • Redundancy:
    • Redundant hot plug power supplies and fans
  • Management:
    • Integrated Lights-Out Standard Management (iLO) on system board
    • Innovative diagnostic lighting (QuickFind Diagnostic Display) for rapid response to service events
  • Form Factor:
    • Delivering maximum performance in a versatile, rack optimized form factor
  • Deployment/Serviceability:
    • Tool-less and virtually cable-less internal design
    • Rapid Deployment racking solution (rack rails and cable management)
  • Warranty:
    • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI/SAS hard drives. SATA hard drives have a one-year warranty.
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models (North America only)      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Standard Features

Processor
Two or four of the following depending on Model
AMD Opteron model 885, Dual-core running at 2.6 GHz (2 or 4 supported)
AMD Opteron model 880, Dual-core running at 2.4 GHz (2 or 4 supported)
AMD Opteron model 875, Dual-core running at 2.2 GHz (2 or 4 supported)
AMD Opteron model 865, Dual-core running at 1.8 GHz (2 or 4 supported)
AMD Opteron model 854, running at 2.8 GHz (2 or 4 supported)
AMD Opteron model 852, running at 2.6 GHz (2 or 4 supported)
AMD Opteron model 850, running at 2.4 GHz (2 or 4 supported)
AMD Opteron model 848, running at 2.2 GHz (2 or 4 supported)

Cache Memory 1MB Integrated Level 2 Cache

Upgradeability Upgradeable to quad processing
Upgradeable to SAS drive technology

Chipset AMD Opteron 8000 series chipset

Memory Protection & Functionality Advanced ECC

Memory Type

PC2100 DDR SDRAM, running at 266 MHz

PC2700 DDR SDRAM, running at 333 MHz
PC3200 DDR SDRAM, running at 400 MHz
Standard
One of the following depending on Model

2 GB (2 x 512 MB x 2 Processor Boards) (PC2100 or PC2700 DDR SDRAM)

4 GB (2 x 1024 MB x 2 Processor Boards) (PC3200 DDR SDRAM)
8 GB (8 x 1024 MB x Processor Boards) (PC3200 DDR SDRAM)
Maximum32 GB (PC3200 DDR SDRAM)
128 GB (PC2700 DDR SDRAM)
NOTE: PC2700 only supported on 2.4 GHz and faster single core models and all dual core models. Also PC3200 only supported on 2.6 GHz single core models and all dual core models.

Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter

Expansion Slots
Bus speed
Bus number
Hot Plug
PCI Voltage
1
64-bit / 133 MHz PCI-X
5
No
3.3 Volt
2
64-bit / 133 MHz PCI-X 6
No
3.3 Volt
3
64-bit / 100 MHz PCI-X
7
No
3.3 Volt
4
64-bit / 100 MHz PCI-X
7
No
3.3 Volt
5
64-bit / 100 MHz PCI-X
8
No
3.3 Volt
6
64-bit / 100 MHz PCI-X
8
No
3.3 Volt
7 64-bit / 100 MHz PCI-X 3
No
3.3 Volt
8 64-bit / 100 MHz PCI-X 3
No
3.3 Volt
NOTE: All slots can accept universal keyed PCI cards.
Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
Slots are enumerated differently based on the operating system. Microsoft operating systems enumerate from lowest to highest Device ID by bus (starting with the lowest bus).

Manageability Integrated Lights-Out (iLO) Standard Management (ASIC on the System Board)

Storage Controllers Smart Array 5i Plus Controller (integrated on system board), Dual Channel, Ultra3 (supports RAID 0, 1, 1+0, and 5 across internal hard disk drives) with 64 MB of memory.
  • 64-MB total memory for code, transfer buffers, and read/write cache on the 5i Plus Memory Module
  • Connector for Battery Backed Write Cache (BBWC) Enabler
NOTE: The Smart Array 5i Plus Controller is integrated on the system board and is designed to support the duplex/simplex drive cage. An external SCSI port is not available on the HP ProLiant DL585. External SCSI solutions require the addition of a PCI or PCI-X option card.

Storage Data Protection The Battery-Backed Write Cache (BBWC) Enabler protects up to 64 MB write cache memory from hard boot, power, controller, or system board failures.
  • Standard on all HP ProLiant DL585 Models
  • Battery charge/life: Up to 72 hours/3 years
  • Transportable data protection
  • Increases overall controller performance
NOTE: Safely transport your write cache data to another HP ProLiant DL585 in the data center by removing the BBWC Enabler and 5i Plus Memory Module simultaneously (connected by short cable).

Storage Diskette Drive 1.44 MB Diskette Drive (slimline) – ejectable for security and serviceability
Optical Drive 24x IDE CD-ROM Drive (slimline) – ejectable for security and serviceability
Hard Drives None ship standard
Hard Disk Drive Backplane Internal Wide Ultra3 backplane supports up to four hard disk drives and is easily configurable to support simplex (4x1) or duplex mode (2x2) Standard shipping configuration is the duplex mode.
NOTE: Optional SCSI cable assembly (PN 365483-B21) is required for connecting Smart Array Controller in a PCI slot to internal hard drive backplane. Duplex configuration requires two such kits.

Maximum Internal Storage TypeHot Plug SCSI 1.20TB4 x 300GB Ultra320 drives (internal hot plug Ultra3 or Ultra320 drive cage)
Hot Plug SAS 1.168TB 8 x 146GB SFF SAS drives (internal hot plug)

Interfaces Serial 1
Pointing Device (Mouse) 1
Graphics 1
Keyboard 1
USB 1.0 Ports 2 total: 2 rear
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
iLO Remote Management 1
Network RJ-45 2

Graphics Integrated 1280 x 1024, 16M color on PCI local bus, 8 MB of SDRAM video memory

Form Factor Rack (4U = 7 inches), ships with sliding rails and cable management system
Space saving form factor (4U) provides space efficiencies while providing maximum deployment flexibility

ProLiant Essentials Foundation Pack Software

HP Systems Insight Manager HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms.

Through a single management view, HP SIM provides core management services that include device discovery and identification, event views, health monitoring, inventory data collection, software version control and reporting. HP SIM is built on industry standards and is extensible with value-added ProLiant Essentials, Integrity Essentials and Storage Essentials software to meet individual management needs. For more details on HP SIM visit http://www.hp.com/go/hpsim.

HP SIM provides organizations with the following benefits:

  • Simplifies and consolidates infrastructure lifecycle management using task and query based functionality
  • Provides the foundation for infrastructure automation and virtualization
  • Enables IT management based on business processes not hardware platforms
  • Lowers infrastructure maintenance cost and frees resources for innovation
  • Maximizes resource utilization with virtualization technologies
  • Provides a central point of integration between infrastructure and Enterprise management tools such as HP OpenView
SmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.00.
Insight Management Agents Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers,

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack. For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at http://www.hp.com/servers/manage.

Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics utilitiesThe most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value Packs Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:
  • Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP disc includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit: http://www.hp.com/servers/rdp.
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus.
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats.
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
Optional Remote Management Packs
  • Integrated Lights-Out Advanced Pack - upgrades the Integrated Lights-Out processor to full virtual presence and control with graphical console and virtual media.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Industry Standard Compliance ACPI 1.0a. Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE) Support
Microsoft® Logo certifications

Remote Management Integrated Lights-Out (iLO) Standard Management
  • Virtual Text Remote Console
  • Virtual Power Button Control
  • Dedicated LAN Connectivity
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) Security
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privileges

Integrated Lights-Out (iLO) Advanced Pack (supports Advanced features such as Graphical Remote Console and Virtual Floppy - available as a separate option)


Intelligent Manageability Automatic Server Recovery-2 (ASR-2)
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
ROM-Based Setup Utility (RBSU)
Integrated Management Log (IML)
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Redundant/adaptive load balancing NIC Support

Availability
  • Smart Array 5i Plus Controller with standard Battery Backed Write Cache (BBWC) Enabler provides transportable data protection and increases overall controller performance. Up to 64MB Battery Backed Write Cache protection available on all HP ProLiant DL585 models.
  • Up to four Ultra320 SCSI Hard Drives
  • Duplex or Simplex SCSI Backplane (Duplex configuration is standard)
  • Dual Hot Plug Redundant Power Supplies (standard)
  • PCI-X Technology (six 64-bit/100-MHz and two 64-bit/133 MHz PCI-X slots available)
  • Smart Array 5i Plus Controller with 64 MB of Battery Backed Write Cache (BBWC) Enabler provides transportable data protection and increases overall controller performance.
  • Fans are 7+1 hot plug redundant and individually removable.

Serviceability
  • Innovative Diagnostic Lighting
  • QuickFind Diagnostic Display - precisely depicts all major subsystems of the server (PCI-X I/O, Memory, CPU, Redundant Cooling, Interlock, Thermtrip) and gives instant visual indication of fault status. Located on top front of server.
  • Tool-less, virtually cable-less interior design
    • Tool-less access to interior of server
    • Two ejectable, Universal Media Bay media drives (diskette and CD-ROM standard with support for optional DVD-ROM drives) are removable without the use of tools
    • Front access power supplies
    • PCI Card Guides locks full length PCI cards in place during transit
    • SCSI Duplex/Simplex Drive Cage connects directly to system board - no cables.
      NOTE: Configure your SCSI Duplex/Simplex Drive Cage by means of simple switch (duplex to simplex)
      located on the cage itself. System ships standard in Duplex mode.
    • Eight individually removable fans connect without cables to the system board
    • Tool-less removal of system board
  • Quick Deploy Rails
    • Tool-less design "snap in" rail

Security Power-on password
Keyboard password
Diskette drive control
Diskette boot control
Network Server Mode
Serial interface control
Administrator's password
Disk configuration lock
Removable Diskette drive
Removable CD-ROM drive

Power Supply Dual 870-Watt Hot Plug Redundant Power Supplies (hi/lo line auto-sensing)

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

System Fans Standard 8 Hot plug, redundant fans (individually removable)
Maximum 8 Hot plug, redundant fans (individually removable)
NOTE: A single cooling zone across the major server subsystems (Memory, I/O, CPU) providing 7x24 cooling in an N + 1 redundant configuration.

Required CablingFor required cabling information, refer to the HP Web site at
http://h18000.www1.hp.com/products/servers/proliantDL585/

OS Support -
single core

Microsoft Windows 2000 Server
Microsoft Windows 2000 Advanced Server
Windows Server 2003, Standard Edition
Windows Server 2003, Enterprise Edition
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware Virtualization Software
Solaris 10 32/64-bit

NOTE: 2.2 GHz, 2.4 GHz and 2.6 GHz models.
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html


OS Support -
Dual-Core

Microsoft Windows 2000 Server (licensed by core)
Microsoft Windows 2000 Advanced Server (licensed by core)
Windows Server 2003, Standard Edition (licensed by processor socket)
Windows Server 2003, Enterprise Edition (licensed by processor socket)
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware Virtualization Software
Solaris 10 32/64-bit

NOTE: 1.8 GHz and 2.2 GHz models.

NOTE: For more Linux OS support & certification information, please visit our the ProLiant & Bladesystem Server Linux matrix http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html.
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html

Rack Airflow Requirements Rack 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:
    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 7 cm (2.75 inches).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: http://www5.hp.com/products/servers/proliantdl585/index.html.


Rack Mounting Requirements HP ProLiant DL585 rack models provide tool-free support for square hole racks (including Compaq/HP 7000, 9000, 10000 and H9 series) with an adjustment range from 28" - 29" in depth.

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model, please contact your sales representative or go to http://www.hp.com/go/factory-express.


HP Enterprise Configurator The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Continuous Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers - and free customers IT support staff to focus on what they do best, their business.

  • Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack

contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models (North America only)      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Solutions

Solutions Designed for enterprise customers with growing data centers and application and Internet service providers that require a rack optimized 4-processor server that delivers maximum performance and high availability for highly complex, business critical applications. Specifically, the HP ProLiant DL585 would be excellent for running the following types of applications:
Typical Usage:
  • High Performance Computing (HPC)
  • Electronic Design Automation (EDA)/Semiconductor
  • Financial
  • Large database applications
  • ERP / CRM
  • Petrochemical
  • Life Science and Material Science
  • Video Rendering
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models (North America only)      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Models

Models (Dual-core)

DL585R01 2.6GHz-1MB, 2048MB (2P Dual-core)
407658-001
Processor(s) (2) AMD 885 Dual-core Opteron Processors at 2.6 GHz standard (2 or 4 supported)
Cache Memory1-MB Integrated Level 2 Cache
Memory2 GB of PC2700 DDR SDRAM (Standard) to 64 GB, running at 333 MHz, or 128 GB running at 266 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 2.6GHz-1MB, 4096MB (2P Dual-core)
407659-001
Processor(s) (2) AMD 885 Dual-core Opteron Processors at 2.6 GHz standard (2 or 4 supported)
Cache Memory1-MB Integrated Level 2 Cache
Memory4 GB of PC3200 DDR SDRAM (Standard) to 32 GB running at 400 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O2.4 GHz-1MB, 8GB (4P Dual- core)
399462-001
NOTE: Not available in NA
Processor(s) (4) AMD 880 Dual-core Opteron Processors at 2.4 GHz standard (2 or 4 supported)
Cache Memory1-MB Integrated Level 2 Cache
Memory8 GB of PC3200 DDR SDRAM (Standard) to 32 GB running at 400 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O2.4 GHz-1MB, 4096MB (2P Dual-core)
397842-001
Processor(s) (2) AMD 880 Dual-core Opteron Processors at 2.4 GHz standard (2 or 4 supported)
Cache Memory1-MB Integrated Level 2 Cache
Memory4 GB of PC3200 DDR SDRAM (Standard) to 32 GB running at 400 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O2.4 GHz-1MB, 2048MB (2P Dual-core)
397841-001
Processor(s) (2) AMD 880 Dual-core Opteron Processors at 2.4 GHz standard (2 or 4 supported)
Cache Memory1-MB Integrated Level 2 Cache
Memory 2 GB of PC2700 DDR SDRAM (Standard) to 64 GB, running at 333 MHz, or 128 GB running at 266 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O2.2 GHz-1MB, 4096MB (2P Dual-core)
383359-001
Processor(s) (2) AMD 875 Dual-core Opteron Processors at 2.2 GHz standard (2 or 4 supported)
Cache Memory1 MB Integrated Level 2 Cache
Memory4 GB of PC3200 DDR SDRAM (Standard) to 32 GB running at 400 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O2.2 GHz-1MB, 2048MB (2P Dual-core)
383357-001
Processor(s) (2) AMD 875 Dual-core Opteron Processors at 2.2 GHz standard (2 or 4 supported)
Cache Memory1 MB Integrated Level 2 Cache
Memory 2 GB of PC2700 DDR SDRAM (Standard) to 64 GB, running at 333 MHz, or 128 GB running at 266 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O1.8 GHz-1MB, 4096MB (2P Dual-core)
383358-001
Processor(s) (2) AMD 865 Dual-core Opteron Processors at 1.8 GHz standard (2 or 4 supported)
Cache Memory1 MB Integrated Level 2 Cache
Memory4 GB of PC3200 DDR SDRAM (Standard) to 32 GB running at 400 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O1.8 GHz-1MB, 2048MB (2P Dual-core)
383356-001
Processor(s) (2) AMD 865 Dual-core Opteron Processors at 1.8 GHz standard (2 or 4 supported)
Cache Memory1 MB Integrated Level 2 Cache
Memory 2 GB of PC2700 DDR SDRAM (Standard) to 64 GB, running at 333 MHz, or 128 GB running at 266 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

Models (single core)

DL585R01 O2.8 GHz-1MB, 2048MB (2P)
397296-001
Processor(s)(2) AMD 854 Opteron Processors at 2.8 GHz standard (2 or 4 supported)
Cache Memory1-MB Integrated Level 2 Cache
Memory 2 GB of PC2700 DDR SDRAM (Standard) to 64 GB, running at 333 MHz, or 128 GB running at 266 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O2.8 GHz-1MB, 4096MB (2P)
397299-001
Processor(s)(2) AMD 854 Opteron Processors at 2.8 GHz standard (2 or 4 supported)
Cache Memory1-MB Integrated Level 2 Cache
Memory4 GB of PC3200 DDR SDRAM (Standard) to 32 GB running at 400 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O2.6 GHz-1MB, 4096MB (2P)
380125-001
Processor(s)(2) AMD 852 Opteron Processors at 2.6 GHz standard (2 or 4 supported)
Cache Memory1 MB Integrated Level 2 Cache
Memory4 GB of PC3200 DDR SDRAM (Standard) to 32 GB running at 400 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

DL585R01 O2.6 GHz-1MB, 2048MB (2P)
380124-001
Processor(s)(2) AMD 852 Opteron Processors at 2.6 GHz standard (2 or 4 supported)
Cache Memory1 MB Integrated Level 2 Cache
Memory 2 GB of PC2700 DDR SDRAM (Standard) to 64 GB running at 333 MHz or 128 GB running at 266 MHz with Advanced ECC
Network ControllerEmbedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
ManageabilityIntegrated Lights-Out (iLO) Standard management (integrated on system board)
Hard DrivesNone ship standard
Internal Storage1.20TB maximum (with optional hard drives)
Power SupplyTwo 870W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive24x IDE Universal Media Bay CD-ROM Drive
Form FactorRack 4U

Country Code Key XX=00 US
XX=20 Brazil (NOTE: Valid for 2.2 GHz, 2.4 GHz, 2.6 GHz, and 2.8 GHz Models only)
XX=29 Japan
XX=37 A/P (NOTE: Valid for 2.4 GHz and 2.6 GHz Models only)
XX=42 Europe (NOTE: Valid for 2.4 GHz and 2.6 GHz Models only)
XX=AA PRC
XX=B2 WW (NOTE: Valid for 1.8 GHz, and 2.2 GHz single-core Models only)
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models (North America only)      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Configuration Information - Factory Integrated Models (North America only)

NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact.
NOTE:
HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.

NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration
Models HP ProLiant DL585 Rack CTO Chassis (North America)
390524-405
Factory Integrated Models ship with:

1.44 MB Diskette Drive
Embedded NC7782 PCI-X Gigabit Server Adapter
Smart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
Integrated Lights-Out (iLO) Standard management (integrated on system board)
Two 870W Hot Plug Redundant Power Supplies (low line or high line)
Rack 4U Form Factor


Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors AMD Opteron 885 2.6 GHz-1 MB Dual-core PC2700 Processor Option Kit
NOTE: If four processors are desired, select one 407660-L21 and two 407660-B21.
407660-L21
AMD Opteron 885 2.6 GHz-1 MB Dual-core PC3200 Processor Option Kit
NOTE: If four processors are desired, select one 407661-L21 and two 407661-B21.
407661-L21
AMD O880 2.4 GHz/1000 Dual-core 1 MB PC 3200 DL585 FIO BASE
NOTE: If four processors are desired, select one 397844-L21 and two 397844-B21.
397844-L21
AMD O880 2.4 GHz/1000 Dual-core 1 MB PC 2700 DL585 FIO BASE
NOTE: If four processors are desired, select one 397843-L21 and two 397843-B21.
397843-L21
AMD O854 2.8/1000 1 MB PC2700 DL585 FIO BASE
NOTE: If four processors are desired, select one 397820-L21 and two 397820-B21.
397820-L21
AMD O875 2.2 GHz/1000 Dual-core 1 MB PC3200 DL585 FIO BASE
NOTE: If four processors are desired, select one 383393-L21 and two 383393-B21.
383393-L21
AMD O854 2.8 GHz/1000 1 MB PC3200 DL585 FIO BASE
NOTE: If four processors are desired, select one 397821-L21 and two 397821-B21.
397821-L21
AMD O875 2.2 GHz/1000 Dual-core 1 MB PC2700 DL585 FIO BASE
NOTE: If four processors are desired, select one 383391-L21 and two 383391-B21.
383391-L21
AMD O865 1.8 GHz/1000 Dual-core 1 MB PC3200 DL585 FIO BASE
NOTE: If four processors are desired, select one 383392-L21 and two 383392-B21.
383392-L21
AMD O865 1.8 GHz/1000 Dual-core 1 MB PC2700 DL585 FIO BASE
NOTE: If four processors are desired, select one 383390-L21 and two 383390-B21.
383390-L21

Base Memory 1 GB of PC2700 DDR SDRAM DIMM Memory (2 x 512 MB)
371047-B21
2 GB of PC2700 DDR SDRAM DIMM Memory (2 x 1 GB)
371048-B21
4 GB of PC2700 DDR SDRAM DIMM Memory (2 x 2 GB)
371049-B21
2 GB of PC3200 DDR SDRAM DIMM Memory (2 x 1 GB)
376639-B21
4 GB of PC3200 DDR SDRAM DIMM Memory (2 x 2 GB)
379300-B21
8 GB of PC2700 DDR SDRAM DIMM Memory (2 x 4 GB)
395409-B21
NOTE: Memory must be ordered in like-pairs, i.e. two of the same size.
NOTE: For max memory performance with PC2700 (333 MHz), -002 or greater processor boards should be used in conjunction with no more than 6 PC2700 DIMMs per processor. 2.4 GHz SKUs and faster SKUs ship standard with -002 or greater processor boards.

Optical Drives 24x IDE Universal Media Bay CD-ROM Drive
339866-B21
Slimline CD-RW/DVD-ROM 24X Combo Drive Option Kit
331903-B21
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)
264007-B21
HP DVD±R/RW 8X Slim
383975-B21

Step 3: Choose Additional Options for Factory Integration
SAS Options8-Bay SAS/SATA Cage Option Kit
NOTE: May be ordered with a SAS/SATA Controller such as the Smart Array P600/256 BBWC Controller and the desired quantity of SFF SAS Universal Hard Drives/SFF SATA hard drives OR may be ordered with one of the following SAS Starter Kits.
379090-B21
SAS Starter Kit - 36GB
NOTE: Includes HP Smart Array P600/256 BBWC Controller and (2) 36GB SFF SAS Universal Hard Drives.
396221-B21
SAS Starter Kit - 72GB
NOTE: Includes HP Smart Array P600/256 BBWC Controller and (2) 72GB SFF SAS Universal Hard Drives.
396220-B21

Step 4: Choose Additional Options for Factory Integration
  NOTE: Select from "Options" section below.
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models (North America only)      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Options

NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
ProLiant DL585 Unique Options AMD Opteron 885 2.6 GHz-1 MB Dual-core PC2700 Processor Option Kit
NOTE: This Opteron 885 2.6 GHz Dual-core PC2700 processor Option kit (PN 407660-B21) comes standard with the 011974-503 processor/memory board.
407660-B21
AMD Opteron 885 2.6 GHz-1 MB Dual-core PC3200 Processor Option Kit
NOTE: This Opteron 885 2.6 GHz Dual-core PC3200 processor Option kit (PN 407661-B21) comes standard with the 012567-501 processor/memory board.
407661-B21
AMD Opteron 880 2.4 GHz-1 MB Dual-core PC3200 Processor Option Kit
NOTE: This Opteron 880 2.4 GHz Dual-core PC3200 processor Option kit (PN 397844-B21) comes standard with the 012567-501 processor/memory board.
397844-B21
AMD Opteron 880 2.4 GHz-1 MB Dual-core PC2700 Processor Option Kit
NOTE: This Opteron 880 2.4 GHz Dual-core PC2700 processor Option kit (PN 397843-B21) comes standard with the 011974-503 processor/memory board.
397843-B21
AMD Opteron 875 2.2 GHz-1 MB Dual-core PC3200 Processor Option Kit
NOTE: This Opteron 875 2.2 GHz Dual-core PC3200 processor Option kit (PN 383393-B21) comes standard with the 012567-501 processor/memory board.
383393-B21
AMD Opteron 875 2.2 GHz-1 MB Dual-core PC2700 Processor Option Kit
NOTE: This Opteron 875 2.2 GHz Dual-core PC2700 processor Option kit (PN 383391-B21) comes standard with the 011974-503 processor/memory board.
383391-B21
AMD Opteron 865 1.8 GHz-1 MB Dual-core PC3200 Processor Option Kit
NOTE: This Opteron 865 1.8 GHz Dual-core PC3200 processor Option kit (PN 383392-B21) comes standard with the 012567-501 processor/memory board.
383392-B21
AMD Opteron 865 1.8 GHz-1 MB Dual-core PC2700 Processor Option Kit
NOTE: This Opteron 865 1.8 GHz Dual-core PC2700 processor Option kit (PN 383390-B21) comes standard with the 011974-503 processor/memory board.
383390-B21
AMD Opteron 854 2.8 GHz-1 MB PC3200 processor Option Kit
NOTE: This Opteron 854 2.8 GHz PC3200 processor Option kit (PN 397821-B21) comes standard with the 012567-501 processor/memory board.
397821-B21
AMD Opteron 854 2.8 GHz-1 MB PC2700 processor Option Kit
NOTE: This Opteron 854 2.8 GHz PC2700 processor Option kit (PN 397820-B21) comes standard with the 011974-503 processor/memory board.
397820-B21
AMD Opteron 852 2.6 GHz-1 MB PC3200 Processor Option Kit
NOTE: This Opteron 852 2.6 GHz PC3200 processor Option kit (PN 381477-B21) comes standard with the 012567-501 processor/memory board.
381477-B21
AMD Opteron 852 2.6 GHz-1 MB PC2700 Processor Option Kit
NOTE: This Opteron 852 2.6 GHz PC2700 processor Option kit (PN 381476-B21) comes standard with the 011974-503 processor/memory board.
381476-B21
AMD Opteron 850 2.4 GHz-1 MB Processor Option Kit
NOTE: This Opteron 850 2.4 GHz processor Option kit (PN 366725-B21) comes standard with the 011974-503 processor/memory board.
366725-B21
AMD Opteron 848 2.2 GHz-1 MB Processor Option Kit
NOTE: This Opteron 848 2.2 GHz processor Option kit (PN 359708-B21) comes standard with the 011974-503 processor/memory board.
359708-B21
AMD Opteron 844 1.8 GHz-1 MB Processor Option Kit
NOTE: This Opteron 844 1.8 GHz processor Option kit (PN 359707-B21) comes standard with the 011974-503 processor/memory board.
359707-B21
NOTE: Must order two kits to expand the system from 2 to 4 processors

ProLiant Essentials
Value Pack Software
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack - Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

436225-B21

NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12062_div/12062_div.html
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
436229-B21
NOTE: For additional ProLiant Intelligent Networking Pack - Linux License Kits please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12327_div/12327_div.html

ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at http://www.hp.com/products/pmp.

306696-B21

NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11925_div/11925_div.html
ProLiant Essentials Rapid Deployment Pack Windows Edition Release
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-B21

Rapid Deployment Pack, Single-Server License (Japan)
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-291

ProLiant Essentials Rapid Deployment Pack - Physical Media Kit
434559-B21
ProLiant Essentials Rapid Deployment Pack Flatpack - single-server license
434560-B21
NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
303284-B21
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11452_div/11452_div.html
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

435661-B21

ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
435663-B21
NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.html
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12111_div/12111_div.html
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Remote Management Integrated Lights-Out Advanced Pack
Integrated Lights-Out Advanced Pack, 1 server
Featuring: Sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites.
263825-B21
NOTE: For additional Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11052_div/11052_div.html

Processor AMD Opteron 885 2.6 GHz-1 MB Dual-core PC2700 Processor Option Kit
NOTE: This Opteron 885 2.6 GHz Dual-core PC2700 processor Option kit (PN 407660-B21) comes standard with the 011974-503 processor/memory board.
407660-B21
AMD Opteron 885 2.6 GHz-1 MB Dual-core PC3200 Processor Option Kit
NOTE: This Opteron 885 2.6 GHz Dual-core PC3200 processor Option kit (PN 407661-B21) comes standard with the 012567-501 processor/memory board.
407661-B21

AMD Opteron 880 2.4 GHz-1 MB Dual-core PC3200 Processor Option Kit
NOTE: This Opteron 880 2.4 GHz Dual-core PC3200 processor Option kit (PN 397844-B21) comes standard with the 012567-501 processor/memory board.
397844-B21
AMD Opteron 880 2.4 GHz-1 MB Dual-core PC2700 Processor Option Kit
NOTE: This Opteron 880 2.4 GHz Dual-core PC2700 processor Option kit (PN 397843-B21) comes standard with the 011974-503 processor/memory board.
397843-B21
AMD Opteron 875 2.2 GHz-1 MB Dual-core PC3200 Processor Option Kit
NOTE: This Opteron 875 2.2 GHz Dual-core PC3200 processor Option kit (PN 383393-B21) comes standard with the 012567-501 processor/memory board.
383393-B21
AMD Opteron 875 2.2 GHz-1 MB Dual-core PC2700 Processor Option Kit
NOTE: This Opteron 875 2.2 GHz Dual-core PC2700 processor Option kit (PN 383391-B21) comes standard with the 011974-503 processor/memory board.
383391-B21

AMD Opteron 865 1.8 GHz-1 MB Dual-core PC3200 Processor Option Kit
NOTE: This Opteron 865 1.8 GHz Dual-core PC3200 processor Option kit (PN 383392-B21) comes standard with the 012567-501 processor/memory board.
383392-B21
AMD Opteron 865 1.8 GHz-1 MB Dual-core PC2700 Processor Option Kit
NOTE: This Opteron 865 1.8 GHz Dual-core PC2700 processor Option kit (PN 383390-B21) comes standard with the 011974-503 processor/memory board.
383390-B21
AMD Opteron 854 2.8 GHz-1 MB PC3200 processor Option Kit
NOTE: This Opteron 854 2.8 GHz PC3200 processor Option kit (PN 397821-B21) comes standard with the 012567-501 processor/memory board.
397821-B21
AMD Opteron 854 2.8 GHz-1 MB PC2700 processor Option Kit
NOTE: This Opteron 854 2.8 GHz PC2700 processor Option kit (PN 397820-B21) comes standard with the 011974-503 processor/memory board.
397820-B21
AMD Opteron 852 2.6 GHz-1 MB PC3200 Processor Option Kit
NOTE: This Opteron 852 2.6 GHz PC3200 processor Option kit (PN 381477-B21) comes standard with the 012567-501 processor/memory board.
381477-B21
AMD Opteron 852 2.6 GHz-1 MB PC2700 Processor Option Kit
NOTE: This Opteron 852 2.6 GHz PC2700 processor Option kit (PN 381476-B21) comes standard with the 011974-503 processor/memory board.
381476-B21
AMD Opteron 850 2.4 GHz-1 MB Processor Option Kit
NOTE: This Opteron 850 2.4 GHz processor Option kit (PN 366725-B21) comes standard with the 011974-503 processor/memory board.
366725-B21
AMD Opteron 848 2.2 GHz-1 MB Processor Option Kit
NOTE: This Opteron 848 2.2 GHz processor Option kit (PN 359708-B21) comes standard with the 011974-503 processor/memory board.
359708-B21
NOTE: Must order two kits to expand the system from 2 to 4 processors

Memory (DIMMs)

1 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 512 MB) 300679-B21
2 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 1 GB) 300680-B21
4 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 2 GB) 300682-B21
1 GB of PC2700 DDR SDRAM DIMM Memory (2 x 512 MB) 371047-B21
2 GB of PC2700 DDR SDRAM DIMM Memory (2 x 1 GB) 371048-B21
4 GB of PC2700 DDR SDRAM DIMM Memory (2 x 2 GB) 371049-B21
2 GB of PC3200 DDR SDRAM DIMM Memory (2 x 1 GB) 376639-B21
4 GB of PC3200 DDR SDRAM DIMM Memory (2 x 2 GB) 379300-B21
8 GB of PC2700 DDR SDRAM DIMM Memory (2 x 4 GB) 395409-B21
NOTE: The PC2700 DDR SDRAM DIMM Memory Kits are supported by the 2.4 GHz and faster models only.
NOTE: For max memory PC2700 performance (333 MHz), -002 or greater processor boards must be used in conjunction with no more than 6 PC2700 DIMMs per processor board.

Optical Drives Slimline CD-RW/DVD-ROM Combo Drive Option Kit
331903-B21
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers) 264007-B21
HP DVD±R/RW 8X Slim 383975-B21

SAS Drive Cage 8-Bay SAS/SATA Cage Option Kit
NOTE: The SAS/SATA Cage must be used in conjunction with a SAS/SATA Controller such as the Smart Array P600/256 BBWC Controller to upgrade all U320 models to SAS.
379090-B21

Hard Drives Ultra320 - Universal Hot Plug
HP 300GB U320 10K Universal HDD
350964-B22
HP 146GB U320 10K Universal HDD
286716-B22
HP 72GB U320 10K Universal HDD
286714-B22
HP 300GB U320 15K Universal HDD
411089-B22
HP 146GB U320 15K Universal HDD
347708-B22
HP 72GB U320 15K Universal HDD
286778-B22
HP 36GB U320 15K Universal HDD
286776-B22
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.html (Worldwide)
SFF SATA Hard Disk Drives - Hot Plug
HP 60GB 1.5G SATA 5.4K SFF HDD
379306-B21
NOTE: SATA drives have a 1 year warranty. Please see the SATA Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12091_div/12091_div.html (Worldwide)

SFF SAS Hard Disk Drives - Hot Plug
HP 36GB 3G SAS 10K SFF SP HDD
375859-B21
HP 36GB 3G SAS 15K SFF SP HDD
431933-B21
HP 72GB 3G SAS 10K SFF SP HDD
375861-B21
HP 72GB 3G SAS 15K SFF SP HDD
431935-B21
HP 146GB 3G SAS 10K SFF SP HDD
431958-B21
NOTE: Please see the SFF SAS Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)


Storage Controllers SCSI Controllers
Smart Array 6402/128 Controller
273915-B21
Smart Array 6404/256 Controller 273914-B21
Smart Array 641 Controller
291966-B21
Smart Array 642 Controller
NOTE: The Smart Array 641 and 642 Controller must be placed in the 100MHz slots only.
291967-B21
128-MB BBWC (Battery-Backed Write Cache) Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
351580-B21
DL585 Cable Assembly, SCSI, Ultra3, LVDS
NOTE: All DL585 models ship standard with the integrated Smart Array 5i Plus Controller, which has been designed to deliver maximum performance and availability across the internal SCSI Duplex backplane.
365483-B21
  • The Ultra3 SCSI cable is required only if the customer chooses to bypass the Smart Array 5i Plus Controller and connect slot-based SCSI adapters or RAID controllers to the internal SCSI Duplex backplane.
  • Two cables are required to maintain the standard, duplexed configuration of the backplane.
  • One cable is required if the simplex configuration is chosen.
  • The backplane is easily configured to simplex mode by means of a simple switch duplex to simplex) located on the top of the backplane itself.

Ultra320 Expansion Module for SA-6402
273911-B21
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
374654-B21
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11587_div/11587_div.html
(Smart Array 6400 Series)
http://h18000.www1.hp.com/products/quickspecs/12067_div/12067_div.html
(Smart Array 641)
http://h18000.www1.hp.com/products/quickspecs/12069_div/12069_div.html
(Smart Array 642)
http://h18000.www1.hp.com/products/quickspecs/11943_div/11943_div.html
(Single Channel U320 SCSI G2 HBA)

SAS Controller
Smart Array P600 Controller
HP Smart Array P600/256 BBWC Controller
NOTE: The Smart Array P600 Controller supports internal and external Serial Attached SCSI and Serial ATA drives. It is supported in all HP ProLiant DL585 Models.
NOTE: Internal usage of the Smart Array P600 Controller requires the 8-Bay SAS/SATA Drive Cage Option Kit.
337972-B21
512 MB DDR BBWC Upgrade
NOTE: For Smart Array P600 Controller only.
372538-B21
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12247_div/12247_div.html
(Smart P600 Controller)
SAS HBA
HP 8 Internal Port SAS HBA with RAID
347786-B21

NOTE: Please see the following QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/12332_div/12332_div.html
(SAS HBA)



Communications

HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
367132-B21
HP NC310F PCI-X 1000SX Gigabit Server Adapter
368169-B21
HP NC340T PCI-X 4-port 1000T Gigabit Server Adapter
391661-B21
HP NC370T PCI-X Multifunction 1000T Gigabit Server Adapter
374191-B22
HP NC1020 PCI 1000T Gigabit Server Adapter
353377-B21
HP NC7771 PCI-X 1000T Gigabit Server Adapter
290563-B21

Tape Drives
NOTE: For a complete listing of HP Tape Drive offerings supported with this HP ProLiant server, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE: The following tape drives are recommended for use with this HP ProLiant server.

USB Tape Drives
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)
NOTE: HP recommends combining this tape drive with the 1U USB Rack-Mount kit (A8007A) for a complete rack-mount solution.
DW026A
Ultrium Tape Drives

HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
NOTE: HP recommends combining this tape drive with the 1U SCSI Rack-Mount kit (A7445B) for a complete rack-mount solution.

DW064A
HP StorageWorks 3U SCSI Rack-mount kit with one Ultrium 460 (Carbon) 350546-B22
HP StorageWorks 1U SCSI Rack-mount kit with one Ultrium 448 SCSI Tape Drive (Carbonite) DW028B
HP StorageWorks 1U SCSI Rack-mount kit with one Ultrium 920 EH903A
HP StorageWorks 3U SCSI Rack-mount kit with one Ultrium 960 (Carbonite) Q1595B
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html (Worldwide)
http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html (Worldwide)

For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect

Rack-Mount Tape Drive Enclosures

HP StorageWorks 1U SCSI Rack-Mount kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232, Ultrium 448 and Ultrium 920 tape drives.
A7445B
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 24 USB, DAT 40 USB and DAT 72 USB tape drives.
A8007A
HP StorageWorks 3U Rack-mount kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600, Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920 and Ultrium 960 tape drives.
274338-B22
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html
(Worldwide)

Tape Autoloaders
HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloader AE313A
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 920 G2 Tape Autoloader AH165A
HP StorageWorks 1/8 Ultrium 448 G2 Tape Autoloader AH164A
HP StorageWorks 1/8 Ultrium 232 G2 Tape Autoloader AH163A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions
AH166A
NOTE: Required to install the 1/8 tape autoloader in a standard 19-inch rack
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs


Tape Libraries HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library AG115A
HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Drive Library AG326B
HP StorageWorks MSL2024 1 Ultrium 920 Drive Library AH169A
HP StorageWorks MSL2024 2 Ultrium 920 Drive Library AH170A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library AG117A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library AG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library AG321A
HP StorageWorks MSL4048 1 Ultrium 920 Drive Library AH171A
HP StorageWorks MSL4048 2 Ultrium 920 Drive Library AH172A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library AG322A
HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Drive Library AG324B
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library AG323A
HP StorageWorks MSL4048 2 Ultrium 960 4GB FC Drive Library AG325B
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library AD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library AD599B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601B
NOTE: Please reference the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs.

HP Data Protector Express SoftwareHP DP Express Backup Server Upgrade for ProLiant Software
BB117AP
HP DP Express Package for Microsoft Small Business ServerBB118AA
NOTE: Please see the HP Data Protector Express QuickSpecs for additional information regarding the purchase of HP Data Protector Express software:
http://h18000.www1.hp.com/products/quickspecs/12337_div/12337_div.html
(Worldwide)

NOTE: To obtain a free licensed copy of HP Data Protector Express for ProLiant edition software, please visit the "Protect Your Data" link accessible from your ProLiant server's System Management Homepage (SMH) software (SmartStart 7.5 or later).


Cluster Options

ProLiant Cluster Starter Kit 364023-B22
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11935_div/11935_div.html (Worldwide)

HP HA/F200 for Entry SAN Cluster 364026-B22
NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11932_div/11932_div.html (Worldwide)


ProLiant Cluster HA/F500 for the Enterprise SAN 364024-B21
HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (2 node license cluster kit) 305199-B26
HP Serviceguard for Linux A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (single license version) 307754-B26
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription T2798AA#003
NOTE: For additional information regarding HP Serviceguard for Linux, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html (Worldwide)


StorageWorks
Options

NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

HP StorageWorks FC2142SR 4Gb PCI-e HBA A8002A
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBA A8003A
HP StorageWorks FC1142SR 4Gb PCI-e HBA AE311A
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA AE312A
HP StorageWorks FC2143 4Gb PCI-X 2.0 -to-Fibre Channel HBA AD167A
HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA AD168A
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA AB429A
HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA AE369A

HP StorageWorks Modular Smart Array 20HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
335921-B21
HP StorageWorks Modular Smart Array 20 Starter Kit
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.
366172-B21
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5" Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 30 HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 50

HP StorageWorks Modular Smart Array 50 Enclosure
364430-B21
NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html
(Worldwide)


HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2
NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.html
(Worldwide)
335880-B21

HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.html (Worldwide)

HP StorageWorks Modular Smart Array 1500 cs

Modular Smart Array 1500 Controller Shelf

AA986A

NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at: http://www.hp.com/go/MSA1500cs

Uninterruptible Power Systems – Rack

HP, R1.5kVA UPS, 1U, NA
AF419A
HP, R1.5kVA UPS, 1U, INTL
AF418A
HP, R1.5kVA UPS, 1U, JPN/TW
AF421A
HP R3000 VA UPS, 2U, DTC, INTL
NOTE: Replaces non-RoHs compliant part numbers 192186-B31, 192186-B32, 192186-B33, 192186-AR1.
AF414A
HP R3000 VA UPS, 2U, L5-30, NA
NOTE: Replaces non-RoHs compliant part number 192186-001.
AF422A
HP R3000 VA UPS, 2U, L6-20, NA
NOTE: Replaces non-RoHs compliant part number 192186-002.
AF423A
HP R3000 VA UPS, 2U, L6-20, JPN
NOTE: Replaces non-RoHs compliant part number 192186-292.
AF424A
HP R3000 VA UPS, 2U, L5-30, JPN
NOTE: Replaces non-RoHs compliant part number 192186-291.
AF425A
HP R5500 VA UPS, INTL
NOTE: Replaces non-RoHs compliant part number 326529-B31.
AF416A
HP R5500 VA UPS, NA/JPN
NOTE: Replaces non-RoHs compliant part number 326529-D71.
AF426A

HP Monitored Power Distribution Unit (PDU) HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3U, 24A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 370959-D71.
AF503A
HP 8.3 kVA S1324 Monitored PDU- single input, 3U, 24A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 370960-D71.
AF504A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1U, 40A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 37061-D71.
AF505A
HP 8.6 S1140 Monitored PDU- single input, 1U, 40A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 370962-D71.
AF506A
HP 22.1 kVA S2316 Monitored PDU- dual input, 3U, 16A (INTL)
NOTE: Replaces non-RoHs compliant part number 370963-B31.
AF507A
HP 11 kVA S1316 Monitored PDU- single input, 3U, 16A (INTL)
NOTE: Replaces non-RoHs compliant part number 370964-B31.
AF508A
HP 14.7 kVA S2132 Monitored PDU- dual input, 1U, 32A (INTL)
NOTE: Replaces non-RoHs compliant part number 370965-B31.
AF509A
HP 7.3kVA S1132 Monitored PDU- single input, 1U, 32A (INTL)
NOTE: Replaces non-RoHs compliant part number 370966-B31.
AF510A
HP Monitored Power Distribution Unit: Half Rack Version
HP 17.3 kVA S348 Monitored PDU- single input, 3-phase, 60A (NA/JPN)
AF916A
HP 22 kVA S332 Monitored PDU- single input, 3-phase, 32A (INTL)
AF917A
HP 4.9kVA S124 Monitored PDU- single input, 1U, 24A (NA/JPN)
AF914A
HP 7.3kVA S132 Monitored PDU- single input, 1U, 32A (INTL)
NOTE: Replaces non-RoHs compliant part number 370966-B31.
AF915A

Modular Power Distribution Units 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).

3.6kVA Model - mPDU, 16A, High (WW)
252663-B24
2.8 kVA Model - mPDU, 24A, Low (NA/JPN)
252663-D71
4.9kVA Model - mPDU, 24A, High (NA/JPN)
252663-D72
7.3kVA Model - mPDU, 32A, High (INT'L)
252663-B31
8.3kVA Model - mPDU, 40A, High (WW)
252663-B21
8.3kVA Model - mPDU, 40A, High (power cord attached) (NA/JPN)
252663-D73
9.2kVA Model - mPDU, 40A, High (power cord attached) (INTL)
252663-B32
8.3kVA Model - mPDU 40A, High (core only) (NA/JPN)
252663-D75
9.2kVA Model - mPDU 40 A, High (core only) (Int'l)
252663-B34
8.3kVA Model - mPDU 32A, High (core only) (Int'l)
252663-B33
4.9kVA Model - mPDU 24A, High (core only) (NA/JPN)
252663-D74
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html (Worldwide)

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B
HP USB 04 Standard Keyboard DT528A#xxx
USB 2.0 4-port HUB DG954A
HP 1GB Drive Key II- USB 2.0 Flash Drive AG382AA
HP 512MB DriveKey II- USB Flash Drive ED516AA

Third Party Rack Kit 3rd Party Rack Kit (ALL)
NOTE: The rack kit (PN 287528-B21) provides support for any rack, square hole or round hole, (including HP Rack System /E and HP Systems), with an adjustment range from 23 ½" - 34" deep.
NOTE: The Third party rack kit is required for round hole racks or for square hole racks that do not conform to the adjustment range of the standard rail that ships with the server.
287528-B21

HP Rack 5000 Series (Graphite Metallic) HP 5642 Rack-Unassembled
358254-B21
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.



HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet - Pallet
AF001A
10642 G2 (42U) Rack Cabinet - Shock Pallet
AF002A
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
AF004A
10636 G2 (36U) Rack Cabinet - Pallet
AF011A
10636 G2 (36U) Rack Cabinet - Shock Pallet
AF012A
10636 G2 (36U) Rack Cabinet - Crated
AF013A
10636 G2 (36U) Rack Cabinet , with Extension - Shock Pallet
AF014A
10622 G2 (22U) Rack Cabinet - Pallet
AF021A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)

Rack, HP Infrastructure 42U (HV)
379005-001
Rack, HP Infrastructure 42U (LV)
379006-001
HP Rack S10614 (14U) Rack Cabinet – Shock Pallet
292302-B22

HP Rack 10842 (42U, 800mm wide) – Pallet

257415-B21

HP Rack 10842 (42U, 800mm wide) – Shock Pallet

257415-B22

HP Rack 10647 (47U) – Pallet

245160-B21

HP Rack 10647 (47U) – Crated

245160-B23

HP Rack 10622 (22U) – Pallet

245163-B21

HP Rack 10622 (22U) – Shock Pallet

245163-B22

HP Rack 10622 (22U) – Crated

245163-B23

NOTE: xxxxxx-B21 (pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels).
xxxxxx-B23 (crated) used for air shipments of empty racks.



NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed.



NOTE: Please see the Rack 10000 QuickSpecs for additional options and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.html (Worldwide)
NOTE:
For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.




Keyboards and Monitors

TFT7210R Rack Mounted 17" Monitor
348373-B21
TFT7600 Rackmount Keyboard Monitor US
AG052A
TFT7600 Rackmount Keyboard Monitor UK

AG053A

TFT7600 Rackmount Keyboard Monitor GR

AG054A

TFT7600 Rackmount Keyboard Monitor FR

AG055A

TFT7600 Rackmount Keyboard Monitor IT

AG056A

TFT7600 Rackmount Keyboard Monitor SP
AG057A
TFT7600 Rackmount Keyboard Monitor DEN
AG058A
TFT7600 Rackmount Keyboard Monitor NOR
AG059A
TFT7600 Rackmount Keyboard Monitor SE/FI
AG060A
TFT7600 Rackmount Keyboard Monitor SWI
AG061A
TFT7600 Rackmount Keyboard Monitor PORT
AG062A
TFT7600 Rackmount Keyboard Monitor BEL
AG063A
TFT7600 Rackmount Keyboard Monitor JPN2
AG064A
TFT7600 Rackmount Keyboard Monitor RUS
AG065A
TFT7600 Rackmount Keyboard Monitor INTL
AG066A
1U Rackmount Keyboard with USB, US
AG072A
1U Rackmount Keyboard with USB, UK
AG073A
1U Rackmount Keyboard with USB, GR
AG074A
1U Rackmount Keyboard with USB, FR
AG075A
1U Rackmount Keyboard with USB, ITL
AG076A
1U Rackmount Keyboard with USB, SP
AG077A
1U Rackmount Keyboard with USB, DEN
AG078A
1U Rackmount Keyboard with USB, NOR
AG079A
1U Rackmount Keyboard with USB, SE/FI
AG080A
1U Rackmount Keyboard with USB, SWI
AG081A
1U Rackmount Keyboard with USB, PORT
AG082A
1U Rackmount Keyboard with USB, BEL
AG083A
1U Rackmount Keyboard with USB, JPN2
AG084A
1U Rackmount Keyboard with USB, RUS
AG085A
1U Rackmount Keyboard with USB, INTL
AG086A
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower.

HP KVM Switch Options 2x1x16 IP Console Switch with Virtual Media
AF601A
4x1x16 IP Console Switch with Virtual Media
AF602A
2x16 Server Console Switch with Virtual Media
AF600A
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
AF604A
Server Console Switch (KVM), 0 x 1 x 8 port
336044-B21
Server Console Switch (KVM), 0 x 2 x 16 port
336045-B21
PS/2 Interface Adapter, 1 pack
262588-B21
PS/2 Interface Adapter, 8 pack
262587-B21
USB Interface Adapter, 1 pack
336047-B21
Serial Interface adapter - 1 Pack with power supply
373035-B21
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x 4 Server Console Switch (ALL)
AF611A
PS2 Server Console Cable, 6 ft, 2 pack
AF612A
USB Server Console Cable, 6 ft, 2 pack
AF613A
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

HP Serial Console Server OptionsHP 16 Port Serial Console Server (worldwide)
AF101A
HP 48 Port Serial Console Server (worldwide)
AF102A
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
AF103A
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4607E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4608E
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4609E
Installation & Start-up Services
Hardware Installation, Electronic
U4617E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4618E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4619E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4620E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6316E
Onsite HW support 24x7, 4hr response and Red Hat AS Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U9239E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models (North America only)      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models."
HP ProLiant DL585 2P Models

Standard Memory
4 GB PC3200 Double Data Rate (DDR) SDRAM (Registered SDRAM) memory running at 400 MHz or
2 GB PC2100 Double Data Rate (DDR) SDRAM (Registered SDRAM) memory running at 266 MHz or
2 GB PC2700 Double Data Rate (DDR) SDRAM (Registered SDRAM) memory running at 333 MHz with Advanced ECC

Rules:

  • Must install a minimum of 2 DIMMs in the processor memory board in slot 2
  • DIMMs on a processor memory board must be installed in pairs and in bank order
  • All DIMMs on a processor memory board must be of the same size (512 MB, 1 GB, or 2 GB)
  • Each processor memory board can have different amounts of memory, ex. Processor memory board 2 = (4) 1 GB, Processor memory board 1 = (2) 512 MB, Processor memory board 4 = no memory
  • PC2700 memory support requires -002 or greater processor boards
  • 333 MHz memory performance requires no more than 6 PC2700 DIMMs per processor board; any more will result in the memory slowing down to 266 MHz
  • PC3200 memory, running at 400 MHz will be supported on a PC3200-only processor board (012567-001) with 4 DIMM slots, resulting in a system max of 32 GB with 4 processors

The following memory options are available from HP:
  • 1 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
300679-B21
  • 2 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
300680-B21
  • 4 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
300682-B21
  • 1 GB of PC2700 DDR SDRAM DIMM Memory (2 x 512 MB)
371047-B21
  • 2 GB of PC2700 DDR SDRAM DIMM Memory (2 x 1 GB)
371048-B21
  • 4 GB of PC2700 DDR SDRAM DIMM Memory (2 x 2 GB)
371049-B21
  • 2 GB of PC3200 DDR SDRAM DIMM Memory (2 x 1 GB)
376639-B21
  • 4 GB of PC3200 DDR SDRAM DIMM Memory (2 x 2 GB)
379300-B21
  • 8 GB of PC2700 DDR SDRAM DIMM Memory (2 x 4 GB)
395409-B21

Standard Memory Configuration
Total Memory = 2 GB


1

2

3

4

5

6

7
8
Board 1
512 MB
512 MB
Empty
Empty
Empty
Empty
Empty
Empty
Board 2
512 MB
512 MB
Empty
Empty
Empty
Empty
Empty
Empty
Board 3 (optional) Not installed _ _ _ _ _ _ _
Board 4 (optional) Not installed _ _ _ _ _ _ _

Examples of other optional configurations include, but are not limited to:
Example #1: Optional Memory Configuration
Standard Memory plus Optional Processor Memory Boards and Processors
Total Memory = 32 GB


1

2

3

4

5

6

7
8
Board 1
512 MB
512 MB
512 MB
512 MB
512 MB
512 MB
512 MB
512 MB
Board 2
512 MB
512 MB
512 MB
512 MB
512 MB
512 MB
512 MB
512 MB
Board 3 (optional) 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
Board 4 (optional) 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB 1 GB
Example #2: Optional Memory Configuration
Standard Memory plus Optional Processor Memory Boards and Processors
Total Memory = 8 GB


1

2

3

4

5

6

7
8
Board 1 512 MB 512 MB 512 MB 512 MB Empty Empty Empty Empty
Board 2 512 MB 512 MB 512 MB 512 MB Empty Empty Empty Empty
Board 3 (optional) 512 MB 512 MB 512 MB 512 MB Empty Empty Empty Empty
Board 4 (optional) 512 MB 512 MB 512 MB 512 MB Empty Empty Empty Empty
Example #3: Maximum Memory Configuration
Maximum Memory (Standard replaced with Optional Memory and Optional Memory Board)
Total Memory = 64 GB


1

2

3

4

5

6

7
8
Board 1 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
Board 2 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
Board 3 (optional) 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
Board 4 (optional) 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models (North America only)      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Storage

A

Diskette Drive eject button

B

Ejectable: 1.44 MB Diskette Drive (Slimline)
C Ejectable: 24x IDE CD-ROM (Slimline)
D CD-ROM Drive eject button
E 870 Watt (low line or high line) Redundant Hot Plug Power Supply
F 870 Watt (low line or high line) Primary Hot Plug Power Supply
0-3 Wide Ultra3 Drive Cage (Duplex or Simplex configurable). Duplex is standard shipping configuration
1-8 SFF SAS Internal Drive cage



Drive Support



Quantity
Supported

Position
Supported


Controller



Ejectable Slimline Drives



  1.44-MB slimline Diskette Drive Up to 1 B

Integrated
  IDE slimline CD-ROM Drive Up to 1 C Integrated IDE
  Slimline DVD-ROM Drive (8X/24X) Option Kit Up to 1 B or C Integrated IDE

Hard Drives

 Ultra320 Hot Pluggable Drives


Quantity
Supported

Position
Supported


Controller

  300GB U320 10K
146GB U320 10K
72GB U320 10K
300GB U320 15K
146GB U320 15K
72GB U320 15K
36GB U320 15K
Up to 40-3Smart Array 5i Plus Controller (integrated on system board)
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller
 NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.

 SATA - Hot Plug Drives


Quantity
Supported

Position
Supported


Controller

  60GB 1.5G SATA 5.4K
81, 2, 7, 5, 3, 8, 6, 4 (should be populated in this order) HP Smart Array P600/256 BBWC Controller

 SFF SAS - Hot Plug Drives


Quantity
Supported

Position
Supported


Controller

  146GB 3G SAS 10K SP
72GB 3G SAS 10K SP
72GB 3G SAS 15K SP 36GB 3G SAS 10K SP
36GB 3G SAS 15K SP
8 1, 2, 7, 5, 3, 8, 6, 4 (should be populated in this order) HP Smart Array P600/256 BBWC Controller

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter

  Modular Smart Array 20 Family
1 per SCSI VHDCI connector External Smart Array 6402/128 Controller
Smart Array 6404/256 Controller


Modular Smart Array 30 Family

Up to 13

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
  Modular Smart Array 50 Enclosure 2 per connector (supports 1+1 cascading) External HP Smart Array P600/256 BBWC Controller
  Modular Smart Array 1000 Please see the Modular Smart Array 1000 QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1500 cs Please see the Modular Smart Array 1500 cs QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1500 cs QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1000:
http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.html
(Worldwide)
Modular Smart Array 1500 cs: http://www.hp.com/go/MSA1500cs

Maximum Storage Capacity – (External Enclosure Attached)



Internal

1.20TB (4 x 300GB Ultra320 SCSI Drives)
 External84.0TB (20 x (14 x 300GB Ultra320 SCSI Drives))
  Total85.2TB

Tape Drives, Tape Autoloaders, and Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10233.html (Worldwide)

NOTE:
For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10809.html (Worldwide)

NOTE: For complete listing of tape drive offerings see: http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:



Position
Supported

Controller

Part Number

HP StorageWorks Tape Drives, External
DAT 24 USB
DAT 40 USB
DAT 72 USB
External
USB 2.0 Port
N/A


HP StorageWorks Tape Drives, External
Ultrium 232
Ultrium 448
Ultrium 460
Ultrium 920
Ultrium 960
DAT 40
DAT 72
DLT VS160
SDLT 600
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
374654-B21


HP StorageWorks Autoloaders, External
DAT 72x10 Autoloader
1/8 G2 Tape Autoloader
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
374654-B21


HP StorageWorks SCSI Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
374654-B21


HP StorageWorks USB Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
External
USB 2.0 Port
N/A


HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 448, Ultrium 920 and 960-based)
MSL4048 (Ultrium 448, Ultrium 920 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
External
Please consult the EBS connectivity matrix at http://www.hp.com/go/ebs for detailed connectivity information.
N/A
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models (North America only)      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Power Specifications

Part Number

384413-001 (870W)
Spare Kit 192201-002 (870W)
Operational Input Voltage Range (Vrms) 90 to 264
Frequency Range (Nominal) (Hz) 47 to 63 (50/60)





System Specifications

DL585 Fully Configured

  4 processors, 32 memory modules, 4 hard drives, 8 PCI-X expansion cards, 8 hot plug fans, and 2 hot plug power supplies.
Power Supply Specification
Part number
192147-001

Spare Kit
278535-B21
Operational Input Voltage Range ( Vrms )
90 - 264
Frequency Range (Nominal) ( Hz )
47 - 63 ( 50 / 60 )
Nominal Input Voltage ( Vrms )
100
115
208
220
230
240
Max Rated Output Wattage Rating
870
870
870
870
870
870
Nominal Input Current ( A rms )
12.0
10.4
5.7
5.3
5.1
4.9
Max Rated Input Wattage Rating ( Watts )
1192
1184
1160
1145
1145
1145
Max. Rated VA (Volt-Amp)
1204
1196
1184
1168
1168
1168
Efficiency ( % )
73
73.5
75
76
76
76
Power Factor
0.99
0.98
Leakage Current ( mA )
0.43
0.50
0.90
0.96
1.00
1.04
Max. Inrush Current (A peak )
25
25
25
25
25
25
Max. Inrush Current duration ( mS )
3
System Specifications
DL585 Fully Configured
Processor
Memory
HDD
PCI
PS

4
32
4
8
2
Nominal Input Voltage ( Vrms )
100
115
208
220
230

Fully Loaded System Input Wattage (W)
1135
1096
1059
1055
1050

Fully Loaded System Input Current ( A rms )
11.4
9.6
5.2
4.9
4.7

Fully Loaded System Thermal ( BTU-Hr )
3870
3736
3611
3596
3582

Fully Loaded System VA ( Volt-Amp )
1141
1101
1080
1076
1072

System Leakage with all power supplies loaded (mA)
0.87
1.00
1.81
1.91
2.00

System Inrush Current with all power supplies loaded (A)
50
50
50
50
50

Power cord requirements
Nema 5-15P to IEC320-C19
Option no. 235603-001 / Spare no: 237457-001
PDU Jumper Cord IEC320-C19 to IEC320-C20
Option no 295633-B21. / Spare no.: 295508-001

*NOTE: - To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at url:
http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls
To drill down to calculators:
- Click on: “ProLiant Servers”
- Click on the Server of interest. Example: DL585
- Click on: “Power Calculator” link. (You may need to scroll down to see it)


Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Fully Loaded System Input Wattage (W)
954
928
890
890
890
879
Fully Loaded System Input Current (A rms)
10
8.5
4.4
4.1
4.0
3.7
Fully Loaded System Thermal (BTU- Hr)
3253
3163
3063
3063
3063
2996

Fully Loaded System VA (Volt-Amp)

1004
976
909
909
909
897

System Leakage with all power supplies loaded (mA)

.87
1.00
1.81
1.91
2.00
2.09

System Inrush Current with all power supplies loaded (A)

50
50
50
50
50
50

Power cord requirements

Nema 5-15P to IEC320-C19 Option no./Spare no: 235603-001/237457-001
PDU Jumper Cord IEC320-C19 to
IEC320-C20
Option no./Spare no: 295633-B21/295508-001
PDU Jumper Cord IEC320-C14 to
IEC320-C19
Option no./Spare no: 291034-001/292241-001

NOTES:
* To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/powercalcs.asp.

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL585
- Click on: "Power Calculator" link (You may need to scroll down to see it.)


Power Cords Power Cord Part Number
Country
US 295529-001
AUST 295529-011
EURO 295529-021
UK 295529-031
Japan 295529-291
contents
 Overview      Standard Features      Solutions      Models      Configuration Information - Factory Integrated Models (North America only)      Options      Memory      Storage      Power Specifications      Technical Specifications line.gif (50 bytes)

Technical Specifications

System Unit Rack

Chassis Footprint (HxWxD)

6.94 x 19 x 26.5 in (17.6 x 48.3 x 67.3 cm)

Weight
No hard drives installed,
one power supply

66 lb (29.9 kg)

Input Requirements

Rated Input Voltage 100 to 120 VAC/200 to 240 VAC
Rated Input Frequency 50 to 60 Hz
Input Power 1135W @ 110 VAC/1125W @ 220 VAC
Rated Input Current 12A (100 VAC), 9.8A (120 VAC), 4.9A (220 VAC)
Max BTU Rating 4070 BTU
Power Specifications

To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/powercalcs.asp.
To drill down to calculators:

  • Click on: "ProLiant Servers"
  • Click on the Server of interest. Example: DL585
  • Click on: "Power Calculator" link (You may need to scroll down to see it.)
Power Supply Output Power (per power supply) Rated Steady-State Power 800W/800W (lowline/highline)
Maximum Peak Power 800W/800W (lowline/highline)
Temperature Range Operating 50° to 95° F (10° to 35° C)
Non-operating -20° to 140° F (-29° to 60° C)
Shipping -22° to 122° F (-30° to 50° C)

Relative Humidity
(non-condensing)

Operating 10% to 70%
Non-operating 5% to 95%

Maximum Wet Bulb Temperature

101.7° F (38.7° C)
Acoustic Noise



NOTE: Listed are the declared A-weighted sound power levels LWAd and the declared average bystander position sound pressure levels LpAm when operating in a 23° C ambient environment. Noise emissions were measured in accordance with ECMA 74 and declared in accordance with ECMA 109.
Idle (Fixed Disk Drives Spinning)
  L WAd (BELS) 7.3
  L pAm (dBA) 55
Operating Minimum (Random Seeks to Fixed Disks)
  L WAd (BELS) 7.3
  L pAm (dBA) 55

NOTE: These values apply to 4U rack configuration with the Health Driver Fan Control active. Configuration tested included 2 AMD Opteron 2.2 GHz processors, 1 15 krpm hard drive, 2 power supplies, 4 memory/IO fans and 4 CPU fans.


24X Max (or higher) IDE CD-ROM Drive Slim Line

Disk Applicable Disk CD-DA, CD-ROM (Mode 1 and 2)
CD-XA, CD-I (Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
Capacity 540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Diameter 4.7 x 3.15 in (12 x 8 cm)
Rotational Speed 4200 rpm maximum
Center Hole 0.6 in/15 mm diameter
Thickness 1.2 mm
Track Pitch 1.6 µm
Block Size Mode 1 2,048
Mode 2 2,340, 2,336, 1,024 bytes
CD-DA 2,352 bytes
CD-XA 2,328 bytes
Interface IDE (ATAPI)
Access Times (typical) Random 100 ms
Full-Stroke 2000 ms
Audio Output Level Line-Out 0.7 Vrms at 47 kOhms
Headphone 0.6 Vrms at 32 kOhms (maximum volume)
Data Transfer Rate Sustained 150 KB/s (sustained 1X)
Burst 2100 to 3600 KB/s
Cache Buffer 128 KB
Start-up Time (typical) < 7seconds
Stop Time < 4seconds
Laser Parameters Type Semiconductor Laser GaA1As
Wave Length 780 ± 25 nm
Divergence Angle 53.5° ± 1.5°
Output Power 0.14 mW
Operating Conditions Temperature 41° to 113° F (5° to 45° C)
  Humidity 10% to 80%
Dimensions

(HxWxD, maximum)

1.69 x 5.75 x 8.19 in (4.29 x 15 x 20.8 cm)
  Weight 2.66 lb (1.2 kg)

Slimline CD-RW/DVD-ROM 24X Combo Drive (Multibay)

Shipping Dimensions13.88 x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm)

Shipping Weight

5 lb (2.27 kg)
Disk

Applicable Disk

DVD-ROM



DVD-R (Read Only)



2.6 GB/side DVD-RAM (Read Only)



5.2 GB/side DVD-RAM (Read Only)



CD-ROM Mode-1 data disc

  CD-ROM Mode-2 data disc
  CD Audio disc
  CD-Extra
  CD-RW
  CD-R
  CD Text
  PhotoCD
  CD-I (mode 2)
  CD-I Ready
  CD-Bridge


Capacity

DVD-ROM

DVD-SL4.7 GB/side
   DVD-DL8.5 GB/side
   Double Sided9.40 GB/side
  DVD-R 3.95 GB/side
  DVD-RAM 2.6 GB/side and 5.2 GB/
  CD-ROMMode-1650 MB (550 MB)
   Mode-2742 MB (640 MB)
 Block SizeDVD 2,048 bytes
  CD 2,352 (Mode-0)
    2352, 2340, 2336, 2048 bytes
(Mode-1)
    2352, 2340, 2336, 2048 bytes
(Mode-2)


Diameter

120 mm, 80 mm (with adapter at vertical mounting mode)

Loading Mechanism

Tray type



Interface

EIDE (ATAPI)



Access Times (typical)

Random

DVD-ROM < 120 ms, CD-ROM < 110 ms



Full-Stroke

DVD-ROM < 240 ms, CD-ROM < 160 ms

Audio Output Level (typical)

Line-out

CD 0.7 Vrms at 47 Kohms Load

Data Transfer Rate (sustained)

DVD-ROM

Single Layer

10.8 MB/sec. Max.
DVD-RAM2.77 MB/sec. Max


CD-ROM

7.2 MB/sec. Max.

Cache Buffer

2 MB



Spin-up Time (typical)

less than 10 seconds



MTBF

120,000 Power On Hours (POH)



Ambient Temperature

Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Operating

10% to 80%



Storage/Transportation

5% to 95%

Dimensions

(HxWxD, maximum)

0.5 x 5.04 x 5.1 in (12.7x128x129.4 mm)

Option Kit Contents DVD-ROM drive with installation guide, warranty card, registration card

Integrated Lights-Out Standard (integrated on system board) Architecture 32-bit PCI-based health and remote management ASIC (Application Specific Integrated Circuit)
Processor 32-bit RISC processor core running at 66 MHz
Upgradeability Option firmware upgradeable via flash ROM.
Video Support Utilizes the host server's embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256 colors)
Interfaces One Ethernet network connection (10/100 Mb/s)
Memory 2-MB Flash ROM
8-MB SDRAM
Operating System Support Windows 2000 Server
Windows 2000 Advanced Server
Red Hat 7.x
SuSE 7.0
Client Browser Support Microsoft Internet Explorer 5.5 or later.
iLO Standard Features Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for up to 12 user accounts with customizable access privileges
iLO Advanced Features (optional) Virtual Graphical Remote Console
Virtual Floppy Drive

Integrated Smart Array 5i Plus Controller

Data Compatible with all Smart Array Controllers Yes
Instant Upgrades to other Smart Array Controllers Yes
Consistent Software Manageability Tools Yes
PCI-X Bus 64-bit, 100 MHz (integrated on system board)
PCI-X Peak Data Transfer Rate 800 MB/s
SCSI Protocols Supported Ultra3, Ultra2
SCSI Peak Data Transfer Rate 160 MB/s per channel
NOTE: For ProLiant servers having TWO internal drive bays on separate SCSI ports: SCSI Peak Data Transfer Rate is 320 MB/s total; 160 MB/s per channel and Channels is 2.
Channels 2 (only one connected)
NOTE: For ProLiant servers having two internal drive bays on separate SCSI ports: SCSI Peak Data Transfer Rate is 320 MB/s total; 160 MB/s per channel and Channels is 2.
SCSI Ports (external/internal) 0/1
NOTE: For ProLiant servers having two internal drive bays on separate SCSI ports: SCSI Peak Data Transfer Rate is 320 MB/s total; 160 MB/s per channel and Channels is 2.
Drives Supported (maximum) 2
NOTE: Maximum is the total number of internal drives on each specific ProLiant server.
Cache 64 MB Read and/or Write Cache
Battery-Backed Write Cache Yes, with installation of Battery-Backed Write Cache Enabler, up to 64 MB
RAID Support 0, 1, 1+0, 5
Logical Drives (maximum) Maximum = total number of drives
Online Configuration Yes
Online Capacity Expansion Yes
Logical Drive Capacity Extension Yes
Online Stripe Size Migration Yes
Online RAID Level Migration Yes
Online Spare Support Yes
Automatic Data Recovery Yes
Drive Roaming Yes
Redundant Controllers No

Embedded NC7782
PCI-X Gigabit Server Adapter

Network Interface 10/100/1000-T
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method 64-bit/133MHz PCI-X
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Category 3, 4 or 5 UTP up to 328 ft (100 m)
10/100/1000Base-T Category 5 UTP (2 pair); up to 328 ft (100 m)
