   Proliant ML370 G3 QuickSpecs  US QuickSpecs
  ML370 G3 Hard Drives   ML370 G3 Processors   ML370 G3 Memory
  ML370 G3 Controllers   ML370 G3 Networking   ML370 G3 Power Supplies
  ML370 G3 Quickspecs   ML370 G3 Quickspecs-Options   ML370 G3 Options
contents
 Overview      Standard Features      Models      ML370 G3 Options      ML370 G3 Memory      Storage      Power Specifications      ML370 G3 QuickSpecs images/line.gif (50 bytes)

Proliant ML370 G3 Overview

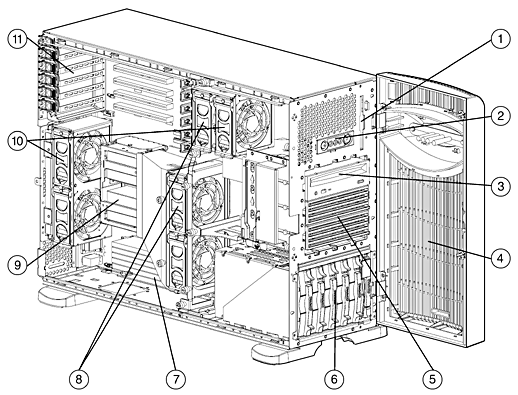

HP ProLiant ML370 Generation 3 (G3)
1. 1.44 MB Diskette Drive

2. Front Panel LEDs (show server status)

3. 48x IDE CD-ROM Drive

4. Front Bezel

5. Removable Media Bays
6. Six 1" Hot Plug Drives Bays

7. Memory Slots

8. Hot Plug Fans (standard)
9. Intel Xeon Processors
10. Hot Plug Redundant Fans (Optional)
11. 6 PCI-X Slots (6 64-Bits 100 MHz) Non Hot Plug

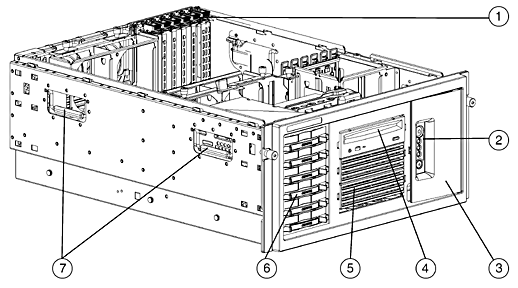

1. 6 PCI-X Slots (6 64-Bit-100 MHz) Non Hot Plug 5. Removable Media Bays
2. Front Panel LEDs (show server status) 6. Six 1" Hot Plug Drive Bays
3. 1.44 MB Diskette Drive (not shown) 7. Handles
4. 48x IDE CD-ROM Drive

At A Glance

  • 5U Tower and Rack Models
  • Powerful Integrated Lights-Out remote management technology embedded
  • Up to two Intel Xeon Processors with Hyperthreading Technology
  • Integrated Dual Channel Wide Ultra3 SCSI Adapter (Smart Array 6402 controller is standard on High Performance Models)
  • Maximum 2 GB of 2-way interleaved capable PC2100 DDR SDRAM with Advanced ECC capabilities
  • NC7781 PCI-X Gigabit NIC (embedded)
  • Six PCI-X 64Bit/100-MHz expansion slots (Five available on Array and High Performance Models)
  • Optional Hot plug redundant power supplies and cooling fans (Redundant fans standard on High Performance Models)
  • Up to 8 Hot Plug hard drive bays (An additional two-bay drive cage standard on High Performance Models)
  • Tool-free serviceability
  • Tool-free, spring loaded snap-on slide rails
  • Diagnostic and Unit ID LEDs
  • HP Systems Insight Manager
  • SmartStart
  • Protected by HP Services, including a three-year, Next Business Day on-site, limited, Global warranty and extended Pre-Failure Warranty that covers processors, memory and disk drives - Certain restrictions and exclusions apply.
  • Microsoft® Windows® 2000 Model
contents
 Overview      Standard Features      Models      ML370 G3 Options      ML370 G3 Memory      Storage      Power Specifications      ML370 G3 QuickSpecs images/line.gif (50 bytes)

Standard Features

Processor
One of the following depending on Model
Intel Xeon Processor 3.06 GHz/533 MHz - 512KB (up to 2 supported)
Intel Xeon Processor 2.8 GHz/533 MHz - 1MB (up to 2 supported)
Intel Xeon Processor 2.8 GHz/400 MHz - 512KB (up to 2 supported)

Cache Memory
One of the following depending on Model, see model descriptions below for details
512-KB level 2 cache and 1MB level 3 cache
(NOTE: Available with 2.8 or 3.2 GHz GHz models.)
512-KB level 2 cache
(NOTE: Available with 2.8 and 3.06 GHz models.)

ChipsetServerWorks GC LE Chipset
NOTE: For more information regarding ServerWorks, please see the following URL:
http://www.serverworks.com/products/overview.html.

Memory Protection Advanced ECC
Online spare capabilities

Memory
One of the following depending on model
Type
2-way interleaved capable PC2100 DDR SDRAM running at 200MHz
Standard 1 GB (2 x 512 MB)
Maximum 12 GB

Network Controller Integrated NC7781 PCI-X Gigabit NIC (single port)

Expansion Slots I/O (6 Total, 6 available)   PCI Voltage
64-Bit/100MHz Non-Hot Plug PCI-X 6 3.3 Volt

Manageability Integrated Lights-Out (iLO) Management (ASIC on motherboard)

Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
  Smart Array 6402 standard on High Performance models

Storage Diskette Drives 1.44 MB Diskette Drive
Optical Drive 48x IDE CD-ROM Drive
Hard Drives None

Maximum Internal Storage
Hot Plug SCSI 2.40 TB 6 x 300 GB 1" with standard internal hot plug drive cage + 2 x 300 GB 1" with optional ML3xx Two Bay Hot Plug SCSI Drive Cage

InterfacesParallel1
 Serial2
Pointing Device (Mouse)1
Graphics1
Keyboard1
External SCSI1
Network RJ-451
iLO remote management port1
USB2
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.

Graphics Integrated ATI Rage XL Video Controller with 8MB SDRAM Video Memory

Form Factor Tower or Rack (5U)

ProLiant Essentials Foundation Pack Software
HP Systems Insight Manager
HP's new HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. HP SIM are both easy to set up work with the Insight Management Agents, integrated Light-Out and Remote Insight Light-Outs Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration. With HP SIM customers will also be able to take advantage of role-based security; the ability to manage ProLiant, Integrity, and HP 9000 systems; and plug-ins for storage, client, printer, and power management as well as server rapid deployment, performance management, and workload management. For more details on HP SIM visit http://www.hp.com/go/hpsim.
SmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 6.0
Management AgentsThe Management Agents form the foundation for HP's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to Insight Manager 7 and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from, HP please visit the management Web site at http://www.hp.com/servers/manage.
Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and configuration utilities The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at www.hp.com/servers/smartstart
Survey Utility and diagnostics utilities The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value PacksOptional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:
  • Rapid Deployment Pack – an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Workload Management Pack – provides easier management of complex environments, improving overall server utilization and enabling Windows 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Integrated Lights-Out Advanced Pack – upgrades the Integrated Lights-Out processor to full virtual presence and control with graphical console and virtual media.
  • Recovery Server Option Pack – entry-level high availability software that will provide reliable protection and increased uptime against server hardware and operating system failures.
  • Performance Management Pack – a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/ProLiantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/ProLiantessentials.

Industry Standard Compliance ACPI 1.0b Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
PXE Support

Intelligent Manageability Insight Manager 7
HP Systems Insight Manager
Management Agent
Redundant ROM
Remote Flash ROM
Integrated Lights-Out Support
Remote Lights-Out Edition II (Optional)
Automatic Server Recovery (ASR)
ROM-Based Setup Utility (RBSU)
Integrated Management Log
Drive Parameter Tracking (with Smart Array controller)
Dynamic Sector Repairing (with Smart Array controller)
Hot Spare Boot
(NOTE: Upon the event of a failed processor or VRM in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s).)

Pre-Failure Warranty (covers processors, hard drives and memory)

Security Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock

Server Power Cords 110V NEMA 12ft. (3.66m) cords included in the United States; localized cables included with geographic specific models in other world regions. Also included with rack models, IEC to IEC 10 ft. (3.05m) cords.

Power Supply 500 Watt-CE Mark Compliant Hot Plug Power Supply
Optional Redundant Capability

System Fans Three fans ship standard. Redundant fan kit includes three fans plus cage for CPU fans.

Required CablingFor required cabling information, refer to the Web site at
http://h18000.www1.hp.com/products/servers/ProLiantML370/.

OS Support Microsoft Windows NT® Server
Microsoft Windows 2000 Server
Windows Server 2003 Server
Novell NetWare
SCO OpenServer and OpenUNIX
Red Hat Linux
SuSE Linux
United Linux
  NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest drivers available for the ProLiant ML370 G3, please see: http://h18023.www1.hp.com/support/files/server/us/index.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html

Rack Airflow Requirements Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: http://h18000.www1.hp.com/products/servers/ProLiantdl380/index.html.

Installation of ProLiant ML370 G3 servers with Round Hole, Third Party or Telco Racks The optional ML370 Round Hole Rail Kit (231122-B21 231122-B21) is required for installation in racks with round holes. The optional ML370 Telco Rail Kit (231121-B21) is required for installation into 2-post Telco racks.
Other third part rack solutions for ProLiant servers are available through the following URL:
http://www.racksolutions.com/compaq/products.html.

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and/or storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging to meet customer needs. HP products supported through Factory Express include: HP Integrity, HP ProLiant & Blades, HP 9000 servers and the MSA1000, VA7xxx, EVA3000 & EVA5000, XP, rackable tape libraries and configurable network switches storage products.
For more information on how to order please contact your sales representative or go to http://www.hp.com/go/factory-express.


Service and Support Three-year limited warranty, including hardware diagnostic support, pre-failure warranty (coverage of hard drives, memory and processors). The warranty is fully supported by HP Services and a worldwide network of resellers and service providers. In addition 90-day's getting started software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services.

NOTE: Limited warranty includes 3 year parts, 3 year labor, 3-year on-site support

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack

NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us at: http://www.hp.com/hps

NOTE: Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

contents
 Overview      Standard Features      Models      ML370 G3 Options      ML370 G3 Memory      Storage      Power Specifications      ML370 G3 QuickSpecs images/line.gif (50 bytes)

Models

ML370T03 X3.06-512KB/533, 1GB
High Performance
310590-002
Processor Two Intel Xeon 3.06 GHz Processor standard (up to 2 supported)
Cache Memory 512-KB level 2 cache
Memory 1 GB (Standard) to 12 GB (Maximum) of 2-way interleaved capable PC2100 DDR SDRAM running at 266MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit NIC (single port)
Storage Controller Smart Array 6402/128 Ultra320 RAID controller standard (installed in a slot) and the Integrated Dual Channel Wide Ultra3 SCSI Adapter
Hard Drive None ship standard
Availability Hot Plug Redundant Fan Standards
Internal Storage 2.40 TB maximum hot plug (with optional hard drives, two-bay drive cage standard)
Optical Drive 48x IDE CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U)

ML370T03 X3.06-512KB/533, 1GB
310590-001
Processor One Intel Xeon 3.06 GHz Processor standard (up to 2 supported)
Cache Memory 512-KB level 2 cache
Memory 1 GB (Standard) to 12 GB (Maximum) of 2-way interleaved capable PC2100 DDR SDRAM running at 266MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit NIC (single port)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U)

ML370T03 X3.06-512KB/533, 1GB, Array
339317-001
Processor One Intel Xeon 3.06 GHz Processor standard (up to 2 supported)
Cache Memory 512-KB level 2 cache
Memory 1 GB (Standard) to 12 GB (Maximum) of 2-way interleaved capable PC2100 DDR SDRAM running at 266MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit NIC (single port)
Storage Controller Smart Array 642 Array Controller in a slot and Integrated Dual Channel Wide Ultra3 SCSI Adapter
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U)

ML370T03 X2.8GHz-1MB/533, 1GB
352528-001
Processor One Intel Xeon Processors 2.8 GHz Processors standard (up to 2 supported)
Cache Memory 512KB level 2 cache and1-MB level 3 cache
Memory 1 GB (Standard) to 12 GB (Maximum) of 2-way interleaved capable PC2100 DDR SDRAM running at 266MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit NIC (single port)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U)

ML370R03 X3.06-512KB/533, 1GB
High Performance
310589-002

Processor Two Intel Xeon 3.06 GHz Processors standard
Cache Memory 512-KB level 2 cache
Memory 1 GB (Standard) to 12 GB (Maximum) of 2-way interleaved capable PC2100 DDR SDRAM running at 266MHz, with Advanced ECC capabilities
Network Controller Integrated NC7781 PCI-X Gigabit NIC (single port)
Storage Controller Smart Array 6402/128 Ultra320 RAID controller standard (installed in a slot) and the Integrated Dual Channel Wide Ultra3 SCSI Adapter
Hard Drive None ship standard
Availability Hot Plug Redundat Fans Standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives, two-bay drive cage standard)
Optical Drive 48x IDE CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack (5U)
contents
 Overview      Standard Features      Models      ML370 G3 Options      ML370 G3 Memory      Storage      Power Specifications      ML370 G3 QuickSpecs images/line.gif (50 bytes)

Options

ProLiant ML370 Unique Options Tower to Rack Conversion Kit
ML370 Round Hole Rail Kit
ML370 Telco Rail Kit
231121-B21
Hot Plug Redundant Power Supply Option Kit
Redundant Hot Plug Fan Option Kit

Software HP digital asset protection
302316-001

ProLiant Essentials
Value Pack Software
Rapid Deployment Pack, 1 User, V1.x
NOTE: This license allows 1 server to be managed and deployed via the Deployment Server.
267196-B21
Rapid Deployment Pack, 10 Users, V1.x
NOTE: This license allows 10 servers to be managed and deployed via the Deployment Server.
269817-B21
Flexible Quantity License Kit
302127-B21
License-Only - for use with a Master License Agreement
302128-B21
ProLiant Essentials Workload Management Pack 2.0 (Featuring Compaq Resource Partitioning Manager version 2.0)
ProLiant Essentials Recovery Server Option Pack
280189-B21
ProLiant Essentials Performance Management Pack, Single License
NOTE: This license allows 1 server to be managed by Performance Management Pack.
306696-B21
ProLiant Essentials Performance Management Pack, 10 Pack Server License
374055-B21
Performance Management Pack, flexible license kit
NOTE: A single pack is shipped with a single license key for the total number of licenses ordered.
306697-B21
ProLiant Essentials Integrated Lights-Out Advanced Pack
(Featuring: sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites)
ProLiant Essentials Intelligent Networking Pack, 1 License
372906-B21
ProLiant Essentials Intelligent Networking Pack Flex License
372950-B21
ProLiant Essentials Intelligent Networking Pack Track License
372951-B21
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
372214-B21
ProLiant Essentials Virtual Machine Management Pack, Flexible-Quantity License
NOTE: For use with multiple servers. This part number can be used to purchase multiple licenses with a single activation key.
372215-B21
ProLiant Essentials Virtual Machine Management Pack, Tracking License
NOTE: For use with signed and implemented Activation Key Agreements only. Purchase of this part number entitles the customer to deploy additional licenses of the product under the terms of the existing Activation Key Agreement.
372216-B21
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/ProLiantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/ProLiantessentials.


Processor Intel Xeon 3.2-2MB/533MHz Processor Option Kit 352568-B21
Intel Xeon 3.2-1MB/533MHz Processor Option Kit
333714-B21
Intel Xeon 3.06-1MB/533MHz Processor Option Kit
333713-B21
Intel Xeon 3.06-512KB/533MHz Processor Option Kit
257916-B21
Intel Xeon 2.8-1MB/533MHz Processor Option Kit
352567-B21
Intel Xeon 2.8-512KB/400MHz Processor Option Kit
257915-B21
NOTE: Mixing processor speeds and cache sizes is not supported. When operating with two processors, speed and cache size should match.

Memory512MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 256 MB)
 1024MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
 2048MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 1024 MB)
 4096MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 2048 MB)

Internal Storage ML3xx Two Bay Hot Plug SCSI Drive Cage
NOTE: The drive cage option kit (PN 244059-B21 244059-B21) has one 1" drive bay and one 1.6" drive bay, installed in two available removable media bays.

Optical Drives 16X DVD-ROM Drive Option Kit (Carbon) 217053-B21 217053-B21
  CD-RW/DVD ROM combo Drive Option Kit
NOTE: The DVD-ROM drive is supported in the CD-ROM bay and in the removable media bay. If placed in the removable media bay, it requires the 2-Device IDE cable (PN 305381-B21).

ML370 G3 Hard Drives Ultra 320 SCSI Universal Hot Plug
300-GB 10,000 rpm U320 Universal Hard Drive (1")
146.8-GB 10,000 rpm U320 Universal Hard Drive (1")
72.8-GB 10,000 rpm U320 Universal Hard Drive (1")
72.8-GB 15,000 rpm U320 Universal Hard Drive (1")
36.4-GB 15,000 rpm U320 Universal Hard Drive (1")
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
U320 Hard Drive QS:
http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.html

Storage Controllers Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller
128MB Cache Module for Smart Array 5302 Controller
256MB Battery Backed Cache Module
NOTE: This 256MB Battery Backed Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500.
256MB, Battery-Backed Cache Upgrade Kit for SA-6400
NOTE: This 256-MB Battery-Backed Cache Module upgrade kit supports the Smart Array 6400 series controller only.
128MB Battery-Backed Cache Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
Ultra320 Expansion Module for SA-6402
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
http://h18000.www1.hp.com/products/quickspecs/10640_na/10640_na.html
(Smart Array 5300 Series)
http://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.html
(Smart Array 6400 Series)
http://h18000.www1.hp.com/products/quickspecs/12067_na/12067_na.html (Smart Array 641)
http://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.html (Smart Array 642)
http://h18000.www1.hp.com/products/quickspecs/10429_na/10429_na.html
(SCSI Adapter)

Communications HP NC6170 PCI-X Dual Port 1000SX Gigabit Server Adapter
HP NC6770 PCI-X Gigabit Server Adapter, 1000-SX
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
HP NC1020 PCI Single Port 1000T Gigabit Server Adapter
HP NC7771 PCI-X Single Port 1000T Gigabit Server Adapter
NOTE: Any NIC on the option list can be used for redundancy with the embedded NC7781 Network Controller

Redundant OptionsHot Plug Redundant Power Supply Option Kit
 Redundant Hot Plug Fan Option Kit

Management Options Remote Insight Lights-Out Edition ll
NOTE: USB Virtual Media Not Supported on 2.4 and 2.8GHz products.
NOTE: The RILOE II USB Virtual Media feature is not supported on the 2.40 and 2.80 GHz versions of the ProLiant DL380 G3 and ProLiant ML370 G3 servers. The RILOE II cannot be used to connect the local client floppy and CD devices as USB virtual devices to the remote server. All other RILOE II features are supported on these servers. The non-USB based RILOE II Virtual Floppy feature is still supported, allowing you to perform functions such as remote ROM upgrades and server deployment. The Virtual Floppy feature requires loading the floppy image in to the RILOE II. For more details, please refer to the user guide of the RILOE II.

Tape Drives

NOTE: In order to install certain tape drives internally, you may need to remove the rails that come standard on the drives and then re-insert the screws in the mounting holes. Mounting screws are shipped standard with server.
NOTE: External tape devices, including both tape drives and tape arrays/enclosures, can be directly connected to the VHDCI SCSI port located on the back of the server. Use of a SCSI adapter to connect these devices is optional, not required.
Ultrium Tape Drives - External, Rack-Mount and Array
HP StorageWorks Ultrium 215 Tape Drive, Internal (Carbon)
Q1543A
HP StorageWorks Ultrium 215 Tape Drive, External (Carbon)
HP StorageWorks Ultrium 215 rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit
HP StorageWorks Ultrium 215 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks Ultrium 230 Tape Drive, Internal (Carbon)
HP StorageWorks Ultrium 230 Tape Drive, External (Carbon)
HP StorageWorks Ultrium 230, Rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit
HP StorageWorks Ultrium 230 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks Ultrium 460 Tape Drive, Internal (Carbon)
HP StorageWorks Ultrium 460 Tape Drive, External (Carbon)
HP StorageWorks Ultrium 460, Rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit
HP StorageWorks Ultrium 460 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks Ultrium 960 Tape Drive, Internal (Carbonite)
HP StorageWorks Ultrium 960 Tape Drive, External (Carbonite)
HP StorageWorks Ultrium 960 Rack-mount (Carbonite) - Single drive installed in a 3U rack-mount kit
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:

http://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
http://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html

For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect
DAT Tape Drives - External, Rack-Mount and Array

HP StorageWorks DAT 72 Tape Drive, External (Carbon)
HP StorageWorks DAT 72 Tape Drive, Internal (Carbon)
HP StorageWorks DAT 72 Tape Drive, Internal Hot-Plug (Carbon)
HP StorageWorks DAT 72 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks DAT 40 Tape Drive, External (Carbon)
HP StorageWorks DAT 40 Tape Drive, Internal (Carbon)
HP StorageWorks DAT 40 Tape Drive, Internal Hot-Plug (Carbon)
HP StorageWorks DAT 40 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks DAT 24e Tape Drive, External (Flint)
HP StorageWorks DAT 24e Tape Drive, Internal (Flint)
HP StorageWorks DAT 24 Array Module (Carbon)- Offline hot-swap drive for Tape Array 5300
NOTE: Please see the DAT Tape Drive QuickSpecs for controllers, media, and other options:
http://h18000.www1.hp.com/products/quickspecs/11883_na/11883_na.html
For an up-to-date listing of the latest O/S and software support details for HP DAT drives, please visit: http://www.hp.com/go/connect

Internal and External DLT VS Tape Drives

HP StorageWorks DLT VS80 Tape Drive, Internal (Carbon)
HP StorageWorks DLT VS80 Tape Drive, External (Carbon)
NOTE: Please see the DLT VS80 Tape Drive QuickSpecs for additional options such as host bus adapters, controllers, media, and other options:
http://h18006.www1.hp.com/products/quickspecs/11403_na/11403_na.html
For an up-to-date listing of the latest O/S and software support details for the DLT VS80, please visit: http://www.hp.com/go/connect

Internal, External and Rack-mount SDLT Tape Drives
HP StorageWorks SDLT 320 Tape Drive, Internal (Carbon)
HP StorageWorks SDLT 320 Tape Drive, External (Carbon)
NOTE: Please see the SDLT 320 Tape Drive QuickSpecs for additional options such as adapters, controllers, and media.
http://h18006.www1.hp.com/products/quickspecs/11840_na/11840_na.html
For an up-to-date listing of the latest O/S and software support details for HP SDLT tape drives, please visit: http://www.hp.com/go/connect
.

Rack-Mount Tape Drive Enclosures

HP StorageWorks 1U Rack-Mount Kit
NOTE: The 1U Rack-mount Kit can support up to 2 half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT 24, DAT40, DAT72, DLT VS 80, and Ultrium 215 tape drives.
HP StorageWorks 3U Rack-Mount Kit
NOTE: The 3U Rack-Mount Kit can support up to 2 full-height or 4 half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT, DLT VS80, SDLT 320, Ultrium 215, Ultrium 230, and Ultrium 460 Tape Drives.
HP StorageWorks 5U Rack-Mount Kit
NOTE: The 5U Rack-Mount Kit can support up to 4 full-height tape drives and is compatible with SDLT 320, Ultrium 230, and Ultrium 460 tape drives.
274339-B21
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.html

HP StorageWorks Tape Array 5300
NOTE: The Tape Array 5300 is a 3U enclosure that supports up to 2 full-height or 4 half-height hot-swap array modules, including DAT and Ultrium tape drives. Cables and terminators are not included and must be ordered separately.
NOTE: Please see the Tape Array 5300 QuickSpecs for additional information regarding this product.

http://h18000.www1.hp.com/products/quickspecs/11878_na/11878_na.html
Accessories for 3U & 5U Rack-mount Tape Drive Kits
LVD Cable Kit, VHDCI/HD68
NOTE: For use with the 3U Rackmount Kit and 5U Rackmount Kit only.
LVD Cable Kit, HD68/HD68
NOTE: For use with the 3U Rackmount Kit and 5U Rackmount Kit only.
PSU/Fan Upgrade Kit - Redundant hot-swap power supply unit and fan for Tape Array 5300.
68-pin HD multi-mode terminator
1.0m 68-pin VHDCI to 68-pin HD cable
2.5m 68-pin VHDCI to 68-pin HD cable
5.0m 68-pin VHDCI to 68-pin HD cable
10.0m 68-pin VHDCI to 68-pin HD cable
0.5m 68-pin HDI to 68-pin HD cable LVD/SE
1.5m 68-pin HDI to 68-pin HD cable LVD/SE
C2979B
0.9m 68-pin HDI to 68-pin HD cable LVD/SE
C2911C
2.5m 68-pin HDI to 68-pin HD cable LVD/SE
C2924C
NOTE: For use with Tape Array 5300 only

Tape Autoloaders
DAT Autoloader

HP StorageWorks DAT 72x6 Internal Autoloader Q1566A Q1566A
HP StorageWorks DAT 72x6 External Autoloader Q1567A Q1567A
NOTE: Please see the DAT Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media:
http://h18000.www1.hp.com/products/quickspecs/11985_na/11985_na.html


HP StorageWorks 1/8 Tape Autoloader

1/8 Ultrium 460 Tape Autoloader, Tabletop AA927A
1/8 SDLT 320 Tape Autoloader, Tabletop AA926A
1/8 Ultrium 230 Tape Autoloader, Tabletop C9572CB C9572CB
1/8 DLT VS80 Tape Autoloader, Tabletop C9264CB C9264CB
1/8 Tape Autoloader Rackmount Kit C9268R C9268R
NOTE: Required to install the 1/8 tape autoloader in a standard 19-inch rack
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs

HP StorageWorks SSL1016 Tape Autoloader

SSL1016 Ultrium 460 Tape Autoloader 330821-B21
SSL1016 SDLT 320 Tape Autoloader 330816-B21
NOTE: Please reference the SSL1016 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs


Tape Libraries

HP StorageWorks MSL6000 Tape Library
MSL6030, 1 drive, 30 slots, Ultrium 460, RM 330731-B22 330731-B22
MSL6030, 2 drive, 30 slots, Ultrium 460, RM 330731-B23 330731-B23
MSL6030, 1 drive, 30 slots, Ultrium 460, RM with embedded FC router 330731-B24 330731-B24
MSL6030, 2 drive, 30 slots, Ultrium 460, RM with embedded FC router 330731-B25 330731-B25
MSL6060, 2 drive, 60 slot, Ultrium 460, RM 331196-B21 331196-B21
MSL6060, 2 drive, 60 slot, Ultrium 460, RM with embedded FC router 331196-B22 331196-B22
NOTE: Please reference the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks MSL5026S2 Tape Library
MSL5026S2, 1 drive, 26 slots, SDLT 320, RM 293472-B22 293472-B22
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM 293472-B23 293472-B23
MSL5026S2, 1 drive, 26 slots, SDLT 320, RM with embedded FC router 293472-B24 293472-B24
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM with embedded FC router 293472-B25 293472-B25
NOTE: Please reference the MSL5026S2 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks MSL5052S2 Tape Library
MSL5052S2, 2 drive, 52 slots, SDLT 320, RM 293474-B21 293474-B21
MSL5052S2, 2 drive, 52 slots, SDLT 320, RM with embedded FC router 293474-B24 293474-B24
NOTE: Please reference the MSL5052S2 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks MSL5030 Tape Library
MSL5030, 1 drive, 30 slots, Ultrium 230, RM 301897-B22 301897-B22
MSL5030, 2 drive, 30 slots, Ultrium 230, RM 301897-B23 301897-B23
MSL5030, 1 drive, 30 slots, Ultrium 230, RM with embedded FC router 301897-B24 301897-B24
MSL5030, 2 drive, 30 slots, Ultrium 230, RM with embedded FC router 301897-B25 301897-B25
NOTE: Please reference the MSL5030 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks MSL5060 Tape Library
MSL5060, 2 drive, 60 slots, Ultrium 230, RM 301899-B22 301899-B22
MSL5060, 2 drive, 60 slots, Ultrium 230, RM with embedded FC router 301899-B23 301899-B23
NOTE: Please reference the MSL5060 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks ESL E-Series Tape Libraries

ESL Extended 712e Tape Library, 0 drive, 712 LTO slots AA934B AA934B
ESL Extended 630e Tape Library, 0 drive, 630 SDLT slots AA935B AA935B
ESL Extended 322e Tape Library, 0 drive, 322 LTO slots AA939B AA939B
ESL Extended 286e Tape Library, 0 drive, 286 SDLT slots AA940B AA940B
ESL E-Series Ultrium 460 drive kit AA937A AA937A
ESL E-Series Ultrium 460-FC drive kit AA941A AA941A
ESL E-Series SDLT 320 drive kit AA936A AA936A
ESL E-Series e2400-FC 2G Interface Controller AA928A AA928A
NOTE: Please reference the ESL E-Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs

Magneto-Optical Jukeboxes

HP StorageWorks 9.1 GB Entry-level Optical Storage
220mx, 1 drive, 24 slot jukebox C1118M
220mx, 2 drive, 24 slot jukebox C1119M
NOTE: Please reference the Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical for additional information needed to create a complete solution
HP StorageWorks 9.1 GB Mid-range Optical Jukeboxes
300mx, 2 drive, 32 slot jukebox C1150M
600mx, 4 drive, 64 slot jukebox C1160M
700mx, 2 drive, 76 slot jukebox C1170M
NOTE: Please reference the Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical for additional information needed to create a complete solution

Ultra Density Optical Jukeboxes 700ux, 1 drive, 24 slot jukebox AA962A
700ux, 2 drive, 24 slot jukebox AA963A
1100ux, 2 drive, 38 slot jukebox AA964A
1000ux, 2 drive, 32 slot jukebox AA965A
1900ux, 4 drive, 64 slot jukebox AA966A
1900ux, 4 mixed drive, 64 slot jukebox AA968A
2300ux, 2 drive, 76 slot jukebox AA967A
NOTE: Please reference the Ultra Density Optical Jukebox QuickSpecs at http://www.hp.com/go/optical for additional information needed to create a complete solution

HP StorageWorks Modular Smart Array 500 HP StorageWorks Modular Smart Array 500 Generation 2
335880-B21
NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.html


Cluster Options HP Serviceguard for Linux ProLiant Cluster (2 node license cluster kit) A.11.15
NOTE: Kit includes 2 licenses, documentation and an Ethernet crossover cable.
305199-B24
HP Serviceguard for Linux (single license version for ordering flexibility and to ease ordering for larger cluster) A.11.15
NOTE: Kit includes single license version and documentation.
307754-B24
NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html


External Storage – Tower & Rack HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 1" Hot Plug Hard Drives.
StorageWorks Modular Smart Array 30 OpenView Storage Mirroring HA Kit - 359079-B21
Redundant Power Supply 499W 338296-B21 338296-B21
StorageWorks Single Bus U320 I/O Module
287484-B21
StorageWorks Dual Bus U320 I/O Module
287483-B21

HP StorageWorks Modular Smart Array 1500 Modular Smart Array 1500 Controller Shelf
AA986A
NOTE: Please see the StorageWorks Modular SAN Array 1500 QuickSpecs for additional options and configuration information at:
http://www.hp.com/go/MSA1500cs

HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at
http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.html

Network Storage Router M2402 2FCX 4SCSI LVD Network Storage Router
262653-B21
M2402 2FCX 4SCSI HVD Network Storage Router
262654-B21
M2402 4 channel LVD SCSI Module
262659-B21
M2402 4 channel HVD SCSI Module
262660-B21
  M2402 2 channel FC Module
262661-B21

StorageWorks Options StorageWorks SAN Switch 2/8-EL Upgrade Kit
325888-B21

UPS Power Cord Matrix Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units.
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Uninterruptible Power Supply - Tower HP UPS Model T700 (700VA, 500 Watt), Low Voltage
204015-001
HP UPS Model T1000 XR (1000VA, 700 Watt), Low Voltage
204155-001
HP UPS Model T1500 XR (1440VA, 1050 Watt), Low Voltage
HP UPS Model T2200 XR (1920VA, 1600 Watt), Low Voltage
204451-001
HP UPS Model T2200 XR (2080VA, 1600 Watt), High Voltage

Uninterruptible Power Systems - HP Rack UPS HP UPS R1500 XR (1440VA, 1340 Watt), Low Voltage
HP UPS R3000 XR (2880VA, 2700 Watt), Low Voltage
HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage
HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage 326529-D71 326529-D71
Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage
HP UPS R12000 XR, N+ x (12KVA, 12KW) High Voltage
207552-B22
NOTE: HP UPS R6000 has a hardwired input; and the UPS R12000 XR has a hardwired input and output connection.

HP Power Distribution Unit with Power Monitoring HP Power Distribution Unit with Power Monitoring Model S2324 - dual input, 3 phase, 24A
HP Power Distribution Unit with Power Monitoring Model S1324 - single input, 3 phase, 24A
HP Power Distribution Unit with Power Monitoring Model S2140 - dual input, 1 phase, 40A
HP Power Distribution Unit with Power Monitoring Model S1140 - single input, 1 phase, 40A

Modular PDUs – 1U/0U
(up to 32 outlets)

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
NOTE: The above mPDU may also be used to connect to the low volt model of the UPS R3000 XR.
HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)
NOTE: L6-30 input.
HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC)
NOTE: The 40A model has a hardwired input.
HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC)
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR and R6000.
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041 na/11041 na.html

USB Options USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
  256MB HP Drive Key II (USB 2.0)
PH657A
  USB Optical Scroll Mouse (Carbonite)
DD441B

Custom Builder Please see the Enterprise Configurator for configuration assistance at: www.hp.com/products/configurator.

Rack Conversion Kit Tower to Rack Conversion Kit
  Rack Adapter Kit
NOTE: This kit allows HP rack servers to fit in racks that are 24" wide.
332815-B21

HP Rack 10000 Series
(Graphite Metallic)

10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
HP S10614 (14U) Rack Cabinet - Shock Pallet

HP Rack 10842 (42U, 800mm wide) Pallet

257415-B21 257415-B21

HP Rack 10842 (42U, 800mm wide) Shock Pallet

257415-B22 257415-B22

HP Rack 10647 (47U) Pallet

245160-B21 245160-B21

HP Rack 10647 (47U) Crated

245160-B23

HP Rack 10642 (42U) Pallet

245161-B21 245161-B21

HP Rack 10642 (42U) Shock Pallet

245161-B22 245161-B22

HP Rack 10642 (42U) Crated

245161-B23

HP Rack 10636 (36U) Pallet

245162-B21 245162-B21

HP Rack 10636 (36U) Shock Pallet

245162-B22 245162-B22

HP Rack 10636 (36U) Crated

245162-B23

HP Rack 10622 (22U) Pallet

245163-B21 245163-B21

HP Rack 10622 (22U) Shock Pallet

245163-B22 245163-B22

HP Rack 10622 (22U) Crated

245163-B23

NOTE: -B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks



NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all HP equipment is qualified to be shipped in the Rack 10000 series.



NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.html



NOTE: For additional information regarding Rack Options, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.




Rack Options for HP
Rack 10000 Series

NOTE: For additional information regarding Rack Options, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.
HP Rack Light Kit (Neon)

HP Rack Plinth Kit (Carbon)

251960-B21 251960-B21

TFT5600 Rack Keyboard Monitor

221546-001 221546-001

TFT7210R Rack Mounted 17" Monitor

348373-B21 348373-B21

NOTE: For a complete list of Monitors please view the following URL:
http://h18004.www1.hp.com/products/monitors/.


1U Rack Keyboard & Drawer (Carbon)
257054-xx1

HP KVM Switch Options

Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
IP Console Switch Box (KVM/IP), 1 x 1 x 16
IP Console Switch Box (KVM/IP), 3 x 1 x 16
HP 1x4 USB/PS2 KVM Switch, RM (ALL)
371302-B21
HP 1x4 USB/PS2 KVM Switch, TT, (EURO)
371301-A21
HP 1x4 USB/PS2 KVM Switch, TT (UK)
371301-031
HP 1x4 USB/PS2 KVM Switch, TT, (AUST/NZ)
371301-011
HP 1x4 USB/PS2 KVM Switch, TT, (NA/JPN)
371301-D71
PS/2 Interface Adapter, 8 pack
PS/2 Interface Adapter, 1 pack
CAT5 KVM Expansion Module
Serial Interface adapter - 1 Pack with power supply
CAT5e Cable 3', 4 pack
CAT5e Cable 6', 8 pack
CAT5e Cable 12', 8 pack
CAT5e Cable 20', 4 pack
CAT5e Cable 40', 1 pack
NOTE: For additional information regarding HP KVM Switches and options, please see the following URL: http://h18004.www1.hp.com/products/servers/proliantstorage/rack-options/list.html#console

Rack Options for Round Hole and Telco Racks ML370 Round Hole Rail Kit
ML370 Telco Rail Kit
231121-B21

Service and Support Offerings (HP Care Pack Services)

Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years
U4528A
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4528E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
U4529A
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4529E
Installation & Start-up Services
Hardware Installation
U4538A
Hardware Installation, Electronic
U4538E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.
U4539A
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4539E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.
U4540A
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4540E
Onsite HW support, 8am-9pm, M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays
U4542A
Onsite HW support, 8am-9pm, M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4542E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.
U4541A
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4541E
Onsite HW support 24x7, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.
U4543A
Onsite HW support 24x7, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4543E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      ML370 G3 Options      ML370 G3 Memory      Storage      Power Specifications      ML370 G3 QuickSpecs images/line.gif (50 bytes)

Memory

HP ProLiant ML370 G3 Models

Standard Memory

1 GB PC2100 Registered DDR SDRAM DIMM Memory comes installed (2 x 512-MB SDRAM)

Standard Memory Plus Optional Memory

Up to 9,216-MB of memory is available with the optional installation of 8,192-MB PC2100 Registered DDR SDRAM DIMM Memory Option Kit (1 x 512MB)

Standard Memory Replaced with Optional Memory

Up to 12,288-MB of memory is available with the removal of the standard 1024-MB of memory and the optional installation of 12,288 -MB PC2100 Registered DDR SDRAM DIMM Memory Option Kit (3 x 4,096MB)

NOTE: This chart does not represent all possible memory configurations.

ML370 G3 Memory
Slot

1

2
3
4
5
6

Standard

1,024 MB
512 MB
512 MB
Empty
Empty
Empty
Empty

Optional

9,216 MB
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
12,288 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB

Following are memory options available from HP:


  • 4096-MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 2048MB)
  • 2048-MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 1024MB)
  • 1024-MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 512MB)
  • 512-MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2 x 256MB)

contents
 Overview      Standard Features      Models      ML370 G3 Options      ML370 G3 Memory      Storage      Power Specifications      ML370 G3 QuickSpecs images/line.gif (50 bytes)

Storage

0 – 5
6 x 1" Hot Pluggable Hard Drive Bays
A
48x IDE CD-ROM Drive
B, C
Two available half height bays
D
1.44 MB Diskette Drive

0 - 5
6 x 1" Wide SCSI Hot Pluggable Hard Drive Bays
A
48x IDE CD-ROM Drive
B, C
Two available half height bays


A
48x IDE CD-ROM Drive
0 - 7
6 x 1" Wide SCSI Hot Pluggable Hard Drive Bays plus the ML3xx Two Bay Hot Plug SCSI Drive Cage




Drive Support



Quantity
Supported

Position
Supported


Controller

Removable Media


1.44-MB Diskette Drive Up to 1 D Integrated
IDE CD-ROM Drive Up to 2 A, B Integrated IDE
DVD-ROM Drive Option Kit Up to 2 A, B Integrated IDE
ML3xx Two Bay Hot Plug Wide SCSI Drive Cage Up to 1 B, C Integrated SCSI

ML370 G3 Hard Drives
Ultra320 Hot Pluggable Drives


Quantity
Supported

Position
Supported


Controller

1-inch
300-GB 10,000 rpm
146.8-GB 10,000 rpm
72.8-GB 10,000 rpm
72.8-GB 15,000 rpm
36.4-GB 15,000 rpm

Up to 8
(With optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
0-7 Integrated Dual Channel Wide Ultra3 SCSI Adapter
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter



Modular Smart Array 30 Family

Up to 13

External

Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
  Modular Smart Array 500 System 1 External Please see the Modular Smart Array 500 QuickSpecs for the latest list of supported HBAs: http://www.hp.com/go/msa500
  Modular Smart Array 1000 Please see the Modular Smart Array 1000 QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1500 cs Please see the Modular Smart Array 1500 cs QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1500 cs QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1000: http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.html
Modular Smart Array 1500: http://www.hp.com/go/MSA1500cs

Maximum Storage Capacity (SCSI Enclosure) (Hot Plug)

Internal 2.40 TB (6 x 300 GB 1" Ultra320 hot plug hard drives with standard internal drive cage + 2 x 300 GB 1" Ultra320 hot plug hard drive using the optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
External 105.00 TB (25 Storage Works Enclosures, each with 14 x 300 8GB Ultra320 1" drives, utilizing 6 x 4 channel 5300 SCSI controllers, plus integrated external channel for the 25th channel)
Total 107.40 TB

Tape Drives, Tape Autoloaders, & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/north_america/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/north_america/10809.html

NOTE: For complete listing of tape drive offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html



Quantity
Supported

Position
Supported


Controller

  HP StorageWorks Tape Drives, Internal, Hot plug
DAT 72 Tape Drive
DAT 40 Tape Drive

Up to 2
NOTE: drives are 1.5 height devices

0+1, 2+3, 4+5

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
Smart Array 641 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Drives, Internal
Ultrium 215
Ultrium 230
Ultrium 460
Ultrium 960
SDLT 320 Tape Drive
1 B + C 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Drives, Internal
DAT 72 Tape Drive
DAT 40 Tape Drive
DAT 24 Tape Drive
DLT VS80 Tape Drive
2 B,C 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Drives, External
Ultrium 215
Ultrium 230
Ultrium 460
Ultrium 960
DAT 72 Tape Drive
DAT 40 Tape Drive
DAT 24 Tape Drive
DLT VS80 Tape Drive
SDLT 320 Tape Drive
Up to 2 External 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Autoloader, Internal
DAT 72x6 Tape Autoloader
1 B+C 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Autoloaders, External
DAT 72x6 Tape Autoloader
1/8 Tape Autoloader
SSL1016 Tape Autoloader

1 autoloader per SCSI channel External 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


HP StorageWorks Rack-mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
5U Rack-Mount Kit
1 per SCSI channel External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Libraries, External
MSL6060 (Ultrium 460 -based)
MSL6030 (Ultrium 460 -based)
MSL5026S2 (SDLT 320-based)
MSL5052S2 (SDLT 320-based)
MSL5030 (Ultrium 230 -based)
MSL5060 (Ultrium 230 -based)
Please reference the MSL Tape Library QuickSpecs to determine configuration requirements External 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks ESL E-Series Tape Libraries
ESL 712e
ESL 630e
ESL 322e
ESL 286e
Please reference the ESL E-series Tape Libraries QuickSpecs to determine configuration requirements External 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
contents
 Overview      Standard Features      Models      ML370 G3 Options      ML370 G3 Memory      Storage      Power Specifications      ML370 G3 QuickSpecs images/line.gif (50 bytes)

Power Specifications

Part Number216068-001
Spare Kit 230993-B21
Operational Input Voltage Range (V rms) 90 to 264
Frequency Range (Nominal) (Hz)47 to 63 (50/60)




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
500
500
500
500
500
500
Nominal Input Current (A rms)
8.1
6.9
3.8
3.5
3.4
3.2
Max Rated Input Wattage Rating (Watts)
794
781
769
758
758
758
Max. Rated VA (Volt-Amp)
810
797
785
773
773
773

Efficiency (%)

63
64
65
66
66
66

Power Factor

.98
.98
.98
.98
.98
.98

Leakage Current (mA)

.30
.35
.63
.67
.70
.73

Maximum Inrush Current (A peak)

25
25
25
25
25
25

Maximum Inrush Current duration (mS)

20
20
20
20
20
20

System Specifications
ProLiant ML370 Generation 3 Fully Configured
Up to 2 Processors, 6 Memory Slots, 8 Hard Drives, 4 PCI Slots, and 2 Hot Plug Power Supplies

Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Fully Loaded System Input Wattage (W)
704
693
682
672
672
672
Fully Loaded System Thermal (BTU-Hr)
2399
2362
2325
2290
2290
2290
System Leakage with all power supplies loaded (mA)
0.61
0.70
1.27
1.34
1.40
1.46
System Inrush Current with all power supplies loaded (A)
50
50
50
50
50
50
Power cord requirementsNema 5-15P to IEC320-C13 Option no./Spare no.: See Chart below
 IEC320-C13 to IEC320-C14 Option no./Spare no.: 142257-002/142258-B21

NOTES:
* - To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/powercalcs.asp.

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML370 G3
- Click on: "Power Calculator" link. (You may need to scroll down to see it)


Power Cord Part Number 163719-002
contents
 Overview      Standard Features      Models      ML370 G3 Options      ML370 G3 Memory      Storage      Power Specifications      ML370 G3 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit - Tower

Dimensions

18.46 x 8.69 x 28 in (46.88 x 22.07 x 71.12 cm)
Weight70 lb (31.75 kg) (without hard drives, no RPS)

Input Requirements

Range Line Voltage

90 to 264 VAC
Rated Input Voltage90 to 264 VAC
Rated Input Frequency47 to 63 Hz
Rated Input Current7.3A (110 V) to 3.6A (220 V)
Rated Input Power800W
BTU Rating2,732 BTU/HR
SCSI Connectors
Two Internal HD68 connectors and One External VHDCI Connector supporting Ultra3
Power Supply Output Power
Steady State Power500 W
Maximum Peak Power550W
Temperature RangeOperating41° to 95° F (5° to 35° C)
Shipping-40° to 185° F (-40° to 85° C)
Relative Humidity
(non-condensing)
Operating5% to 95%
Non-operating5% to 95%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.9
L pAm (dBA)
41
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.0
L pAm (dBA)
42

System Unit - Rack

Dimensions

8.69 x 19.0 x 25.75 in (22.07 x 48.26 x 65.43 cm)
Weight 65 lb (29.48) (without hard drives, no RPS)

Input Requirements

Range Line Voltage

90 to 264 VAC
Rated Input Voltage 90 to 264 VAC
Rated Input Frequency 47 to 63 Hz
Rated Input Current 7.3A (110 V) to 3.6A (220 V)
Rated Input Power 800W
BTU Rating 2,732 BTU/HR
SCSI Connectors
Two Internal HD68 connectors and One External VHDCI Connector supporting Ultra3
Power Supply Output Power
Steady State Power 500 W
Maximum Peak Power 550 W
Temperature Range Operating 41° to 95° F (5° to 35° C)
Shipping -40° to 185° F (-40° to 85° C)
Relative Humidity
(non-condensing)
Operating 5% to 95%
Non-operating 5% to 95%
Maximum Wet Bulb Temperature 101.7° F (38.7° C)
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
5.9
L pAm (dBA)
41
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.0
L pAm (dBA)
42

Optional Redundant Power Supply

Input Requirements

Rated Input Voltage 90 to 264 VAC
Rated Input Frequency 47 to 63 Hz
Rated Input Current 7.3A (110 V) to 3.6A (220 V)
Rated Input Power 800W
BTU Rating 2,732 BTU/HR
Power Supply Output Power
Steady State Power 500 W
Maximum Peak Power 550W
Temperature Range Operating 41° to 95° F (5° to 35° C)
Shipping -40° to 185° F (-40° to 85° C)
Relative Humidity
(non-condensing)
Operating 5% to 95%
Non-operating 5% to 95%
Maximum Wet Bulb Temperature 101.7° F (38.7° C)

48X Max IDE CD-ROM Drive

Disk

Applicable Disk

CD-ROM, CD-XA, CD-DA (Mode 1, Mode 2, Form 1 and 2)
  Photo CD (Single and Multi-session)
  Mixed Mode (Audio and Data combined)
  CD-R


Capacity

540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)

Block Size

Mode 1

2,048 bytes, 1024 bytes


Mode 2

2,340 bytes, 2,336 bytes, 1024 bytes


CD-DA

2,352 bytes
 CD-XA2,328 bytes

Interface

IDE (ATAPI)



Access Times (typical)

Random

<100 ms

Full-Stroke

<150 ms
Data Transfer Rate

Sustained

3000 to 7200 KB/s (20X to 48X)
Burst150 KBps to 7,200 KBps
Bus Rate16.7 MBps

Cache Buffer

128 KB



Start-up Time (typical)

< 7seconds


Stop Time< 4seconds

Laser Parameters

TypeSemiconductor Laser GaA1As

Wave Length

780 ± 25 nm

Operating Conditions

Temperature

41° to 113° F (5° to 45° C)

Humidity

10% to 80%

Dimensions

(HxWxD, maximum)

1.7 x 5.85 x 8.11 in (42.9 x 150 x 208 cm)


Weight

2.09 lb (0.95 kg)

Integrated Dual Channel Wide Ultra3 SCSI Adapter Drives Supported Up to 15 SCSI devices per channel
Data Transfer Method 64-bit PCI bus-master
SCSI Channel Transfer Rate 160 MB/s per channel
Maximum Transfer Rate per PCI Bus (peak) 267 MB/s
SCSI Termination Active Termination
SCSI Connectors 1 external, 2 internal (68-pin)

NC7781 PCI-X Gigabit NIC (embedded) Server Adapter

Network Interface 10/100/1000-T
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 80.3u 100Base-TX
Data Transfer Method 64-bit/133MHz PCI-X
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Full-Duplex) 2000 Mb/s
1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)

Integrated Lights-Out (integrated on system board)

Architecture 32-bit PCI-based health and remote management ASIC (Application Specific Integrated Circuit)
Processor 32-bit RISC processor core running at 66MHz
Upgradability Option firmware upgradable via flash ROM.
Video Support Utilizes the host server's embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256 colors)
Interfaces One Ethernet network connection (10/100 Mb/s)
ML370 G3 Memory 2-MB Flash ROM
8-MB SDRAM
Operating System Support Microsoft Windows NT 4.0 Server
Windows NT 4.0 Enterprise Edition
Windows 2000 Server
Windows 2000 Advanced Server
Windows Server 2003 Standard Edition
Windows Server 2003 Enterprise Edition
Windows Server 2003 Small Business Edition
Red Hat 7.x
SuSE 7.0
Novell NetWare 5.x, 6.x
Client Browser Support Microsoft Internet Explorer 5.5 or later.
iLO Standard Features Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for up to 12 user accounts with customizable access privileges
iLO Advanced Features Virtual Graphical Remote Console
Virtual Floppy Drive

USAPartsDirect          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
