   Proliant DL580 G8 QuickSpecs  US QuickSpecs
  DL580 G8 Hard Drives   DL580 G8 Processors   DL580 G8 Memory
  DL580 G8 Controllers   DL580 G8 Networking   DL580 G8 Power Supplies
  DL580 G8 Quickspecs   DL580 G8 Quickspecs-Options   DL580 G8 Options
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Overview

HP ProLiant DL580 Generation 8 (Gen8)

The HP ProLiant DL580 Gen8 Server is an enterprise-grade four socket (4S) x86 server offering breakthrough performance, rock-solid reliability, and compelling consolidation and manageability efficiencies. It is ideal for mission-critical enterprise, business intelligence, and database applications.

Featuring Intel® Xeon® E7-4800/8800 v2 processors, the DL580 Gen8 offers blazing fast results with enhanced processor performance, more memory slots (96 DIMMs), greater IO bandwidth (9 PCIe Gen3.0 slots), and increased storage performance (12 Gbps SAS). HP ProLiant DL580 Gen8 has security and data protection features for system resiliency that your business can depend on. With intelligent manageability through HP OneView, iLO 4, and user-inspired features, you get faster, lower cost infrastructure management.

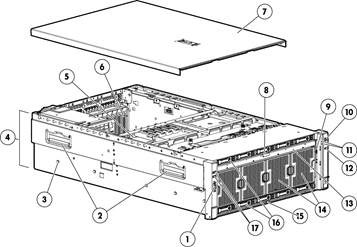

Front View: Rear View:
1. One front video port

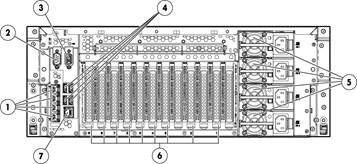

1. NIC ports
2. Server lifting handles
2. Serial port
3. Universal Tool-less "Snap in" sliding rail solution
3. Video port
4. 4U (7" height) form factor
4. Four (4) USB ports
5. Support for up to four Intel® Xeon® 4800/8800 v2 Processors 5. Hot Plug Redundant Power Supplies (2 or 4 depending on the model)
6. Up to 9 slots supported; all full-length/full-height
6. 9 PCIe 3.0 IO Expansion Slots
7. Quick removal access panel
7. iLO connector
8. Quick release lever for Processor and Memory drawer

9. Slide out Systems Insight Display

10. Power button
11. Health and Network LEDs

12. Unit ID LED

13. Front accessible Processor and memory drawer

14. 4 Hot Plug Redundant Fans

15. Asset tag

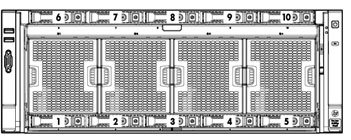

16. Support for up to 10 Small Form-Factor (SFF) drives

17. Two front accessible USB 2.0 ports
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One or more of the following depending on model
Fifteen-Core Processors
Intel® Xeon® E7-4890v2 (2.8GHz/15-core/37.5MB/155W) Processor
Intel® Xeon® E7-4880v2 (2.5GHz/15-core/37.5MB/130W) Processor
Intel® Xeon® E7-4870v2 (2.3GHz/15-core/30MB/130W) Processor
Intel® Xeon® E7-8880Lv2 (2.2GHz/15-core/37.5MB/105W) Processor
NOTE: This is a power optimized processor
Twelve-Core Processors
Intel® Xeon® E7-4860v2 (2.6GHz/12-core/30MB/130W) Processor
Intel® Xeon® E7-4850v2 (2.3GHz/12-core/24MB/105W) Processor
Intel® Xeon® E7-8857v2 (3.0GHz/12-core/30MB/130W) Processor
NOTE: This is frequency optimized processor suited high performance computing applications
Ten-Core Processors
Intel® Xeon® E7-4830v2 (2.2GHz/10-core/20MB/105W) Processor
Intel® Xeon® E7-8891v2 (3.2GHz/10-core/37.5MB/155W) Processor
NOTE: This is a lower core, higher frequency processor for software licensing cost optimization
Eight-Core Processors
Intel® Xeon® E7-4820v2 (2.0GHz/8-core/16MB/105W) Processor
Six-Core Processors
Intel® Xeon® E7-4809v2 (1.9GHz/6-core/12MB/105W) Processor
Intel® Xeon® E7-8893v2 (3.4GHz/6-core/37.5MB/155W) Processor
NOTE: This is a lower core, higher frequency processor for software licensing cost optimization

Cache Memory
One of the following depending on model
37.5MB (1 x 37.5MB) Level 3 cache (E7-4890 v2, E7-8880Lv2, E7-4880v2, E7-8891v2, E7-8893v2)
30MB (1 x 30MB) Level 3 cache (E7-8857v2, E7-4870v2, E7-4860v2)
24MB (1 x 24MB) Level 3 cache (E7-4850v2)
20MB (1 x 20MB) Level 3 cache (E7-4830v2)
16MB (1 x 16MB) Level 3 cache (E7-4820v2)
12MB (1 x 12MB) Level 3 cache (E7-4809v2)

Chipset Intel® C602J Chipset
Intel® Xeon® E7-4800/8800 v2 Processor Family
NOTE: For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/

Upgradeability Up to:
Four (4) processors
Ninety-six (96) DDR3 DIMM slots
Nine (9) PCIe Gen3 expansion slots
NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the "Expansion slots" section for more details.
Ten (10) SFF internal HDD/SSD drive bays
NOTE: Five drive bays come standard. An optional backplane kit with five drive bays can be ordered for ten drives.
Four (4) redundant hot-plug power supplies

System Fault Management and Diagnostics

HP ProLiant DL580 Gen8 offers advanced error recovery, component quarantine, fault tolerance and event reporting features to enable class-leading availability and rock-solid reliability that businesses can depend on. The DL580 Gen8 server firmware features advanced machine check architecture and memory fault tolerance capabilities that customers need for running their mission-critical applications. These advanced fault management features combine with quality components (HP Qualified Options) and extensive qualification to provide a high degree of system availability.

HP Advanced Error Recovery
Introduced with the HP ProLiant DL580 Gen8, HP Advanced Error Recovery enables applications to recover from uncorrectable errors found in processor, cache and memory during execution. The system firmware works with the operating system and/or hypervisor and/or end-application to enable the optimal recovery response so that the impact of the error can be avoided or minimized. Where such an error would have crashed the system in the past, with HP Advanced Error Recovery, the system can continue to function with limiting the impact of the error to a killed/re-started thread, process and/or virtual machine.

NOTE:

  • Supported on Intel® E7-4800/8800 v2 based systems only
  • On select Operating Systems, Hypervisors and end-applications that support Intel Machine Check Architecture Recovery feature.
    • Windows Server 2012 R2 and Hyper-V 2012 R2
    • Windows Server 2012 (requires Microsoft hotfix 2901012) and Hyper-V 2012
    • Redhat Enterprise Linux 6.4
    • SLES 11 SP3

HP Memory Quarantine
HP Memory Quarantine Identifies memory regions containing uncorrectable hardware errors by using a patrol scrubber and isolates the bad memory location before it affects other data. If an error is found, the hardware attempts to correct it. If the hardware cannot correct the error, the platform firmware notifies the operating system. Depending on the state of the memory pages associated with the identified memory region, the OS or hypervisor may take those pages out of the available pool. If the memory pages are already committed to a virtual machine (VM), the OS or hypervisor may choose to shut down the associated VM (Guest OS) or cause a Machine Check Exception to the Guest OS. The associated VM (Guest OS) might in turn close down the affected thread or process or it might shut down on its own. You can restart the halted VM or process once you replace the bad memory at the server's next maintenance cycle.

NOTE:

  • Supported on Intel® E7-4800/8800 and E7 v2 based systems only
  • On select Operating Systems, Hypervisors and end-applications that support Machine Check Architecture Recovery functionality.
    • Windows Server 2012 R2 and Hyper-V 2012 R2
    • Windows Server 2012 (requires Microsoft hotfix 2901012) and Hyper-V 2012
    • Windows Server 2008 R2 and Hyper-V 2008 R2
    • Windows Server 2008 and Hyper-V 2008
    • Redhat Enterprise Linux 6.4
    • SLES 11 SP3

HP Advanced Error Containment
The DL580 Gen8 features advanced PCIe error containment capability that prevents corrupted data propagation. If data corruption is found on the PCIe bus, the system re-sets the PCIe root port and re-starts the transaction. This feature helps protect customer data and prevents the error from creating a chain of failures across the datacenter.

NOTE:

  • Supported on Intel® E7-4800/8800 and E7 v2 based systems only

HP Advanced Fault Resiliency

  • Double Data Device Correction (DDDC) - Detects and corrects up to two DRAM chip failures for every x4 DIMM in the server. DDDC requires memory lockstep mode and may impact performance to varying degrees depending on workload memory access characteristics.
    NOTE: Supported on Intel® E7-4800/8800 based systems only.
  • Single Data Device Correction (SDDC) - Detects and corrects one DRAM chip failures for every x4 DIMM in the server. Further corrects single-bit errors after one DRAM chip failure. SDDC is supported in performance mode and does not impact system performance.
    NOTE: Supported on Intel® E7-4800/8800 based systems only.
  • Online Memory Sparing - Tracks excessive number of correctable errors and copies the contents of an unhealthy rank to an available spare rank in advance of multi-bit or persistent single-bit failures that may result in future uncorrectable faults. Since a DIMM or a rank is needed to perform sparing, this technique reduces the total amount of available memory by the amount of memory used for sparing.
  • Memory Mirroring - System maintains two copies of all data. If an uncorrectable memory error occurs, the system automatically retrieves the good data from the mirrored (redundant) copy. Memory Mirroring consumes 50% of the system memory capacity.

NOTE: Memory mirroring will be supported in a system firmware update post initial launch.

  • Redundant Interconnects and Failover - The DL580 Gen8 system and Intel® Xeon® E7-4800/8800 v2 processors combine to provide a high degree of fault tolerance and failover capabilities for key processor-processor or memory-processor links or clocks.
  • Hot-plug redundant power supplies and fans - The DL580 Gen8 server features N+N redundant power supplies and N+1 redundant fans to keep your system running in the unlikely case a power supply or fan malfunctions.

Memory
One of the following depending on Model
Type HP SmartMemory
  DDR3 Registered (RDIMM) and Load Reduced (LRDIMM)
DIMM Slots Available
96 DIMM slots
Maximum 3TB (96 x 32GB)
NOTE: The HP ProLiant DL580 Gen8 can support up to 6TB of maximum memory once 64GB DIMMs are available.
NOTE:
HP memory from previous generation servers are not qualified or warranted with this HP ProLiant Server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server. NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1600MHz, 1333MHz, or 1066MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.

Network Controller HP ProLiant Gen8 servers offer a new flexible network technology - FlexibleLOMs, which offers customers a choice of 1Gb, 10Gb, or 10Gb base-T ethernet or converged networking in their embedded adapter.

HP Ethernet 1Gb 4-port 331FLR FIO Adapter
HP Ethernet 1Gb 4-port 366FLR FIO Adapter
HP FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter
HP Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter
HP Ethernet 10Gb 2-port 561FLR-T FIO Adptr

NOTE: For additional details see the Networking Section of this document.


Expansion Slots
NOTE: Up to 9 slots supported; all full-length/full-height. Standard: 4 PCI-E 3.0 x8, 5 PCI-E 3.0 x16.
Processor Expansion Slot # Technology Width Connector Width * Bus / Dev
Number **
Form Factor Notes
4

1 PCIe 3.0 x16
x16
C0/03/0


FH/FL N/A
4
2 PCIe 3.0 x16
x16
C0/02/0 FH/FL N/A
3
3 PCIe 3.0 x16
x16
80/03/0
FH/FL N/A
3
4 PCIe 3.0 x8
x16
80/02/0
FH/FL N/A
3
5 PCIe 3.0 x8
x16
80/02/1
FH/FL N/A
2
6 PCIe 3.0 x16
x16
40/03/0
FH/FL N/A
2
7 PCIe 3.0 x8
x16
40/02/0
FH/FL N/A
2
8 PCIe 3.0 x8
x16
40/02/1
FH/FL N/A
1 9 PCIe 3.0 x16 x16
00/03/0 FH/FL N/A
NOTE: PCIe slot availability is dependent on the number of processors installed.
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
FL= Full length; FH = Full height.

Storage Controller
One of the following depending on Model
HP Smart Array P830i/2G FBWC Controller

The Flash Backed Write Cache (FBWC) increases cache data retention capabilities from two days of existing battery backed write cache (BBWC) to infinite data retention.

  • Delivers 12 Gb/s line rate performance
  • Standard on all Models
  • Supports HP Secure Encryption as an option
  • Transportable data protection
  • Increases overall controller performance

NOTE: Please refer to the HP Smart Array P830 Controller QuickSpecs for more information.


Internal Storage Devices Hard Disk Drive
Backplane
Internal SAS lower and upper backplanes support up to ten SFF hard disk drives or solid state drives
NOTE: For CTO models, five (5) lower drive bays ship standard and five (5) upper drive bays can be ordered separately. For pre-configured models, please refer to the pre-configured models section below.
Diskette Drive
None
Optional Optical Drive None
Hard Drives None ship standard

Maximum Internal Storage Hot Plug SFF SAS 12TB 10 x 1.2TB
Hot Plug SFF SAS SSD 8TB
10 x 800GB
Hot Plug SFF SATA SSD 8TB 10 x 800GB

Interfaces Serial 1
Video 1 front; 1 rear
Network RJ-45 4
iLO 4 Remote Management 1
micro-SD Slot 1
USB 2.0 Ports 8 total: 2 front; 4 rear; 2 internal

Industry Standard Compliance ACPI 2.0. Compliant
PCIE 2.0 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE) Support
Microsoft® Logo certifications
USB 2.0 Support

Server Power Cords Server ships with high-voltage server to PDU power cord
NOTE: If customers require a power cord, they can check the power cord matrix for the appropriate sku. Please see the following power cord matrix for details: http://www.hp.com/go/powercordmatrix

Common Slot Power Supply
One of the following depending on power requirements
HP 1500W Common Slot Platinum Plus Hot Plug Power Supply

HP 1200W Common Slot Platinum Plus Hot Plug Power Supply
NOTE: 1500W power supply supports high line voltage only
NOTE: A minimum of two (2) power supplies are required. Four (4) 1500W power supplies offers N+N redundancy for highly loaded configurations.

Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.

HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HP CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HP CS power supply options provide efficiency ratings of up to 94% (80 Plus Platinum) and are available in three power output options - 460W, 750W, and 1200W - allowing the customer to "right-size" a power supply for their specific server configuration. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations.

HP CS Platinum Plus power supplies are required when enabling HP's Intelligent Power Discovery (IPD) solution. IPD is the first technology to create an automated, energy-aware network between IT systems and facilities. This allows your company to reclaim millions of dollars in wasted power capacity and downtime costs across data centers. For more information on HP's IPD solution, go to www.hp.com/go/ipd.

NOTE: Mixing of power supplies in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and operation will fail.


System Fans Four Hot Plug redundant fans standard (3+1)

Graphics Integrated Matrox G200 video standard
1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory
16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)


Form Factor 4U rack

HP Server UEFI ROM Legacy Mode or Unified Extensible Firmware Interface (UEFI) Mode

HP's ProLiant System BIOS is an EDK2 UEFI solution, and adheres to the latest revisions of UEFI Class 2 specifications which supports both legacy boot and UEFI boot operation. The HP ProLiant DL580 Gen8 defaults to legacy boot operation and can be factory or field configured for UEFI boot operation.

NOTE: For UEFI boot operation, boot environment and OS image installations should be configured properly to support UEFI.

To modify the server configuration ROM default settings, press F9 in the HP ProLiant POST screen to enter the UEFI System Utilities screen. By default, the System Utilities menus are in the English language.

UEFI enables numerous new capabilities, including both industry standard functionality and features specific to HP ProLiant servers. Following are some of the features that UEFI enables and that the HP ProLiant DL580 Gen8 can support when configured for UEFI boot operation:

  • Secure Boot - A new feature in which the system firmware, option card firmware, operating systems, and software collaborate to greatly enhance platform security.
  • Operating system specific functionality - Microsoft Windows 2012 supports several features only when installed in UEFI mode.
  • Support for > 2.2 TB (using GPT) boot drives - Such drives could previously only be used for boot drives when using RAID solutions such as HP Smart Array.
  • UEFI Shell - Provides a pre-boot environment for running scripts and tools. The HP ProLiant UEFI Shell provides both standard capabilities as well as numerous enhancements.
  • PXE boot support for IPv6 networks.
  • PXE Multicast Boot allowing for faster PXE deployments for large numbers of servers.
  • Boot support for option cards that only support a UEFI option ROM.

NOTE: For more information on HP's ProLiant System BIOS and UEFI, see the UEFI Information Library: http://www.hp.com/go/uefi/docs.


Operating Systems and Virtualization Software Support for ProLiant Servers Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page http://www.hp.com/support/DL580Gen8

On System Management

HP iLO Management

HP iLO Management is a comprehensive set of embedded management
features supporting the complete lifecycle of the server, from initial
deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 servers. The HP iLO Management portfolio includes:
HP iLO: The HP iLO (Integrated Lights-Out) management processor is
the core foundation for the HP iLO Management Engine
HP Agentless Management: Provides built in server health monitoring
and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected.
HP Active Health System: Always on, continuous monitoring for
increased stability and shorter downtimes; 100% configuration history;
Health and service alerts and easy export and upload to Service and
Support.
HP Intelligent Provisioning: Lets customers provision and configure a
single server without any separate media.
To start Intelligent Provisioning:
Press the F10 key during the ProLiant Gen8 server boot
Process. Please go to the Intelligent Provisioning website at
www.hp.com/go/intelligentprovisioning for additional
information and to view usage videos. Use the Service Pack for ProLiant (SPP) at www.hp.com/go/spp to get firmware and software updates.
HP iLO Mobile App: Enables the ability to access, deploy, and manage
your server anytime from anywhere from select smartphones and
mobile devices. For additional information please visit:
www.hp.com/go/ilo/mobileapp
NOTE: For more information, visit: http://www.hp.com/go/ilo or HP iLO Management Engine technologies whitepaper


HP Insight Management

HP Service Pack for ProLiant

HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HP server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HP SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that HP provides 12 months of support for each Service Pack for ProLiant release.

The user experience around HP SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HP SUM and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HP SUM application provides a straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HP SUM provides the tools to optimize stability and consistency throughout the company. While HP SUM and the SPP recommend the combinations of firmware and system software that HP has found to be the best practice, the application gives customers the flexibility to set their own specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.

NOTE: The Service Pack for ProLiant (which includes HP SUM) can be downloaded from www.hp.com/go/spp/download. More information can be found: http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp and http://www.hp.com/go/hpsum


Intelligent Manageability HP Systems Insight Manager
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support
Hot Spare Boot

NOTE: Upon the event of a failed processor in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s).

HP Insight Online HP Insight Online is a new capability available through the HP Support Center portal for one stop, secure access to product and HP support information specific to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at any time. www.hp.com/go/insightonline

HP Proactive Insight experience Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive Insight experience consists of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: www.hp.com/go/proactiveinsightexperience

Security Power-on password
Keyboard password
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Trusted Platform Module (TPM)
Intel® Secure Key
HP Secure Encryption (Smart Array Controller)
HP Advanced Data Guard (Smart Array Controller)

Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Optional Features

HP Insight management

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, see http://www.hp.com/go/insightcontrol.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, see: http://www.hp.com/services/insight.

HP iLO Advanced HP Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HP ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvance
HP Matrix Operating Environment The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business.
The HP Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HP CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS).

NOTE: For more information, visit: http://www.hp.com/go/matrixoe


High Performance Clusters

HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html
HP Insight Cluster Management Utility HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

  • Data Protection and Recovery Software
    Whether you're a large enterprise or a smaller business, HP data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.
  • Data Archive and Migration Software
    HP's storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.
  • Storage Resource Management Software (SRM)
    HP's storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.
  • Data Replication Software
    HP offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.
  • Storage Device Management Software
    Maximize your investment in HP storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.
  • HP StoreVirtual VSA
    With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and disconnected physical disk drives in your servers and storage devices into a single pool of logical storage capacity.

NOTE: For more information available Storage Software including QuickSpecs, please see: www.hp.com/go/storage/software.


Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.


HP Simple Configurator

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Service and Support

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

Protect your business beyond warranty with HP Care Pack Services
HP Care Pack services offer complete care and support expertise with committed response choices designed to meet your IT and business needs.

HP Foundation Care services offer scalable reactive support-packages for HP servers and software. You can choose the type and level of service that is most suitable for your IT and business needs. HP Proactive Care delivers high levels of system availability through proactive service management and advanced technical response.

Recommended HP Care Pack Services for your HP product
Optimized Care 3-Year HP 6 hour Call to Repair Response, Proactive Care
Combined reactive and proactive support for hardware and software helping optimize your systems and delivering high levels of availability through proactive service management and advanced technical response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the initial service request. A Technical Solution Specialist, as your single point of contact, will own your call or issue end to end until resolved.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN

Standard Care 3-Year HP 24x7 4 hour response, Proactive Care Service
This service gives you combined reactive and proactive support including rapid access to our Advanced Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of technical knowledge that will engage with additional technical expertise as needed from HP's vast global resources.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN

Related Services HP Proactive Care Personalized Support - Environmental Option
The Personalized Support option provides an assigned Account Support Manager who can bring best practices from across the industry plus extra technical skills to your IT team. This option is only available as an add-on to HP Proactive Care Support.

HP Proactive Select Service
Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

HP Installation and Startup for HP Insight Control
HP Installation and Startup Service for HP Insight Control provides for the deployment and basic configuration of HP Insight Control software on a single central management server (CMS) for HP ProLiant. Only one instance of this service is required per CMS.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

HP Installation and Startup for HP Systems Insight Manager
Provides for installation and configuration of the latest version of HP Systems Insight Manager, together with the installation and startup of HP Service Essentials Remote Support Pack. Only one instance of this service is required per CMS.
http://h20195.www2.hp.com/v2/GetPDF.aspx/5982-4143EN.pdf

Additional HP Care Pack services can be found at: http://www.hp.com/go/cpc

Insight Online/Insight Remote Support HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. This comes at no additional cost with your HP solution. Learn more about Insight Remote Support http://www.hp.com/go/insightremotesupport and Insight Online http://www.hp.com/go/insightonline
NOTE: Insight Remote Support is a prerequisite for Proactive Care
HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

HP's Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

NOTE: HP Support Center Mobile App is subject to local availability.

Parts and Materials

HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction.

For more information To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Pre-configured Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
High Performance Models
HP ProLiant DL580 Gen8 E7-4890v2 4P 128GB-R P830i SAS 5 SFF 1500W RPS Server
728544-001
Processor(s) (4) Intel® Xeon® E7-4890v2 (2.8GHz/15-core/37.5MB/155W) Processors
Cache Memory 37.5MB (1 x 37.5MB) Level 3 cache
Memory 128GB (16 x 8GB DIMMs) PC3-14900R DIMMs (DDR3) installed in (8)
Memory Cartridges
IO Expansion (9) PCIe Gen3.0 I/O Expansion slots (5 x16 slots; 4 x8 slots)
Network Controller HP FlexFabric 10Gb 2P 534FLR-SFP+ Adapter
Storage Controller HP Smart Array P830i/2GB FBWC 12 Gbps SAS controller
Bays and Hard Drives Ten (10) SFF HDD/SSD drive bays. No drives ship standard
Optical Drive None
Power Supply (4) HP 1500W Common Slot Platinum Plus Hot Plug Power Supplies
Fans Four Hot Plug redundant fans standard (3+1)
Integrated Lights Out Integrated Lights-Out 4 (iLO 4) ships standard
Insight Control HP Insight Control No Media single server license, including 1 year of 24x7
Technical Support and Updates
Form Factor Rack 4U (rail kit is included)
BIOS Legacy BIOS (default) or UEFI BIOS (field configurable)
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response

HP ProLiant DL580 Gen8 E7-4850v2 4P 128GB-R P830i/2G 534FLR-SFP+ 1500W RPS Svr
728546-001
Processor(s) (4) Intel® Xeon® E7-4850v2 (2.3GHz/12-core/24MB/105W) Processors
Cache Memory 24MB (1 x 24MB) Level 3 cache
Memory 128GB (16 x 8GB DIMMs) PC3-14900R DIMMs (DDR3) installed in (8)
Memory Cartridges
IO Expansion (9) PCIe Gen3.0 I/O Expansion slots (5 x16 slots; 4 x8 slots)
Network Controller HP FlexFabric 10Gb 2P 534FLR-SFP+ Adapter
Storage Controller HP Smart Array P830i/2GB FBWC 12 Gbps SAS controller
Bays and Hard Drives Ten (10) SFF HDD/SSD drive bays. No drives ship standard
Optical Drive None
Power Supply (4) HP 1500W Common Slot Platinum Plus Hot Plug Power Supplies
Fans Four Hot Plug redundant fans standard (3+1)
Integrated Lights Out Integrated Lights-Out 4 (iLO 4) ships standard
Insight Control HP Insight Control No Media single server license, including 1 year of 24x7
Technical Support and Updates
Form Factor Rack 4U (rail kit is included)
BIOS Legacy mode (default) or UEFI BIOS (field configurable)
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response

Base Models
HP ProLiant DL580 Gen8 E7-4809v2 2P 64GB-R P830i/2G 331FLR 1200W PS Server
728547-001
Processor(s) (2) Intel® Xeon® E7-4809v2 (1.9GHz/6-core/12MB/105W) Processors
Cache Memory
12MB (1 x 12MB) Level 3 cache
Memory 64GB (8 x 8GB DIMMs) PC3-14900R DIMMs (DDR3) installed in (4)
Memory Cartridges
IO Expansion (9) PCIe Gen3.0 I/O Expansion slots (5 x16 slots; 4 x8 slots)
NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the expansion slots section for more details.
Network Controller HP Ethernet 1Gb 4P 331FLR Adptr
Storage Controller HP Smart Array P830i/2GB FBWC 12 Gbps SAS controller
Bays and Hard Drives Five (5) lower drive bays. No drives ship standard
Optical Drive None
Power Supply
(2) HP 1200W Common Slot Platinum Plus Hot Plug Power Supplies
Fans Four Hot Plug redundant fans standard (3+1)
Integrated Lights Out Integrated Lights-Out 4 (iLO 4) ships standard
Form Factor Rack 4U (rail kit is included)
BIOS Legacy BIOS (default) or UEFI BIOS (field configurable)
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Smart Buys

HP ProLiant DL580 Gen8 E7-4830v2 2P 64GB-R P830i/2G 531FLR 1200W RPS Svr
746081-S01
Processor(s) (2) Intel® Xeon® E7-4830v2 (2.2GHz/10-core/20MB/105W) Processors
Cache Memory 20MB (1 x 20MB) Level 3 cache
Memory 64GB (8 x 8GB DIMMs) PC3-14900R DIMMs (DDR3) installed in (4)
Memory Cartridges
IO Expansion (9) PCIe Gen3.0 I/O Expansion slots (5 x16 slots; 4 x8 slots)
NOTE: Slots 6-9 enabled by default, slots 1-5 require 4-sockets populated
Network Controller HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller HP Smart Array P830i/2GB FBWC 12 Gbps SAS controller
Bays and Hard Drives Five (5) SFF drive bays, upgradeable to ten (10). No drives ship standard
Optical Drive None
Power Supply (2) HP 1200W Common Slot Platinum Plus Hot Plug Power Supplies
Fans Four Hot Plug redundant fans standard (3+1)
Integrated Lights Out Integrated Lights-Out 4 (iLO 4) ships standard
Form Factor Rack 4U (rail kit is included)
BIOS Legacy BIOS (default) or UEFI BIOS (field configurable)
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response

HP ProLiant DL580 Gen8 E7-4870v2 2P 64GB-R P830i/2G 531FLR 1200W RPS Svr
746080-S01

Processor(s) (2) Intel® Xeon® E7-4870v2 (2.3GHz/15-core/30MB/130W) Processor
Cache Memory 30MB (1 x 30MB) Level 3 cache
Memory 64GB (8 x 8GB DIMMs) PC3-14900R DIMMs (DDR3) installed in (4)
Memory Cartridges
IO Expansion (9) PCIe Gen3.0 I/O Expansion slots (5 x16 slots; 4 x8 slots)
NOTE: Slots 6-9 enabled by default, slots 1-5 require 4-sockets populated
Network Controller HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller HP Smart Array P830i/2GB FBWC 12 Gbps SAS controller
Bays and Hard Drives Five (5) SFF drive bays, upgradeable to ten (10). No drives ship standard
Optical Drive None
Power Supply (2) HP 1200W Common Slot Platinum Plus Hot Plug Power Supplies
Fans Four Hot Plug redundant fans standard (3+1)
Integrated Lights Out Integrated Lights-Out 4 (iLO 4) ships standard
Form Factor Rack 4U (rail kit is included)
BIOS Legacy BIOS (default) or UEFI BIOS (field configurable)
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Factory Integrated Models must start with a CTO Server
NOTE: FIO indicates that this option is only available as a factory installable option.
Step 1: Base Configuration
HP Models HP ProLiant DL580 Gen8 Configure-to-order Server 728551-B21
Factory Integrated Models ship with:
4U Server Chassis with front-accessible processor and memory drawer
Intel® 602J Chipset
Embedded HP Smart Array 12 G P830i Controller
NOTE: 2GB FBWC is required and should be selected separately when ordering)
(5) Hot-plug SAS/SATA SFF SSD or HDD Bays (Lower)
(9) PCIe Gen3.0 I/O Expansion slots (5 x16 slots; 4 x8 slots)
(8) USB 2.0 ports (2 front, 4 rear, 2 internal)
(2) video ports (1 front, 1 rear)
(1) microSD card slot
(1) Trusted Platform Module (TPM) connector
(4) Hot-plug redundant fans standard, front accessible
BIOS Legacy mode(default) or Unified Extensible Firmware Interface (UEFI) mode (Optional)
HP Integrated Lights-Out 4 (iLO4) standard management
HP iLO4 Embedded Remote Support Technology
HP Insight Control Server Provisioning
HP Insight Online
HP Active Health System
System Insight Display
Rack rails and mounting hardware
NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the "Expansion slots" section for more details.
NOTE: A minimum of two processors are required. The system may have three or four processors installed.
NOTE: A minimum of two memory cartridges are required (one per processor).
NOTE: A minimum of two memory DIMMs are required per cartridge (minimum of four DIMMs per server).
NOTE: A minimum of two power supplies are required.


Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP Processors NOTE: All processor kits contain one processor. If two or more processors are desired, select one xxxxxx-L21 and additional processors would be xxxxxx-B21.
Fifteen-Core Processors

HP DL580 Gen8 Intel® Xeon® E7-4890v2 (2.8GHz/15-core/37.5MB/155W) FIO Processor Kit
728955-L21
HP DL580 Intel® Xeon® E7-4880v2 (2.5GHz/15-core/37.5MB/130W) FIO Processor Kit 728957-L21
HP DL580 Gen8 Intel® Xeon® E7-4870v2 (2.3GHz/15-core/30MB/130W) FIO Processor Kit
728959-L21
HP DL580 Gen8 Intel® Xeon® E7-4870v2 (2.3GHz/15-core/30MB/130W) Processor Kit/S-Buy 728959-S21
HP DL580 Gen8 Intel® Xeon® E7-8880Lv2 (2.2GHz/15-core/37.5MB/105W) FIO Processor Kit
728953-L21
Twelve-Core Processors

HP DL580 Gen8 Intel® Xeon® E7-4860v2 (2.6GHz/12-core/30MB/130W) FIO Processor Kit
728963-L21
HP DL580 Gen8 Intel® Xeon® E7-4850v2 (2.3GHz/12-core/24MB/105W) FIO Processor Kit
728965-L21
HP DL580 Gen8 Intel® Xeon® E7-8857v2 (3.0GHz/12-core/30MB/130W) FIO Processor Kit
728961-L21
Ten-Core Processors
HP DL580 Gen8 Xeon® E7-8891v2 (3.2GHz/10-core/37.5MB/155W) FIO Processor Kit 728967-L21
HP DL580 Gen8 Xeon® E7-4830v2 (2.2GHz/10-core/20MB/105W) FIO Processor Kit 728969-L21
Eight-Core Processors

HP DL580 Gen8 Intel® Xeon® E7-4830v2 (2.2GHz/10-core/20MB/105W) Processor Kit/S-Buy 728969-S21
HP DL580 Gen8 Intel® Xeon® E7-4820v2 (2.0GHz/8-core/16MB/105W) FIO Processor Kit
728971-L21
Six-Core Processors

HP DL580 Gen8 Intel® Xeon® E7-4809v2 (1.9GHz/6-core/12MB/105W) FIO Processor Kit
728975-L21
HP DL580 Gen8 Intel® Xeon® E7-8893v2 (3.4GHz/6-core/37.5MB/155W) FIO Processor Kit
NOTE: A minimum of two processors are required. The system may have three and four processors installed.
728973-L21

HP Memory NOTE: HP memory from previous generation servers are not qualified or warranted with this HP ProLiant Server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE: LRDIMM, RDIMM, UDIMM, and HDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support LRDIMM, RDIMM and UDIMMs.
NOTE: Must select a minimum quantity of two memory kits.

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708637-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit
713981-B21
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
731761-B21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit
731765-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708641-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit
713985-B21
Load Reduced DIMMs (LR DIMMS)

HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit
708643-B21
Memory Expansion Options

HP DL580 Gen8 12 DIMM Slots Memory Cartridge
NOTE: Up to Eight (8) memory cartridges are supported for 96 DIMM slots
NOTE: A minimum of two memory cartridges are required (one per processor).
NOTE: A minimum of two memory DIMMs are required per cartridge (minimum of four DIMMs per server).
732411-B21

HP Networking FlexibleLOM Adapters
NOTE: Only one FlexibleLOM can be added to the server. These options are upgradeable and can be changed from the original configuration after the server is shipped.
NOTE: For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.


HP Ethernet 1Gb 4-port 331FLR FIO Adapter 684208-B21
HP 1GbE 4-port 366FLR Adapter FIO Adapter 665240-B21
HP FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter 700752-B21
HP Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter 684218-B21
HP Ethernet 10Gb 2P 561FLR-T FIO Adapter 700700-B21

FBWC Upgrade for embedded P830i Controller HP 2GB FIO Flash Backed Write Cache 758836-B21
HP 4GB FBWC FIO Kit for P-series SA 698537-B21

HP Power Supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP Common Slot Platinum Plus Power Supply Kits
NOTE: 94% efficiency with support for HP Power Discovery Services.

HP 1500W Common Slot Platinum Plus Hot Plug Power Supply Kit 684532-B21
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit 656364-B21
NOTE: Minimum of two (2) power supplies are required.
All power supplies in a server should match. Mixing Power Supplies is not supported.
NOTE: Option Kits contain the specified power supply and a PDU IEC cable.
NOTE: 1500W Power Supplies only support High Line Voltage.
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords


Storage Controller FBWC HP 2GB FBWC FIO for P-Series Smart Array

758836-B21
NOTE: 2G Flash Backed Write Cache is required for P830i SAS Controller

Step 3: Choose Additional Factory Integratable Options
Converged Infrastructure Management Software HP OneView with iLO Advanced - Server hardware required on same purchase order

HP OneView for ProLiant DL Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic
E5Y43A
NOTE: OneView is supported in Legacy BIOS mode only.
HP Insight Software HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License C6N36A

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.

HP Processors Fifteen-Core Processors

HP DL580 Gen8 Intel® Xeon® E7-4890v2 (2.8GHz/15-core/37.5MB/155W) Processor Kit
728955-B21
HP DL580 Gen8 Intel® Xeon® E7-4880v2 (2.5GHz/15-core/37.5MB/130W) Processor Kit
728957-B21
HP DL580 Gen8 Intel® Xeon® E7-4870v2 (2.3GHz/15-core/30MB/130W) Processor Kit
728959-B21
HP DL580 Gen8 Intel® Xeon® E7-4870v2 (2.3GHz/15-core/30MB/130W) Processor Kit/S-Buy
728959-S21
HP DL580 Gen8 Intel® Xeon® E7-8880Lv2 (2.2GHz/15-core/37.5MB/105W) Processor Kit
728953-B21
Twelve-Core Processors

HP DL580 Gen8 Intel® Xeon® E7-4860v2 (2.6GHz/12-core/30MB/130W) Processor Kit
728963-B21
HP DL580 Gen8 Intel® Xeon® E7-4850v2 (2.3GHz/12-core/24MB/105W) Processor Kit
728965-B21
HP DL580 Gen8 Intel® Xeon® E7-8857v2 (3.0GHz/12-core/30MB/130W) Processor Kit
728961-B21
Ten-Core Processors
HP DL580 Gen8 Intel® Xeon® E7-8891v2 (3.2GHz/10-core/37.5MB/155W) Processor Kit 728967-B21
HP DL580 Gen8 Intel® Xeon® E7-4830v2 (2.2GHz/10-core/20MB/105W) Processor Kit 728969-B21
Eight-Core Processors

HP DL580 Gen8 Intel® Xeon® E7-4830v2 (2.2GHz/10-core/20MB/105W) Processor Kit/S-Buy 728969-S21
HP DL580 Gen8 Intel® Xeon® E7-4820v2 (2.0GHz/8-core/16MB/105W) Processor Kit
728971-B21
Six-Core Processors

HP DL580 Gen8 Intel® Xeon® E7-4809v2 (1.9GHz/6-core/12MB/105W) Processor Kit
728975-B21
HP DL580 Gen8 Intel® Xeon® E7-8893v2 (3.4GHz/6-core/37.5MB/155W) Processor Kit
NOTE: A minimum of two processors are required. The system may have three or four processors installed.
728973-B21

HP Memory

NOTE: HP memory from previous generation servers are not qualified or warranted with this HP ProLiant Server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE: LRDIMM, RDIMM, UDIMM, and HDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support LRDIMM, RDIMM and UDIMMs.


Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit
713981-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit/S-Buy 713981-S21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit
713985-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit/S-Buy 713985-S21
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708637-B21
HP 4GB (1X4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit/S-Buy 708637-S21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit
731765-B21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit/S-Buy 731765-S21
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
731761-B21
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit/S-Buy 731761-S21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708641-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit/S-Buy 708641-S21
HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit
708643-B21
HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit/S-Buy 708643-S21
Memory Expansion Options

HP DL580 Gen8 12 DIMM Slots Memory Cartridge
NOTE: Up to Eight (8) memory cartridges are supported for 96 DIMM slots
NOTE: A minimum of two memory cartridges are required (one per processor).
NOTE: A minimum of two memory DIMMs are required per cartridge (minimum of four DIMMs per server).
732411-B21

HP Optical Drives HP Mobile USB Non Leaded System DVD RW Drive 701498-B21

HP Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive
718162-B21
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive/S-Buy 718162-S21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652589-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive/S-Buy 652589-S21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652583-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive/S-Buy 652583-S21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652572-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652564-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive/S-Buy 652564-S21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652611-B21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive/S-Buy 652611-S21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652605-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652605-S21
SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
652749-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
652745-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18004.www1.hp.com/products/quickspecs/12244_na/12244_na.html

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives

HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

717965-B21

HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

734360-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives

HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

717973-B21

HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

717971-B21

HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive
739898-B21
HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

739888-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive 717969-B21
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691868-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691866-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691864-B21

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691862-B21

12G SAS Enterprise Performance and Mainstream Solid State Drives

HP 800GB 12G SAS High Endurance SFF 2.5-in SC Enterprise Performance 3yr Wty Solid State Drive

741159-B21

HP 400GB 12G SAS High Endurance SFF 2.5-in SC Enterprise Performance 3yr Wty Solid State Drive

741155-B21

HP 200GB 12G SAS High Endurance SFF 2.5-in SC Enterprise Performance 3yr Wty Solid State Drive

741151-B21

HP 800GB 12G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

741146-B21

HP 400GB 12G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
741142-B21
HP 200GB 12G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

741138-B21

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

690829-B21

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

690827-B21

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

690825-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html


Hard Drive Option Kits

HP ProLiant DL580 Gen8 5 Small Form Factor Drive Backplane Cage Kit

739405-B21

HP SFF Gen8 Hard Drive Blank Kit 666987-B21
HP DL580 Gen8 SAS Cable Kit
NOTE: This cable is required when ordering one of these Smart Array Controllers for a PCIe slot.
748916-B21
HP Smart Array P830/4GB FBWC 6Gb 2-ports Int SAS Controller

698533-B21

HP Smart Array P430/4GB FBWC 6Gb 1-port Int SAS Controller
698530-B21
HP Smart Array P430/2GB FBWC 6Gb 1-port Int SAS Controller
698529-B21

HP Networking

Gigabit Ethernet Adapters
HP Ethernet 1Gb 4-port 331T Adapter
647594-B21
HP Ethernet 1Gb 2-port 361T Adapter 652497-B21
10 Gigabit Ethernet Adapters
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

HP Ethernet 10Gb 2-port 530SFP Adapter 652503-B21
HP Ethernet 10Gb 2-port 560SFP+ Adapter 665249-B21
HP Ethernet 10Gb 2-port 530T Adapter 656596-B21
HP Ethernet 10Gb 2-port 561T Adapter 716591-B21
FlexibleLOM Adapters

HP Ethernet 1Gb 4-port 331FLR Adapter
629135-B21
HP Ethernet 1Gb 4-port 366FLR Adapter 665240-B21
HP FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter
700751-B21
HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter
665243-B21
HP Ethernet 10Gb 2P 561FLR-T Adapter 700699-B21
NOTE: Both Legacy and UEFI mode are supported
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs

HP Power Supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP Common Slot Platinum Plus Power Supply Kits
NOTE: 94% efficiency with support for HP Power Discovery Services.

HP 1500W Common Slot Platinum Plus Hot Plug Power Supply Kit
684532-B21
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit 656364-B21
NOTE: All power supplies in a server should match. Mixing Power Supplies is not supported.
NOTE: Option Kits contain specified power supply and PDU IEC cable.
NOTE: 1500W Power Supplies only support High Line Voltage.
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords


Auxiliary Power Cables HP DL580/DL585/DL980 Power Cable Kit
NOTE: Order with HP IO Accelerator Duo cards or GPGPUs for providing additional power to the IO cards.
631660-B21
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License C6N27A
HP Insight Control Server Provisioning Media Kit BD883A
HP Insight Management Media Kit C6N31A
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Integrated Lights-Out (iLO) Advanced for ProLiant
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License 512485-B21
HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates BD505A
NOTE: For additional license options please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/14276_na/14276_na.html

NOTE: For more information, visit: http://www.hp.com/go/ilo

Converged Infrastructure Management Software HP OneView
HP OneView with iLO Advanced

HP OneView Media Kit Phys No Lic E5Y37A
HP OneView incl 3yr 24x7 Supp Phys 1 Svr Lic E5Y34A
HP OneView incl 3yr 24x7 Supp Flex Qty E-LTU E5Y35AAE
HP OneView without iLO Advanced

HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic E5Y38A
HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU E5Y39AAE
NOTE: OneView is supported in Legacy BIOS mode only
Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14621_na/14621_na.html


HP I/O Accelerator Options Second Generation Accelerators
HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers 673642-B21
HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers 673644-B21
HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers 673646-B21
HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers 673648-B21
HP 3TB G2 FH/HL PCIe ioDrive2 IO Accelerator for ProLiant Servers 721458-B21
NOTE: Both Legacy and UEFI BIOS modes are supported. Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13587_na/13587_na.html


HP Storage Controllers SAS Controllers
Smart Array P430 Controller

HP Smart Array P430/2GB FBWC 6Gb 1-port Int SAS Controller 698529-B21
HP Smart Array P430/4GB FBWC 6Gb 1-port Int SAS Controller 698530-B21
Smart Array P431 Controller
HP Smart Array P431/2GB FBWC 6Gb 2-ports Ext SAS Controller 698531-B21
HP Smart Array P431/4GB FBWC 6Gb 2-ports Ext SAS Controller 698532-B21
Smart Array P830 Controller
HP Smart Array P830/4GB FBWC 6Gb 2-ports Int SAS Controller 698533-B21
Optional Upgrades
HP 4GB Flash Backed Write Cache FIO Kit for P-series Smart Array Controllers 698537-B21
HP 2GB Flash Backed Write Cache FIO Kit for P-series Smart Array Controller 758836-B21
HP SmartCache No Media 24x7 Technical Support 1 Svr License
D7S26A
HP SmartCache No Media 24x7 Technical Support Flexible License
D7S27A
HP SmartCache No Media 24x7 Technical Support Electronic License
D7S27AAE
NOTE: A maximum of four HP Smart Array Controllers (including embedded controller) can be installed
NOTE: For more information about HP SmartCache, go to www.hp.com/go/smartcache
NOTE: Both Legacy and UEFI modes are supported

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14624_na/14624_na.html
(Smart Array P430 Controller)
http://h18000.www1.hp.com/products/quickspecs/14625_na/14625_na.html
(Smart Array P431 Controller)
http://h18000.www1.hp.com/products/quickspecs/xxxxx_na/xxxxx_na.html
(Smart Array P830 Controller)
http://h18000.www1.hp.com/products/quickspecs/14532_na/14532_na.html
(SmartCache)


HP Secure Encryption HP Secure Encryption No Media E-LTU per Drive
D8S85AAE
HP Secure Encryption No Media Flexible License per Drive
D8S84A
NOTE: HP Secure Encryption is supported on the HP Smart Array P830, P430 and P431 as an option. HP Secure Encryption licensing is based on the number of physical drives requiring encryption.

NOTE: For more information about HP Secure Encryption, go to www.hp.com/go/hpsecureencryption

HP Tape Backup NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HP tape backup products see: http://www.hp.com/storage/SPOCK and www.hp.com/go/ebs.
NOTE: For Internal drives to be connected to DL servers please make sure that you order rack mount kit as well.

HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit C0L99A
HP StoreEver LTO-6 Ultrium 6650 SAS Internal Tape Drive
EH963A
HP StoreEver LTO-6 Ultrium 6650 SAS External Tape Drive
EH964A
HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive
EH969A
HP StoreEver LTO-6 Ultrium 6250 External Tape Drive
EH970A
HP StoreEver 1/8 G2 LTO-6 Ultrium 6250 FC Tape Autoloader C0H19A

HP Tape Storage Systems HP StoreEver MSL6480
HP StoreEver MSL6480 Scalable Base Module QU625A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14604_na/14604_na.html


HP Disk Backup NOTE: For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP disk backup products see: http://www.hp.com/storage/SPOCK.
NOTE: For Internal drives to be connected to DL servers please make sure that you order rack mount kit as well.

HP RDX320 USB3.0 External Disk Backup System
B7B63A
HP RDX500 USB3.0 Internal Disk Backup System
B7B64A
HP RDX500 USB3.0 External Disk Backup System
B7B66A
HP RDX1000 USB3.0 Internal Disk Backup System
B7B67A
HP RDX1000 USB3.0 External Disk Backup System B7B69A
HP RDX 2TB USB3.0 Internal Disk Backup System E7X52A
HP RDX 2TB USB3.0 External Disk Backup System E7X53A

HP Disk Storage Systems Disk Enclosures
HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle E7W32A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html


HP Storage Options Storage Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

QLogic Fibre Channel HBAs
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter AK344A
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter AJ764A
HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter QW971A
HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter QW972A
NOTE: Only UEFI BIOS mode is supported.
NOTE: Legacy mode and UEFI mode Secure Boot will be supported post initial release


HP Uninterruptible Power Systems

HP Rack-mountable UPS
HP R1500 G3 Uninterruptible Power Supply (UPS)
HP R1.5kVA G3 1U NA Uninterruptible Power System AF469A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14059_na/14059_na.html

HP R/T3000 G2 Uninterruptible Power System (UPS)
HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System

AF466A

HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System AF467A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14058_na/14058_na.html

R5000 Uninterruptible Power System (UPS)
HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System AF460A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14109_na/14109_na.html

R7000 Uninterruptible Power System (UPS)
HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System AF462A
HP R5KVA and R7KVA 3U Extended Runtime Module AF464A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14110_na/14110_na.html

HP Rackmountable 3 Phase Uninterruptible Power Systems (UPS R8000/3 and R12000/3)
HP R8000/3 8000kVA Three Phase NA 6U Rackmount Uninterruptible Power System AF431A
HP R12000/3 12000VA Three Phase NA 6U Rackmount Uninterruptible Power System AF429A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12857_na/12857_na.html

NOTE: For additional information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups.
NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com.

NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.

HP Basic Power Distribution Units (pPDU)

HP Basic Power Distribution Unit: 1U/0U Version
HP 1.9kVA 120 Volt 12 Outlet NA/JP Basic Power Distribution Unit H5M54A
HP 3.6kVA 200-240 Volt 12 Outlet WW Basic Power Distribution Unit H5M56A
HP Basic Power Distribution Unit: Half Height Version
HP 2.8kVA 120 Volt 18 Outlet NA/JP Basic Power Distribution Unit H5M55A
HP 3.6kVA 200-240 Volt 20 Outlet WW Basic Power Distribution Unit H5M57A
HP 4.9kVA 208 Volt 20 Outlet NA/JP Basic Power Distribution Unit H5M58A
HP 8.6kVA 208 Volt Three Phase 18 Outlet NA/JP Basic Power Distribution Unit H5M61A
HP Basic Power Distribution Unit: Mid Height Version
HP 4.9kVA 208 Volt 30 Outlet NA/JP Basic Power Distribution Unit H5M59A
HP 8.3kVA 208 Volt 36 Outlet NA/JP Basic Power Distribution Unit H5M60A
HP Hardwired 200-240 Volt 36 Outlet WW Basic Power Distribution Unit H5M75A
HP 5.7kVA 208 Volt Three Phase 27 Outlet NA/JP Dual Voltage Basic Power Distribution Unit H5M63A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Dual Voltage Basic Power Distribution Unit H5M64A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Basic Power Distribution Unit H5M62A
HP Basic Power Distribution Unit: Full Height Version
HP 11kVA 400 Volt Three Phase 42 Outlet NA Basic Power Distribution Unit H5M67A
HP Basic Power Distribution Unit: 480/277 Volt Version
HP 13.2kVA 480 Volt Three Phase 15 Outlet NA Basic Power Distribution Unit H3X07A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Basic Power Distribution Unit H3X08A
HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer H3X09A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14557_na/14557_na.html

NOTE: Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit: www.hp.com/go/rackandpower.

HP Remote Monitoring Power Distribution Units (mPDU)

HP Remote Monitored Power Distribution Unit: 1U Version
HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit D9N43A
HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit D9N46A
HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution Unit D9N44A
HP Remote Monitored Power Distribution Unit: Half Height Version
HP 3.6kVA 200-240 Volt 16 Outlet WW Monitored Power Distribution Unit D9N45A
HP Remote Monitored Power Distribution Unit: Mid Height Version
HP 4.9kVA 208 Volt 24 Outlet NA/JP Monitored Power Distribution Unit D9N47A
HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution Unit D9N51A
HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power Distribution Unit D9N52A
HP 8.6kVA 208 Volt Three Phase 24 Outlet NA/JP Dual Voltage Monitored Power Distribution Unit D9N53A
HP Remote Monitored Power Distribution Unit: Full Height Version
HP 8.3kVA 208 Volt 33 Outlet NA Monitored Power Distribution Unit D9N49A
HP 14.4kVA 208 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit D9N58A
HP 16.6kVA 400 Volt Three Phase 33 Outlet NA Monitored Power Distribution Unit D9N61A
HP 17.3kVA 208 Volt Three Phase 27 Outlet NA/JP Monitored Power Distribution Unit D9N54A
HP 17.3kVA 208 Volt Three Phase 24 Outlet NA/JP Monitored Power Distribution Unit D9N59A
HP 16.6kVA 400 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit D9N62A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Monitored Power Distribution Unit D9N63A
HP Environmental Sensor for Remote Monitored PDUs
HP Environmental Sensor for Remote Monitored PDUs E2D53A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14669_na/14669_na.html


HP Intelligent Power Distribution Units (iPDU)

iPDU Core Units
HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit AF520A
HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit AF521A
HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit AF522A
HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit AF533A
HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit AF523A
HP 11.4kVA 16A 415V Three Phase L22-20 NA Core Intelligent Power Distribution Unit AF900A
HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit AF902A
HP 17.3kVA 24A 415V Three Phase IEC309 NA Core Intelligent Power Distribution Unit AF901A
HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit AF535A
HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit AF537A
iPDU Kits with Standard Extension Bars
HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit AF531A
HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit AF532A
iPDU Extension Bars
HP 5xC13 Intelligent PDU Extension Bar G2 Kit AF547A
HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar AF528A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13650_na/13650_na.html


HP Rack Options

HP Location Discovery Services
HP 36U Location Discovery Kit BW945A
HP 42U Location Discovery Kit BW946A
HP 47U Location Discovery Kit BW947A
HP TFT7600 G2 KVM Console and Monitor (TFT7600 G2)
HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor AZ870A
HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor AZ885A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13731_na/13731_na.html

HP Server Console Switches



HP Server Console 0x2x8 Port Analog Switch

AF616A

HP Server Console 0x2x16 Port Analog Switch

AF617A

HP TAA 0x2x16xKVM Server Console G2 Switch AF626A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11834_na/11834_na.html



HP Server Console Switch G2 with Virtual Media & CAC
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software
AF618A
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software
AF619A
HP KVM CAT5 1-pack USB Interface Adapter 336047-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13475_na/13475_na.html
HP IP Console Switch G2 with Virtual Media & CAC
HP 1x4 USB/PS2 KVM Console Switch AF611A
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software AF620A
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software AF621A
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software AF622A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13474_na/13474_na.html


HP USB and SD Options

HP Flash Media Kits for USB Drives
HP 2GB USB Flash Media Drive Key Kit
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
608447-B21
HP Enterprise Mainstream Flash Media Kits for Memory Cards

HP 8GB SD Enterprise Mainstream Flash Media Kit
726113-B21
HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit
737953-B21
HP 32GB microSD Enterprise Mainstream Flash Media Kit 700139-B21
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13971_na/13971_na.html


HP Care Pack Services Proactive Care
NOTE: Collaborative Support plus Proactive services delivered by the onshore, local language Advanced Solution Center (ASC), end-to-end case ownership from a Technical Solution Specialists and Technical Account Manager who remotely delivers firmware/software revision management, proactive scans and incident trend reports. Recommended for customers running a virtualized infrastructure and/or customers who desire an enhanced call support experience.
HP 3 year 4 hour 24x7 ProLiant DL58x Proactive Care Service U2Z68E
HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL58x Proactive Care Service U2Z71E
HP 3 year 6 hour Call To Repair 24x7 ProLiant DL58x Proactive Care Service U2Z74E
HP 3 year 6 hour Call To Repair 24x7 withDefective Media Retention ProLiant DL58x Proactive Care SVC U2Z77E
Proactive Care Personalized Support - Environmental Option
NOTE: To add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who delivers support planning and brings technical expertise and best practices advices for the customer's environment.

HP 3 year ISS ProactiveCare Personalized Support
U6W98E
Installation Services
NOTE: Reduce the time required to get your system up and running and help minimize disruptions to your business.

HP Install ProLiant DL58x Service
U4617E
HP Startup ProLiant DL58x Service
U4618E
HP Installation and Startup for Insight Control Software
UF369E
HP Startup HP Systems Insight Manager Service
UA041E
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Memory

HP SmartMemory

New HP SmartMemory now provides additional protection for your servers. With HP Authentication it can verify that you have true HP Qualified Memory in your HP ProLiant Gen8 server. With HP SmartMemory your new HP ProLiant server can take advantage of additional Gen8 enhancements in performance, durability and future manageability support through HP Active Health System.

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator

Memory Sub-system Architecture

As shown in the figure above, memory cartridge to processor association as follows:

  • Memory cartridges installed without a corresponding processor are not utilized:
    • Processor 1 corresponds to memory cartridges 1 and 2.
    • Processor 2 corresponds to memory cartridges 3 and 4.
    • Processor 3 corresponds to memory cartridges 5 and 6.
      NOTE: Memory cartridges 5 and 6 are not recognized if processor 3 is not installed.
    • Processor 4 corresponds to memory cartridges 7 and 8.
      NOTE: Memory cartridges 7 and 8 are not recognized if processor 4 is not installed.

Each memory cartridge contains 12 DIMM slots as shown in figure below:

The memory subsystem in this server is divided into channels. Each processor supports eight channels, and each channel supports three DIMM slots, as shown in the table below. White DIMM slots denote the first slot of a channel (Ch 4A, Ch 9B, Ch 1C, Ch 12D...).

Channel
Population order
Slot number

1
A
E
J
4
5
6
2
B
F
K
9
8
7
3
C
G
L
1
2
3
4
D
H
M
12
11
10

The server can operate in independent channel mode (performance) or combined channel mode (lockstep). Lockstep mode improves the system reliability and availability. If running with RDIMM (built with x4 DRAM devices), the system can survive the complete failure of two DRAM devices (DDDC). Running in independent mode, the server can only survive the complete failure of a single DRAM device (SDDC).

Independent channel mode (Performance mode):
The server supports the following DIMM speeds as shown below in the table.
DIMM type
DIMM rank Voltage 1 DIMM per channel 2 DIMMs per channel 3 DIMMs per channel
RDIMM Single-rank (4 GB) LV
1333 1066 1066
RDIMM Single-rank (4 GB) STD 1333
1333
1066
RDIMM Single-rank (8 GB)
LV 1333 1066
1066
RDIMM
Single rank (8 GB)
STD
1333
1333 1066
RDIMM
Dual-rank (16 GB)
LV
1333
1066
1066
RDIMM Dual-rank (16 GB)
STD 1333
1333
1066
LRDIMM Quad-rank (32GB) STD 1333 1333 1333
NOTE:
  • Depending on the number of DIMMs installed, whether LRDIMMs or RDIMMs are installed, and whether the DIMM is operating and standard or low voltage, the memory clock speed can be reduced to 1333 or 1066 MT/s.



Lockstep mode:
The server supports the following DIMM speeds as shown below in the table.
DIMM type
DIMM rank Voltage 1 DIMM per channel 2 DIMMs per channel 3 DIMMs per channel
RDIMM Single-rank (4 GB) LV 1333 1066 1066
RDIMM Single-rank (4 GB) STD 1333 1333 1066
RDIMM Single-rank (8 GB) LV 1333 1066 1066
RDIMM Single rank (8 GB) STD 1333 1333 1066
RDIMM Dual-rank (16 GB) LV 1333 1066 1066
RDIMM Dual-rank (16 GB) STD 1333 1333 1066
LRDIMM Quad-rank (32GB) STD 1600 1600 1333
NOTE:
  • Depending on the number of DIMMs installed, whether LRDIMMs or RDIMMs are installed, and whether the DIMM is operating and standard or low voltage, the memory clock speed can be reduced to 1333 or 1066 MT/s.

DIMM Classification and Identification
Memory Population Guidelines
  • To maximize performance, install two memory cartridges per processor and balance the total memory capacity between all installed processors.
  • When multiple processors are installed, HP recommends installing the DIMMs in sequential alphabetical order: 4A, 9B, 1C, 12D, and so on.
  • LRDIMMs support higher densities than single- and dual-rank RDIMMs, and higher speeds than quad-rank RDIMMs. This support enables you to install more high capacity DIMMs, resulting in higher system capacities and higher bandwidth.
  • Do not mix LRDIMMs with any other DIMM type (RDIMM, LVDIMM).
  • RDIMM population is limited to a maximum of eight logical ranks per channel. Therefore, only two quad rank RDIMMs are supported per channel. If there are more than eight physical ranks per channel, LRDIMMs rank multiplication provides support for three DIMMs per channel.
  • Lockstep mode requires specific population requirements. See lock-step configuration below for more information.
NOTE: UDIMMs are not supported. This server does not support mixing LRDIMMs, RDIMMs, or UDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS initialization.
For detailed memory configuration rules and guidelines, use the Online DDR3 Memory Configuration Tool on the HP website (http://www.hp.com/go/ddr3memory-configurator).


Online Sparing Configuration Guidelines

Online spare memory provides protection against degraded DIMMs by reducing the likelihood of uncorrected memory errors. This protection is available without any operating system support.

Online spare memory protection dedicates one rank of each memory channel for use as spare memory. The remaining ranks are available for OS and application use. If correctable memory errors occur at a rate higher than a specific threshold on any of the non-spare ranks, the server automatically copies the memory contents of the degraded rank to the online spare rank. The server then deactivates the failing rank and automatically switches over to the online spare rank.

For Online Spare memory mode configurations, observe the following guidelines:
  • Observe the general DIMM slot population guidelines.
  • Each channel must have a valid online spare configuration.
  • Each channel can have a different valid online spare configuration.
  • Each populated channel must have a spare rank.
  • A single dual-rank DIMM is not a valid configuration.
  • LRDIMMs are treated as dual-rank DIMMs.

HP Memory NOTE: HP memory from previous generation servers are not qualified or warranted with this HP ProLiant Server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE: LRDIMM, RDIMM, UDIMM, and HDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support LRDIMM, RDIMM and UDIMMs.

Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit 713981-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit 713985-B21
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit 708637-B21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit 731765-B21
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit 731761-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit 708641-B21
HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13 Memory Kit 708643-B21
Memory Expansion Options
HP DL580 Gen8 12 DIMM Slots Memory Cartridge 732411-B21
NOTE: A minimum of two memory cartridges are required (one per processor).
NOTE: A minimum of two memory DIMMs are required per cartridge (minimum of four DIMMs per server).

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Storage

1-10 Ten (10) SFF Hot-plug HDD/SSD drive bays
NOTE: Drives installed in bays 6-10 require the optional SAS backplane kit.

Maximum Internal Storage
Hot Plug SFF SAS 12TB

10 x 1.2TB

Hot Plug SFF SAS SSD
8TB
10 x 800GB
Hot Plug SFF SATA SSD 8TB 10 x 800GB
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      DL580 G8 Core Options      Additional Options      DL580 G8 Memory      Storage      Technical Specifications      DL580 G8 QuickSpecs images/line.gif (50 bytes)

Proliant DL580 G8 Technical Specifications

System Unit

Dimensions (H x W x D)
(with bezel)

6.88" x 17.48" x 29" (17.5cm x 44.4cm x 73.6cm)

Weight
(approximate)

Maximum
(all hard drives, power supplies, DIMMs and processors installed)
116.56.0 lb (52.87 kg)
Minimum
(one hard drive, two power supplies, four DIMMs, and two processors installed)
70.94 lb (32.18 kg)

Input Requirements
(per power supply)

Rated Line Voltage 100 - 120 VAC (1200W PS only)
200 - 240 VAC (1200W & 1500W PS)
Rated Input Current 9.2A (100 VAC), 6.6A (200 VAC) - 1200W PS8.3A (200 VAC) - 1500W PS
Rated Input Frequency 50 to 60 Hz
Rated Input Power 1000 W (120 VAC), 1320 W (230VAC)
- 1200W PS
1652 W (at 230 VAC) - 1500W PS
BTU Rating Maximum 3408 BTU/hr (120 VAC), 4500 BTU/hr (at 230 VAC) - 1200W PS5637 BTU/hr (230 VAC) - 1500W PS
Power Specifications

NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

- Click on the system of interest. Example: DL580 G7
- Follow the instructions of the next screens.

Power Supply Output (per power supply) Rated Steady-State Power and Maximum Peak Power 800 W (100 VAC low line),900 W (120 VAC low line), 1200W (200 - 240 VAC) for 1200W PS
1500W (200 - 240V) for 1500W PS
System Inlet Temperature Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating -40° to 70°C (-40° to 158°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating 10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude Operating 3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Emissions Classification (EMC) FCC Rating Class A
Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

HP Smart Array P830i/2 G

Dimensions Embedded
Disk Drive and Enclosure Interface - Transfer rate 12 Gb/s SAS, 6 Gb/s SAS & SATA
SAS Connectors 2x8 ports double-wide internal
Cache Memory Speed DDR2-800MHz with 72-bit wide bus
Server Interface x4 PCIe 2.0 provides 2GB/s maximum bandwidth
SAS Speed 8 12Gb/s SAS links provide 9.6 GB/s maximum bandwidth
Cache Memory Zero Memory RAID has no cache memory
40-bit 256MB ECC protected cache (battery upgrade available)
72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC
Logical Drives Supported Zero Memory, Up to 2 logical volumes (8 physical drives)
Up to 64 logical drives with cache
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID Support RAID 6, 60 (Advanced Data Guarding)
RAID 5, 50 (Distributed Data Guarding)
NOTE: A minimum of 512 MB cache is required to enable RAID 5, 50, 6, 60
RAID 10 (Striping & Mirroring)
RAID 0 (Striping), RAID 1 (Mirroring)

HP Ethernet 1Gb 4-port 331FLR Adapter

HP Flexible Network Technology HP Flexible Network Technology consists of replaceable network solutions to meet customer requirements now and in the future.
Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ad 1000Base-TX
IEEE 802.1p 100Base-TX
IEEE 802.1q 100Base-TX
Data Transfer Method PCI-Express 2.0 x4
Controller BCM5719
Network Transfer Rate 10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4, or 5 UTP; up to 328 ft (100 m)
100Base-TX Category 5 or higher UTP; up to 328 ft (100 m)
1000Base-TX Category 5 or higher UTP; up to 328 ft (100 m)

HP FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

HP Flexible Network Technology HP Flexible Network Technology consists of replaceable network solutions to meet customer requirements now and in the future.
Network Interface IEEE 802.3 SFP+ (SX, SR & LR)
Compatibility 802.3, 802.3ae, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb, 802.1Qbg, 802.1ax
Data Transfer Method PCI-Express 2.0 x8
Controller Broadcom BCM57810S chipset
Network Transfer Rate Two ports, each at 20 Gbps full duplex; 40 Gbps aggregate full duplex theoretical bandwidth.
Connector Two SFP+
Cable Support Maximum distances for CAT6 cable are 30 meters (98 feet).
Maximum distances for CAT6a are 100 meters (328 feet).

HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter

HP Flexible Network Technology HP Flexible Network Technology consists of replaceable network solutions to meet customer requirements now and in the future.
Network Interface SFP+ for Direct Attach Cable copper or fiber
Compatibility 802.3, 802.1ab, 802.3x, 802.3ad, 802.1p/ 802.1q, 802.3ae, 802.1Qau
Data Transfer Method PCI-Express 2.0 x8
Controller Intel® 82599 Controller
Network Transfer Rate Two ports, each at 20 Gbps full duplex; 40 Gbps aggregate full duplex theoretical bandwidth.
Connector Two SFP+
Cable Support 10Base-T
Categories 3, 4, or 5 UTP; up to 328 ft (100 m)
100Base-TX
Category 5 or higher UTP; up to 328 ft (100 m)
1000Base-TX Category 5 or higher UTP; up to 328 ft (100 m)

USAPartsDirect          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
