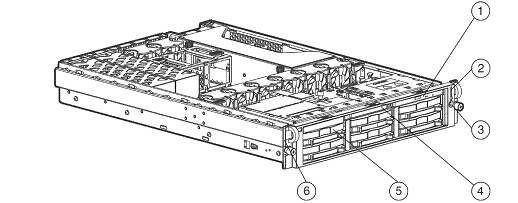

Unit Identification button and LED
(for easy in rack server identification)
4.
1.44 MB Diskette Drive
5.
Six 1" Wide Ultra3/Ultra320 SCSI hot
plug hard drives and one DAT 40 or DAT 72 hot plug tape drive
6.
2U form factor
What's New
The ProLiant DL380 G3 is now available with
two new high performance processors:
The 3.2GHz Intel Xeon processor with 2MB of Level 3 cache delivering
top performance for the most demanding applications
The 2.8GHz Intel Xeon processors with1MB of Level 3 cache offering
a significant performance increase over the 3.06GHz/512MB processor
at a price point that won't break your budget.
At A Glance
Integrated Lights-Out (iLO)
Management standard on system board
Five Peer PCI Architecture up to 3.2 GHz processors
and a 533MHz Front Side Bus
ServerWorks GC -LE Chipset
Integrated Smart Array 5i Plus Controller with optional
Battery-Backed Write Cache (BBWC) Enabler option kit
Three available 64-bit PCI-X slots, including two
hot pluggable 100MHz slots and one 133MHz slot
Two NC7781 PCI-X Gigabit NICs (embedded)
Support for up to six 1" Wide Ultra3/Ultra320
SCSI hot plug hard drives or for five hot plug hard drives and one AIT
hot plug tape drive
User configurable single/dual channel drive backplane
Internal hot plug capacity 1.80 TB standard (6 x
300 GB 1" U320 HD)
400-Watt Hot Plug Power Supply (with optional redundancy)
Hot Pluggable Fans (with optional redundancy)
Sliding rails and cable management arm for easy serviceability
and in-rack tool-less access to major components
Automatic Server Recovery (ASR), ROM Based Setup
Utility (RBSU), Insight Manager 7, Status LEDs including system health
and UID and SmartStart
Protected by HP Services, including a three-year,
Next Business Day, on-site limited Global warranty and extended Pre-Failure
Warranty, which covers processors, memory, and hard drives - Certain
restrictions and exclusions apply. Consult the HP Customer Support Center
at 1-800-345-1518 for details.
Windows® 2000 Model (available in North America
only)
1GB of 2-way interleaved PC2100
DDR SDRAM running at up to 266MHz with Advanced ECC and Online Spare capabilities
Maximum
12 GB (6GB max on 400MHz Front
Side Bus Models)
Network Controller
Two NC7781 PCI-X
Gigabit NICs (embedded)
Expansion Slots
Slot Number
Bus Speed
Bus Number
Hot Plug
PCI Voltage
Notes
1
64-bit/133MHz PCI-X
A
No
3.3 Volt
Supported RILOE II slot
2
64-bit/100MHz PCI-X
B
Yes
3.3 Volt
3
64-bit/100MHz PCI-X
B
Yes
3.3 Volt
NOTE: For more
information regarding PCI-X, please see the following URL: www.hp.com/servers/pci-x.
NOTE:
All slots can accept universal keyed PCI cards
Storage Controller
Smart Array 5i Plus
Controller (integrated on system board)
Storage
Diskette Drive
1.44 MB Diskette Drive
Optical Drive
24x IDE CD-ROM (Universal Media
Bay)
Hard Drives
None NOTE: The system can be operated
in single channel (using either the embedded Smart Array 5i Plus controller
or a PCI-based controller) or dual channel (with the first 2 drives on 1
channel, driven by the Smart Array 5i Plus controller and 4 drives driven
by either the Smart Array 5i Plus or a PCI-based controller).
Integrated ATI Rage XL Video
Controller with 8-MB SDRAM Video Memory
Form Factor
Rack (2U), (3.5-inch)
ProLiant Essentials Foundation Pack Software
HP Systems Insight Manager
HP's new HP Systems Insight
Manager (HP SIM) helps maximize system uptime and performance and
reduce system maintenance costs by providing proactive notification
of problems before those problems result in unplanned downtime or
reduced productivity. HP SIM are both easy to set up work with the
Insight Management Agents, integrated Light-Out and Remote Insight
Light-Outs Edition, and Version Control Agents to deliver robust fault,
configuration, and asset management as well as remote administration.
With HP SIM customers will also be able to take advantage of role-based
security; the ability to manage ProLiant, Integrity, and HP 9000 systems;
and plug-ins for storage, client, printer, and power management as
well as server rapid deployment, performance management, and workload
management. For more details on HP SIM visit http://www.hp.com/go/hpsim.
SmartStart
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please visit the SmartStart
Web site at: http://www.hp.com/servers/smartstart
SmartStart version supported (minimum): SmartStart 6.0
Management Agents
The
Management Agents form the foundation for HP's Intelligent Manageability strategy.
They provide direct, browser-based access to in-depth instrumentation built into
HP servers, workstations, desktops, and portables, and send alerts to Insight
Manager 7 and other enterprise management applications in case of subsystem or
environmental failures. For additional information about the Management Agents
and other management products from, HP please visit the management Web site at: http://www.hp.com/servers/manage
Subscribers Choice
Subscriber's Choice Driver
and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change
notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and
options available in SmartStart or downloadable from Software and
Drivers download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey
Utility and diagnostics utilities
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional software offerings
that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack – an automated solution for multi-server
deployment and provisioning, enabling companies to quickly and
easily adapt to changing business demands.
Workload Management Pack – provides easier management of
complex environments, improving overall server utilization and
enabling Windows 2000 customers for the first time to confidently
deploy multiple applications on a single multiprocessor ProLiant
Server.
Integrated Lights-Out Advanced Pack – upgrades the Integrated
Lights-Out processor to full virtual presence and control with
graphical console and virtual media.
Recovery Server Option Pack – entry-level high availability
software that will provide reliable protection and increased uptime
against server hardware and operating system failures.
Performance Management Pack – a performance management
solution that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions
NOTE: Flexible
and volume quantity license kits are available for ProLiant Essentials Value Packs.
Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Industry Standard
Compliance
ACPI 1.0b Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 1.1
Manageability
Insight Manager 7
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
Management Agent
Automatic Server Recovery (ASR)
Integrated Management Log
Drive Parameter Tracking (with Smart Array Controllers)
Dynamic Sector Repairing (with Smart Array Controllers)
Hot Spare Boot (NOTE: Upon the event of a failed
processor or VRM in a multi-processing environment, the system will automatically
reboot and use the remaining good processor(s).)
Pre-Failure Warranty (covers processors, hard drives and memory)
Remote Manageability
Integrated Lights Out (iLO)
Integrated Lights Out Advanced Pack (optional)
Remote Insight Lights-Out Edition ll (optional)
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Serial interface control
Administrator's password
Disk configuration lock
Server Power Cords
One Lowline NEMA power cord
and One Highline IEC Power cord ships standard
Power Supply
400 Watt, CE Mark Compliant
Optional Hot Plug AC Redundant Power Supply and DC Redundant Power Supply
System Fans
5 fans ship standard. 8 total
supported internally for full redundancy
NOTE: The additional
3 fans are available via Redundant Fan Option Kit (PN 293048-B21).
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack
is used, observe the following additional requirements to ensure adequate
airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U
server rack includes closing front and rear doors, you must allow
830 square inches (5,350 sq cm) of hole evenly distributed from top
to bottom to permit adequate airflow (equivalent to the required 64
percent open area for ventilation).
Side: The clearance between the
installed rack component and the side panels of the rack must be a
minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels
to fill all remaining empty front panel U-spaces in the rack. This arrangement
ensures proper airflow. Using a rack without blanking panels results in
improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide
or the Documentation CD provided with the server, or to the server documentation
located in the Support section at the following URL: http://h18000.www1.hp.com/products/servers/proliantdl380/index.html.
Rack Kit
Tool-free support for racks
with square mounting holes (including Compaq/HP 7000, 9000, 10000 and H9
series), with an adjustment range of 24" - 36".
Telco
Rack Support
DL380 G3 Telco
Rack Kit: Support for all 2-post Telco racks requires the use of the standard
rack kit and an additional option kit from Rack Solutions (http://www.racksolutions.com/hp).
HP
Factory Express Capabilities
HP
Factory Express gives you the flexibility to choose from a full menu of factory
capabilities all in one manufacturing facility, in one process, with one touch
giving you full control and access to HP's World class manufacturing facility
anytime. This approach provides you the speed to deploy your IT needs, with total
quality assurance, reliability, and predictability to lower your total cost of
ownership by letting HP install, rack, and customize your software and hardware
options for you.
Service
and Support
Three-year limited warranty,
including hardware diagnostic support, pre-failure warranty (coverage of
hard drives, memory and processors). The warranty is fully supported by
HP Services and a worldwide network of resellers and service providers.
In addition 90-day's getting started software telephone support may be covered
under the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services.
NOTE: Limited warranty includes 3 year
parts, 3 year labor, 3-year next business day on-site support
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft,
Linux, ProLiant Essentials and VMWare-based IT solutions helping to
deliver high level of application availability. Response times range
from 30 mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support
Solution
HP Care Pack Services include HP branded hardware options qualified for
the server, purchased at the same time or afterwards, internal to the
enclosure, as well as 22" and smaller external monitors and tower
UPS options up to 3KVA. 22" and smaller external monitors will be
covered at the same service level and coverage period as the server. For
servers or storage systems installed within a rack, service also covers
all HP qualified rack options installed within the same rack.
NOTE:
For
more information on HP Care Pack services, contact any of our worldwide
sales offices or resellers or visit our worldwide Web site on the internet
at: http://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers
and resellers, please visit us at:http://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and
technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
License-Only - for
use with a Master License Agreement
302128-B21
ProLiant Essentials
Recovery Server Option Pack
280189-B21
ProLiant Essentials
Performance Management Pack, Single License NOTE: This license allows 1 server
to be managed by Performance Management Pack.
306696-B21
ProLiant Essentials
Performance Management Pack, 10 Pack Server License
374055-B21
Performance Management
Pack, flexible license kit NOTE: A single pack is shipped with
a single license key for the total number of licenses ordered
306697-B21
ProLiant Essentials
Integrated Lights-Out Advanced Pack (Featuring: sophisticated virtual administration
features for ultimate control of servers in the data centers and remote
sites)
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
372214-B21
ProLiant Essentials
Virtual Machine Management Pack, Flexible-Quantity License NOTE: For use with multiple servers.
This part number can be used to purchase multiple licenses with a single
activation key.
372215-B21
ProLiant Essentials
Virtual Machine Management Pack, Tracking License NOTE: For use with signed and implemented
Activation Key Agreements only. Purchase of this part number entitles the
customer to deploy additional licenses of the product under the terms of
the existing Activation Key Agreement.
372216-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License
371645-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, 10-Server License
372029-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Flexible-Quantity License
371646-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Tracking license for new servers
371647-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Tracking license for installed
servers
378372-B21
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information.
Intel Xeon X3.2-2MB/533MHz Processor
Option Kit NOTE:The
3.2GHz processor option kits are not backwards compatible; they cannot be
used to upgrade systems purchased with 2.4 or 2.8GHz 400MHz Front Side Bus
processors. This processor option kit supports the ProLiant ML370 G3 and
ProLiant DL380 G3 servers.
352568-B21
Intel Xeon X3.2-1MB/533MHz Processor
Option Kit NOTE: The 3.2GHz processor option
kits are not backwards compatible; they cannot be used to upgrade systems
purchased with 2.4 or 2.8GHz 400MHz Front Side Bus processors. This processor
option kit supports the ProLiant ML370 G3 and ProLiant DL380 G3 servers.
333714-B21
Intel Xeon X3.06-1MB/533MHz Processor
Option Kit NOTE:The
3.06GHz processor option kits are not backwards compatible; they cannot
be used to upgrade systems purchased with 2.4 or 2.8GHz 400MHz Front Side
Bus processors. This processor option kit supports the ProLiant ML370 G3
and ProLiant DL380 G3 servers.
333713-B21
Intel Xeon X2.80-1MB/533MHz Processor
Option Kit NOTE: The 3.06GHz processor option
kits are not backwards compatible; they cannot be used to upgrade systems
purchased with 2.4 or 2.8GHz 400MHz Front Side Bus processors. This processor
option kit supports the ProLiant ML350 G3, ProLiant ML370 G3 and ProLiant
DL380 G3 servers.
352567-B21
Intel Xeon 3.06 GHz-512KB/533MHz
Processor Option Kit NOTE: The 3.06GHz processor option
kits are not backwards compatible; they cannot be used to upgrade systems
purchased with 2.4 or 2.8GHz 400MHz Front Side Bus processors. This processor
option kit supports the ProLiant ML350 G3, ProLiant ML370 G3 and ProLiant
DL380 G3 servers.
257916-B21
Intel Xeon 2.80 GHz-512KB/400MHz
Processor Option Kit NOTE: This processor option kit (PN
257915-B21) is not forwards compatible; it cannot be used in systems purchased
with 533MHz Front Side Bus processors. This processor option kit supports
the ProLiant ML370 G3 and ProLiant DL380 G3 servers.
257915-B21
Intel Xeon 2.40 GHz-512KB/400MHz
Processor Option Kit NOTE: This processor option kit (PN
257913-B21) is not forwards compatible; it cannot be used in systems purchased
with 533MHz Front Side Bus processors. This processor option kit supports
the ProLiant ML370 G3 and ProLiant DL380 G3 servers.
257913-B21
Memory
512MB of Advanced ECC
PC2100 DDR SDRAM DIMM Memory Kit (2 x 256 MB)
4096MB
of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2x 2048 MB) NOTE: The 4096MB of Advanced ECC
PC2100 DDR Memory kit ( 300682-B21) can only be used in 533MHz Front Side
Bus models.
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller to support U320 transfer
rates.
256-MB Battery-Backed Cache Module NOTE: This 256-MB Battery-Backed
Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks
Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500.
NOTE:
Any NIC on the option list can be used for redundancy with the embedded
NC7781 Network Controller
DC Power Supply
DC Power Supply
for the DL380 (48V) (WW)
268290-B21
NOTE:
The ProLiant DL380 G3 ships standard with a 100-240 volt auto-switching AC
power supply. Each 48-volt DC option kit (PN 268290-B21) contains one power supply.
Therefore, to convert to redundant DC power supplies, two must be purchased.
DC Power Supply for the DL380 (48V) EMEA
268290-B22
NOTE: The ProLiant DL380 G3 ships standard
with a 100-240 volt auto-switching AC power supply. Each 48-volt DC option kit
(PN 268290-B22) contains one power supply. Therefore, to convert to redundant
DC power supplies, two must be purchased.
Redundant Options
Hot Plug AC
Redundant Power Supply Module (NEMA cord) (NA)
313054-001
Hot Plug AC Redundant Power Supply Module (IEC cord) (WW)
NOTE: The RILOE
II USB Virtual Media feature is not supported on the 2.40 and 2.80 GHz versions
of the ProLiant DL380 G3 and ProLiant ML370 G3 servers. The RILOE II cannot
be used to connect the local client floppy and CD devices as USB virtual
devices to the remote server. All other RILOE II features are supported
on these servers. The non-USB based RILOE II Virtual Floppy feature is still
supported, allowing you to perform functions such as remote ROM upgrades
and server deployment. The Virtual Floppy feature requires loading the floppy
image in to the RILOE II. For more details, please refer to the user guide
of the RILOE II.
Security
HP/Atalla AXL600L SSL Accelerator Card for ProLiant Servers
NOTE: External
tape devices, including both tape drives and tape arrays/enclosures,
can be directly connected to the VHDCI SCSI port located on the back
of the server. Use of a SCSI adapter to connect these devices is optional,
not required.
External, Rack-Mount,
and Array Module Ultrium Tape Drives
HP StorageWorks Ultrium
215 Tape Drive, External (Carbon)
HP StorageWorks 1U Rack-Mount
Kit NOTE: The 1U Rack-mount Kit
can support up to 2 half-height tape drives and compatible with multiple
Single-Ended and LVD SCSI tape drives including DAT 24, DAT40, DAT72,
DLT VS 80, and Ultrium 215 tape drives.
HP StorageWorks 3U Rack-Mount
Kit NOTE: The 3U Rack-Mount Kit
can support up to 2 full-height or 4 half-height tape drives and compatible
with multiple Single-Ended and LVD SCSI tape drives including DAT,
DLT VS80, SDLT 320, Ultrium 215, Ultrium 230, and Ultrium 460 Tape
Drives.
HP StorageWorks 5U Rack-Mount
Kit NOTE: The 5U Rack-Mount Kit
can support up to 4 full-height tape drives and is compatible with
SDLT 320, Ultrium 230, and Ultrium 460 tape drives.
NOTE: Required
to install the 1/8 tape autoloader in a standard 19-inch rack
NOTE: Please reference
the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks SSL1016 Tape
Autoloader
SSL1016 Ultrium 460 Tape Autoloader
330821-B21
SSL1016 SDLT 320 Tape Autoloader
330816-B21
NOTE: Please reference
the SSL1016 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
NOTE: Please reference
the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
NOTE: Please reference
the MSL5026S2 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
NOTE: Please reference
the MSL5052S2 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
NOTE: Please reference
the MSL5030 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
NOTE: Please
reference the MSL5060 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
NOTE: Please
reference the ESL E-Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please reference
the ESL9000 Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
Magneto-Optical Jukeboxes
HP StorageWorks 9.1 GB Mid-range
Optical Jukeboxes
300mx, 2 drive, 32 slot jukebox
C1150M
600mx, 4 drive, 64 slot jukebox
C1160M
700mx, 2 drive, 76 slot jukebox
C1170M
NOTE:
Please reference the Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical
for additional information needed to create a complete solution.
HP StorageWorks 9.1 GB High-end Optical
Jukeboxes
1200mx, 4 drive, up to 128 slots
C1104M
1200mx, 6 drive, up to 128 slots
C1105M
2200mx, 4 drive, up to 238 slots
C1111M
2200mx, 6 drive, up to 238 slots
C1107M
2200mx, 10 drive, up to 238 slots
C1110M
NOTE: Please reference the
Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical
for additional information needed to create a complete solution.
Ultra Density Optical Jukeboxes
1000ux, 2 drive, 32 slot jukebox
AA965A
1900ux, 4 drive, 64 slot jukebox
AA966A
1900ux, 4 mixed drive, 64 slot jukebox
AA968A
2300ux, 2 drive, 76 slot jukebox
AA967A
3800ux, 4 drive, 128 slot jukebox
AA969A
3800ux, 6 drive, 128 slot jukebox
AA970A
7100ux, 4 drive, 238 slot jukebox
AA973A
7100ux, 10 drive, 238 slot jukebox
AA972A
7100ux, 6 mixed drive, 238 slot jukebox
AA974A
HP
StorageWorks Modular Smart Array 500
HP StorageWorks Modular Smart
Array 500 Generation 2
HP Serviceguard for Linux ProLiant
Cluster
(2 node license cluster kit) A.11.15 NOTE: Kit includes 2 licenses, documentation
and an Ethernet crossover cable.
305199-B24
HP
Serviceguard for Linux (single license version for ordering flexibility
and to ease ordering for larger cluster) A.11.15 NOTE: Kit includes single license version and documentation.
NOTE: Please see
the StorageWorks Modular SAN Array 1500 QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs
HP Power Distribution Unit with
Power Monitoring Model S2316 - dual input, 3 phase, 16A (INTL)
370963-B31
HP Power Distribution Unit with
Power Monitoring Model S1316 - single input, 3 phase, 16A (INTL)
370964-B31
HP Power Distribution Unit with
Power Monitoring Model S2132 - dual input, 1 phase, 32A (INTL)
370965-B31
HP Power Distribution Unit with
Power Monitoring Model S1132 - single input, 1 phase, 32A (INTL)
370966-B31
Modular Power Distribution Units - 1U0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets shipped
with
the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution
Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan) NOTE: This mPDU ( 252663-D71) may
also be used to connect the low volt model of the UPS R3000 XR.
HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240
VAC) (WW) NOTE: This PDU has a detachable
input power cord and allows for adaptability to country specific power
requirements. This model may also be used with the high volt UPSs R3000
XR and R6000 For North America, need to order cable PN 340653-001.
NOTE: -B21 (pallet) used to ship empty
racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom
systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks
NOTE: It is mandatory to use a shock
pallet in order to ship racks with equipment installed.
Round hole rack cabinet rail kit NOTE: Support for racks with round
mounting holes (include HP Rack System /E and HP Systems) with an adjustment
range of 24"- 36".
293052-B21
HP
Factory Express
Factory
Installation, Racking, and Customization Services
Factory Express Server Configuration Level 1
293355-888
NOTE:
Free Installation of HP Options - Installation of HP Options memory, NICs, hard
drives, controllers, processors, I/O cards, pre-install standard OEM OS image,
and tape drives. Installation fees will apply to all non-HP certified hardware
and asset tags.
Factory Express Server Configuration
Level 2
266326-888
NOTE:
Includes Level 1 Customer Intent of a ProLiant server and options configuration,
OS installation, custom image download, IP addressing, network setting, and custom
packaging. Customer unique requirements (quick restore creation, cd duplication,
test reports, real-time reporting of server MAC address, password, and RILOE).
Customer access, validation and control through VPN (price/server).
Factory Express Rack Integration
Level 3 with 1 - 3 servers or storage enclosures
325736-888
Factory
Express Rack Integration Level 3 with 4 - 9 servers or storage enclosures
232539-888
Factory
Express Rack Integration Level 3 with 10 or more servers or storage enclosures
325735-888
NOTE:
Includes Level 1 Customer Intent for standard mounted servers and storage
units plus standard cable mgmt, RAID configuration, servers & storage, power
distribution, networking gear and accessories (price/rack).
Factory Express Rack Integration
Level 4 with 1 - 3 servers or storage enclosures
325734-888
Factory
Express Rack Integration Level 4 with 4 - 9 servers or storage enclosures
232540-888
Factory
Express Rack Integration Level 4 with 10 or more servers or storage enclosures
325733-888
NOTE:
Includes Level 2 Customer Intent plus customer defined cable management and
naming convention, customer furnished image download, IP addressing, cluster configurations
(SQL, External storage RAID). Quick restore creation, cd duplication, test reports,
real-time reporting of server MAC address, password, RILOE). Customer access and
validation through VPN (price/rack).
Factory Express Rack Integration
Level 5 with 1 - 3 servers or storage enclosures
325732-888
Factory
Express Rack Integration Level 5 with 4 - 9 servers or storage enclosures
232541-888
Factory
Express Rack Integration Level 5 with 10 or more servers or storage enclosures
325731-888
NOTE:
Includes Level 4 Customer Intent plus Custom SW layering and extended test, Customer
access, validation and control through VPN, Clustered racks with networking gear
and / or external storage array, Start-up installation services custom quote.
(price/rack). NOTE: Factory Express Engineered Solution Level 6 is
a custom solutions available through Factory Express. Please contact your local
reseller or Account Manager.
Service
and Support Offerings (HP Care Pack Services)
Hardware Services
4-Hour On-site Service
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years
U4544A
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4544E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years
U4545A
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
U4545E
Installation &
Start-up Services
Hardware Installation
U4554A
Hardware Installation, Electronic
U4554E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays.
U4555A
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4555E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.
U4556A
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4556E
Onsite HW support, 8am-9pm,
M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at
HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays
U4558A
Onsite HW support, 8am-9pm,
M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at
HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Elecctronic
U4558E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays.
U4557A
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4557E
Onsite HW support 24x7,
4hr response and Linux O/S SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays.
U4559A
Onsite HW support 24x7,
4hr response and Linux O/S SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4559E
HP Care Pack Priority
Services for ProLiant Servers - Priority Silver
1 GB PC2100 Registered DDR SDRAM DIMM Memory running
at 200MHz or 266MHz comes installed (2 x 512-MB SDRAM) NOTE: Early models (2.4GHz and
2.8GHz 400MHz Front Side Bus) shipped standard with 512MB of memory, these
models are no longer available.
Standard Memory Plus Optional Memory
Up to 9,216-MB memory is available with the optional
installation of PC2100 Registered DDR SDRAM DIMM Memory Option Kit NOTE: 2.4GHz models and some 2.8GHz
models support a maximum of 6GB of Memory. See model listings.
Standard Memory Replaced with Optional Memory
Up to 12,288-MB of memory is available with the removal
of the standard 512-MB of memory and the optional installation of PC2100
Registered DDR SDRAM DIMM Memory Option Kit NOTE: 2.4GHz models and some 2.8GHz
models support a maximum of 6GB of Memory. See model listings.
NOTE: Chart does not represent all possible
configurations.
Memory
Slot
1
2
3
4
5
6
Standard
1024MB
512MB
512MB
Empty
Empty
Empty
Empty
Optional
9,216MB
512MB
512MB
2048MB
2048MB
2048MB
2048MB
Maximum
12,288MB
2048MB
2048MB
2048MB
2048MB
2048MB
2048MB
NOTE: In the online
spare configuration, the ROM automatically configures the last populated
back as the spare memory. If only banks A and B are populated, bank B is
the spare bank. If banks A, B, and C are populated, bank C is the spare
bank, Online spare memory is configured through RBSU.
Following are memory options available from HP:
4096MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (2x 2048 MB) NOTE: The 4096MB of Advanced
ECC PC2100 DDR Memory kit ( 300682-B21) can only be used in 2.8GHz/533/1MB
and 3.06GHz and faster models.
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller to support U320 transfer
rates.
To
drill down to calculators: - Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL380 G3 - Click
on: "Power Calculator" link. (You may need to scroll down to see it.)
Power Cords (Nema 5-15P to IEC320-C13)
Country
Standard Power Cord Part Number/Option Power Cord Part
Number
JPN
139867-006/227100-291
US
163719-002/227099-001
Power Cords (IEC320-C13 to IEC320-C14)
Standard Power Cord Part Number/Option Power Cord
Part Number
160 MB/s per channel NOTE: For ProLiant servers having
TWO internal drive bays on separate SCSI ports: SCSI Peak Data Transfer
Rate is 320 MB/s total; 160 MB/s per channel and Channels is 2.
Channels
2 NOTE: For ProLiant servers having
two internal drive bays on separate SCSI ports: SCSI Peak Data Transfer
Rate is 320 MB/s total; 160 MB/s per channel and Channels is 2.
SCSI Ports
(external/internal)
0/2 NOTE: For ProLiant servers having
two internal drive bays on separate SCSI ports: SCSI Peak Data Transfer
Rate is 320 MB/s total; 160 MB/s per channel and Channels is 2.
Drives Supported
(maximum)
Maximum = total number of drives
NOTE: Maximum is the total number
of internal drives on each specific ProLiant server.
Cache
64 MB Read and/or Write Cache
Battery-Backed Write Cache
Yes, with installation of Battery-Backed
Write Cache Enabler, up to 64MB
RAID Support
0, 1, 1+0, 5
Logical Drives
(maximum)
Maximum = total number of drives
Online Configuration
Yes
Online Capacity Expansion
Yes
Logical Drive Capacity Extension
Yes
Online Stripe Size Migration
Yes
Online RAID Level Migration
Yes
Online Spare Support
Yes
Automatic Data Recovery
Yes
Drive Roaming
Yes
Redundant Controllers
No
NC7781 PCI-X Gigabit NIC (embedded) 10/100/1000 WOL
(Wake On LAN)
Canadian Site
DL QuickSpecs
Search:
US QuickSpecs
303284-B21
© 2013 USA PartsDirect
