ProLiant BL e-Class Server
Blade Enclosure
(shown with 20 ProLiant BL10e server blades)

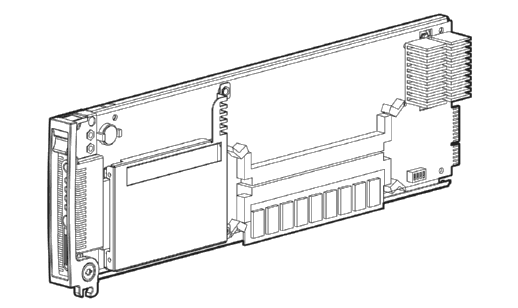

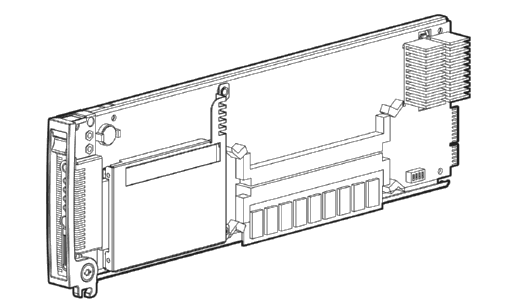

ProLiant BL10e Generation 2 (G2) Server Blade
What's New
One Ultra-Low Voltage Intel® Pentium®
M 1GHz processor with 1-MB L2 cache
Support for DDR memory ProLiant BL10e G2 Server Blade includes:
One Ultra-Low Voltage ULV Intel Pentium M processor
with 1-MB L2 cache (400-MHz front side bus)
ServerWorks GC-SL chipset
512-MB C2100 Registered ECC DDR DIMM Memory
standard expandable to 1024MB (2 DIMM slots)
Two NC3163 Fast Ethernet NIC PCI 10/100 full
WOL and PXE Integrated
One 40-GB Ultra ATA/100 hard drive
Server blades protected by HP Services, including
a limited one year parts warranty with optional service uplifts available ProLiant BL e-Class Server Blade Enclosure includes:
3U high rack-mountable chassis with 20 server
blade bays
Can be purchased with 20 licenses for new ProLiant
Essentials Rapid Deployment Pack at 50% of standard license list price!
Dual, 1+1 redundant hot-plug power supplies
Four, 2+2 redundant hot-plug fans
Three available interconnect options: C-GbE
Interconnect Switch; RJ-45 Patch Panel; and RJ-21 Patch Panel
Server blade enclosure protected by HP Services,
including a limited three year warranty with optional service uplifts
available ProLiant BL e-Class Integrated Administrator features:
Acts as a combination terminal server and remote
power controller, enabling out-of-band, secure, serial console connections
to all server blades and the optional interconnect switch
Enclosure, interconnect switch and server blade
health monitoring and alerts
Command-line and browser-based management interfaces,
including access permissions, for the server blades and the enclosure
Provides access to the interconnect optional
switch management interfaces
SNMP, web and scriptable command-line interfaces
PLUS
PLUS
or
or
a. C-GbE Interconnect Switch
b. RJ-45 Patch Panel
c. RJ-21 Patch Panel
Configuration Steps
For a complete configuration of the HP ProLiant BL e-Class
system, do the following:
Select ProLiant BL10e G2 server blades sold [in
a single-pack or 10-pack]
PLUS
Select Server Blade Enclosures (each can hold up
to 20 ProLiant BL10e G2 server blades). The enclosure can be purchased
bundled with 20 licenses for ProLiant Essentials Rapid Deployment Pack
at 50% of the standard license price.
(NOTE: Rapid Deployment Pack
is optimized for configuring and deploying ProLiant BL10e G2 server
blades and enable unique features such as blade "rip and replace"
for effortless server redeployment.)
PLUS
Select one of the three Interconnect Tray options
for each server blade enclosure (NOTE: Each interconnect tray
includes an Integrated Administrator module.):
a. C-GbE Interconnect Switch (with 4 10/100/1000T Gigabit Ethernet
RJ-45 uplinks for up to 40-to-1 network cable reduction!)
OR
b. RJ-45 Patch Panel (with 40 RJ-45 connectors)
OR
c. RJ-21 Patch Panel (with 4 RJ-21 connectors for cable aggregation
behind the enclosure) (NOTE: If suitable for your environment,
select also the RJ-21 to RJ-45 Cable Option kit.)
512MB PC2100 Registered ECC
DDR DIMM Memory standard (1x512 MB)
Maximum
1024 MB (2 DIMM slots total)
Network Controller
Two NC3163 Fast Ethernet NIC
PCI 10/100 full WOL and PXE Integrated
Internal Storage
Hard Drive
One 40-GB Ultra ATA/100 5,400 rpm Non-Hot
Plug hard drive
Warranty for the Server Blade
1 year on parts, 9x5 NBD. HP
Care Pack warranty upgrades available to add labor, on-site service, faster
response times, and longer terms to the standard server blade warranty.
Form Factor
Server blades plug vertically
into HP ProLiant BL e-Class Server Blade Enclosure
5.25 inch Height (3U), 17.5
inch Width, 28.35 inch Depth
Bays for up to 20 ProLiant BL10e
G2 server blades
Rack Capability
Mounts in HP, HP-branded, third-party,
and Telco racks. Rack mounting hardware for HP, Compaq-branded and third-party
racks ships standard with each server blade enclosure. Telco rack-mounting
hardware is a separately available option kit.
Server Blade Enclosure
includes
Rear bay for 1 of 3 Interconnect Tray configurations for network cable
management (see below).
Two (2) Diagnostic Adapters
for connecting keyboard, video, mouse and other devices locally to individual
server blades
ProLiant
Essentials Foundation Pack for ProLiant BL Servers, includes the Insight
Managerä 7 and Management Agents CD and ProLiant Essentials Rapid Deployment
Pack CD (trial version - 7-days, 10 nodes).
(NOTE: The ProLiant BL e-Class server blade enclosure can also be
purchased bundled with 20 licenses for Rapid Deployment Pack at 50% of the
standard license price.)
Four (2+2 redundant) hot- plug
fans
Dual (1+1 redundant) hot- plug
power supplies (600 watts each), power cords
Server blade blanks (to fill
19 of the 20 server blade bays)
Rack mounting hardware for HP,
Compaq-branded and third-party racks
Null-modem cable for serial
connection to the Integrated Administrator serial "Console" connector
HP Documentation CD
Warranty for Server Blade Enclosure
3 years on parts, labor and
on-site service. HP Care Pack warranty upgrades available to add faster
response times to the standard warranty.
HP ProLiant BL e-Class Interconnect
Trays
NOTE:
Each interconnect tray includes the Integrated Administrator module.
Please see the following (3) interconnect
tray configurations for accessing server blade network connections:
ProLiant BL e-Class C-GbE Interconnect Switch
(with 4 Gigabit Ethernet uplinks for up to 40-to-1 network cable reduction!) NOTE: See details below.
RJ-45 Patch Panel (with 40 RJ-45 connectors)
RJ-21 Patch Panel (with 4 RJ-21 connectors for cable aggregation behind
the enclosure) NOTE: See "Other Options" below for RJ-21 to RJ-45 Cable
option kit.
Warranty
3 years on parts, labor and on-site service. HP Care Pack warranty upgrades
available to add faster response times to the standard warranty.
HP ProLiant BL e-Class Integrated
Administrator ver. 1.40 Features
Out-of-band local console and remote network access to the server
blade enclosure and all 20 server blades via (one) RJ-45 10/100T Fast
Ethernet and (one) RS-232 management connectors
Provides local and remote access to the ProLiant BL e-Class C-GbE
Interconnect Switch command console and browser-based management interfaces
SNMP, Web (via HTTPS) and command-line interfaces (via Console connector,
Telnet and Secure Shell)
Remotely power on/off/reboot server blades and enclosures
Remotely toggle on/off unit identification LEDs (UID) of server blades
and enclosures
Monitors and controls the enclosure fans, temperature sensors, power
supplies, interconnect switch and server blade status
Connect to each server blade's serial text console for enabling full
control over server blade's
Power-On Self Test (POST) and boot process, including the ROM-Based
Setup Utility (RBSU). NOTE: For ProLiant BL10e G2 server
blades running Windows® 2000 Server, there is now available a Serial
Console for Windows utility that provides serial-based administrative
functionality using the Integrated Administrator remote console feature.
For more information and to download the Serial Console for Windows
utility, go to the following page: http://www.compaq.com/support/files/server/us/locate/20_2611.html
User administration for up to 25 users. Server blade bay privileges
can be set on a per-user basis
Virtual NMI button generates non-maskable interrupt for crash debug
and analysis
Support for Network Time Protocol (NTP)
IP Security feature limits access to user-specified IP addresses
AlertMail enables email alerts for system events
More than 100 scriptable commands enable automated management
Selective enabling of all protocols, such as Telnet
Logging of operating system console, server blade and enclosure hardware
events, user actions and invalid login attempts
Emergency server blade enclosure shutdown caused by a critical temperature
Enclosure Link (2) connectors reserved for future use. CAUTION: The enclosure link (RJ-45)
connectors on the interconnect tray are not to be used. Connecting an
external device to these enclosure link (RJ-45) connecters may damage
your external device. For more information on the ProLiant
BL e-Class Integrated Administrator, please visit the Web site at:http://www.compaq.com/products/servers/proliant-bl/e-class/integrated-admin.html
HP ProLiant BL e-Class C-GbE
Interconnect Switch Features
Provides up to a 40-to-1 reduction in network cables for each server
blade enclosure using a pair of non-blocking layer 2 switch modules
Four RJ-45 10/100/1000T Gigabit Ethernet uplinks
Forty 10/100T Ethernet ports dedicated to server blade-to-interconnect
switch network communications
Communicate with all 40 server blade network controllers through any
one uplink connector and the management connector
Spanning tree protocol for loop-free path redundancy
Browser, scriptable CLI, and console-based interfaces for local and
remote interconnect switch management
Manage entire interconnect switch through the Integrated Administrator
connectors or any uplink connector
Telnet, RMON and SNMP support; SNMP-based scripting utility with example
scripts
256 Port-based IEEE 802.1Q tagged VLANs per switch processor module
IGMP (internet group management protocol) snooping and quality of
service (QoS) packet prioritization
TFTP server support for rapid deployment of multiple interconnect
switches and to provide backup and restore capabilities
Industry-standard design compatible with industry-standard network
components from leading network manufacturers
Fully pre-configured for rapid deployment and immediate operation
in ProLiant BL e-Class enclosure
RJ-21 to RJ-45 Cable option kit; contains four (4) 10 foot RJ-21 to
RJ-45 cables (for use with the RJ-21 Patch Panel) interconnect tray
Diagnostic Adapter Interfaces
NOTE:
Two Diagnostic Adapters are included with every ProLiant BL10e G2 Server
Blade Enclosure.
ProLiant BL10e G2 server blade
LEDs and buttons
PS/2 Mouse
PS/2 Keyboard
Video
Serial
USB (2)
NOTE: Please see the following URL for additional information
regarding USB support: http://www.compaq.com/products/servers/platforms/usb-support.html. NOTE: This Web site is available
in English only. NOTE: Server blades also support USB keyboard and USB mouse attached
via the Diagnostic Adapter. The following USB devices have been tested
for use with the ProLiant BL10e and the Diagnostic Adapter:
USB Easy Access Keyboard (Carbon) (PN 267146-xx8)
USB Easy Access Keyboard (Carbonite) (PN DC168B#)
USB 2-Button Scroll Mouse (Carbon) (PN 195255-B25)
ProLiant Essentials
Foundation Pack Software for the ProLiant BL Server
ProLiant Essentials Rapid
Deployment Pack
Rapid Deployment Pack (RDP) is an automated deployment and provisioning
solution for all ProLiant servers. RDP includes the Altiris Deployment
Solution and ProLiant Integration Module featuring ProLiant server
pre-configured events for OS installation, and optimized software
drivers, firmware and management agents. Every RDP CD includes 10-node
trial licenses for evaluation purposes. RDP requires a license for
each server deployed and are available for purchase with blade servers.
For more information, visit http://www.hp.com/servers/rdp.
HP Systems Insight Manger
HP Systems Insight Manager
(HP SIM) help maximize system uptime and performance and reduce system
maintenance costs by providing proactive notification of problems
before those problems result in unplanned downtime or reduced productivity.
HP SIM is easy to set up to work with the Insight Management Agents,
integrated Light-Out and Remote Insight Light-Out Edition, and Version
Control Agents to deliver robust fault, configuration, and asset management
as well as remote administration. With HP Systems Insight Manager
customers will also be able to take advantage of role-based security;
the ability to manage ProLiant, Integrity, and HP9000 systems; and
plug-ins for storage, client, printer, and power management as well
as server rapid deployment, performance management, and workload management.
For more details on HP Systems Insight Manager visit http://www.hp.com/go/hpsim.
Management Agents
The Management Agents
form the foundation for HP's Intelligent Manageability strategy. They
provide direct, browser-based access to in-depth instrumentation built
into HP servers, workstations, desktops, and portables, and send alerts
to HP Systems Insight Manager and other enterprise management applications
in case of subsystem or environmental failures. For additional information
about the Management Agents and other management products from HP,
please visit the management Web site at http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's Choice Driver
and Support Alerts/Notifications is a web-based email subscription
service that provides software and driver change notifications for
ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq,
support software, and
configuration utilities
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and
options, available in the RDP CD, SmartStart or downloadable from
Software and Drivers download pages, linked from the SmartStart website
at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics
utilities
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips, available in SmartStart.
Optional software offerings that selectively extend the functionality
of an Adaptive Infrastructure to address specific business problems and
needs:
Workload Management Pack - provides easier management of complex environments,
improving overall server utilization and enabling Windows® 2000
customers for the first time to confidently deploy multiple applications
on a single multiprocessor ProLiant Server.
Performance Management Pack - a performance management solution that
identifies and explains hardware performance bottlenecks on ProLiant
servers and attached options enabling users to better utilize their
valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken networking linkages and steers traffic to the optimum route
based on network conditions.
NOTE: Flexible and volume quantity
license kits are available for ProLiant Essentials Value Packs. Refer
to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information.
SmartStart
SmartStart is a tool that simplifies
single server setup, providing a rapid way to deploy reliable and consistent
server configurations. SmartStart 7.00 and later can now deploy the ProLiant
BL20P G3 and ProLiant BL40P servers, using the I/O port with an attached
USB CD-ROM device. To obtain a copy of SmartStart for your blade server,
redeem the coupon that is included with your Blade server or order your
copy from the SmartStart web site. For more information, please visit the
SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 6.20
Industry Standard Compliance
ACPI 1.0b compliant
SDG 3.0 compliant
Microsoft Logo certifications
MIB-II (RFC 1213), Bridge MIB (RFC 1493), Interface MIB (RFC 2233), 801.1Q
MIB (RFC 2684), RMON1 MIB (RFC 1757) groups 1, 2, 3, and 9, and Ethernet
MIB (RFC1643) (ProLiant BL e-Class C-GbE Interconnect Switch interconnect
tray option)
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.3ac
and 802.1Q, IEEE 802.1Q, and IEEE 802.3x (ProLiant BL e-Class C-GbE Interconnect
Switch interconnect tray option)
SNMP v1 (RFC 1157) and RMON v1 (RFC 1757) groups 1, 2, 3, and 9 (ProLiant
BL e-Class C-GbE Interconnect Switch interconnect tray option)
Intelligent Manageability
Insight Manager 7
HP Systems Insight Manager
ROM Based Setup Utility (RBSU)
Automatic Server Recovery (ASR-2)
Enclosure Self Recovery (ESR)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server Blade and Enclosure Health Logs
Redundant Power Supply Utility
Power Down Utility
Pre-Failure Warranty (covers processors, hard drives and memory)
HP Interconnect Switch Management System and Utilities (included with the
ProLiant BL e-Class C-GbE Interconnect Switch interconnect tray option)
Availability
Redundant Hot-Plug Power Supplies (ProLiant BL e-Class Server Blade Enclosure)
Redundant Hot-Plug Fans (ProLiant BL e-Class Server Blade Enclosure)
ECC Memory (ProLiant BL10e Server Blade)
Redundant ROM (ProLiant BL10e Server Blade)
Support for ProLiant network adapter teaming
Dual network communication paths to each server blade using redundant,
non-blocking layer 2 switch modules
Redundant inter-module communication links
Two redundant uplink ports per each interconnect switch module
IEEE 801.1D Spanning tree protocol for loop-free path redundancy
Redundant configurable community strings and SNMP trap manager hosts
IEEE 802.3ad automatic multi-link load balancing and link failover (excluding
LACP)
Security
Power-on password
Administrator's password
Secure Shell (SSH) access through the Integrated Administrator serial console
ProLiant BL e-Class C-GbE Interconnect Switch interconnect tray option security
Multilevel user names and passwords with configurable time out period setting
Ability to disable web-based and Telnet access to the switch user interfaces
256 IEEE 802.1Q tagged VLANs per interconnect switch module
Unicast and multicast static MAC address packet filtering table (layer 2
access control list)
Ability to specify the IP based management stations that are allowed to
access each switch
Restriction on the maximum number of MAC addresses learned on a per port
basis
Secure shell (SSH) access to the switch command line and menu driven interfaces
via the Integrated Administrator
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION:If a third-party rack is used,
observe the following additional requirements to ensure adequate airflow
and to prevent damage to the equipment
Front and rear doors: If your 42U
server rack includes closing front and rear doors, you must allow 5,350
sq cm (830 square inches) of hole evenly distributed from top to bottom
to permit adequate airflow (equivalent to the required 64 percent open
area for ventilation).
Side: The clearance between the installed
rack component and the side panels of the rack must be a minimum of
7 cm (2.75 inches)
CAUTION: Always
use blanking panels to fill all remaining empty front panel U-spaces in
the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE: Please consult the Setup & Installation Guide for the server
for additional details.
Service and Support
Three-year limited warranty, including hardware diagnostic support, pre-failure
warranty (coverage of hard drives, memory and processors). The warranty
is fully supported by HP Services and a worldwide network of resellers
and service providers. In addition 90-day's getting started software telephone
support may be covered under the warranty or available for an additional
fee. Enhancements to warranty services are available through HP Care Pack
services.
NOTE: Sever Blade Limited Warranty
includes 3 year Parts, 3 year Labor, 3-year on-site support. NOTE: Server Blade Enclosure and Interconnects Limited Warranty
includes 3 year Parts, 3 year Labor, 3-year on-site support.
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux,
ProLiant Essentials and VMWare-based IT solutions helping to deliver
high level of application availability. Response times range from 30
mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support
Solution
HP Care Pack services for ProLiant BL p-Class server blades, cover the
server blade and the p-Class blade enclosure that the server blade is
installed in as well as interconnects, power enclosure with power supplies
and power distribution.
NOTE:
For more information on HP Care Pack services, contact any of our worldwide
sales offices or resellers or visit our worldwide Web site on the internet
at: http://www.hp.com/hps/carepack NOTE: For more complete information on HP Services offerings, customers
and resellers, please visit us at: http://www.hp.com/hps NOTE: Additional information regarding worldwide limited warranty
and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
ProLiant BL e-Class
Server Blade Enclosure (includes 20 licenses for ProLiant Essentials Rapid
Deployment Pack at 50% of the standard per-node license list price)
273644-B21
Interconnect
Trays (each includes an Integrated Administrator module)
ProLiant Essentials
Rapid Deployment Pack (1 node license, V1.1) NOTE: Each server blade bay slot
populated by a server blade requires one license.
267196-B21
ProLiant Essentials
Rapid Deployment Pack (10 node license, V1.1) NOTE: Rapid Deployment pack is now
available in Linux only environments.
269817-B21
Flexible-Quantity
License Kit NOTE: For use with multiple servers.
This part number can be used to purchase multiple licenses with a single
activation key. The quantity ordered of this part number will be the quantity
of licenses included in the kit in the form of a corresponding activation
key. Use the same key to activate all licenses in the actual quantity ordered.
For a given order, one kit will be delivered with the activation key, and
documentation
302127-B21
AKA Tracking License NOTE: For use with signed and implemented
Activation Key Agreements only. Purchase of this part number entitles the
customer to deploy additional licenses of the product under the terms of
the existing Activation Key Agreement. Nothing is delivered in conjunction
with the purchase of this part number. Visit http://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.html
for more information on Activation Key Agreements.
ProLiant Essentials
Performance Management Pack, 10-Server License NOTE: For use with 10 servers. Contains
10 licenses with one unique license
activation key and documentation.
374055-B21
ProLiant Essentials
Performance Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license
activation key and documentation.
306696-B21
ProLiant Essentials
Performance Management Pack, Flexible-Quantity License NOTE: For use with multiple servers.
This part number can be used to purchase multiple licenses with a single
activation key. The quantity ordered of this part number will be the quantity
of licenses included in the kit in the form of a corresponding activation
key. Use the same key to activate all licenses in the actual quantity ordered.
For a given order, one kit will be delivered with the activation key, and
documentation
306697-B21
ProLiant Essentials
Intelligent Networking Pack, Single Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
372906-B21
ProLiant Essentials
Intelligent Networking Pack, Flexible License NOTE: For use with multiple servers.
This part number can be used to purchase multiple licenses with a single
activation key. The quantity ordered for this part number will be the quantity
of licenses included in the kit in the form of a corresponding activation
key. Use the same key to activate all licenses in the actual quantity ordered.
For a given order, one kit will be delivered with the activation key, and
documentation.
372950-B21
ProLiant Essentials
Intelligent Networking Pack, Tracking License NOTE: For use with signed and implemented
Activation Key Agreements only. Purchase of this part number entitles the
customer to deploy additional licenses of the product under the terms of
the existing Activation Key Agreement. NOTE: Nothing is delivered in conjunction with the purchase of this
part number. Visit http://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.html
for more information on Activation Key Agreements.
HP Modular Power Distribution
Units (mPDU), Low Volt Model, 24A (100-127 VAC)
(NA, Japan) NOTE: This mPDU ( 252663-D71) may
also be used to connect the low volt model of the UPS R3000 XR.
HP Modular Power Distribution
Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW) NOTE: This PDU has a detachable input
power cord and allows for adaptability to country specific power requirements
(country-specific cord needs to be ordered separately; for North America,
need IEC C19 to L6-20P power cord PN: 340653-001). This model may also be
used with the high volt UPSs R3000 XR and R6000.
NOTE: Please
reference the ESL9000 Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: -B21 (pallet)
used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom
systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks NOTE: Not all HP equipment is qualified to be shipped in the Rack
10000 series.
NOTE: This kit
can be used to connect 9000 and 10000 series racks of the same U height
together. Kit contents include hardware for connecting racks and a panel
to cover the 100mm gap at the rear of the two racks.
NOTE: This kit
can be used to connect 9000 and 10000 series racks of the same U height
together. Kit contents include hardware for connecting racks and a panel
to cover the 100mm gap at the rear of the two racks.
Rack Options for HP,
Compaq-branded, Third Party and Telco racks
Telco rack-mounting hardware kit
for ProLiant BL e-Class Server Blade Enclosure
266076-B21
Enclosure Shipping Bracket Kit NOTE: When shipping an enclosure
in a rack shipping brackets must be installed to the rack.
293119-B21
Service and Support Offerings
(HP Care Pack Services)
NOTE: The
HP Care Pack services for ProLiant BL e-Class server blades cover
the server blade and the e-Class blade enclosure that the server blade
is installed in as well as the interconnect tray.
Hardware Services On-site
Service
Next Business Day On-site
Service, 5-Day x 9-Hour Coverage, 3 Years
UA220A
Next Business Day On-site
Service, 5-Day x 9-Hour Coverage, 3 Years , Electronic
UA220E
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years
UA221A
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
UA221E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years
UA222A
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
UA222E
Installation & Start-up
Services
ProLiant BL e-Class Blade
Server Hardware Installation
UA227A
ProLiant BL e-Class Blade
Server Hardware Installation, Electronic
UA227E
ProLiant BL e-Class Enclosure
and Server Blade Hardware Installation
U4960A
ProLiant BL e-Class Enclosure
and Server Blade Hardware Installation, Electronic
U4960E
Provides for
the Installation and Start-up of Compaq's Rapid Deployment Pack on
a Customer supplied server designated as a Deployment Server. Includes
the deployment of a single server. This new server will be deployed
using either one of the pre-configured scripts or an image. In addition,
the service will provide for the capture and storage of the configuration
of the newly deployed server and orientation on product usage. To
be delivered during standard office ours, standard office days.
U5683A
Provides for the Installation
and Start-up of Compaq's Rapid Deployment Pack on a Customer supplied
server designated as a Deployment Server. Includes the deployment
of a single server. This new server will be deployed using either
one of the pre-configured scripts or an image. In addition, the service
will provide for the capture and storage of the configuration of the
newly deployed server and orientation on product usage. To be delivered
during standard office ours, standard office days. Electronic.
STANDARD MEMORY
512-MB PC2100 Registered ECC DDR DIMM Memory installed (1 x 512-MB SDRAM
DIMM)
STANDARD MEMORY PLUS OPTIONAL MEMORY
Up to 1024 MB PC2100 Registered ECC DDR DIMM Memory is available with
the installation of optional SDRAM DIMM memory expansion kits.
Memory
Slot
1
2
Standard
512 MB
512 MB
Empty
Optional
640 MB
512 MB
128 MB
Optional
768 MB
512 MB
256 MB
Maximum
1024 MB
512 MB
512 MB
Following are memory options available from HP:
128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB)
Two NC3163 Fast Ethernet NIC Embedded 10/100 WOL (Wake on LAN)
Network Interface
10Base-T/100Base-TX
Compatibility
IEEE 802.3/802.3u
compliant
Data Transfer Method
32-bit bus-master PCI
Network Transfer
Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
Connector
Mates into enclosure center wall
assembly
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to
328 ft (100 m)
100Base-TX
Category 5 UTP; up to 328 ft (100
m)
HP ProLiant BL
e-Class C-GbE Interconnect Switch
General
Two 24-port Managed Layer 2 Ethernet
switches for server network cable reduction
Fully pre-configured for immediate operation
Performance
4.0 Gbps Switching bandwidth
12 Million pps aggregate throughput (64-byte packets)
Full-wire speed for all connections
Forwarding Mode
Store and forward
MAC Addresses
16,382; MAC address based filtering
and MAC address packet priority configuring
Memory
64MB Main
12MB Flash
32MB Packet Buffer
Ports
Four RJ-45 10/100/1000 T/TX/T
Gigabit Ethernet uplink ports for customer use
Forty 10/100 T/TX fast Ethernet downlink ports dedicated to server blade
to interconnect switch network connections
Two 10/100 T/TX Fast Ethernet ports dedicated to inter-switch module communications
One RS-232 DB-9 port (console connector for Integrated Administrator)
One 10/100 T/TX Fast Ethernet port (Network management connector for Integrated
Administrator)
Auto-negotiation and auto-sensing with full-duplex
Management
Web-based interface with graphical
user interface
Console menu driven Interface via local RS-232 and Telnet
Scriptable command line interface (CLI)
SNMP v1 (RFC 1157) with scripting tool and example scripts
RMON v1 (RFC 1757) groups 1, 2, 3, and 9
Telnet (RFC 854)
MIB-II (RFC 1213), Bridge MIB (RFC 1493), Interface MIB (RFC 2233), 801.1Q
MIB (RFC 2684), RMON1 MIB (RFC 1757) groups 1, 2, 3, and 9, Ethernet MIB
(RFC1643) and HP-specific switch MIBs
64 Port-based IEEE 802.1Q tagged VLANs per switch module
XML human read/write configuration file
TFTP client (RFC 783) for backup and remote download of configuration and
history log files
IGMP (Internet Group Management Protocol) multicasting
EtherChannel (Fast EtherChannel, GigaChannel) compatible trunking
Uplink port speed and link activity LEDs
Simple network time protocol (SNTP)
Broadcast, multicast, and DA-unknown packet storm control
BootP and DHCP client support
BootP and DHCP client support
Port mirroring
IEEE Standards Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3ab 1000Base-T Ethernet
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p Quality of Service (QoS) Packet Prioritization
IEEE 802.3ac and 802.1Q Port Based Tagged VLANs and VLAN Extensions
IEEE 802.1Q Trunking Encapsulation
IEEE 802.3x Flow Control
Form Factor
Removable interconnect tray that
plugs into the rear of the server blade enclosure
Canadian Site
DL QuickSpecs
Search:
US QuickSpecs
DC172B
© 2013 USA PartsDirect
