Overview

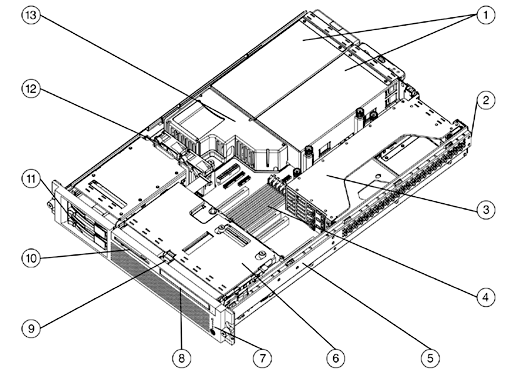

HP ProLiant DL560

1. Dual 550W Hot Plug Redundant Power
2. 2U (3.5" Height) rack form factor
3. PCI-X Riser Cage, Three 64-bit PCI-X slots
4. Six memory DIMM slots
5. Tool-less "Snap in" Rail Solution
6. Hood
7. LEDs
8. Slimline Removable media Bay with 24x CD-ROM installed
9. Hood latch (accesses processors and fans)
10. 1.44 MB Diskette Drive
11. Wide Ultra3 SCSI drive cage for two hot plug hard drives or one DAT hot plug tape drive (plus 1 hard drive)
12. Hot Plug Fans
13. DC Power Converter Module

What's New

  • Intel« Xeon« Processors MP at 3.0 GHz/4MB, 2.7 GHz/2MB, or 2.2 GHz/2MB (Expandable to 4 processors)

At a Glance

  • Intel Xeon Processors MP at 3.0 GHz/4MB, 2.7 GHz/2MB, 2.2 GHz/2MB, 2.8 GHz/2MB, 2.5 GHz/1MB, 2.0 GHz/1MB (Expandable to 4 processors)
  • The HP ProLiant DL560 delivers extraordinary performance and maximum power efficiency in an ultra dense, rack optimized form factor ServerWorks Grand Champion-LE chipset
  • 2x1 interleaved memory, 200MHz DDR SDRAM Memory (PC2100 Registered SDRAM with Advanced ECC functionality)
  • 1024 MB or 512 MB (depending on model) standard memory, expandable to 12 GB
  • HP Advanced Memory Protection
  • Two, full length 64-bit/100 MHz Non-Hot Pluggable PCI slots, one full length 64-bit/133 MHz Non-Hot Pluggable
  • Integrated Lights-Out Standard Management (iLO) on system board
  • Two NC7781 PCI-X Gigabit NICs (embedded)
  • Integrated Smart Array 5i Plus Controller (Ultra3) with 64-MB total memory on 5i Plus Memory Module
  • Battery-Backed Write Cache Enabler module on all 2P models (optional on 1P model)
  • Internal Hot Plug Drive Storage of up to 600 GB (2 x 300 GB 1" Ultra320 hard drives)
  • Redundant Cooling Zones for major subsystems (Memory, I/O, CPUs) assure 7x24 cooling
  • Toolless and virtually cable-less internal design
  • Rapid Deployment racking solution (rack rails and cable management)
  • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
contents
 Overview      Standard Features      Models      Options      Memory      Storage      Power Specifications      TechnicaláSpecifications line.gif (50 bytes)

Standard Features

Processor
One of the following depending on Model
(2P) Intel Xeon Processor MP 3.0 GHz/4MB (Expandable to 4 processors)
(2P) Intel Xeon Processor MP 2.7 GHz/2MB (Expandable to 4 processors)
(1P) Intel Xeon Processor MP 2.2 GHz/2MB (Expandable to 4 processors)
(1P) Intel Xeon Processor MP 2.0 GHz/1MB (Expandable to 4 processors)

Cache Memory
One of the following depending on Model
4MB Integrated Level 3 Cache
NOTE: 3.0 GHz Models only.
2MB Integrated Level 3 Cache
NOTE: 2.7 GHz and 2.2 GHz Models only.
1MB Integrated Level 3 Cache
NOTE: 2.0 GHz Models only.

Upgradability Upgradable to quad processing

ChipsetServerWorks Grand Champion-LE chipset
 NOTE: For more information regarding ServerWorks, please see the following URL:
http://www.serverworks.com/products/overview.html.

Memory
One of the following depending on Model
Type 200-MHz (DDR) SDRAM PC2100 Registered SDRAM Memory with Advanced ECC functionality
Standard 1024 MB
Maximum 12 GB
NOTE: Advanced ECC Memory Technology protects the data even in the event of an entire SDRAM component failure. Embedded in the chipset design, this feature allows the use of Industry-Standard Registered DIMMs.

Network Controller Two NC7781 PCI-X Gigabit NICs (embedded)

Expansion Slots I/O (3 Total, 3 Available)   PCI Voltage:
64-bit/100-MHz PCI
Non-Hot Plug
2 and 3 3.3 Volt only
64-bit/133-MHz PCI-X
Non-Hot Plug
1 3.3 Volt only

Manageability Integrated Lights-Out (iLO) Standard Management (ASIC on the System Board)

Storage Controllers Smart Array 5i Plus Controller, Ultra3 (supports RAID 0, 1, across internal hard disk drives) with 64 MB of memory
  • 64-MB total memory for code, transfer buffers, and read/write cache on the 5i Plus Memory Module
  • Connector for Battery Backed Write Cache (BBWC) Enable
NOTE: The Smart Array 5i Plus Controller is integrated on the system board and is designed to support the simplex drive cage. An external SCSI port is not available on the HP ProLiant DL560. External SCSI solutions require the addition of a PCI or PCI-X option card.

Storage Data Protection The Battery-Backed Write Cache (BBWC) Enabler protects up to 64-MB write cache memory from hard boot, power, controller, or system board failures.
  • Standard on HP ProLiant DL560 2P Models, optional on 1P Models
  • Battery charge/life: Up to 72 hours/ 3 years
  • Transportable data protection
  • Increases overall controller performance
NOTE: Safely transport your write cache data to another HP ProLiant DL560 in the data center be removing the BBWC Enabler and 5i Plus Memory Module simultaneously (connected by short cable).

Storage Diskette Drive 1.44 MB Diskette Drive
Optical Drive 24x IDE CD-ROM Drive (slimline) ľ ejectable for security and serviceability
Hard Drives None
Maximum Internal Storage 600 GB (2 x 300 GB Ultra320 1" SCSI drives) (internal hot plug Ultra3 drive cage)
Hard Disk Drive Backplane Internal Wide Ultra3 backplane supports up to two 1" hard disk drives

Interfaces Serial 1
Pointing Device (Mouse) 1
Graphics 1
Keyboard 1
Rear USB Ports 2
iLO Remote Management 1
Network RJ-45 2
USB 1.0 1

Graphics Integrated 1280 x 1024, 16M color on PCI local bus, 8-MB of SDRAM video memory

Form Factor Rack (2U = 3.5 inches), ships with sliding rails and cable management system
Space saving form factor (2U) provides space efficiencies while providing maximum deployment flexibility

ProLiant Essentials Foundation Pack Software

HP Systems Insight Manager HP's new HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. HP SIM are both easy to set up work with the Insight Management Agents, integrated Lights-Out and Remote Insight Lights-Out Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration. With HP SIM customers will also be able to take advantage of role-based security; the ability to manage ProLiant, Integrity, and HP 9000 systems; and plug-ins for storage, client, printer, and power management as well as server rapid deployment, performance management, and workload management. For more details on HP SIM visit http://www.hp.com/go/hpsim.
SmartStartSmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 6.20.
Management Agents The Management Agents form the foundation for HP's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to Systems Insight Manager and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management Web site at http://www.hp.com/servers/manage.
Subscriber's ChoiceSubscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages, linked from the SmartStart website at www.hp.com/servers/smartstart.
Survey Utility and diagnostics utilities The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value Packs Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:
  • Rapid Deployment Pack - an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Integrated Lights-Out Advanced Pack - upgrades the Integrated Lights-Out processor to full virtual presence and control with graphical console and virtual media.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials

Industry Standard Compliance ACPI 2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE) Support
Microsoft® Logo certifications

Intelligent Manageability

Integrated Lights-Out (iLO) Standard Management

  • Virtual Text Remote Console
  • Virtual Power Button Control
  • Dedicated LAN Connectivity
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) Security
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privileges
Integrated Lights-Out (iLO) Advanced Pack (supports Advanced features such as Graphical Remote Console and Virtual Floppy - available as a separate option)
Automatic Server Recovery-2 (ASR-2)
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
ROM-Based Setup Utility (RBSU)
Integrated Management Log (IML)
Hot Spare Boot
NOTE: Upon the event of a failed processor or VRM in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s).

Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Redundant/adaptive load balancing NIC Support

Availability
  • Standard Advanced ECC functionality detects and corrects single bit and specific multi-bit memory errors (4bit and 8bit) while using industry standard registered DIMMS. Functionality is embedded in the chipset design.
  • HP Advanced Memory Protection Technology – delivers unsurpassed memory protection and server availability:
  • Online Spare Memory:
    • Offers a higher level of memory protection than Advanced ECC alone. If the number of single-bit correctable errors on a bank exceeds the pre-defined error threshold, that bank will fail over to the online spare bank without intervention or server interruption. The failed memory can then be replaced at the user's convenience during a scheduled maintenance window.
NOTE: All HP Advanced Memory Protection modes are user configurable through the ROM-Based Setup Utility (RBSU) and viewable through Insight Manager 7 and the Integrated Management Log (IML.).
  • Smart Array 5i Plus Controller with standard Battery Backed Write Cache (BBWC) Enabler provides transportable data protection and increases overall controller performance. Up to 64MB Battery Backed Write Cache protection available on 2P HP ProLiant DL560 models (BBWC Enabler is optional on 1P model).
  • Redundant Cooling Zones across major server subsystems (Memory, I/O, CPU) provide 7x24 cooling. Each zone is independent of each other and is able to support N+1 redundancy, as indicated below.
This zone configuration enables the server to withstand up to three fan failures, provided that they are not within the same zone. Each fan is hot plug redundant and individually removable.
  • Up to two Hot Plug Ultra3 Drive Bays
  • Simplex SCSI Backplane
  • Dual Hot Plug Redundant Power Supplies (standard on 2P Models, one ships standard on 1P Models)

Serviceability
  • Innovative Diagnostic Lighting
  • LED display on front panel indicates power, internal health, external health, Unit ID light.
  • Tool-less, virtually cable-less interior design
    • Tool-less access to interior of server
    • Lift up hood access to processors and primary fans
    • Ejectable, slimline media drives (and CD-ROM standard with support for optional DVD-ROM drives) is removable without the use of tools. Also has fixed floppy drive.
    • PCI Card Guides locks full length PCI cards in place during transit
    • Up to ten individually removable fans connect without cables to the system board
    • Processor/VRM Retention mechanism securely locks both processor and VRM into their respective sockets
    • Tool-less removal of system board
  • Quick Deploy Rails
    • Tool-less design "snap in" rail

Security Power-on password
Keyboard password
Diskette drive control
Diskette boot control
Network Server Mode
Security Provision
Serial interface control
Administrator's password
Disk configuration lock
Hot plug access security
Removable Diskette drive
Removable CD-ROM drive

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Power Supply 550-Watt (low line or high line) Hot Plug Power Supply
NOTE: One 550-Watt Hot Plug Power Supply ships standard with 1P Models (optional Redundant Hot Plug Power Supply Option Kit).
NOTE: Two 550-Watt Hot Plug Power Supplies ship standard with 2P Models.

System Fans Standard 5 Hot plug, redundant fans on 1P models (individually removable)
Maximum 10 Hot plug, redundant fans on 2P models (individually removable)
  • Redundant Cooling Zones across major server subsystems (Memory, I/O, CPU) provide 7x24 cooling. Each zone is independent of each other and is able to support n+ 1 redundancy, as indicated below:
    • PCI-X expansion zone is 1+ 1 redundant (fans 1 and 2)
  • System can run fully loaded with five fans. This zone configuration enables the server to withstand up to three fan failures, provided that they are not within the same zone. Each fan is hot plug redundant and individually removable.

Required CablingFor required cabling information, refer to the HP Web site at
http://h18000.www1.hp.com/products/servers/proliantDL560/.

OS Support Microsoft Windows 2000
Windows Server 2003
Novell NetWare
LINUX (Red Hat, SuSE)
UnitedLinux
VMware Virtualization Software
NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: http://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant DL560, please see: http://www.HP.com/support/files/server/us/index.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux website at http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html.

Rack Airflow Requirements Rack 10000 series Cabinets The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:
    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: http://www5.HP.com/products/servers/proliantdl560/index.html.


Rack Mounting Requirements Tool-free support for racks with square mounting holes (including Compaq/HP 7000, 9000, 10000 and H9 series), with an adjustment range of 24"– 36".

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.


Custom Builder Please see the Enterprise Configurator for configuration assistance at: http://www.hp.com/products/configurator.


Service and Support This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Limited warranty includes 3 year parts, 3 year labor, 3-year on-site support.

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack Services include HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3KVA. 22" and smaller external monitors will be covered at the same service level and coverage period as the server. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack
NOTE:
For more complete information on HP Services offerings, customers and resellers, please visit us at: http://www.hp.com/hps
NOTE:
Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Models      Options      Memory      Storage      Power Specifications      TechnicaláSpecifications line.gif (50 bytes)

Models

DL560R01 X3.0GHz-4MB, 1024MB (2P)
346921-001
Processor(s) (2) Intel Xeon Processors MP at 3.0 GHz standard (up to 4 supported)
Cache Memory 4MB Integrated Level 3 Cache
Memory 1024 MB 200-MHz (DDR) SDRAM (PC2100-MHz Registered SDRAM Memory with Advanced ECC functionality) (Standard) to 12 GB (Maximum)
Network Controller Two NC7781 PCI-X Gigabit NICs (embedded)
Storage Controller Smart Array 5i Plus Controller (Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)
Hard Drives None ship standard
Internal Storage 293.6 GB maximum (with optional hard drives)
Power Supply Two 550W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive 24x IDE slimline CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack 2U

DL560R01 X2.7-2MB, 1024MB (2P)
346920-001
Processor(s) (2) Intel Xeon Processors MP at 2.7 GHz standard (up to 4 supported)
Cache Memory 2MB Integrated Level 3 Cache
Memory 1024 MB 200-MHz (DDR) SDRAM (PC2100-MHz Registered SDRAM Memory with Advanced ECC functionality) (Standard) to 12 GB (Maximum)
Network Controller Two NC7781 PCI-X Gigabit NICs (embedded)
Storage Controller Smart Array 5i Plus Controller (Ultra3) with Battery-Backed Write Cache Enabler (integrated on system board)
Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)
Hard Drives None ship standard
Internal Storage 293.6 GB maximum (with optional hard drives)
Power Supply Two 550W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive 24x IDE slimline CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack 2U

DL560R01 X2.2-2MB, 1024MB (1P)
346919-001
Processor(s) (1) Intel Xeon Processor MP at 2.2 GHz standard (up to 4 supported)
Cache Memory 2MB Integrated Level 3 Cache
Memory 1024 MB 200-MHz (DDR) SDRAM (PC2100-MHz Registered SDRAM Memory with Advanced ECC functionality) (Standard) to 12 GB (Maximum)
Network Controller Two NC7781 PCI-X Gigabit NICs (embedded)
Storage Controller Smart Array 5i Plus Controller (Ultra3) (integrated on system board)
Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)
Hard Drives None ship standard
Internal Storage 293.6 GB maximum (with optional hard drives)
Power Supply One 550W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive 24x IDE slimline CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack 2U

DL560R01 X2.0-1MB, 1024MB (1P)
246638-002
Processor(s) (1) Intel Xeon Processor MP at 2.0 GHz standard (up to 4 supported)
Cache Memory 1MB Integrated Level 3 Cache
Memory 1024 MB 200-MHz (DDR) SDRAM (PC2100-MHz Registered SDRAM Memory with Advanced ECC functionality) (Standard) to 12 GB (Maximum)
Network Controller Two NC7781 PCI-X Gigabit NICs (embedded)
Storage Controller Smart Array 5i Plus Controller (Ultra3) (integrated on system board)
Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)
Hard Drives None ship standard
Internal Storage 293.6 GB maximum (with optional hard drives)
Power Supply One 550W Hot Plug Redundant Power Supplies (low line or high line)
Optical Drive 24x IDE slimline CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack 2U
contents
 Overview      Standard Features      Models      Options      Memory      Storage      Power Specifications      TechnicaláSpecifications line.gif (50 bytes)

Options

ProLiant Essentials
Value Pack Software
ProLiant Essentials Integrated Lights-Out Advanced Pack
ProLiant Essentials Integrated Lights-Out Advanced Pack, 1 server
Featuring: sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites.
263825-B21
NOTE: For additional ProLiant Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11052_na/11052_na.HTML
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack - Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
372906-B21
NOTE: For additional ProLiant Intelligent Networking Pack - Windows License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12062_na/12062_na.HTML
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
397004-B21
NOTE: For additional ProLiant Intelligent Networking Pack - Linux License Kits please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12327_na/12327_na.HTML

ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at http://www.hp.com/products/pmp.
306696-B21
NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11925_na/11925_na.HTML
ProLiant Essentials Rapid Deployment Pack Windows Edition and Linux Edition Release
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.
267196-B21
NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.HTML
http://h18000.www1.hp.com/products/quickspecs/11713_na/11713_na.HTML
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
303284-B21
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11452_na/11452_na.HTML
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
372214-B21
ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
375345-B21
NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_na/12328_na.HTML
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12111_na/12111_na.HTML
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Processor Intel Xeon MP X3.0/4MB Processor Option Kit
346990-B21
Intel Xeon MP X2.70/2MB Processor Option Kit
346989-B21
Intel Xeon MP X2.20/2MB Processor Option Kit
346988-B21
Intel Xeon MP X2.80/2MB Processor Option Kit
331004-B21
Intel Xeon MP X2.50/1MB Processor Option Kit
331003-B21
Intel Xeon MP X2.0/1MB Processor Option Kit
331002-B21

Memory (DIMMs)

4 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
300682-B21
2 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
300680-B21
1 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
300679-B21
512 MB of PC2100 ECC DDR DIMM Memory Kit (2 x 256 MB)
300678-B21

Optical Drives Slimline CD-RW/DVD-ROM Combo Drive Option Kit
331903-B21
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)
264007-B21
HP DVD+R/RW 8X Slim
383975-B21

Hard Drives Ultra320 SCSI - Universal Hot Plug
300-GB 10,000 rpm U320 Universal Hard Drive (1")
350964-B22
146.8-GB 10,000 rpm U320 Universal Hard Drive (1")
286716-B22
72.8-GB 10,000 rpm U320 Universal Hard Drive (1")
286714-B22
146.8-GB 15,000 rpm U320 SCSI Hard Drive (1")
347708-B22
72.8-GB 15,000 rpm U320 Universal Hard Drive (1")
286778-B22
36.4-GB 15,000 rpm U320 Universal Hard Drive (1")
286776-B22
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature. U320 Hard Drive QS:
http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.HTML

Storage ControllerSmart Array 6402/128 Controller273915-B21
Smart Array 6404/256 Controller273914-B21
512MB DDR BBWC Upgrade 372538-B21
Smart Array 641 Controller291966-B21
Smart Array 642 Controller291967-B21
Ultra3 Channel Expansion Module for Smart Array 5300 Controller153507-B21

256-MB Battery-Backed Cache Module
NOTE: This 256-MB Battery-Backed Cache Module supports the Smart Array 5300
series controllers, HP StorageWorks Modular Smart Array 1000 and the HP StorageWorks Modular Array 500.

254786-B21
Battery-Backed Write Cache Enabler Option Kit
NOTE: This Battery-Backed Write Cache Enable Option Kit (PN 255514-B21) is optional for the HP ProLiant DL560 1P Model only.
255514-B21
128MB Battery-Backed Cache Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
351580-B21
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
268351-B21
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
284688-B21
Ultra320 Expansion Module for SA-6402273911-B21
NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
http://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.HTML
(Smart Array 6400 Series)
http://h18000.www1.hp.com/products/quickspecs/12067_na/12067_na.HTML
(Smart Array 641)
http://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.HTML
(Smart Array 642)
http://h18000.www1.hp.com/products/quickspecs/10429_na/10429_na.HTML
(SCSI Adapter)
http://h18000.www1.hp.com/products/quickspecs/11555_na/11555_na.HTML
(U320 Adapter)


Communications

HP NC310F PCI-X 1000SX Gigabit Server Adapter
368169-B21
HP NC1020 PCI 1000T Gigabit Server Adapter
353377-B21
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
313881-B21
HP NC7771 PCI-X 1000T Gigabit Server Adapter
290563-B21
NOTE: Any NIC on the option list can be used for redundancy with the embedded NC7781 Network Controller

Redundant Options

Hot Plug Redundant Power Supply Option Kit
267555-001
Hot Plug Redundant Fan Option Kit
288635-B21

Management Options

Remote Insight Lights-Out Edition II

227251-001


Tape Drives

NOTE: For the complete listing of Tape Drive offerings for this server, please visit:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:

Hot Plug Tape Drives
HP StorageWorks DAT 72 SCSI Hot-plug Tape Drive (Carbon)
Q1529A
USB Tape Drives
HP StorageWorks DAT 72 USB External Tape Drive (Carbonite)
DW027A
External and Rack-Mount Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
NOTE: No internal tape drives fit inside this HP ProLiant server (except hot plug tape). The internal drive shown here is for the 1U and 3U Rack-mount Kit.
DW064A
HP StorageWorks Ultrium 232 External Tape Drive (Carbonite)
DW065B
HP StorageWorks Ultrium 232 External Tape Drive (Carbonite)
DW065B
HP StorageWorks 1U Rack-mount kit with one Ultrium 448 (Carbonite)
DW028A
HP StorageWorks Ultrium 960 External Tape Drive (Carbonite)
Q1539B
HP StorageWorks 3U Rack-mount kit with one Ultrium 960 (Carbonite)
Q1595A
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect.

Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U Rack-Mount Kit
NOTE: The 1U Rack-mount Kit can support up to (2) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232 and Ultrium 448 tape drives.
A7445B
HP StorageWorks 1U USB Rack-Mount Kit
A8007A
1U USB Cable Option Kit
NOTE: Converts a 1U SCSI rack-mount kit to a USB interface to support the USB tape drives.
396114-B21
HP StorageWorks 3U Rack-Mount Kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, SDLT 320, SDLT 600, Ultrium 215, Ultrium 230, Ultrium 232, Ultrium 460, Ultrium 448 and Ultrium 960 tape drives.
274338-B23
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.HTML


Tape Autoloaders
DAT Autoloader
HP StorageWorks DAT 72x6 External Autoloader Q1567A
NOTE: Please see the DAT Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media:
http://h18000.www1.hp.com/products/quickspecs/11985_na/11985_na.HTML

HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 960 Tape Autoloader AF204A
HP StorageWorks 1/8 Ultrium 448 Tape Autoloader AF203A
HP StorageWorks 1/8 SDLT 320 Tape Autoloader AA926A
HP StorageWorks 1/8 Ultrium 232 Tape Autoloader AF202A
1/8 Tape Autoloader Rackmount Kit
NOTE: Required to install the unit in a standard 19-inch rack; includes rails and rackmount instructions
C9268R
NOTE: Required to install the 1/8 tape autoloader in a standard 19-inch rack
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs

HP StorageWorks SSL1016 Tape Autoloader
HP StorageWorks SSL1016 Ultrium 460 Tape Autoloader 330821-B21
HP StorageWorks SSL1016 SDLT 320 Tape Autoloader 330816-B21
NOTE: Please reference the SSL1016 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs

Tape Libraries

HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library
AG115A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library AG117A
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library
AD606A
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library
AD608A
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library
AD607A
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609A
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library AD598A
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library AD600A
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library
AD599A
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601A
NOTE: Please reference the MSL2024 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs.

Magneto-Optical Jukeboxes

HP StorageWorks 9.1 GB Optical Jukeboxes

600mx, 4 drive, 64 slot jukebox C1160M
1200mx, 4 drive, up to 128 slots C1104M
2200mx, 6 drive, up to 238 slots C1107M
NOTE: Please see the HP StorageWorks Magneto-Optical Products data sheet for a complete listing of available jukeboxes at:
http://www.hp.com/products1/storage/products/archivalprod/brochures/
MO_family_pb.pdf

NOTE: Please reference the Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical for additional information needed to create a complete solution.


Ultra Density Optical Jukeboxes

1900ux, 4 drive, 64 slot jukebox AA966A
3800ux, 4 drive, 128 slot jukebox AA969A
7100ux, 6 drive, 238 slot jukebox AA971A

NOTE: Please see the HP StorageWorks Ultra Density Optical Jukeboxes QuickSpecs for a complete listing of available jukeboxes at:
http://h18006.www1.hp.com/products/quickspecs/11944_div/11944_div.html
NOTE: Please reference the Ultra Density Optical Jukebox QuickSpecs at http://www.hp.com/go/optical for additional information needed to create a complete solution



Cluster Options

ProLiant Cluster Starter Kit 364023-B21
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11935_na/11935_na.html

ProLiant Cluster Kit with OpenView Storage Mirroring

364025-B21

NOTE: For additional information regarding the ProLiant Cluster Kit with OpenView Storage Mirroring please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11934_na/11934_na.html

HP HA/F200 for Entry SAN Cluster

364026-B22

NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11932_na/11932_na.html

ProLiant Cluster HA/F500 for the Enterprise SAN 364024-B21
NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11933_na/11933_na.html

HP Serviceguard for Linux ProLiant Cluster A.11.15 for SUSE SLES 8 / UnitedLinux 1.0 and Red Hat EL 3 (2 node license cluster kit) 305199-B24
HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 and Red Hat EL & 4 (2 node license cluster kit) 305199-B26
HP Serviceguard for Linux License A.11.15 for SUSE SLES 8 / UnitedLinux 1.0 and Red Hat EL 3 (single license version) 307754-B24
HP Serviceguard for Linux A.11.16 for SUSE SLES9 and Red Hat EL 3 & 4 (single license version) 307754-B26
NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html


HP StorageWorks Modular Smart Array 20

HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.

335921-B21
HP StorageWorks Modular Smart Array 20 Starter Kit
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.

366172-B21
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 1" Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 30

HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 1" Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2
335880-B21
NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.HTML



HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at
http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML

HP StorageWorks Modular Smart Array 1500 cs

Modular Smart Array 1500 Controller Shelf

AA986A

NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at:
http://www.hp.com/go/MSA1500cs

StorageWorks Options

StorageWorks SAN Switch 2/16
322118-B21
StorageWorks SAN Switch 2/16-EL Upgrade Kit
325889-B21
StorageWorks Director 2/64
286809-B21
NOTE: Please see the StorageWorks Director 2/64 QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/11003_na/11003_na.HTML


Uninterruptible Power Systems ľ Rack

HP UPS R1500 XR (1440VA, 1340 Watt), Low Voltage

204404-001

HP UPS R3000 XR (2880VA, 2700 Watt), Low Voltage

192186-001

HP UPS R3000 XR (3000VA, 2700 Watt), High Voltage

192186-002

HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage 326529-D71
UPS R12000 XR N+x (200-240V) (hardwired)
207552-B22

NOTE: The UPS R12000 XR has a hardwired input and output connection.




HP Monitored Power Distribution Unit (PDU)

HP Monitored Power Distribution Unit: Full Rack Version
HP PDU with Power Monitoring, Model S2324 - dual input, 3-phase, 24A
370959-D71
HP Power Distribution Unit with Power Monitoring Model S1324 - single input, 3 phase, 24A
370960-D71
HP Power Distribution Unit with Power Monitoring Model S2140 - dual input, 1 phase, 40A
370961-D71
HP Power Distribution Unit with Power Monitoring Model S1140 - single input, 1 phase, 40A
370962-D71
HP Monitored Power Distribution Unit: Half Rack Version
HP PDU with Power Monitoring, Model S1348 - single input, 3-phase, 60A
AF916A

Modular Power Distribution Units 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).

HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
NOTE: This mPDU (252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.
252663-D71

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)

252663-D72

HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC)
NOTE: This mPDU (252663-B21), 40A model has a hardwired input.

252663-B21

HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC)
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR and R6000, need to order cable PN 340653-001

252663-B24

NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.HTML

USB Options USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B
  USB 1.44-MB External Siskette Drive (Carbonite) DC141B

Third Party Rack Kit Rack Adapter Kit
NOTE: This kit allows HP rack servers to fit in racks that are 24" wide.
332815-B21

HP Rack 10000 Series
(Graphite Metallic)

10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
379005-001
HP Rack S10614 (14U) Rack Cabinet – Shock Pallet
292302-B22

HP Rack 10842 (42U, 800mm wide) ľ Pallet

257415-B21

HP Rack 10842 (42U, 800mm wide) ľ Shock Pallet

257415-B22

HP Rack 10647 (47U) ľ Pallet

245160-B21

HP Rack 10647 (47U) ľ Crated

245160-B23

HP Rack 10642 (42U) ľ Pallet

245161-B21

HP Rack 10642 (42U) ľ Shock Pallet

245161-B22

HP Rack 10642 (42U) ľ Crated

245161-B23

HP Rack 10636 (36U) ľ Pallet

245162-B21

HP Rack 10636 (36U) ľ Shock Pallet

245162-B22

HP Rack 10636 (36U) ľ Crated

245162-B23

HP Rack 10622 (22U) ľ Pallet

245163-B21

HP Rack 10622 (22U) ľ Shock Pallet

245163-B22

HP Rack 10622 (22U) ľ Crated

245163-B23

NOTE: -B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks



NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML



NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.




Rack Options for HP
Rack 10000 Series

HP Rack Light Kit (Neon)
361589-B21
HP Rack Plinth Kit (Carbon)
251960-B21

42U Side Panel ľ Graphite Metallic

246099-B21

36U Side Panel ľ Graphite Metallic

246102-B21

47U Side Panel ľ Graphite Metallic

255486-B21

TFT7210R Rack Mounted 17" Monitor
NOTE: For a complete list of Monitors please view the following URL:
http://h18004.www1.hp.com/products/monitors/.
348373-B21
TFT5600 Rack Keyboard Monitor
NOTE: For a complete list of Monitors please view the following URL:
http://h18004.www1.hp.com/products/monitors/.
221546-001
1U Rack Keyboard & Drawer (Carbon)
257054-001
NOTE: For additional information regarding Rack Options, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.

HP KVM Switch Options IP Console Switch Box (KVM/IP), 3 x 1 x 16
IP Console Switch Box (KVM/IP), 1 x 1 x 16
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x 4 USB/PS2 KVM Switch, TT
HP 1x 4 USB/PS2 KVM Switch, RM
HP PS2 KVM Cable with audio, 6', 2-pack
HP USB KVM Cable with audio, 6', 2-pack
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

HP Serial Console Server Options HP 16 Port Serial Console Server AF101A
HP 48 Port Serial Console Server AF102A
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack AF103A
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Rack Options for Third party Cabinet Racks

Round hole rack cabinet rail kit
293052-B21
NOTE: Support for racks with round mounting holes (include HP Rack System /E and HP Systems) with and adjustment range of 24 inches to 36 inches (60.96 cm to 91.44 cm).

Service and Support Offerings (HP Care Pack Services)

Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4697E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4698E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4699E
Installation & Start-up Services
Hardware Installation, Electronic
U4707E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4708E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4709E
Onsite HW support, 8am-9pm, M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4711E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4710E
Onsite HW support 24x7, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4712E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack
contents
 Overview      Standard Features      Models      Options      Memory      Storage      Power Specifications      TechnicaláSpecifications line.gif (50 bytes)

Memory

HP ProLiant DL560

Standard Memory
1024 MB PC2100 Registered DDR SDRAM DIMM Memory comes installed (2 x 512 MB SDRAM)

Standard Memory Plus Optional Memory
Up to 9216 MB memory is available with the optional installation of PC2100 Registered DDR SDRAM DIMM Memory Option Kit

Standard Memory Replaced with Optional Memory
Up to 12,288 MB of memory is available with the removal of the standard 1024 MB of memory, the optional installation of PC2100 Registered DDR SDRAM DIMM Memory Option Kit

NOTE: This chart does not represent all possible memory configurations.

Memory

Standard Memory Board (Slots)

1

2

3

4

5

6

Standard

1024 MB
512 MB
512 MB
Empty
Empty
Empty
Empty

Optional

9,216 MB
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
12,288 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB

The following memory options are available from HP:


  • 512 MB of PC2100 ECC DDR DIMM Memory Kit (2 x 256 MB)
300678-B21
  • 1 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 512 MB)
300679-B21
  • 2 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 1 GB)
300680-B21
  • 4 GB of PC2100 DDR SDRAM DIMM Memory Kit (2 x 2 GB)
300682-B21
contents
 Overview      Standard Features      Models      Options      Memory      Storage      Power Specifications      TechnicaláSpecifications line.gif (50 bytes)

Storage

A

1.44-MB Diskette Drive

B

Ejectable: 24x IDE CD-ROM (Slimline)
0-1 Wide Ultra3/Ultra320 Drive Cage
Drive Support

  Quantity
Supported
Position
Supported

Controller
  Slim Line Drives
  1.44-MB slim-line Diskette Drive Up to 1 A Integrated
  Ejectable IDE slim-line CD-ROM Drive Up to 1 B Integrated IDE
  Slimline DVD-ROM Drive (8X/24X) Option Kit (ejectable) Up to 1 B Integrated IDE

Hard Drives

  Ultra320 Hot Pluggable Drives


Quantity
Supported

Position
Supported


Controller



1-inch


  300-GB 10,000 rpm
146.8-GB 10,000 rpm
72.8-GB 10,000 rpm
146.8-GB 15,000 rpm
72.8-GB 15,000 rpm
36.4-GB 15,000 rpm
Up to 2 0-1

Integrated Dual Channel Wide Ultra3 SCSI Adapter
Smart Array 6402/128Controller
Smart Array 641 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter

  NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter



Modular Smart Array 30 Family

Up to 13

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
  Modular Smart Array 500 G2 System 1 External Smart Array 532 Controller (used as Host Bus Adapter)
Please see the Modular Smart Array 500 QuickSpecs for the latest list of supported HBAs: http://www.hp.com/go/msa500
  Modular Smart Array 1000 Please see the Modular Smart Array 1000 QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1500 cs Please see the Modular Smart Array 1500 cs QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1500 cs QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1000: http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML

Modular Smart Array 1500: http://www.hp.com/go/MSA1500cs

Maximum Storage Capacity – (External Enclosure Attached)



Internal

600 GB (2 x 300 GB Ultra320 SCSI 1" Drives)
  External 50.40 TB (12 x (14 x 300 GB Ultra320 SCSI 1" Drives))
  Total 51.00 TB

Tape Drives, Tape Autoloaders, & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/North_America/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/North_America/10809.html

NOTE: For complete listing of tape drive offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For details on connecting tape drives to this server, see the following:



Quantity
Supported

Position
Supported


Controller



HP StorageWorks DAT Tape Drives, Internal Hot Plug
DAT 40 Tape Drive
DAT 72 Tape Drive

1

0, 1

Smart Array 5i Plus Controller (integrated on system board)
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Drives, USB External
DAT 24 USB
DAT 40 USB
DAT 72 USB
1 per USB port External USB port

HP StorageWorks Tape Drives, External
Ultrium 215
Ultrium 230
Ultrium 232
Ultrium 448
Ultrium 460
DAT 40
DAT 72
DLT VS80
DLT VS160
SDLT 320
Up to 2 External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Drives, External
Ultrium 960
SDLT 600
1 drive per SCSI channel External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Autoloaders, External
DAT 72x6 Tape Autoloader
1/8 Tape Autoloader
SSL1016 Tape Autoloader
1 autoloader per SCSI channel External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Rack-mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
5U Rack-Mount Kit
1 per SCSI channel External 64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks Tape Libraries, External

MSL2024 (Ultrium 960-based)

MSL2024 (Ultrium 448-based)

MSL6000 (Ultrium 960-based)
MSL6000 (SDLT 600-based)
MSL6000 (Ultrium 460-based)
MSL5026S2 (SDLT 320-based)
MSL5052S2 (SDLT 320-based)
Please reference the MSL Tape Library QuickSpecs to determine configuration requirements External Please consult the EBS connectivity matrix at http://www.hp.com/go/ebs for detailed connectivity information.
contents
 Overview      Standard Features      Models      Options      Memory      Storage      Power Specifications      TechnicaláSpecifications line.gif (50 bytes)

Power Specifications

Part Number

280126-001
Spare Kit 280126-B21
Operational Input Voltage Range (V rms) 90 to 264
Frequency Range (Nominal) (Hz) 47 to 63 (50/60)




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
550
550
550
550
550
550
Nominal Input Current (A rms)
7.1
6.1
3.3
3.1
3.0
2.8
Max Rated Input Wattage Rating (Watts)
696
688
679
671
667
663
Max. Rated VA (Volt-Amp)
710
702
693
684
680
676

Efficiency (%)

79
80
81
82
82.5
83
Power Factor
0.98
0.98
0.98
0.98
0.98
0.98

Leakage Current (mA)

.87
1.00
1.81
1.91
2.00
2.09
Maximum Inrush Current (A peak)
100
100
100
100
100
100

Maximum Inrush Current duration

20
20
20
20
20
20

System Specifications

HP ProLiant DL560 Fully Configured

  Up to 4 Processors, 6 Memory Slots, 2 Hard Drives, 3 PCI Slots, and 2 Hot Plug Power Supplies
Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Fully Loaded System Input Wattage (W)
534
527
520
514
507
501
Fully Loaded System Input Current (A rms)
5.4
4.7
2.6
2.4
2.3
2.1
Fully Loaded System Thermal (BTU- Hr)
1820
1707
1774
1752
1730
1709

Fully Loaded System VA (Volt-Amp)

545
538
531
524
518
511

System Leakage with all power supplies loaded (mA)

.87
1.00
1.81
1.91
2.00
2.09

System Inrush Current with all power supplies loaded (A)

200
200
200
200
200
200

Power cord requirements

Nema 5-15P to IEC320-C13 Option no./Spare no: 163719-002
  IEC320-C13 to IEC320-C14 Option no./Spare no: 142259-001/
142258-B21

NOTES:

ActiveAnswers Power Calculation
Power calculator is LIVE on ActiveAnswers Web site. This is an external link.

Follow this link: http://h30099.www3.hp.com/configurator/powercalcs.asp.

To drill down to calculators:
-   Click on: "ProLiant Servers"
-   Click on the Server of interest. Example: DL560
-   Click on: "Power Calculator" link (You may need to scroll down to see it.)


contents
 Overview      Standard Features      Models      Options      Memory      Storage      Power Specifications      TechnicaláSpecifications line.gif (50 bytes)

TechnicaláSpecifications

System Unit Rack Chassis Footprint (HxWxD) 3.38 x 17.50 x 25.75 in (8.59 x 44.45 x 65.41 cm)
Weight Maximum (2 Power Supplies, 2 Hard Drives)60 lb (27 kg)
  Minimum (No hard drives installed, one power supply)35 lb (16 kg)
Input Requirements Rated Input Voltage100 to 120 VAC/200 to 240 VAC
Rated Input Frequency50 to 60 Hz
Input Power690W @ 115 VAC/675W @ 230 VAC
Rated Input Current7A (100 VAC), 6A (115 VAC), 3A (230 VAC)
Max BTU Rating2375 BTU (550 Watts)
Power Supply Output Power (per power supply)Rated Steady-State Power550W/550W (lowline/highline)
Maximum Peak Power550W/550W (lowline/highline)
Temperature Range Operating50° to 95° F (10° to 35° C)
Non-operating-20° to 140° F (-29° to 60° C)
Shipping-22° to 122° F (-30° to 50° C)
Relative Humidity
(non-condensing)
Operating10% to 70%
Non-operating5% to 95%
Maximum Wet Bulb Temperature101.7° F (38.7° C)
Acoustic Noise  NOTE: Listed are the declared A-weighted sound power levels LWAd and the declared average bystander position sound pressure levels LpAm when operating in a 23° C ambient environment. Noise emissions were measured in accordance with ECMA 74 and declared in accordance with ECMA 109.
Idle (Fixed Disk Drives Spinning)
L WAd (BELS)6.0
L pAm (dBA)46
NOTE: These values apply to 2U rack configuration. Configuration tested included 2 processors, two 10, 000 rpm hard drive, 1 power supplies, 1 power supply fan and 4 CPU fans.

24X Max (or higher) IDE CD-ROM Drive Slimline

Disk Applicable Disk CD-DA, CD-ROM (Mode 1 and 2)
  CD-XA, CD-I (Mode 2, Form 1 and 2)
    Photo CD (Single and Multi-session)
    Mixed Mode (Audio and Data combined)
  Capacity 540 MB (Mode 1, 12 cm)
    650 MB (Mode 2, 12 cm)
  Diameter 4.7 x 3.15 in/12 x 8 cm
  Rotational Speed 4200 rpm maximum
  Center Hole 0.6 in/15 mm diameter
  Thickness 1.2 mm
  Track Pitch 1.6 Ám
Block Size Mode 1 2,048
  Mode 2 2,340, 2,336, 1,024 bytes
  CD-DA 2,352 bytes
  CD-XA 2,328 bytes
Interface IDE (ATAPI)
Access Times (typical) Random 100 ms
Full-Stroke 2000 ms
Data Transfer Rate Sustained 150 KB/s (sustained 1X)
Burst 2100 to 3600 KB/s
Cache Buffer 128 KB
Start-up Time (typical) < 7seconds
Stop Time < 4seconds
Laser Parameters Type Semiconductor Laser GaA1As
Wave Length 780 ± 25 nm
Divergence Angle 53.5° ± 1.5°
Output Power 0.14 mW
Operating Conditions Temperature 41░ to 113░ F (5░ to 45░ C)
  Humidity 10% to 80%
Dimensions

(HxWxD, maximum)

1.69 x 5.75 x 8.19 in (4.29 x 15 x 20.8 cm)
  Weight 2.66 lb (1.2 kg)

Slimline CD-RW/DVD-ROM 24X Combo Drive (Multibay)

Shipping Dimensions13.88 x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm)

Shipping Weight

5 lb (2.27 kg)
Disk

Applicable Disk

DVD-ROM



DVD-R (Read Only)



2.6 GB/side DVD-RAM (Read Only)



5.2 GB/side DVD-RAM (Read Only)



CD-ROM Mode-1 data disc

  CD-ROM Mode-2 data disc
  CD Audio disc
  CD-Extra
  CD-RW
  CD-R
  CD Text
  PhotoCD
  CD-I (mode 2)
  CD-I Ready
  CD-Bridge


Capacity

DVD-ROM

DVD-SL4.7 GB/side
   DVD-DL8.5 GB/side
   Double Sided9.40 GB/side
  DVD-R 3.95 GB/side
  DVD-RAM 2.6 GB/side and 5.2 GB/
  CD-ROMMode-1650 MB (550 MB)
   Mode-2742 MB (640 MB)
 Block SizeDVD 2,048 bytes
  CD 2,352 (Mode-0)
    2352, 2340, 2336, 2048 bytes
(Mode-1)
    2352, 2340, 2336, 2048 bytes
(Mode-2)


Diameter

120 mm, 80 mm (with adapter at vertical mounting mode)

Loading Mechanism

Tray type



Interface

EIDE (ATAPI)



Access Times (typical)

Random

DVD-ROM < 120 ms, CD-ROM < 110 ms



Full-Stroke

DVD-ROM < 240 ms, CD-ROM < 160 ms

Audio Output Level (typical)

Line-out

CD 0.7 Vrms at 47 Kohms Load

Data Transfer Rate (sustained)

DVD-ROM

Single Layer

10.8 MB/sec. Max.
DVD-RAM2.77 MB/sec. Max


CD-ROM

7.2 MB/sec. Max.

Cache Buffer

2 MB



Spin-up Time (typical)

less than 10 seconds



MTBF

120,000 Power On Hours (POH)



Ambient Temperature

Operating

-22░ to 140░ F (-30░ to 60░ C)

Relative Humidity

Operating

10% to 80%



Storage/Transportation

5% to 95%

Dimensions

(HxWxD, maximum)

0.5 x 5.04 x 5.1 in (12.7x128x129.4 mm)

Option Kit Contents DVD-ROM drive with installation guide, warranty card, registration card

Integrated Lights-Out Standard (integrated on system board) Architecture 32-bit PCI-based health and remote management ASIC (Application Specific Integrated Circuit)
Processor 32-bit RISC processor core running at 66 MHz
Upgradability Option firmware upgradable via flash ROM.
Video Support Utilizes the host server's embedded video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256 colors)
Interfaces One Ethernet network connection (10/100 Mb/s)
Memory 2-MB Flash ROM
8-MB SDRAM
Operating System Support United Linux 1.0
Windows 2000 Server
Windows 2000 Advanced Server
Red Hat 7.x
SLES8
Novell NetWare 5.x, 6.x
Client Browser Support Microsoft Internet Explorer 5.5 or later.
iLO Standard Features Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for up to 12 user accounts with customizable access privileges
iLO Advanced Features (optional) Virtual Graphical Remote Console
Virtual Floppy Drive

Integrated Smart Array 5i Plus Controller Data Compatible with all Smart Array Controllers Yes
Instant Upgrades to other Smart Array Controllers Yes
Consistent Software Manageability Tools Yes
PCI-X Bus 64-bit, 100 MHz (integrated on system board)
PCI-X Peak Data Transfer Rate 800 MB/s
SCSI Protocols Supported Ultra3, Ultra2
SCSI Peak Data Transfer Rate 160 MB/s per channel
Channels 2 (only one connected)
SCSI Ports (external/internal) 0/1
Drives Supported (maximum) 2
NOTE: Maximum is the total number of internal drives on each specific ProLiant server.
Cache 64 MB Read and/or Write Cache
Battery-Backed Write Cache Yes, with installation of Battery-Backed Write Cache Enabler, up to 64MB
RAID Support 0, 1
Logical Drives (maximum) Maximum = total number of drives
Online Configuration Yes
Online Capacity Expansion Yes
Logical Drive Capacity Extension Yes
Online Stripe Size Migration Yes
Online RAID Level Migration Yes
Online Spare Support Yes
Automatic Data Recovery Yes
Drive Roaming Yes
Redundant Controllers No

Two NC7781 PCI-X Gigabit NICs (embedded) Server Adapter

Network Interface 10/100/1000-T
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method 64-bit/133MHz PCI-X
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-T (Full and Half-Duplex) 2000 Mb/s
Connector RJ-45
10Base-T Category 3,4 or 5 UTP up to 328 ft (100 m)
Cable Support 10/100/1000Base-T Category 5 UTP (2 pair); up to 328 ft (100 m)
