Proliant ML110 G2 Overview
|

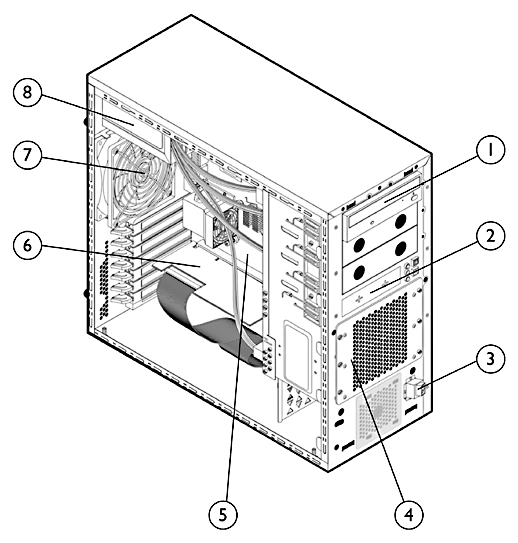

HP ProLiant ML110 G2
|
|
| 1. 48x CD-ROM & Two Removable Media Bays |
|
2. 1.44MB Diskette Drive (Optional)
|
| 3. Two Front USB Ports |
| 4. Four 1" Non-Hot Plug Drive Bays |
|
| 5. Main System Board |
| 6. Optional SCSI Controller |
| 7. System Fan |
|
8. Power Supply
|
|
|
|
What's New
- Supports Intel Pentium 4 Processor.
3.20 GHz supporting HyperThreading technology with un-buffered ECC memory
and 800MHz front-side-bus.
- Supports Intel Pentium 4 Processor.
3.40 GHz supporting HyperThreading technology with un-buffered ECC memory
and 800MHz front-side-bus.
- Supports Intel Celeron Processor.
2.80 GHz supporting HyperThreading technology with un-buffered ECC memory
and 533MHz front-side-bus.
- Supports Intel Pentium 4 Processor. 3.0 GHz supporting
HyperThreading technology with un-buffered ECC memory and 800MHz front-side-bus.
- Front side USB port for easy
access of storage options via USB.
- Lights-Out Management card for ease of remote
management.
|
|
At A Glance
- Intel E7221 Chipset with
533MHz FSB (Celeron Models) and 800MHz FSB (Pentium 4)
- Memory: Supports 256 MB, 512 MB or 1 GB (Pentium
4 models) of PC3200 DDR SDRAM running at 400 MHz, with un-buffered standard
ECC capabilities, expandable to 4 GB, optional interleaving.
- Intel 82541PI PCI Gigabit NIC (embedded) 10/100/1000
WOL (Wake on LAN)
- Integrated one Channel Ultra ATA for optical drive
and 4 port Serial ATA (SATA) Host Controller or a Single Channel Ultra320
SCSI Adapter (SCSI Models)
- Support for up to four 1" Ultra320 non-hot plug
SCSI hard drives or four 1" SATA NHP Drives or four 1" hot
plug SATA HDD, (depending on Model & Accessories)
- Five total PCI slots (5 available on non-hot plug
SATA models, 4 available on SCSI models, 4 available on hot plug SATA
model): three 64-bit/100MHz PCI-X at 3.3 Volt and one 32-bit/33MHz PCI
at 5 Volt and one x4 PCI-Express slot.
- Internal storage capacity of up to 584-GB (4 x 146-GB
non-hot plug 1" SCSI HDD) (SCSI Models)
- Internal storage capacity of up to 1-TB (4 x 250-GB
hot plug) and 320-GB (4 x 80-GB non-hot plug) 1" SATA HDD (SATA
Model)
- Integrated ATI Rage XL with 8MB SDRAM video
- 350W Power Supply
- Five USB 2.0 ports (2 rear, 2 front, 1 internal for
memory stick)
- ROM Based Setup Utility (RBSU) and PXE support
- Protected by HP Services and a worldwide network
of resellers and service providers. One-year Next Business Day, on-site
limited global warranty. Certain restrictions and exclusions apply.
Pre-Failure Notification on processors, memory, and SCSI hard drives.
|
Standard Features
Processor
One of the following depending on Model |
Intel Celeron processor 2.80
GHz, 533 MHz Front Side Bus |
| Intel Pentium-4 processor 3.20
GHz supporting HyperThreading technology, 800MHz Front Side Bus |
| Intel Pentium-4 processor 3.40
GHz supporting HyperThreading technology, 800MHz Front Side Bus |
|
Cache Memory
One of the following depending on Model
|
Integrated 256KB Level 2 ECC
cache (Celeron models only) |
| Integrated 1024KB Level 2 ECC
cache (Pentium 4 models only) |
|
| Memory Protection |
Un-buffered standard ECC capabilities |
|
ML110 G2 Memory
One of the following depending on Model
|
Type |
PC3200 DDR SDRAM running at
400MHz |
| Standard |
256 MB
(on Pentium-4 or Celeron models) |
| Maximum |
4 GB |
|
| Network Controller |
Intel 82541PI PCI Gigabit NIC
(embedded) 10/100/1000 WOL (Wake on LAN) |
|
| Expansion Slots |
Slot#
|
Bus Speed
|
Hot Plug Y/N
|
Voltage Connector
|
Notes
|
|
3
|
64bit/100MHz PCI-X
|
No
|
3.3V
|
Full Length / Full Height
|
|
1
|
x4 PCI Express
|
No
|
3.3V
|
Full Length / Full Height
|
|
1
|
32bit/33MHz PCI
|
No
|
5V
|
Full Length / Full Height
|
|
Storage Controller
One of the following depending on Model
|
HP Single Channel Ultra320 SCSI
Adapter (SCSI Models) |
| Integrated 4 ports Serial ATA |
| 6 port SATA RAID controller
(hot plug SATA Model) |
|
| Storage |
CD-ROM |
48x IDE (ATAPI) CD-ROM Drive |
| Hard Drives |
One of the following: |
| |
- 36.4-GB Ultra320 SCSI 15,000 rpm 1" Drive (SCSI models)
- 80-GB SATA 7200 rpm 1" Drive (Hot Plug and Non-Hot plug SATA
Models)
|
|
| Maximum Internal
Storage |
Type
|
|
|
SCSI
|
584-GB |
(4 x 146-GB) |
SATA
(Hot plug) |
1-TB |
(4 x 250-GB - internal drive
bays and removable media bays) |
SATA
(Non-hot plug ) |
320-GB |
(4 x 80-GB) |
|
| Graphics |
Integrated ATI RAGE XL Video
Controller with 8MB SDRAM Video Memory |
|
| Industry Standard
Compliance |
ACPI V2.0 Compliant |
| PCI 2.3 Compliant |
|
| Manageability |
Lights-Out 100 Remote Management
Option; For details on the HP Lights-Out 100 Remote Management option see
Lights-Out 100 Remote Management Card
Offline Version - "floppy-based" method to flash the rom |
|
| Security |
Power-on password
Setup password
Diskette boot control |
|
| Server Power Cords |
One Lowline NEMA power cord
and one Highline IEC Power cord ships standard |
|
| System Fans |
1 - non-redundant system fan
shipped standard |
| 1 - non-redundant CPU heatsink
fan shipped standard |
|
| OS Support |
Microsoft Windows Server 2003:
Standard and Web Editions
Microsoft Windows Small Business Server 2003 : Standard & Premium Edition
Novell NetWare 6.5
Novell SBS 6.5
SUSE Linux Enterprise Server 9
Red Hat Enterprise Linux 3
SCO Open Server 5.0.7 (SCSI models only)
Tested but not certified nor supported by HP:
Windows 2000 Server - Standard Edition
Windows XP Professional
Red Hat Linux Advanced Server 4.0 |
NOTE: For an
up-to-date listing of the latest ML110 G2 OS support matrix, please see:
http://www.hp.com/go/supportos
NOTE: For an up-to-date listing of the latest drivers available for
the HP server ML110 G2, please see: http://h18023.www1.hp.com/support/files/server/us/family/model/5769.html?lang=en&cc=us |
|
| Factory Express
Portfolio for Servers and Storage |
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and/or
storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging and custom packaging
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers, as well as, the MSA1000, VA7xxx, EVA,
XP, rackable tape libraries and configurable network switches.
|
| For more information
on Factory Express services for your specific server model please contact
your sales representative or go to http://www.hp.com/go/factory-express. |
|
| Service and Support |
This product is covered by a
global limited warranty and supported by HP Services and a worldwide network
of resellers and service providers. Hardware diagnostic support and repair
is available for three years from date of purchase. Support for software
and initial setup is available for 90 days from date of purchase. Additional
support may be covered under the warranty or available for an additional
fee. Enhancements to warranty services are available through HP Care Pack
services or customized service agreements.
NOTE: Limited warranty includes 1
year parts, 1 year labor, 1-year on-site support
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
- Installation and start up
- Education courses
- Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
- Comprehensive range of software technical support for Microsoft, Linux,
ProLiant Essentials and VMware-based IT solutions helping to deliver
high level of application availability. Response times range from 30
mins for critical problems to 2 hours.
- System Management, Performance Services and Mission Critical Support
Solution
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server, purchased at the same time or afterward, internal
to the enclosure, as well as 22" and smaller external monitors and
tower UPS options up to 3kVA; these items will be covered at the same
service level and for the same coverage period as the server. Coverage
of UPS Battery is not included, standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
|
NOTE: For more
information on HP Care Pack services, contact any of our worldwide sales
offices or resellers or visit our worldwide Web site on the internet at:
http://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers
and resellers, please visit us at: http://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty
and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html |
Models
ML110 G2 C2.8/533
256MB, 80GB, Non-Hot Plug SATA
366084-xx1 |
Processor |
(1) Intel Celeron 2.8 GHz (standard) |
| Cache Memory |
Integrated 533KB Level 2 cache |
| Memory |
256 MB (Standard) to 4 GB (Maximum)
PC3200 DDR SDRAM DIMM Memory running at 200MHz, with Standard ECC capabilities |
| Network Controller |
Intel 82541PI PCI Gigabit NIC
(embedded) 10/100/1000 WOL (Wake on LAN) |
Storage Controller
|
4 ports SATA Controller |
| Hard Drive |
(1) 80-GB SATA up to 320-GB
|
| Optical Drive |
48x IDE (ATAPI) CD-ROM Drive |
| Form Factor |
Tower (5U) |
|
ML110 G2 P3.2/800,
1MB, 36GB, Non-Hot Plug SCSI
366087-xx1 |
Processor |
(1) Intel Pentium 4 3.20 GHz
supporting HyperThreading technology (standard) |
| Cache Memory |
Integrated 1024KB Level 2 cache
|
| Memory |
256 MB (Standard) to 4 GB (Maximum)
PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Standard ECC capabilities |
| Network Controller |
Intel 82541PI PCI Gigabit NIC
(embedded) 10/100/1000 WOL (Wake on LAN) |
| Storage Controller |
HP Single Channel Ultra320 SCSI
Adapter |
| Hard Drive |
(1) 36-GB Ultra320 SCSI, 15,000
rpm,1" Drive |
| SCSI Cable |
2 drop internal SCSI cable |
| Internal Storage |
584-GB maximum |
| Optical Drive |
48x IDE (ATAPI) CD-ROM Drive |
| Form Factor |
Tower (5U) |
|
ML110 G2 P3.4/800
1MB, 36GB Non-Hot Plug SCSI
366088-xx1 |
Processor |
(1) Intel Pentium 4 3.40 GHz
supporting HyperThreading Technology |
| Cache Memory |
Integrated 1024KB Level 2 cache |
| Memory |
256 MB (Standard) to 4 GB (Maximum)
PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Advanced ECC Capabilities
|
| Network Controller |
Intel 82541PI PCI Gigabit NIC
(embedded) 10/100/1000 WOL (Wake on LAN) |
| Storage Controller |
HP Single Channel Ultra320 SCSI
Adapter |
| Hard Drive |
(1) 36.4-GB Ultra320 SCSI 15,000
rpm, 1" Drive |
| SCSI Cable |
2 drop internal SCSI cable |
| Internal Storage |
584-GB Maximum (with optional
drives) |
| Optical Drive |
48x IDE (ATAPI) CD-ROM Drive
|
| Form Factor |
Tower (5U) |
|
ML110 G2 P3.2/800
1MB, Hot Plug SATA
366089-xx1 |
Processor |
(1) Intel Pentium 4 3.20 GHz
supporting HyperThreading technology (standard) |
| Cache Memory |
Integrated 1024KB Level 2 cache |
| Memory |
256 MB (Standard) to 4 GB (Maximum)
PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Standard ECC capabilities |
| Network Controller |
Intel 82541PI PCI Gigabit NIC
(embedded) 10/100/1000 WOL (Wake on LAN) |
| Storage Controller |
HP 6-Port SATA RAID Controller
(RAID levels 0, 1, 10, 5) |
| Hard Drive |
None ship standard |
| SATA Cable |
(1) 4 in 1" SATA cable |
| Internal Storage |
1-TB Maximum |
| Optical Drive |
48x IDE (ATAPI) CD-ROM Drive
|
| Form Factor |
Tower (5U) |
|
ML110 G2 P3.4/800
1MB Hot Plug SATA
366090-xx1 |
Processor |
(1) Intel Pentium 4 3.40 GHz
supporting HyperThreading technology (standard) |
| Cache Memory |
Integrated 1024KB Level 2 cache |
| Memory |
256 MB (Standard) to 4 GB (Maximum)
PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Standard ECC capabilities |
| Network Controller |
Intel 82541PI PCI Gigabit NIC
(embedded) 10/100/1000 WOL (Wake on LAN) |
| Storage Controller |
HP 6-port SATA RAID Controller
(RAID levels 0, 1, 10, 5) |
| Hard Drive |
None ship standard |
| Internal Storage |
1-TB maximum |
| Optical Drive |
48x IDE (ATAPI) CD-ROM Drive
|
| Form Factor |
Tower (5U) |
|
ML110 G2 P3.2/800
1MB, 80GB, Non-Hot Plug SATA
382050-xx1 |
Processor |
(1) Intel Pentium 4 3.20 GHz
supporting HyperThreading technology (standard) |
| Cache Memory |
Integrated 1024KB Level 2 cache |
| Memory |
256 MB (Standard) to 4 GB (Maximum)
PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Advanced ECC capabilities |
| Network Controller |
Intel 82541PI PCI Gigabit NIC
(Embedded) 10/100/1000 WOL (Wake on LAN) |
| Storage Controller |
4 ports SATA Controller (embedded) |
| Hard Drive |
(1) 80-GB Serial ATA |
| Internal Storage |
320-GB maximum |
| Optical Drive |
48x IDE (ATAPI) CD-ROM Drive
|
| Form Factor |
Tower (5U) |
|
ML110 G2 P3.4/800
1MB, 80GB, Non-Hot Plug SATA
382051-xx1 |
Processor |
(1) Intel Pentium 4 3.40 GHz
supporting HyperThreading technology (standard) |
| Cache Memory |
Integrated 1024KB Level 2 cache |
| Memory |
256 MB (Standard) to 4 GB (Maximum)
PC3200 DDR SDRAM DIMM Memory running at 400MHz, with Advanced ECC capabilities |
| Network Controller |
Intel 82541PI PCI Gigabit NIC
(embedded) 10/100/1000 WOL (Wake on LAN) |
| Storage Controller |
4 ports SATA Controller (embedded) |
| Hard Drive |
(1) 80 GB Serial ATA |
| Internal Storage |
320-GB maximum |
| Optical Drive |
48x IDE (ATAPI) CD-ROM Drive
|
| Form Factor |
Tower (5U) |
|
| Country Code Key |
XX=00 |
NA |
| XX=01 |
Australia |
| XX=03 |
UK |
| XX=04 |
Germany |
| XX=05 |
France |
| XX=20 |
Brazil |
| XX=37 |
AP |
| XX=42 |
Euro |
| XX=AA |
PRC |
Configuration Information-Factory Integrated Models (North America only)
NOTE:
For Configure to Order requirements within EMEA region, please consult local
Sales Contact.
NOTE: HP does not allow factory integration of options into standard
models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: This product offering does
not support HP Factory Express Server Configuration Level 1.
Step 1: Base Configuration |
| Models |
HP ProLiant
ML110 G2 Tower Chassis NHP SCSI (North America)
|
380184-405
|
| HP ProLiant
ML110 G2 Tower Chassis NHP SATA (North America)
|
380185-405
|
| HP ProLiant ML110 G2 Tower Chassis
HP SATA (North America) |
380186-405
|
| Factory Integrated Models ship
with: |
|
| Intel 82541PI
PCI Gigabit NIC (embedded) 10/100/1000 WOL (Wake on LAN)
|
|
| Serial ATA
Host controller, Data transfer rates up to 1.5Gb/s
|
|
| Keyboard and Mouse |
|
| 350 Watts, PFC (Power Factor Correcting) |
|
| Tower 5U Form Factor |
|
|
| Step 2: Choose Required
Options (only one of the following from each list unless otherwise noted) |
| Processors |
Celeron Processor 2.80 GHz/400MHz
Front Side Bus, Factory Integration only |
383872-B21
|
| Pentium Processor 3.20 GHz/ 800MHz
Front Side Bus, Factory Integration only |
383871-B21
|
| Pentium Processor 3.40 GHz/ 800MHz
Front Side Bus, Factory Integration only |
383869-B21
|
| Pentium Processor 3.0 GHz/ 800MHz
Front Side Bus, Factory Integration only |
390813-B21 |
|
| Base Memory |
256 MB of Advanced ECC PC3200
DDR SDRAM DIMM Memory Kit (1 x 256 MB)
|
354557-B21
|
512 MB of Advanced ECC PC3200
DDR SDRAM DIMM Memory Kit (1 x 512 MB)
|
 354560-B21 |
| 1024 MB of Advanced ECC PC3200
DDR SDRAM DIMM Memory Kit (1 X 1024 MB) |
354563-B21 |
|
| Base Hard Drives |
72-GB 10,000 rpm, U320 Non-Hot
Plug Hard Drive (1") |
|
146-GB 10,000 rpm, U320 Non-Hot
Plug Hard Drive (1")
NOTE: Must also select the U320 SCSI
HBA Base (358700-B21) if choosing SCSI drive. |
|
| 80-GB NHP SATA 1.5Gb 7,200 rpm
Hard Drive (1") |
|
| 80-GB SATA 1.5Gb 7,200 rpm Hard
Drive (3.5") |
|
| 160-GB SATA 1.5Gb 7,200 rpm Hard
Drive (3.5") |
|
| 250-GB SATA 1.5Gb 7,200 rpm Hard
Drive (3.5") |
|
| NOTE: Must also
select one HP SATA Hard Drive Cable (P/N 385856-B21) for each SATA hard
drives selected |
|
HP SATA ML110G2 Cable FIO
NOTE: Must also select one SATA Cable
for each SATA Hard drive selected
|
385856-B21 |
|
| Optical Drives |
CD-RW/DVD-ROM Combo Drive Option
Kit |
|
DVD-ROM Drive Option Kit
|
|
| HP ProLiant 48X CD w/SCREWS |
337863-B21
|
|
| Step 3: Choose Additional Factory
Integratable Options |
| Controller |
HP ML110 G2 U320 SCSI FIO HBA
ALL
NOTE: Must select if SCSI hard drives
are chosen in step 2. |
358700-B21
|
|
| Step 4: Choose Additional Options for Factory
Integration |
|
NOTE: For additional
options, please refer to the "Options" section below.
|
Options
| NOTE: Some options
may not be factory integratable. Please contact your local sales representative
for additional information. |
| Memory |
1024 MB Advanced ECC PC3200 DDR
SDRAM DIMM Memory Kit (1 x 1024 MB) |
|
| 512 MB Advanced ECC PC3200 DDR
SDRAM DIMM Memory Kit (1 x 512 MB) |
|
256 MB Advanced ECC PC3200 DDR
SDRAM DIMM Memory Kit (1 x 256 MB)
|
354557-B21
|
|
| Optical Drives |
CD-RW/DVD-ROM Combo Drive Option
Kit |
|
| 48X CD-ROM Option, Carbon |
337863-B21
|
| 1.44 MB Diskette Drive via USB
|
DC361B
|
|
| ML110 G2 Hard Drives |
Ultra320 SCSI - Non-Hot
Plug |
|
| 36 .4-GB 15,000 rpm, U320 Non-Hot
Plug Hard Drive (1") |
|
| 72 .8-GB 10,000 rpm, U320 Non-Hot
Plug Hard Drive (1") |
|
| 146.8-GB 10,000 rpm, U320 Non-Hot
Plug Hard Drive (1") |
|
| Serial - ATA (SATA)- Non-Hot
Plug |
|
| 80-GB ATA/100 7,200 rpm Non-Hot
Plug Drive (1") |
|
| Serial-ATA (SATA) Hard Drive
(Hot Plug SATA Models Only) |
|
| 80-GB SATA 1.5Gb 7,200 RPM Hard
Drive (3.5") |
|
| 160-GB SATA 1.5Gb 7,200 RPM Hard
Drive (3.5") |
|
| 250-GB SATA 1.5Gb 7,200 RPM Hard
Drive (1") |
|
HP 2 Port SATA RAID Cable All
NOTE: Must select one SATA RAID Cable
when choosing 1or 2 SATA Hard Drives. Must select two SATA RAID Cables when
choosing 3 or more SATA Hard Drives.
|
379093-B21
|
|
| HP External 160GB
HDD |
HP External Backup Solution by
Seagate (North America) |
372914-001
|
| HP External Backup Solution by
Seagate (EU) |
372914-011
|
|
Internal Cable
Options
|
HP Internal SAS/SATA Target Fan
Cable |
389653-B21
|
| HP Internal 2-Port SATA RAID Cable
Kit |
379093-B21
|
| NOTE: The SAS
cable supports four drives without an expander. Two cables are required
when more than four drives are installed. SAS Internal Cables are typically
supplied with the server. Refer to server documentation for details. |
|
|
| Storage Controllers
- SCSI Drives |
64-Bit/133-MHz Single Channel
Ultra320 SCSI HBA G2
NOTE: PCI-X Interface |
|
HP PL100 SCSI RAID Controller
NOTE: PCI-X Interface |
|
HP 6-Port SATA RAID Controller
NOTE: PCI-X Interface |
|
| HP 2-Port SATA RAID Cable |
379093-B21
|
| 64-Bit/133-MHz Single Channel
Ultra320 SCSI HBA |
365289-B21
|
NOTE: SCSI Storage
Controllers are qualified for SCSI drives only and do not support the SATA
Drives.
SATA Storage Controllers are qualified for SATA drives only and do not support
the SCSI Drives. |
|
|
| Communications |
HP NC320T PCI Express
Gigabit Server Adapter
|
|
HP NC1020 PCI 1000T
Gigabit Server Adapter
|
|
HP NC150T PCI 4-port
1000T Gigabit Combo Switch Adapter
|
|
Modem adapter option
kit localizations -
NOTE: RJ11 Modem adapter kit country/network-specific
telecoms adapter for use with DC131B, DC132B or DC132C modems
|
DC131C-xx
|
| Modem adapter option
kit Country Code Key |
|
|
#ACP=
|
Austria |
#ABZ=
|
Italy |
|
|
#ABW=
|
Belgium (Dutch/Flemish) |
#ABH=
|
Netherlands |
|
|
#AKN=
|
Bosnia, Herzegovina, Croatia,
Slovenia, Yugoslavia (Slovenian) |
#UUW=
|
Nordic Region |
|
|
#AKB=
|
Czech Republic (Czech) & Slovakia |
#ACB=
|
Russia |
|
|
#ABF=
|
France |
#ACQ=
|
South Africa |
|
|
#ABD=
|
Germany |
#ACD=
|
Switzerland |
|
|
#AB7=
|
Greece |
#AB8=
|
Turkey |
|
|
#AKC=
|
Hungary |
#ABU=
|
UK |
|
|
#ABT=
|
Israel |
#ABG=
|
Australia, New Zealand |
|
| |
|
#ACJ=
|
India |
|
|
|
Tape Backup Drives
|
NOTE:
For complete listing of tape drive offerings see: http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
|
|
|
For recommended tape drive offerings for this ProLiant server see
the following:
NOTE: For complete listing
of tape drive offerings see: http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
|
|
| For recommended tape drive
offerings for this ProLiant server see the following: |
|
| USB Tape Drives |
|
| HP StorageWorks DAT 40 USB
Internal Tape Drive (Carbonite) |
DW022A
|
| HP StorageWorks DAT 72 USB
Internal Tape Drive (Carbonite) |
DW026A
|
| DAT Tape Drives - Internal |
|
| HP StorageWorks DAT 24 SCSI
Internal Tape Drive (Flint) |
|
| HP StorageWorks DAT 40 SCSI
Internal Tape Drive (Carbon) |
|
| HP StorageWorks DAT 72 SCSI
Internal Tape Drive (Carbon) |
Q1522B
|
| Ultrium Tape Drives -
Internal/External |
|
| HP StorageWorks Ultrium
232 Internal Tape Drive (Carbonite) |
|
| HP StorageWorks Ultrium
232 External Tape Drive (Carbonite) |
DW065A
|
| NOTE:
Installation of DAT40 or DAT72 Internal DAT Drives in a ML110
G2 SATA model requires SCSI controller kit (PN: 374654-B21). |
|
| NOTE: Installation
of DAT40 or DAT72 DAT Drives in a ML110 G2 SATA model requires SCSI
controller kit (PN: 374654-B21). |
|
|
|
| Rack Enabling Kit |
ProLiant Rack Enabling Kit |
238547-B22
|
|
| Lights Out Management Card |
Lights-Out Management Card Kit
|
383064-B21
|
|
| Other |
Internal SCSI Cable Option Kit,
4 drops
NOTE: To be used when adding additional hard disk drives or a tape
back-up drive. |
166389-B21
|
Internal SCSI Cable Option Kit,
2 drops
NOTE: To be used when adding additional hard drives or a tape back-up
drive.
|
273463-B21
|
Service and Support, HP Care Pack, and Warranty Information
|
Service and Support Offerings (HP
Care Pack Services)
|
| Hardware Services 4-Hour
On-site Service |
|
| 13-Hour x 5-Day Coverage,
3 Years, Electronic |
U4434E
|
| 24-Hour x 7-Day Coverage,
3 Years, Electronic |
U4435E
|
| Hardware Services
Next Business Day On-Site Service |
|
| 9-Hour x 5-Day Coverage,
3 Years, Electronic |
U4433E
|
| Hardware Installation, Electronic
|
U4444E
|
| NOTE: For
more information, customer/resellers can contact http://www.hp.com/services/carepack. |
|
|
Memory
| HP ProLiant ML110 G2 Celeron and
Pentium 4 Models |
|
Standard Memory
|
| 256 MB of PC3200 DDR SDRAM running
at 400MHz, with Advanced ECC capabilities Memory installed (1 x 256 MB SDRAM
DIMM). |
| Standard Memory Plus Optional
Memory |
| Up to 3328 MB memory is available
with the optional installation of PC3200 Registered un-buffered ECC DDR
SDRAM DIMM Memory kits. |
| Standard Memory Replaced
with Optional Memory |
| Up to 4096 MB of memory is available
with the removal of the standard 256 MB of memory and the optional installation
of PC3200 Registered un-buffered ECC DDR SDRAM DIMM Memory kits. |
| NOTE: Charts do
not represent all possible memory configurations. |
|
|
ML110 G2 Memory
|
Slot
|
|
|
4
|
3
|
2
|
1
|
| Standard |
256 MB |
Empty
|
Empty
|
Empty
|
256 MB
|
| Optional |
3328 MB |
1024 MB
|
1024 MB
|
1024 MB
|
256 MB
|
| Maximum |
4096 MB |
1024 MB
|
1024 MB
|
1024 MB
|
1024 MB
|
| Following are memory options available from
HP: |
|
- 256 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
|
354557 -B21
|
- 512 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
|
354560 -B21
|
- 1024 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)
|
354563 -B21
|
|
| HP server ML110 G2 Pentium 4 SBS
Models |
|
Standard Memory
|
| 512 MB of PC3200 DDR SDRAM running
at 400MHz, with Advanced ECC capabilities Memory installed (1 x 512 MB SDRAM
DIMM). |
| Standard Memory Plus Optional
Memory |
| Up to 3584 MB memory is available
with the optional installation of PC3200 un-buffered ECC DDR SDRAM DIMM
Memory kits. |
| Standard Memory Replaced
with Optional Memory |
| Up to 4096 MB of memory is available
with the removal of the standard 512 MB of memory and the optional installation
of PC3200 un-buffered ECC DDR SDRAM DIMM Memory kits. |
| NOTE: Charts do
not represent all possible memory configurations. |
|
|
ML110 G2 Memory
|
Slot
|
|
|
4
|
3
|
2
|
1
|
| Standard |
512 MB |
Empty
|
Empty
|
Empty
|
512 MB
|
| Optional |
3584 MB |
1024 MB
|
1024 MB
|
1024 MB
|
512 MB
|
| Maximum |
4096 MB |
1024 MB
|
1024 MB
|
1024 MB
|
1024 MB
|
| Following are memory options available from
HP: |
|
- 256 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
|
354557-B21
|
- 512 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
|
|
- 1024 MB Advanced ECC PC3200 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)
|
|
Storage
|
|
A
|
48x IDE (ATAPI) CD-ROM |
|
B, C, D
|
Removable Media Bays (1.6"
each) |
|
D
|
1.44 MB Diskette Drive (Optional) |
|
0, 1, 2, 3
|
Four 1" Non-Hot Plug Drive
Bays, or Four Hot Plug Drive Bays (SATA model only) |
| |
|
| |
| Drive Support |
|
| |
Quantity
Supported
|
Position
Supported
|
Controller
|
|
Removable Media
|
|
|
|
1.44-MB Diskette Drive
|
1
|
D
|
Integrated |
| DVD-ROM Drive |
Up to 2 |
A, B or C |
Integrated IDE (ATAPI) |
|
| ML110 G2 Hard Drives (SCSI Models only)
|
| Ultra 320 SCSI - Non-Hot
Plug |
| |
Quantity
Supported
|
Position
Supported
|
Controller
|
1-inch
36.4-GB
72.8-GB
146.8-GB
|
Up to 4 |
0, 1, 2 or 3 |
Hot Plug Single Channel Ultra320
SCSI Adapter (SCSI Models) |
|
| ML110 G2 Hard Drives (SATA Models only) |
| SATA 1.5Gb - Non-Hot Plug |
| |
Quantity
Supported
|
Position
Supported
|
Controller
|
1-inch
80.0-GB
|
Up to 4 |
0, 1, 2 or 3 |
|
|
| ML110 G2 Hard Drives (SATA Models only) |
| SATA - Hot Plug |
| |
Quantity
Supported
|
Position
Supported
|
Controller
|
1-inch
80.0-GB
160.0-GB
250.0-GB
|
Up to 4 |
0, 1, 2 or 3 |
4 Port SATA RAID Controller (SATA
Model) |
|
| Maximum Storage
Capacity - SCSI Models |
| Internal |
584-GB (4 x 146-GB non-hot-plug
hard drives) |
| Total |
584-GB |
| Maximum Storage
Capacity - Non-Hot Plug SATA Models |
| Internal |
320-GB (4 x 80-GB
non-hot-plug hard drives) |
| Total |
320-GB |
| Maximum Storage
Capacity - Hot Plug SATA Models |
| Internal |
1-TB (4 x 250-GB
hot-plug hard drives) |
| Total |
1-TB |
|
Power Specifications
| Part
Number |
377580-001 |
| Spare Kit |
382097-001 |
| Operational Input Voltage Range
(V rms) |
90 to 135 and 180 to 5 V auto
ranging |
| Frequency Range (Nominal) (Hz) |
47 to 63 Hz |
| |
|
| Nominal Input Voltage (Vrms) |
100
|
115
|
208
|
220
|
230
|
240
|
| Max Rated Output Wattage Rating |
N/A
|
350
|
N/A
|
N/A
|
350
|
N/A
|
| Nominal Input Current (A rms) |
N/A
|
8
|
N/A
|
N/A
|
4
|
N/A
|
| Max Rated Input Wattage Rating (Watts) |
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
| Max. Rated VA (Volt-Amp) |
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
|
Efficiency (%)
|
N/A
|
>65%
|
N/A
|
N/A
|
>65%
|
N/A
|
|
Power Factor
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
|
Leakage Current (mA)
|
0.25mA (at 60HZ)
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
|
Maximum Inrush Current (A peak)
|
N/A
|
No component was damaged and input fuse shall not blow
|
N/A
|
N/A
|
No component was damaged and input fuse shall not blow
|
N/A
|
|
Maximum Inrush Current duration (mS)
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
| |
Power ** |
| HP ProLiant ML110 G2 Fully Configured |
(see **) |
| Fully Loaded System output Wattage (W) |
350W |
| Fully Loaded System Input Current (A rms) |
4.87A @ 115V, 2.43A @ 230V |
| Fully Loaded System Thermal (BTU- Hr) |
1907BTU |
| Fully Loaded System VA (Volt-Amp) |
560
|
| System Leakage with all power supplies loaded
(mA) |
0.75mA@240V
0.45mA@120V |
| System Inrush Current with all power supplies
loaded (A) |
80A |
| Power cord requirements |
Nema 5-15P to IEC320-C13 |
| |
IEC320-C13 to IEC320-C14 |
| |
**Power shown is for
a fully configured system consisting of (1) CPU, (4) double-sided DIMMs,
(4) HDDs, (1) CD-ROM, (1) DVD-ROM, (4) PCI cards, and (1) power supply. |
| Power Cords (13 Cord Sets) |
Power Cord Part Number |
| Country |
|
| APD |
100614-009, 100613-008, 139867-004,
187487-004(India) |
| Brazil |
285052-001 |
| Australia |
100661-001 |
| Euro |
100614-009 |
| France |
100614-009 |
| Germany |
100614-009 |
| Japan |
139867-004 |
| PRC |
286496-001 |
| UK |
100613-008 |
| US, Taiwan |
121565-001 |
Quickspecs
| System Unit |
Dimensions (HxWxD)
(with feet) |
16.7 x 7.9 x 19.7
in (42.4 x 20.0 x 50.0 cm) |
| Weight(approximate) |
32.61 lb (14.8 kg) |
Input Requirements
(per power supply) |
Range Input Voltage
|
90 to 135 VAC/180 to 265 VAC |
| Normal Line Voltage |
115 or 230 VAC |
| Line Frequency |
50 to 60 Hz |
|
| Rated Input Current |
load 8A at 115VAC,
4A at 230VAC |
BTU Rating
|
1907 BTU |
SCSI Connectors
(SCSI Models only)
|
One internal LVD/SE connector
for U160 devices, plus two internal SE connectors for legacy devices. |
Power Supply Output
Power
(per power supply) |
Rated Steady-State Power |
320W |
| Maximum Peak Power |
350W |
| Temperature Range |
Operating |
50° to 95° F (10°
to 35° C) |
| Shipping |
-4° to 140° F (-20°
to 60° C) |
Relative Humidity
(non-condensing)
|
Operating |
20% to 80% |
| Non-operating |
20% to 80% |
| Acoustic Noise
|
Idle
(Fixed Disk Drives Spinning)
|
|
|
L WAd (BELS)
|
5.5 |
|
L pAm (dBA)
|
36 |
|
Operating
(Random Seeks to Fixed Disks)
|
|
|
L WAd (BELS)
|
6.0 |
|
L pAm (dBA)
|
38 |
|
| Non-Hot Plug Ultra320
SCSI Hard Drives |
364 GB
357021-B21
|
Capacity |
36,419.2 MB |
| Height |
1.0 in (2.5 cm) |
| Width |
4.0 in (10.16 cm) |
| Interface |
Ultra320 SCSI |
Transfer rate
synchronous (maximum) |
320 MB/s |
Seek time
(typical reads, including settling) |
Single track |
0.7 ms |
| Average |
5.4 ms |
| Full-stroke |
11 ms |
| |
Rotational Speed |
10,000 rpm |
| Physical Configuration |
Bytes/Sector |
512 |
| |
Logical Blocks |
71,132,000 |
| Operating Temperature |
41° to 140°
F (5° to 60° C) |
|
| Non-Hot Plug SATA
Hard Drives |
80 GB 7.2K
383410-B21
|
Capacity |
80,054 MB |
| Height |
1.0 in. (2.5 cm) |
| Width |
4.0 in. (10.16 cm) |
| Interface |
SATA 150MB |
| Transfer rate synchronous
(maximum) |
150 MB/s |
| Seek time (typical
reads, including settling) |
Single track |
0.8 ms |
| Average |
8.5 ms |
| Full-stroke |
17.8 ms |
| |
Rotational speed |
7,200 rpm |
| Physical Configuration |
Bytes/Sector |
512 |
| |
Logical Blocks |
156,355,584 |
| Operating Temperature |
41° to 131°
F (5° to 55° C) |
|
| Hot Plug SATA Hard
Drives |
80 GB 7.2K
349237-B21
160 GB 7.2K
349238-B21
250 GB 7.2K
349239-B21
|
Capacity |
40,027 MB |
| Height |
1.0 in. (2.5 cm) |
| Width |
4.0 in (10.16 cm) |
| Interface |
SATA 150MB |
| Transfer rate synchronous
(maximum) |
1.50Gb/s |
Seek time
(typical reads, including settling) |
Single track |
0.9 ms
|
| Average |
9.0 ms
|
| Full-stroke |
17.0 ms |
| |
Rotational speed |
7,200 rpm |
| Physical Configuration |
Bytes/Sector |
512 |
| |
Logical Blocks |
156,301,4\88 |
| Operating Temperature |
41° to 131°
F (5° to 55° C) |
|
| 48X Max IDE (ATAPI)
CD-ROM Drive |
Disk |
Applicable Disk |
CD-ROM, CD-XA, CD-DA
(Mode 1, Mode 2, Form 1 and 2) |
| Photo CD (Single and Multi-session) |
| Mixed Mode (Audio and Data combined) |
| CD-R |
| Capacity |
540 MB (Mode 1, 12 cm) |
| 650 MB (Mode 2, 12 cm) |
| Block Size |
Mode 1 |
2,048 bytes, 1024 bytes |
| Mode 2 |
2,340 bytes, 2,336 bytes, 1024 bytes |
| CD-DA |
2,352 bytes |
| CD-XA |
2,328 bytes |
| Interface |
IDE (ATAPI) |
|
| Access Times (typical) |
Random |
<100 ms |
| Full-Stroke |
<150 ms |
| Data Transfer Rate |
Sustained |
3000 to 7200 KB/s (20X to 48X) |
| Burst |
150 KBps to 7,200 KBps |
| Bus Rate |
16.7 MBps |
| Cache Buffer |
128 KB |
|
| Start-up Time (typical) |
< 7seconds |
|
| Stop Time |
< 4seconds |
|
| Laser Parameters |
Type |
Semiconductor Laser GaA1As |
| Wave Length |
780 ± 25 nm |
| Operating Conditions |
Temperature |
41° to 122° F (5° to
50° C) |
| Humidity |
10% to 90% |
| Dimensions |
(HxWxD, maximum)
|
1.63 x 5.75 x 7.87 in (41.3 x 146
x 200 cm) |
| Weight |
2.64 lb (1.2 kg) |
|
| HP Single Channel
Ultra320 SCSI Adapter (SCSI Models only) |
Drives Supported |
Up to 4 SCSI devices Wide |
| Data Transfer Method |
64-bit/33-MHz PCI bus-master |
| SCSI Channel Transfer Rate
|
320 MB/s per channel |
| SCSI Protocols |
Ultra 320, Ultra 3, Ultra 2 |
| Fast SCSI-2 |
| Maximum Capacity |
587GB (4x146.8GB, NHP U320 SCSI
HDD) |
| Electrical Protocol |
Low Voltage Differential (LVD) |
| SCSI Termination |
Active Termination |
| External SCSI Connectors |
None |
|
| 6 port SATA RAID
controller (SATA Model Only) |
SATA Protocol
|
SATA 1.5Gb/s |
SATA Ports
|
6 internal (4 drives supported maximum
for ML110G2) |
Port transfer rate
|
1.5 Gb/s total |
Drives Supported
|
Up to 4 SATA HDD |
Data Transfer Method
|
32-bit/66-MHz PCI bus-master |
Storage Capacity
|
up to 1TB (4x 250GB hot plug 1"
SATA HDD) |
PCI
|
3.3 volt CPI slot compatibility
only (PCI-X interface) |
Cache Memory
|
64MB of SDRAM Memory for RAID and
read cache |
| RAID Levels Supported |
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 1 (Mirroring)
RAID 0 (Striping) |
| Maximum Capacity |
up to 1TB (4x 250GB hot plug 1"
SATA HDD) |
| Logical RAID Volumes Supported |
4 |
| Operating Systems |
Microsoft Windows® 2000 Server;
Microsoft Windows® Server 2003; Linux: Red Hat 9.0, RHEL 3. |
|
|
Intel 82541 PI NIC (embedded) 10/100/1000 WOL (Wake on LAN)
|
Network Interface |
IEEE 802.3x-compliant
flow-control support with software-controllable thresholds IEEE 802.3ab
Auto-Negotiation |
| Data Transfer Method |
32-bit PCI |
| Network Transfer Rate |
10/100/1000 Mbps, Half- and full-duplex
|
Auto-negotiated speeds of 10/100/1000
Mbps in both half and full duplex |
| Connector |
RJ-45 connector |
| Cable Support |
Category 5 or higher UTP wiring |
|
|
