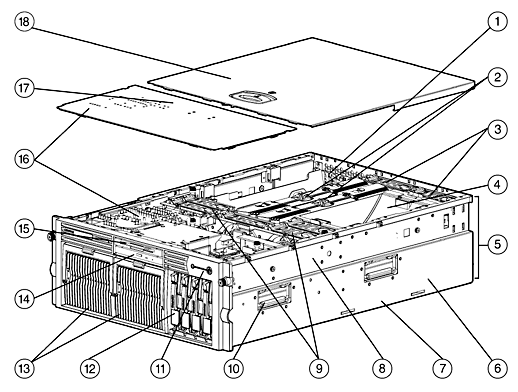

1. Six 64-bit/100-MHz PCI-X I/O Slots (Four Hot
Plug, two Non-Hot Plug)
2. Dual Memory Expansion Boards (8 DIMM slots
each - one board standard on all models, 2nd board is optional)
3. Hot Plug Redundant Fans
4. Processor Air Baffle
5. 4U (7" Height) Rack Form Factor
6. Up to 4 Intel Processors MP
7. Integrated Smart Array 5i Plus Controller (Battery Backed
Write Cache standard on all 2P models, optional on 1P model)
8. Tool-less "Snap In" rail solution
9. Additional Hot Plug Redundant Fans
10. Server Lifting Handle
11. Front Panel LED Display (internal
and external health, Unit ID light) and Power Button
12. Wide Ultra3/U320 Duplex Drive
Cage (can be Simplex configured)
13. Dual 800-Watt Hot Plug Redundant
Power Supplies (low line or high line), standard on all 2P models
(one ships standard on 1P model, requires optional RPS for redundancy)
14. Slimline Drives: 24X
(slimline) CD-ROM IDE Drive
2048 MB (2P Models) or 1024 MB (1P Model) standard
memory, expandable to 32 GB
HP Advanced Memory Protection (Online Spare, Single
Board Mirrored Memory, Hot Plug Mirrored Memory, Hot Add Memory)
Six, full length 64-bit/100 MHz PCI-X slots, 4 Hot
Pluggable
Integrated Lights-Out Standard Management (iLO) on
system board
Integrated NC7770 PCI-X Gigabit Server Adapter or
Integrated HP NC7170 Dual-Port PCI-X 1000T Gigabit Server Adapter in
a slot Depending on model)
Integrated Smart Array 5i Plus Controller (Dual Channel,
Ultra3) with 64-MB total memory on 5i Plus Memory Module
Battery-Backed Write Cache Enabler module on all
2P models (optional on 1P model)
Internal Hot Plug Drive Storage of up to 1.20 TB
(4 x 300 GB 1" Ultra320 hard drives) or one DAT hot plug tape drive
and two hot plug hard drives
Redundant Cooling Zones for major subsystems (Memory,
I/O, CPUs) assure 7x24 cooling
Toolless and virtually cable-less internal design
Innovative diagnostic lighting (QuickFind Diagnostic
Display) for rapid response to service events
Rapid Deployment racking solution (rack rails and
cable management)
Protected by HP Services and a worldwide network
of resellers and service providers. Three-year Next Business Day, on-site
limited global warranty. Certain restrictions and exclusions apply.
Pre-Failure Notification on processors, memory, and SCSI hard drives.
200-MHz Double Data Rate (DDR)
SDRAM (PC1600 Registered SDRAM Memory with Advanced ECC functionality)
Standard (2P Models)
2048 MB
Standard (1P Models)
1024 MB
Maximum
32 GB
NOTE:
Advanced ECC Memory Technology protects the data even in the event of
an entire SDRAM component failure. Embedded in the chipset design, this
feature allows the use of Industry-Standard Registered DIMMs. NOTE: 32 GB achieved with use of 2nd, optional memory board and 2GB
Registered DIMM sticks.
Network Controller One of the following depending
on Model
Integrated NC7170
dual port PCI-X Gigabit Server Adapter in a slot (3.0 GHz, 2.7 GHz, 2.2
GHz models only)
Integrated NC7770
PCI-X Gigabit Server Adapter in a slot
Integrated Lights-Out
(iLO) Standard Management (ASIC on the System Board)
Storage Controllers
Smart Array 5i Plus
Controller (integrated on system board), Dual Channel, Ultra3 (supports
RAID 0, 1, 1+0, and 5 across internal hard disk drives) with 64 MB of memory.
64-MB total memory for code, transfer buffers, and read/write cache
on the 5i Plus Memory Module
Connector for Battery Backed Write Cache (BBWC) Enabler
NOTE:
The Smart Array 5i Plus Controller is integrated on the system board and
is designed to support the duplex/simplex drive cage. An external SCSI port
is not available on the HP ProLiant DL580 G2. External SCSI solutions require
the addition of a PCI or PCI-X option card. Slot based Smart Array controllers
can support both internal hard drives as well as external SCSI solutions.
Storage Data Protection
The Battery-Backed
Write Cache (BBWC) Enabler protects up to 64-MB write cache memory from
hard boot, power, controller, or system board failures.
Standard on 2P Models, optional on 1P Models
Battery charge/life: Up to 72 hours/3 years
Transportable data protection
Increases overall controller performance
NOTE:
Safely transport your write cache data to another HP ProLiant DL580
G2 in the data center by removing the BBWC Enabler and 5i Plus Memory Module
simultaneously (connected by short cable).
Storage
Diskette Drive
1.44 MB (slimline) – ejectable
for security and serviceability
Optical Drive
24x IDE CD-ROM Drive (slimline)
– ejectable for security and serviceability
Hard Drives
None
Maximum Internal Storage
1.20 TB (4 x 300 GB Ultra320
1" SCSI drives) (internal hot plug Ultra3 drive cage)
Hard Disk Drive Backplane
Internal Wide Ultra3/U320 backplane
supports up to four 1" hard disk drives and is easily configurable
to support simplex (4x1) or duplex mode (2x2) Standard shipping configuration
is the duplex mode. NOTE: U320 speeds achieved by installing
a slot based U320 Smart Array controller and can control both the internal
hard drives as well as external storage solutions. NOTE: Optional SCSI cable assembly 288874-B21 is required for connecting
Smart Array Controller in a PCI slot to internal hard drive backplane. Duplex
configuration requires two such kits.
Interfaces
Serial
1
Pointing Device (Mouse)
1
Graphics
1
Keyboard
1
Rear USB Ports
2
iLO Remote Management
1
Network RJ-45
1 / 2
Graphics
Integrated 1280 x 1024, 16M
color on PCI local bus, 8-MB of SDRAM video memory
Form Factor
Rack (4U = 7 inches), ships
with sliding rails and cable management system
Space saving form factor (4U) provides space efficiencies while providing
maximum deployment flexibility
ProLiant
Essentials Foundation Pack Software
HP Systems Insight Manager
HP's new HP Systems Insight
Manager (HP SIM) helps maximize system uptime and performance and
reduce system maintenance costs by providing proactive notification
of problems before those problems result in unplanned downtime or
reduced productivity. HP SIM are both easy to set up work with the
Insight Management Agents, integrated Lights-Out and Remote Insight
Lights-Out Edition, and Version Control Agents to deliver robust fault,
configuration, and asset management as well as remote administration.
With HP SIM customers will also be able to take advantage of role-based
security; the ability to manage ProLiant, Integrity, and HP 9000 systems;
and plug-ins for storage, client, printer, and power management as
well as server rapid deployment, performance management, and workload
management. For more details on HP SIM visit http://www.hp.com/go/hpsim.
SmartStart
SmartStart is a tool that
simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please
visit the SmartStart Web site at http://www.hp.com/servers/smartstart. SmartStart version supported (minimum):
SmartStart 6.40.
Management Agents
The Management Agents
form the foundation for HP's Intelligent Manageability strategy. They
provide direct, browser-based access to in-depth instrumentation built
into HP servers, workstations, desktops, and portables, and send alerts
to Systems Insight Manager and other enterprise management applications
in case of subsystem or environmental failures. For additional information
about the Management Agents and other management products from HP,
please visit the management Web site at http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's Choice Driver
and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change
notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq,
support software, and
configuration utilities
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and
options available in SmartStart or downloadable from Software and
Drivers download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics
utilities
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional software offerings
that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack - an automated solution for multi-server
deployment and provisioning, enabling companies to quickly and
easily adapt to changing business demands.
Workload Management Pack - provides easier management of complex
environments, improving overall server utilization and enabling
Windows® 2000 customers for the first time to confidently deploy
multiple applications on a single multiprocessor ProLiant Server.
Integrated Lights-Out Advanced Pack - upgrades the Integrated
Lights-Out processor to full virtual presence and control with
graphical console and virtual media.
Performance Management Pack - a performance management solution
that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions, plus it provides an extra layer of
protection. The virus throttle feature of the solution slows the
propagation of fast spreading virus.
Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well
operating system configurations that can be exploited by viruses,
worms, and other blended threats
Virtual Machine Management Pack - provides central management
and control of virtual machines from Microsoft and VMware. Integrated
approach provides the ability to manage both physical and virtual
resources from a single management console.
NOTE:
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Industry Standard Compliance
ACPI 1.0a. Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE)
Support
Microsoft® Logo certifications
Intelligent
Manageability
Integrated Lights-Out (iLO)
Standard Management
Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for 12 user accounts with customizable access privileges
Integrated Lights-Out (iLO)
Advanced Pack (supports Advanced features such as Graphical Remote Console
and Virtual Floppy - available as a separate option)
Automatic Server Recovery-2 (ASR-2)
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
ROM-Based Setup Utility (RBSU)
Integrated Management Log (IML)
Hot Spare Boot
(NOTE: Upon the event of a failed processor or VRM in a multi-processing
environment, the system will automatically reboot and use the remaining
good processor(s).)
Dynamic sector repairing and drive parameter tracking (with Smart Array
controllers)
Redundant/adaptive load balancing NIC Support
Availability
Standard Advanced ECC functionality detects and corrects single bit
and specific multi-bit memory errors (4bit and 8bit) while using industry
standard registered DIMMS. Functionality is embedded in the chipset
design.
HP Advanced Memory Protection Technology – delivers unsurpassed
memory protection and server availability:
Online Spare Memory
Offers a higher level of memory protection than Advanced ECC alone.
If the number of single-bit correctable errors on a bank exceeds
the pre-defined error threshold, that bank will fail over to the
online spare bank without intervention or server interruption. The
failed memory can then be replaced at the user's convenience during
a scheduled maintenance window.
Single-Board Mirrored Memory
Single-board mirrored memory provides a higher level of availability
than Advanced ECC and Online Spare Memory because it protects against
multi-bit errors. Single-board Mirrored Memory uses mirrored banks
on a single memory board that is configured with one redundant bank
of memory. The system writes to both banks, but reads from one. If
a DIMM(s) has a multi-bit error, the system simply reads from the
mirrored bank instead. This process occurs without intervention or
server interruption, and the failed DIMM can be replaced during a
regularly scheduled shutdown.
Hot Plug Mirrored Memory
Hot Plug Mirrored Memory is a fault-tolerant memory feature that provides
a higher level of availability than Advanced ECC, Online Spare Memory,
or Single-Board Mirrored Memory because it protects against multi-bit
errors and does not require any server downtime to replace failed
DIMMs. Hot Plug Mirrored Memory requires that two memory boards be
installed, one an exact mirror of the other, which run in parallel
and provide protection against multi-bit memory errors. When configured
for Hot Plug Mirrored Memory, the system writes to both memory boards,
but reads from one. If a read error occurs, the system fails over
to the redundant memory board. At that point the memory board containing
the failed DIMMs can be hot replaced. Once the failed DIMMs are replaced
and the memory board re-installed into the server, the system goes
back to full mirrored status. All this occurs without bringing the
server down.
NOTE: Hot Plug Mirrored Memory and Dual-Board Online Spare
Memory require the use of two memory cards. All HP ProLiant DL580
G2 servers ship standard with a single memory board. The second memory
board is optional (P/N 203320-B21). NOTE: All HP Advanced Memory Protection modes are user configurable
through the ROM-Based Setup Utility (RBSU) and viewable through HP
Systems Insight Manager and the Integrated Management Log (IML.).
PCI-X Hot Plug Technology (Four 64bit/100-MHz PCI-X hot plug slots
available)
Smart Array 5i Plus Controller with standard Battery Backed Write
Cache (BBWC) Enabler provides transportable data protection and increases
overall controller performance. Up to 64MB Battery Backed Write Cache
protection available on 2P models (BBWC Enabler is optional on 1P model.)
Redundant Cooling Zones across major server subsystems (Memory, I/O,
CPU) provide 7x24 cooling. Each zone is independent of each other and
is able to support n+ 1 redundancy, as indicated below:
PCI-X expansion zone is 1 + 1 redundant (fans 1 and 2)
Memory zone is 1 + 1 redundant (fans 3 and 4)
CPU zone is 2 + 1 redundant (fans 5, 6, and 7)
This zone configuration enables
the server to withstand up to three fan failures, provided that they are
not within the same zone. Each fan is hot plug redundant and individually
removable.
Up to four Hot Plug Ultra3 Drive Bays
Duplex or Simplex SCSI Backplane (Duplex configuration is standard)
Dual Hot Plug Redundant Power Supplies (standard on 2P Models, one
ships standard on 1P Models)
Serviceability
Innovative Diagnostic Lighting
QuickFind Diagnostic Display – precisely depicts all major subsystems
of the server (PCI-X I/O, Memory, CPU, Redundant Cooling, Interlock,
Thermtrip) and gives instant visual indication of fault status. Located
on top front of server.
LED display on front panel indicates power, internal health, external
health, Unit ID light.
LED display on Memory board indicates Memory status, health, and protection
mode.
Tool-less, virtually cable-less interior design
Tool-less access to interior of server
Two ejectable, slimline media drives (diskette and CD-ROM standard
with support for optional DVD-ROM drives) are removable without
the use of tools
PCI Card Guides locks full length PCI cards in place during transit
SCSI Duplex/Simplex Drive Cage connects directly to system board
– no cables. NOTE: Configure your SCSI
Duplex/Simplex Drive Cage by means of simple switch (duplex to simplex)
located on the cage itself. System ships standard in Duplex mode.
Seven individually removable fans connect without cables to the
system board
Processor/VRM Retention Cage securely locks both processor and
VRM into their respective sockets
Tool-less removal of system board
Quick Deploy Rails
Tool-less design "snap in" rail
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
Network Server Mode
Serial interface control
Administrator's password
Disk configuration lock
Removable Diskette drive
Removable CD-ROM drive
Power Supply
800-Watt (low line or high line)
Hot Plug Power Supply NOTE: One 800-Watt Hot Plug Power
Supply ships standard with 1P Models (optional Redundant Hot Plug Power
Supply Option Kit). NOTE: Two 800-Watt Hot Plug Power Supplies ship standard with 2P
Models.
7 Hot plug, redundant fans (individually
removable)
Maximum
7 Hot plug, redundant fans (individually
removable)
Redundant Cooling Zones across major server subsystems (Memory, I/O,
CPU) provide 7x24 cooling. Each zone is independent of each other and
is able to support n+ 1 redundancy, as indicated below:
PCI-X expansion zone is 1 + 1 redundant (fans 1 and 2)
Memory zone is 1 + 1 redundant (fans 3 and 4)
CPU zone is 2 + 1 redundant (fans 5, 6, and 7)
This zone configuration enables the server to withstand up to three
fan failures, provided that they are not within the same zone. Each
fan is hot plug redundant and individually removable.
Windows Server 2003, Standard
Edition
Windows Server 2003, Enterprise Edition
Microsoft Windows 2000 Server
Microsoft Windows 2000 Advanced Server
Microsoft NT Server 4.0 and 4.0ES, 4.0TS
Red Hat Linux RedHat Enterprise Server
SuSE Linux Enterprise Server
United Linux Novell Netware
SCO OpenUNIX
Sun Solaris Intel Platform Edition
VMware Virtualization Software
NOTE: For a
more complete and up-to-date listing of supported OSs and versions, please
visit our OS Support Matrix at: http://www.hp.com/go/supportos.
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If
a third-party rack is used, observe the following additional requirements
to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing
front and rear doors, you must allow 5,350 sq cm (830 square inches)
of hole evenly distributed from top to bottom to permit adequate airflow
(equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component
and the side panels of the rack must be a minimum of 7 cm (2.75 inches).
CAUTION: Always
use blanking panels to fill all remaining empty front panel U-spaces in
the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation
Guide or the Documentation CD provided with the server, or to the server
documentation located in the Support section at the following URL: http://www5.HP.com/products/servers/proliantdl580/index.html.
Rack Mounting Requirements
HP ProLiant DL580 G2 rack models
provide tool-free support for square hole racks (including Compaq/HP 7000,
9000, 10000 and H9 series) with an adjustment range from 28" –
29" in depth.
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of servers
and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem,
HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to http://www.hp.com/go/factory-express.
This product is covered by a
global limited warranty and supported by HP Services and a worldwide network
of resellers and service providers. Hardware diagnostic support and repair
is available for three years from date of purchase. Support for software
and initial setup is available for 90 days from date of purchase. Additional
support may be covered under the warranty or available for an additional
fee. Enhancements to warranty services are available through HP Care Pack
services or customized service agreements.
NOTE: Limited warranty includes 3 year
parts, 3 year labor, 3-year on-site support.
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux,
ProLiant Essentials and VMWare-based IT solutions helping to deliver
high level of application availability. Response times range from 30
mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support
Solution
HP Care Pack Services include HP branded hardware options qualified for
the server, purchased at the same time or afterwards, internal to the
enclosure, as well as 22" and smaller external monitors and tower
UPS options up to 3KVA. 22" and smaller external monitors will be
covered at the same service level and coverage period as the server. For
servers or storage systems installed within a rack, service also covers
all HP qualified rack options installed within the same rack.
NOTE: For more information on HP Care
Pack services, contact any of our worldwide sales offices or resellers
or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack
NOTE: For more complete information
on HP Services offerings, customers and resellers, please visit us at:
http://www.hp.com/hps
Designed for enterprise customers with growing data centers and application
and Internet service providers that require a rack optimized 4 processor
server that delivers maximum performance and high availability for highly
complex, business critical applications. Specifically, the HP ProLiant
DL580 G2 would be excellent for running the following types of applications:
Typical Usage:
DL580
G2 Cable Assembly, SCSI, Ultra3, LVDS NOTE: All HP ProLiant DL580 G2 models ship standard with the integrated
Smart Array 5i Plus Controller, which has been designed to deliver maximum
performance and availability across the internal SCSI Duplex backplane.
288874-B21
The Ultra3 SCSI cable is required only if the customer chooses to
bypass the Smart Array 5i Plus Controller and connect slot-based SCSI
adapters or RAID controllers to the internal SCSI Duplex backplane.
Two cables are required to maintain the standard, duplexed configuration
of the backplane.
One cable is required if the simplex configuration is chosen
The backplane
is easily configured to simplex mode by means of a simple switch duplex
to simplex) located on the top of the backplane itself.
Cord, AC Line, 20A,
250V, US 12'
235604-001
Cord, AC Line, 15A,
125V
235603-001
Cable, 10A, IEC320-C20
to IEC320-C19 NOTE: Power cord (295633-B22) connects
ProLiant servers to PDUs or UPSs with IEC320-C19 output connections.
295633-B22
Cable, 10A, IEC320-C14
to IEC320-C19 8FT NOTE: Power cord (291034-B21) connects
HP ProLiant DL580 G2 servers to PDUs or UPSs with IEC320-C13 output connections.
This power cord has been specifically designed to work with the HP ProLiant
DL580 G2 server. Please NOTE the following important precautions
when deploying this power cord:
291034-B21
Use the cord only in conjunction with the HP ProLiant DL580 G2 server.
Use the cord to connect the HP ProLiant DL580 G2 server only to PDUs
or UPSs with IEC320-C13 output connections.
Do not use the cord with any other HP ProLiant or third party server.
Do not use the cord with any other office equipment or computers.
Do not use the cord as an extension cord.
Do not plug the cord into a wall outlet.
Failure to adhere to these precautions may invalidate the server warranty.
Cable, 10A, IEC320-C14 to IEC320-C19 10FT NOTE: Power cord (310927-B21) connects HP ProLiant DL580 G2 servers
to PDUs or UPSs with IEC320-C13 output connections. This power cord has
been specifically designed to work with the HP ProLiant DL580 G2 server.
Please NOTE the following important precautions when deploying
this power cord:
310927-B21
Use the cord only in conjunction with the HP ProLiant DL580 G2 server.
Use the cord to connect the HP ProLiant DL580 G2 server only to PDUs
or UPSs with IEC320-C13 output connections.
Do not use the cord with any other HP ProLiant or third party server.
Do not use the cord with any other office
equipment or computers.
Do not use the cord as an extension cord.
Do not plug the cord into a wall outlet.
Failure to adhere to these precautions may invalidate the server warranty
Cable,
10A, IEC320-C14 to IEC320-C19 6FT NOTE: Power cord (313227-B21) connects HP ProLiant DL580 G2 servers
to PDUs or UPSs with IEC320-C13 output connections. This power cord has
been specifically designed to work with the HP ProLiant DL580 G2 server.
Please NOTE the following important precautions when deploying this
power cord
313227-B21
Use the cord only in conjunction with the HP ProLiant DL580 G2 server.
Use the cord to connect the HP ProLiant DL580 G2 server only to PDUs
or UPSs with IEC320-C13 output connections.
Do not use the cord with any other HP ProLiant or third party server.
Do not use the cord with any other office
equipment or computers.
Do not use the cord as an extension cord.
Do not plug the cord into a wall outlet.
Failure to adhere to these precautions may invalidate the server warranty
Cable,
10A, IEC320-C14 to IEC320-C19 12FT NOTE: Power cord (313228-B21) connects HP ProLiant DL580 G2 servers
to PDUs or UPSs with IEC320-C13 output connections. This power cord has
been specifically designed to work with the HP ProLiant DL580 G2 server.
Please NOTE the following important precautions when deploying this
power cord:
313228-B21
Use the cord only in conjunction with the HP ProLiant DL580 G2 server.
Use the cord to connect the HP ProLiant DL580 G2 server only to PDUs
or UPSs with IEC320-C13 output connections.
Do not use the cord with any other HP ProLiant or third party server.
Do not use the cord with any other office
equipment or computers.
Do not use the cord as an extension cord.
Do not plug the cord into a wall outlet.
Failure to adhere to these precautions may invalidate the server warranty
ProLiant Essentials
Integrated Lights-Out Advanced Pack, 1 server Featuring:sophisticated virtual administration
features for ultimate control of servers in the data centers and remote
sites.
ProLiant Essentials
Intelligent Networking Pack, Single Server License NOTE: For use with a single server. Contains one license with a unique
license activation key and documentation.
ProLiant Essentials
Performance Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key, HP Management
CD and documentation. NOTE: The most recent version of the software can always be downloaded
at http://www.hp.com/products/pmp.
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
ProLiant Essentials
Vulnerability and Patch Management Pack
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
NOTE:
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Processor
Intel Xeon MP X3.00 GHz-4MB Processor
Option Kit NOTE: This processor option kit (PN
345323-B21) supports the HP ProLiant ML570 G2 and the HP ProLiant DL580
G2.
345323-B21
Intel Xeon MP X2.70 GHz-2MB Processor
Option Kit NOTE: This processor option kit (PN
345322-B21) supports the HP ProLiant ML570 G2 and the HP ProLiant DL580
G2.
345322-B21
Intel Xeon MP X2.20 GHz-2MB Processor
Option Kit NOTE: This processor option kit (PN
345321-B21) supports the HP ProLiant ML570 G2 and the HP ProLiant DL580
G2.
345321-B21
Intel Xeon MP X2.80 GHz-2MB Processor
Option Kit NOTE: This processor option kit (PN
325254-B21) supports the HP ProLiant ML570 G2 and the HP ProLiant DL580
G2.
325254-B21
Intel Xeon MP X2.50 GHz-1MB Processor
Option Kit NOTE: This processor option kit (PN
325253-B21) supports the HP ProLiant ML570 G2 and the HP ProLiant DL580
G2.
325253-B21
Intel Xeon MP X2.0 GHz-1MB Processor
Option Kit NOTE: This processor option kit (PN
325252-B21) supports the HP ProLiant ML570 G2 and the HP ProLiant DL580
G2.
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller or U320 SCSI HBA to support
U320 transfer rates.
NOTE: Please see
the Hard Drive QuickSpecs for Technical Specifications such as capacity,
height, width, interface, transfer rate, seek time, physical configuration,
and operating temperature:
U320 Hard Drive QS: http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.html
256MB Battery-Backed Cache
Module NOTE: This 256-MB Battery-Backed
Cache Module supports the Smart Array 5300 series controllers, HP Modular Smart
Array 1000 and the HP Modular Smart Array 500.
Battery-Backed
Write Cache Enabler Option Kit NOTE: This
Battery-Backed Write Cache Enable Option Kit (PN 255514-001) is optional for the
1P Model only.
DL580
G2 Cable Assembly, SCSI, Ultra3, LVDS NOTE: All DL580 G2 models
ship standard with the integrated Smart Array 5i Plus Controller, which has been
designed to deliver maximum performance and availability across the internal SCSI
Duplex backplane.
288874-B21
The Ultra3
SCSI cable is required only if the customer chooses to bypass the Smart Array
5i Plus Controller and connect slot-based SCSI adapters or RAID controllers to
the internal SCSI Duplex backplane.
Two cables are required to maintain
the standard, duplexed configuration of the backplane.
One cable
is required if the simplex configuration is chosen.
The backplane is easily
configured to simplex mode by means of a simple switch duplex to simplex) located
on the top of the backplane itself.
HP StorageWorks Ultrium
232 Internal Tape Drive (Carbonite) NOTE: No internal tape drives
fit inside this HP ProLiant server (except hot plug tape). The internal
drive shown here is for the 1U and 3U Rack-mount Kit.
HP StorageWorks 1U Rack-Mount
Kit NOTE: The 1U Rack-mount Kit
can support up to (2) half-height tape drives and compatible with
multiple Single-Ended and LVD SCSI tape drives including the DAT 24,
DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232 and
Ultrium 448 tape drives.
HP StorageWorks 3U Rack-Mount
Kit NOTE: The 3U Rack-mount Kit
can support up to (2) full-height or (4) half-height tape drives and
compatible with multiple Single-Ended and LVD SCSI tape drives including
DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, SDLT 320, SDLT 600, Ultrium
215, Ultrium 230, Ultrium 232, Ultrium 460, Ultrium 448 and Ultrium
960 tape drives.
NOTE: Please reference
the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks SSL1016 Tape
Autoloader
HP StorageWorks SSL1016 Ultrium
460 Tape Autoloader
330821-B21
HP StorageWorks SSL1016 SDLT 320
Tape Autoloader
330816-B21
NOTE: Please reference
the SSL1016 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium
960 Drive Library
NOTE: Please reference
the MSL2024 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
NOTE: Please see
the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options
and configuration information at: http://www.hp.com/go/MSA1500cs
Modular Power Distribution Units 1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets
shipped with
the unit (optimized for 10000 and 9000 series racks).
Modular Power Distribution Units
(mPDU), Low Volt Model, 24A (100-127 VAC) NOTE: This model has a detachable
input power cord and is adaptable to country specific requirements. The
16A PDU also connects to the high volt models of the UPS R3000 XR and R6000
models. Cable P/N 340653-001 required if connecting to UPS R3000 XR ( 192186-002
NA -High Volt model only).
3rd Party Rack Kit NOTE: The rack kit (PN 287528-B21)
provides support for any rack, square hole or round hole, (including HP
Rack System /E and HP Systems), with an adjustment range from 23 ½"
- 34" deep. NOTE: The Third party rack kit is required for round hole racks or
for square hole racks that do not conform to the adjustment range of the
standard rail that ships with the server.
287528-B21
Telco Rack Support
Rack Adapter Kit NOTE: This kit allows HP rack servers
to fit in racks that are 24" wide.
332815-B21
NOTE: Support
for all 2-post Telco racks requires the Third Party option kit 287528-B21,
plus an additional option kit from Rack Solutions. The Rack Solutions brackets
can be purchased at: http://www.racksolutions.com/hp.
NOTE: -B21 (pallet) used to ship empty
racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom
systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x 4 USB/PS2 KVM Switch, TT
371301-D71
HP 1x 4 USB/PS2 KVM Switch, RM
371302-B21
HP PS2 KVM Cable with audio, 6',
2-pack
371730-B21
HP USB KVM Cable with audio, 6',
2-pack
371729-B21
NOTE:
For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following
URL: http://www.hp.com/go/kvm.
NOTE:
Cat5e cables are required to connect Serial Adapters to Serial Console Servers.
Additional Serial Adapters and Cat5e cables can be found at the following
URL: http://www.hp.com/go/kvm.
NOTE:
For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following
URL:http://www.hp.com/go/kvm.
Service and Support Offerings (HP
Care Pack Services)
Hardware
Services On-site Service
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4607E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
U4608E
6-Hour Call to Repair,
On-site Service 7-Day x 24-Hour Coverage, 3 Years (U.S. Part Number)
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4609E
Installation &
Start-up Services
Hardware Installation, Electronic
U4617E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4618E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4619E
Onsite HW support, 8am-9pm,
M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at
HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4621E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4620E
Onsite HW support 24x7,
4hr response and Linux O/S SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
Standard Memory
2048 MB 200MHz Double Data Rate (DDR) SDRAM (PC1600 Registered SDRAM Memory
with Advanced ECC functionality)
Standard Memory Plus Optional Memory and Optional Memory board
Up to 26,624 MB memory is available with the optional installation of
PC1600 Registered ECC SDRAM Memory kits and a second, optional memory
board.
Standard Memory Replaced with Optional Memory and
Optional memory board
Up to 32,768 MB of memory is available with the removal of the standard
2048 MB of memory, the optional installation of PC1600 Registered ECC
SDRAM Memory kits, and a second, optional memory board.
NOTE: Memory must be added in banks
of four DIMMS. This chart does not represent all possible memory configurations.
Standard Memory Summary
Standard Memory Board (Slots)
1
2
3
4
5
6
7
8
Standard
2048 MB
512 MB
512 MB
512 MB
512 MB
Empty
Empty
Empty
Empty
Optional 2nd Memory Board (Slots)
1
2
3
4
5
6
7
8
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Optional Memory Summary
Standard Memory Board (Slots)
Optional (Standard Memory Plus Optional Memory Board
and Optional Memory)
26,624 MB
1
2
3
4
5
6
7
8
512 MB
512 MB
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
Optional 2nd Memory Board (Slots)
1
2
3
4
5
6
7
8
2048 MB
2048 MB
2048 MB
2048 MB
2048MB
2048 MB
2048 MB
2048 MB
Maximum Memory Summary
Standard Memory Board (Slots)
Maximum (Standard Memory Replaced with Optional Memory
with Optional Memory board)
32,768 MB
1
2
3
4
5
6
7
8
2048 MB
2048 MB
2048MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Optional 2nd Memory Board (Slots)
1
2
3
4
5
6
7
8
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
The following memory options are available from HP:
Standard Memory
1024 MB 200MHz Double Data Rate (DDR) SDRAM (PC1600 Registered SDRAM Memory
with Advanced ECC functionality
Standard Memory Plus Optional Memory and Optional memory board
Up to 25,600 MB memory is available with the optional installation of
PC1600 Registered ECC SDRAM Memory kits and a second, optional memory
board.
Standard Memory Replaced with Optional Memory and
optional memory board
Up to 32,768 MB of memory is available with the removal of the standard
1024 MB of memory, the optional installation PC1600 Registered ECC SDRAM
Memory kits, and a second, optional memory board.
NOTE: Memory must be added in banks
of four DIMMS. This chart does not represent all possible memory configurations.
Standard Memory Summary
Standard Memory Board (Slots)
1
2
3
4
5
6
7
8
Standard
1024 MB
256 MB
256 MB
256 MB
256 MB
Empty
Empty
Empty
Empty
Optional 2nd Memory Board (Slots)
1
2
3
4
5
6
7
8
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Optional Memory Summary
Standard Memory Board (Slots)
Optional (Standard Memory Plus Optional
Memory Board and Optional Memory)
25,600 MB
1
2
3
4
5
6
7
8
256 MB
256 MB
256 MB
256 MB
2048MB
2048MB
2048MB
2048MB
Optional 2nd Memory Board (Slots)
1
2
3
4
5
6
7
8
2048MB
2048MB
2048MB
2048MB
2048MB
2048MB
2048MB
2048MB
Maximum Memory Summary
Standard Memory Board (Slots)
Maximum (Standard Memory Replaced
with Optional Memory with Optional Memory board)
32,768 MB
1
2
3
4
5
6
7
8
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Optional 2nd Memory Board (Slots)
1
2
3
4
5
6
7
8
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
The following memory options are available from HP:
Smart Array 5i Plus Controller
(integrated on system board)
Smart Array 6402/128 Controller
Smart Array 641 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller or U320 SCSI HBA to support
U320 transfer rates.
Smart Array 532 Controller (used
as Host Bus Adapter)
Please see the Modular Smart Array 500 QuickSpecs for the latest list of
supported HBAs: http://www.hp.com/go/msa500
Modular Smart Array 1000
Please see
the Modular Smart Array 1000 QuickSpecs below to determine configuration
requirements
External
Please see the Modular Smart Array
1000 QuickSpecs (URL below) for the latest list of supported HBAs
Modular Smart Array 1500 cs
Please see
the Modular Smart Array 1500 cs QuickSpecs below to determine configuration
requirements
External
Please see the Modular Smart Array
1500 cs QuickSpecs (URL below) for the latest list of supported HBAs
To drill down to calculators: - Click on: "ProLiant
Servers" - Click on the Server of interest. Example: DL580
G2 - Click on: "Power Calculator" link (You may need
to scroll down to see it.)
NOTE: Listed are
the declared A-weighted sound power levels LWAd and the declared average
bystander position sound pressure levels LpAm when operating in a 23°
C ambient environment. Noise emissions were measured in accordance with
ECMA 74 and declared in accordance with ECMA 109.
Idle (Fixed Disk Drives Spinning)
L WAd (BELS)
7.0
L pAm (dBA)
54
NOTE: These values
apply to 2U rack configuration. Configuration tested included 2 processors,
two 10, 000 rpm hard drive, 1 power supplies, 1 power supply fan and 4 CPU
fans.
24X Max (or higher) IDE CD-ROM Drive Slim Line
Disk
Applicable Disk
CD-DA, CD-ROM (Mode 1 and 2)
CD-XA, CD-I (Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
Capacity
540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Diameter
4.7 x 3.15 in (12 x 8 cm)
Rotational Speed
4200 rpm maximum
Center Hole
0.6 in/15 mm diameter
Thickness
1.2 mm
Track Pitch
1.6 µm
Block Size
Mode 1
2,048
Mode 2
2,340, 2,336, 1,024 bytes
CD-DA
2,352 bytes
CD-XA
2,328 bytes
Interface
IDE (ATAPI)
Access Times (typical)
Random
100 ms
Full-Stroke
2000 ms
Audio Output Level
Line-Out
0.7 VRMS at 47 kOhms
Headphone
0.6 VRMS at 32 kOhms (maximum volume)
Data Transfer Rate
Sustained
150 KB/s (sustained 1X)
Burst
2100 to 3600 KB/s
Cache Buffer
128 KB
Start-up Time (typical)
< 7seconds
Stop Time
< 4seconds
Laser Parameters
Type
Semiconductor Laser GaA1As
Wave Length
780 ± 25 nm
Divergence Angle
53.5° ± 1.5°
Output Power
0.14 mW
Operating Conditions
Temperature
41° to 113° F (5° to 45° C)
Humidity
10% to 80%
Dimensions
(HxWxD, maximum)
1.69 x 5.75 x 8.19 in (4.29 x 15
x 20.8 cm)
Weight
2.66 lb (1.2 kg)
Slimline CD-RW/DVD-ROM 24X Combo Drive (Multibay)
Shipping
Dimensions
13.88 x 11.38
x 9.25 in (35.26 x 28.91 x 23.50 cm)
Shipping Weight
5 lb (2.27
kg)
Disk
Applicable Disk
DVD-ROM
DVD-R (Read Only)
2.6 GB/side DVD-RAM
(Read Only)
5.2 GB/side DVD-RAM
(Read Only)
CD-ROM Mode-1 data
disc
CD-ROM
Mode-2 data disc
CD
Audio disc
CD-Extra
CD-RW
CD-R
CD
Text
PhotoCD
CD-I
(mode 2)
CD-I
Ready
CD-Bridge
Capacity
DVD-ROM
DVD-SL
4.7
GB/side
DVD-DL
8.5
GB/side
Double
Sided
9.40 GB/side
DVD-R
3.95
GB/side
DVD-RAM
2.6
GB/side and 5.2 GB/
CD-ROM
Mode-1
650
MB (550 MB)
Mode-2
742
MB (640 MB)
Block
Size
DVD
2,048
bytes
CD
2,352
(Mode-0)
2352,
2340, 2336, 2048 bytes (Mode-1)
2352,
2340, 2336, 2048 bytes (Mode-2)
Diameter
120 mm, 80 mm (with adapter at vertical mounting mode)
Loading
Mechanism
Tray type
Interface
EIDE (ATAPI)
Access Times
(typical)
Random
DVD-ROM < 120 ms, CD-ROM < 110 ms
Full-Stroke
DVD-ROM < 240 ms, CD-ROM < 160 ms
Audio Output Level (typical)
Line-out
CD
0.7 Vrms at 47 Kohms Load
Data
Transfer Rate (sustained)
DVD-ROM
Single Layer
10.8 MB/sec.
Max.
DVD-RAM
2.77
MB/sec. Max
CD-ROM
7.2
MB/sec. Max.
Cache
Buffer
2 MB
Spin-up Time (typical)
less than 10 seconds
MTBF
120,000 Power On Hours (POH)
Ambient Temperature
Operating
-22°
to 140° F (-30° to 60° C)
Relative
Humidity
Operating
10% to 80%
Storage/Transportation
5%
to 95%
Dimensions
(HxWxD, maximum)
0.5 x 5.04 x 5.1 in (12.7x128x129.4 mm)
Option
Kit Contents
DVD-ROM
drive with installation guide, warranty card, registration card
Integrated Lights-Out
Standard (integrated on system board)
Architecture
32-bit PCI-based health and remote
management ASIC (Application Specific Integrated Circuit)
Processor
32-bit RISC processor core running
at 66 MHz
Upgradability
Option firmware upgradable via flash
ROM.
Video Support
Utilizes the host server's embedded
video chip. Supports VGA/SVGA, 640 x 480 (256 to 16.7M colors), 800 x 600
(256 to 16.7M colors), 1024 x 768 (256 to 65K colors), 1280 x 1024 (256
colors)
Interfaces
One Ethernet network connection
(10/100 Mb/s)
Memory
2-MB Flash ROM
8-MB SDRAM
Operating System Support
Microsoft Windows NT 4.0 Server
Windows NT 4.0 Enterprise Edition
Windows 2000 Server
Windows 2000 Advanced Server
Red Hat 7.x
SuSE 7.0
Novell NetWare 5.x, 6.x
Client Browser Support
Microsoft Internet Explorer 5.5
or later.
iLO Standard Features
Virtual Text Remote Console
Virtual Power Button Control
Dedicated LAN Connectivity
Automatic IP Configuration via DHCP/DNS/WINS
Industry Standard 128-bit Secure
Sockets Layer (SSL) Security
IML and iLO Event Logging
Support for up to 12 user accounts
with customizable access privileges
iLO Advanced Features
(optional)
Virtual Graphical Remote Console
Virtual Floppy Drive
Integrated Smart Array 5i Plus Controller
Data Compatible with all Smart
Array Controllers
Yes
Instant Upgrades to other Smart
Array Controllers
Yes
Consistent Software Manageability
Tools
Yes
PCI-X Bus
64-bit, 100 MHz (integrated on
system board)
PCI-X Peak Data Transfer Rate
800 MB/s
SCSI Protocols Supported
Ultra3, Ultra2
SCSI Peak Data Transfer Rate
160 MB/s per channel
NOTE: For ProLiant
servers having TWO internal drive bays on separate SCSI ports: SCSI Peak
Data Transfer Rate is 320 MB/s total; 160 MB/s per channel and Channels
is 2.
Channels
2 (only one connected)
NOTE: For ProLiant
servers having two internal drive bays on separate SCSI ports: SCSI Peak
Data Transfer Rate is 320 MB/s total; 160 MB/s per channel and Channels
is 2.
SCSI Ports (external/internal)
0/1
NOTE: For ProLiant
servers having two internal drive bays on separate SCSI ports: SCSI Peak
Data Transfer Rate is 320 MB/s total; 160 MB/s per channel and Channels
is 2.
Drives Supported (maximum)
2
NOTE: Maximum
is the total number of internal drives on each specific ProLiant server.
Cache
64 MB Read and/or Write Cache
Battery-Backed Write Cache
Yes, with installation of Battery-Backed
Write Cache Enabler, up to 64MB
RAID Support
0, 1, 1+0, 5
Logical Drives (maximum)
Maximum = total number of drives
Online Configuration
Yes
Online Capacity Expansion
Yes
Logical Drive Capacity Extension
Yes
Online Stripe Size Migration
Yes
Online RAID Level Migration
Yes
Online Spare Support
Yes
Automatic Data Recovery
Yes
Drive Roaming
Yes
Redundant Controllers
No
HP NC7170 Dual Port PCI-X 1000T Gigabit Server Adapter
Network Interface
Two 10/100/1000-T ports
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ad, IEEE 802.3p, and
IEEE 802.3Q
Data Transfer Method
64-bit/133MHz PCI-X, compatible
with 64/100, 64/66, 64/33 and 32/33
US Site
DL Quickspecs
Search:
203320-B21
© 2012 Canada PartsDirect
