The HP ProLiant DL380 G7 Server continues to deliver on
its heritage of engineering excellence with increased flexibility and
performance, enterprise-class uptime and HP Insight Control manageability,
2 socket Intel® Xeon® performance, and 2U density for a variety
of applications.
Front View:
Rear View:
1.
Quick removal access panel
1.
PCI slot 5
2.
First Intel Processor
2.
PCI slot 6
3.
Second Intel Processor
3.
PCI slot 4
4.
Eighteen slots: DDR3 Registered
(RDIMM) or Unbuffered (UDIMM) memory
4.
PCI slot 2
5.
PCI slot 3
5.
Hot-plug fans, full N+1 redundancy
6.
PCI slot 1
6.
Slim Optical Bay (SATA DVD-RW
Optical Drive included on Performance models)
7.
Power supply 2
8.
Power supply 1
7.
UID LED button
9.
USB connectors (2)
8.
Health LED
10.
Video connector
9.
Power On/Standby button and system power
LED
11.
NIC 1 connector
10.
USB connectors (2)
12.
NIC 2 connector
11.
Video connector
13.
Mouse connector
12.
Systems Insight Display
14.
Keyboard connector
15.
Serial connector
16.
iLO 3 NIC connector
17.
NIC 3 connector
18.
NIC 4 connector
What's New
Introducing a new refresh of Intel Xeon 5600 Series processors with
increases in core, frequency and performance. Now with 6-Core processors
up to 3.46GHz and 4-Core up to 3.60GHz.
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section.
NOTE: HT indicates
that the processor model supports Intel® Hyper-Threading Technology. NOTE: Turbo indicates the maximum potential frequency increment when
using Intel® Turbo Boost Technology, with 6, 5, 4, 3, 2, and 1 cores
active. NOTE: DDR3 speed is the maximum memory speed of the processor. Actual
memory speed may depend on the quantity and type of DIMMs installed. NOTE: For the Intel 5000, and 5600Series, the letter preceding the
model number indicates the performance/wattage of the processor. "X"
denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage
(Mainstream); and "L" denotes Lower Wattage. NOTE: Up to 2 processors supported. Performance configurations include
two processors. Mixing different processor models is not supported.
Cache Memory One of the following depending on Model
Up to 12MB (1x12MB) Level 3
cache for all 5600 series processors
Up to 8MB (1 x 8MB) Level 3
cache for all 5500 series processors
12GB (6 x 2GB) PC3-10600R (DDR3-1333)
Registered DIMMs
Standard (Base Models)
6GB (3 x 2GB) PC3-10600R (DDR3-1333)
Registered DIMMs
Standard (Entry Models)
4GB (2 x 2GB) PC3-10600R (DDR3-1333)
Registered DIMMs
Standard (Efficiency Models)
4GB (2 x 2GB) PC3-10600E (DDR3-1333)
Unbuffered DIMMS
Maximum (RDIMM)
384GB (12 x 32GB) for Registered
Memory configurations NOTE: Using PC3-8500R DDR3 Registered
(RDIMM) memory, operating at 800MHz when fully populated at 2 DIMMs per
Channel in 12 slots.
Maximum (UDIMM)
48GB (12 x 2GB) for Unbuffered
Memory configurations NOTE: Using PC3-10600E DDR3 Unbuffered
(UDIMM) memory, operating at 1066MHz when fully populated at 2 DIMMs per
Channel in 12 slots.
NOTE:
If only one processor is installed, only half the DIMM slots are available NOTE: If only one processor is installed, only half the DIMM slots
are available. NOTE: when populating with the 16GB Memory Kits (Quad-Rank), only
12 DIMMs can be populated. NOTE: For G6 and G7 servers using Xeon 5600 series processors, the
default memory speed is 1333MHz with either one or two DIMMs per channel.
For G6 and G7 servers using Xeon 5500 series processors, an RBSU option
is available to disable 1333MHz operation (which will result in 1067MHz
operation). NOTE: UDIMM support is only on 12-slot servers. NOTE: Depending on the memory configuration and processor model,
the memory speed may run at 1333MHz, 1066MHz, or 800MHz. Please see the
Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.
Network Controller
Two HP NC382i Dual Port Multifunction
Gigabit Server Adapters (four ports total) with TCP/IP Offload Engine, including
support for Accelerated iSCSI
Expansion Slots
NOTE: The system board has 2 PCI
connectors, but the below riser cards have the actual PCI slots, to which
PCI cards attach.
Up to six available PCI-Express Gen2 slots, optional mixed PCI-X / PCI-Express
or x16 PCI configurations available (see "Standard Features -Expansion
Slots" section for more details).
Primary Riser
(Standard)
Expansion Slots #
Technology
Bus
Width**
Connector Width
Bus Number*
Form Factor
Notes
1
PCIe Gen2
X8
X16
7
Full Length, Full Height Slot
2
PCIe Gen2
X4
X8
10
Half Length, Full
Height Slot
3
PCIe Gen2
X4
X8
13
Half Length, Full Height Slot
* Default
bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
PCIe Riser
(Optional Secondary)
Expansion Slots #
Technology
Bus
Width**
Connector Width
Bus Number*
Form Factor
Notes
4
PCIe Gen2
X8
X16
16
Full length, full
height slot
5
PCIe Gen2
X4
X8
20
Half length, half
height slot
6
PCIe Gen2
X4
X8
23
Half length, half
height slot
* Default
bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
PCIe/PCI-X Riser
(Optional Primary)
Expansion Slots #
Technology
Bus
Width**
Connector Width
Bus Number*
Form Factor
Notes
1
PCI-X (133MHz)
64-bit
N/A
7
Full length, Full
Height
2
PCI-E Gen2
X8
X16
11
Half Length, Full
Height
3
PCI-E Gen2
X4
X8
15
Half Length, Full
Height
NOTE:
PCI-X support is limited to PCI-X cards only.
*Default bus assignment (in decimal). Inserting cards with PCI bridges may
alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
PCIe/PCI-X Riser
(Optional Secondary)
Expansion Slots #
Technology
Bus
Width**
Connector Width
Bus Number*
Form Factor
Notes
4
PCI-X (133MHz)
64-bit
Not applicable
19
Full length, Full
height slot
5
PCI-E Gen2
X8
X16
23
Half Length, Half
Height
6
PCI-E Gen2
X4
X8
27
Half Length, Half
Height
NOTE:
PCI-X support is limited to PCI-X cards only.
*Default bus assignment (in decimal). Inserting cards with PCI bridges may
alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
x16 PCIe Riser
(Optional Primary)
Expansion Slots #
Technology
Bus
Width**
Connector Width
Bus Number*
Form Factor
Notes
1
PCIe Gen2
x16
x16
13
Full Length, Full
Height slot
Supports up to
150W; single wide cards only
* Default
bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
x16 PCIe Riser
(Optional Secondary)
Expansion Slots #
Technology
Bus
Width**
Connector Width
Bus Number*
Form Factor
Notes
4
PCIe Gen2
x16
x16
16
Full Length, Full
Height slot
Supports up to
150W; single wide cards only
* Default
bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
Storage Controller One of the following depending on Model
Entry Models
HP Smart Array P410i/Zero Memory
Controller (RAID 0/1/1+0)
Base Models
HP Smart Array P410i/256 MB
Controller (RAID 0/1/1+0/5/5+0)
Performance Models
HP Smart Array P410i/1G FBWC
Controller (RAID 0/1/1+0/5/5+0)
Available upgrades:
1G FBWC, 512MB FBWC, 256MB, 512MB with BBWC, Battery kit upgrade (for the
256MB cache), and Smart Array Advanced Pack (SAAP)
Internal Storage
Devices
Diskette Drive
None Standard
Optical Drive One of the following depending on Model
None Standard on Entry, High
Efficiency, and Base Models NOTE: No support on LFF HD Models,
or when upgrading to optional 8 SFF HD.
HP Slim SATA DVD RW Optical
Drive Standard on Performance Models NOTE: The Optical Drive option is not available when you upgrade
with the additional 8 SFF drive cage, or in the LFF Models
Hard Drives
None Standard
Hard Drive Bays
Standard (8) small form factor
(SFF) hot-plug drive bays to support Serial-attached SCSI (SAS) and Serial
ATA (SATA) drives
Optional second drive cage for additional (8) SFF drive bays (total 16)
Optional cage for (6) Large Form Factor SAS/SATA hard drive bays
ACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support
Server Power Cords
High voltage power cord ships
standard with all part numbers. NOTE: HP ProLiant DL servers no longer
ship standard with a 12-foot NEMA 5-15P to C13 power cords (227099-001)
that allow connection to 110V US wall outlets in a home or office. ProLiant
DL servers are primarily connected to PDU's in data center racks so they
now ship standard with only a PDU 6-foot C-14 to C13 power cord (142258-001).
If a user wishes to power a ProLiant DL server using a110V receptacle (NEMA-15),
the 12-foot NEMA 5-15 to C13 power cord (227099-001) must be ordered separately.
Also available: 110 volt 6-Foot NEMA 5-15p to C13 (AF556A).
Common Slot Power Supply
Common Slot (CS) designates commonality of the power supply across multiple
ProLiant servers. HP's new Common Slot power supplies are designed to
provide the highest power supply efficiency without degrading the performance
of a ProLiant. CS Power Supplies have efficiency ratings of up to 94%
and are available in three power output options allowing the customer
to "right-size" a power supply for their specific server configuration.
To make sure you select the correct power supply to meet your configuration
needs, we suggest that you use the HP Power Advisor to decide the "Right-Size"
for your configuration. All HP Common Slot power sources are UL, CE Mark
Compliant, hot-plug and support redundant configurations.
NOTE: Mixing of power supplies
in the same server is not supported. All power supplies must be of the
same output and efficiency rating. If non-matched power supplies are inserted
you will get errors and operation will fail.
It is highly recommended that you use the HP Power Advisor in defining
the "Right-Size" power supply for your needs. HP Power Advisor
can be accessed at: www.hp.com/go/hppoweradvisor.
NOTE: The 80 PLUS program is a
unique forum that unites electric utilities, the computer industry, and
consumers in an effort to bring energy efficient technology solutions
to the marketplace. 80 Plus independently tests power supply efficiency
and publicly posts the results on 80Plus.org.
Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be
purchased through power supply option kits (see Power Supplies for part
numbers).
System Fans
Fully redundant hot plug fans
ship standard (N+1). NOTE: One processor models include
four fans. Two processor models include six fans.
NOTE: For more
information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available
for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport
and our driver download page www.hp.com/support/DL380G7.
Graphics
Integrated ATI ES1000, 64MB video standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
NOTE: Maximum resolution available via
iLO 3 remote console for ProLiant is 1280 x 1024 (for 32 bit color) and
1600 x 1200 (DVR max resolution).
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: www.hp.com/go/foundation.
NOTE: In an effort to support
reducing our environmental impact, the HP ProLiant Essentials Foundation
Pack media will be available as a selectable option for this server at
time of order of a Factory Integrated Model. This will allow customers
to order the number of media kits that best meet their needs and eliminate
receiving unnecessary duplicate media.
HP Integrated Lights-Out
(iLO) for ProLiant
HP Integrated Lights-Out (iLO) simplifies
server setup, health monitoring, power and thermal control, and lights-out
remote administration of ProLiant ML, DL, and BL servers. HP iLO functions
without additional software and can be accessed from any location via a
web browser. HP iLO works hand-in-hand with HP Systems Insight Manager,
Insight Control, and Insight Dynamics for ProLiant, helping customers unleash
the value of the ProLiant platform and deliver the highest possible quality
of IT service. For more information, visit: www.hp.com/go/iLO
Security
Power-on password
Keyboard password
QuickLock, Network Server Mode
Serial interface control
Administrator's password
Warranty
This product is covered by a
global limited warranty and supported by HP Services and a worldwide network
of HP Authorized Channel Partners resellers. Hardware diagnostic support
and repair is available for three years from date of purchase. Support for
software and initial setup is available for 90 days from date of purchase.
Enhancements to warranty services are available through HP Care Pack services
or customized service agreements. Hard drives have either a one year or
three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year
Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
Warranty repairs may be accomplished through the use of Customer Self Repair
(CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts
are designed for easy replacement. A travel and labor charge will result
when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity.
Customers may choose to have HP replace Optional CSR parts at no charge.
Additional information regarding worldwide limited warranty and technical
support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP Insight Control, a product option, delivers
essential infrastructure management that can help save time and money by
making it easy to deploy, migrate, monitor, remote control, and optimize
your IT infrastructure through a single, simple management console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP Insight
Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, please
visit: http://www.hp.com/services/insight.
HP Insight Dynamics
for ProLiant
HP Insight Dynamics
for ProLiant, a product option, is advanced infrastructure management software
that enables IT staff to instantly adjust their environments to meet dynamic
business demands by provisioning, optimizing and protecting complex infrastructure
in minutes. It's a powerful toolkit, integrated-by-design, that accelerates
complex technology projects and simplifies daily operations, transforming
data center economics. With Insight Dynamics IT professionals can plan capacity
and power continuously, balance workloads across physical and virtual resources,
and ensure cost-effective high availability. It also enables IT organizations
to provision infrastructure consistently and automatically from pools of
shared resources using a self-service portal. Resources provisioned can
range from a single virtual machine to complex multi-tier environments and
their associated physical and virtual resource requirements. In addition
to the previous functional benefits, it also provides a cost-effective disaster
recovery for physical and virtual environments that works with HP StorageWorks
Continuous Access software for both the Enterprise Virtual Array and the
XP storage array allowing application environments to be reactivated in
minutes with the touch of a button to a remote location.
HP Cluster Platforms are specifically
engineered, factory-integrated large-scale ProLiant clusters optimized for
High Performance Computing, with a choice of servers, networks and software.
Operating system options include specially priced offerings for Red Hat
Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server.
A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters.
HP HPC Interconnects
High Performance Computing (HPC)
interconnect technologies are available for this server as part of the HP
Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects
are fully supported by HP when integrated within an HP cluster. Flexible,
validated solutions can be defined with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility
HP Cluster Management Utility
(CMU) is an HP-licensed and HP-supported suite of tools that are used to
manage large-scale Linux ProLiant systems. CMU includes software for the
centralized provisioning, management and monitoring of nodes. CMU makes
the administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
HP HPC Linux Value Pack
HP HPC Linux Value Pack (Value
Pack) is an HP-licensed and HP-supported specially priced software bundle
for the development and deployment of applications on HPC Cluster Platforms.
Value Pack includes the Platform HPC Enterprise Edition suite of tools including
the LSF workload scheduler, the HP-MPI parallelization library. Also included
are the HP Unified Parallel C compiler and the HP Shmem library, as well
as the execution environments for the libraries and compiler. HP
HPC Linux Value Pack
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSAxxxx, EVA7xxx, EVA,
XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure-Enterprise
Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs
and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. http://www.hp.com/products/configurator.
HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires
a service partner who understands your increasingly complex business technology
environment. That's why it makes sense to team up with the people who
know HP infrastructure hardware and software best - the experienced professionals
at HP Services.
What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test,
integrate, support, and manage IT and infrastructure solutions. This way,
HP proposes services solutions that include more than just uplift of base
warranty. You can get the support you need by choosing from one of a number
of service packaged solutions we have designed to address wider set of
customer support needs:.
HP Technology Services meets business challenges with services offered
in three packages - Optimized Care Package, Standard Care Package,
and Basic Care Package - available for each product group. Such packaged
solutions enable customers to optimize technology operations, minimize
risk and drive better business outcomes with easy-to-buy, easy-to-use
scalable support packages for servers, storage, networking and software.
Optimized Care
Optimized Care Package: Supports
maintaining servers at optimum performance availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
3-Year HP Critical Advantage
Provides end-to-end infrastructure support solution for business critical
applications running on virtualized/x86 infrastructures, enabling the customers
to cost effectively build, operate, and continuously improve their IT environment http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA3-1772ENW
Additional Services: Microsoft or Linux or VMware education courses
+ Facility & technology environmental assessment services + Energy Efficiency
Design, Factory Express
Optimized Care
Optimized Care Package: Supports
maintaining servers at optimum performance availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
3-Year HP Critical Advantage
Provides end-to-end infrastructure support solution for business critical
applications running on virtualized/x86 infrastructures, enabling the customers
to cost effectively build, operate, and continuously improve their IT environment http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA3-1772ENW
Additional Services: Microsoft or Linux or VMware education courses
+ Facility & technology environmental assessment services + Energy Efficiency
Design, Factory Express
Standard Care
Standard Care Package: Package that maintains high level of server
availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
3-Year HP 6 hour Hardware Support Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly
begin troubleshooting the system to help return the hardware to operating
condition within 6 hours of the initial service request to the HP Global
Solution Center http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN
3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf
Additional Services: Software OS (Microsoft, Linux (SUSE/Red Hat)
& VMware Installation & Start Up, and Software Support; Install
and Startup Services for Insight Control; Microsoft or Linux or VMware
education courses; +30 Proactive Select Credits, Factory Express
Basic Care
Basic Care Package: delivers minimum recommended support service level
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control
on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf
Additional Services: Software OS (Microsoft, Linux (SUSE/Red Hat)
& VMware Installation & Start Up and Software Support); +10 Proactive
Select Credits, Factory Express
Insight Remote Support
The packages include HP Insight Remote Support that uses proven technology
to deliver secure, reliable 24x7 remote monitoring, diagnoses, and problem
resolution. It is available at no additional cost to all warranty, HP
Care Pack Service, and service agreement customers.
For more information
To learn more on HP ProLiant servers and HP BladeSystem servers, please
contact your HP sales representative or HP Authorized Channel Partner.
Or visit: http://www.hp.com/services/proliant
NOTE: For the Standard Features shipped
in the "Factory Integrated Models", please see the "Configuration
Information - Factory Integrated Models" section. NOTE: Pre-configured models ship with the configurations below.
Options can be selected from the Core or Additional options section of
this QuickSpecs. NOTE: HP does not allow factory integration of options into pre-configured
models. Any additional options purchased will be shipped separately. NOTE: If you desire a custom configuration please see "Configuration
Information - Factory Integrated Models" section of this QuickSpecs.
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure
a Factory Integrated Model. To ensure only valid configurations are ordered,
HP recommends the use of an HP approved configurator. Contact your local
sales representative for information on configurable product offerings
and requirements. NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis. NOTE: FIO indicates that this option is only available as a factory
installable option.
Step
1: Base Configuration (choose one of the following configurable models)
HP
Models
HP ProLiant DL380
G7 Small Form Factor (SFF) Configure-to-order Server
583914-B21
Factory Integrated
Model ships with:
Two HP NC382i Dual Port Multifunction Gigabit Server Adapters
Smart Array P410i Controller
I/O slots - 3 Slots come standard:
Slot 1 - FL/FH x8 PCIE (x16 connector)
Slot 2 - HL/FH x4 PCIE (x8 connector)
Slot 3 - HL/FH x4 PCIE (x8 connector)
Additional Slots may be added via selections from the PCI Information
and Options subsection
System Fans - 4 (2 additional fans included with second processor)
Drive Cage - 8-SFF (Second SFF drive cage optional)
USB - 2 Rear, 2 Front, 1 Internal, 1 SD slot
Server Management - (iLO 3) (embedded) NOTE: Power Supply not included
- choose from Options section
HP ProLiant DL380
G7 Large Form Factor (LFF) Configure-to-order Server
583917-B21
Factory Integrated
Model ships with:
Two HP NC382i Dual Port Multifunction Gigabit Server Adapters
Smart Array P410i Controller
I/O slots - 3 Slots come standard:
Slot 1 - FL/FH x8 PCIE (x16 connector)
Slot 2 - HL/FH x4 PCIE (x8 connector)
Slot 3 - HL/FH x4 PCIE (x8 connector)
Additional Slots may be added via selections from the PCI Information
and Options subsection
Drive Cage - 6-LFF
System Fans - 4 (2 additional fans included with second processor)
USB - 2 Rear, 2 Front, 1 Internal, 1 SD slot
Server Management - (iLO 3) (embedded) NOTE: Power Supply not included
- choose from Options section NOTE: On LFF Model Optional Optical Drive is not available
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
HP
Processors
NOTE:
If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.
Six-Core Processors
HP DL380 G7 Intel®
Xeon® X5690 (3.46GHz/6-core/6MB/130W) FIO Processor Kit
633410-L21
HP DL380 G7 Intel®
Xeon® X5680 (3.33GHz/6-core/130W/12MB) FIO Processor Kit
587498-L21
HP DL380 G7 Intel®
Xeon® X5675 (3.06GHz/6-core/12MB/95W) FIO Processor Kit
633414-L21
HP DL380 G7 Intel®
Xeon® X5670 (2.93GHz/6-core/12MB/95W) FIO Processor Kit
587493-L21
HP DL380 G7 Intel®
Xeon® X5660 (2.80GHz/6-core/12MB/95W) FIO Processor Kit
587491-L21
HP DL380 G7 Intel®
Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO Processor Kit
587482-L21
HP DL380 G7 Intel®
Xeon® E5649 (2.53GHz/6-core/12MB/80W) FIO Processor Kit
633418-L21
HP DL380 G7 Intel®
Xeon® E5645 (2.40GHz/6-core/12MB/80W) FIO Processor Kit
633420-L21
HP DL380 G7 Intel®
Xeon® L5640 (2.26GHz/6-core/60W/12MB) FIO Processor Kit
587507-L21
Quad-Core Processors
HP DL380 G7 Intel®
Xeon® X5687 (3.60GHz/4-core/12MB/130W) FIO Processor Kit
633412-L21
HP DL380 G7 Intel®
Xeon® X5677 (3.46GHz/4-core/12MB/130W) FIO Processor Kit
614547-L21
HP DL380 G6 Intel®
Xeon® X5672 (3.20GHz/4-core/12MB/95W) FIO Processor Kit
633416-L21
HP DL380 G7 Intel®
Xeon® E5640 (2.66GHz/4-core/80W/12MB) FIO Processor Kit
587480-L21
HP DL380 G7 Intel®
Xeon® E5630 (2.53GHz/4-core/80W/12MB) FIO Processor Kit
587478-L21
HP DL380 G7 Intel®
Xeon® E5620 (2.40GHz/4-core/80W/12MB) FIO Processor Kit
587476-L21
HP DL380 G7 Intel®
Xeon® E5606 (2.13GHz/4-core/80W/8MB) FIO Processor Kit
533442-L21
HP DL380 G7 Intel®
Xeon® L5630 (2.13GHz/4-core/40W/12MB) FIO Processor Kit
587505-L21
HP DL380 G7 Intel
Xeon E5606 (2.13GHz/4-core/8MB/80W) FIO Processor Kit
633442-L21
HP DL380 G7 Intel®
Xeon® E5603 (1.60GHz/4-core/4MB/80W) FIO Processor Kit
633444-L21
Dual-Core Processors
HP DL380 G7 Intel®
Xeon® E5503 (2.0GHz/2-core/80W/4MB) FIO Processor Kit

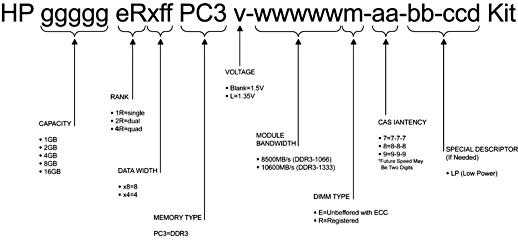

HP 4GB (1x4GB) Single
Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
HP 8GB (1x8GB) Dual
Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool: www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory
HP
Power Supplies
NOTE:
Prior to making a power supply selection it is highly recommended that the
HP Power Advisor is run to determine the right size power supply for your
server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP 460W Common Slot
Gold Hot Plug Power Supply Kit
The HP ProLiant DL380 performance packs are necessary to configure a
HP ProLiant DL380 Performance Model. HP ProLiant DL380 Performance model
includes the latest performance technologies and enterprise class availability
features pre-installed for convenience and value.
The performance pack includes:
2nd processor
750-watt redundant power supply
1GB FBWC cache module for P410i
One DL380 G6 HP Fan kit (contains qty of 2)
Insight Control license with 1 yr 24x7 support
NOTE: Must also select Slimline SATA
DVD RW Optical Drive (481043-B21) to achieve parity to DL380 High Performance
Models.
HP DL380G7 X5650
HPM FIO Perf Pack
593824-B21
HP DL380G7 X5660
HPM FIO Perf Pack
593825-B21
HP DL380G7 X5675
HPM FIO Perf Pack
633445-B21
HP
Insight Software
HP Insight Control
including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License
582765-B21
HP Insight Control
for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License
TC203A
Step 4: Choose
Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Core Options and Additional
Options" section below.
NOTE:
Some options may not be integrated at the factory. Contact your local sales
representative for additional information.
HP Unique Options
HP 8SFF CAGE 380G6/G7 Kit NOTE: Second drive cage installation
replaces internal optical bay. NOTE: Second drive cage requires second controller or HP SAS Expander
Card ( 468406-B21).
HP 4GB (1x4GB) Single
Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
HP 8GB (1x8GB) Dual
Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory.
HP Optical Drives
HP Slim SATA DVD RW Optical Drive NOTE: Included in performance models.
481043-B21
HP Slim SATA DVD-ROM Optical Drive
481041-B21
NOTE: There is
no optical drive support in the LFF Hard Drive models, or optional 8 SFF
HDD
HP Hard Drives
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise
(ENT) Drives
HP 600GB 6G SAS 10K
rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
10 Gigabit Ethernet Adapters NOTE: No more than two 10GbE I/O
devices are supported in a single ProLiant server. NOTE: A minimum of two Gigabytes (2 GB) of server memory is required
per each adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber
transceivers and cables for fiber-optic environments must be purchased separately.
NOTE: Prior to
making a power supply selection it is highly recommended that the HP Power
Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP 460W Common Slot Gold Hot Plug
Power Supply Kit
HP Insight Control including 1yr 24x7 Technical
Support and Updates Electronic License
T9074BAE
HP Smart Buy Insight Control suite, No Media,
Electronic License including 1 year of 24x7 Technical Support and Updates
T9074ASE
HP Insight Control including 1yr 24x7 Support
ProLiant ML/DL/BL-bundle Electronic License
TC278AAE
HP Insight Control including 1yr 24x7 Support
ProLiant ML/DL/BL-bundle Tracking License
TC275A
HP Insight Control including 1yr 24x7 Technical
Support and Updates Single Server License
452148-B22
HP Smart Buy Insight Control including 1yr
24x7 Technical Support and Updates Single Server License
452148-S22
NOTE: Electronic and Flexible-Quantity
licenses can be used to purchase multiple licenses with a single activation
key. NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service.
Licenses ship without media. The HP Insight Control Media Kit can be ordered
separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
For additional license options please see the Insight Control QuickSpecs
at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Insight Control for Linux
HP Insight Control for Linux w/1yr 24x7 Supp
ML/DL/SL Bundle Electronic 1 Svr LTU
TC203AAE
HP Insight Control for Linux including 1yr
24x7 Support Electronic License
TC213AAE
HP Smart Buy Insight Control for Linux,
1-server license, including one year of 24x7 Technical Support and Updates,
Electronic
TC213ASE
HP Insight Control for Linux including 1yr
24x7 Support Single Server License
TC209A
HP Insight Control for Linux Media Kit NOTE: Media pack DVD contains the
ISO image for HP Insight Control for Linux, HP Systems Insight Manager,
HP Insight Control power management, HP Insight Control virtual machine
management, and an integrated installer. Servers must be acquired separately.
TC208A
NOTE: Licenses ship without
media. The Media Kit for Insight Control for Linux can be ordered separately,
or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html
HP Integrated Lights-Out (iLO) Advanced
HP iLO Advanced including 1yr 24x7 Technical
Support and Updates Electronic License
TA850AAE
HP iLO Advanced including 1yr 24x7 Technical
Support and Updates Single Server License
HP Insight Software Media Kit NOTE: Insight Software DVD media
without licenses. Contains HP Systems Insight Manager, HP Insight Control,
HP Insight Dynamics, HP Insight Control for Microsoft System Center, and
Virtual Connect Enterprise Manager software. Uses an integrated installer
to perform quick and accurate software installation and updates.
436222-B21
NOTE: This license allows
1 server to be deployed and managed via HP iLO Advanced. Customer will receive
a printed license entitlement certificate via physical shipment. The license
entitlement certificate must be redeemed online or via fax in order to obtain
the license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support Service NOTE: For additional license kits, including electronic delivery
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html
High Performance Clusters
HP Cluster Management Utility
HP Cluster Management Utility
Compute Node Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one node (server). Customer will receive a printed
end user license agreement and license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online in
order to obtain a license key.
QL803A
HP Cluster Management Utility
License and Media NOTE: Order a minimum of one license
per cluster to purchase media including software and documentation, which
will be delivered to the customer, and also licenses CMU management. No
license key is delivered or required.
HP High Performance Computing
Linux Value Pack 1 Processor Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one socket (a.k.a. processor). Customer will receive
a printed end user license agreement and license entitlement certificate
via physical shipment. The license entitlement certificate must be redeemed
online in order to obtain a license key.
TC293B
HP High Performance Computing
Linux Value Pack Media Kit NOTE: This part number can be used
to purchase media including software and documentation, which will be delivered
to the customer.
HP 8SFF CAGE 380G6 NOTE: Supports the HP ProLiant DL380
G7 server. NOTE: Second drive cage installation replaces internal optical bay. NOTE: Second drive cage requires second controller or HP SAS Expander
Card ( 468406-B21).
516914-B21
HP I/O Accelerator Options
HP 160GB SLC PCIe ioDrive NOTE: A low-profile PCI bracket is
included for use in low-profile slots.
600278-B21
HP 320GB MLC PCIe ioDrive NOTE: A low-profile PCI bracket is
included for use in low-profile slots.
HP Trusted Platform Module Option
Kit NOTE: The TPM (Trusted Platform Module)
is a microcontroller chip that can securely store artifacts used to authenticate
the server platform. These artifacts can include passwords, certificates
and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker)
is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module
(TPM) version 1.2. The TPM works with BitLocker to help protect user data
and to ensure that a server running Windows Server 2008 has not been tampered
with while the system was offline. For more information about TPM, including
a white paper, go to: www.hp.com/go/TPM. NOTE: ProLiant OS pre-installed units will come with the partition
required for TPM deployment. NOTE: The TPM key is unique to every TPM deployed server and must
be retained. Misplacing or loosing the key could result in data loss.
488069-B21
HP Storage Controllers
SAS Controllers
Smart Array P410 Controller
HP Smart Array P410/256 2-ports
Int PCIe x8 SAS Controller
HP Smart Array Advanced Pack including
1yr 24x7 Technical Support and Updates Single Server License NOTE: This part number can be used
to purchase a single license or to order multiple licenses with a single
activation key. Customers will receive a license entitlement certificate
via e-mail. The license entitlement certificate must be redeemed online
or via fax in order to obtain the license activation key(s). Include one
year of 24x7 HP Software Technical Support Services.
HP Modular Smart Array SC08e 2-ports
Ext PCIe x8 SAS Host Bus Adapter NOTE: This is a 2 x4 External Port
HBA NOTE: This is only approved for the HP StorageWorks P2000 G3 SAS
Modular Smart Array.
NOTE: For the complete range of StorageWorks tape drives, autoloaders,
libraries and media see: http://www.hp.com/go/tape.
For hardware and software compatibility of HP StorageWorks tape backup
products see: http://www.hp.com/go/connect.
HP StorageWorks DAT 320 USB in
1U Rack-mount Kit
AP835B
HP StorageWorks 1/8 G2 LTO-4 Ultrium
1760 SAS Tape Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack Kit (AH166A) for rack installation. Connection using HP P212 SAS Smart
Array Controller ( 462828-B21) recommended.
AK377A
HP StorageWorks DAT 320 SAS Internal
Tape Drive NOTE: For installation into 1U SAS
rack kit (AE459B) or 3U SAS rack kit (AG576B). No peripheral bay available
for installation into the server. Connection using HP P212 Smart Array Controller
SAS ( 462828-B21) recommended.
AJ830A
HP StorageWorks Ultrium 920 SAS
Internal Tape Drive NOTE: For installation into 1U SAS
rack kit (AE459B) or 3U SAS rack kit (AG576B). No peripheral bay available
for installation into the server. Connection using HP P212 Smart Array Controller
SAS ( 462828-B21) recommended.
EH847A
HP StorageWorks LTO-4 Ultrium
1760 SAS (1) in 1U Rack-mount Kit NOTE: Connection using HP P212 Smart
Array Controller SAS ( 462828-B21) recommended.
EH946B
HP StorageWorks LTO-5 Ultrium
3000 SAS Tape Drive in 1U Rackmount NOTE: Connection using HP P212 Smart
Array Controller SAS ( 462828-B21) recommended.
EJ014A
HP StorageWorks 1/8 G2 LTO-5 Ultrium
3000 SAS Tape Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack Kit (AH166A) for rack installation. Connection using HP P212 Smart
Array Controller SAS ( 462828-B21) recommended.
BL536A
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1760 SAS Tape Library
AK378A
HP StorageWorks MSL2024 1 LTO-5
Ultrium 3000 SAS Tape Library NOTE: Connection using HP P212 Smart
Array Controller SAS ( 462828-B21) recommended.
BL537A
HP StorageWorks MSL4048 2 LTO-4
Ultrium 1760 SAS Tape Library
AK380A
HP StorageWorks MSL4048 2 LTO-5
Ultrium 3000 SAS Tape Library NOTE: Connection using HP Smart Array
P212/Zero Memory Controller ( 462828-B21) recommended.
HP StorageWorks D2D Backup Systems
with Backup Data Deduplication
HP StorageWorks
D2D2502i Backup System NOTE: 1.5TB of useable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ001A
HP StorageWorks D2D2504i Backup
System NOTE: 3.0TB of useable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ002B
HP StorageWorks D2D4112 Backup
System NOTE: 9.0TB (expandable to 18.0TB)
of useable network disk backup capacity. Fibre Channel SAN connected appliance.
Direct server attach is not supported, requires connection via SAN fabric.
EH993B
HP StorageWorks RDX Removable
Disk Backup Systems USB
HP StorageWorks RDX160 Removable
Disk Backup System DL Server Module NOTE: Mounts in DL380 G6 second drive
cage slot (160GB of Disk Storage)
AP724A
HP StorageWorks RDX320 Internal
Removable Disk Backup System for DL Servers NOTE: 320GB of disk capacity per
data cartridge.
AP725A
HP StorageWorks RDX500 Internal
Removable Disk Backup System for DL Servers NOTE: 500GB of disk capacity per
data cartridge.
AP726A
HP StorageWorks RDX750 Internal
Removable Disk Backup System for DL Servers NOTE: 750GB of disk capacity per
data cartridge.
AW578A
HP StorageWorks RDX 1TB Internal
Removable Disk Backup System for DL Servers
NOTE: For additional
information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups. NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com. NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection
and Management page. Under Power Cords, click on the "HP Power Cord Matrix"
link. That link will list cable descriptions, requirements, and specifications
for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
Power Distribution Units
HP Monitored Power Distribution
Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU-
single input, 1Ø, 24A
AF914A
HP Monitored Power Distribution
Unit: Full Rack Version
HP 8.6 kVA S1324 Monitored PDU-
single input, 3Ø, 24A
Modular Power Distribution Units
1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets shipped
with the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution
Units (mPDU), High Volt Model, 24A (200-240 VAC)
8.3kVA Model - mPDU, 40A, High
(power cord attached)
252663-D73
HP Modular Power Distribution
Units (mPDU), High Volt Model, 16A (200-240 VAC) NOTE: This PDU has a detachable input
power cord and allows for adaptability to country specific power requirements.
NOTE: Please see
the following QuickSpecs for additional options including shorter jumper
cables and country specific power cords: http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html NOTE: For additional information on HP Power Distribution Units including
accessories please go to: www.hp.com/go/pdu. NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection
and Management page. Under Power Cords, click on the "HP Power Cord Matrix"
link. That link will list cable descriptions, requirements, and specifications
for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
HP Rack Series
HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
NOTE: The increasing
power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced
airflow for maximum cooling, allowing these racks to be fully loaded with
servers using the latest processors. CAUTION: If a third-party rack is used, observe the following additional
requirements to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and
rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly
distributed from top to bottom to permit adequate airflow (equivalent to
the required 64 percent open area for ventilation). Side: The clearance
between the installed rack component and the side panels of the rack must
be a minimum of 2.75 inches (7 cm). CAUTION: Always use blanking panels to fill all remaining empty front
panel U-spaces in the rack. This arrangement ensures proper airflow. Using
a rack without blanking panels results in improper cooling that can lead
to thermal damage.
NOTE: Quick deploy
rail system provides tool-free support for racks with square or round mounting
holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an
adjustment range of 24" - 36". The ambidextrous cable management
arm can be mounted on either the left or right side for improved cable management. NOTE: High Airflow Inserts (High Air Flow Rack Door Insert for the
7142 Rack (single) - PN: 327281-B21; or High Air Flow Rack Door Insert for
the 7142 Rack (6-pack) - PN: 327281-B22) are required to support the HP
ProLiant DL380 in 7000 series racks. The DL380 Cable Management Arm is not
supported on 7000 series racks. NOTE: Cable management arm must be removed to access hot-plug power
supplies when the cable management arm is mounted on the right.
HP 4GB Secure Digital Flash Media
Kit NOTE: Blank SD media device is supported
for use with VMware and Citrix. SD media must be installed in the internal
slot of the ProLiant server. Learn more at: http://www.hp.com/go/proliantvirtualization.
580387-B21
HP 2GB USB Flash Media Drive Key NOTE: HP qualified blank USB key
for use with HP ProLiant servers that support the VMware virtualization
environment and other HP value-add software like SmartStart. HP recommends
this industry standard USB flash device for use with VMware ESXi. USB device
must be installed in the internal slot of the ProLiant server for use with
VMware ESXi. Refer to HP
VMware Getting Started Guide for installation instructions.
Some DIMM installation guidelines are summarized below:
For servers with eighteen (18) memory slots:
There are three (3) channels per processor; six (6) channels per
server
There are three (3) DIMM slots for each memory channel; eighteen
(18) total slots
Memory channel 1 consists of the three (3) DIMMs that are closest
to the processor
Memory channel 3 consists of the three (3) DIMMs that are furthest
from the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the corresponding processor is not installed
If only one processor is installed in a 2CPU system, only half of
the DIMM slots are available
To maximize performance, balance the total memory capacity between
all installed processors
It is not required, but it is recommended to load the channels similarly
if possible
If any Quad rank DIMMs are installed, all channels are limited to
only 2 DIMMs per channel.
You can only install two quad-rank DIMMs per channel
You can only install two UDIMMs per channel; if available, the third
slot in the channel must remain empty
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank)
within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest
from the chipset
For memory mirroring mode, channel 3 must be unpopulated. Channels
1 and 2 are populated identically
For lock-step mode, channel 3 must be unpopulated. DIMMs in channels
1 and 2 will be installed in pairs. The paired slots will be 1,4; 2,5;
3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
If mixing DIMM voltage is a requirement, please note that the DIMMs
will run at 1.5V since all 1.35V are capable of supporting 1.5V operations
DIMM
slot/capacity/populated speed table
DIMM Type
Registered
DIMMS
(RDIMMs)
Unbuffered
with ECC DIMMs (UDIMMs)
DIMM Rank
Single
Rank (1R)
Dual
Rank (2R)
Quad
Rank (4R)
Single
Rank (1R)
Dual
Rank (2R)
DIMM Capacity
4GB
2GB
4GB
8GB
8GB
16GB
4GB
16GB
32GB
1GB
2GB
4GB
DIMM Native Speed (MHz)
1333
1333
1333
1066
1333
1333
1066
1066
1066
1333
1333
1333
Voltage
LV/Std
Std
Std
Std
LV/Std
LV/Std
Std
Std
LV/Std
Std
Std
Std
SLOTS THAT
CAN BE POPULATED
18 slot servers
18
18
18
18
18
18
12
12
12
12
12
12
MAXIMUM CAPACITY
(GB)
72
36
72
144
144
288
48
192
384
12
24
48
POPULATED
DIMM SPEED (MHz)
1 DIMM Per Channel
1333
1333
1333
1066
1333
1333
1066
1066
1066
1333
1333
1333
2 DIMM Per Channel
1066/
1333*
1333
1333
1066
1066/
1333*
1066/
1333*
800
800
800
1333
1333
1333
3 DIMM Per Channel
800**
800**
800
800
800**
800**
n/a
n/a
n/a
n/a
n/a
n/a
* 2DPC: LV runs
at 1066, Std voltage runs at 1333
** 3DPC: LV/Std voltage runs at 800
NOTES:
Mixing DIMM speeds is allowed, but the system processor speed rules
always override the DIMM capabilities
If you do mix DIMM speeds, the memory bus will default to the minimum
clock rate of all DIMMs in the system - even if the slower DIMM is on
the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in
channel 2, you still run at 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with
1 DIMM Per Channel (DPC) in each of the other channels, you run at 1066MHz
If you install 3DPC in one channel (if applicable) and 1DPC in all
other channels, you run at 800MHz
95 Watt CPU's are required for 1333MHz DIMM speeds. All other CPU's
are capable of up to 1066MHz
References to the above MHz speeds are for the various speeds of DDR3
DIMMs; 1333 refers to DDR3-1333, etc.
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second,
"C" third, etc.
18
DIMM SLOTS (9 per CPU node)
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G
1
G
Chnl 1
2
D
2
D
3
A
3
A
Chnl 2
4
H
4
H
Chnl 2
5
E
5
E
6
B
6
B
Chnl 3
7
I
7
I
Chnl 3
8
F
8
F
9
C
9
C
Standard memory configuration (1 CPU model)
6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; empty
2
D; empty
3
A; 2GB DIMM
3
A; empty
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; empty
5
E; empty
6
B; 2GB DIMM
6
B; empty
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; empty
8
F; empty
9
C; 2GB DIMM
9
C; empty
Standard memory plus optional memory (1 CPU model)
54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs
3x 2GB dual-rank PC3-10600 RDIMMs
6x 8GB dual-rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; 8GB DIMM
1
G; empty
Chnl 1
2
D; 8GB DIMM
2
D; empty
3
A; 2GB DIMM
3
A; empty
Chnl 2
4
H; 8GB DIMM
4
H; empty
Chnl 2
5
E; 8GB DIMM
5
E; empty
6
B; 2GB DIMM
6
B; empty
Chnl 3
7
I; 8GB DIMM
7
I; empty
Chnl 3
8
F; 8GB DIMM
8
F; empty
9
C; 2GB DIMM
9
C; empty
Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration (1 CPU model)
96GB, consisting of six (6) 16GB quad-rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 16GB DIMM
2
D; empty
3
A; 16GB DIMM
3
A; empty
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 16GB DIMM
5
E; empty
6
B; 16GB DIMM
6
B; empty
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 16GB DIMM
8
F; empty
9
C; 16GB DIMM
9
C; empty
UDIMM maximum configuration (1 CPU model)
12GB, consisting of six (6) 2GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 2GB DIMM
2
D; empty
3
A; 2GB DIMM
3
A; empty
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 2GB DIMM
5
E; empty
6
B; 2GB DIMM
6
B; empty
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 2GB DIMM
8
F; empty
9
C; 2GB DIMM
9
C; empty
Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration (2 CPU model)
384GB, consisting of twelve (12) 32GB quad-rank PC3L-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 32GB DIMM
2
D; 32GB DIMM
3
A; 32GB DIMM
3
A; 32GB DIMM
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 32GB DIMM
5
E; 32GB DIMM
6
B; 32GB DIMM
6
B; 32GB DIMM
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 32GB DIMM
8
F; 32GB DIMM
9
C; 32GB DIMM
9
C; 32GB DIMM
UDIMM maximum configuration
48GB, consisting of twelve (12) 4GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 4GB DIMM
2
D; 4GB DIMM
3
A; 4GB DIMM
3
A; 4GB DIMM
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 4GB DIMM
5
E; 4GB DIMM
6
B; 4GB DIMM
6
B; 4GB DIMM
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 4GB DIMM
8
F; 4GB DIMM
9
C; 4GB DIMM
9
C; 4GB DIMM
NOTE: Capacity references are rounded to the common Gigabyte values.
HP 4GB (1x4GB) Single
Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
HP 8GB (1x8GB) Dual
Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory
Sixteen SFF SAS hot plug hard
drive bays NOTE: This configuration does not
support optical drive.
1-6
Six LFF SAS hot plug hard drive
bays NOTE: This configuration does not
support optical drive.
Drive Support
Quantity
Supported
Position
Supported
Controller
Removable Media
HP Slim SATA DVD RW Optical Drive NOTE: Included in performance models.
Only 1 available removable media bay
Slimline bay
Integrated SATA NOTE: Optional
HP Slim SATA DVD-ROM Optical Drive
Only 1 available removable media bay
Slimline bay
Integrated SATA NOTE: Optional
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 10K DP
450GB 6G SAS 10K DP
300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
Up to 8
1-8
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
NOTE:
Second SFF drive cage requires second controller or HP SAS Expander Card
(PN 468406-B21).
SAS Hot Plug LFF (3.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
300GB 6G SAS 15K DP
Up to 6
1-6
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug SFF (2.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
1TB 6G SAS 7.2K DP
500GB 6G SAS 7.2K DP
Up to 8
1-8
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 7.2K DP
1TB 6G SAS 7.2K DP
Up to 6
1-6
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug SFF
(2.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K 160GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug LFF
(3.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 6
1-6
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug SFF
(2.5-inch) Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 5.4K
Up to 8
1-8
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
NOTE:
Second SFF drive cage requires second controller or HP SAS Expander Card
(PN 468406-B21).
SATA Hot Plug LFF
(3.5-inch) Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 6
1-6
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug Midline
(MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8
1-8
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug 3.5"
Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 6
1-6
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
HP Smart Array P411/256MB Controller
HP Smart Array P411/512MB with BBWC Controller
HP Smart Array P411/512MB Flash Backed Write Cache
HP Smart Array P411/1G Flash Backed Write Cache
HP Smart Array P812/1G Flash Backed Cache Controller
External Storage
Quantity
Supported
Position
Supported
Host Controller or Adapter
D2600 Disk Enclosure
Up to 8
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB Controller
HP Smart Array P411/1G Flash Backed Cache Controller
HP Smart Array P812/1G Flash Backed Cache Controller
D2700 Disk Enclosure
Up to 4
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/1G Flash Backed Cache Controller
HP Smart Array P812/1G Flash Backed Cache Controller
Maximum Storage Capacity - (with D2700, SAS HDD)
Internal
16TB (16 x 1TB SAS
SFF with addition 8 SFF drive cage)
External
50TB (100 x 500GB
SAS SFF)
Total
66TB
Maximum Storage Capacity - (with D2700, SATA HDD)
Internal
16TB (16 x 1TB SAS
SFF with additional 8 SFF drive cage)
External
50TB (100 x 500GB
SATA SFF)
Total
66TB
Tape and Disk Backup
NOTE: For the complete range of StorageWorks
tape drives, autoloaders, libraries and media, including the internal
fitting models, see: http://www.hp.com/go/tape.
For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape
backup products see: http://www.hp.com/go/connect.
Position
Supported
Controller
Part Number
HP StorageWorks SCSI
Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Ultra320 Single Channel/
PCIe x4 SCSI Host Bus Adapter
Please consult the EBS connectivity
matrix at: http://www.hp.com/go/ebs
for connectivity information and the supported Fibre Channel HBAs shown
in this QuickSpecs.
N/A
HP StorageWorks USB RDX Removable
Disk Backup System, External
RDX160
RDX320
RDX500
RDX750
RDX1TB
External
USB 2.0 port
N/A
HP StorageWorks D2D Backup Systems,
iSCSI
D2D2500i
D2D4000i
Rack Mount
Embedded Network Controller. If
the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host
Bus Adapter is recommended.
N/A
HP StorageWorks D2D Backup Systems,
Fibre Channel
D2D4000fc
SFF Drives: 3.38 x
17.54 x 27.25 in (8.59 x 44.55 x 69.22 cm)
LFF Drives: 3.38 x 17.54 x 29.25 in (8.59 x 44.55 x 74.30 cm)
Weight (approximate)
Maximum
(all hard drives, power supply, and processor installed)
60.00 lb (27.27 kg)
Minimum
(one hard drive, power supply, and processor installed)
47.18 lb (21.45 kg)
Input Requirements
(per power supply)
Rated Line Voltage
100 to 120 VAC
200 to 240 VAC
Rated Input Current
For 1200 W Power Supply:
10 A (at 100 VAC),
4.9 A (at 200 VAC)
For 750 W Power Supply:
8.9 A (at 100 VAC),
4.3 A (at 200 VAC)
For 460 W Power Supply:
5.5 A (at 100 VAC),
2.6 A (at 200 VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
For 1200 W Power Supply:
930 W (at 100 VAC),
1348 W (at 200 VAC)
For 750 W Power Supply:
857 W (at 100 VAC),
824 W (at 200 VAC)
For 460 W Power Supply:
526 W (at 100 VAC),
505 W (at 200 VAC)
BTU Rating
Maximum
For 1200 W Power Supply:
3530 BTU/hr (at 100 VAC),
4600 BTU/hr (at 200 VAC)
For 750 W Power Supply:
2925 BTU/hr (at 100 VAC),
2812 BTU/hr (at 200 VAC)
For 460 W Power Supply:
1794 BTU/hr (at 100 VAC),
1725 BTU/hr (at 200 VAC)
For 1200 W Power
Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
Maximum Peak Power
For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
System Inlet Temperature
Operating
10° to 35°C
(50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum
of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change
is 10°C/hr (18°F/hr). The upper limit may be limited by the type
and number of options installed.
System performance may be reduced if operating with a fan fault or above
30°C (86°F).
Non-operating
-30° to 60°C
(-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative
humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating
5 to 95% relative
humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude
Operating
3050 m (10,000 ft).
This value may be limited by the type and number of options installed. Maximum
allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft).
Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared
A-Weighted sound power levels (LWAd) and declared average bystander position
A-Weighted sound pressure levels (LpAm) when the product is operating in
a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). NOTE: The Listed sound levels apply
to standard shipping configurations. Additional options may result in increased
sound levels.
Idle
1P SKU
2P SKU
LWAd
4.1 B
4.7 B
LpAm
22 dBA
28 dBA
Operating
1P SKU
2P SKU
LWAd
4.1 B
4.7 B
LpAm
22 dBA
28 dBA
Emissions Classification
(EMC)
FCC Rating
Class A
Normative Standards
CISPR 22; EN55022;
EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2;
EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is
eligible to bear the appropriate compliance logos and statements. NOTE: The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
Integrated Lights-Out
3 (iLO 3)
integrated on system board
Architecture
PCI Express based health and remote
management ASIC
Processor
PCI Express RISC processor core
running at 250MHz
Upgradeability
Option firmware upgradeable via
Flash ROM
Video Support
1600 x 1200 DVR max resolution
Interfaces
One Ethernet Sideband connection
(10/100/1000 Mb/s)
One Ethernet network connection
(10/100Mb/s)
Memory
128-MB DDR with ECC
Operating System
Support
Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit
and 64 bit)
Microsoft Windows Server 2008
Standard Edition (32 bit and 64 bit)
Microsoft Windows Server 2008
Enterprise Edition (32 bit and 64 bit)
Microsoft Windows Server 2003
and Windows Server 2003 R2, and Windows Server 2003 for Embedded Systems
Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32
bit and 64 bit)
SUSE LINUX Enterprise Server 11
(32 bit and 64 bit)
SUSE LINUX Enterprise Server 10
(32 bit and 64 bit)
VMware ESX 4.0
VMware ESX 3.5.0
Microsoft Windows 7
Microsoft Windows XP Professional
Edition
Microsoft Windows Vista Business
and Ultimate Editions
Client System Support
Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop
11
SUSE Linux Enterprise Desktop
10
Microsoft Internet Explorer 8
Microsoft Internet Explorer 7
Client Browser Support
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows
and Linux systems)
Firefox 3.0 (on supported Windows
and Linux systems)
Command Line Support
Secure Shell and serial port access
Security
Secure Socket Layer
Secure Shell version 2
Advanced Encryption Standard (AES)
and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting
interface
AES encryption of video
RC4 encryption of video
Directory Support Services
Active Directory v1.0 (Windows
2003)
Driver Support
HP ProLiant iLO3 Management Controller
Driver Package
Management protocols supported
SNMP, IPMI 2.0 (system and LAN
interface), DMTF Systems Management Architecture for Server Hardware Command
Line Protocol (SMASH CLP), HP RIBCL XML
Smart Array P410i Controller
Dimensions
Embedded
Disk Drive and Enclosure
Interface - transfer rate
6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal 4X connectors
Cache Memory Speed
DDR2-800MHz with 40 or 72-bit
wide bus
Server Interface
x4 PCIe 2.0 provides 2GB/s maximum
bandwidth
SAS Speed
8 6Gb/s SAS links provide 4.8GB/s
maximum bandwidth
Cache Memory
Zero Memory RAID has no cache
memory
40-bit 256MB ECC protected cache (battery upgrade available)
72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC
Zero Memory, Up to 2 logical volumes (8 physical drives)
Logical Drives Supported
Up to 64 logical drives with cache
Host Memory Addressing
64-bit, supporting greater than
4GB server memory space
RAID Support
RAID 6, 6+0 (Advanced Data Guarding) NOTE: RAID 6, 6+0 can be enabled
with one of the following combinations:
US Site
DL Quickspecs
Search:
500656-B21
© 2012 Canada PartsDirect
