The HP ProLiant DL380 G6 Server continues to deliver on
its heritage of engineering excellence with increased flexibility and
performance, enterprise-class uptime and manageability, 2-socket Intel
Xeon performance, and 2U density for a variety of applications.
Front View:
Rear View:
1.
Quick removal access panel
1.
PCI slot 5
2.
Intel Quad-Core Processor (Performance
models include two processors)
2.
PCI slot 6
3.
PCI slot 4
3.
Second Intel Quad-Core Processor
4.
PCI slot 2
4.
Eighteen slots: DDR3 Registered
(RDIMM) or Unbuffered (UDIMM) memory
5.
PCI slot 3
6.
PCI slot 1
7.
Power supply 2
5.
Hot-plug fans, full N+1 redundancy
8.
Power supply 1
6.
Slim Optical Bay (SATA DVD-RW
Optical Drive included on Performance models)
9.
USB connectors (2)
10.
Video connector
7.
UID LED button
11.
NIC 1 connector
8.
Health LED
12.
NIC 2 connector
9.
Power On/Standby button and system power
LED
13.
Mouse connector
10.
USB connectors (2)
14.
Keyboard connector
11.
Video connector
15.
Serial connector
12.
Systems Insight Display
16.
iLO 2 connector
17.
NIC 3 connector
18.
NIC 4 connector
What's New
The DL380 G6 will now offer the Intel 5600 Series 6 Core capable processors
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section.
NOTE: HT indicates
that the processor model supports Intel® Hyper-Threading Technology. NOTE: Turbo indicates the maximum potential frequency increment when
using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active. NOTE: DDR3 speed is the maximum memory speed of the processor. Actual
memory speed may depend on the quantity and type of DIMMs installed. NOTE: For the Intel 5500, and 5600 Series, the letter preceding the
model number indicates the performance/wattage of the processor. "X"
denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage
(Mainstream); and "L" denotes Lower Wattage.
NOTE: Up to 2 processors supported. Performance configurations include
two processors. Mixing different processor models is not supported.
Cache Memory One of the following depending on Model
12MB (1x12MB) Level 3 cache
on the 5600 sequence
8MB (1 x 8MB) Level 3 cache
on the 5500 sequence NOTE: All 5500 sequence processor
models have 8M L3 Cache except for those identified below.
4MB (1 x 4MB) Level 3 cache
NOTE: For processors E5506/L5506/E5504/E5502.

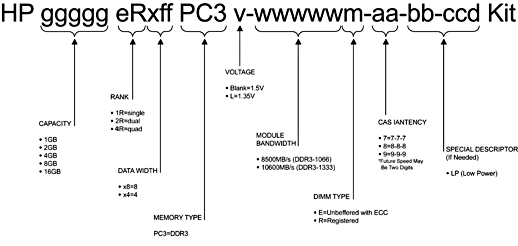

12GB (6 x 2GB) PC3-10600R (DDR3-1333)
Registered DIMMs
Standard (Base Models)
6GB (3 x 2GB) PC3-10600R (DDR3-1333)
Registered DIMMs
Standard (Entry Models)
4GB (2 x 2GB) PC3-10600R (DDR3-1333)
Registered DIMMs
Standard (High Efficiency Models)
4GB (2 x 2GB) PC3-10600E (DDR3-1333)
Unbuffered DIMMs
Maximum (RDIMM)
192GB (12 x 16GB) for Registered
Memory configurations
Maximum (UDIMM)
48GB (12 x 4GB) for Unbuffered
Memory configurations
NOTE: If only one processor is installed, only half the DIMM slots
are available NOTE: when populating with the 16GB Memory Kits (Quad-Rank), only
12 DIMMs can be populated. NOTE: For G6 and G7 servers using Xeon 5600 series processors,
the default memory speed is 1333MHz with either one or two DIMMs per channel.
For G6 and G7 servers using Xeon 5500 series processors, an RBSU option
is available to disable 1333MHz operation (which will result in 1067MHz
operation). NOTE: UDIMM support is only on 12-slot servers. NOTE: Depending on the memory configuration and processor model,
the memory speed may run at 1333MHz, 1066MHz, or 800MHz. Please see the
Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.
Network Controller
Two HP NC382i Dual Port Multifunction
Gigabit Server Adapters (four ports total) with TCP/IP Offload Engine, including
support for Accelerated iSCSI
Expansion Slots
NOTE: The system board has 2 PCI
connectors, but the below riser cards have the actual PCI slots, to which
PCI cards attach. Six available PCI-Express Gen2 slots, optional mixed PCI-X
/ PCI-Express or x16 PCI configurations available (see "Standard Features
-Expansion Slots" section for more details).
Primary
Riser (Standard)
Expansion Slots #
Technology
Bus Width**
Connector Width
Bus Number*
Form Factor
Notes
1
PCIe Gen2
X8
X16
7
Full Length, Full Height Slot
2
PCIe Gen2
X4
X8
10
Half
Length, Full Height Slot
3
PCIe Gen2
X4
X8
13
Half Length, Full Height Slot
*
Default bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number ** Indicates the number of physical electrical
lanes running to the connector.
PCIe
Riser (Optional Secondary)
Expansion Slots #
Technology
Bus Width**
Connector Width
Bus Number*
Form Factor
Notes
4
PCIe Gen2
X8
X16
16
Full
length, full height slot
5
PCIe Gen2
X4
X8
20
Half length, half
height slot
6
PCIe Gen2
X4
X8
23
Half length, half
height slot
*
Default bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number ** Indicates the number of physical electrical
lanes running to the connector.
PCIe/PCI-X
Riser (Optional Primary)
Expansion Slots #
Technology
Bus Width**
Connector Width
Bus Number*
Form Factor
Notes
1
PCI-X (133MHz)
64-bit
N/A
7
Full length, Full
Height
2
PCI-E Gen2
X8
X16
11
Half
Length, Full Height
3
PCI-E Gen2
X4
X8
15
Half
Length, Full Height
* Default
bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector. NOTE: PCI-X support is limited to PCI-X cards only.
PCIe/PCI-X
Riser (Optional Secondary)
Expansion Slots #
Technology
Bus Width**
Connector Width
Bus Number*
Form Factor
Notes
4
PCI-X (133MHz)
64-bit
Not
applicable
19
Full
length, Full height slot
5
PCI-E Gen2
X8
X16
23
Half Length, Half
Height
6
PCI-E Gen2
X4
X8
27
Half Length, Half
Height
* Default
bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector. NOTE: PCI-X support is limited to PCI-X cards only.
x16
PCIe Riser (Optional Primary)
Expansion Slots #
Technology
Bus Width**
Connector Width
Bus Number*
Form Factor
Notes
1
PCIe Gen2
x16
x16
13
Full
Length, Full Height slot
Supports up to
150W; single wide cards only
*
Default bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number ** Indicates the number of physical electrical
lanes running to the connector.
x16
PCIe Riser (Optional Secondary)
Expansion Slots #
Technology
Bus Width**
Connector Width
Bus Number*
Form Factor
Notes
4
PCIe Gen2
x16
x16
16
Full
Length, Full Height slot
Supports up to
150W; single wide cards only
*
Default bus assignment (in decimal). Inserting cards with PCI bridges may alter
the actual bus assignment number ** Indicates the number of physical electrical
lanes running to the connector.
Storage
Controller One of the following depending
on Model
Entry Models
HP
Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)
Base
Models
HP Smart Array P410i/256
MB Controller (RAID 0/1/1+0/5/5+0)
Performance
Models
HP Smart Array P410i/512
MB BBWC Controller (RAID 0/1/1+0/5/5+0)
High
Efficiency Models
HP Smart Array
P410i/Zero Memory Controller (RAID 0/1/1+0)
Available upgrades:
256MB, 512MB with BBWC, 512MB with FBWC, 512MB, 1G with FBWC, Battery kit
upgrade (for the 256MB cache), and Smart Array Advanced Pack (SAAP)
Internal Storage
Devices
Diskette Drive
None Standard
Optical Drive One of the following depending on Model
None Standard on Entry, High
Efficiency, and Base Models NOTE: No support on LFF HD Models,
or when the 2nd SFF drive cage is added (optional drive cage has 8 SFF bays).
HP Slim SATA DVD RW Optical
Drive Standard on Performance Models NOTE: HP 64GB SSD Optical Drive Option
Kit available. See options sections below contact HP for details. NOTE: The Optical Drive option is not available when you upgrade
with the additional 8 SFF drive cage, or in the LFF Models.
Hard Drives
None Standard
Hard Drive Bays
Standard (8) small form factor
(SFF) hot-plug drive bays to support Serial-attached SCSI (SAS) and Serial
ATA (SATA) drives
Optional second drive cage for additional (8) SFF drive bays (total 16)
Optional cage for (6) Large Form Factor SAS/SATA hard drive bays
ACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support
Server
Power Cords
High voltage power
cord ships standard with all part numbers. NOTE:
HP ProLiant DL servers no longer ship standard with a 12-foot NEMA 5-15P to C13
power cords (227099-001) that allow connection to 110V US wall outlets in a home
or office. ProLiant DL servers are primarily connected to PDU's in data center
racks so they now ship standard with only a PDU 6-foot C-14 to C13 power cord
(142258-001). If a user wishes to power a ProLiant DL server using a110V receptacle
(NEMA-15), the 12-foot NEMA 5-15 to C13 power cord (227099-001) must be ordered
separately. Also available: 110 volt 6-Foot NEMA 5-15p to C13 (AF556A).
Common Slot Power Supplies
HP has a new design for ProLiant power supplies. The Common Slot (CS)
Power Supply provides the customer with commonality in power supplies
across multiple platforms to save on the cost of spares and allows HP
to offer multiple power solutions to fit the customers' needs. Many HP
ProLiant Servers come with or are compatible with high-efficiency HP CS
Power Supplies. These power supplies are designed to provide high-efficiency
power without degrading performance of the ProLiant server. HP CS Power
Supplies options for this server have efficiency ratings up to 94%. There
are three Right Size power options available, depending on the configuration
of your server. To make sure you select the correct power supply to meet
your configuration, we suggest that you use the HP Power Advisor to decide
the "Right-Size" for your configuration. All HP Common Slot
power sources are UL, CE Mark Compliant, Hot Plug and Redundant.
It is highly recommended that you use the HP Power Calculator in defining
the "Right-Size" power supply for your needs.
NOTE: Mixing of power supplies
in the same server is not supported. All power supplies must be of the
same type, all HP 460W, all HP750W, all 1200w 94%, all 1200w 90%, or all
-48V DC. If non-matched power supplies are inserted you will get errors
and operation will fail.
NOTE: The 80 PLUS program is a
unique forum that unites electric utilities, the computer industry, and
consumers in an effort to bring energy efficient technology solutions
to the marketplace. 80 Plus independently tests power supply efficiency
and publicly posts the results on 80Plus.org.
Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can
be purchased through power supply option kits (see Power Supplies for
part numbers).
System Fans
Fully redundant hot plug fans
ship standard (N+1). NOTE: One processor models include
four fans. Two processor models include six fans.
NOTE:
For more information on HP's Certified and Supported ProLiant Servers for
OS and Virtualization Software and latest listing of software drivers available
for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport
and our driver download page www.hp.com/support/DL380G6.
Graphics
Integrated ATI ES1000, 64MB video standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
NOTE: Maximum resolution available via
iLO 2 remote console is 1280 x 1024.
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: www.hp.com/go/foundation.
NOTE: In an effort to support
reducing our environmental impact, the HP Insight Foundation Suite for
ProLiant media will be available as a selectable option for this server
at time of order of a CTO SKU. This will allow customers to order the
number of media kits that best meet their needs and eliminate receiving
unnecessary duplicate media.
HP Integrated Lights-Out
(iLO)
HP Integrated Lights-Out (iLO) simplifies
server setup, health monitoring, power and thermal control, and lights-out
remote administration of ProLiant ML, DL, and BL servers. HP iLO functions
without additional software and can be accessed from any location via a
web browser. HP iLO works hand-in-hand with HP Systems Insight Manager,
Insight Control suites, and Insight Dynamics for ProLiant, helping customers
unleash the value of the ProLiant platform and deliver the highest possible
quality of IT service. For more information, visit: www.hp.com/go/iLO
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Warranty
This product is covered by a
global limited warranty and supported by HP Services and a worldwide network
of HP Authorized Channel Partners resellers. Hardware diagnostic support
and repair is available for three years from date of purchase. Support for
software and initial setup is available for 90 days from date of purchase.
Enhancements to warranty services are available through HP Care Pack services
or customized service agreements. Hard drives have either a one year or
three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year
Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
Warranty repairs may be accomplished through the use of Customer Self Repair
(CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts
are designed for easy replacement. A travel and labor charge will result
when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity.
Customers may choose to have HP replace Optional CSR parts at no charge.
Additional information regarding worldwide limited warranty and technical
support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
HP Insight Control, a product option, delivers
essential infrastructure management that can help save time and money by
making it easy to deploy, migrate, monitor, remote control, and optimize
your IT infrastructure through a single, simple management console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP Insight
Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, please
visit: http://www.hp.com/services/insight.
HP Insight Dynamics
for ProLiant
HP Insight Dynamics
for ProLiant, a product option, is advanced infrastructure management software
that enables IT staff to instantly adjust their environments to meet dynamic
business demands by provisioning, optimizing and protecting complex infrastructure
in minutes. It's a powerful toolkit, integrated-by-design, that accelerates
complex technology projects and simplifies daily operations, transforming
data center economics. With Insight Dynamics IT professionals can plan capacity
and power continuously, balance workloads across physical and virtual resources,
and ensure cost-effective high availability. It also enables IT organizations
to provision infrastructure consistently and automatically from pools of
shared resources using a self-service portal. Resources provisioned can
range from a single virtual machine to complex multi-tier environments and
their associated physical and virtual resource requirements. In addition
to the previous functional benefits, it also provides a cost-effective disaster
recovery for physical and virtual environments that works with HP StorageWorks
Continuous Access software for both the Enterprise Virtual Array and the
XP storage array allowing application environments to be reactivated in
minutes with the touch of a button to a remote location.
HP Cluster Platforms are specifically
engineered, factory-integrated large-scale ProLiant clusters optimized for
High Performance Computing, with a choice of servers, networks and software.
Operating system options include specially priced offerings for Red Hat
Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server.
A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters.
HP HPC Interconnects
High Performance Computing (HPC)
interconnect technologies are available for this server as part of the HP
Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects
are fully supported by HP when integrated within an HP cluster. Flexible,
validated solutions can be defined with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility
HP Cluster Management Utility
(CMU) is an HP-licensed and HP-supported suite of tools that are used to
manage large-scale Linux ProLiant systems. CMU includes software for the
centralized provisioning, management and monitoring of nodes. CMU makes
the administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
HP HPC Linux Value Pack
HP HPC Linux Value Pack (Value
Pack) is an HP-licensed and HP-supported specially priced software bundle
for the development and deployment of applications on HPC Cluster Platforms.
Value Pack includes the Platform LSF workload scheduler, the HP-MPI parallelization
library, the HP Unified Parallel C compiler and the HP Shmem library, as
well as the execution environments for the libraries and compiler. HP
HPC Linux Value Pack
Factory
Express Portfolio for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment
services for HP servers and storage products. Customers can choose how their factory
solutions are built, tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSAxxxx, EVA7xxx, EVA,
XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific
server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure-Enterprise
Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs
and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. http://www.hp.com/products/configurator.
HP Care Pack Services: Packaged server and storage services for increased
uptime, productivity and ROI
When you buy HP server and storage products and solutions, it's also a
good time to think about what levels of support you may need. Our portfolio
of service options reduce deployment and management worries while helping
you get the most out of your server and storage investments. We take a
holistic approach to your environment, bridging servers, blades, storage,
software and network infrastructures with our packaged HP Care Pack Services
for servers and storage.
Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment
warranties have matured along with technology. Good news that can also
create problems stemming from depending on standard warranties designed
to only protect against product defects and some downtime causes. Using
a standard approach to warranty uplifts, such as HP Care Pack Services,
helps reduce downtime risks and provides operational consistency for mission-critical
and standard business computing.
HP Care Pack Services: Upgrading or extending standard server and
storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software
support services suite sold separately, or combined with our Support Plus
and Support Plus 24 services. The portfolio also provides a combination
of integrated proactive and reactive services, such as Proactive 24 Service
and Critical Service. In addition with HP Proactive Select, you can acquire
the specific proactive constancy and technical services. HP Proactive
Select menu offers a broad set of service options that you can mix and
match depending on your specific requirements. Proactive service options
include offers for server, storage, network, SAN device, software, environment
and education services.
HP server and storage lifecycle support services offers a full spectrum
of customer care-from technology support to complex migrations to complete
managed services. HP Factory Express provides customization, integration
and deployment services for turnkey solutions. HP Education Services offer
flexible, comprehensive training on to help your IT staff get the most
out of your server and storage investments. HP Financial solutions extend
innovative financing and cost-effective asset management programs-from
purchase to equipment retirement.
Recommended HP
Care Pack Services for optimal satisfaction with your HP product
Recommended Services
3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6-
or 24-hour
Provides your IT manager with a team of support specialists who will quickly
begin troubleshooting the system to help return the hardware to operating
condition within 6 or 24 hours of the initial service request to the HP
Global Solution Center.
HP is committed to repairing your hardware within a maximum of six or
twenty four hours. The benefits include:
Improved system uptime
Predictable repair times
More effective IT resource planning
Consistent level of hardware support across your multi-technology
systems
3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
Provides you with rapid remote support and if required an HP authorized
representative who will arrive on site any time and day of the year to
begin hardware maintenance service within 4 hours of the service request
being logged.
This service provides a trained HP service specialist to perform an installation
that meets HP quality standards, for:
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner.
Expedited installation, with all service prerequisites met before
the installation is performed
Installation in accordance with manufacturer's specifications, enhancing
the supportability of your HP-installed hardware and software
Service delivery at a mutually scheduled time
Allows your IT resources to stay focused on their core tasks and priorities
Availability of an HP service specialist to answer questions during
the onsite delivery of this service
Optional HP Care
Pack Services that will enhance your HP product experience
Optional Services
3-Year HP Support Plus 24
As an alternative to our recommended support level, for customers who
need access to responsive 24x7 hardware and software support plus software
updates on HP and selected third party products:
For a higher return on your server and storage technology, our 3-year
combined reactive support service delivers integrated onsite hardware/software
support services available 24x7x365, including access to HP technical
resources, 4-hour response onsite hardware support and software updates.
3-Year HP Proactive 24
As an alternative to our recommended support level, for customers who
want enhanced operational effectiveness and proactive problem identification:
Provides improved stability, availability and operational effectiveness
with an integrated hardware and software support service that combines
industry-leading reactive technical assistance with proactive account
services, giving your IT manage support from a team of service specialists.
HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services
and education courses
Provides a flexible way to purchase HP best-in-class consultancy and
technical services. You can buy Proactive Select Service Credits when
you purchase your hardware and then use the credits over the next 12 months.
HP eSupport is a portfolio of technology-based services that assist you
with managing your business environment - from the desktop to the data
center.
Support Portal
The HP support portal provides one-stop access to the information, tools
and services you need to manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service
agreement. To access the support portal, visit: http://www.hp.com/support
HP Insight Remote Support software delivers secure remote support for
your HP Servers and Storage, 24 X 7, so you can spend less time solving
problems and more time focused on your business. You can have your systems
remotely monitored for hardware failure using secure technology that's
been proven at thousands of companies around the world. In many cases,
you can avoid problems before they occur.
Customer Technical Training
In today's cost-conscious business environment, IT professionals, developers,
consultants and users face an interesting challenge: how to keep up with
the latest technologies and expand important skills while delivering profitable
results on current projects. To help address this challenge, HP offers
innovative training solutions that help keep you up-to-date on virtualization,
server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related
topics-while spending less time away from business-critical activities.
HP Services Awards
HP Technology Services continues to be recognized for service and support
excellence by customers, partners, industry organizations and publications
around the world. Recent honors and award reflect our services team's
dedications, technical expertise, professionalism and uncompromising commitment
to customer satisfaction.
NOTE: For the Standard Features shipped
in the "Factory Integrated Models", please see the "Configuration
Information - Factory Integrated Models" section. NOTE: Pre-configured models ship with the configurations below.
Options can be selected from the Core or Additional options section of
this QuickSpecs. NOTE: HP does not allow factory integration of options into pre-configured
models. Any additional options purchased will be shipped separately. NOTE: If you desire a custom configuration please see "Configuration
Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: Not all models are available in all regions. Check with your
local country HP offices for availability.
Performance Models
Quad-Core Models
HP DL380G6 X5560
491315-xx1
HP DL380G6 X5550
491316-xx1
Processor(s) Two of the following depending on Model
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure
a Factory Integrated Model. To ensure only valid configurations are ordered,
HP recommends the use of an HP approved configurator. Contact your local
sales representative for information on configurable product offerings
and requirements. NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis. NOTE: FIO indicates that this option is only available as a factory
installable option.
Step
1: Base Configuration (choose one of the following configurable models)
HP
Models
HP ProLiant DL380
G6 Configure-to-order Rack Chassis
494329-B21
Factory
Integrated Model ships with:
Two HP NC382i
Dual Port Multifunction Gigabit Server Adapters Smart Array P410i Controller
I/O slots - 3 Slots come standard:
Slot 1 - FL/FH x8 PCIE (x16 connector)
Slot
2 - HL/FH x4 PCIE (x8 connector)
Slot 3 - HL/FH x4 PCIE (x8 connector)
Additional Slots may be added via selections from the PCI Information
and Options subsection
System Fans - 4 (2 additional fans
included with second processor) Drive Cage - 8-SFF (Second SFF drive cage
optional) USB - 2 Rear, 2 Front, 1 Internal, 1 SD slot
Server Management - (iLO 2) (embedded) NOTE: Power Supply
not included - choose from Options section
HP ProLiant DL380
G6 LFF Configure-to-order Rack Server
516919-B21
Factory Integrated
Model ships with:
Two HP NC382i
Dual Port Multifunction Gigabit Server Adapters Smart Array P410i Controller
I/O slots - 3 Slots come standard:
Slot 1 - FL/FH x8 PCIE (x16 connector)
Slot
2 - HL/FH x4 PCIE (x8 connector)
Slot 3 - HL/FH x4 PCIE (x8 connector)
Additional Slots may be added via selections from the PCI Information
and Options subsection
Drive Cage - 6-LFF System Fans
- 4 (2 additional fans included with second processor) USB - 2 Rear, 2 Front,
1 Internal, 1 SD slot
Server Management - (iLO 2) (embedded) NOTE:
Power Supply not included - choose from Options section
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted)
HP
Processors
Six-Core Processors
HP DL380 G7 Intel®
Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO Processor Kit
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool: www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
HP
Power Supplies
NOTE:
Prior to making a power supply selection it is highly recommended that the
HP Power Advisor is run to determine the right size power supply for your
server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP Smart Array P411/256
2-ports Ext PCIe x8 FIO SAS Controller NOTE: The ProLiant DL380 G6 can support
up to a quantity of two HP Smart Array P411 Controllers.
HP 256MB Factory
Integrated P-Series Cache Module NOTE: This is an option for the HP
Smart Array P410i controller (P410i is standard integrated controller).
534108-B21
HP 650 mAh P-Series
Battery NOTE: This is an option for the HP
Smart Array P410i Controller (P410i is standard integrated controller). NOTE: To enable BBWC on the 256MB cache on P410i.
462969-B21
HP 512MB P-Series
Battery Backed Write Cache Upgrade NOTE: This is an option for the HP
Smart Array P410i Controller (P410i is standard integrated controller). NOTE: Battery included. When used with the embedded HP Smart Array
P410i controller.
The HP ProLiant DL380 performance packs are necessary to configure a
HP ProLiant DL380 Performance Model. HP ProLiant DL380 Performance model
includes the latest performance technologies and enterprise class availability
features pre-installed for convenience and value.
The performance pack includes:
2nd processor
750-watt redundant power supply
512MB cache module for P410i
650 mAh P-Series Battery
15P 24in SFP Battery Cable Assy
One DL380 G6 HP Fan kit (contains qty of 2)
NOTE: Must also select Slimline
SATA DVD RW Optical Drive (481043-B21) to achieve parity to DL380 High
Performance Models.
HP DL380G6 2.6 HPM
FIO Perf Pack
500583-B21
HP DL380G6 2.8 HPM
FIO Perf Pack
500584-B21
HP
Insight Software
HP Insight Control
including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License
582765-B21
HP Insight Control
for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License
TC203A
Step
4: Choose Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Core Options and Additional
Options" section below.
NOTE:
Some options may not be integrated at the factory. Contact your local sales
representative for additional information.
HP Unique Options
HP StorageWorks RDX160 Removable
Disk Backup System DL Server Module NOTE: Mounts in DL380 G6 second drive
cage slot (160GB of Disk Storage)
AP724A
HP StorageWorks RDX320 Removable
Disk Backup System DL Server Module NOTE: Mounts in DL380 G6 second drive
cage slot (320GB of Disk Storage)
AP725A
HP StorageWorks RDX500 Removable
Disk Backup System DL Server Module NOTE: Mounts in DL380 G6 second drive
cage slot (500GB of Disk Storage)
AP726A
HP StorageWorks RDX 1TB Removable
Disk Backup System DL Server Module NOTE: Mounts in DL380 G6 second drive
cage slot (1 TB of Disk Storage)
BV848A
HP 8SFF CAGE 380G6 NOTE: Second drive cage installation
replaces internal optical bay. NOTE: Second drive cage requires second controller or HP SAS Expander
Card ( 468406-B21).
516914-B21
HP DL380G6 PCI-E 3 Slot 1x8 2x4
Riser Kit
500579-B21
HP Processors
Six-Core Processors
HP DL380 G7 Intel® Xeon®
X5650 (2.66GHz/6-core/12MB/95W) Processor Kit
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
HP Optical Drives
HP Slim SATA DVD RW Optical Drive NOTE: Included in performance models.
481043-B21
HP Slim SATA DVD-ROM Optical Drive
481041-B21
HP Mobile USB DVDRW Drive US
BU516AA#ABA
HP Hard Drives
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise
(ENT) Drives
HP 600GB 6G SAS 10K
rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
10 Gigabit Ethernet Adapters NOTE: No more than two 10GbE I/O
devices are supported in a single ProLiant server. NOTE: A minimum of two Gigabytes (2 GB) of server memory is required
per each adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber
transceivers and cables for fiber-optic environments must be purchased separately.
HP DL38X (2) x8 PCI-E Riser Kit NOTE: This riser card will support
a quantity of one 10Gbe NIC.
494326-B21
HP Power Supplies
NOTE: Prior to
making a power supply selection it is highly recommended that the HP Power
Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP Insight Control including 1yr 24x7 Technical
Support and Updates Electronic License
T9074BAE
HP Insight Control including 1yr 24x7 Support
ProLiant ML/DL/BL-bundle Electronic License
TC278AAE
HP Insight Control including 1yr 24x7 Technical
Support and Updates Single Server License
452148-B22
HP Insight Control including 1yr 24x7 Support
ProLiant ML/DL/BL-bundle Tracking License
TC275A
HP Insight Software Media Kit NOTE: Insight Software DVD media
without licenses. Contains HP Systems Insight Manager, HP Insight Control,
HP Insight Dynamics, HP Insight Control for Microsoft System Center, and
Virtual Connect Enterprise Manager software. Uses an integrated installer
to perform quick and accurate software installation and updates.
436222-B21
NOTE: Electronic and Flexible-Quantity
licenses can be used to purchase multiple licenses with a single activation
key. NOTE: Electronic software is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent. NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Licenses ship without media. The HP Insight Control Media Kit
can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates. NOTE: For additional license options please see the Insight Control
QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Insight Control for Linux
HP Insight Control for Linux w/1yr 24x7 Supp
ML/DL/SL Bundle Electronic 1 Svr LTU
TC203AAE
HP Insight Control for Linux including 1yr
24x7 Support Electronic License
TC213AAE
HP Insight Control for Linux including 1yr
24x7 Support Single Server License
TC209A
HP Insight Control for Linux Media Kit NOTE: Media pack DVD contains the
ISO image for HP Insight Control for Linux, HP Systems Insight Manager,
HP Insight Control power management, HP Insight Control virtual machine
management, and an integrated installer. Servers must be acquired separately.
TC208A
NOTE: Licenses ship without
media. The Media Kit for Insight Control for Linux can be ordered separately,
or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic software is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent. NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Integrated Lights-Out (iLO) Advanced
HP iLO Advanced including 1yr 24x7 Technical
Support and Updates Electronic License
TA850AAE
HP iLO Advanced including 1yr 24x7 Technical
Support and Updates Single Server License
512485-B21
NOTE: This license allows
1 server to be deployed and managed via HP iLO Advanced. Customer will receive
a printed license entitlement certificate via physical shipment. The license
entitlement certificate must be redeemed online or via fax in order to obtain
the license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support Service NOTE: Electronic software is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: For additional license kits, including electronic delivery options,
please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
HP Insight Control server deployment
HP Insight Control Server Deployment including
1yr 24x7 Support Electronic License
T9082AAE
HP Insight Control Server Deployment including
1yr 24x7 Support Single Server License
452151-B21
NOTE: Licenses ship without
media. The Insight Control Media Kit can be ordered separately, or can be
downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses
with a single activation key, and is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: For additional license kits please see the Insight Control
QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html
High Performance Clusters
HP Cluster Management Utility
HP Cluster Management Utility
Compute Node Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one node (server). Customer will receive a printed
end user license agreement and license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online in
order to obtain a license key.
436284-B21
HP Cluster Management Utility
License and Media NOTE: Order a minimum of one license
per cluster to purchase media including software and documentation, which
will be delivered to the customer, and also licenses CMU management. No
license key is delivered or required.
HP High Performance Computing
Linux Value Pack 1 Processor Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one socket (a.k.a. processor). Customer will receive
a printed end user license agreement and license entitlement certificate
via physical shipment. The license entitlement certificate must be redeemed
online in order to obtain a license key.
TC293A
HP High Performance Computing
Linux Value Pack Media Kit NOTE: This part number can be used
to purchase media including software and documentation, which will be delivered
to the customer.
HP 8SFF CAGE 380G6 NOTE: Second drive cage installation
replaces internal optical bay. NOTE: Second drive cage requires second controller or HP SAS Expander
Card ( 468406-B21).
516914-B21
HP I/O Accelerator Options
HP 160GB SLC PCIe ioDrive NOTE: A low-profile PCI bracket is
included for use in low-profile slots.
600278-B21
HP 320GB MLC PCIe ioDrive NOTE: A low-profile PCI bracket
is included for use in low-profile slots.
NOTE: The TPM
(Trusted Platform Module) is a microcontroller chip that can securely store
artifacts used to authenticate the server platform. These artifacts can
include passwords, certificates and encryption keys. Windows® BitLocker™
Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities
of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker
to help protect user data and to ensure that a server running Windows Server
2008 has not been tampered with while the system was offline. For more information
about TPM, including a white paper, go to: www.hp.com/go/TPM.
HP Storage Controllers
SAS Controllers
Smart Array P800 Controller
HP Smart Array P800/512 BBWC 2-ports
Int/2-ports Ext PCIe x8 SAS Controller
HP 650 mAh P-Series Battery NOTE: To enable BBWC on the 256MB
cache. NOTE: Supported on HP P410i Smart Array (integrated), HP Smart Array
P212 Controller, HP Smart Array P410 Controller, and HP Smart Array P411
Controller only.
462969-B21
HP 8484 to Mini SAS 33in Cable
Assembly NOTE: Cable for use connecting the
Smart Array P800 Controller to internal hard disk drives on select HP ProLiant
G6 Servers.
591734-B21
HP Chipset SATA Cable Kit
627121-B21
HP Smart Array Advanced Pack including
1yr 24x7 Technical Support and Updates Single Server License NOTE: This part number
can be used to purchase a single license or to order multiple licenses with
a single activation key. Customers will receive a license entitlement certificate
via e-mail. The license entitlement certificate must be redeemed online
or via fax in order to obtain the license activation key(s). Include one
year of 24x7 HP Software Technical Support Services.
HP Modular Smart Array SC08e 2-ports
Ext PCIe x8 SAS Host Bus Adapter NOTE: This is a 2 x4 External Port
HBA NOTE: This is only approved for the HP StorageWorks P2000 G3 SAS
Modular Smart Array.
NOTE: For the complete range of StorageWorks tape drives, autoloaders,
libraries and media see: http://www.hp.com/go/tape.
For hardware and software compatibility of HP StorageWorks tape backup
products see: http://www.hp.com/go/connect.
HP StorageWorks DAT 320 USB in
1U Rack-mount Kit
AP835B
HP StorageWorks 1/8 G2 LTO-4 Ultrium
1760 SAS Tape Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack Kit (AH166A) for rack installation. Connection using HP P212 SAS Smart
Array Controller ( 462828-B21) recommended.
AK377A
HP StorageWorks LTO-4 Ultrium
1760 SAS (1) in 1U Rack-mount Kit NOTE: Connection using HP Smart Array
P212/Zero Memory Controller ( 462828-B21) recommended.
EH946B
HP StorageWorks LTO-5 Ultrium
3000 SAS Tape Drive in 1U Rackmount NOTE: Connection using HP Smart Array
P212/Zero Memory Controller ( 462828-B21) recommended.
EJ014A
HP StorageWorks 1/8 G2 LTO-5 Ultrium
3000 SAS Tape Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack Kit (AH166A) for rack installation. Connection using HP P212 Smart
Array Controller SAS ( 462828-B21) recommended.
BL536A
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1760 SAS Tape Library
AK378A
HP StorageWorks MSL2024 1 LTO-5
Ultrium 3000 SAS Tape Library NOTE: Connection using HP P212 Smart
Array Controller SAS ( 462828-B21) recommended.
BL537A
HP StorageWorks MSL4048 2 LTO-5
Ultrium 3000 SAS Tape Library NOTE: Connection using HP Smart Array
P212/Zero Memory Controller ( 462828-B21) recommended.
HP StorageWorks D2D Backup Systems
with Backup Data Deduplication
HP StorageWorks D2D2502i Backup
System NOTE: 1.5TB of useable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ001B
HP StorageWorks
D2D2504i Backup System NOTE: 3.0TB of useable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ002B
HP StorageWorks D2D4112 Backup
System NOTE: 9.0TB (expandable to 18.0TB)
of useable network disk backup capacity. Fibre Channel SAN connected appliance.
Direct server attach is not supported, requires connection via SAN fabric.
EH993B
HP StorageWorks RDX Removable
Disk Backup Systems USB
HP StorageWorks RDX160 Removable
Disk Backup System DL Server Module NOTE: Mounts in DL385 G6 second drive
cage slot (160GB of Disk Storage)
AP724A
HP StorageWorks RDX320 Internal
Removable Disk Backup System for DL Servers NOTE: 320GB of disk capacity per
data cartridge.
AP725A
HP StorageWorks RDX500 Internal
Removable Disk Backup System for DL Servers NOTE: 500GB of disk capacity per
data cartridge.
AP726A
HP StorageWorks RDX 1TB Internal
Removable Disk Backup System for DL Servers NOTE:
1 TB of disk capacity per data cartridge.
NOTE: For additional
information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups. NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com. NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection
and Management page. Under Power Cords, click on the "HP Power Cord
Matrix" link. That link will list cable descriptions, requirements,
and specifications for UPS and PDU units. Please see the following link:
www.hp.com/products/powercords.
HP Power Distribution Units
HP Monitored Power Distribution
Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU-
single input, 1Ø, 24A (NA/JPN)
AF914A
HP 7.3 kVA S132 Monitored PDU-
single input, 1Ø, 32A (INTL)
Modular Power Distribution Units
1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets shipped
with the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution
Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)
8.3kVA Model - mPDU, 40A, High
(power cord attached) (NA/JPN)
252663-D73
HP Modular Power Distribution
Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l)
252663-B31
HP Modular Power Distribution
Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW) NOTE: This PDU has a detachable input
power cord and allows for adaptability to country specific power requirements.
NOTE: Please see
the following QuickSpecs for additional options including shorter jumper
cables and country specific power cords: http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html
(Worldwide) NOTE: For additional information on HP Power Distribution Units including
accessories please go to: www.hp.com/go/pdu. NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection
and Management page. Under Power Cords, click on the "HP Power Cord
Matrix" link. That link will list cable descriptions, requirements,
and specifications for UPS and PDU units. Please see the following link:
www.hp.com/products/powercords.
HP Rack Series
HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
NOTE: The increasing
power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced
airflow for maximum cooling, allowing these racks to be fully loaded with
servers using the latest processors. CAUTION: If a third-party rack is used, observe the following additional
requirements to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and
rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly
distributed from top to bottom to permit adequate airflow (equivalent to
the required 64 percent open area for ventilation). Side: The clearance
between the installed rack component and the side panels of the rack must
be a minimum of 2.75 inches (7 cm). CAUTION: Always use blanking panels to fill all remaining empty front
panel U-spaces in the rack. This arrangement ensures proper airflow. Using
a rack without blanking panels results in improper cooling that can lead
to thermal damage. NOTE: For additional information, refer to the Setup and Installation
Guide or the Documentation CD provided with the server, or to the server
documentation located in the Support section at the following URL: www.hp.com/servers/dl380.NOTE:
Quick deploy rail system provides tool-free support for racks with square
or round mounting holes (including Compaq/HP 7000, 9000, 10000 G2 and HP
series), with an adjustment range of 24" - 36". The ambidextrous
cable management arm can be mounted on either the left or right side for
improved cable management. NOTE: High Airflow Inserts (High Air Flow Rack Door Insert for the
7142 Rack (single) - PN: 327281-B21; or High Air Flow Rack Door Insert for
the 7142 Rack (6-pack) - PN: 327281-B22) are required to support the HP
ProLiant DL380 in 7000 series racks. The DL380 Cable Management Arm is not
supported on 7000 series racks. NOTE: Cable management arm must be removed to access hot-plug power
supplies when the cable management arm is mounted on the right.
HP Rack Options
Keyboards and Monitors
HP TFT7600 G2 KVM Console Rackmount
Keyboard US Monitor
AZ870A
HP TFT7600 G2 KVM Console Rackmount
Keyboard UK Monitor
AZ871A
HP TFT7600 G2 KVM Console Rackmount
Keyboard DE Monitor
AZ872A
HP TFT7600 G2 KVM Console Rackmount
Keyboard FR Monitor
AZ873A
HP TFT7600 G2 KVM Console Rackmount
Keyboard IT Monitor
AZ874A
HP TFT7600 G2 KVM Console Rackmount
Keyboard ES Monitor
AZ875A
HP TFT7600 G2 KVM Console Rackmount
Keyboard DK Monitor
AZ876A
HP TFT7600 G2 KVM Console Rackmount
Keyboard NO Monitor
AZ877A
HP TFT7600 G2 KVM Console Rackmount
Keyboard SE/FI Monitor
AZ878A
HP TFT7600 G2 KVM Console Rackmount
Keyboard CH Monitor
AZ879A
HP TFT7600 G2 KVM Console Rackmount
Keyboard PT Monitor
AZ880A
HP TFT7600 G2 KVM Console Rackmount
Keyboard BE Monitor
AZ881A
HP TFT7600 G2 KVM Console Rackmount
Keyboard JP Monitor
AZ882A
HP TFT7600 G2 KVM Console Rackmount
Keyboard RU Monitor
AZ883A
HP TFT7600 G2 KVM Console Rackmount
Keyboard Intl Monitor
HP 4GB SD Flash Media Kit NOTE: Blank SD media device is supported
for use with VMware and Citrix. SD media must be installed in the internal
slot of the ProLiant server. Learn more at: http://www.hp.com/go/proliantvirtualization.
580387-B21
HP 2GB USB Flash Media Drive Key NOTE: HP qualified blank USB key
for use with HP ProLiant servers that support the VMware virtualization
environment and other HP value-add software like SmartStart. HP recommends
this industry standard USB flash device for use with VMware ESXi. USB device
must be installed in the internal slot of the ProLiant server for use with
VMware ESXi. Refer to HP
VMware Getting Started Guide for installation instructions.
608447-B21
HP
Care Pack Services
Hardware Services On-site Service
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years, Electronic
U4544E
4-Hour On-site Service, 7-Day
x 24-Hour Coverage, 3 Years, Electronic
U4545E
Hardware Services 6-Hour Call
to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
U4546E
Installation & Start-up Services
Hardware Installation, Electronic
U4554E
Installation & Start-Up of
a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl.
HP holidays, Electronic
U4555E
Installation and Startup for Essentials
Rapid Deployment Pack, Electronic
U5683E
Support Plus 24
Onsite HW support 24x7, 4hr response
and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays, Electronic
U4557E
Onsite HW support 24x7, 4hr response
and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays, Electronic
Some DIMM installation guidelines are summarized below:
For
servers with eighteen (18) memory slots:
There
are three (3) channels per processor; six (6) channels per server
There
are three (3) DIMM slots for each memory channel; eighteen (18) total slots
Memory
channel 1 consists of the three (3) DIMMs that are closest to the processor
Memory
channel 3 consists of the three (3) DIMMs that are furthest from the processor
DIMM
slots that are white should be populated first
Do not
mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do
not install DIMMs if the corresponding processor is not installed
If
only one processor is installed in a 2CPU system, only half of the DIMM slots
are available
To maximize performance, balance the total
memory capacity between all installed processors
It is
not required, but it is recommended to load the channels similarly if possible
You
can only have up to eight (8) ranks installed per channel
You
can only install two quad-rank DIMMs per channel
You
can only install two UDIMMs per channel; if available, the third slot in the channel
must remain empty
Populate DIMMs from heaviest load (quad-rank)
to lightest load (single-rank) within a channel
Heaviest
load (DIMM with most ranks) within a channel goes furthest from the chipset
For
memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated
identically
For lock-step mode, channel 3 must be unpopulated.
DIMMs in channels 1 and 2 will be installed in pairs. The paired slots will be
1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
No
mixing DIMM voltage; all DIMMs must be the same voltage
DIMM Type ->
Registered
Dimms (RDIMMs)
Unbuffered
with ECC DIMMs (UDIMMs)
DIMM Rank ->
Dual Rank
(2R)
Quad Rank
(4R)
Single Rank (1R)
Dual Rank
(2R)
DIMM Capacity ->
2GB
4GB
8GB
8GB
4GB
16GB
1GB
2GB
4GB
DIMM Native Speed (MHz) ->
1333
1333
1066
1333
1066
1066
1333
1333
1333
SLOTS THAT CAN BE POPULATED
18 slot servers
18
18
18
18
12
12
12
12
12
MAXIMUM CAPACITY (GB)
18 slot servers
36
72
144
144
48
192
12
24
48
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel
1333
1333
1066
1333
1066
1066
1333
1333
1333
2 DIMM Per Channel
1333*
1333*
1066
1333*
800
800
1333
1333
1333
3 DIMM Per Channel
800
800
800
800
*
n/a
n/a
n/a
n/a
* - supported
with ROM update via ROM Based Setup Utility (RBSU). UDIMM support
is only on 12-slot servers
NOTES:
Mixing DIMM speeds is allowed, but the system processor
speed rules always override the DIMM capabilities
If you do mix DIMM speeds,
the memory bus will default to the minimum clock rate of all DIMMs in the system
- even if the slower DIMM is on the other processor
If you install 1x
1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, you still run at 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per
Channel (DPC) in each of the other channels, you run at 1066MHz
If
you install 3DPC in one channel (if applicable) and 1DPC in all other channels,
you run at 800MHz
95 Watt CPU's are required for 1333MHz DIMM speeds.
All other CPU's are capable of up to 1066MHz
References to the above MHz
speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second,
"C" third, etc.
18
DIMM SLOTS (9 per CPU node)
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G
1
G
Chnl 1
2
D
2
D
3
A
3
A
Chnl 2
4
H
4
H
Chnl 2
5
E
5
E
6
B
6
B
Chnl 3
7
I
7
I
Chnl 3
8
F
8
F
9
C
9
C
Standard memory configuration (1 CPU model)
6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; empty
2
D; empty
3
A; 2GB DIMM
3
A; empty
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; empty
5
E; empty
6
B; 2GB DIMM
6
B; empty
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; empty
8
F; empty
9
C; 2GB DIMM
9
C; empty
Standard memory plus optional memory (1 CPU model)
54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs
3x 2GB dual-rank PC3-10600 RDIMMs
6x 8GB dual-rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; 8GB DIMM
1
G; empty
Chnl 1
2
D; 8GB DIMM
2
D; empty
3
A; 2GB DIMM
3
A; empty
Chnl 2
4
H; 8GB DIMM
4
H; empty
Chnl 2
5
E; 8GB DIMM
5
E; empty
6
B; 2GB DIMM
6
B; empty
Chnl 3
7
I; 8GB DIMM
7
I; empty
Chnl 3
8
F; 8GB DIMM
8
F; empty
9
C; 2GB DIMM
9
C; empty
Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration (1 CPU model)
96GB, consisting of six (6) 16GB quad-rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 16GB DIMM
2
D; empty
3
A; 16GB DIMM
3
A; empty
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 16GB DIMM
5
E; empty
6
B; 16GB DIMM
6
B; empty
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 16GB DIMM
8
F; empty
9
C; 16GB DIMM
9
C; empty
UDIMM maximum configuration (1 CPU model)
12GB, consisting of six (6) 2GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 2GB DIMM
2
D; empty
3
A; 2GB DIMM
3
A; empty
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 2GB DIMM
5
E; empty
6
B; 2GB DIMM
6
B; empty
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 2GB DIMM
8
F; empty
9
C; 2GB DIMM
9
C; empty
Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration (2 CPU model)
192GB, consisting of twelve (12) 16GB quad-rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 16GB DIMM
2
D; 16GB DIMM
3
A; 16GB DIMM
3
A; 16GB DIMM
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 16GB DIMM
5
E; 16GB DIMM
6
B; 16GB DIMM
6
B; 16GB DIMM
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 16GB DIMM
8
F; 16GB DIMM
9
C; 16GB DIMM
9
C; 16GB DIMM
UDIMM maximum configuration
48GB, consisting of twelve (12) 4GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 4GB DIMM
2
D; 4GB DIMM
3
A; 4GB DIMM
3
A; 4GB DIMM
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 4GB DIMM
5
E; 4GB DIMM
6
B; 4GB DIMM
6
B; 4GB DIMM
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 4GB DIMM
8
F; 4GB DIMM
9
C; 4GB DIMM
9
C; 4GB DIMM
NOTE: Capacity references are rounded to the common Gigabyte values.
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
Sixteen SFF SAS hot plug hard
drive bays NOTE: This configuration does not
support optical drive.
1-6
Six LFF SAS hot plug hard drive
bays NOTE: This configuration does not
support optical drive.
Drive
Support
Quantity Supported
Position Supported
Controller
Removable Media
HP Slim SATA DVD RW Optical Drive NOTE: Included in performance models.
Only 1 available removable media bay
Slimline bay
Integrated
SATA NOTE: Optional
HP Slim SATA DVD-ROM Optical
Drive
Only
1 available removable media bay
Slimline bay
Integrated
SATA NOTE: Optional
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
300GB 3G SAS 10K DP
300GB 6G SAS 10K DP
146GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 3G SAS 15K DP
146GB 3G SAS 10K DP
72GB 6G SAS 15K DP
72GB 3G SAS 15K DP
Up to 8
1-8
HP Smart Array P800/512 BBWC
Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
NOTE:
Second SFF drive cage requires second controller or HP SAS Expander Card
(PN 468406-B21).
SAS Hot Plug LFF (3.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
450GB 3G SAS 15K DP
300GB 6G SAS 15K DP
300GB 3G SAS 15K DP
146GB 3G SAS 15K DP
Up to 6
1-6
HP Smart Array P800/512 BBWC
Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug SFF (2.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K DP
Up to 8
1-8
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SAS Hot Plug LFF (3.5-inch) Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 7.2K DP
1TB 6G SAS 7.2K DP
Up to 6
1-6
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug SFF (2.5-inch) Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 3G SATA 7.2K 160GB 3G SATA
7.2K
Up to 8
1-8
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug LFF (3.5-inch) Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 6
1-6
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug SFF (2.5-inch) Entry
(ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 5.4K
120GB 1.5G SATA 5.4K
Up to 8
1-8
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
NOTE: Second SFF
drive cage requires second controller or HP SAS Expander Card (PN 468406-B21).
SATA Hot Plug LFF (3.5-inch) Entry
(ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 6
1-6
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug Midline (MDL)
Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
SATA Hot Plug 3.5" Midline
(MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G
SATA SSD
120GB 3.0G SATA SSD
Up to 6
1-6
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
External Storage
Quantity
Supported
Position
Supported
Host Controller or Adapter
60 Modular Smart Array
Up to 4
External
HP Smart Array P212/ 256 MB Controller
Up to 8
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
70 Modular Smart Array
Up to 2
External
HP Smart Array P212/ 256 MB Controller
Up to 4
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
D2600 Disk Enclosure
Up to 4
External
HP Smart Array P212/ 256 MB Controller
Up to 8
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
D2700 Disk Enclosure
Up to 2
External
HP Smart Array P212/ 256 MB Controller
Up to 4
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
Maximum Storage Capacity - (with MSA50, SAS HDD)
Internal
8.0TB (16 x 500GB
SAS SFF with addition 8 SFF drive cage)
External
5.0TB (20 x 250GB
SAS SFF)
Total
13.0TB
Maximum Storage Capacity - (with MSA50, SATA HDD)
Internal
8.0TB (16 x 500GB
SATA SFF with additional 8 SFF drive cage)
External
5.0TB (20 x 250GB
SATA SFF)
Total
13.0TB
Tape and Disk Backup
NOTE: For the complete range of StorageWorks
tape drives, autoloaders, libraries and media, including the internal
fitting models, see: http://www.hp.com/go/tape.
For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape
backup products see: http://www.hp.com/go/connect.
Position
Supported
Controller
Part Number
HP StorageWorks SCSI
Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Ultra320 Single Channel/
PCIe x4 SCSI Host Bus Adapter
SFF
Drives: 3.38 x 17.54 x 27.25 in (8.59 x 44.55 x 69.22 cm) LFF Drives: 3.38
x 17.54 x 29.25 in (8.59 x 44.55 x 74.30 cm)
Weight (approximate)
Maximum
(all hard drives, power supply, and processor installed)
60.00
lb (27.27 kg)
Minimum
(one hard drive, power supply, and processor installed)
47.18
lb (21.45 kg)
Input Requirements (per power supply)
Rated Line Voltage
100
to 120 VAC 200 to 240 VAC
Rated
Input Current
For
1200 W Power Supply: 10 A (at 100 VAC), 4.9 A (at 200 VAC) For 750 W
Power Supply: 8.9 A (at 100 VAC), 4.3 A (at 200 VAC) For 460 W Power
Supply: 5.5 A (at 100 VAC), 2.6 A (at 200 VAC)
Rated
Input Frequency
50
to 60 Hz
Rated Input
Power
For 1200 W Power
Supply: 930 W (at 100 VAC), 1348 W (at 200 VAC) For 750 W Power Supply: 857
W (at 100 VAC), 824 W (at 200 VAC) For 460 W Power Supply: 526 W (at
100 VAC), 505 W (at 200 VAC)
BTU
Rating
Maximum
For
1200 W Power Supply: 3530 BTU/hr (at 100 VAC), 4600 BTU/hr (at 200 VAC) For
750 W Power Supply: 2925 BTU/hr (at 100 VAC), 2812 BTU/hr (at 200 VAC) For
460 W Power Supply: 1794 BTU/hr (at 100 VAC), 1725 BTU/hr (at 200 VAC)
For 1200
W Power Supply: 800 W (at 100 VAC), 900 W (at 120 VAC), 1200 W (at 200
to 240 VAC) For 750 W Power Supply: 750 W (at 100 to 120 VAC), 750 W
(at 200 to 240 VAC) For 460 W Power Supply: 460 W (at 100 to 120 VAC), 460
W (at 200 to 240 VAC)
Maximum
Peak Power
For 1200
W Power Supply: 800 W (at 100 VAC), 900 W (at 120 VAC), 1200 W (at 200
to 240 VAC) For 750 W Power Supply: 750 W (at 100 to 120 VAC), 750 W
(at 200 to 240 VAC) For 460 W Power Supply: 460 W (at 100 to 120 VAC), 460
W (at 200 to 240 VAC)
System
Inlet Temperature
Operating
10°
to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of
3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the type and number of options
installed. System performance may be reduced if operating with a fan fault
or above 30°C (86°F).
Non-operating
-30°
to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10
to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature,
non-condensing.
Non-operating
5
to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature,
non-condensing.
Altitude
Operating
3050
m (10,000 ft). This value may be limited by the type and number of options installed.
Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating
9144
m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed
are the declared A-Weighted sound power levels (LWAd) and declared average bystander
position A-Weighted sound pressure levels (LpAm) when the product is operating
in a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). NOTE:
The Listed sound levels apply to standard shipping configurations. Additional
options may result in increased sound levels.
Idle
1P
SKU
2P SKU
LWAd
4.1
B
4.7 B
LpAm
22
dBA
28 dBA
Operating
1P
SKU
2P SKU
LWAd
4.1
B
4.7 B
LpAm
22
dBA
28 dBA
Emissions
Classification (EMC)
FCC Rating
Class
A
Normative
Standards
CISPR 22;
EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2;
EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is eligible
to bear the appropriate compliance logos and statements. NOTE: The Listed
sound levels apply to standard shipping configurations. Additional options may
result in increased sound levels.
Smart Array P410i Controller
Dimensions
Embedded
Disk Drive and Enclosure Interface
- Transfer rate
6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal 4X connectors
Cache Memory Speed
DDR2-800MHz with 40 or 72-bit
wide bus
Server Interface
x4 PCIe 2.0 provides 2GB/s maximum
bandwidth
SAS Speed
8 6Gb/s SAS links provide 4.8GB/s
maximum bandwidth
Cache Memory
Zero Memory RAID has no cache
memory
40-bit 256MB ECC protected cache (battery upgrade available)
72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC
Logical Drives Supported
Zero Memory, Up to 2 logical volumes
(8 physical drives)
Up to 64 logical drives with cache
Host Memory Addressing
64-bit, supporting greater than
4GB server memory space
RAID Support
RAID 6, 6+0 (Advanced Data Guarding) NOTE: RAID 6, 6+0 can be enabled
with one of the following combinations:
SNMP 2, IPMI 2.0 (KCS interface),
DMTF Server Management Command Line Protocol Specification
(SM CLP), DMTF Web Services Management
Specification (WS Management)
Environment-friendly Products
and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment
information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
587482-B21
© 2012 Canada PartsDirect
