   Proliant DL360 G4p QuickSpecs  US QuickSpecs
  DL360 G4p Hard Drives   DL360 G4p Processors   DL360 G4p Memory
  DL360 G4p Controllers   DL360 G4p Networking   DL360 G4p Power Supplies
  DL360 G4p Quickspecs   DL360 G4p Quickspecs-Options   DL360 G4p Options
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      DL360 G4p Options      DL360 G4p Memory      Storage      Power Specifications      DL360 G4p QuickSpecs images/line.gif (50 bytes)

Proliant DL360 G4p Overview

HP ProLiant DL360 Generation 4p (G4p)


Ultra320 SCSI and SATA Model
Serial Attached SCSI (SAS) Model

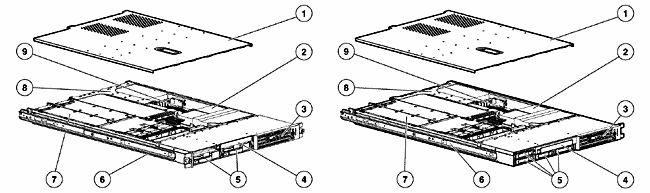

1. Removable server hood
2. Up to two Intel Xeon™ processors
3. Removable processor fan assembly with front and secure internal USB ports
4. Removable media bay
5.
Two Ultra320 hot plug drive bays; or
Two SATA pluggable drive bays; or
Four Serial Attached SCSI hot plug drive bays
6.
Sliding rails standard for in rack servicing
7.
Redundant power supplies
8. 1 full length and 1 half length PCI-X slots (optional PCI Express)
9. Up to 12 GB DDR2 PC2-3200 SDRAM

What's New
  • 2.8 GHz Dual-core Intel® Xeon™ processors are now available with the powerful HP ProLiant DL360 G4p Serial Attached SCSI (SAS) model. Offering up to a 50% performance increase over single-core processors, the Dual-core Intel Xeon offers a 2x2MB L2 cache and 64-bit capability.
  • 3.8 GHz Intel® Xeon™ processors are available now available with robust HP ProLiant DL360 G4p SCSI and SAS models and includes 2MB L2 cache and 64-bit support.
  • Introducing Xeon™ 3.0 GHz low voltage processor for performance per watt optimization in dense server environments.

At A Glance

Combining concentrated 1U compute power, integrated Lights-Out management, and essential fault tolerance, the DL360 is optimized for space constrained installations. Dual Xeon processors, DDR2 SDRAM, and PCI-X and PCI Express technology provide a high performance system ideal for the full range of scale out applications. What's more, the DL360 G4p steps up the fault tolerant in an ultra dense platform with redundant power, redundant fans, and online spare memory, embedded RAID capability, and full-featured remote Lights-Out\ management.

  • Processors:
    • 64-bit Intel® Xeon™ processors supporting 64-bit extension and 64-bit Microsoft Windows and Linux operating systems
    • SAS Model - best performance:
      • Up to 2.8 GHz Dual-core and 3.8 GHz single core Intel Xeon processor options
    • SCSI Model - best price/performance:
      • Up to 3.8 GHz single core processor Intel Xeon processor options
    • SATA Model - best priced:
      • Up to 3.6 GHz single core processor Intel Xeon processor options
  • Memory:
    • Up to 12 GB of PC2-3200 DDR2 400 SDRAM; with 2-way interleaving
    • Advanced ECC memory standard; optional Online Spare Memory
  • Storage Controller:
    • SAS Model - best performance:
      • HP Smart Array P600/256 BBWC Controller
    • SCSI Model - best price/performance:
      • Embedded Smart Array 6i RAID Controller with optional 128MB transportable battery backed cache (SCSI models)
    • SATA Model - best priced:
      • Embedded 2 Port SATA Controller (SATA models)
  • Internal Drive Support:
    • SAS Model - best performance:
      • Up to four Small Form Factor (SFF) Serial Attached SCSI (SAS) hot plug hard drives or four SFF Serial ATA (SATA) hard drives
    • SCSI Model - best price/performance:
      • Up to two Universal SCSI hot plug disk drives
    • SATA Model - best priced:
      • Up to two pluggable Serial ATA disk drives
  • Network Controller:
    • Embedded NC7782 PCI-X Gigabit Server Adapter
  • Expansion Slots:
    • Two 64-bit/133 MHz PCI-X slots
    • Optional PCI-X to PCI-Express conversion kit
  • USB Ports:
    • 3 Total: 1 front, 1 internal, 1 rear accessible port
  • Redundancy:
    • Fan redundancy, standard
    • Hot plug power supply with optional 1+1 redundancy
  • Management:
    • Built in reliability and availability features: embedded RAID, redundant fans, redundant power option, pre-failure notifications, and Lights-Out Management
    • Integrated Lights-Out (iLO) remote management embedded on every HP ProLiant DL360 G4p
    • Optional Integrated Lights-Out support for Power Regulator for ProLiant and introducing support for the draft DMTF System Management Architecture for Server Hardware Command Line Protocol standard
    • HP Power Regulator for ProLiant delivering server level, policy based power management with industry leading energy efficiency and savings on system power and cooling costs
    • Support for iLO Shared Network Port enables access to the iLO management processor through one of the embedded system NICs
    • ProLiant Essential Foundation Pack standard, including HP Systems Insight Manager, SmartStart, SmartStart Scripting Toolkit, Subscriber's Choice and ROM Based Setup Utility (RBSU).
  • Form Factor:
    • 1U Rack form factor (1.75")
  • Deployment/Serviceability:
    • Sliding rails for in rack servicing ship standard; optional ambidextrous cable management arm
  • Warranty:
    • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI/SAS hard drives. SATA hard drives have a one-year warranty.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      DL360 G4p Options      DL360 G4p Memory      Storage      Power Specifications      DL360 G4p QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Intel Xeon Processor 2.8 GHz/800MHz -2MB L2, 110W
Intel Xeon Processor 3.0 GHz/800MHz -2MB L2, 110W
Intel Xeon Processor 3.0 GHz/800MHz -2MB L2, Low Voltage 55W
Intel Xeon Processor 3.2 GHz/800MHz -2MB L2, 110W
Intel Xeon Processor 3.4 GHz/800MHz -2MB L2, 110W
Intel Xeon Processor 3.6 GHz/800MHz -2MB L2, 110W
Intel Xeon Processor 3.8 GHz/800MHz -2MB L2, 110W
Dual-core Intel Xeon Processor 2.8 GHz/800MHz - 2x2MB L2, 135W
NOTE: Dual-core processor is supported on HP ProLiant DL360 G4p Serial Attached SCSI (SAS) models only.

Processor Cache 2MB Level 2 cache memory

Upgradeability Upgradeable to dual processing

Chipset Intel chipset is E7520

Memory Protection & Functionality Advanced ECC (multi-bit error protection)
Online spare
2-way interleaving

Memory Type PC2-3200 DDR2 400 SDRAM
Standard 1 GB (2 x 512 MB)
Standard (on some models) 2 GB (2 x 1024 MB)
Maximum 12 GB

Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter

Expansion Slots Slot Number
Bus Speed Bus Number* Device Number** Hot Plug PCI Voltage
1
64-bit/133MHz
PCI-X
7
0
no
3.3 Volt
1
x8 PCI Express (option)
3
0
no
n/a
2
64-bit/133MHz
PCI-X
10
0
no
3.3 Volt
2
x8 PCI Express (option)
13
0
no
n/a
*NOTE: Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
**NOTE: Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
NOTE: All slots can accept universal keyed PCI cards.

Manageability

Integrated Lights-Out (iLO) Management (integrated on motherboard)


Storage Controllers SAS Models
HP Smart Array P600/256 BBWC Controller (installed in PCI-X slot)
NOTE: The Smart Array P600 controller offers an external 4X SAS port for additional storage expansion.
SCSI Models HP Smart Array 6i Controller (embedded)
NOTE: The HP ProLiant DL360 G4p does not offer an external SCSI port.
SATA Models HP embedded 2 Port SATA Controller (integrated on system board)
NOTE: The HP embedded 2 Port SATA controller does not support RAID, hot plug drive functionality or drive activity LEDs.
NOTE: SATA RAID 0, 1 is available with the optional purchase of the HP 8-port SAS HBA (347786-B21 347786-B21) and HP SAS/SATA Cable Kit (398307-B21 398307-B21) - hot-plug drive functionality and drive activity LEDS not supported.

Storage Optical Drives Ejectable CD-ROM (Standard in most models), DVD-ROM, or DVD-RW drives, or Slimline floppy
NOTE: Slimline Floppy Diskette Drive is not supported in SCSI and SATA models.
Diskette Drive
1.44 MB Diskette Drive
NOTE: Standard in SCSI models; optional in SATA models; not available in SAS models.
Drive Bays SAS Model 4 Small Form Factor
SCSI Model 2 HP Universal SCSI
SATA Model 2 Pluggable SATA

Maximum Internal Storage TypeSAS Model 584GB SAS 4 x 146GB SAS
240GB SATA4 x 60GB Serial ATA
SCSI Model
600GB
2 x 300GB Ultra320 SCSI
SATA Model 1.50TB 2 x 750GB Serial ATA

Interfaces Serial 1
Pointing Device (Mouse) 1
Graphics 1
Hot Plug Keyboard 1
USB Ports 3 (rear, front, internal)
NOTE:
Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
Network RJ-45 2
iLO remote management port 1

Graphics Integrated ATI RAGE XL Video Controller with 8-MB SDRAM Video Memory

Form Factor Rack (1U), (1.75 in/4.45 cm)

ProLiant Essentials Foundation Pack Software
HP Systems Insight Manager

HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms.

Through a single management view, HP SIM provides core management services that include device discovery and identification, event views, health monitoring, inventory data collection, software version control and reporting. HP SIM is built on industry standards and is extensible with value-added ProLiant Essentials, Integrity Essentials and Storage Essentials software to meet individual management needs. For more details on HP SIM visit http://www.hp.com/go/hpsim.

HP SIM provides organizations with the following benefits:

  • Simplifies and consolidates infrastructure lifecycle management using task and query based functionality
  • Provides the foundation for infrastructure automation and virtualization
  • Enables IT management based on business processes not hardware platforms
  • Lowers infrastructure maintenance cost and frees resources for innovation
  • Maximizes resource utilization with virtualization technologies
  • Provides a central point of integration between infrastructure and Enterprise management tools such as HP OpenView
SmartStart SmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.2.
Insight Management Agents Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers,
Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack. For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at http://www.hp.com/servers/manage
Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages: http://www.hp.com/go/support
Insight Diagnostics Online Edition The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.
Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

  • Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP includes the ProLiant Integration Module featuring ProLiant server pre-configured events for OS installation, and optimized software drivers, firmware and management agents. Every RDP disc includes a 7-day, 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit: http://www.hp.com/servers/rdp.
  • Workload Management Pack - provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions, plus it provides an extra layer of protection. The virus throttle feature of the solution slows the propagation of fast spreading virus
  • Vulnerability and Patch Management Pack - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats
  • Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.
  • Server Migration Pack - The Server Migration Pack automates the manual processes required for migrating servers between physical or virtual platforms (P2V, V2P, and V2V).
  • Server Migration Pack - P2P Edition: Upgrading or replacing your existing server? Effortlessly transition to new servers with automated, accurate and affordable migration of OS, application and data.
Optional Remote Management Packs
  • Integrated Lights-Out Advanced Pack - upgrades the Integrated Lights-Out processor to full virtual presence and control with graphical console and virtual media.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessential.

Industry Standard Compliance ACPI 1.0b Compliant
PCI 2.2 Compliant
Microsoft® Logo certifications
USB 1.1 and 2.0 Compliant

Remote Manageability

Integrated Lights-Out (iLO) Standard Management:

  • Virtual Text Remote Console
  • Virtual Power Button Control
  • Dedicated & shared LAN Connectivity
  • Browser and command line access
  • Automatic IP Configuration via DHCP/DNS/WINS
  • Industry Standard 128-bit Secure Sockets Layer (SSL) and Secure Shell Security
  • IML and iLO Event Logging
  • Support for 12 user accounts with customizable access privilege

Integrated Lights Out Advanced Pack (optional)
Remote Lights out Edition ll (optional)


Intelligent Manageability HP Systems Insight Manager
SmartStart
Remote Insight Lights-Out Edition ll (optional)
ROM-Based Setup Utility (RBSU)
Remote-Flash Redundant ROM
Integrated Management Log (IML)
Server Health logging
Automatic Server Recovery-2 (ASR-2)
System Interconnect Status Indicators
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Hot Spare Boot
(NOTE: Upon the event of a failed processor or VRM in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s).)
Power Down Utility
Pre-Failure Warranty (covers processors, as well as SCSI/SAS hard drives and memory)

Security Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Removable CD and Diskette Drive Assembly
Serial interface control
Administrator's password
Disk configuration lock
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting

Server Power Cords One Lowline NEMA power cord and One Highline IEC Power cord ships standard in most NA models. Smart Buys include one IEC power cable per power supply. Localized cables included with geographic specific models in other world regions.

UPS Power Cord Matrix Please see the UPS Power Cord Matrix for cable descriptions, requirements, and specifications for UPS units:
ftp://ftp.compaq.com/pub/products/servers/proliantstorage/power-protection/powercordmatrix.pdf.

Power Supply SAS Models:

535W Optional (1+ 1 redundant) power supply
NOTE: PN 389830-B21 389830-B21 contains the optional power supply and an IEC power cable only; purchase if connecting to PDU/UPS that supports IEC cables. PN 389830-001 contains a low line (NEMA) power cord only.
SCSI & SATA Models: 460W Optional (1+ 1 redundant) power supply
NOTE: PN 354587-B21 354587-B21 contains the optional power supply and an IEC power cable only; purchase if connecting to PDU/UPS that supports IEC cables. PN 354587-001 354587-001 contains a low line (NEMA) power cord only.

System Fans 7 fans ship standard; Fan redundancy standard

Required Cabling For required cabling information, refer to the Web site at http://h18000.www1.hp.com/products/servers/proliantdl360/.

OS Support Microsoft Windows 2000 Server
Microsoft Windows Server 2003
Novell NetWare
Linux (Red Hat, SuSE, UnitedLinux)
Solaris
VMware Virtualization Software
NOTE: SAS, SCSI and SATA models may have different OS support. Please see OS Support Matrix.
NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix page at: http://www.hp.com/go/supportos.
NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html
NOTE: For a listing of the latest drivers available for the HP ProLiant DL360, please see: http://h18023.www1.hp.com/support/files/server/us/index.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
NOTE: For more information on HP's Certified and Supported ProLiant Servers, please visit the VMware Server Support Matrix at: http://h18004.www1.hp.com/products/servers/software/vmware/hpvmwarecert.html.

Rack Airflow Requirements Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

  • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
  • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: http://h18000.www1.hp.com/products/servers/proliantdl360/index.html.

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to http://www.hp.com/go/factory-express.


HP Enterprise Configurator The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of resellers and service providers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

HP services provide continuous care and support expertise with committed response designed to meet your IT and business needs.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have access to expert assistance, whenever they need it.

  • 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Continuance Care - Recommended service delivering cost-effective support options designed to extend HP Services committed response and guaranteed fix times, designed to speed problem identification and resolution.

  • 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years

Total Care - Highest HP Support service level recommend to help increase IT performance and availability with comprehensive, integrated hardware and software services

  • Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers - and free customers IT support staff to focus on what they do best, their business.

  • Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays
NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      DL360 G4p Options      DL360 G4p Memory      Storage      Power Specifications      DL360 G4p QuickSpecs images/line.gif (50 bytes)

Models

SAS Models
DL360R04p X3.0-2MB/800, 1GB SAS
389820-xx1
Processor (1) Intel Xeon Processor 3.0 GHz/800MHz standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory 1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller HP Smart Array P600/256 BBWC Controller
Hard Drives None ship standard; system supports up to four Serial SCSI or Serial ATA drives.
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply One 535W power supply (redundant power supply optional)
Optical Drive Slimline CD-ROM Drive
PCI-X Slots 1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE: Full length slot is occupied with HP Smart Array P600 Controller and is not available.
Form Factor Rack (1U), (1.75 in/4.45 cm)

DL360R04p X3.2-2MB/800, 2GB SAS RPS
389821-xx1

Processor (1) Intel Xeon Processor 3.2 GHz/800MHz standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory 2 GB (2 x 1024 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller HP Smart Array P600/256 BBWC Controller
Hard Drives None ship standard; system supports up to four Serial SCSI or Serial ATA drives.
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply Two 535W power supplies (1+1 redundant)
Optical Drive Slimline CD-ROM Drive
PCI-X Slots 1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE: Full length slot is occupied with HP Smart Array P600 Controller and is not available.
Form Factor Rack (1U), (1.75 in/4.45 cm)

DL360R04p X3.4-2MB/800, 2GB SAS RPS
389822-xx1

Processor (1) Intel Xeon Processor 3.4 GHz/800MHz standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory 2 GB (2 x 1024 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller HP Smart Array P600/256 BBWC Controller
Hard Drives None ship standard; system supports up to four Serial SCSI or Serial ATA drives.
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply Two 535W power supplies (1+1 redundant)
Optical Drive Slimline CD-ROM Drive
PCI-X Slots 1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE: Full length slot is occupied with HP Smart Array P600 Controller and is not available.
Form Factor Rack (1U), (1.75 in/4.45 cm)

DL360R04p X3.6-2MB/800, 2GB SAS RPS
389823-xx1

Processor (1) Intel Xeon Processor 3.6 GHz/800MHz standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory 2 GB (2 x 1024 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller HP Smart Array P600/256 BBWC Controller
Hard Drives None ship standard; system supports up to four Serial SCSI or Serial ATA drives.
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply Two 535W power supplies (1+1 redundant)
Optical Drive Slimline CD-ROM Drive
PCI-X Slots 1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE: Full length slot is occupied with HP Smart Array P600 Controller and is not available.
Form Factor Rack (1U), (1.75 in/4.45 cm)

DL360R04p X3.8-2MB/800, 2GB SAS RPS
394919-xx1

Processor (1) Intel Xeon Processor 3.8 GHz/800MHz standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory 2 GB (2 x 1024 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller HP Smart Array P600/256 BBWC Controller
Hard Drives None ship standard; system supports up to four Serial SCSI or Serial ATA drives.
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply Two 535W power supplies (1+1 redundant)
Optical Drive Slimline CD-ROM Drive
PCI-X Slots 1 full length and 1 half length 64bit/133 MHz PCI-X slot
NOTE: Full length slot is occupied with HP Smart Array P600 Controller and is not available.
Form Factor Rack (1U), (1.75 in/4.45 cm)

SCSI Models

DL360R04p X3.8-2MB/800, 2GB SCSI, RPS
376235-xx1

Processor(1) Intel Xeon Processor 3.8 GHz/800MHz standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory2 GB (2 x 1 GB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Smart Array 6i Controller (U320, embedded on system board)
NOTE: The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives None ship standard; system supports up to two hot plug U320 drives
NOTE: The HP ProLiant DL360 G4p SCSI models only support U320 Universal Hot Plug drives.
Remote ManagementIntegrated Lights-Out (iLO) Standard Management (embedded)
Power SupplyTwo 460W power supplies
Optical Drive24x IDE CD-ROM Drive (Low-profile)
Diskette Drive1.44 MB Diskette Drive
PCI-X Slots1 full length and 1 half length 64bit/133MHz PCI-X slot
Form FactorRack (1U), (1.75 in/4.45 cm)

DL360R04p X3.6-2MB/800, 1GB SCSI
376236-xx1

Processor(1) Intel Xeon Processor 3.6 GHz/800MHz standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Smart Array 6i Controller (U320, embedded on system board)
NOTE: The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives None ship standard; system supports up to two hot plug U320 drives
NOTE: The HP ProLiant DL360 G4p SCSI models only support U320 Universal Hot Plug drives.
Remote ManagementIntegrated Lights-Out (iLO) Standard Management (embedded)
Power SupplyOne 460W power supply (redundant power supply optional)
Optical Drive24x IDE CD-ROM Drive (Low-profile)
Diskette Drive1.44 MB Diskette Drive
PCI-X Slots1 full length and 1 half length 64bit/133MHz PCI-X slot
Form FactorRack (1U), (1.75 in/4.45 cm)

DL360R04p X3.6-2MB/800, 2GB SCSI, RPS
378705-xx1

Processor(1) Intel Xeon Processor 3.6 GHz/800MHz standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory2 GB (2 x 1 GB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Smart Array 6i Controller (U320, embedded on system board)
NOTE: The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives None ship standard; system supports up to two hot plug U320 drives
NOTE: The HP ProLiant DL360 G4 SCSI models only support U320 Universal Hot Plug drives.
Remote ManagementIntegrated Lights-Out (iLO) Standard Management (embedded)
Power SupplyTwo 460W power supplies (1+1 redundant)
Optical Drive24x IDE CD-ROM Drive (Low-profile)
Diskette Drive1.44 MB Diskette Drive
PCI-X Slots1 full length and 1 half length 64bit/133MHz PCI-X slot
Form FactorRack (1U), (1.75 in/4.45 cm)

DL360R04p X3.4-2MB/800, 2GB SCSI, RPS
380079-xx1

Processor(1) Intel Xeon Processor 3.4 GHz/800MHz standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory2 GB (2 x 1-GB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Smart Array 6i Controller (U320, embedded on system board)
NOTE: The ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives None ship standard; system supports up to two hot plug U320 drives
NOTE: The ProLiant DL360 G4p SCSI models only support U320 Universal Hot Plug drives.
Remote ManagementIntegrated Lights-Out (iLO) Standard Management (embedded)
Power SupplyTwo 460W power supply (1+1 redundant)
Optical Drive24x IDE CD-ROM Drive (Low-profile)
Diskette Drive1.44 MB Diskette Drive
PCI-X Slots1 full length and 1 half length 64bit/133MHz PCI-X slot
Form FactorRack (1U), (1.75 in/4.45 cm)

DL360R04p X3.4-2MB/800, 1GB SCSI
376237-xx1

Processor(1) Intel Xeon Processor 3.4 GHz/800MHz standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Smart Array 6i Controller (U320, embedded on system board)
NOTE: The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives None ship standard; system supports up to two hot plug U320 drives
NOTE: The HP ProLiant DL360 G4 SCSI models only support U320 Universal Hot Plug drives.
Remote ManagementIntegrated Lights-Out (iLO) Standard Management (embedded)
Power SupplyOne 460W power supply (redundant power supply optional)
Optical Drive24x IDE CD-ROM Drive (Low-profile)
Diskette Drive1.44 MB Diskette Drive
PCI-X Slots1 full length and 1 half length 64bit/133MHz PCI-X slot
Form FactorRack (1U), (1.75 in/4.45 cm)

DL360R04p X3.2-2MB/800, 1GB SCSI
379753-xx1

Processor(1) Intel Xeon Processor 3.2 GHz/800MHz standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage ControllerSmart Array 6i Controller (U320, embedded on system board)
NOTE: The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives None ship standard; system supports up to two hot plug U320 drives
NOTE: The HP ProLiant DL360 G4 SCSI models only support U320 Universal Hot Plug drives.
Remote ManagementIntegrated Lights-Out (iLO) Standard Management (embedded)
Power SupplyOne 460W power supply (redundant power supply optional)
Optical Drive24x IDE CD-ROM Drive (Low-profile)
Diskette Drive1.44 MB Diskette Drive
PCI-X Slots1 full length and 1 half length 64bit/133MHz PCI-X slot
Form FactorRack (1U), (1.75 in/4.45 cm)

DL360R04p X3.0-2MB/800, 1GB SCSI
380325-xx1

Processor(1) Intel Xeon Processor 3.0 GHz/800MHz standard (up to 2 supported)
Cache Memory2MB level 2 cache
Memory1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Smart Array 6i Controller (U320, embedded on system board)
NOTE: The HP ProLiant DL360 G4p does not offer an external SCSI port.
Hard Drives None ship standard; system supports up to two hot plug U320 drives
NOTE: The HP ProLiant DL360 G4 SCSI models only support U320 Universal Hot Plug drives.
Remote ManagementIntegrated Lights-Out (iLO) Standard Management (embedded)
Power SupplyOne 460W power supply (redundant power supply optional)
Optical Drive24x IDE CD-ROM Drive (Low-profile)
Diskette Drive1.44 MB Diskette Drive
PCI-X Slots1 full length and 1 half length 64bit/133MHz PCI-X slot
Form FactorRack (1U), (1.75 in/4.45 cm)

SATA Models

DL360R04p X3.6-2MB/800, 1GB SATA
378704-xx1

Processor (1) Intel Xeon Processor 3.6 GHz/800MHz standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory 1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Embedded SATA controller
NOTE: The HP embedded 2 Port SATA controller does not support RAID, hot plug drive functionality or drive activity LEDs.
NOTE: SATA RAID 0, 1 is available with the optional purchase of the HP 8-port SAS HBA (347786-B21 347786-B21) and HP SAS/SATA Cable Kit (398307-B21 398307-B21) - hot-plug drive functionality and drive activity LEDS not supported.
Hard Drives None ship standard; system supports up to two Serial ATA drives
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply One 460W power supply (redundant power supply optional)
Optical Drive Optical Drives not supported on SATA Models
Diskette Drive Optional floppy on SATA Models
PCI-X Slots 1 full length and 1 half length 64bit/133MHz PCI-X slot
Form Factor Rack (1U), (1.75 in/4.45 cm)

DL360R04p X3.4-2MB/800, 1GB SATA
380078-xx1

Processor (1) Intel Xeon Processor 3.4 GHz/800MHz standard
Cache Memory 2MB level 2 cache
Memory 1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Embedded SATA controller
NOTE: The HP embedded 2 Port SATA controller does not support RAID, hot plug drive functionality or drive activity LEDs.
NOTE: SATA RAID 0, 1 is available with the optional purchase of the HP 8-port SAS HBA (347786-B21 347786-B21) and HP SAS/SATA Cable Kit (398307-B21 398307-B21) - hot-plug drive functionality and drive activity LEDS not supported.
Hard Drives None ship standard; system supports up to two Serial ATA drives
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply One 460W power supply (redundant power supply optional)
Optical Drive Optical Drives not supported on SATA Models
Diskette Drive Optional floppy on SATA Models
PCI-X Slots 1 full length and 1 half length 64bit/133 MHz PCI-X slot
Form Factor Rack (1U), (1.75 in/4.45 cm)

DL360R04p X3.2-2MB/800, 1GB SATA
379752-xx1


Processor (1) Intel Xeon Processor 3.2 GHz/800MHz standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory 1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Embedded SATA controller
NOTE: The HP embedded 2 Port SATA controller does not support RAID, hot plug drive functionality or drive activity LEDs.
NOTE: SATA RAID 0, 1 is available with the optional purchase of the HP 8-port SAS HBA (347786-B21 347786-B21) and HP SAS/SATA Cable Kit (398307-B21 398307-B21) - hot-plug drive functionality and drive activity LEDS not supported.
Hard Drives None ship standard; system supports up to two Serial ATA drives
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply One 460W power supply (redundant power supply optional)
Optical Drive Optical Drives not supported on SATA Models
Diskette Drive Optional floppy on SATA Models
PCI-X Slots 1 full length and 1 half length 64bit/133 MHz PCI-X slot
Form Factor Rack (1U), (1.75 in/4.45 cm)

DL360R04p X3.0-2MB/800, 1GB SATA
380324-xx1


Processor (1) Intel Xeon Processor 3.0 GHz/800MHz standard (up to 2 supported)
Cache Memory 2MB level 2 cache
Memory 1 GB (2 x 512 MB) Standard to 12 GB (Maximum) of PC2-3200 DDR2 400 SDRAM
Network Controller Embedded NC7782 PCI-X Gigabit Server Adapter
Storage Controller Embedded SATA controller
NOTE: The HP embedded 2 Port SATA controller does not support RAID, hot plug drive functionality or drive activity LEDs.
NOTE: SATA RAID 0, 1 is available with the optional purchase of the HP 8-port SAS HBA (347786-B21 347786-B21) and HP SAS/SATA Cable Kit (398307-B21 398307-B21) - hot-plug drive functionality and drive activity LEDS not supported.
Hard Drives None ship standard; system supports up to two Serial ATA drives
Remote Management Integrated Lights-Out (iLO) Standard Management (embedded)
Power Supply One 460W power supply (redundant power supply optional)
Optical Drive Optical Drives not supported on SATA Models
Diskette Drive Optional floppy on SATA Models
PCI-X Slots 1 full length and 1 half length 64bit/133 MHz PCI-X slot
Form Factor Rack (1U), (1.75 in/4.45 cm)

Country Code Key Rack Code Key
XX=00 US
XX=20 Brazil
XX=29 Japan
XX=37 APD
XX=42 EURO
XX=AA PRC
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      DL360 G4p Options      DL360 G4p Memory      Storage      Power Specifications      DL360 G4p QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models (North America only)

NOTE: For Configure to Order requirements within EMEA region, please consult local Sales Contact.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.

NOTE: This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE: FIO indicates that this option only available as a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)
ModelsHP ProLiant DL360G4p SATA Rack CTO Chassis (North America) 382146-405

Factory Integrated Model ships with:



Embedded NC7782 PCI-X Gigabit Server Adapter
Embedded SATA Controller (SATA RAID functionality is available via OS)
Integrated Lights-Out (iLO) embedded
1 full length and 1 half length 64-bit/133 MHz PCI-X slot
7 fans; N+1 fan redundancy
Rack (1U), (1.75 in/4.45 cm)



HP ProLiant DL360G4p SCSI Rack CTO Chassis (North America)
382147-405

Factory Integrated Model ships with:



Embedded NC7782 PCI-X Gigabit Server Adapter
Smart Array 6i Controller (Ultra320 SCSI, RAID, embedded)
Integrated Lights-Out (iLO) embedded
1 full length and 1 half length 64-bit/133 MHz PCI-X slots
1.44MB Diskette Drive
7 fans; N+1 fan redundancy
Rack (1U), (1.75 in/4.45 cm)



HP ProLiant DL360G4p SAS Rack CTO Chassis (North America)
389831-405
Factory Integrated Model ships with:
Embedded NC7782 PCI-X Gigabit Server Adapter
Integrated Lights-Out (iLO) embedded
1 full length and 1 half length 64-bit/133 MHz PCI-X slots
7 fans; N+1 fan redundancy
Rack (1U), (1.75 in/4.45 cm)


Step 1A: If SAS Model, Choose SAS Starter Kit or Controller (only one of the following)
SAS Controller HP Smart Array P600/256 BBWC Controller
NOTE: This is a required selection if one of the two following SAS Starter Kits is not selected. If choosing this part number, 2.5" SAS hard drives must still be selected under Step 4.
337972-B21 337972-B21
SAS Starter KitNOTE: SAS Starter Kits are not compatible with the SCSI or SATA models.
SAS Starter Kit - 36GB
NOTE: Includes Smart Array P600/256 BBWC Controller and (2) 36GB SFF SAS Universal Hard Drives.
396221-B21
SAS Starter Kit - 72GB
NOTE: Includes Smart Array P600/256 BBWC Controller and (2) 72GB SFF SAS Universal Hard Drives.
396220-B21

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors Intel X2.8GHz/800-2MB DL360G4 FIO processor 399042-B21 399042-B21
Intel X3.0GHz/800-2MB DL360G4 FIO processor 380327-B21 380327-B21
Intel X3.0GHz/800-2M LV DL360G4 FIO processor 394921-B21 394921-B21
Intel X3.2GHz/800-2MB DL360G4 FIO processor 379817-B21 379817-B21
Intel X3.4GHz/800-2MB DL360G4 FIO processor
Intel X3.6GHz/800-2MB DL360G4 FIO processor
Intel X3.8GHz800-2M DL360G4 FIO processor
NOTE: Dual-core processor is supported on HP ProLiant DL360 G4p Serial Attached SCSI (SAS) model only.
Base Memory 1 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
2 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 1 GB)
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 2 GB)
Optical Drive
(may or may not be required. See notes)
NOTE: Optical Drives are OPTIONAL if choosing the (389831-405) SAS Rack CTO Chassis Model or (382146-405) SATA Rack CTO Chassis Model in Step 1.
NOTE: An Optical Drive is REQUIRED if choosing the 382147-405 SCSI Rack CTO Chassis Model in Step 1.
Slimline CD-RW/DVD-ROM Combo Option Kit
NOTE: This CD-RW/DVD-ROM Drive (PN 331903-B21 331903-B21) is for SAS and SCSI models. It is not supported in SATA models.
Slimline DVD-ROM Drive (8X/24X) Option Kit
NOTE: This DVD-ROM Drive (PN 264007-B21 264007-B21) is for SAS and SCSI models. It is not supported in SATA models.
Slimline CD-ROM Drive 24X
NOTE: This CD-ROM Drive (PN 356963-B21 356963-B21) is the only drive that will support SATA models.

Step 3: Choose Additional Factory Integratable Options
Diskette Drive Slimline Ejectable Floppy Drive
NOTE: This Diskette Drive is for SAS (389831-405) models.
390164-B21
1.44 MB Diskette drive
NOTE: This Diskette Drive is for SATA (382146-405) models
354588-B21
Optical Drive NOTE: Optical Drives are OPTIONAL if choosing the (389831-405) SAS Rack CTO Chassis Model or (382146-405) SATA Rack CTO Chassis Model in Step 1.
NOTE: An Optical Drive is REQUIRED if choosing the 382147-405 SCSI Rack CTO Chassis Model in Step 1.
Slimline DVD-ROM Drive (8X/24X) Option Kit
NOTE: This DVD-ROM Drive (PN 264007-B21 264007-B21) is for SAS and SCSI models. It is not supported in SATA models.
Slimline CD-ROM Drive 24X
NOTE: This CD-ROM Drive (PN 356963-B21 356963-B21) is the only drive that will support SATA models.
Slimline CD-RW/DVD-ROM Combo Option Kit
NOTE: This CD-RW/DVD-ROM Drive (PN 331903-B21 331903-B21) is for SAS and SCSI models. It is not supported in SATA models.
Power Supply 460W HP redundant power supply with IEC cord only
NOTE: For SCSI and SATA Models.
535W HP redundant power supply with IEC cord only
NOTE: For SAS Models.
535W HP redundant power supply with NEMA or Japan cord only
NOTE: for SAS Models.
389830-001

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      DL360 G4p Options      DL360 G4p Memory      Storage      Power Specifications      DL360 G4p QuickSpecs images/line.gif (50 bytes)

Options

NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
HP ProLiant DL360 G4p Unique Options Intel Xeon Dual-core 2.8 GHz/800MHz-2x2MB 135W Processor Option Kit
NOTE: This processor option kit (PN 408585-B21 408585-B21) supports the HP ProLiant DL360 G4p SAS only.
408585-B21 408585-B21
Intel Xeon 2.8G Hz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 399042-B21 399042-B21) supports the HP ProLiant DL360 G4p only.
399042-B21 399042-B21
Intel Xeon 3.0 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 380327-B21 380327-B21) supports the HP ProLiant DL360 G4p only.
380327-B21 380327-B21
Intel Xeon 3.0 GHz/800MHz-2MB 55W Low Voltage Processor Option Kit
NOTE: This processor option kit (PN 394921-B21 394921-B21) supports the HP ProLiant DL360 G4p only.
394921-B21 394921-B21
Intel Xeon 3.2 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 379817-B21 379817-B21) supports the HP ProLiant DL360 G4p only.
379817-B21 379817-B21
Intel Xeon 3.4 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 376243-B21 376243-B21) supports the HP ProLiant DL360 G4p only.
376243-B21 376243-B21
Intel Xeon 3.6 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 376242-B21 376242-B21) supports the HP ProLiant DL360 G4p only.
376242-B21 376242-B21
Intel Xeon 3.8 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 376241-B21 376241-B21) supports the HP ProLiant DL360 G4p only.
PCI-e Riser option (to convert one or both PCI-X to PCI-e slots)
354589-B21
460W HP redundant power supply with IEC cord only
460W HP redundant power supply with US or Japanese NEMA cord only
NOTE: The HP ProLiant DL360 G4p ships with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or installation without a rack, country-specific power cord options are available. U.S., Japan, & APD models ship with two power cords: IEC-IEC and NEMA cords.
535W HP redundant power supply with IEC cord only
535W HP redundant power supply with US or Japanese NEMA cord only
NOTE: The HP ProLiant DL360 G4p ships with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or installation without a rack, country-specific power cord options are available. U.S., Japan, & APD models ship with two power cords: IEC-IEC and NEMA cords.
389830-001

ProLiant Essentials
Value Pack Software
ProLiant Essentials Intelligent Networking Pack
ProLiant Essentials Intelligent Networking Pack - Windows Edition, Single Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

436225-B21

NOTE: For additional ProLiant Intelligent Networking Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12062_div/12062_div.html
ProLiant Essentials Intelligent Networking Pack - Linux Edition, Single Server License
436229-B21
NOTE: For additional ProLiant Intelligent Networking Pack - Linux License Kits please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12327_div/12327_div.html

ProLiant Essentials Performance Management Pack
ProLiant Essentials Performance Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key, HP Management CD and documentation.
NOTE: The most recent version of the software can always be downloaded at http://www.hp.com/products/pmp.

306696-B21

NOTE: For additional ProLiant Performance Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11925_div/11925_div.html
ProLiant Essentials Rapid Deployment Pack Windows Edition Release
Rapid Deployment Pack, Single-Server License
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-B21

Rapid Deployment Pack, Single-Server License (Japan)
NOTE: This license allows 1 server to be deployed and managed via RDP.

267196-291

NOTE: For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html
ProLiant Essentials Workload Management Pack
ProLiant Essentials Workload Management Pack, Single Server License
NOTE: For additional ProLiant Workload Management Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11452_div/11452_div.html
ProLiant Essentials Virtualization Management Software
ProLiant Essentials Virtual Machine Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.

435661-B21

ProLiant Essentials Server Migration Pack, Single-Migration License
NOTE: Contains one license, enabling 1 server migration, with a unique license activation key and documentation.
435663-B21
ProLiant Essentials Server Migration Pack - Physical to ProLiant Edition, Single-Migration License
412978-B21
NOTE: This license allows 1 server to be migrated from a physical server to a virtual machine. Or this license can be used to migrate a virtual machine from one virtualization layer i.e. VMware GSX to a different virtualization layer such as VMware ESX or Microsoft Virtual Server 2005.
NOTE: For additional ProLiant Essentials Virtualization Management Software License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.html
ProLiant Essentials Vulnerability and Patch Management Pack
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
NOTE: For use with a single server. Contains one license with a unique license activation key and documentation.
371645-B21
NOTE: For additional ProLiant Vulnerability and Patch Management Pack License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12111_div/12111_div.html
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Remote Management Integrated Lights-Out Advanced Pack
Integrated Lights-Out Advanced Pack, 1 server
Featuring: Sophisticated virtual administration features for ultimate control of servers in the data centers and remote sites.
NOTE: For additional Integrated Light-Out Advanced Pack License Kits please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11052_div/11052_div.html

ProLiant Software Maintenance Subscription ProLiant Software Maintenance Subscription
355060-B21
ProLiant Software Maintenance Single Release
356573-B21
ProLiant Foundation Pack Single Release
356604-B21
NOTE: Please see the SmartStart QuickSpecs for additional information regarding the subscription purchase:
http://h18000.www1.hp.com/products/quickspecs/division/11073.html
(Worldwide)


Processor Intel Xeon 2.8 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 399042-B21 399042-B21) supports the HP ProLiant DL360 G4p only.
Intel Xeon 3.0 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 380327-B21 380327-B21) supports the HP ProLiant DL360 G4p only.
Intel Xeon 3.0 GHz/800MHz-2MB 55W Processor Option Kit, Low Voltage
NOTE: This processor option kit (PN 394921-B21 394921-B21) supports the HP ProLiant DL360 G4p only.
Intel Xeon 3.2 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 379817-B21 379817-B21) supports the HP ProLiant DL360 G4p only.
Intel Xeon 3.4 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 376243-B21 376243-B21) supports the HP ProLiant DL360 G4p only.
Intel Xeon 3.6 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 376242-B21 376242-B21) supports the HP ProLiant DL360 G4p only.
Intel Xeon 3.8 GHz/800MHz-2MB 110W Processor Option Kit
NOTE: This processor option kit (PN 376241-B21 376241-B21) supports the HP ProLiant DL360 G4p only.

Memory
(DIMMs)

1 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
2 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 1 GB)
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Single Rank Memory Kit (2 x 2 GB)
4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2 GB)

Optical Drives Slimline CD-RW/DVD-ROM Combo Option Kit
NOTE: This CD-RW/DVD-ROM Drive (PN 331903-B21 331903-B21) is for SCSI and SAS models only. It is not supported in SATA models.
Slimline DVD-ROM Drive (8X/24X) Option Kit (Servers)
NOTE: This DVD-ROM Drive (PN 264007-B21 264007-B21) is supported on SCSI and SAS models.
Slimline CD-ROM Drive 24X
NOTE: This CD-ROM Drive (PN 356963-B21 356963-B21) is the only drive that will support SATA models.
HP DVD+R/RW 8X Slim
NOTE: This DVD+R/RW 8X Slim (PN 383975-B21 383975-B21) is supported on SCSI and SAS models.

Diskette Drive Slimline Ejectable Floppy drive
NOTE: This Diskette Drive is for SAS models only.
390164-B21
1.44 MB Diskette Drive
NOTE: This 1.44MB Diskette Drive (PN 354588-B21) is supported on SCSI and SATA models only.
NOTE: Ships standard in SCSI models.
354588-B21

Hard Drives Ultra320 – Hot Plug
NOTE: The HP ProLiant DL360 G4p SCSI models support U320 Universal Hot Plug drives.
HP 300GB U320 10K Universal HDD
HP 146GB U320 10K Universal HDD
HP 72GB U320 10K Universal HDD
HP 300GB U320 15K Universal HDD
HP 146GB U320 15K Universal HDD
HP 72GB U320 15K Universal HDD
HP 36GB U320 15K Universal HDD
NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.html (Worldwide)
Serial-ATA (SATA) Hot Plug Hard Drive (For use with SATA Models)
NOTE: The HP embedded 2 Port SATA controller does not support RAID, hot plug drive functionality or drive activity LEDs.

HP 750GB 1.5G SATA 7.2K 3.5" HDD
HP 500GB 1.5G SATA 7.2K 3.5" HDD
HP 250GB 1.5G SATA 7.2K 3.5" HDD
HP 160GB 1.5G SATA 7.2K 3.5" HDD
HP 80GB 1.5G SATA 7.2K 3.5" HDD
SFF SATA Hot Plug
HP 60GB 1.5G SATA 5.4K SFF HDD

NOTE: SATA drives have a 1-year warranty. Please see the SATA Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html (Worldwide)


Serial Attached SCSI (SAS) SFF Hot Plug (For use with SAS Models)
HP 146GB 3G SAS 10K SFF SP HDD
HP 72GB 3G SAS 10K SFF SP HDD
HP 36GB 3G SAS 10K SFF SP HDD
NOTE: All SFF SAS Universal Hard Drives are supported ONLY by HP ProLiant DL360 G4p SAS models.
NOTE: Please see the SAS Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12224_div/12224_div.html (Worldwide)


Storage Controllers SCSI Controllers
128MB Battery Backed Write Cache Enabler Option Kit
NOTE: Upgrade for Smart Array 6i Controller.

Smart Array 6402/128 Controller
NOTE: For support of external drives only.

273915-B21 273915-B21

Smart Array 6404/256 Controller
NOTE: For support of external drives only.

273914-B21 273914-B21

Smart Array 642 Controller
NOTE: For support of external drives only.

291967-B21 291967-B21

128MB Battery-Backed Cache Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
Ultra320 Expansion Module for SA-6402
NOTE: For support of external drives only.
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
http://h18000.www.1.hp.com/products/quickspecs/12030_div/12030_div.html
(Smart Array 6i)
http://h18000.www1.hp.com/products/quickspecs/11587_div/11587_div.html (Smart Array 6400 Series)
http://h18000.www1.hp.com/products/quickspecs/11563_div/11563_div.html (Smart Array 642)
http://h18000.www.1.hp.com/products/quickspecs/11943_div/11943_div.html
(U320 SCSI G2 HBA)

SAS Controller
Smart Array P600 Controller
HP Smart Array P600/256 BBWC Controller
512MB DDR BBWC Upgrade
NOTE: Ships standard with SAS model.
NOTE: Please see the following QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12247_div/12247_div.html (Smart P600 Controller)

SAS HBA
HP 8 Internal Port SAS HBA with RAID
NOTE: Supports SAS/SATA models. RAID 0,1 supported.
NOTE: Please see the HBA QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/12332_div/12332_div.html

HP SATA/SAS 1U Cable Kit
NOTE: Required for HP SAS/SATA HBA use with HP ProLiant DL360 G4p SATA models.

Communications HP NC150T PCI 4-port Gigabit 1000T Combo Switch Adapter
HP NC310F PCI-X 1000SX Gigabit Server Adapter
HP NC320T PCI Express 1000T Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
HP NC510F PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510F adapter.
HP NC510C PCIe 10 Gigabit Server Adapter
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510C adapter.
HP NC1020 PCI 1000T Gigabit Server Adapter
HP NC7771 PCI-X 1000T Gigabit Server Adapter
NOTE: Any NIC (except the NC1020) on the option list can be used for redundancy with the embedded NC7782 Dual Port Network Controller. When teaming with other NICs or with the embedded NIC, the lack of Jumbo Frames and LSO features on the NC1020 will cause high end NICs to have those features disabled. (e.g. incompatibility issues with the other option NICs for that platform).
HP IB 4X SDR PCI-e single PORT HCA
HP IB 4X DDR PCI-e Single PORT HCA

Management Options Remote Insight Lights-Out Edition II (NA, LA)

227251-001 227251-001

Remote Insight Lights-Out Edition II (EMEA)

227251-021

Remote Insight Lights-Out Edition II (ROW)

227251-371


Tape Drives

NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:

USB Tape Drives
HP StorageWorks DAT 72 USB Internal Tape Drive (Carbonite)
NOTE: HP recommends combining this tape drive with the 1U USB Rack-Mount kit (A8007A A8007A) for a complete rack-mount solution.
DW026A
Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
NOTE: HP recommends combining this tape drive with the 1U SCSI Rack-Mount kit (A7445B A7445B) for a complete rack-mount solution.
HP StorageWorks 3U SCSI Rack-mount kit with one Ultrium 460 (Carbon)
350546-B22
HP StorageWorks 1U SCSI Rack-mount kit with one Ultrium 448 SCSI Tape Drive (Carbonite)
DW028B
HP StorageWorks 1U SCSI Rack-mount kit with one Ultrium 920
EH903A
HP StorageWorks 3U SCSI Rack-mount kit with one Ultrium 960 (Carbonite)
Q1595B
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html
(Worldwide)
http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html
(Worldwide)

For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U Rack-Mount Kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232, Ultrium 448 and Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 24 USB, DAT 40 USB and DAT 72 USB tape drives.
HP StorageWorks 3U Rack-Mount Kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72, DLT VS160, SDLT 320, SDLT 600, Ultrium 232, Ultrium 460, Ultrium 448, Ultrium 920 and Ultrium 960 tape drives.
274338-B22
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html (Worldwide)


Tape Autoloaders
HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloader AE313A
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 Ultrium 920 G2 Tape Autoloader AH165A
HP StorageWorks 1/8 Ultrium 448 G2 Tape Autoloader AH164A
HP StorageWorks 1/8 Ultrium 232 G2 Tape Autoloader AH163A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions
AH166A
NOTE: Please reference the Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs.

Tape Libraries HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library
AG115A AG115A
HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Drive Library
AG326B
HP StorageWorks MSL2024 1 Ultrium 920 Drive Library
AH169A
HP StorageWorks MSL2024 2 Ultrium 920 Drive Library AH170A
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library AG116A AG116A
HP StorageWorks MSL2024 2 Ultrium 448 Drive Library AG117A AG117A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library
AG320A
HP StorageWorks MSL4048 2 Ultrium 448 Drive Library
AG321A
HP StorageWorks MSL4048 1 Ultrium 920 Drive Library
AH171A
HP StorageWorks MSL4048 2 Ultrium 920 Drive Library
AH172A
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library
AG322A
HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Drive Library
AG324B
HP StorageWorks MSL4048 2 Ultrium 960 Drive Library
AG323A AG323A
HP StorageWorks MSL4048 2 Ultrium 960 4GB FC Drive Library AG325B
HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library AD606B
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library AD608B
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library AD607B
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium 460 Dr LVDS Library AD598B
HP StorageWorks MSL6030 1 Ultrium 460 Dr FC Library AD600B
HP StorageWorks MSL6030 2 Ultrium 460 Dr LVDS Library AD599B
HP StorageWorks MSL6030 2 Ultrium 460 Dr FC Library AD601B
NOTE: Please reference the MSL2024, MSL4048, and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs.

Power Cords NOTE: The HP ProLiant DL360 G4p ships with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or installation without a rack, country-specific power cord options are available. U.S. & Japan models will ship with two power cords: IEC-IEC (142257-002) and North American C13-Nema 5-15P (103541-001) cords.
Power Cord, Euro, 10A 250 V Straight (12 ft/3.7 m)
157215-021
Power Cord, UK, 10A 250 V Straight (12 ft/3.7 m)
157216-031
Power Cord, Danish, 10A 250 V Straight (12 ft/3.7 m)
157218-081
Power Cord, Swiss, 10A 250 V Straight (12 ft/3.7 m)
157219-111
Power Cord, Italian, 10A 250 V Straight (12 ft/3.7 m)
157217-061
Power Cord, South Africa, 10A 250 V Straight (12 ft/3.7 m)
157220-AR1

HP StorageWorks Modular Smart Array 20 HP StorageWorks Modular Smart Array 20
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
335921-B21 335921-B21
HP StorageWorks Modular Smart Array 20 Starter Kit
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.
366172-B21
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 3.5” Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 30 HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 Hot Plug Hard Drives.

HP StorageWorks Modular Smart Array 50

HP StorageWorks Modular Smart Array 50 Enclosure

364430-B21 364430-B21

NOTE: Please see the Modular Smart Array 50 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html
(Worldwide)

HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2

335880-B21

NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.html
(Worldwide)

HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at
http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.html (Worldwide)

HP StorageWorks Modular Smart Array 1500 cs Modular Smart Array 1500 Controller Shelf
AA986A
NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at:
http://www.hp.com/go/MSA1500cs


StorageWorks Options NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows, Linux and Netware. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
HP StorageWorks FC2142SR 4Gb PCI-e HBA
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC1142SR 4Gb PCI-e HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA
HP StorageWorks FC2143 4Gb PCI-X 2.0 -to-Fibre Channel HBA
HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1143 4Gb PCI-X 2.0 HBA
HP StorageWorks FC1243 Dual Channel 4Gb PCI-X 2.0 HBA

Cluster Options ProLiant Cluster Starter Kit
364023-B22
NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11935_div/11935_div.html (Worldwide)
HP HA/F200 for Entry SAN Cluster
364026-B22
NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11932_div/11932_div.html (Worldwide)

ProLiant Cluster HA/F500 for the Enterprise SAN
364024-B21
NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11933_div/11933_div.html (Worldwide)
HP Serviceguard for Linux ProLiant Cluster A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (2 node license cluster kit)
305199-B26
HP Serviceguard for Linux A.11.16 for SUSE SLES 9 & 10 and Red Hat EL 3 & 4 (single license version)
307754-B26
HP Serviceguard for Linux and Red Hat Global File System - 1 year subscription
T2798AA#001
HP Serviceguard for Linux and Red Hat Global File System - 3 years subscription
T2798AA#003
NOTE: For additional information regarding HP Serviceguard for Linux, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html (Worldwide)

Uninterruptible Power Systems – Rack Mountable HP, R1.5kVA UPS, 1U, NA
AF419A
HP, R1.5kVA UPS, 1U, INTL
AF418A
HP, R1.5kVA UPS, 1U, JPN/TW
AF421A
HP R3000 VA UPS, 2U, DTC, INTL
NOTE: Replaces non-RoHs compliant part numbers 192186-B31, 192186-B32, 192186-B33, 192186-AR1.
AF414A
HP R3000 VA UPS, 2U, L5-30, NA
NOTE: Replaces non-RoHs compliant part number 192186-001 192186-001.

AF422A
HP R3000 VA UPS, 2U, L6-20, NA
NOTE: Replaces non-RoHs compliant part number 192186-002 192186-002.
AF423A
HP R3000 VA UPS, 2U, L6-20, JPN
NOTE: Replaces non-RoHs compliant part number 192186-292.
AF424A
HP R3000 VA UPS, 2U, L5-30, JPN
NOTE: Replaces non-RoHs compliant part number 192186-291.
AF425A
HP R5500 VA UPS, INTL
NOTE: Replaces non-RoHs compliant part number 326529-B31.
AF416A
HP R5500 VA UPS, NA/JPN
NOTE: Replaces non-RoHs compliant part number 326529-D71 326529-D71.
AF426A

HP Monitored Power Distribution Unit (PDU) HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3U, 24A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 370959-D71 370959-D71.
AF503A
HP 8.3 kVA S1324 Monitored PDU- single input, 3U, 24A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 370960-D71 370960-D71.
AF504A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1U, 40A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 37061-D71.
AF505A
HP 8.6 S1140 Monitored PDU- single input, 1U, 40A (NA/JPN)
NOTE: Replaces non-RoHs compliant part number 370962-D71 370962-D71.
AF506A
HP 22.1 kVA S2316 Monitored PDU- dual input, 3U, 16A (INTL)
NOTE: Replaces non-RoHs compliant part number 370963-B31.
AF507A
HP 11 kVA S1316 Monitored PDU- single input, 3U, 16A (INTL)
NOTE: Replaces non-RoHs compliant part number 370964-B31.
AF508A
HP 14.7 kVA S2132 Monitored PDU- dual input, 1U, 32A (INTL)
NOTE: Replaces non-RoHs compliant part number 370965-B31.
AF509A
HP 7.3kVA S1132 Monitored PDU- single input, 1U, 32A (INTL)
NOTE: Replaces non-RoHs compliant part number 370966-B31.
AF510A

Modular PDUs 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).

Fixed Cord Extension Bars
NOTE: Two extension bar sticks; each with (7) C13 plugs.
351655-B21
Fixed Cord PDU (NA/JPN)
NOTE: Four Fixed Cord Extension Bars, and one 24A, HV mPDU L6-30P core.
351655-D72
Fixed Cord PDU (INTL)
NOTE: Four Fixed Cord Extension Bars, and one 32A, HV mPDU IEC-309 core.
351655-B31
HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan)
NOTE: This mPDU (252663-D71 252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)

252663-D72 252663-D72

HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int’l)

252663-B31

HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW)
NOTE: This mPDU (252663-B21 252663-B21), 40A model has a hardwired input.

252663-B21 252663-B21

HP Modular Power Distribution Unit(mPDU), High Volt Model, 16A (200-240 VAC) (WW)

252663-B24 252663-B24

HP Modular Power Distribution Unit (mPDU), High Volt Model, 40A, Attached Cord, (NA/JPN)
252663-D73
HP Modular Power Distribution Unit (mPDU), High Volt Model, 40A, Attached Cord, (Int'l)
252663-B32
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR and R6000 For North America, need to order cable PN 340653-001.
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html (Worldwide)

USB Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
HP USB 04 Standard Keyboard
DT528A#xxx
USB 2.0 4-port HUB
DG954A
HP 1GB Drive Key II- USB 2.0 Flash Drive
AG382AA
HP 512MB DriveKey II- USB Flash Drive
ED516AA

HP ProLiant DL360 G4p Deployment Options 460W HP redundant power supply with IEC cord only
460W HP redundant power supply with US or Japanese NEMA cord only
NOTE: The HP ProLiant DL360 G4p ships with a single IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or installation without a rack, country-specific power cord options are available. U.S., Japan, & APD models ship with two power cords: IEC-IEC and NEMA cords.
535W HP redundant power supply with IEC cord only
535W HP redundant power supply with US or Japanese NEMA cord only
NOTE: The HP ProLiant DL360 G4p ships with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For stand-alone deployments or installation without a rack, country-specific power cord options are available. U.S., Japan, & APD models ship with two power cords: IEC-IEC and NEMA cords.
389830-001

Rack Kits 1U Cable Management Arm
NOTE: Package contains two cable management arms.
365403-B21

HP Rack 5000 Series
(Graphite Metallic)

HP 5642 Rack Unassembled
NOTE: Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.


HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)

10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the Rack 10000 G2 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack 10000 Series
(Graphite Metallic)

10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
HP Rack S10614 (14U) Rack Cabinet - Shock Pallet
HP Rack 10842 (42U, 800mm wide) – Pallet

257415-B21 257415-B21

HP Rack 10842 (42U, 800mm wide) – Shock Pallet

257415-B22 257415-B22

HP Rack 10647 (47U) – Pallet

245160-B21 245160-B21

HP Rack 10647 (47U) – Crated

245160-B23

HP Rack 10622 (22U) – Pallet

245163-B21 245163-B21

HP Rack 10622 (22U) – Shock Pallet

245163-B22 245163-B22

HP Rack 10622 (22U) – Crated

245163-B23

NOTE: xxxxxx-B21 (pallet) used to ship empty racks shipped on a truck. -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty racks.



NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all HP equipment is qualified to be shipped in the Rack 10000 series



NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.html (Worldwide)



NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower




Keyboards and Monitors

TFT7210R Rack Mounted 17" Monitor
NOTE: For a complete list of Monitors please view the following URL:
http://www.hp.com/go/kvm

TFT7600 Rackmount Keyboard Monitor US
TFT7600 Rackmount Keyboard Monitor UK
AG053A
TFT7600 Rackmount Keyboard Monitor GR
AG054A
TFT7600 Rackmount Keyboard Monitor FR
AG055A
TFT7600 Rackmount Keyboard Monitor IT
AG056A
TFT7600 Rackmount Keyboard Monitor SP
AG057A
TFT7600 Rackmount Keyboard Monitor DEN
AG058A
TFT7600 Rackmount Keyboard Monitor NOR
AG059A
TFT7600 Rackmount Keyboard Monitor SE/FI
AG060A
TFT7600 Rackmount Keyboard Monitor SWI
AG061A
TFT7600 Rackmount Keyboard Monitor PORT
AG062A
TFT7600 Rackmount Keyboard Monitor BEL
AG063A
TFT7600 Rackmount Keyboard Monitor JPN2
AG064A
TFT7600 Rackmount Keyboard Monitor RUS
AG065A
TFT7600 Rackmount Keyboard Monitor INTL
AG066A
1U Rackmount Keyboard with USB, US
1U Rackmount Keyboard with USB, UK
AG073A
1U Rackmount Keyboard with USB, GR
AG074A
1U Rackmount Keyboard with USB, FR
AG075A
1U Rackmount Keyboard with USB, ITL
AG076A
1U Rackmount Keyboard with USB, SP
AG077A
1U Rackmount Keyboard with USB, DEN
AG078A
1U Rackmount Keyboard with USB, NOR
AG079A
1U Rackmount Keyboard with USB, SE/FI
AG080A
1U Rackmount Keyboard with USB, SWI
AG081A
1U Rackmount Keyboard with USB, PORT
AG082A
1U Rackmount Keyboard with USB, BEL
AG083A
1U Rackmount Keyboard with USB, JPN2
AG084A
1U Rackmount Keyboard with USB, RUS
AG085A
1U Rackmount Keyboard with USB, INTL
AG086A
NOTE: For additional information regarding Rack Options, please see the following URL: http://www.hp.com/go/rackandpower

HP KVM Switch Options

2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x 4 USB/PS2 KVM Switch, TT (NA/JPN)
371301-D71
HP 1x 4 USB/PS2 KVM Switch, TT (AU/NZ)
371301-011
HP 1x 4 USB/PS2 KVM Switch, TT (UK)
371301-031
HP 1x 4 USB/PS2 KVM Switch, TT (EU)
371301-A21
HP 1x 4 USB/PS2 KVM Switch, RM (ALL)
371302-B21
HP PS2 KVM Cable with audio, 6', 2-pack
371730-B21
HP USB KVM Cable with audio, 6', 2-pack
371729-B21
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

HP Serial Console Server Options

HP 16 Port Serial Console Server (worldwide)
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.

Service and Support Offerings (HP Care Pack Services)

Hardware Services 4-Hour On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4496E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4497E
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4498E
Hardware Services Next Business Day On-Site Service
Hardware Installation, Electronic
U4506E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4507E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4508E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4509E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6310E
Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8332E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      DL360 G4p Options      DL360 G4p Memory      Storage      Power Specifications      DL360 G4p QuickSpecs images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant DL360 G4p Standard Models

Standard Memory
1 GB PC2-3200 DDR2 400 Registered SDRAM DIMM installed (2 x 512 MB SDRAM DIMM)

Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 2A must match. DIMMs 3B and 4B, and DIMMs 5C and 6C must match and must be installed as a pair. When DIMMs 1A and 2A are populated the system is automatically configured for 2:1 interleaving. When four or six DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving.

Standard Memory Plus Optional Memory
Up to 9 GB memory is available with the standard memory of 1 GB and the optional installation of PC2-3200 DDR2 400 Registered SDRAM DIMM memory kits.

Standard Memory Replaced with Optional Memory
Up to 12 GB of memory is available with the removal of the standard 512 MB of memory and the optional installation of PC2-3200 DDR2 400 Registered SDRAM DIMM memory kits.

NOTE: Chart does not represent all possible configurations.

Memory
Slot
  1 2 3 4 5 6
Standard 1 GB
512 MB
512 MB
Empty
Empty
Empty
Empty
Optional 9 GB
512 MB
512 MB
2 GB
2 GB
2 GB
2 GB
Maximum 12 GB
2 GB
2 GB
2 GB
2 GB
2 GB
2 GB
NOTE: In the online spare configuration, the ROM automatically configures the last populated bank as the spare memory. If only banks A and B are populated, bank B is the spare bank. If banks A, B, and C are populated, bank C is the spare bank, Online spare memory is configured through RBSU.


Following are memory options available from HP:


  • 1 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
343055-B21 343055-B21
  • 2 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 1 GB)
343056-B21 343056-B21
  • 4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Single Rank Memory Kit (2 x 2 GB)
343057-B21 343057-B21
  • 4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2 GB)
375004-B21 375004-B21

HP ProLiant DL360 G4p RPS Models

Standard Memory
2 GB PC3200 DDR 400 Registered SDRAM DIMM installed (2 x 1 GB SDRAM DIMM)

Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 2A must match. DIMMs 3B and 4B, and DIMMs 5C and 6C must match and must be installed as a pair. When DIMMs 1A and 2A are populated the system is automatically configured for 2:1 interleaving. When four or six DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving.

Standard Memory Plus Optional Memory
Up to 10 GB memory is available with the standard memory of 2 GB and the optional installation of PC2-3200 DDR2 400 Registered SDRAM DIMM memory kits.

Standard Memory Replaced with Optional Memory
Up to 12 GB of memory is available with the removal of the standard 1 GB of memory and the optional installation of PC2-3200 DDR2 400 Registered SDRAM DIMM memory kits.

NOTE: Chart does not represent all possible configurations.

DL360 G4p Memory

Slot



1

2

3

4 5

6

Standard

2 GB
1 GB
1 GB
Empty
Empty
Empty
Empty

Optional

10 GB
1 GB
1 GB
2 GB
2 GB
2 GB
2 GB
Maximum
12 GB
2 GB
2 GB
2 GB
2 GB
2 GB
2 GB
NOTE: In the online spare configuration, the ROM automatically configures the last populated bank as the spare memory. If only banks A and B are populated, bank B is the spare bank. If banks A, B, and C are populated, bank C is the spare bank, Online spare memory is configured through RBSU.


Following are memory options available from HP:


  • 1 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 512 MB)
343055-B21 343055-B21
  • 2 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Memory Kit (2 x 1 GB)
343056-B21 343056-B21
  • 4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Single Rank Memory Kit (2 x 2 GB)
343057-B21 343057-B21
  • 4 GB Advanced ECC PC2-3200 DDR2 SDRAM DIMM Dual Rank Memory Kit (2 x 2 GB)
375004-B21 375004-B21

NOTE: Online Spare Memory is not supported when using 2-rank DIMMs. A total of 8 ranks are supported on the HP ProLiant DL360 G4p, A maximum of 4, 2-rank DIMMs can be populated. If you plan to mix DIMM types, 2-rank DIMMs must be installed in the first bank, 1 rank DIMMs can then be installed in subsequent banks.
The following is the memory population rules for the HP ProLiant ProLiant DL360 G4p.

Key: S denotes single rank kit, D denotes Dual rank kit, and X denotes no install.

Bank A
Bank B
Bank C
NOTES:
S
X
X

S
S
X

S
S
S

D
X
X
Online spare not supported
D
S
X
Online spare not supported
D
S
S
Online spare not supported
D
D
X
Online spare not supported
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      DL360 G4p Options      DL360 G4p Memory      Storage      Power Specifications      DL360 G4p QuickSpecs images/line.gif (50 bytes)

Storage

1,0 Two Ultra320 Hot Pluggable Hard Drive Bays; SATA model also available
A 1.44-MB Diskette Drive (removeable)
B Low-Profile 24x IDE CD-ROM (ejectable)

1,2,3,4

Four SFF Serial Attached SCSI Hot Pluggable Hard Drive Bays
A Multibay: Slimline 24x CD-ROM (ejectable)



Drive Support - SAS Models



Quantity
Supported

Position
Supported


Controller

Removable Media



Slimline 1.44-MB Diskette Drive

Up to 1

A
Integrated

Slimline 24x IDE CD-ROM Drive

Up to 1
A
Integrated IDE
Slimline DVD-Rom Drive (8x/24x) Option Kit (Servers)
Up to 1
A
Integrated IDE


Drive Support - SCSI Models



Quantity
Supported

Position
Supported


Controller

Removable Media



1.44-MB Diskette Drive

Up to 1

A
Integrated

Slimline 24x IDE CD-ROM Drive

Up to 1
B
Integrated IDE
Slimline DVD-Rom Drive (8x/24x) Option Kit (Servers)
Up to 1
B
Integrated IDE

DL360 G4p Hard Drives
Ultra320 Hot Pluggable Drives
NOTE: The HP ProLiant DL360 G4p only supports U320 Universal drives.

Quantity
Supported
Position
Supported

Controller
300GB U320 10K
146GB U320 10K
72GB U320 10K
300GB U320 15K
146GB U320 15K
72GB U320 15K
36GB U320 15K
Up to 2
0-1
Smart Array 6i Controller (integrated on system board)
NOTE: The HP ProLiant DL360 G4p does not offer an external SCSI port.
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

SFF SAS Hard Drive

Quantity
Supported
Position
Supported

Controller
146GB 3G SAS 10K SP
72GB 3G SAS 10K SP
36GB 3G SAS 10K SP
4
1-4
HP Smart Array P600/256 BBWC Controller

Serial-ATA (SATA) Hard Drive
NOTE: The HP embedded 2 Port SATA controller does not support RAID, hot plug drive functionality or drive activity LEDs.


Quantity
Supported

Position
Supported


Controller

700GB 1.5G SATA 7.2K 500GB 1.5G SATA 7.2K 250GB 1.5G SATA 7.2K 160GB 1.5G SATA 7.2K
80GB 1.5G SATA 7.2K

Up to 2

0-1

HP embedded 2 Port SATA Controller with RAID 0/1 support

Serial-ATA (SATA) SFF Hard Drive
NOTE: The HP embedded 2 Port SATA controller does not support RAID, hot plug drive functionality or drive activity LEDs.
60GB 1.5G SATA 5.4K
Up to 2
0-1
HP embedded 2 Port SATA Controller with RAID 0/1 support

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter



Modular Smart Array 20 Family

Please see the Modular Smart Array 20 QuickSpecs to determine configuration requirements

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
 Modular Smart Array 30 Family
Please see the Modular Smart Array 30 QuickSpecs to determine configuration requirements.
External
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
  Modular Smart Array 50 Enclosure
2
External
HP Smart Array P600/256 BBWC Controller
 Modular Smart Array 500 G2 System
1
External
Smart Array 642 Controller (used as Host Bus Adapter)
Please see the Modular Smart Array 500 G2 QuickSpecs for the latest list of supported HBAs: http://www.hp.com/go/msa500
 Modular Smart Array 1500 cs
Please see the Modular Smart Array 1500 cs QuickSpecs below to determine configuration requirements
External
Please see the Modular Smart Array 1500 cs QuickSpecs (URL below) for the latest list of supported HBAs
 Modular Smart Array 1000
Please see the Modular Smart Array 1000 QuickSpecs below to determine configuration requirements
External
Please see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1000: http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.html (Worldwide)
Modular Smart Array 1500 cs: http://www.hp.com/go/MSA1500cs

Tape Drives, Tape Autoloaders, & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10233.html (Worldwide)

NOTE:
For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10809.html (Worldwide)

NOTE:
For complete listing of tape drive offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For recommended tape drive offerings for this ProLiant server see the following:


Position
Supported
Controller
Controller Part Numbers

HP StorageWorks Tape Drives, External
DAT 24 USB
DAT 40 USB
DAT 72 USB
External
USB 2.0 Port


N/A

HP StorageWorks Tape Drives, External
Ultrium 232
Ultrium 448
Ultrium 460
Ultrium 920
Ultrium 960
DAT 40
DAT 72
DLT VS160
SDLT 600
External
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2

HP StorageWorks Autoloaders, External
DAT 72x10 Autoloader
1/8 G2 Tape Autoloader

External

64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2


374654-B21 374654-B21



HP StorageWorks SCSI Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
3U Rack-Mount Kit
External

64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2



374654-B21 374654-B21


HP StorageWorks USB Rack-Mount Tape Drive Enclosures
1U Rack-Mount Kit
External

USB 2.0 Port



N/A


HP StorageWorks Tape Libraries, External
MSL2024 (Ultrium 448, Ultrium 920 and 960-based)
MSL4048 (Ultrium 448, Ultrium 920 and 960-based)
MSL6000 (Ultrium 960 and 460-based)
MSL6000 (SDLT 600-based)
External
Please consult the EBS connectivity matrix at http://www.hp.com/go/ebs for detailed connectivity information.
N/A
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      DL360 G4p Options      DL360 G4p Memory      Storage      Power Specifications      DL360 G4p QuickSpecs images/line.gif (50 bytes)

Power Specifications

To review typical system power ratings use the Active Answers Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL360 G4p
- Click on: "Power Calculator" link. (You may need to scroll down to see it)

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models (North America only)      DL360 G4p Options      DL360 G4p Memory      Storage      Power Specifications      DL360 G4p QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit Dimensions (H x W x D) 1.70 x 16.78 x 27.75 in (4.32 x 42.62 x 70.49 cm)
Weight Maximum (two hard drives installed, two power supply, two processor) 37 lb (16.78 kg)
  No hard drives installed, one power supply, one processor 27.5 lb (12.47 kg)
Input Requirements Rated Input Voltage 100 to 240 VAC
  Rated Input Current 5.85 Amps (100 V) to 2.85 Amps (200 V)
  Rated Input Frequency 50 to 60 Hz
  Rated Input Power 585 W (100VAC) to 565 W (200VAC)
NOTE: 585 W of Rated Input Power is for the Maximum Peak Output Power of 535 W.
BTU Rating
2000 BTU/HR
NOTE: The BTU rating listed is for the Rated Input Power of 585 W.

Power Specifications To review typical system power ratings use the Power Calculator which is available via the online tool located at URL: http://h30099.www3.hp.com/configurator/calc
/Power%20Calculator%20Catalog.xls

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL360 G4p
- Click on: "Power Calculator" link. (You may need to scroll down to see it)

Power Supply Output Power
(per power supply)
Rated Steady-State Power 535 W
Temperature Range Operating 10° to 35°C at sea level with an altitude derating of 1.0°C per every 300m (1000ft) above sea level to a maximum of 3000m (10,000ft), no direct sustained sunlight. Maximum rate of change is 10°C/Hr.
Storage -30° to 60°C - Maximum rate of change is 20°C/Hr.
Relative Humidity
(non-condensing)
Operating 10 to 90% relative humidity (Rh), 28°C maximum wet bulb temperature
Storage 5 to 95% relative humidity (Rh), 38.7°C maximum wet bulb temperature
Maximum Wet Bulb Temperature 38.7° C
SCSI Connectors No external VHDCI connector
Acoustic Noise Idle
(Fixed Disk Drives Spinning)


L WAd (BELS)
6.6

L pAm (dBA)
50
  Operating
(Random Seeks to Fixed Disks)


L WAd (BELS)
6.9 BELS

L pAm (dBA)
53 dBA

Smart Array 6i Controller (integrated on system board)
(SCSI models)
Data Compatible with all Smart Array Controllers Yes
Instant Upgrades to other Smart Array Controllers Yes
Consistent Software Manageability Tools Yes
PCI-X Bus 64-bit up to 133 (integrated on system board)
PCI-X Peak Data Transfer Rate 1066 MB/s
SCSI Protocols Supported Ultra320, Ultra3, Ultra2
SCSI Peak Data Transfer Rate 320 MB/s
Channels 1
SCSI Ports
(external/internal)

0/1

Drives Supported
(maximum)

2 drives

Cache 64 MB Read Cache
Battery-Backed Write Cache Yes, with installation of Battery-Backed Write Cache Enabler, up to 128MB
RAID Support 0, 1, 1+0, 5
Logical Drives
(maximum)
32 logical drives
Online Configuration Yes
Online Capacity Expansion Yes
Logical Drive Capacity Extension Yes
Online Stripe Size Migration Yes
Online RAID Level Migration Yes
Online Spare Support Yes
Automatic Data Recovery Yes
Drive Roaming Yes

Integrated Serial ATA Controller
(SATA models)
Simultaneous drive transfer channels Support for up to 2 hard drives
Transfer rate synchronous (maximum theoretical) 150 MB/s per channel; 300MB/s in RAID 0 pair
Protocol Serial ATA
Drive support HP Universal Serial ATA
Data transfer modes ATA data-transfer modes supported
SATA 1.0, SATA II
PIO modes 0-4
Multiword DMA modes 0-2
Ultra DMA modes 0-6
Feature Supports Pre-Failure Warranty of SATA Hard Drives
Support for Systems Insight Manager
Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support
OS Support Microsoft Windows 2000 Server
Microsoft Windows Server 2003
Novell NetWare
Linux (Red Hat, SuSE, UnitedLinux)
NOTE: This controller does not support LED functions. This controller does not support Hot Plug functions.

Smart Array P600 Controller
(SAS models only)
Disk Drive and Enclosure Protocol Support 3 Gbps SAS (Serial Attached SCSI)
1.5 Gbps SATA (Serial Advanced Technology Attachment)
Architecture
1.5 Gb SATA
SAS Connectors
1 internal SFF8484 & 1 external SFF8470 / internal SFF8484 shared x4 Wide SAS Ports
12 Gbps per x4 Wide SAS Port (4 x 3 Gbps)
Data Transfer Method
64-bit wide, PCIX 133 MHz (1 GB/s maximum bandwidth)
PCI Bus Speed PCIX-133 and 3.3 volt PCI compatibility only
Memory Bus Speed DDR-266 and 72 bit wide bus
PCI
64-bit, 133-MHz PCI-X (1 GB/s maximum bandwidth)
Simultaneous Drive Transfer Ports PCI-X and 3.3 volt PCI compatibility only
Port Transfer Rate 2 x4 Wide SAS Ports
Software upgradeable Firmware
12 Gb/s per x4 Wide SAS Port (4 x 3 Gb/s)
Cache Memory
Yes
Logical Drives Supported
256 MB Read/Write (512-MB module upgrade available);
ECC protection, battery-backed, and removable
Maximum Capacity
Up to 32 logical drives
Up to 2.2 TB per logical drive
Memory Addressing
2.7 TB (38 x 72 GB)
64-bit, supporting servers memory greater than 4 GB
RAID Support RAID 6 (Advanced Data Guarding)
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware
Disk Drive and
4-MB flashable ROM
Enclosure Protocol Support 3 Gb SAS and 1.5 Gb SATA

Embedded NC7782
PCI-X Gigabit Server Adapter
Network Interface 10/100/1000-T
Compatibility EEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method 64-bit/66MHz PCI-X
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
  10Base-T (Full-Duplex) 20 Mb/s
  100Base-TX (Half-Duplex) 100 Mb/s
  100Base-TX (Full-Duplex) 200 Mb/s
  1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP up to 328 ft (100 m)
  10/100/1000 Base-TX Category 5 UTP up to 328 ft (100 m)

USAPartsDirect          Ph: 1.613.599.1287                   Fax: 1.613.599.8120
serversServers |bladesBlades | Hard DrivesU2/U3 |u320 Hard DrivesU320 |SAS/SATA Hard DrivesSAS/SATA |Fibre Hard DrivesFibre |MemoryMemory |ControllersControllers |Processors Processors |Tape DrivesTape Drives |Power SuppliesPower Supplies
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

Legal | Privacy | | Primary Site | Contact us | Site Problem?  |
