Introducing the HP ProLiant DL165G7,
now available with the latest high performance Opteron Eight and Twelve
Core processors, 24 DDR3 memory DIMMs, 2 PCIe Gen2 slots, four NIC ports
and an Easy Setup CD.
Hot Plug SAS/SATA or Non-Hot Plug SATA Models
Front View:
Rear View:
1.
Access panel
1.
Power supply
2.
System fans
2.
Optional SD Card Reader
3.
Front-panel USB 2.0 ports
3.
Unit Identification LED (UID)
4.
Power switch/system status LEDs
4.
Two USB ports
5.
Standard 1st , 2nd
, 3rd and 4th 3.5" hot-plug SAS/SATA or non-hot plug SATA hard drive
bays
NOTE: For the Standard Features shipped
in the "Factory Integrated Models", please see the "Configuration
Information - Factory Integrated Models" section.
AMD Opteron™ 6134 (2.3GHz/8-core/12MB/80W)
Processor NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
AMD Opteron™ 6174 (2.2GHz/12-core/12MB/80W)
Processor NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
AMD Opteron™ 6164 (1.7GHz/12-core/12MB/80W)
Processor NOTE: Available through Configure
To Order only. See Factory Integration Models section for more details.
NOTE: Up to
two AMD Opteron™ 6000 series Eight and Twelve Core processors supported. NOTE: Supports DirectConnect Architecture. NOTE: Supports Power Now.
Cache Memory
12MB shared L3 (Model Series
6000)
Chipset
AMD Chipset SR5670/SP5100
Upgradeability
Upgradeable to two processors
Memory Protection
Advanced ECC
Memory One of the following depending on Model
Type
DDR3 Registered
(RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available
24 DIMM slots
Standard
Entry Model
4 GB (2 x 2 GB) RDIMMs
Base Model
8 GB (4 x 2 GB) RDIMMs
Performance Model
16 GB (8 x 2 GB) RDIMMs
Efficiency Model
4 GB (2 x 2 GB) RDIMMs
Maximum (RDIMM)
256 GB
(8 x 16 GB + 16 x 8 GB)
Maximum (UDIMM)
64 GB
(16 x 4 GB)
NOTE:
Depending on the memory configuration and processor model, the memory speed
may run at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration
Tool at: www.hp.com/go/ddr3memory-configurator.
Network Controller
(2) HP NC362i Integrated Dual
Port Gigabit Server Adapter
Expansion Slots #
Technology
Bus
Width**
Connector Width
Bus Number*
Device No.**
Form
Factor
Notes
1
PCI-Express 2.0
x16
x16
5
0
Full Height/Full Length
3.3 volts
2***
PCI-Express 2.0
x4
x8
2
0
Half Height/Low Profile, Internal Only
3.3 volts
* Default bus assignment. Inserting cards with PCI bridges may alter the
actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from
lowest to highest Device ID by bus (starting with the lowest bus).
***In order to access expansion slot #2, the low profile internal only slot,
expansion slot #1 may only be populated with a half length, full height
form factor card.
Storage Controller
Non-Hot Plug SATA
HP Smart Array B110i SATA RAID
Controller NOTE: To enable RAID for embedded
SATA controller, use EZ set-up CD to download driver, hpahcisr.sys, is part
of the 8.20 PSP, Smart Start, EZSetup CD. For more information on Smart
Array B110i, go to: www.hp.com/go/sataraid
Cold Plug SATA Models
HP Smart Array B110i SATA RAID
Controller NOTE: Supported on LFF models only.
Hot Plug SATA/SAS
HP Smart Array P410 Controller
(RAID 0/1/1+0)
HP Smart Array P410 Controller 256 BBWC (RAID/0/1/1+0/5/5+0) NOTE: Transfer rate: up to 3 Gb/s
SATA, up to 6 Gb/s SAS.
HP Smart Array B110i SATA RAID
Controller NOTE: Hot plug functionality requires
the addition of a Smart Array Advanced Pack License Key upgrade (P/N TC421A)
NOTE: To enable RAID for embedded SATA controller, use EZ set-up
CD to download driver, hpahcisr.sys, is part of the 8.20 PSP, Smart Start,
EZSetup CD. For more information on Smart Array, go to: www.hp.com/go/sataraid
NOTE:
A diskette drive or virtual FDD using LO100 Advanced Pack is needed to install
storage controller drivers during a Windows operating system installation
from a CD. NOTE: Addition of the battery backed cache upgrade enables BBWC,
RAID 5, 5+0, array expansion, logical drive extension, RAID migration, and
stripe size migration. NOTE: RAID 6 functionality requires the addition of Smart Array Advanced
Pack (P/N: 516471-B21).
Internal Storage
Devices Drives
Diskette Drives
Via USB only
Optical Drives
Optional SATA 9.5mm DVD-ROM
Optical Drive
Optional SATA 9.5mm DVD RW Optical
Drive
Hard Drives
Up to 4 Non-hot plug SATA 3.5"
drives
Up to 4 Hot plug SAS/SATA 3.5"
drives
Up to 8 Hot plug SAS 2.5"
drives
Maximum Internal
Storage
Non-Hot Plug LFF SATA
8.0TB
4 x 2TB
Hot Plug LFF SATA
8.0TB
4 x 2TB
Hot Plug SFF SATA
4.0TB
4x1TB
Hot Plug LFF SAS
8.0TB
4 x 2TB
Hot Plug SFF SAS
8.0TB
8 x 1TB
Interfaces
Parallel
None
Network RJ-45(Ethernet)
4 10/100/1000 NIC ports (plus
1 optional dedicated port for the HP ProLiant Lights Out 100i Remote Management)
Serial
1
Pointing Device (Mouse)
0 (via USB only)
Graphics
1
Keyboard
0 (via USB only)
USB
6 (two front, two internal,
two rear) NOTE: One optional internal USB connector
is reserved for connection to the rear SD Card Reader (592710-B21) NOTE: In order to connect a USB device internally, the internal
USB Cable G6 Kit must be used (536769-B21) NOTE: Please see the following URL for additional information regarding
USB support: http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0, SMASH CLP, DCMI 1.0
compliant
Server Power Cords
One 6' Highline (IEC-IEC) power
cord ships standard NOTE: HP ProLiant DL servers no longer
ship standard with NEMA power cords (163719-002) that allow connection to
110V US wall outlets in a home or office. ProLiant DL servers are primarily
connected to PDU's in data center racks so they now ship standard with only
a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server
using a 110V receptacle (NEMA-15), the NEMA power cord (227099-001) must
be ordered separately.
If customers require a power cord, they can check the power cord matrix
for the appropriate cord. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
Power Supply
500 Watts, auto-switching, high
efficiency, PFC (Power Factor Correcting). NOTE: Factory upgradeable to high-efficiency
750W pluggable power supply.
750W high efficiency, pluggable
power supply, FIO (Optional)
System Fans
4 non-hot plug system fans ship
standard with 1P models, optional upgrade to N+1 redundant.
7 non-hot plug system fans ship standard with 2P models, N+1 Redundant Standard
Operating Systems
and Virtualization Software Support for ProLiant Servers
NOTE: For more
information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available
for your server, including how to purchase from HP, please visit our OS
Support Site at: http://www.hp.com/go/supportos
and our driver download page http://www.hp.com/support/DL165G7.
Graphics
32MB shared supporting all
display resolutions up to 1600x1200 16bpp@75Hz NOTE: 8MB is dedicated to video memory.
Form Factor
Rack (1U), (1.75 in/4.45 cm) NOTE: Fixed mounting rails included
with all models.
Embedded Manageability
HP LO100 Advanced
HP Lights-Out 100 with Optional LO100 Advanced Licenses for Virtual KVM
and Virtual Media.
Standard Features:
Embedded IPMI standard reporting
System event log access
Remote Serial console (serial redirection)
Browser, Telnet access
SMASH-CLP compliant
IPMI 2.0 compliant
Secure Socket Layer (SSL) Encryption
Secure Shell (SSH) Encryption
Licensed Features:
Virtual media (Floppy, CD, USB 2.0)
Virtual KVM
NOTE: Flexible and volume quantity (AKA)
license kits are available for the Lights-Out 100 Advanced Pack licenses
as well as Electronic License To Use (E-LTU). AKA Tracking licenses require
a 100 unit minimum forecast at initial contract signing. For these additional
part numbers, please refer to each software products. QuickSpecs at this
link for more information: www.hp.com/go/lo100
Security
Power-on password
Setup password
Diskette boot control
Secure Sockets Layer (SSL)
Secure Shell (SSH)
Warranty
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of HP Authorized Channel Partners.
Hardware diagnostic support and repair is available for one year from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Enhancements to warranty services are
available through HP Care Pack services or customized service agreements.
Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details. NOTE: Server Warranty includes
3 year Next Day Parts replacement, 0-Years Labor, 0-Years Onsite support.
Warranty terms may vary by region. Additional information regarding worldwide
limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.
HP Insight Control for Linux, as a product option, delivers essential
infrastructure management that can help save time and money by making
it easy to deploy, monitor, remote control, and optimize your IT infrastructure
through a single, simple management console. The Insight Control for Linux
installs and license software modules that are integrated into HP System
Insight Manager.
The HP Insight Control for Linux (IC-Linux) serves environments requiring
a Linux-based management consoles. See: www.hp.com/go/ic-linux
HP Insight Control include one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service,
please visit: http://www.hp.com/services/insight.
Insight Control server deployment
HP Insight Control server deployment
is a deployment solution for HP ProLiant and Integrity servers hosted on
a Windows CMS. It automates the process of deploying and provisioning server
software, enabling companies to quickly and easily adapt to changing business
demands. Insight Control server deployment includes software optimizations
for HP servers, including the HP scripting toolkits, configuration jobs
for leading industry-standard operating systems, sample unattended files,
and HP server support packs that include software drivers, management agents,
and important documentation. Deploying servers can be accomplished either
through imaging or through scripting.
Insight Control server deployment is hosted on a Windows server and is intended
for heterogeneous environments deploying Windows, Linux, VMware ESX and
Microsoft Hyper-V systems.
Insight Control server deployment includes one year of 24 x 7 HP Software
Technical Support and Update Service ensuring rapid access to HP support
staff and proactive delivery of software updates. For more information about
this service, please visit: http://www.hp.com/services/insight.
High Performance
Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically
engineered, factory-integrated large-scale ProLiant clusters optimized for
High Performance Computing, with a choice of servers, networks and software.
Operating system options include specially priced offerings for Red Hat
Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server.
A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC)
interconnect technologies are available for this server as part of the HP
Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects
are fully supported by HP when integrated within an HP cluster. Flexible,
validated solutions can be defined with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility
HP Cluster Management Utility
(CMU) is an HP-licensed and HP-supported suite of tools that are used to
manage large-scale Linux ProLiant systems. CMU includes software for the
centralized provisioning, management and monitoring of nodes. CMU makes
the administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
HP HPC Linux Value Pack
HP HPC Linux Value Pack (Value
Pack) is an HP-licensed and HP-supported specially priced software bundle
for the development and deployment of applications on HPC Cluster Platforms.
Value Pack includes the Platform HPC Enterprise Edition suite of tools including
the LSF workload scheduler, the HP-MPI parallelization library. Also included
are the HP Unified Parallel C compiler and the HP Shmem library, as well
as the execution environments for the libraries and compiler. HP
HPC Linux Value Pack
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure Enterprise Configurator now provides factory default
racking for our HP hardware portfolio. This approach is aligned with our
strategic direction to meet the needs and expectations of our valued customers.
If you require "custom" rack configuration, please contact HP's
Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
HP Technology Services for
Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires
a service partner who understands your increasingly complex business technology
environment. That's why it makes sense to team up with the people who know
HP infrastructure hardware and software best - the experienced professionals
at HP Services.
What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test,
integrate, support, and manage IT and infrastructure solutions. This way,
HP proposes services solutions that include more than just uplift of base
warranty. You can get the support you need by choosing from one of a number
of service packaged solutions we have designed to address wider set of customer
support needs.
HP Technology Services meets business challenges with services offered in
three packages: Optimized Care Package, Standard Care Package, and Basic Care Package
Available for each product group. Such packaged solutions enable customers
to optimize technology operations, minimize risk and drive better business
outcomes with easy-to-buy, easy-to-use scalable support packages for servers,
storage, networking and software.
Optimized Care
Package
Supports maintaining servers
at optimum performance availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
3-Year HP 6 hour Hardware Support Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly
begin troubleshooting the system to help return the hardware to operating
condition within 6 hours of the initial service request to the HP Global
Solution Center. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN
Additional Services: Software OS (Microsoft, Linux (SUSE/Red Hat) Installation
and Start Up and Software Support) plus Microsoft or Linux education courses
+30 Proactive Select Credits, Factory Express.
Standard Care Package
Package that maintains high
level of server availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service
Provides you with rapid remote support and if required an HP authorized
representative who will arrive on site any time and day of the year to begin
hardware maintenance service within 4 hours of the service request being
logged. http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
Additional Services: Software OS (Microsoft, Linux (SUSE/Red Hat) Installation
and Start Up and Software Support); +10 Proactive Select Credits, Factory
Express.
Basic Care Package
Delivers minimum recommended support service level
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
3-Year HP 13x5 4 hour Response, Hardware Support Onsite Service
Delivers increased equipment availability and productivity with rapid
remote support and onsite response for your HP server and storage hardware. http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
Additional Services: Software OS (Microsoft, Linux (SUSE/Red Hat)
Installation and Start Up and Software Support), Factory Express.
Insight Remote
Support
The packages include HP Insight Remote Support that uses proven technology
to deliver secure, reliable 24x7 remote monitoring, diagnoses, and problem
resolution. It is available at no additional cost to all warranty, HP
Care Pack Service, and service agreement customers.
For more information
To learn more on HP ProLiant servers and HP BladeSystem servers, please
contact your HP sales representative or HP Authorized Channel Partner
or visit: http://www.hp.com/services/proliant
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section. NOTE: Pre-configured models ship with the configurations below. Options
can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured
models. Any additional options purchased will be shipped separately. NOTE: If you desire a custom configuration please see "Configuration
Information - Factory Integrated Models" section of this QuickSpecs.
Cold Plug/Hot Plug
Serial ATA (SATA)/Serial Attached SCSI (SAS) Models
Performance Model
HP ProLiant DL165 G7 6172 2P 16GB-R P410/256 BBWC 8 SFF 750W PS Perf Server
590261-001
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure
a Factory Integrated Model. To ensure only valid configurations are ordered,
HP recommends the use of an HP approved configurator. Contact your local
sales representative for information on CTO product offerings and requirements. NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis. NOTE: FIO indicates that this option is only available as a Factory
Installable Option.
Step 1: Base Configuration
(choose one of the following configurable models)
Non-Hot Plug SATA Model (choose
one of the following configurable models)
HP ProLiant DL165 G7 Non-hot Plug
Configure-to-order Server
591660-B21
Factory Integrated Model ships
with:
Two HP NC362i Integrated Dual
Port Gigabit Server Adapters
Slot 1: FL /FH PCI-Express x16 Gen 2 slot or
Slot 1 : HL/FH x16 PCI-Express Gen2 slot and
Slot 2 : HL/LP x8 PCI-Express Gen2 slot (internal only)
HP Smart Array B110i SATA RAID
Controller
One Highline IEC Power Cord
4 Fixed, Non-Redundant Fans (standard);
6 Fixed, N+1 Redundant Fans (standard with addition of second processor)
Rack (1U), (1.75 in / 4.45 cm)
Tool-less Fixed Rails
Hot Plug/Cold Plug Models
HP ProLiant DL165 G7 Large Form
Factor (LFF) Configure-to-order Server
592226-B21
Factory Integrated Model ships
with:
Two HP NC362i Integrated Dual
Port Gigabit Server Adapters
Slot 1: FL /FH PCI-Express x16
Gen 2 slot or
Slot 1 : HL/FH x16 PCI-Express Gen2 slot and
Slot 2 : HL/LP x8 PCI-Express Gen2 slot (internal only)
One Highline IEC Power Cord
4 Fixed, Non-Redundant Fans (standard);
6 Fixed, N+1 Redundant Fans (standard with addition of second processor)
Rack (1U), (1.75 in / 4.45 cm)
Tool-less Fixed Rails
HP ProLiant DL165 G7 Small Form
Factor (SFF) Configure-to-order Server
592227-B21
Factory Integrated Model ships
with:
Two HP NC362i Integrated Dual
Port Gigabit Server Adapters
Slot 1: FL /FH PCI-Express x16
Gen 2 slot or
Slot 1 : HL/FH x16 PCI-Express Gen2 slot and
Slot 2 : HL/LP x8 PCI-Express Gen2 slot (internal only)
One Highline IEC Power Cord
4 Fixed, Non-Redundant Fans (standard);
6 Fixed, N+1 Redundant Fans (standard with addition of second processor)
Rack (1U), (1.75 in / 4.45 cm)
Tool-less Fixed Rails
NOTE: SFF CTO
Chassis (P/N: 592227-B21) requires the use of the HP 750W CS HE Power Supply
(P/N: 535683-B21)
Step 2: Choose Required
Options (only one of the following from each list unless otherwise noted)
HP Processors
NOTE: If 2 processors
are desired, select one xxxxxx-B21 and one xxxxxx-B21.
Eight-Core Processors
HP DL165 G7 AMD Opteron™
6140 (2.6GHz/8-core/12MB/80W) FIO Processor Kit
635818-B21
HP DL165 G7 AMD Opteron™
6136 (2.4GHz/8-core/12MB/80W) FIO Processor Kit

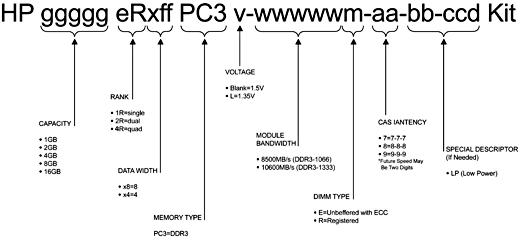

NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LP include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see:
http://www.hp.com/go/proliant-energy-efficient NOTE: There is a maximum support limitation of 8 ranks per memory
channel (maximum of 2 quad rank DIMMs per channel) NOTE: PC3L is a low voltage memory.
HP Hard Drives
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details. NOTE: A minimum of one SATA Non-Hot Plug hard drive is required ONLY
when purchasing Non-Hot Plug CTO Chassis Model (P/N 591660-B21) in Step
1.
Serial-ATA (SATA) Non-Hot Plug
Hard Drives (Non-Hot Plug Models Only)
SATA Non-Hot Plug LFF (3.5-inch)
Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF
(3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive
571232-B21
HP 160GB 3G SATA 7.2K rpm LFF
(3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive
NOTE: With the
HP Smart Array P410 Controller, the addition of the battery backed cache
upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension,
RAID migration, and stripe size migration. In order to upgrade to RAID 6,
at least 256MB Cache and a Battery is required in addition to the Smart
Array Advanced Pack license (P/N 516471-B21). NOTE: To use the internal only PCI-e slot when purchasing the Hot
Plug CTO Chassis, a HP Smart Array P410 controller must be selected. When
selecting the HP Smart Array P212/256 BBWC 1-ports Int/1-ports Ext PCIe
x8 FIO SAS Controller (P/N 491191-B21), the controller will be installed
in the x16 slot since it has both an internal and external port. This prevents
the use of the internal slot and no PCI-E slots will be available. NOTE: A minimum of one primary HP Storage Controller is required
ONLY when purchasing SFF CTO Chassis Model (P/N 592227-B21) in Step 1.
HP Smart Array P812/1G FBWC 2-ports
Int/4-ports Ext PCIe x8 SAS Controller
NOTE: Prior to
making a power supply selection it is highly recommended that the HP Power
Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at: http://www.hp.com/go/hppoweradvisor
NOTE: With the
HP Smart Array P410 Controller, the addition of the battery backed cache
upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension,
RAID migration, and stripe size migration. In order to upgrade to RAID 6,
at least 256MB Cache and a Battery is required in addition to the Smart
Array Advanced Pack license (P/N 516471-B21). NOTE: To use the internal only PCI-e slot when purchasing the Hot
Plug CTO Chassis, a HP Smart Array P410 controller must be selected. When
selecting the HP Smart Array P212/256 BBWC 1-ports Int/1-ports Ext PCIe
x8 FIO SAS Controller (P/N 491191-B21), the controller will be installed
in the x16 slot since it has both an internal and external port. This prevents
the use of the internal slot and no PCI-E slots will be available.
HP Smart Array P212/256 BBWC 1-ports
Int/1-ports Ext PCIe x8 FIO SAS Controller NOTE: P212 may be used as external
controller only in SFF models.
NOTE:
Some options may not be integrated at the factory. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator.
Contact your local sales representative for additional information.
HP Unique Options
HP Dedicated Management Port Kit
516006-B21
HP Processors
Eight-Core Processors
HP DL165 G7 AMD Opteron™
6140 (2.6GHz/8-core/12MB/80W) Processor Kit
635818-B21
HP DL165 G7 AMD Opteron™
6136 (2.4GHz/8-core/12MB/80W) Processor Kit
NOTE: Supports
up to two AMD Opteron™ 6000 series Eight and Twelve Core processors. NOTE: Supports DirectConnect Architecture. NOTE: Supports Power Now.
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SATA Hot Plug SFF (2.5-inch) Midline
(MDL) Drives
HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch)
Hot Plug Midline 1yr Warranty Hard Drive
625609-B21
SATA Hot Plug LFF (3.5-inch) Midline
(MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch)
Midline 1yr Warranty Hard Drive
10 Gigabit Ethernet Adapters NOTE: No more than two10GbE I/O devices
are supported in a single ProLiant server. NOTE: A minimum of two Gigabytes (2 GB) of server memory is required
per each adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber
transceivers and cables for fiber-optic environments must be purchased separately.
NOTE: Please see
the QuickSpecs for Technical Specifications and additional information:
www.hp.com/go/ProLiantNICs
HP Cooling Options
HP DL165G7 Redundant Fan OPT KIT NOTE: Redundant Fan Option Kit ONLY
required for fan redundancy in single processor configurations. Two processor
configurations offer N+1 fan redundancy as standard.
NOTE:
Some options may not be integrated at the factory. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator.
Contact your local sales representative for additional information.
HP Entry-Level Server Management
HP LO100i Advanced Pack, No Media
1-Server License including 1 year of 24x7 Technical Support and Updates NOTE: For additional License Kits
please see the Lights-Out 100i QuickSpecs at: www.hp.com/go/lo100.
530521-B21
HP Insight Software
HP Insight Control for Linux
HP Insight Control for Linux including
1yr 24x7 Support Electronic License
TC213AAE
HP Smart Buy Insight Control
for Linux, 1-server license, including one year of 24x7 Technical Support
and Updates, Electronic
TC213ASE
HP Insight Control for Linux including
1yr 24x7 Support Single Server License
TC209A
HP Insight Control for Linux Media
Kit
TC208A
NOTE: Licenses
ship without media. The Media Kit for Insight Control for Linux can be ordered
separately, or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic licenses can be used to purchase multiple licenses
with a single activation key. NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html
HP Insight Control server deployment
HP Insight Control Server Deployment
including 1yr 24x7 Support Electronic License
T9082AAE
HP Insight Control Server Deployment
including 1yr 24x7 Support Single Server License
452151-B21
NOTE: Licenses
ship without media. The Insight Control Media Kit can be ordered separately,
or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses
with a single activation key. NOTE: Customer will receive a license entitlement certificate, which
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE: For additional license kits please see the Insight Control
QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html
High Performance Clusters
HP Cluster Management Utility
HP Cluster Management Utility
Compute Node Flexible License
QL803A
NOTE: This part
number can be used to purchase one certificate for multiple licenses with
a single activation key. Each license is for one node (server). Customer
will receive a printed end user license agreement and license entitlement
certificate via physical shipment. The license entitlement certificate must
be redeemed online in order to obtain a license key. NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
HP Cluster Management Utility
License and Media
433257-B21
NOTE: Order a
minimum of one license per cluster to purchase media including software
and documentation, which will be delivered to the customer, and also licenses
CMU management. No license key is delivered or required. NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
HP HPC Linux Value Pack
HP High Performance Computing
Linux Value Pack 1 Processor Flexible License
TC293B
NOTE: This part
number can be used to purchase one certificate for multiple licenses with
a single activation key. Each license is for one socket (a.k.a. processor).
Customer will receive a printed end user license agreement and license entitlement
certificate via physical shipment. The license entitlement certificate must
be redeemed online in order to obtain a license key. NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/13485_na/13485_na.html
HP High Performance Computing
Linux Value Pack Media Kit
NOTE: The TPM
(Trusted Platform Module) is a microcontroller chip that can securely store
artifacts used to authenticate the server platform. These artifacts can
include passwords, certificates and encryption keys. Windows® BitLocker™
Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities
of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker
to help protect user data and to ensure that a server running Windows Server
2008 has not been tampered with while the system was offline. NOTE: For more information about TPM, including a white paper, go
to: http://www.hp.com/go/TPM NOTE: ProLiant OS pre-installed units will come with the partition
required for TPM deployment. NOTE: The TPM key is unique to every TPM deployed server and must
be retained. Misplacing or losing the key could result in data loss.
HP Storage Controllers
SAS Controllers
NOTE: To utilize
the internal only slot, the HP Smart Array P410 Controller must be selected.
The selection of the HP Smart Array P212 Controller for internal and external
connectivity, will require the use of the Full Length Full Height PCI-E
x16 slot. NOTE: With the HP Smart Array P410 Controller, the addition of the
battery backed cache upgrade enables BBWC, RAID 5, 5+0, array expansion,
logical drive extension, RAID migration, and stripe size migration. In order
to upgrade to RAID 6, at least 256MB Cache and a Battery is required in
addition to the HP Smart Array Advanced Pack license (P/N 516471-B21).
Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports
Int/1-ports Ext PCIe x8 SAS Controller
NOTE: For the
complete range of StorageWorks tape drives, autoloaders, libraries and media
see: http://www.hp.com/go/tape.
For hardware and software compatibility of HP StorageWorks tape backup products
see: http://www.hp.com/go/connect. NOTE: Connection using the HP P212 SAS Smart Array Controller ( 462828-B21)
recommended.
HP StorageWorks DAT 160 SAS Internal
Tape Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server.
Q1587A
HP StorageWorks DAT 320 USB in
1U Rack-mount Kit
AP835B
HP StorageWorks DAT 320 SAS Internal
Tape Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server.
AJ830A
HP StorageWorks Ultrium 448 SAS
Internal Drive NOTE: For installation into 1U SAS
Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server.
DW085A
HP StorageWorks Ultrium 920 SAS Internal Tape Drive NOTE: For installation into 1U
SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit (AG576B). No peripheral
bay available for installation into the server.
EH847A
HP StorageWorks 1/8 G2 Ultrium 920 SAS Autoloader NOTE: Requires HP 1U Tape Autoloader
Rack-Mount Kit (AH166A) for rack installation.
AH558A
HP StorageWorks MSL2024 Ultrium
920 SAS Tape Library
HP StorageWorks D2D Backup Systems
with Backup Data Deduplication
HP StorageWorks D2D2502i Backup
System NOTE: 1.5TB of usable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ001B
HP StorageWorks D2D2504i Backup
System NOTE: 3.0TB of usable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ002B
USB Removable Media RDX Disk Backup
Systems
HP RDX 1TB Int Removable Disk
Backup System
BV847A
HP StorageWorks RDX320 Internal
Removable Disk Backup System NOTE: For installation into 1U USB
Rack-Mount Kit (A8007A). No peripheral bay available for drive installation
into the server. 320GB of disk capacity per data cartridge.
AJ767A
HP StorageWorks RDX500 Internal Removable Disk Backup System NOTE: For installation into 1U
USB Rack-Mount Kit (A8007A). No peripheral bay available for drive installation
into the server. 500GB of disk capacity per data cartridge.
HP StorageWorks CN1000E Dual Port
Converged Network Adapter NOTE: No more than two 10GbE I/O
or CNA Stand-up cards are supported in a single HP ProLiant server.
NOTE: For additional
information on all HP Uninterruptible Power Systems and accessories please
go to: www.hp.com/products/ups
NOTE: For additional
information on sizing your server, please reference: http://www.upssizer.com
NOTE: Please see
the UPS and PDU cable matrix's on the HP Power Protection and Management
page. Under Power Cords, click on the "HP Power Cord Matrix" link. That
link will list cable descriptions, requirements, and specifications for
UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
NOTE: It is mandatory
to use a shock pallet when shipping racks with equipment installed. NOTE: shock pallets are used to ship racks with equipment installed
(by custom systems, VARs and Channels). NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html NOTE: For additional information regarding Rack Cabinets, please
see the following URL: http://www.hp.com/go/rackandpower.
NOTE: The increasing power of new high-performance processor technology
requires increased cooling efficiency for rack-mounted servers. The 10000
G2 Series Racks provide enhanced airflow for maximum cooling, allowing
these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional
requirements to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack
includes closing front and rear doors, you must allow 830 square inches
(5,350 sq cm) of hole evenly distributed from top to bottom to permit
adequate airflow (equivalent to the required 64 percent open area for
ventilation).
Side: The clearance between the installed rack component and the side
panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty
front panel U-spaces in the rack. This arrangement ensures proper airflow.
Using a rack without blanking panels results in improper cooling that
can lead to thermal damage.
NOTE: HP ProLiant
DL rack models have fixed rails which provide support for racks with round
mounting holes and tool-free support for racks with square mounting holes
(including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment
range of 26" - 36". NOTE: Support for all 2 and 4 post Telco racks and threaded hole
racks requires an additional option kit from Rack Solutions. The Rack Solutions
brackets can be purchased at: www.hp.com/go/rackandpower.
0x2x16 KVM Server Console G2 Switch
with Virtual Media and CAC
AF618A
0x2x32 KVM Server Console G2 Switch
with Virtual Media and CAC
AF619A
1x1Ex8 KVM IP Console Switch G2
with Virtual Media and CAC
AF620A
2x1Ex16 KVM IP Console Switch
G2 with Virtual Media and CAC
AF621A
4x1Ex32 KVM IP Console Switch
G2 with Virtual Media and CAC
AF622A
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
HP USB and SD Options
HP USB-P/S2 Mouse
DC369A
HP USB 04 Standard Keyboard
DT528A#ABA
HP DL165G7 SD Card Reader Module
OPT KIT
592710-B21
HP Internal USB Cable G6 Kit
536769-B21
HP Care Pack Services
Hardware Services 4-Hour On-site
Service
13-Hour x 5-Day Coverage, 3 Years,
Electronic
UH271E
24-Hour x 7-Day Coverage, 3 Years,
Electronic
UH272E
Hardware Services Next Business
Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years,
Electronic
UH270E
Hardware Services 6-Hour Call
to Repair On-Site Service
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models". Standard Memory
4 GB (2 x 2 GB) PC2-6400 DIMM memory, with Advanced ECC Capabilities memory
installed.
Maximum Memory
Up to 256GB memory is available with the optional installation of PC2-8500R-7
Registered DIMM memory kits.
Memory should be installed in pairs and matched for optimum performance.
Up to 256GB, using 2x8GB Dual-Rank and 1x16GB Quad-Rank PC3-8500R-7 DDR3
Registered (RDIMM) memory per memory channel, operating at 800MHz in 24
slots. (See memory section for population rules)
Up to 192GB, using 8GB PC3-10600R or PC3-8500R DDR3 Registered (RDIMM) memory,
operating at 800MHz when populated at 3 DIMMs per Channel in 24 slots.
Up to 64GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at
1066MHz when populated at 2 DIMMs per Channel in 16 slots
Some DIMM installation guidelines are summarized below:
For servers with twenty-four (24) memory slots:
There are four (4) channels per processor; eight (8) channels
per server
There are three (3) DIMM slots for each memory channel; twenty-four
(24) total slots
Memory channel 1 consists of the three (3) DIMMs that are furthest
from the processor
Memory channel 4 consists of the three (3) DIMMs that are closest
to the processor
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the corresponding processor is not installed
If only one processor is installed in a 2CPU system, only half of
the DIMM slots are available
To maximize performance, balance the total memory capacity between
all installed processors
It is not required, but it is recommended to load the channels similarly
if possible
You can only have up to eight (8) ranks installed per channel
Mixing DIMM speeds is allowed, but the system processor speed rules
always override the DIMM capabilities
If you do mix DIMM speeds, the memory bus will default to the minimum
clock rate of all DIMMs in the system - even if the slower DIMM is on
the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in
channel 2, you still run at 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with
1 DIMM Per Channel (DPC) in each of the other channels, you run at 1066MHz
If you install 3DPC in one channel (if applicable) and 1DPC in all
other channels, you run at 800MHz
95 Watt CPU's are required for 1333MHz DIMM speeds. All other CPU's
are capable of up to 1066MHz
References to the above MHz speeds are for the various speeds of DDR3
DIMMs; 1333 refers to DDR3-1333, etc
You can only install one quad-rank DIMMs per channel and it must be
in the center socket
You can only install two UDIMMs per channel; if available, the second
(or middle) slot in the channel must remain empty
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank)
within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest
from the chipset
DIMM Type
Registered
DIMMS (RDIMMs)
Unbuffered
with ECC DIMMs (UDIMMs)
DIMM Rank
Single
Rank
Dual
Rank (2R)
Quad
Rank (4R)
Dual
Rank (2R)
DIMM Capacity
4GB
2GB
8GB
16GB
2GB
4GB
DIMM Native
Speed (MHz)
1333
1333
1333
1066
1333
1333
Voltage
LV/Reg
Reg
LV/Reg
Reg
Reg
Reg
SLOTS THAT
CAN BE POPULATED
24 slot
servers
24
24
24
8
16
16
MAXIMUM CAPACITY
(GB)
24 slot
servers
96
48
192
256*
32
64
POPULATED
DIMM SPEED (MHz)
1 DIMM Per
Channel
1333
1333
1333
1066
1333
1333
2 DIMM Per
Channel
1333
1333
1333
n/a
1333
1333
3 DIMM Per
Channel
1333
1066
1066
n/a
n/a
n/a
*
This capacity is achieved by loading 1 16GB in center socket and remaining
sockets with 8GB DIMMs.
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second,
"C" third, etc.
24
DIMM SLOTS (12 per CPU node)
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
A
1
A
Chnl 1
2
I
2
I
3
E
3
E
Chnl 2
4
C
4
C
Chnl 2
5
K
5
K
6
G
6
G
Chnl 3
7
B
7
B
Chnl 3
8
J
8
J
9
F
9
F
Chnl 4
10
D
10
D
Chnl 4
11
L
11
L
12
H
12
H
NOTE: Capacity references are rounded to the common Gigabyte values.
Hot plug 3.5" SATA or Hot-plug
SAS/SATA hard drive bays
A
Optional DVD-ROM, or DVD/CD RW
1-8
Eight Hot-plug SAS hard drive
bays
A
Optional DVD-ROM, or DVD RW
Drive Support
Removable Media
Quantity
Supported
Position
Supported
Controller
DVD-ROM
Up to 1
A
Integrated IDE (ATAPI) (optional)
DVD RW
Up to 1
A
Integrated IDE (ATAPI) (optional)
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, and the server backplane)
should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SATA Hot Plug SFF
(2.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
1TB 3G SATA 7.2K
Up to 4
1-4
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
SATA Non-Hot Plug
LFF (3.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3GSATA 7.2K
Up to 4
1-4
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
SATA Hot Plug LFF
(3.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 4
1-4
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
SATA Hot Plug LFF (3.5-inch) Entry
(ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 4
1-4
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
SATA Hot Plug 2.5"
Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8
1-8
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
SATA Hot Plug 3.5"
Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 4
1-4
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
SAS Hot Plug SFF (2.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
1.0TB 6G SAS 7.2K
500GB 6G SAS 7.2K
Up to 8
1-8
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
SAS Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 7.2K
1TB 6G SAS 7.2K
Up to 4
1-4
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
SAS Hot Plug SFF(2.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
900GB 6G SAS 10K
600GB 6G SAS 10K
300GB 6G SAS 10K
146GB 6G SAS 15K
146GB 6G SAS 10K
72GB 6G SAS 15K
Up to 8
1-8
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
SAS Hot Plug LFF (3.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K
450GB 6G SAS 10K
450GB 6G SAS 15K
300GB 6G SAS 15K
Up to 4
1-4
HP Smart Array P212 Controller
HP Smart Array P410 Controller
HP Smart Array P812 Controller
Tape and Disk Backup
NOTE: For the complete range of StorageWorks tape drives, autoloaders,
libraries and media, including the internal fitting models, see: http://www.hp.com/go/tape.
For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d.
For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx.
For hardware and software compatibility of HP StorageWorks disk and tape
backup products see: http://www.hp.com/go/connect.
Position
Recommended Controller
Part Number
HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus
Adapter
HP StorageWorks
Fibre Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the
EBS connectivity matrix at: http://www.hp.com/go/ebs
for connectivity information and the supported Fibre Channel HBAs shown
in this QuickSpecs.
HP StorageWorks USB RDX Removable Disk Backup System
RDX160
RDX320
RDX500
RDX750
External
USB 2.0 port
N/A
HP StorageWorks
D2D Backup Systems, iSCSI
D2D2500i
D2D4000i
External
Embedded Network
Controller. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
HP StorageWorks
D2D Backup Systems, Fibre Channel
D2D4000fc
System Inrush Current with all
power supplies loaded (A)
30
30
Power cord requirements
Nema 5-15P to IEC320-C13
IEC320-C13 to IEC320-C14
NOTE:
Power shown is for a fully configured system consisting of (2) CPU, (8)
double-sided DIMMs, (2) HDDs, (1) CD-ROM, and (2) PCI cards.
Power Cord
AF556A
Server Power Cords
One 6' Highline (IEC-IEC)
power cord ships standard NOTE: HP ProLiant DL servers no longer
ship standard with NEMA power cords (163719-002) that allow connection to
110V US wall outlets in a home or office. ProLiant DL servers are primarily
connected to PDU's in data center racks so they now ship standard with only
a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server
using a 110V receptacle (NEMA-15), the NEMA power cord (227099-001) must
be ordered separately.
If customers require a local power cord, they can check the power cord matrix
for the appropriate cord. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
- Click on the system of interest. Example: DL165 G7
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State Power
750 W (at 100 VAC),
750W (at 200 VAC)
Maximum Peak Power
750 W (at 100 VAC),
750 W (at 200 VAC)
System Inlet Temperature
Operating
10° to 35°C (50° to 95°F) at sea level with an altitude
derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above
sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight.
Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may
be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above
30°C (86°F).
Non-operating
-30° to 60°C
(-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative
humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating
5 to 95% relative
humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude
Operating
3050 m (10,000 ft).
This value may be limited by the type and number of options installed. Maximum
allowable altitude change rate is 609 m/min (2000 ft/min).
Non-operating
9144 m (30,000 ft).
Maximum allowable altitude change rate is 609 m/min (2000 ft/min).
Acoustic Noise
Listed are the declared
A-Weighted sound power levels (LWAd) and declared average bystander position
A-Weighted sound pressure levels (LpAm) when the product is operating in
a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
6.03 B
LpAm
46.1 dBA
Operating
LWAd
6.08 B
LpAm
46.4 dBA
Emissions Classification
(EMC)
FCC Rating
Class A
Normative Standards
CISPR 22; EN55022;
EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2;
EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is
eligible to bear the appropriate compliance logos and statements.
HP B110i Smart Array
Controller
Drives Supported
Up to 4 SATA devices
Channels
4 1.5Gb SATA
Storage Capacity
3.0TB internal storage
Data Transfer Method
32-bit/33-MHz PCI bus-master
Maximum SATA Channel Transfer
Rate
1.5Gb/s per channel
Maximum Transfer Rate per PCI
Bus (peak)
266 MB/s per channel
Protocols
SATA
PIO Mode[0-4]
Cable
SATA
Internal ATA Connectors
Four SATA connectors NOTE: Raid support requires optional
slot based raid controller.
Smart Array P410/410i
Controller
Disk Drive and Enclosure
Interface
6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal (Mini-SAS) x8 wide
port connectors
Cache Memory Speed
DDR2-533MHz with 40 or 72-bit
wide bus provides up to 4.2 GB/s maximum bandwidth.
64-bit, supporting greater than
4GB server memory space
RAID Support
RAID 6, 6+0 (Advanced Data Guarding) NOTE: The minimum of 256 MB cache,
battery kit, and Smart Array Advanced Pack License Key upgrade is required
to enable RAID 6, 6+0
RAID 5, 5+0 (Distributed Data
Guarding) NOTE: The 256 MB is required to enable
RAID 5, 5+0 support of the Smart Array P410i
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
(2x) NC362i Integrated
Dual Port Gigabit Server Adapter
Network Interface
Integrated 10/100/1000BASE-T Transceiver
Combines a triple-speed IEEE 802.3TM
- Compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver.
Data Transfer Method
Compliant to x1 PCIe Specification
Controller
Intel® 82576
Network Transfer Rate
10Base-T (Half-Duplex)
10Base-T (Full-Duplex)
100Base-TX (Half-Duplex)
100Base-TX (Full-Duplex)
1000Base-TX (Half and Full-Duplex)
Connector
RJ-45 connector
Cable Support
Performs all the physical layer
functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethemet on standard Category
5 UTP
Environment-friendly Products and
Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment
information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
535683-B21
© 2012 Canada PartsDirect
