The HP ProLiant DL1000 Multi
Node Server is the first multi node DL server designed for higher density
and increased power efficiency yet is flexible enough to be optimally configured
for varying application requirements. The DL1000 supports up to four independent
HP ProLiant DL170h G6 Servers in the 2U HP ProLiant h1000 G6 Chassis. The
servers share power supplies and fans, providing greater power and cooling
efficiencies. The HP ProLiant DL170h G6 Server is a two socket Intel server
with 16 DDR3 DIMM slots.

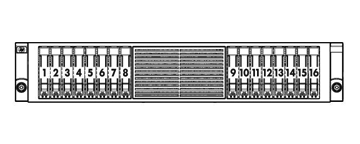

3 Node 16SFF HDD Model Illustrated
Front View:
Rear View:
1.
16 DDR3 DIMM slots
1.
Video Port
2.
Optional Right Power Buttons, Health LEDs and UID bezel
2.
Low-Profile PCI Express x16 Gen2
slot
3.
16 2.5" SFF

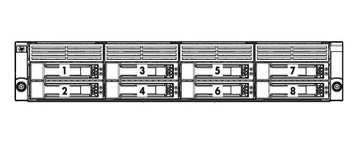

SAS/SATA hard drive bays (alternate configuration available with 8 3.5"
LFF SAS/SATA hard drive bays)
3.
Serial Port
4.
One GbE LAN port (RJ-45)
4.
Optional Left Power Buttons,
Health LEDs bezel
5.
One GbE LAN port with shared management
(RJ-45)
5.
4 x 80mm system fans
6.
Two USB ports
6.
Quad-Core Intel®
Xeon® 5500 series processors (supports up to two per node)
NOTE: For the Standard Features shipped
in the Factory Integrated Models, please see the "Configuration Information
- Factory Integrated Models" section.
NOTE: HT indicates
that the processor model supports Intel® Hyper-Threading Technology NOTE: Turbo indicates the maximum potential frequency increment when
using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active. NOTE: DDR3 speed is the maximum memory speed of the processor. Actual
memory speed may depend on the quantity and type of DIMMs installed. NOTE: For the Intel 5600 and 5500 Series, the letter preceding the
model number indicates the performance/wattage of the processor. "X"
denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage
(Mainstream), and "L" denotes Lower Wattage. NOTE: Up to 2 processors supported. Mixing different processor models
is not supported.
Cache Memory
12MB (1 x 12MB) Level 3 cache NOTE: All 5600 processor models.
8MB (1 x 8MB) Level 3 cache NOTE: All 5500 series processor models
except for those identified below.
4MB (1 x 4MB) Level 3 cache NOTE: For processors L5506, E5506
and E5504.
Upgradeable to two processors
(12 cores) NOTE: DL170h G6 servers purchased
with Intel Xeon 5500 Series processors are not upgradeable to Intel Xeon
5600 series processors.
NOTE:
Depending on the memory configuration and processor model, the memory speed
may run at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration
Tool at http://www.hp.com/go/ddr3memory-configurator
Network Controller
HP NC362i Integrated Dual Port
Gigabit Server Adapter
Expansion Slots
Half Height Nodes (1U): One available PCI Express Gen 2.0 slots: (standard
on 4-node BTO model).
Slot 1: Low profile PCI-Express 2.0 x16
Full Height Nodes (2U): three available riser options:
Option 1: Up to three available PCI-Express Gen 2.0 slots:
Full-height PCIe Riser Option (Standard in 2 Node BTO Models)
Expansion Slots #
Technology
Bus Width**
Connector Width*
Bus Number
Form Factor
Notes
1
PCI-Express 2.0
x16
x16
4
Full length, full height
3.3 volts
3
PCI-Express 2.0
x8
x8
6
Low Profile
3.3 volts
Half-height PCIe Riser (Standard in 4 Node BTO Models and with half-height nodes)
Expansion Slots #
Technology
Bus Width**
Connector Width*
Bus Number
Form Factor
Notes
1
PCI-Express 2.0
x16
x16
4
Low Profile
3.3 volts
* Default bus assignment.
Inserting cards with PCI bridges may alter the actual bus assignment number.
** Indicates the number
of physical electrical lanes running to the connector.
Storage Controller
Non-Hot Plug SATA Models
Embedded HP Smart Array Hot
Plug Advanced Pack for B110i (RAID 0, 1, 10) NOTE: Transfer rate: up to 3 Gb/s
SATA NOTE: To enable RAID on Embedded SATA (Windows and Linux only), use
the HP Smart Array B110i SATA Raid controller, To enable use of the B110i,
enter the ROM based setup utility(RBSU). The option for enabling RAID can
be found in the advanced section of the RBSU. For additional details www.hp.com/go/SATARAID.
For RAID on Solaris, a Smart Array Controller must be purchased.
Hot Plug SATA Models
Embedded HP Smart Array Hot
Plug Advanced Pack for B110i (RAID 0, 1, 10) NOTE: Transfer rate: up to 3Gb/s
SATA NOTE: The HP Smart Array B110i SATA Raid Hot Plug Advance Pack provides
the hot-plug and RAID support for the embedded SATA controller. The Hot
Plug Advance kit is a License to enable the RAID support on Hot Plug models.
It supports up to six 3G SATA hard disk drives. It will support a maximum
of two (2) logical drives. It supports Raid 0, 1 and 1+0. For additional
details www.hp.com/go/SATARAID
Hot Plug SAS/SATA Models
HP Smart Array Controller RAID
0,1,10, 5 NOTE: Transfer rate: up to 6GB/s
SAS, 3Gb/s SATA
NOTE:
SAS Upgrade: A HP Smart Array Controller is required for SAS HDD support.
Transfer rate: 6.0 Gb/s SAS supported. NOTE: When adding a Smart Array Controller to an 8 LFF SAS HDD configuration,
a HP h1000 LFF SAS CONTROLLER CABLE OPTION KIT (P/N 519503-B21) must be
ordered to connect the Smart Array Controller to the hard drive backplane.
When a controller is added during a CTO buildup, the appropriate cables
are included and this kit is not required. This cable kit is only needed
for BTO configurations or if a CTO customer upgrades to a Smart Array Controller
after initial purchase. NOTE: When adding a Smart Array Controller to a 16SFF SAS HDD configuration,
an HP h1000 SFF SAS CONTROLLER CABLE OPTION KIT (P/N 519507-B21) must be
ordered to connect the Smart Array Controller to the hard drive backplane.
When a controller is added during a CTO buildup, the appropriate cables
are included and this kit is not required. This cable kit is only needed
if a CTO customer upgrades to a Smart Array Controller after initial purchase.
NOTE: An external diskette drive, USB floppy drive key or virtual
FDD using LO100 Advanced Pack is needed to install storage controller drivers
during a Windows operating system installation from a CD.
Internal Storage
Devices
Diskette Drives
Via USB only
Optical Drives
DVD drive via USB only NOTE: External support only.
Hard Drives
None ship standard
Drive Bays One of the following depending on Model
Up to 8 Hot plug SAS/SATA 3.5"
drives
Up to 16 Hot plug SAS/SATA 2.5"
drives
Maximum
Internal Storage
LFF 3.5" Hot Plug SATA
16.0TB
8 x 2TB
LFF 3.5" Hot
Plug SAS
16.0TB
8 x 2TB
SFF 2.5" Hot Plug SATA
8.0TB
16 x 500GB
SFF 2.5" Hot Plug SAS
4.8TB
16 x 300GB
Interfaces
Serial
1
Network RJ-45 (Ethernet)
2 10/100/1000 NIC ports (1 NIC
shared for the HP ProLiant Lights Out 100i Remote Management)
Graphics
1
Management
1 Optional Dedicated LO100i
Management Port
Health LED
1 rear per server node (Optional
front health LED per server node)
Power
1 rear per server
node (Optional front power button per server node)
UID
1 rear per server node (Optional front UID per chassis)
The following NVIDIA graphics cards are supported in the DL1000:
NVIDIA Quadro FX5800 512MB PCIe x 16 graphics card
NOTE: For more information on the latest
visualization and acceleration qualification status, please see http://www.hp.com/go/accelerators. NOTE: An HP DL170h Graphics Bracket/Cable Kit (P/N 536860-B21)
is required when installing this NVIDIA card. The FX5800 can only be installed
in the 2 slot full-height riser option: HP DL170h I/O Riser PCIe x16 x8
FIO option (P/N 512481-B21).
Server Power Cords
One 6' Highline (IEC-IEC) power cord ships standard NOTE: HP ProLiant DL servers are
primarily connected to PDU's in data center racks so they ship standard
with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant
DL server using a 110V receptacle (NEMA-15), the NEMA power cord (227099-001)
must be ordered separately.
NOTE: Japan BTO and CTO configurations get the 6' 4165151-291 power
cord in addition. China BTO and CTO configurations get the 6' 416151-AA1
power cord in addition. NOTE: If customers require a local power cord, they can check the
power cord matrix for the appropriate cord. Please see the following power
cord matrix: http://www.hp.com/go/powercordmatrix
Advanced Power Management: Power
Management Controller
In addition to the efficiencies gained by the shared power infrastructure,
the DL1000 contains advanced power metering and capping capabilities.
The embedded Power Management Controller (PMC) is able to monitor power
consumption and throttle the speed of the processors and memory in each
node within the chassis in order to maintain a pre-set power budget. HP
provides a simple command-line utility, called HP ProLiant Power Interface
Control (PPIC) Utility, for reading and configuring the power control
logic of the server nodes. Versions are available for MS Windows Server
OS (2008 and 2008 R2) and Linux OS (RHEL5 and SLES11) with the requirement
that the OS IPMI Driver be installed. The following Power Management modes
for power redundancy are standard and are configurable in the controller:
No Redundancy - power control disabled. No power throttling will occur.
(DEFAULT) AC Redundancy with Throttling. This mode allows all nodes
to share both power supplies and run at maximum performance. Power control
logic will only throttle the performance of each node when the power
draw by the chassis attempts to exceed the load supported by the power
supplies. In this mode, the box is expected to survive an unexpected
AC Power loss to one of the power supplies.
Full AC/DC Redundancy - power control logic will maintain a power
cap value for the chassis at the DC rating of a single power supply
(750W, or 1200W), such that if one power supply experiences a DC or
AC failure, the chassis should remain on-line and operational.
Dynamic Power Capping is included with the LO100 Advanced Pack:
Dynamic Power Capping - User specifies the power envelope for the
2U chassis, within the capabilities of the hardware installed. Users
run a utility to calibrate the minimum and maximum power consumption
envelope for the chassis. In order to avoid any impact to performance
due to throttling, a User selectable Power Cap value should not be set
below the minimum power value provided by the utility.
Common Slot Power Supplies
HP has a new design for ProLiant power- the new Common Slot Power Supply
bay. This design provides the customer with commonality in power supplies
across multiple platforms to save on the cost of spares and allows HP
to offer multiple power solutions to fit the customers' needs. Many HP
ProLiant Servers come with Common Slot, High Efficiency and Right-Size
Power Supplies. The new HP Common Slot power supplies are designed for
the highest power efficiency without degrading performance of the ProLiant
server. Power Supplies have efficiency ratings up to 94%. There are multiple
Right Size power options available depending on the configuration of your
server. To make sure you select the correct power supply to meet your
configuration, please use the HP Power Advisor at: www.hp.com/go/proliant-energy-efficient
or www.hp.com/go/hppoweradvisor.
All HP Common Slot power sources are UL, CE Mark Compliant, Hot Plug and
Redundant.
There is a low cost, Industry Standard 1500W (2x750W) Power Supply option
that does not support hot-pluggability, redundancy or power capping functionality.
NOTE: Mixing of power supplies
in the same chassis is not supported. All power supplies must be of the
same type, all 460W, all 750W 94%, all 750W 92%, all 1200W 94%, or all
1200W 90%. If non-matched power supplies are inserted you will get errors
and operation will fail.
It is highly recommended that you use the HP Power Advisor in defining
the "Right-Size" power supply for your needs. HP offers several
Common Slot Power Supply Options for this platform. HP's ProLiant Common
Slot Power supplies meet multiple Energy Efficiency Initiatives.
NOTE: The 80 PLUS program is a
unique forum that unites electric utilities, the computer industry, and
consumers in an effort to bring energy efficient technology solutions
to the marketplace. 80 Plus independently tests power supply efficiency
and publicly posts the results on 80Plus.org.
Optional power supplies can be purchased through power supply option kits
(see Power Supply Options for part numbers).
System Fans
4 x 80mm system fans ship standard;
Non-hot plug, Non-redundant.
NOTE: For more
information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available
for your server including how to purchase from HP, please visit our OS Support
Site at: http://www.hp.com/go/ossupport
and our driver download page www.hp.com/support/DL170hG6
Form Factor
HP ProLiant h1000 G6 Chassis
- 2U Chassis can support up to four DL170h server nodes in the 2U chassis.
HP ProLiant DL170h G6 Server
- Half-width system board. Half-height (1U) or full-height (2U) depending
on riser option selected.
HP offers two different drive cages for the 2U HP ProLiant h1000 G6 Chassis:
8 LFF HDD Cage or 16 SFF HDD Cage.
The 2U chassis can support three server node configurations:
Two full height nodes
One full height node and two half-height nodes
Four half-height nodes
4 Node Configuration
- Front View
NOTE: For 2
node configurations, Nodes 2 and 4 are ordered. For 3 node configurations,
Nodes 1, 2 and 4 are ordered. NOTE: Additional nodes cannot be added later to 2 or 3 node configurations.
Embedded Manageability
HP LO100 Advanced
HP Lights-Out 100 with Optional LO100 Advanced Licenses for Virtual KVM
and Virtual Media.
Standard Features:
IPMI 2.0 & SMASH CLP support
ROM Setup Utility
Improvements to virtual media with the addition of USB 2.0 drives
and protocol support for much faster transfer speeds and DVD-ROM support
plus simplified virtual media (floppy and CD with no FTTP server requirements)
Enhanced browser interface and embedded KVM over IP provides OS-independent
remote graphical console
24x7 Technical Support and Update (TSU) 1 year support and license
upgrades included in Advanced license
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of HP Authorized Channel Partners.
Hardware diagnostic support and repair is available for one year from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Enhancements to warranty services are
available through HP Care Pack services or customized service agreements.
Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details. NOTE: Server Warranty includes
1 year Parts, 1 year Labor, 1-year on-site support with next business
day response. Warranty repairs may be accomplished through the use of
Customer Self Repair (CSR) parts. These parts fall into two categories:
1) Mandatory CSR parts are designed for easy replacement. A travel and
labor charge will result when customers decline to replace a Mandatory
CSR part; 2) Optional CSR parts are also designed for easy replacement
but may involve added complexity. Customers may choose to have HP replace
Optional CSR parts at no charge. Additional information regarding worldwide
limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.
HP Insight Control for Linux
(IC-Linux), as a product option, delivers essential lifecycle management
that can help save time and money by integrating discovery, server deployment,
firmware updates & provisioning, health & performance management,
remote management, and virtualization. This makes it easy to optimize your
IT infrastructure through a single, simple management console. The IC-Linux
suite installs and licenses software modules that are integrated into HP
System Insight Manager (HP SIM).
HP Insight Control for Linux serves environments requiring Linux-based management
consoles. See www.hp.com/go/ic-linux.
HP Insight Control for Linux includes one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. For more information about this
service, please visit: http://www.hp.com/services/insight.
HP Insight Control server deployment
HP Insight Control server deployment
is a deployment solution for HP ProLiant and Integrity servers hosted on
a Windows CMS. It automates the process of deploying and provisioning server
software, enabling companies to quickly and easily adapt to changing business
demands. Insight Control server deployment includes software optimizations
for HP servers, including the HP scripting toolkits, configuration jobs
for leading industry-standard operating systems, sample unattended files,
and HP server support packs that include software drivers, management agents,
and important documentation. Deploying servers can be accomplished either
through imaging or through scripting.
Insight Control server deployment is hosted on a Windows server and is intended
for heterogeneous environments deploying Windows, Linux, VMware ESX and
Microsoft Hyper-V systems.
Insight Control server deployment includes one year of 24 x 7 HP Software
Technical Support and Update Service ensuring rapid access to HP support
staff and proactive delivery of software updates. For more information about
this service, please visit: http://www.hp.com/services/insight.
Core Server Management
ProLiant 100 Series G6 Core Management Software for ProLiant 100 Series
Servers
HP provides management solutions that are designed to simplify a server's
installation, configuration, and maintenance throughout the entire server
lifecycle. This provides the customers with higher levels of operational
efficiency and highly reliable systems.
While ProLiant 100 series G6 servers do not support the Insight Foundation
Suite for ProLiant, they support a key subset of this important suite
software tools and utilities which are very suitable for this class of
server: SIM, SMH, agents, providers, and a SmartStart 'like' deployment
CD called Easy Set-up which greatly simplifies server set-up. Additionally
the DL100 and SL100 G6 models support the SmartStart Scripting Toolkit
(SSSTK), an automated scalable deployment utility.
Information on core management supported on ProLiant 100 series G6 servers
can be found at these URLS:
HP Systems Insight Manager (HP
SIM) provides a unified, secure and extensible standards-based environment
to centrally manage servers, storage and other infrastructure devices, (both
HP and non-HP) across multiple operating system platforms.
Insight Management Agents
HP Insight Management Agents and Insight Management Providers are available
for HP Systems Insight Manager (SIM) Integration.
ProLiant 100-series G6 servers can use the same SNMP based Insight Management
Agents supported by other ProLiant servers. As a result, administrators
can use HP Systems Insight Manager (SIM) 5.3 and greater to manage ProLiant
100-series G6 servers. Administrators can also use any other SNMP- based
management tool. These agents are obtained as part of the ProLiant 100-series
model-specific "Easy Set-up" CDs, or through http://www.hp.com/servers/easysetup
The following capabilities are enabled on the 100-series G6 servers by
the SNMP agents:
Health monitoring capabilities, including monitoring for drives, fans,
network, power supplies, and temperature
Alerting capabilities, including basic alert notification for Smart
Array drive pre-failure only
Performance monitoring capabilities providing information on processor,
memory, disk free space, network utilization
Easy Set-up CDs are available on all 100-series G6 servers and are also
available as an ISO image web download. HP ProLiant Easy Set-up CDs provide
easy, step-by-step, single and multi-server server utilities for the ProLiant
100-series G6 servers to streamline server setup for 100-series G6 servers.
The user experience is consistent with SmartStart and offers the following
capabilities:
Boot environment and GUI
Assisted Installation: Windows 2003 Server and Windows 2008 Server
drivers
Manual installation: Windows 2003 Server, Windows 2008 Server, and
Linux drivers (specific OS support varies by server. Refer to each server's
QuickSpecs for supported versions)
HP Insight Diagnostics
AutoRun
Array Configuration Utility (ACU) has been combined with Array Diagnostics
Utility (ADU) to offer both configuration of array controllers and storage
devices and testing of array controller hardware
SmartStart Scripting Toolkit (SSSTK) and Smart Components for software
and drivers
NOTE: OS and SW available for Manual
Installation are listed on each servers' QuickSpecs.
SmartStart Scripting Toolkit
(SSSTK)
The SmartStart Scripting Toolkit
is a server deployment product that delivers an unattended automated installation
for high-volume server deployments. The SmartStart Scripting Toolkit includes
a set of utilities for configuring and deploying servers in a customized,
predictable, and unattended manner. These utilities enable you to duplicate
the configuration of a source server on target servers with minimum user
interaction.
The Toolkit is designed for IT experts with experience in scripting operating
system installations and configuring ProLiant server hardware.
Subscriber's Choice Driver and Support Alerts/Notifications is a web-based
email subscription service that provides software and driver change notifications
for ProLiant products. Sign up at: http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, software and latest
drivers
The latest software, drivers, and firmware fully optimized and tested
for your ProLiant server and options; downloaded from Software and Drivers
download pages website at: http://www.hp.com/go/support
and from www.hp.com/servers/easysetup.
Contains the following:
HP Insight Management Agents for Systems Insight Manager (SIM) Integration
HP Systems Management Homepage
Array Configuration Utility (ACU)
Array Diagnostics Utility (ADU)
HP Insight Diagnostics
High Performance
Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically
engineered, factory-integrated large-scale ProLiant clusters optimized for
High Performance Computing, with a choice of servers, networks and software.
Operating system options include specially priced offerings for Red Hat
Enterprise Linux and Novell SLES, as well as Microsoft Windows HPC Server.
A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC)
interconnect technologies are available for this server as part of the HP
Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects
are fully supported by HP when integrated within an HP cluster. Flexible,
validated solutions can be defined with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management Utility
HP Cluster Management Utility
(CMU) is an HP-licensed and HP-supported suite of tools that are used to
manage large-scale Linux ProLiant systems. CMU includes software for the
centralized provisioning, management and monitoring of nodes. CMU makes
the administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
HP HPC Linux Value Pack
HP HPC Linux Value Pack (Value
Pack) is an HP-licensed and HP-supported specially priced software bundle
for the development and deployment of applications on HPC Cluster Platforms.
Value Pack includes the Platform LSF workload scheduler, the HP-MPI parallelization
library, the HP Unified Parallel C compiler and the HP Shmem library, as
well as the execution environments for the libraries and compiler. HP
HPC Linux Value Pack
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of servers
and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem,
HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eConfigure Enterprise Configurator now provides factory default
racking for our HP hardware portfolio. This approach is aligned with our
strategic direction to meet the needs and expectations of our valued customers.
If you require "custom" rack configuration, please contact HP's
Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
HP Care Pack Services: Packaged server and storage services for increased
uptime, productivity and ROI
When you buy HP server and storage products and solutions, it's also a
good time to think about what levels of support you may need. Our portfolio
of service options reduce deployment and management worries while helping
you get the most out of your server and storage investments. We take a
holistic approach to your environment, bridging servers, blades, storage,
software and network infrastructures with our packaged HP Care Pack Services
for servers and storage.
Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment
warranties have matured along with technology. Good news that can also
create problems stemming from depending on standard warranties designed
to only protect against product defects and some downtime causes. Using
a standard approach to warranty uplifts, such as HP Care Pack Services,
helps reduce downtime risks and provides operational consistency for mission-critical
and standard business computing.
HP Care Pack Services: Upgrading or extending standard server and
storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software
support services suite sold separately, or combined with our Support Plus
and Support Plus 24 services. The portfolio also provides a combination
of integrated proactive and reactive services, such as Proactive 24 Service
and Critical Service. In addition with HP Proactive Select, you can acquire
the specific proactive constancy and technical services. HP Proactive
Select menu offers a broad set of service options that you can mix and
match depending on your specific requirements. Proactive service options
include offers for server, storage, network, SAN device, software, environment
and education services.
HP server and storage lifecycle support services offers a full spectrum
of customer care-from technology support to complex migrations to complete
managed services. HP Factory Express provides customization, integration
and deployment services for turnkey solutions. HP Education Services offer
flexible, comprehensive training on to help your IT staff get the most
out of your server and storage investments. HP Financial solutions extend
innovative financing and cost-effective asset management programs-from
purchase to equipment retirement.
Recommended HP
Care Pack Services for optimal satisfaction with your HP product
Recommended Services
3-Year HP Hardware Support Onsite Service, 4-hour response, 13x5
Delivers increased equipment availability and productivity with rapid
remote support and onsite response for your HP server and storage hardware.
3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
Provides you with rapid remote support and if required an HP authorized
representative who will arrive on site any time and day of the year to
begin hardware maintenance service within 4 hours of the service request
being logged.
This service provides a trained HP service specialist to perform an installation
that meets HP quality standards, for:
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage
devices and networking options to assist you in bringing your new hardware
into operation in a timely and professional manner.
Expedited installation, with all service prerequisites met before
the installation is performed
Installation in accordance with manufacturer's specifications, enhancing
the supportability of your HP-installed hardware and software
Service delivery at a mutually scheduled time
Allows your IT resources to stay focused on their core tasks and priorities
Availability of an HP service specialist to answer questions during
the onsite delivery of this service
Optional HP Care
Pack Services that will enhance your HP product experience
Optional Services
3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6-
or 24-hour
As an alternative to our recommended support level, for customers who
need committed call-to-repair for server hardware.
Provides your IT manager with a team of support specialists who will quickly
begin troubleshooting the system to help return the hardware to operating
condition within 6 or 24 hours of the initial service request to the HP
Global Solution Center.
HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services
and education courses.
Provides a flexible way to purchase HP best-in-class consultancy and technical
services. You can buy Proactive Select Service Credits when you purchase
your hardware and then use the credits over the next 12 months.
HP eSupport is a portfolio of technology-based services that assist you
with managing your business environment - from the desktop to the data
center.
Support Portal
The HP support portal provides one-stop access to the information, tools
and services you need to manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service
agreement. To access the support portal, visit: http://www.hp.com/support
HP Insight Remote Support software delivers secure remote support for
your HP Servers and Storage, 24 X 7, so you can spend less time solving
problems and more time focused on your business. You can have your systems
remotely monitored for hardware failure using secure technology that's
been proven at thousands of companies around the world. In many cases,
you can avoid problems before they occur.
Customer Technical Training
HP Education Services
In today's cost-conscious business environment, IT professionals, developers,
consultants and users face an interesting challenge: how to keep up with
the latest technologies and expand important skills while delivering profitable
results on current projects. To help address this challenge, HP offers
innovative training solutions that help keep you up-to-date on virtualization,
server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related
topics-while spending less time away from business-critical activities.
HP Services Awards
HP Technology Services continues to be recognized for service and support
excellence by customers, partners, industry organizations and publications
around the world. Recent honors and award reflect our services team's
dedications, technical expertise, professionalism and uncompromising commitment
to customer satisfaction.
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section. NOTE: Pre-configured models ship with the configurations below. Options
can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured
models. Any additional options purchased will be shipped separately. NOTE: If you desire a custom configuration please see "Configuration
Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: Not all models are available in all regions. Check with your
local country HP offices for availability.
Eight Drive Non-Hot-Plug
Serial ATA (SATA) 2 Node Models NOTE: Only hot-plug form-factor HDDs
are supported but are used in a cold-swap manner in the base configuration.
Upgrading to 8 Hot Plug SATA requires the addition of the B110i Hot-Plug
Advance Pack or storage controller. Upgrading to SAS hard drives requires
the addition of a storage controller. Adding a storage controller (Smart
Array P212/256MB recommended) requires one HP h1000 LFF SAS CTTLR CABLE
OPT KIT per controller (P/N 519503-B21).
HP DL2x170h E5504 3x2GB 8LFF SVR
503581-xx1
Processor(s)
One Intel® Xeon® Processor
E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800) / server node
Cache Memory
4MB shared L3 cache
Memory

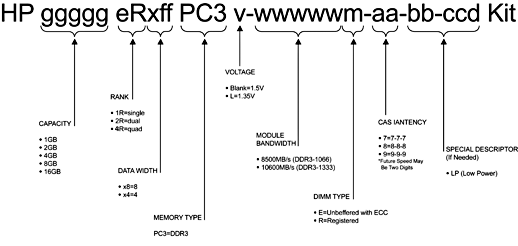

6GB (3 x 2GB) PC3-10600E (UDIMM)
/ server node
Network Controller
HP NC362i Integrated Dual Port
Gigabit Server Adapter
Storage Controller
Embedded HP Smart Array Hot
Plug Advanced Pack for B110i (RAID 0, 1, 10)
Hard Drive
None ship standard
Internal Storage
16.0TB (8 x 2TB Hot Plug 3.5"
SATA hard drives), Maximum
16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum NOTE: SAS and/or hot-plug functionality
requires the addition of a Smart Array controller.
Optical Drive
External support only
Power Supply
1 x 1200Watts, 90% Efficiency,
Common Slot Power Supply Standard
2nd 1200W, 90% Efficiency, Power Supply Optional
Fans
4 x 80mm system fans ship standard;
Non-hot plug, Non-redundant
Form Factor
HP ProLiant h1000 G6 Chassis
- 2U
HP ProLiant DL170h G6 Server - Half-width server node
Eight Drive Non-Hot-Plug
Serial ATA (SATA) 4 Node Models NOTE: Only hot-plug form-factor HDDs
are supported but are used in a cold-swap manner in the base configuration.
Upgrading to 8 Hot Plug SATA requires the addition of the B110i Hot-Plug
Advance Pack or storage controller. Upgrading to SAS hard drives requires
the addition of a storage controller. Adding a storage controller (Smart
Array P212/256MB recommended) requires one HP h1000 LFF SAS CTTLR CABLE
OPT KIT per controller (P/N 519503-B21)
HP DL4x170h E5504 3x2GB 8LFF SVR
503578-xx1
Processor(s)
One Intel® Xeon® Processor
E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800) / server node
Cache Memory
4MB shared L3 cache
Memory
6GB (3 x 2GB) PC3-10600E (UDIMM)
/ server node
Network Controller
HP NC362i Integrated Dual Port
Gigabit Server Adapter
Storage Controller
Embedded HP Smart Array Hot
Plug Advanced Pack for B110i (RAID 0, 1, 10)
Hard Drive
None ship standard
Internal Storage
16.0TB (8 x 2TB Hot Plug 3.5"
SATA hard drives), Maximum
16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum NOTE: SAS and/or hot-plug functionality
requires the addition of a Smart Array controller and SAS Controller Cable
Option Kit.
Optical Drive
External support only
Power Supply
1 x 1200Watts, 90% Efficiency,
Common Slot Power Supply Standard
2nd 1200W, 90% Efficiency, Power Supply Optional
Fans
4 x 80mm system fans ship standard;
Non-hot plug, Non-redundant
Form Factor
HP ProLiant h1000 G6 Chassis
- 2U
HP ProLiant DL170h G6 Server - Half-width server node
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure
a Factory Integrated Model. To ensure only valid configurations are ordered,
HP recommends the use of an HP approved configurator. Contact your local
sales representative for information on configurable product offerings
and requirements. NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis. NOTE: FIO indicates that this option is only available as a factory
installable option.
Step 1: Base Configuration
(choose one from each list unless otherwise noted)
HP Chassis
HP ProLiant h1000 G6 2U Chassis
507653-B21
HP h1000 2 Node Side by Side FIO
Kit
516030-B21
HP h1000 3 Node FIO Kit
518028-B21
HP h1000 4 Node FIO Kit
518029-B21
HP Nodes
HP ProLiant DL170h G6 Node 1 Configure-to-order
Server
507638-B21
HP ProLiant DL170h G6 Node 2 Configure-to-order
Server
507639-B21
HP ProLiant DL170h G6 Node 3 Configure-to-order
Server
507640-B21
HP ProLiant DL170h G6 Node 4 Configure-to-order
Server
507641-B21
NOTE: A minimum
of two nodes are required per 2U chassis. There are only three options for
ordering DL170h G6 Nodes.
1) 2 Node Config: user must order Nodes 2 and 4;
2) 3 Node Config: user must order Nodes 1, 2 and 4; or
3) 4 Node Config: user must order Nodes 1, 2, 3 and 4. NOTE: Additional nodes cannot be added later to 2 or 3 node configurations.
HP Drive Cage Options
HP h1000 G6 8 LFF Drive Cage FIO
Kit NOTE: This selection requires that
only SATA drives can be selected and SAS Controller cannot be added to any
node.
507654-B21
HP h1000 G6 8 LFF Drive SAS Ctlr
Cage FIO Kit NOTE: With this selection, SAS and
SATA drives can be selected but a SAS controller must be selected for each
node.
538666-B21
HP h1000 G6 16 SFF Drive Cage
FIO Kit NOTE: This selection requires that
only SATA drives can be selected and SAS Controller cannot be added to any
node.
507655-B21
HP h1000
G6 16 SFF Drive SAS Ctlr Cage FIO Kit NOTE: With this selection, a SAS
controller must be selected for each node.
538667-B21
HP Power Supplies
NOTE: Prior to
making a power supply selection it is highly recommended that the HP Power
Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor NOTE: Selection of a Common Slot High Efficiency or Platinum Power
Supply requires the purchase of a Common Slot Power Supply Backplane FIO
Kit (P/N: 516136-B21).
HP 460W Common Slot Gold Hot Plug
Power Supply Kit
HP h1000 750W IS PS FIO Kit NOTE: Selection of an Industry Standard
Power Supply requires the purchase of a Fan Controller FIO Kit (P/N: 516000-B21).
515997-B21
Power Supplies - Enablement Kits
HP h1000 Common Slot PS BP FIO
Kit NOTE: This backplane must be ordered
with any Common Slot High Efficiency Power Supply.
516136-B21
HP h1000 IS PS Fan Controller
FIO Kit NOTE: This fan controller kit must
be ordered with the 750W Industry Standard Power Supply (P/N: 515997-B21).
516000-B21
Step 2: Choose Required
Node Options (only one of the following from each list unless otherwise
noted)
HP Processors
NOTE: DL170h G6
servers purchased with Intel Xeon 5500 Series processors are not upgradeable
to Intel Xeon 5600 series processors. NOTE: If 2 processors are desired, select one xxxxxx-B21 and one
xxxxxx-B21.
Six Core Processors
HP DL170h G6 Intel® Xeon®
X5670 (2.93GHz/6-core/12MB/95W) FIO Processor Kit
600545-B21
Quad-Core Processors
HP DL170h G6 Intel® Xeon®
E5640 (2.66GHz/4-core/12MB/80W) FIO Processor Kit
600543-B21
HP DL170h G6 Intel® Xeon®
L5630 (2.13GHz/4-core/12MB/40W) FIO Processor Kit
600541-B21
HP DL170h G6 Intel® Xeon®
X5570 (2.93GHz/4-core/8MB/95W) FIO Processor Kit
507889-B21
HP DL170h G6 Intel® Xeon®
X5560 (2.80GHz/4-core/8MB/95W) FIO Processor Kit
538757-B21
HP DL170h G6 Intel® Xeon®
X5550 (2.66GHz/4-core/8MB/95W) FIO Processor Kit
503582-B21
HP DL170h G6 Intel® Xeon®
E5540 (2.53GHz/4-core/8MB/80W) FIO Processor Kit
507890-B21
HP DL170h G6 Intel® Xeon®
E5530 (2.40GHz/4-core/8MB/80W) FIO Processor Kit
583381-B21
HP DL170h G6 Intel® Xeon®
E5520 (2.26GHz/4-core/8MB/80W) FIO Processor Kit
503583-B21
HP DL170h G6 Intel® Xeon®
L5530 (2.40GHz/4-core/8MB/60W) FIO Processor Kit
583133-B21
HP DL170h G6 Intel® Xeon®
L5520 (2.26GHz/4-core/8MB/60W) FIO Processor Kit
507891-B21
HP DL170h G6 Intel® Xeon®
L5506 (2.13GHz/4-core/4MB/60W) FIO Processor Kit
503585-B21
HP DL170h G6 Intel® Xeon®
E5506 (2.13GHz/4-core/4MB/80W) FIO Processor Kit
583383-B21
HP DL170h G6 Intel® Xeon®
E5504 (2.00GHz/4-core/4MB/80W) FIO Processor Kit
HP 4GB (1x4GB) Single Rank x4
PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600
(DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LV include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory.
NOTE: There is
a maximum support limitation of 8 ranks per memory channel (maximum of 2
quad rank DIMMs per channel) NOTE: Memory Min and Max depends on number of processors and type
of memory:
1 Processor -> R-Dimm: Min 1 // Max 8 U-Dimm: Min 1 // Max 6
2 Processors -> R-Dimm: Min 2 // Max 16 U-Dimm: Min 2 // Max 12
HP I/O Expansion
Options
Full-height (or 2U nodes)
HP DL170h I/O Riser PCIe x16 x4
x4 FIO
514005-B21
HP DL170h I/O Riser PCIe x8 x8
x8 FIO
503587-B21
HP DL170h I/O Riser PCIe x16 x8
FIO NOTE: The 2 slot riser (P/N: 512481-B21)
is the only riser option that supports the NVIDIA FX5800 graphics card.
512481-B21
Half-height (or 1U nodes)
HP DL170h I/O Riser PCIe x16 FIO NOTE: This is the only riser option
for 4 Node configurations.
503586-B21
Step 3: Choose Additional
Factory Integratable Options (only one of the following from each list unless
otherwise noted)
HP Front Power option
HP h1000 Front Power Right FIO
Kit
516022-B21
HP h1000 Front Power Left FIO
Kit
516001-B21
NOTE: Each ProLiant
DL170h Server comes with a rear UID, Power Button and Health LED. These
options provide a front facing option that will power up to two nodes each.
If a 3 or 4 Node Setting kit is selected in Step 1, then both power button
kits must be ordered. If the 2 Node Setting kit is selected in Step 1, then
only the Right Power Kit (P/N: 516022-B21) is needed.
HP Storage Controllers
NOTE: Non-Hot-Plug
SATA Models: The embedded HP Smart Array B110i SATA RAID supports RAID 0,1,10
and cold-plug capability with hot-plug form factor drives. Non-hot-plug
form factor hard disk drives are not supported in the DL1000. NOTE: Hot-Plug SATA Models: A HP Smart Array B110i SATA RAID Hot-Plug
Advanced Pack per server or virtual machine is required for hot-plug SATA
using the embedded B110i SATA RAID controller.
NOTE: SAS Models:
A minimum of one SAS Controller per server node is required when purchasing
a SAS HDD Model (P/N 538666-B21 or 538667-B21). NOTE: The P410 Controller is not supported in a Low Profile PCIe
G2 slot. For all 8 LFF SAS HDD configurations, a P212 is required. For 16
SFF SAS HDD configurations with 4 nodes, a P212 is required. For 16 SFF
SAS HDD configurations with 2 nodes, a P410 is required and the card must
be populated in the FH/FL or FH/HL PCI slot. In a 16 SFF SAS HDD configuration
with 3 nodes, a P212 is required for both half-height nodes, each supporting
4 HDDs, and a P410 is required for the full height node, supporting 8 HDDs
and must be populated in the FH/FL or FH/HL PCI slot.
HP Smart Array P410/ZM 2-ports
Int PCIe x8 FIO SAS Controller
NOTE: Some options
may not be integrated at the factory. To ensure only valid configurations
are ordered, HP recommends the use of an HP approved configurator. Contact
your local sales representative for additional information.
HP Unique Options
HP DL170h Dedicated Management
Port OPT Kit NOTE: Each ProLiant DL170h G6 Server
comes standard with sideband support for LO100i through the shared, system
NIC. Order this option (P/N 575498-B21) if a dedicated management network
is desired.
575498-B21
HP h1000 G6 Large Form Factor
SAS Cable Kit NOTE: When adding a Smart Array Controller
to an 8LFF SAS HDD configuration, a HP h1000 LFF SAS CONTROLLER CABLE OPTION
KIT (P/N 519503-B21) must be ordered to connect the Smart Array Controller
to the hard drive backplane. When a controller is added during a CTO buildup,
the appropriate cables are included and this kit is not required. This cable
kit is only needed for BTO configurations or if a CTO customer upgrades
to a Smart Array Controller after initial purchase.
519503-B21
HP h1000 G6 Small Form Factor
SAS Cable Kit NOTE: When adding a Smart Array Controller
to a 16SFF SAS HDD configuration, a HP h1000 SFF SAS CONTROLLER CABLE OPTION
KIT (P/N 519507-B21) must be ordered to connect the Smart Array Controller
to the hard drive backplane. When a controller is added during a CTO buildup,
the appropriate cables are included and this kit is not required. This cable
kit is only needed if a CTO customer upgrades to a Smart Array Controller
after initial purchase.
519507-B21
HP DL170h Graphics Brkt/Cable
Kit NOTE: This option must be ordered
if an NVIDIA FX5800 is installed in a full-height 2 slot riser. The FX5800
can only be installed in the 2 slot riser option: HP DL170h I/O Riser PCIe
x16 x8 FIO option, part number 512481-B21.
536860-B21
HP Processors
NOTE: DL170h G6
servers purchased with Intel Xeon 5500 Series processors are not upgradeable
to Intel Xeon 5600 series processors.
Six Core Processors
HP DL170h G6 Intel® Xeon®
X5670 (2.93GHz/6-core/12MB/95W) Processor Kit
600545-B21
Quad-Core Processors
HP DL170h G6 Intel® Xeon®
E5640 (2.66GHz/4-core/12MB/80W) Processor Kit
600543-B21
HP DL170h G6 Intel® Xeon®
L5630 (2.13GHz/4-core/12MB//40W) Processor Kit
600541-B21
HP DL170h G6 Intel® Xeon®
X5570 (2.93GHz/4-core/8MB/95W) Processor Kit
507889-B21
HP DL170h G6 Intel® Xeon®
X5560 (2.80GHz/4-core/8MB/95W) Processor Kit
538757-B21
HP DL170h G6 Intel® Xeon®
X5550 (2.66GHz/4-core/8MB/95W) Processor Kit
503582-B21
HP DL170h G6 Intel® Xeon®
E5540 (2.53GHz/4-core/8MB/80W) Processor Kit
507890-B21
HP DL170h G6 Intel® Xeon®
E5530 (2.40GHz/4-core/8MB/80W) Processor Kit
583381-B21
HP DL170h G6 Intel® Xeon®
E5520 (2.26GHz/4-core/8MB/80W) Processor Kit
503583-B21
HP DL170h G6 Intel® Xeon®
L5530 (2.40GHz/4-core/8MB/60W) Processor Kit
583133-B21
HP DL170h G6 Intel® Xeon®
L5520 (2.26GHz/4-core/8MB/60W) Processor Kit
507891-B21
HP DL170h G6 Intel® Xeon®
L5506 (2.13GHz/4-core/4MB/60W) Processor Kit
503585-B21
HP DL170h G6 Intel® Xeon®
E5506 (2.13GHz/4-core/4MB/80W) Processor Kit
583383-B21
HP DL170h G6 Intel® Xeon®
E5504 (2.00GHz/4-core/4MB/80W) Processor Kit
HP 4GB (1x4GB) Single Rank x4
PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600
(DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LV include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory.
NOTE: There is
a maximum support limitation of 8 ranks per memory channel (maximum of 2
quad rank DIMMs per channel) NOTE: Memory Min and Max depends on number of processors and type
of memory:
1 Processor -> R-Dimm: Min 1 // Max 8 U-Dimm: Min 1 // Max 6
2 Processors -> R-Dimm: Min 2 // Max 16 U-Dimm: Min 2 // Max 12
HP Hard Drives
NOTE: The components
of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and
the server backplane) should operate at the same data transfer rate or the
system bandwidth will be negotiated down to an acceptable level for all
components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details. NOTE: If using SAS hard drives, a Smart Array controller is required.
For BTO configurations only, and For 3.5" drive cable kit P/N 519503-B21
or for 2.5" cable kit P/N 519507-B21.
SAS Hot Plug SFF (2.5-inch) Enterprise
(ENT) Drives
HP 600GB 6G SAS 10K rpm SFF (2.5-inch)
Dual Port Enterprise 3yr Warranty Hard Drive
10 Gigabit Ethernet Adapters NOTE: No more than two 10GbE I/O
devices are supported in a single ProLiant server. NOTE: A minimum of two Gigabytes (2 GB) of server memory is required
per each adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber
transceivers and cables for fiber-optic environments must be purchased separately.
HP NC550SFP Dual Port 10GbE Server
Adapter
581201-B21
NOTE: Please see
the QuickSpecs for Technical Specifications and additional information:
www.hp.com/go/ProLiantNICs.
NOTE: Prior to
making a power supply selection it is highly recommended that the HP Power
Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor
HP 460W Common Slot Gold Hot Plug
Power Supply Kit
NOTE: Some options
may not be integrated at the factory. To ensure only valid configurations
are ordered, HP recommends the use of an HP approved configurator. Contact
your local sales representative for additional information.
HP Remote Management
HP LO100i Advanced Pack, No Media
1-Server License including 1 year of 24x7 Technical Support and Updates
530521-B21
NOTE: For additional
information, please see the Lights-Out 100i QuickSpecs at www.hp.com/go/lo100
HP Insight Software
HP Insight Control for Linux
HP Insight Control for Linux including
1yr 24x7 Support Electronic License
TC213AAE
HP Insight Control for Linux including
1yr 24x7 Support Single Server License
TC209A
HP Insight Control for Linux Media
Kit NOTE: Media pack DVD contains the
ISO image for HP Insight Control for Linux, HP Systems Insight Manager,
HP Insight Control power management, HP Insight Control virtual machine
management, and an integrated installer. Servers must be acquired separately.
TC208A
NOTE: Licenses
ship without media. The Media Kit for Insight Control for Linux can be ordered
separately, or can be downloaded at: http://www.hp.com/go/ic-linux
(click on Download button). NOTE: Electronic software is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent. NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys. NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Insight Control server deployment
HP Insight Control Server Deployment
including 1yr 24x7 Support Electronic License
T9082AAE
NOTE: Electronic
and Flexible-Quantity licenses can be used to purchase multiple licenses
with a single activation key. NOTE: Electronic software is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent. NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service. NOTE: Licenses ship without media. The Insight Software Media Kit
can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightcontrol
(click on Download button). NOTE: For additional license options please see the Insight Control
QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
High Performance Clusters
HP Cluster Management Utility
HP Cluster Management Utility
Compute Node Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one node (server). Customer will receive a printed
end user license agreement and license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online in
order to obtain a license key.
436284-B21
HP Cluster Management Utility
License and Media NOTE: Order a minimum of one license
per cluster to purchase media including software and documentation, which
will be delivered to the customer, and also licenses CMU management. No
license key is delivered or required.
HP High Performance Computing
Linux Value Pack 1 Processor Flexible License NOTE: This part number can be used
to purchase one certificate for multiple licenses with a single activation
key. Each license is for one socket (a.k.a. processor). Customer will receive
a printed end user license agreement and license entitlement certificate
via physical shipment. The license entitlement certificate must be redeemed
online in order to obtain a license key.
TC293A
HP High Performance Computing
Linux Value Pack Media Kit NOTE: This part number can be used
to purchase media including software and documentation, which will be delivered
to the customer.
NOTE: The TPM
(Trusted Platform Module) is a microcontroller chip that can securely store
artifacts used to authenticate the server platform. These artifacts can
include passwords, certificates and encryption keys. Windows® BitLocker™
Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities
of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker
to help protect user data and to ensure that a server running Windows Server
2008 has not been tampered with while the system was offline. For more information
about TPM, including a white paper, go to: www.hp.com/go/TPM. NOTE: ProLiant OS pre-installed units will come with the partition
required for TPM deployment. NOTE: The TPM key is unique to every TPM deployed server and must
be retained. Misplacing or losing the key could result in data loss.
HP Storage Controllers
HP
Smart Array P800 Controller
HP Smart Array P800/512 BBWC 2-ports
Int/2-ports Ext PCIe x8 SAS Controller
HP 650 mAh P-Series Battery NOTE: To enable BBWC on the 256MB
cache. NOTE: Requires 256 MB Cache Module. When used with the embedded HP
Smart Array P410i controller, this battery module also requires a 24 inch
SFP Battery Cable (496029-B21).
NOTE: For the
complete range of StorageWorks tape drives, autoloaders, libraries and media
see: http://www.hp.com/go/tape.
For hardware and software compatibility of HP StorageWorks tape backup products
see: http://www.hp.com/go/connect.
HP StorageWorks D2D Backup Systems
with Backup Data Deduplication
HP StorageWorks D2D2504i Backup
System NOTE: 3.0TB of useable network disk
backup capacity. Network connected appliance with connectivity using the
iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic
QLA4050 Host Bus Adapter is recommended.
EJ002B
HP StorageWorks D2D4112 Backup
System NOTE: 9.0TB (expandable to 18.0TB)
of useable network disk backup capacity. Fibre Channel SAN connected appliance.
Direct server attach is not supported, requires connection via SAN fabric.
NOTE: Rack-mountable
12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity
and redundant power supplies. NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html
(Worldwide)
NOTE: Rack-mountable
25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity
and redundant power supplies. NOTE: Please see the QuickSpecs for Technical Specifications and
additional information: http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html
(Worldwide)
NOTE: Additional
HP Uninterruptible Power Systems (UPS) are available for this equipment.
For information on all HP UPSs and accessories please go to: www.hp.com/products/ups
(Worldwide)
NOTE: For additional
information on sizing your HP UPS, please reference: http://www.upssizer.com
HP Power Distribution
Units
HP Monitored Power Distribution
Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU-
single input, 1Ø, 24A (NA/JPN)
AF914A
HP 7.3 kVA S132 Monitored PDU-
single input, 1Ø, 32A (INTL)
AF915A
HP Monitored Power Distribution
Unit: Full Rack Version
HP 8.6 kVA S1324 Monitored PDU-
single input, 3Ø, 24A (NA/JPN)
AF504A
HP 8.3 S1140 Monitored PDU- single
input, 1Ø, 40A (NA/JPN)
AF506A
HP 11 kVA S1316 Monitored PDU-
single input, 3Ø, 16A (INTL)
AF508A
HP 7.3 kVA S1132 Monitored PDU-
single input, 1Ø, 32A (INTL)
Modular Power Distribution Units
1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets shipped
with the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution
Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)
8.3kVA Model - mPDU, 40A, High
(power cord attached) (NA/JPN)
252663-D73
HP Modular Power Distribution
Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l)
252663-B31
HP Modular Power Distribution
Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW) NOTE: This PDU has a detachable input
power cord and allows for adaptability to country specific power requirements.
NOTE: The increasing
power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced
airflow for maximum cooling, allowing these racks to be fully loaded with
servers using the latest processors. CAUTION: If a third-party rack is used, observe the following additional
requirements to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and
rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly
distributed from top to bottom to permit adequate airflow (equivalent to
the required 64 percent open area for ventilation). Side: The clearance
between the installed rack component and the side panels of the rack must
be a minimum of 2.75 inches (7 cm). CAUTION: Always use blanking panels to fill all remaining empty front
panel U-spaces in the rack. This arrangement ensures proper airflow. Using
a rack without blanking panels results in improper cooling that can lead
to thermal damage.
NOTE: Quick deploy
rail system provides tool-free support for racks with square or round mounting
holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an
adjustment range of 24" - 36". The ambidextrous cable management
arm can be mounted on either the left or right side for improved cable management.
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
Standard Memory
6GB (3 x 2GB)/server node, PC3-10600E Unregistered DIMM memory, with ECC
Maximum Memory
Up to 192GB, using PC3-8500R DDR3 Registered (RDIMM) memory, operating at
800MHz when fully populated at 2 DIMMs per Channel in 12 slots
Up to 48GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at
1333MHz when fully populated at 2 DIMMs per Channel in 12 slots NOTE: RDIMMs and UDIMMs cannot be
in the same system so the maximum RDIMM memory configuration can only be
achieved with BTO models by replacing all of the UDIMMs.
NOTE:
Chart does not represent all possible memory configurations.
Some DIMM installation guidelines
are summarized below:
For servers with sixteen (16)
memory slots
There are three (3) channels
per processor; six (6) channels per server
There are two (3) DIMM slots
for two memory channels and one (2) DIMM slots for one memory channel;
sixteen (16) total slots
Memory channel 1 consists
of the two (2) DIMM slots that are closest to the processor
Memory channels 2 and 3 consist
of the six (6) DIMM slots that are furthest from the processor
DIMM slots that are white
should be populated first
Do not mix Unbuffered memory
(UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the
corresponding processor is not installed
If only one processor is installed
in a 2CPU system, only half of the DIMM slots are available
To maximize performance, balance
the total memory capacity between all installed processors
It is not required, but it
is recommended to load the channels similarly if possible
You can only have up to eight
(8) ranks installed per channel
You can only install two quad-rank
DIMMs per channel
You can only install two UDIMMs
per channel; if available, the third slot in the channel must remain
empty
Populate DIMMs from heaviest
load (quad-rank) to lightest load (single-rank) within a channel
Heaviest load (DIMM with most
ranks) within a channel goes furthest from the chipset
Low Voltage DIMMs can only
be used with Intel Xeon 5600 series processors.
For memory mirroring mode, channel 3 must be unpopulated.
Channels 1 and 2 are populated identically
For lock-step mode, channel 3 must be unpopulated.
DIMMs in channels 1 and 2 will be installed in pairs. The paired slots
will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
If mixing DIMM voltage is
a requirement, please note that the DIMMs will run at 1.5V since all
1.35V are capable of supporting 1.5V operations.
DIMM Type ->
Registered
DIMMs (RDIMMs)
Unbuffered
with ECC DIMMs (UDIMMs)
DIMM Rank ->
Single
Rank
(1R)
Dual Rank
(2R)
Quad Rank
(4R)
Single
Rank
(1R)
Dual Rank
(2R)
DIMM Capacity ->
4GB
2GB
4GB
8GB
8GB
4GB
16GB
1GB
2GB
4GB
DIMM Native Speed (MHz) ->
1333
1333
1333
1066
1333
1066
1066
1333
1333
1333
Voltage
LV/Reg
Reg
Reg
Reg
LV/Reg
Reg
Reg
Reg
Reg
LV/Reg
SLOTS THAT CAN BE POPULATED
16 slot servers
16
16
16
16
16
12
12
12
12
12
MAXIMUM MEMORY CAPACITY
(GB)
16 slot servers
64
32
64
128
128
48
192
12
24
48
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel
1333
1333
1333
1066
1333
1066
1066
1333
1333
1333
2 DIMMs Per Channel
1333*
1333*
1333*
1066
1333*
800
800
1066
1066
1333*
3 DIMMs Per Channel (on 2 channels)
800
800
800
800
800
N/A
N/A
N/A
N/A
N/A
*supported with ROM update via ROM
Based Setup Utility (RBSU)
NOTES:
PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have
a maximum speed of 1066MHz
Mixing DIMM speeds is allowed, but the system processor speed rules
always override the DIMM capabilities
If you do mix DIMM speeds, the memory bus will default to the minimum
clock rate of all DIMMs in the system - even if the slower DIMM is on
the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in
channel 2, the maximum speed will be 1066MHz If you install 1x 1066MHz
DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC)
in each of the other channels, the maximum speed will be 1066MHz
If you install 3DPC in one channel (if applicable) and 1DPC in all
other channels, you run at 800MHz
Maximum memory speed will also depend on the processor installed
References to the above MHz speeds are for the various speeds of DDR3
DIMMs; 1333 refers to DDR3-1333, etc.
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second,
"C" third, etc. Channel 1 is channel furthest away from the
CPU and Channel 3 is channel closest to CPU.
16
DIMM SLOTS (8 per CPU node)
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
A
1
A
Chnl 1
2
D
2
D
3
G
3
G
Chnl 2
4
B
4
B
Chnl 2
5
E
5
E
6
H
6
H
Chnl 3
7
C
7
C
Chnl 3
8
F
8
F
Standard memory configuration (1 CPU model)
6GB, consisting of three (3) 2GB dual-rank PC3-10600E UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
A; 2GB DIMM
1
A; empty
Chnl 1
2
D; empty
2
D; empty
3
G; empty
3
G; empty
Chnl 2
4
B; 2GB DIMM
4
B; empty
Chnl 2
5
E; empty
5
E; empty
6
H; empty
6
H; empty
Chnl 3
7
C; 2GB DIMM
7
C; empty
Chnl 3
8
F; empty
8
F; empty
Standard memory plus optional memory (1 CPU model)
12GB, consisting of three (3) 2GB UDIMMs plus three (3) 2GB UDIMMs
6x 2GB dual-rank PC3-10600E UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
A; 2GB DIMM
1
A; empty
Chnl 1
2
D; 2GB DIMM
2
D; empty
3
G; empty
3
G; empty
Chnl 2
4
B; 2GB DIMM
4
B; empty
Chnl 2
5
E; 2GB DIMM
5
E; empty
6
H; empty
6
H; empty
Chnl 3
7
C; 2GB DIMM
7
C; empty
Chnl 3
8
F; 2GB DIMM
8
F; empty
Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration
96GB, consisting of six (6) 16GB quad-rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
A; 16GB DIMM
1
A; empty
Chnl 1
2
D; 16GB DIMM
2
D; empty
3
G; empty
3
G; empty
Chnl 2
4
B; 16GB DIMM
4
B; empty
Chnl 2
5
E; 16GB DIMM
5
E; empty
6
H; empty
6
H; empty
Chnl 3
7
C; 16GB DIMM
7
C; empty
Chnl 3
8
F; 16GB DIMM
8
F; empty
Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration
192GB, consisting of sixteen (16) 16GB quad rank PC3-8500 RDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
A; 16GB DIMM
1
A; 16GB DIMM
Chnl 1
2
D; 16GB DIMM
2
D; 16GB DIMM
3
G; empty
3
G; empty
Chnl 2
4
B; 16GB DIMM
4
B; 16GB DIMM
Chnl 2
5
E; 16GB DIMM
5
E; 16GB DIMM
6
H; empty
6
H; empty
Chnl 3
7
C; 16GB DIMM
7
C; 16GB DIMM
Chnl 3
8
F; 16GB DIMM
8
F; 16GB DIMM
UDIMM maximum configuration
48GB, consisting of twelve (12) 2GB dual-rank PC3-10600 UDIMMs
CPU1
CPU2
slot #
population order
slot #
population order
Chnl 1
1
A; 4GB DIMM
1
A; 4GB DIMM
Chnl 1
2
D; 4GB DIMM
2
D; 4GB DIMM
3
G; empty
3
G; empty
Chnl 2
4
B; 4GB DIMM
4
B; 4GB DIMM
Chnl 2
5
E; 4GB DIMM
5
E; 4GB DIMM
6
H; empty
6
H; empty
Chnl 3
7
C; 4GB DIMM
7
C; 4GB DIMM
Chnl 3
8
F; 4GB DIMM
8
F; 4GB DIMM
NOTE: Capacity references are rounded to the common Gigabyte values.
HP 4GB (1x4GB) Single Rank x4
PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600
(DDR3-1333) Registered CAS-9 Low Power Memory Kit NOTE: Low Voltage DIMMs can only
be used with Intel® Xeon® processor 5600 series processors.
NOTE: All DDR3
memory option kits consist of one DIMM per kit. For detailed memory configuration
rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator. NOTE: Kits described as LV include Low Power DIMMs. For more information
on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory.
NOTE: There is
a maximum support limitation of 8 ranks per memory channel (maximum of 2
quad rank DIMMs per channel) NOTE: Memory Min and Max depends on number of processors and type
of memory:
1 Processor -> R-Dimm: Min 1 // Max 8 U-Dimm: Min 1 // Max 6
2 Processors -> R-Dimm: Min 2 // Max 16 U-Dimm: Min 2 // Max 12
Hard Drives NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system
bandwidth will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
300GB 6G SAS 10K DP
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
16
1-16
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SAS Hot Plug LFF (3.5-inch)
Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
300GB 6G SAS 15K DP
Up to 8
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SAS Hot Plug SFF (2.5-inch) Midline
(MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 6G SAS 7.2K
Up to 16
1-16
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SAS Hot Plug LFF (3.5-inch)
Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 7.2K
1TB 6G SAS 7.2K
750GB 3G SAS 7.2K
Up to 8
1-8
HP Smart Array P212/Zero Memory
Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SATA Hot Plug SFF
(2.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
16
1-16
Embedded HP Smart Array Hot Plug
Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SATA Hot Plug LFF
(3.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K 500GB 3G SATA 7.2K
Up to 8
1-8
Embedded HP Smart Array Hot Plug
Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SATA Hot Plug LFF
(3.5-inch) Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8
1-8
Embedded HP Smart Array Hot Plug
Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SATA Hot Plug Midline
(MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
120GB 3.0G SATA SSD 60GB 3.0G
SATA SSD
16
1-16
Embedded HP Smart Array Hot Plug
Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SATA Hot Plug 3.5"
Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
120GB 3.0G SATA SSD 60GB 3.0G
SATA SSD
Up to 8
1-8
Embedded HP Smart Array Hot Plug
Advanced Pack for B110i (RAID 0, 1, 10)
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
External Storage
Quantity
Supported
Position
Supported
Controller
60 Modular Smart Array
Up to 8
External
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Up to 4
External
HP Smart Array P212/ 256 MB Controller
70 Modular Smart Array
Up to 4
External
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: HP ProLiant DL1000 G6
- Click on: "Power Calculator" link. (You may need to scroll
down to see it)
System Leakage with all
power supplies loaded (mA)
1.58
3.03
System Inrush Current
with all power supplies loaded (A)
19
37
Power cord requirements
Nema 5-15P to IEC320-C13
IEC320-C13 to IEC320-C14
NOTE:
Power shown is for a fully configured system consisting of (2)
CPUs, (16) DIMMs, (2) HDDs, and (1) PCI card per node.
Power Cord
AF556A
Server Power Cords
One 6' Highline (IEC-IEC) power cord ships standard NOTE: ProLiant DL servers are primarily
connected to PDU's in data center racks so they ship standard with only
a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL
server using a 110V receptacle (NEMA-15), the NEMA power cord (227099-001)
must be ordered separately.
NOTE: Japan BTO and CTO configurations
get the 6' 4165151-291 power cord in addition. China BTO and CTO configurations
get the 6' 416151-AA1 power cord in addition.
NOTE: If customers require a local power
cord, they can check the power cord matrix for the appropriate cord. Please
see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
50° to 95° F (10°
to 35° C) at sea level with an altitude derating of 1.8°F per every
1000 ft (1.0°C per every 305 m) above sea level to a maximum of 10,000
ft (3050 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr
(10°C/hr). The upper limit may be limited by the type and number of
options installed.
System performance may be reduced if operating with a fan fault or above
86°F (30°C).
Non-operating
40° to 140° F (-40°
to 60° C)
Maximum rate of change is 36°F/hr (20°C/hr).
Relative Humidity
(non-condensing)
Operating
10% to 85% relative humidity (Rh),
82.4°F (28°C) maximum wet bulb temperature, non-condensing.
Non-operating
10% to 95% relative humidity (Rh),
101.7°F (38.7°C) maximum wet bulb temperature, non-condensing.
Altitude
Operating
10,000 ft (3050 m). This value
may be limited by the type and number of options installed. Maximum allowable
altitude change rate is 1500 ft/min (457 m/min).
Non-operating
30,000 ft (9144 m). Maximum allowable
altitude change rate is 1500 ft/min (457 m/min).
Acoustic Noise
Listed are the declared
A-Weighted sound power levels (LWAd) and declared average bystander
position A-Weighted sound pressure levels (LpAm) when the product
is operating in a 23°C ambient environment. Noise emissions were measured
in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO
9296 (ECMA 109).
Idle
LWAd
7.3
LpAm
55dBA
Operating
LWAd
7.3
LpAm
55dBA
Emissions Classification
(EMC)
FCC Rating
Class A
Normative Standards
CISPR 22; EN55022; EN55024; FCC
CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;
EN 60950-1; IEC 60950-1
NOTE:
Product conformance to cited product specifications is based on sample
(type) testing, evaluation, or assessment. This product or family of products
is eligible to bear the appropriate compliance logos and statements.
Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support NOTE: Hot-Plug functions require
the purchase of the HP Smart Array Hot Plug Advance Pack for B110i.
RAID OS Support
Microsoft Windows Server 2003 x32
and x64 Editions
Microsoft Windows Server 2008 x32 and x64 Editions.
Red Hat Enterprise Linux 4 (x86)
Red Hat Enterprise Linux 5 (x86)
Red Hat Enterprise Linux 5 (AMD64/EM64T)
SUSE Linux Enterprise Server 10 (x86)
SUSE Linux Enterprise Server 10 (AMD64/EM64T)
SUSE Linux Enterprise Server 11 (x86)
SUSE Linux Enterprise Server 11 (AMD64/EM64T)
Embedded NC362i PCIe
Gigabit Server Adapter
Network Interface
Integrated 10/100/1000BASE-T
Transceiver
Combines a triple-speed
IEEE 802.3TM - Compliant Media Access Controller (MAC) with a triple-speed
Ethernet transceiver.
Data Transfer Method
Compliant to x4 PCIe
Specification
Controller
Intel® 82576
Network Transfer
Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and Full-Duplex)
2000Mb/s
Connector
RJ-45 connector
Cable Support
Performs all the physical
layer functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethemet on standard
Category 5 UTP
Environment-friendly Products
and Approach
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
US Site
DL Quickspecs
Search:
503296-B21
© 2012 Canada PartsDirect
