Proliant BL480c G1 QuickSpecs |
 US QuickSpecs |
|
|
|
|
|
|
|
|
|
Proliant BL480c G1 Overview
|
HP ProLiant BL480c Server Blade |
| | |
HP ProLiant BL480c Server Blade |
| |

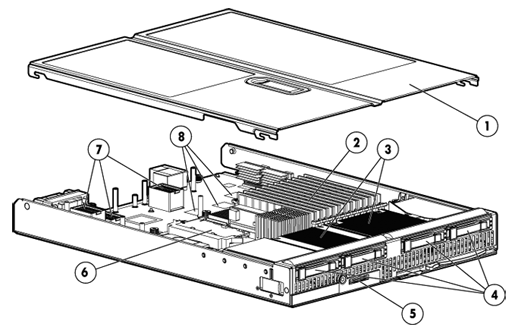

| 1. | Access panel |
5. | Local I/O connector |
| 2. | Up to 64 GB PC2-5300,
FBD DDR2-667 memory (12 DIMMs) | 6. | HP
Smart Array P400i Controller with battery-backed write cache options |
| 3. |
Up to two 2-core or 4-core Intel® Xeon® 5000 sequence
processors |
7. |
Three I/O expansion mezzanine slots |
| 4. | Four small form
factor (SFF) hot-plug drive bays | 8. | Four
embedded Gigabit Ethernet adapter ports, two are multifunction |
|
| What's
New |
- Support for new HP storage options including:
- 160GB and 500GB 3G SATA 7.2K MDL hard disk drives
- 500GB 6G SAS 7.2K DP MDL hard disk drives
|
|
| At
A Glance |
|
This document covers the HP ProLiant BL480c server blade only. For more
information on HP BladeSystem c-Class Infrastructure and HP BladeSystem
c-Class Interconnects, please see the following QuickSpecs:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
HP BladeSystem c-Class Interconnect Components QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12524_div/12524_div.html
The HP ProLiant BL480c delivers outstanding performance and expansion
for a 2P x86 BladeSystem server blade to handle your most demanding applications.
The HP ProLiant BL480c server blade includes:
- Processor:
- Up to two Intel® Xeon® 5200, 5300, or 5400 series processors
- Intel® 5000P chipset supporting up to a 1333 MHz Front Side
Bus
NOTE: All processors within
the server must be identical.
NOTE: The 5300 series are available as processors kits for
existing servers. T he 5200 and 5300 series may be purchased with
a new server and as processors kits.
- BL480c G1 Memory:
- Up to 64 GB of memory supported by twelve (12) PC2-5300, fully-buffered
DIMMs at 667 MHz
- Low-power DIMM memory support
- Advanced ECC memory
- Memory interleaving (2 x 1), memory mirroring, and online spare
capacity
- Storage Controller:
- Integrated HP Smart Array P400i Controller with 256MB ECC protected
cache and RAID 0, 1, and 5.
- Upgrades include:
- Battery-backed write cache (BBWC)
- 512MB cache upgrade with BBWC
- Internal Drive Support:
- Four (4) drive bays supporting your choice of small form factor
(SFF) SAS or SATA hot-plug hard drives
- Network Controller:
- Four (4) embedded network adapter ports, plus one (1) additional
management network adapter port:
- One (1) embedded NC326i Dual Port Gigabit Server Adapter
- Two (2) embedded NC373i Multifunction Gigabit Server Adapters
with TCP/IP offload engine for Microsoft Windows, iSCSI boot and
optional accelerated iSCSI
- One (1) additional embedded 10/100 network adapter dedicated to
iLO 2 management
NOTE: The Gigabit Ethernet
adapters transmit from the server only at 2000 Mbps, full duplex
per port. For more information, see the “Network Controller”
item in Standards Features section.
- Mezzanine Support
- Three (3) mezzanine expansion slots; one Type I x4 PCIe (15 watts)
and two x8 PCIe (25 watts). The expansion slots provide a choice of
additional I/O including:
- Dual Port 4 Gb Fibre Channel for SAN connectivity (choice of
Emulex or QLogic)
- Multiple 10 Gb Ethernet options for high bandwidth network connectivity
- Multiple dual and quad port multifunction and general Gigabit
Ethernet options for increased bandwidth and additional network
ports
- Dual port 20 Gb 4X DDR InfiniBand for low latency server interconnectivity
- Internal USB Support:
- One (1) internal USB 2.0 connector for security key devices and
USB drive keys
- Form Factor:
- HP ProLiant BL480c server blades plug into the HP BladeSystem c7000
and c3000 enclosures
- Operating Systems and Virtualization Software:
- Supports Windows, RHEL, SLES, OEL, NetWare, VMware, Solaris &
Citrix Essential for XenServer
- Enclosures:
- HP offers three different c-Class server blade enclosures to meet
your individual needs:
- The HP BladeSystem c7000 rack enclosure is 10U high and holds
up to 8 HP ProLiant BL480c servers plugged vertically.
- The HP BladeSystem c3000 rack enclosure is 6U high and holds up
to 4 HP ProLiant BL480c servers plugged horizontally.
- The HP BladeSystem c3000 tower enclosure is designed with casters
for sites without racks and holds up to 4 HP ProLiant BL480c servers
plugged vertically.
- Server blades, storage blades, and interconnect modules are all
designed to fit into the c7000 and c3000 enclosures.
- For additional enclosure information, please see: http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html.
- Infrastructure Management:
- HP ProLiant Onboard Administrator (powered by the HP Integrated
Lights-Out 2 management processor) for simplified server setup,
health monitoring and recovery, power and thermal control, and lights-out
remote administration. .
- HP Insight Control (ICE) suites, as product options, deliver essential
infrastructure management that can help save time and money by making
it easy to deploy, monitor, control and optimize your IT infrastructure
through a single, simple management console. ICE suites support
both Windows and Linux-based management consoles.
- HP Insight Dynamics - VSE suite for ProLiant servers, a product
option, is an integrated command center that enables you to continuously
analyze and optimize your adaptive infrastructure. This advanced
infrastructure management software lets you reduce the cost of common
data center tasks by as much as 40 percent while keeping pace with
your changing business.
- Warranty:
- This product is covered by a global limited warranty and supported
by HP Services and a worldwide network of HP Authorized Channel
Partners. Hardware diagnostic support and repair is available for
three years from date of purchase. Support for software and initial
setup is available for 90 days from date of purchase. Additional
Enhancements to warranty services are available through HP Care
Pack services or customized service agreements. SATA hard drives
have a one year warranty. SAS drives have a 3 year warranty.
NOTE: Server Warranty includes
3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business
day response. Warranty repairs may be accomplished through the use
of Customer Self Repair (CSR) parts. These parts fall into two categories:
1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a
Mandatory CSR part; 2) Optional CSR parts are also designed for
easy replacement but may involve added complexity. Customers may
choose to have HP replace Optional CSR parts at no charge. Additional
information regarding worldwide limited warranty and technical support
is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
|
Standard Features
NOTE:
For a brief, printer friendly data sheet that describes this product and
informs you of the essential capabilities and specifications, please visit:
http://h71028.www7.hp.com/erc/downloads/4AA0-6088enw.pdf
NOTE: All processors within the server must be identical.
NOTE: The 5300 series are available as processors kits for existing
servers. T he 5200 and 5300 series may be purchased with a new server and
as processors kits. |
| Processor |
4-Core Processor 5400 Series |
| Intel® Xeon® Processor
X5470 (3.33 GHz, 120Watt, 1333 FSB) |
| Intel® Xeon® Processor X5460
(3.16 GHz, 120 Watt, 1333 FSB) |
| Intel® Xeon® Processor
X5450 (3.00 GHz, 120 Watt, 1333 FSB) |
| Intel® Xeon® Processor
E5450 (3.00 GHz, 80 Watt, 1333 FSB) |
| Intel® Xeon® Processor
E5440 (2.83GHz, 80 Watt, 1333 FSB) |
| Intel® Xeon® Processor E5430
(2.66 GHz, 80 Watt, 1333 FSB) |
| Intel® Xeon® Processor
E5420 (2.50 GHz, 80 Watt, 1333 FSB)* |
| Intel® Xeon® Processor
E5410 (2.33 GHz, 80 Watt, 1333 FSB) |
| Intel® Xeon® Processor
E5405 (2.00 GHz, 80 Watt, 1333 FSB)* |
| 4-Core Processor 5400 Series
Low Voltage |
| Intel® Xeon® Processor
L5420 (2.50 GHz, 50 Watt, 1333 FSB)* |
| 4-Core Processor 5300 Series |
| Intel® Xeon® Processor
X5365 (3.00 GHz, 120 Watt, 1333 FSB) |
| Intel® Xeon® Processor
X5355 (2.66 GHz, 120 Watt, 1333 FSB) |
| Intel® Xeon® Processor
E5345 (2.33 GHz, 80 Watt, 1333 FSB) |
| Intel® Xeon® Processor
E5335 (2.00 GHz, 80 Watt, 1333 FSB)* |
| Intel® Xeon® Processor
E5320 (1.86 GHz, 80 Watt, 1066 FSB) |
| Intel® Xeon® Processor
E5310 (1.60 GHz, 80 Watt, 1066 FSB) |
| 4-Core Processor 5300 Series Low
Voltage |
| Intel® Xeon® Processor
L5335 (2.00 GHz, 50 Watt, 1333 FSB)* |
| Intel® Xeon® Processor
L5320 (1.86 GHz, 50 Watt, 1066 FSB)* |
| 2-Core Processor 5200 Series |
| Intel® Xeon® Processor
X5260 (3.33 GHz, 80 Watt, 1333 FSB) |
| 2-Core Processor 5200 Series Low
Voltage |
| Intel® Xeon® Processor
L5240 (3.00 GHz, 40 Watt, 1333 FSB, 40W) |
| NOTE: The 5400,
5300, and 5200 Series processors feature Intel® 64-bit architecture
providing flexibility for 64 and 32-bit applications and operating systems,
Intel® Virtualization Technology, Intel® Enhanced SpeedStep®
Technology, and Enhanced thermal and power management. Intel® 5200 Series
processors are 2-core; Intel® 5400 and 5300 Series processors are 4-core. |
| * Offered through Configure-To-Order
only. See the Factory Integrated Models section for more details. |
|
| Upgradeability |
Upgradeable to dual processors |
|
| Cache
Memory | 1x6 MB Level 2 cache
memory (5200 Series)
2x4 MB Level 2 cache memory (5300 Series)
2x6 MB Level
2 cache memory (5400 Series) |
|
| Chipset | Intel®
5000P chipset |
|
| Memory
| Type | PC2-5300
fully buffered DIMMs operating at 667 MHz | | Standard | 2
GB (2 x 1 GB)
4 GB (4 x 1 GB) | | Maximum | 64
GB (8 x 8 GB) or (6 x 8GB + 4 x 4GB ) | | NOTE:
Memory must be installed in pairs. |
|
| Network
Controller | Four (4) embedded
Gigabit Ethernet network adapter ports, plus (1) additional management network
adapter port: - One (1) embedded NC326i Dual Port Gigabit
Server Adapter
- Two (2) embedded NC373i Multifunction Gigabit Server Adapters
with TCP/IP offload engine for Microsoft Windows, iSCSI boot, and optional accelerated
iSCSI
- One (1) additional embedded 10/100 network adapter dedicated to
iLO 2 management
NOTE: The Gigabit Ethernet adapters
transmit from the server at 2000 Mbps, full duplex per port. However,
within a Linux environment, the speed can be reduced or "throttled"
using a feature available within the Linux operating system; see the white
paper at: http://h71028.www7.hp.com/ERC/downloads/4AA1-5513ENW.pdf
for more information.
Once the adapter signal reaches the interconnect within the blade enclosure
and communicates outside the blade enclosure to the LAN, the blade interconnect
uplink types and settings determine the cable media, speed, duplex mode,
and auto negotiation mode. Interconnects are available with Ethernet uplinks
supporting 10/100/1000T, 10/100/1000 SFP, 1000 SX fiber, and 10Gb speeds. |
|
| Multifunction
Networking | The embedded
multifunction NC373i combines standard Gigabit Ethernet networking, TCP/IP offload
engine (TOE) for Microsoft Windows, iSCSI boot, and optional accelerated iSCSI
into a single adapter. - TOE moves the processing of data
in the TCP protocol stack from the server CPU to the network card, freeing CPU
cycles for other activities. With TOE, network communications are improved, and
server efficiency is increased. The NC373i offers TOE for Microsoft® Windows
environments.
- The iSCSI boot allows the BL480c to boot from a remote operating
system (OS) image located on a storage area network (SAN). The BL480c uses an
iSCSI firmware image (iSCSI boot option ROM) making the remote disk drive appear
as a local, bootable C: drive. The BL480c is configured to connect to and boot
from the iSCSI target disk on the network and download the OS image from the iSCSI
target disk. The iSCSI boot option ROM is supplied by HP at no cost. The additional
cost and mezzanine slot usage of an add-in iSCSI HBA card is not required. Additionally,
the HP iSCSI boot solution includes scripts to significantly simplify the installation
process.
|
|
| I/O Expansion Slots |
Three I/O expansion mezzanine
slots; one Type I x4 PCIe (15 watts) and two x8 PCIe (25 watts) |
|
| Integrated Manageability |
HP ProLiant Onboard Administrator
(includes but not limited to functionality in Integrated Lights-Out 2 Standard
Blade Edition (iLO 2) |
|
| Storage Controller |
The server includes an integrated Smart Array P400i Controller. The P400i
is an x8 PCI Express serial attached SCSI (SAS) v1.0 embedded RAID controller
and provides server performance and reliability through its support of
advanced SCSI technology and RAID capabilities. The P400i includes 256MB
of 40-bit ECC protected cache and supports RAID levels 0 (striping), 1
(mirroring), and 5 (distributed data guarding).
The controller supports both SAS and SATA hard drives letting you deploy
drive technology as needed to fit your computing environment. The sever
provides four hot-plug drive bays for up to 1.2TB of SAS and 1.0TB of
SATA storage.
Providing high availability data cache retention, the Smart Array P400i
supports two battery backed write cache (BBWC) options:
- BBWC for the existing 256GB cache.
- Upgrade to 72-bit 512MB ECC protected cache with BBWC.
If additional SAS or SATA drives are desired, the server supports the
StorageWorks SB40c Storage Blade. For additional information, see: http://h18006.www1.hp.com/products/storageworks/sb40c/index.html.
|
|
| Maximum
Internal Storage | Hot plug serial
attach SCSI (SAS) |
2.0TB |
4 x 500GB serial SCSI |
| Hot
plug serial ATA (SATA) |
2.0TB |
4 x 500GB serial ATA |
|
| Graphics |
Integrated ATI RN-50 1280 x
1024 x 16M color (32 MB DDR1 memory) |
|
| Graphics
Resolution Supported | Resolution
color depths |
1280 x 1024, 16.7M,
64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16 |
|
| Core Infrastructure Management |
HP Insight Foundation |
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecyle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: www.hp.com/go/foundation.
The foundation pack includes:
- HP SmartStart
- HP Management
- HP ProLiant Firmware Maintenance
SmartStart version supported (minimum): SmartStart 8.0
http://www.hp.com/servers/smartstart
|
| ProLiant Onboard Administrator |
HP ProLiant Onboard Administrator (powered
by the HP Integrated Lights-Out 2 management processor) simplifies server
setup, health monitoring, power and thermal control, and lights-out remote
administration of ProLiant ML, DL, and BL servers. HP ProLiant Onboard Administrator
functions without additional software, and can be accessed from any location
via a web browser. It works hand-in-hand with HP Systems Insight Manager,
Insight Control suites, and the Insight Dynamics-VSE suite helping customers
unlock the value of the ProLiant platform and deliver the highest possible
quality of IT service to the business.
See www.hp.com/go/onboardadministrator |
| HP Insight Control (ICE) suites |
HP Insight Control (ICE) suites, as product
options, deliver essential infrastructure management that can help save
time and money by making it easy to deploy, monitor, remote control, and
optimize your IT infrastructure through a single, simple management console.
ICE installs and licenses software modules that are integrated into HP System
Insight Manager.
Two ICE suites are available for environments requiring either a Windows
or a Linux-based management console: HP Insight Control suites include
one year of 24 x 7 HP Software Technical Support and Update Service ensuring
rapid access to HP support staff and proactive delivery of software updates.
For more information about this service, please visit: http://www.hp.com/services/insight.
|
| HP Insight Dynamics - VSE suite |
The HP Insight Dynamics - VSE suite for ProLiant,
a product option, is an integrated command center that enables you to continuously
analyze and optimize your adaptive infrastructure. This advanced infrastructure
management software that allows you to analyze and optimize your adaptive
infrastructure to manage physical and virtual resources in the same way.
HP Insight Dynamics - VSE gives you a powerful toolkit to accelerate complex
technology projects and simplify daily operations. It enables you to plan
capacity and power continuously, balance across physical and virtual resources,
ensure cost-effective high availability, and provision infrastructure consistently.
HP Insight Orchestration, an optional extension to Insight Dynamics - VSE,
enables IT organizations to provision infrastructure consistently and automatically
from pools of shared resources using a self-service portal. Resources provisioned
can range from a single virtual machine to complex multi-tier environments
and their associated physical and virtual resource requirements.
HP Insight Recovery, also an optional extension for Insight Dynamics
- VSE, enables cost-effective disaster recovery for physical and virtual
environments. Application environments can be reactivated in minutes with
the touch of a button to a remote location.
NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics,
http://www.hp.com/go/insightorchestration,
http://www.hp.com/go/insightrecovery
|
|
| Availability |
- Dual Port Fibre Channel mezzanine card option for redundant SAN connection
- Four (4) embedded Gigabit Ethernet adapters for redundant LAN connections
- Multiple mezzanine I/O expansion slots
- Four (4) hot-plug SAS/SATA hard drive bays
Integrated RAID (HP Smart Array P400i) controller with ECC protected
cache, RAID 0/1/5, and BBWC options
- Redundant ROM
- Advanced ECC memory - can correct a multi-bit error (up to 4 bits)
that occurs within one memory chip
- Memory mirroring with memory online spare capacity
- Network adapter teaming (network fault tolerance, transmit load balancing,
switch-assisted load balancing)
|
|
| Industry
Standard Compliance |
- ACPI 2.0 compliant
- PCI 2.2 compliant
- WOL support
- Microsoft® logo certifications
- USB 2.0 support
- PXE 2.1
- IEEE (see the Technical Specifications section)
|
|
| Security |
- One (1) internal USB 2.0 connector for security key devices and USB
drive keys
- Power-on password
- Administrator's password
- Integrated Lights-Out 2 has 12 customizable user accounts and SSL
encryption
- Integrated Lights-Out 2 can be disabled via a global setting
|
|
| Factory Express Portfolio for
Servers and Storage |
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of servers
and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem,
HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services on your specific server
model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
|
|
| HP Enterprise Configurator |
The HP eConfigure Enterprise
Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs
and expectations of our valued customers. If you require "custom"
rack configuration, please contact HP's Customer Business Center or an Authorized
Partner for assistance. |
|
| Service
and Support |
HP Care Pack services provide total care and support expertise with committed
response designed to meet your IT and business needs.
The HP Care Pack service for
HP ProLiant BL c-Class server blades, cover the server blade and all HP branded
hardware options qualified for the server, purchased at the same time or afterwards,
internal to the server. To fully capitalize on your HP BladeSystem servers'
capabilities requires a service partner who thoroughly understands your server
technology and systems environment. HP Services, an industry leader in provision
of multi vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global corporation
HP has a HP BladeSystem server support offer to help you speedily deploy and maximize
system uptime. Recommended Service – Simplify ProLiant solution implementation,
maintenance and management. - Support Service – 4-Hour Response
Coverage, 3-Year, 24 x 7, Same Business Day
- Deployment Service –
Installation and Start Up for HP BladeSystem Infrastructure
Enhanced
Service – Optimize service level to increase IT performance and availability
- Support Service – HP Proactive BladeSystem Service, 1-Year
- Deployment
Service – Enhanced Network Installation and Start-up for HP BladeSystem Switches
Installation
& Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced
Network Installation and Start-UP as per the Customer Description and/or Data
Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.
For a complete listing of service offerings and
information visit:
http://www.hp.com/services/bladesystemservices
http://www.hp.com/go/proliant/carepack |
Models
| 4-Core Models |
|
HP ProLiant BL480c X5470 4G (2P)
492327-B21
HP ProLiant BL480c X5460 4G (2P)
459496-B21
HP ProLiant BL480c E5450 4G (2P)
459497-B21
HP ProLiant BL480c E5440 4G (2P)
459498-B21
HP ProLiant BL480c E5430 2G (1P)
459499-B21
HP ProLiant BL480c E5410 2G (1P)
459500-B21
| Processor(s)
One of the following depending on model
|
Two (2) Intel® Xeon® X5470 (3.33 GHz, 120W, 1333 FSB)
Two (2) Intel® Xeon® X5460 (3.16 GHz, 120W, 1333 MHz FSB)
Two (2) Intel® Xeon® E5450 (3.00 GHz, 80W, 1333 MHz FSB)
Two (2) Intel® Xeon® E5440 (2.83 GHz, 80W, 1333 MHz FSB)
One (1) Intel® Xeon® E5430 (2.66 GHz, 80W, 1333 MHz FSB)
One (1) Intel® Xeon® E5410 (2.33 GHz, 80W, 1333 MHz FSB)
|
| Cache Memory |
2 x 6 MB Level 2 cache memory
(5400 Series)
2 x 4 MB Level 2 cache memory (5300 Series) |
Memory
One of the following depending on model
|
4 GB (4 x 1 GB) PC2-5300, FBD
DDR2-667
2 GB (2 x 1 GB) PC2-5300, FBD DDR2-667 |
| Network Controller |
Four (4) embedded Gigabit Ethernet network adapter ports, plus one (1)
additional management network adapter port:
- Two (2) embedded NC373i Multifunction Gigabit Server Adapters with
TCP/IP offload engine for Microsoft Windows, iSCSI boot, and optional
accelerated iSCSI
- One (1) NC326i Dual Port Gigabit Server Adapter
- One (1) additional embedded 10/100 network adapter dedicated to iLO
2 management
|
| Storage Controller |
Integrated HP Smart Array P400i
Controller with 256MB cache and RAID 0, 1, and 5. Optional battery-backed
write cache upgrades |
| Hard Drives |
No drives included; four (4)
SFF SAS/SATA drive bays |
| Internal Storage |
SAS: 2.0TB
SATA: 2.0TB |
| Optical Drive |
None |
| Form Factor |
Up to 4 full-height blades supported
in the HP BladeSystem c3000 enclosure
Up to 8 full-height blades supported in the HP BladeSystem c7000 enclosure |
Configuration Information - Factory Integrated Models
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the
use of an HP approved configurator. Contact your local sales representative
for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard
models listed above.
Configure-to-order servers must start with a CTO Blade.
NOTE: FIO indicates that this option is a Factory Installable Option. |
| Step
1: Base Server Blade Configuration (Select a configurable Blade) |
| Models |
HP ProLiant BL480c
CTO Blade |
404707-B21
|
| Configurable Model
ships with: |
|
|
Four (4) embedded Gigabit Ethernet network adapter ports, plus (1) additional
network adapter port for management:
- Two (2) embedded NC373i Multifunction Gigabit Server Adapters with
TCP/IP offload engine for Microsoft Windows iSCSI boot, and optional
accelerated iSCSI
- One (1) NC326i Dual Port Gigabit Server Adapter
- One (1) additional embedded 10/100 network adapter dedicated to iLO
2 management
Integrated HP Smart Array P400i Controller with RAID 0/1/5
NOTE: Controller cache module selection
is required. Select either the standard 256 MB module or the 512 MB module
with BBWC upgrade in step 2 below.
Four (4) small form factor (SFF) SAS/SATA hot-plug hard drive bays
Integrated Lights-Out 2 Standard Blade Edition.
|
|
|
Step
2: Choose Required Options (one of the following from each list unless otherwise
noted):
NOTE: All processors within the server
must be identical. |
| Processors |
4-Core Processor
5400 Series |
|
Intel® Xeon®
X5470 (3.33 GHz, 120W, 1333 FSB)
NOTE: If 2 processors are desired,
select one 492325-L21 and one 492325-B21. |
492325-L21 |
Intel® Xeon®
X5460 (3.16 GHz, 120W, 1333 MHz FSB)
NOTE: If 2 processors are desired,
select one 459501-L21 and one 459501-B21. |
459501-L21
|
Intel® Xeon®
X5450 (3.00 GHz, 120W, 1333 FSB)
NOTE: If 2 processors are desired,
select one 463058-L21 and one 463058-B21. |
463058-L21
|
Intel® Xeon®
E5450 (3.00 GHz, 80W, 1333 FSB)
NOTE: If 2 processors are desired,
select one 459502-L21 and one 459502-B21. |
459502-L21
|
Intel® Xeon®
E5440 (2.83 GHz, 80W, 1333 FSB)
NOTE: If 2 processors are desired,
select one 459503-L21 and one 459503-B21. |
459503-L21
|
Intel® Xeon®
E5430 (2.66 GHz, 80W, 1333 FSB)
NOTE: If 2 processors are desired,
select one 459504-L21 and one 459504-B21. |
459504-L21
|
Intel® Xeon®
E5420 (2.50 GHz, 80W, 1333 FSB)
NOTE: If 2 processors are desired,
select one 459505-L21 and one 459505-B21. |
459505-L21
|
Intel® Xeon®
E5410 (2.33 GHz, 80W, 1333 FSB)
NOTE: If 2 processors are desired,
select one 459506-L21 and one 459506-B21. |
459506-L21
|
Intel® Xeon®
E5405 (2.00 GHz, 80W, 1333 FSB)
NOTE: If 2 processors are desired,
select one 459507-L21 and one 459507-B21. |
459507-L21
|
| 4-Core Processor
5400 Series Low Voltage |
|
Intel® Xeon®
L5420 (2.50 GHz, 50W, 1333 FSB)
NOTE: If 2 processors are desired,
select one 462866-L21 and one 462866-B21. |
462866-L21 |
| 2-Core Processor
5200 Series |
|
Intel® Xeon®
X5260 (3.33 GHz, 80W, 1333 MHz FSB)
NOTE: If 2 processors are desired,
select one 461628-L21 and one 461628-B21. |
461628-L21
|
| 2-Core Processor
5200 Series Low Voltage |
|
Intel® Xeon®
L5240 (3.00 GHz, 40Watts, 1333 FSB, 40W)
NOTE: If 2 processors are desired,
select one 461629-L21 and one 461629-B21. |
461629-L21 |
| Memory |
1 GB FBD PC2-5300
2 x 512 MB Kit |
|
| 2 GB FBD PC2-5300
2 x 1 GB Kit |
|
| 4 GB FBD PC2-5300
2 x 2 GB Kit |
|
| 8 GB FBD PC2-5300
2 x 4 GB Kit |
|
| 16 GB FBD PC2-5300
2 x 8 GB Dual Rank Kit |
 413015-B21 |
| 64 GB FBD PC2-5300
8 x 8 GB Dual Rank Kit |
495604-B21 |
| 2 GB FBD PC2-5300
2 x 1 GB Low Power Kit |
461826-B21 |
| 4 GB FBD PC2-5300
2 x 2 GB Low Power Kit |
461828-B21 |
| 8 GB FBD PC2-5300
2 x 4 GB Low Power Kit |
|
| NOTE:
For more information on ProLiant energy efficient features, see: http://h18004.www1.hp.com/products/servers/platforms/energyefficient/ |
|
NOTE:
Two-way memory interleaving is enabled when an identical pair of DIMMs
is installed.
NOTE: DIMM banks are active only when the corresponding processor
socket is populated. |
|
| Smart
Array P400i upgrade options |
HP Smart Array P400i
256MB cache |
|
| HP Smart Array P400i
512MB and battery-backed write cache upgrade |
|
|
BL480c G1 Core Options
| Ethernet
Mezzanine Options |
Gigabit Ethernet
Mezzanines |
|
| HP NC325m PCI Express
Quad Port 1Gb Server Adapter for c-Class BladeSystem |
416585-B21
|
| HP NC326m PCI Express
Dual Port 1Gb Server Adapter for c-Class BladeSystem |
406771-B21
|
| HP NC360m Dual Port
1GbE BL-c Adapter |
445978-B21
|
| HP NC364m Quad Port
1GbE BL-c Adapter |
447883-B21
|
| HP NC373m PCI Express
Dual Port Multifunction Gigabit Server Adapter for c-Class BladeSystem |
406770-B21
|
| HP NC382m Dual Port
1GbE Multifunction BL-c Adapter |
453246-B21 |
| QLogic QMH4062 1GbE
iSCSI Adapter for HP BladeSystem c-Class |
488074-B21 |
| NOTE:
The Gigabit Ethernet adapters above transmit from the server only at
2000 Mbps, full duplex per port. For more information, see the "Network
Controller" segment in the Standards Features section. |
|
| 10 Gigabit Ethernet
Mezzanines |
|
HP NC512m Dual Port
10GbE Multifunction BL-c Adapter
NOTE: An NC512m network adapter
card is required for each server blade connecting to the HP 10Gb Ethernet
BL-c Switch.
NOTE: The NC512m is supported in type II x8 PCI Express mezzanine
slots; maximum two adapters per server. For more information, see the Mezzanine
Slot Compatibility matrix within the HP NC512m Dual Port 10GbE Multifunction
BL-c Adapter QuickSpecs: http://h18004.www1.hp.com/products/servers/networking/nc512m/index.html
NOTE: A minimum of 2 GB of server memory is required per NC512m
and supports a maximum of 32 GB for Windows and 64 GB for Linux.
NOTE: Each port on the NC512m adapter transmits from the server only
at 20 Gbps, full duplex. |
440910-B21 |
HP NC522m Dual Port
10GbE Multifunction BL-c Adapter
NOTE: The NC522m requires a minimum
of 2 GB of server memory.
NOTE: The NC522m supports linking at 1000Mbps or 10000Mbps when not
connected to a Flex-10 enabled module and will link with all current 1Gb
switches at 1Gb. |
467801-B21 |
HP NC532m Dual Port
Flex-10 10GbE Multifunction BL-c Adapter
NOTE: The NC532m network adapter
card is required for each server blade connecting to a 10Gb interconnect
in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 3-4 (HP BladeSystem
c3000 Enclosure)
NOTE: The NC532m requires a minimum of 2 GB of server memory.
NOTE: The NC532m supports linking at 1000Mbps or 10000Mbps when not
connected to a Flex-10 enabled module and will link with all current 1Gb
switches at 1Gb. |
467799-B21 |
|
| Fibre
Channel Mezzanine Options |
Emulex LPe1105 FC
Dual Channel 4Gb, PCI-E-to-Fibre Channel Host Bus Adapter |
|
| QLogic QMH2462 4Gb
FC HBA for HP c-Class BladeSystem |
|
|
| Processors |
NOTE: All processors
within the server must be identical. |
|
| 4-Core Processor 5400 Series |
|
| Intel® Xeon® X5470 (3.33
GHz, 120Watts, 1333 FSB) |
492325-B21 |
| Intel® Xeon® X5460 (3.16
GHz, 120 Watts, 1333 FSB) |
459501-B21
|
| Intel® Xeon® X5450 (3.00
GHz, 120 Watts, 1333 FSB) |
463058-B21
|
| Intel® Xeon® E5450 (3.00
GHz, 80 Watts, 1333 FSB) |
459502-B21
|
| Intel® Xeon® E5440 (2.83
GHz, 80 Watts, 1333 FSB) |
459503-B21
|
| Intel® Xeon® E5430 (2.66
GHz, 80 Watts, 1333 FSB) |
459504-B21
|
| Intel® Xeon® E5420 (2.50
GHz, 80 Watts, 1333 FSB) |
459505-B21
|
| Intel® Xeon® E5410 (2.33
GHz, 80 Watts, 1333 FSB) |
459506-B21
|
| Intel® Xeon® E5405 (2.00
GHz, 80 Watts, 1333 FSB) |
459507-B21
|
| 4-Core Processor 5400 Series Low
Voltage |
|
| Intel® Xeon® L5420 (2.5
GHz, 40 Watt, 1333 FSB) |
462866-B21 |
| 4-Core Processor 5300 Series |
|
| Intel® Xeon® X5365 (3.00
GHz, 120 Watts, 1333 FSB) |
453188-B21
|
| Intel® Xeon® X5355 (2.66
GHz, 120 Watts, 1333 FSB) |
435579-B21
|
| Intel® Xeon® E5345 (2.33
GHz, 80 Watts, 1333 FSB) |
435578-B21
|
| Intel® Xeon® E5335 (2.00
GHz, 80 Watts, 1333 FSB) |
443744-B21
|
| Intel® Xeon® E5320 (1.86
GHz, 80 Watts, 1066 FSB) |
435577-B21
|
| Intel® Xeon® E5310 (1.60
GHz, 80 Watts, 1066 FSB) |
435576-B21
|
| 4-Core Processor 5300 Series Low
Voltage |
|
| Intel® Xeon® L5335 (2.00
GHz, 50 Watts, 1333 FSB) |
453611-B21 |
| Intel® Xeon® L5320 (1.86
GHz, 50 Watts, 1066 FSB) |
443743-B21 |
| 2-Core Processor 5200 Series |
|
| Intel® Xeon® X5260 (3.33
GHz, 80 Watts, 1333 FSB) |
461628-B21
|
| 2-Core Processor 5200 Series Low
Voltage |
|
| Intel® Xeon® L5240 (3.00
GHz, 40 Watts, 1333 FSB |
461629-B21 |
|
| Memory |
1 GB FBD PC2-5300 2 x 512 MB Kit |
|
| 2 GB FBD PC2-5300 2 x 1 GB Kit |
|
| 4 GB FBD PC2-5300 2 x 2 GB Kit |
|
| 8 GB FBD PC2-5300 2 x 4 GB Kit |
|
| 16 GB FBD PC2-5300 2 x 8 GB Dual
Rank Kit |
413015-B21 |
| 64 GB FBD PC2-5300 8 x 8 GB Dual
Rank Kit |
495604-B21 |
| 2 GB FBD PC2-5300 2 x 1 GB Low
Power Kit |
461826-B21 |
| 4 GB FBD PC2-5300 2 x 2 GB Low
Power Kit |
461828-B21 |
| 8 GB FBD PC2-5300 2 x 4 GB Low
Power Kit |
|
NOTE: For more
information on ProLiant energy efficient features, see: http://h18004.www1.hp.com/products/servers/platforms/energyefficient/.
NOTE: DIMM banks are active only when the corresponding processor
socket is populated. |
|
|
Additional Options
| HP Insight Control
suite (ICE) |
NOTE: Electronic
licensing options are available for Insight Control suites software products.
Please see the appropriate Insight Control QuickSpecs for additional information:
www.hp.com/go/ice. |
|
| Insight Control suite |
|
HP Insight Control suite, No Media
1-Server License including 1 year of 24x7 Technical Support and Updates
NOTE: Contains 1 license for each
of RDP, PMP, VMM, VPM, IPM and iLO Advanced. Includes one year of 24 x 7
HP Software Technical Support and Update Service
NOTE: Customer will receive a printed license entitlement certificate
via physical shipment. The license entitlement certificate must be redeemed
online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support and Update Service. |
452148-B22
|
HP Insight Software Media Kit
NOTE: Insight Software DVD media
without licenses. Contains Insight Software suites, standalone software
products and components licensed by Insight Control suites. Uses an integrated
installer to perform quick and accurate software installation and updates. |
436222-B21
|
| NOTE: For additional
License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html |
|
| HP Insight Control Suite for Linux |
|
HP Insight Control suite for Linux,
No Media, 1-Server License including one year of 24x7 Technical Support
and Updates
NOTE: This part number can be used
to purchase one (1) license with a single activation key. Customer will
receive a printed license entitlement certificate via physical shipment.
The license entitlement certificate must be redeemed online or via fax in
order to obtain the license activation key(s). Includes one year of 24 x
7 HP Software Technical Support and Update Service.
NOTE: One certificate is shipped for each license. |
464423-B22 |
HP Insight Control suite for Linux,
Media pack (DVD) - No licenses included
NOTE: This optional Media pack DVD
contains the ISO image for HP Insight Control suite for Linux, HP Systems
Insight Manager, HP Insight Power Manager, HP Insight Virtual Machine Manager
software for ProLiant, and an integrated installer. Servers must be acquired
separately.
NOTE: This Media pack is optional because the latest ISO image and
latest updates may be downloaded at no cost from: http://www.hp.com/go/ice-linux
(click on Download button). |
464422-B22 |
| NOTE: For additional
License Kits, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html |
|
|
| Storage Controllers |
HP Smart Array P700m/256 Controller |
|
| HP Smart Array P700m/512 Controller |
|
| P400i battery-backed write cache
upgrade |
383280-B21 |
| P400i 512MB cache and battery-backed
write cache upgrade |
405148-B21 |
|
| HP
InfiniBand Mezzanine Options |
HP 4X DDR IB Dual
Port Mezzanine HCA for HP BladeSystem c-Class |
448262-B21 |
| HP 4X DDR IB Mezzanine
HCA for HP BladeSystem c-Class |
410533-B21 |
|
| I/O
Accelerator Mezzanine Options |
HP StorageWorks 80GB
IO Accelerator for BladeSystem c-Class |
AJ876A
|
| HP StorageWorks 160GB
IO Accelerator for BladeSystem c-Class |
AJ877A
|
| HP StorageWorks 320GB
IO Accelerator for BladeSystem c-Class |
AJ878A |
| NOTE:
Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13220_div/13220_div.html |
|
|
| c-Class Mezzanines |
HP PCI Express Mezzanine
Pass-Thru Card for HP BladeSystem c-Class
NOTE: Required to support the HP
StorageWorks SB40c Storage Blade (P/N 411243-B21), PCI expansion Blade (P/N
448018-B21), and StorageWorks Ultrium tape blades with HP c-Class BladeSystem
full-height server blades. The PCI Express Mezzanine Pass-Thru Card must
be installed in mezzanine slot 3. |
431643-B21
|
|
| Disk-Based
Backup |
D2D Backup |
|
| HP StorageWorks D2D2504i
Backup System |
EJ002A |
|
| HP
Ultrium Tape Blades |
HP StorageWorks SB1760c
Tape Blade
NOTE: LTO-4 Ultrium technology |
AQ697A
|
HP StorageWorks SB920c
Tape Blade
NOTE: LTO-3 Ultrium technology |
AJ401A
|
HP StorageWorks Ultrium
448c Tape Blade
NOTE: LTO-2 Ultrium technology |
440947-B21 |
NOTE:
The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem c-Class (P/N
431643-B21) is required to support the HP StorageWorks Ultrium Tape Blades.
The PCI Express Mezzanine Pass-Thru Card must be installed in mezzanine
slot 3. Please see the QuickSpecs for Technical Specifications and additional
information at: http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html
NOTE: Please visit the BladeSystem c-Class enclosure QuickSpecs for
a complete list of recommended data protection solutions for BladeSystem
c-Class enclosures: http://www.hp.com/go/blades |
|
|
| HP
StorageWorks SB40c Storage Blade | HP
StorageWorks SB40c Storage Blade
NOTE:
Please see the QuickSpecs for Technical Specifications and additional information
at:
http://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html
(Worldwide)
NOTE:
The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem c-Class (P/N 431643-B21)
is required to support the HP StorageWorks SB40c Storage Blade with HP c-Class
BladeSystem full-height server blades (e.g. BL480c.) |
411243-B21 |
|
| HP
PCI Expansion Blade |
HP PCI Expansion
Blade
NOTE: Ships with one pre-installed
PCI-X connect board. Also includes one PCIe connect board which requires
installation.
NOTE: The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem
c-Class (P/N 431643-B21) is required to support the HP PCI Expansion Blade
with HP c-Class BladeSystem full-height server blades. The PCI Express Mezzanine
Pass-Thru Card must be installed in mezzanine slot 3. Please see the QuickSpecs
for Technical Specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/12753_div/12753_div.html |
448018-B21 |
|
Service and Support
Offerings
(HP Care Pack Services) |
NOTE: The HP Care
Pack service part numbers below for ProLiant BL c-Class server blades, cover
the server blade and all HP branded hardware options qualified for the server,
purchased at the same time or afterwards, internal to the server. |
|
| Hardware Services On-site Service |
|
| 4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years, Electronic |
UK065E
|
| 4-Hour On-site Service, 7-Day
x 24-Hour Coverage, 3 Years, Electronic |
UK066E
|
| 6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic |
UK067E
|
Memory
| NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
| |
DIMM installation guidelines: - The
maximum memory is 64 GB
- All DIMMs must be PC2-5300 fully buffered DIMMs
operating at 667 MHz.
- Both DIMM slots in a memory bank must be populated.
- Banks must be populated in sequential alphabetic order, starting with
bank A.
- Both DIMMs in a memory bank must be identical. Install identical
DIMMs as pairs only, starting with DIMM socket 1, bank A.
- Multiple advanced
memory protection (AMP) modes are supported, based on FBDIMM population and RBSU
selection. The server blade defaults to Advanced ECC.
|
| HP ProLiant BL480c Server
Blade (1P Models) | | Standard
Memory
2 GB (2 x 1 GB) of PC2-5300, FBD DDR2-667 ECC DIMMs Standard
Memory Plus Optional Memory
Up to 62 GB of PC2-5300, FBD DDR2-667 DIMM
memory is available with the installation of optional PC2-5300, FBD DDR2-667 DIMM
memory expansion kits. Standard Memory Replaced
with Optional Memory
Up to 64 GB of PC2-5300, FBD DDR2-667 DIMM memory
is available with the removal of standard memory and the installation of optional
PC2-5300, FBD DDR2-667 DIMM memory expansion kits. |
|
BL480c G1 Memory |
Slot | | |
1A | 2C |
3E |
4A | 5C |
6E |
7B | 8D |
9F |
10B | 11D
| 12F |
| Standard |
2 GB | 1
GB | Empty |
Empty | 1
GB | Empty |
Empty | Empty |
Empty | Empty |
Empty | Empty |
Empty | |
Optional | 62
MB | 1
GB | 8
GB | 8
GB | 1
GB | 8
GB | 8
GB | 8
GB | 4
GB | 2
GB | 8
GB | 4
GB | 2
GB | | Maximum
| 64 MB |
8 GB | 8
GB | 8 GB |
8 GB | 8
GB | 8 GB |
8 GB | Empty |
Empty | 8
GB | Empty |
Empty |
NOTE:
Other maximum memory configurations are possible using two pairs of
4 GB DIMMs in place of a pair of 8 GB DIMMs.
NOTE: For a specific memory level, the best performance is achieved
using a homogenous memory configuration (i.e. all DIMMs have the same capacity). |
| HP
ProLiant BL480c Server Blade (2P Models) | |
Standard Memory
4
GB (4 x 1 GB) of PC2-5300, FBD DDR2-667 ECC DIMMs Standard
Memory Plus Optional Memory
Up to 60 GB of PC2-5300, FBD DDR2-667 DIMM
memory is available with the installation of optional PC2-5300, FBD DDR2-667 DIMM
memory expansion kits.
Standard Memory Replaced with
Optional Memory
Up to 64 MB of PC2-5300 FBD, DDR2-667 DIMM memory is available
with the removal of standard memory and the installation of optional PC2-5300,
FBD DDR2-667 DIMM memory expansion kits. |
|
BL480c G1 Memory |
Slot | | | |
1A | 2C |
3E |
4A | 5C |
6E |
7B | 8D |
9F |
10B | 11D
| 12F |
| Standard |
4 GB | 1
GB | Empty |
Empty | 1
GB | Empty |
Empty | 1
GB | Empty |
Empty | 1
GB | Empty |
Empty | |
Optional | 60
GB | 1
GB | 8
GB | 8
GB | 1
GB | 8
GB | 8
GB | 1
GB | 8
GB | 4
GB | 1
GB | 8
GB | 4
GB | | Maximum
| 64 GB |
8 GB | 8
GB | Empty |
8 GB | 8
GB | Empty |
8 GB | 8
GB | Empty |
8 GB | 8
GB | Empty |
| |
| NOTE: DIMM banks
are active only when the corresponding processor socket is populated. |
|
| NOTE: Other maximum
memory configurations are possible using two pairs of 4 GB DIMMs in place
of a pair of 8 GB DIMMs. |
|
|
Following are memory options available from HP:
|
|
|
1 GB FBD PC2-5300 2 x 512 MB Kit
|
397409-B21 |
|
2 GB FBD PC2-5300 2 x 1 GB Kit
|
397411-B21
|
|
4 GB FBD PC2-5300 2 x 2 GB Kit
|
397413-B21
|
|
8 GB FBD PC2-5300 2 x 4 GB Kit
|
397415-B21 |
| 16 GB FBD PC2-5300 2 x 8 GB Dual
Rank Kit |
413015-B21 |
| 64 GB FBD PC2-5300 8 x 8 GB Dual
Rank Kit |
495604-B21 |
| 2 GB FBD PC2-5300 2 x 1 GB Low
Power Kit |
461826-B21 |
| 4 GB FBD PC2-5300 2 x 2 GB Low
Power Kit |
461828-B21 |
|
8 GB FBD PC2-5300 2 x 4 GB Low Power Kit
|
466440-B21 |
Storage
 |
1-4 | 4 x
SFF SAS or SATA hot-plug hard drives |
Hard Drives
NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, and the server backplane)
should operate at the same data transfer rate or the system bandwidth will
be negotiated down to an acceptable level for all components. |
| SAS Hot Plug SFF Enterprise
(ENT) Drives |
| |
Quantity
Supported
|
Position
Supported
|
Controller |
300GB 6G 10K DP
300GB 3G 10K DP
146GB 6G 15K DP
146GB 3G 15K DP
146GB 6G 10K DP
146GB 3G 10K DP
72GB 6G 15K DP
72GB 3G 15K DP
72GB 3G 10K DP
36GB 3G 15K DP |
4
|
1-4
|
HP Smart Array P400i Controller |
|
| SAS Hot Plug SFF Midline (MDL)
Drives |
| |
Quantity
Supported
|
Position
Supported
|
Controller |
| 500GB 6G SAS 7.2K |
2
|
1-2
|
HP Smart Array P400i Controller |
|
| SATA Hot Plug SFF Midline (MDL)
Drives |
| |
Quantity
Supported
|
Position
Supported
|
Controller |
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
|
2
|
1-2
|
HP Smart Array P400i Controller |
|
| SATA Hot Plug SFF
Entry (ETY) Drives |
| 250GB 3G SATA 5.4K 120GB 1.5G
SATA 5.4K |
4
|
1-4
|
HP Smart Array P400i Controller |
Quickspecs
|
System Unit | Dimensions
(H x W x D) | Full
height server blade; 7.15 x 2.03 x 20.06 in (36.63 x 5.16 x 50.95 cm) |
Weight
(approximate) | Maximum
(all
hard drives and processors installed) | 21.02
lb (9.53 kg) | Minimum
(one hard drive and processor installed) | 18.74
lb (8.50 kg) | | Power
Specifications |
For power specifications including input requirements, BTU rating, and
power supply output, please see the HP BladeSystem c-Class Enclosures
QuickSpecs located at:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html
To
review typical system power ratings use the HP BladeSystem Power Sizer available
at: http://www.hp.com/go/bladesystem/powercalculator |
| System Inlet Temperature | Operating | 50°
to 95°F (10° to 35°C) at sea level with an altitude derating of 1.8°F
per every 1000 ft (1.0°C per every 305 m ) above sea level to a maximum of
10,000 ft (3050 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr
(10°C/hr). The upper limit may be limited by the type and number of options
installed. System performance may be reduced if operating with a fan fault or
above 86°F (30°C). | | Non-Operating | -22°
to 140°F (30° to 60°C), maximum rate of change is 36°F/hr (20°C/hr). |
| Relative Humidity
(non-condensing) | Operating | 10%
to 90% relative humidity (Rh), 82.4°F (28°C) maximum wet bulb temperature,
non-condensing. | | Non-Operating | 10%
to 95% relative humidity (Rh), 101.7°F (38.7°C) maximum wet bulb temperature,
non-condensing. | | Altitude | Operating | 10,000
ft (3050 m). This value may be limited by the type and number of options installed.
Maximum allowable altitude change rate is 1500 ft/min (457 m/min). |
| Non-operating | 30,000
ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min). |
| Acoustic Noise |
For acoustic noise
specifications, please see the HP BladeSystem c-Class Enclosures QuickSpecs
located at:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html |
|
| Smart Array P400i Controller |
Disk Drive and Enclosure Interface
|
3G SAS (Serial Attached SCSI) |
| 1.5G SATA (Serial Advanced Technology
Attachment) |
|
SAS Connectors
|
2 internal (SFF8484) x4 wide port
connectors |
|
Cache Memory Speed
|
DDR2-533MHz with 40 or 72-bit wide
bus provides up to 4.2 GB/s maximum bandwidth. |
|
Server Interface
|
x8 2.5G PCIe provides 2 GB/s maximum
bandwidth. |
|
SAS Speed
|
x8 3G SAS provides 2.4 GB/s maximum
bandwidth. |
|
Cache Memory
|
40-bit 256 MB cache with optional
battery-backed write cache (BBWC) and optional 72-bit 512MB module upgrade
with BBWC); ECC protection and transportable. |
|
Logical Drives Supported
|
Up to 32 logical drives |
|
Maximum Logical Drive Capacity
|
584GB (4 x 146GB) SAS
480GB (4 x 120GB) SATA |
|
Host Memory Addressing
|
64-bit, supporting greater than
4 GB server memory space |
|
RAID Support
|
RAID 0 (Striping) |
| RAID 1 (Mirroring) |
| RAID 5 (Distributed Data Guarding) |
|
Upgradeable Firmware
|
Upgradeable firmware with recovery
ROM feature |
|
|
Embedded NC326i Dual Port Gigabit Server Adapter |
Network Processor | Broadcom
5715S | | Data Transfer
Method | Four lane (x4) PCI
Express | | Network Transfer
Rate | Two ports, each at
1000 Mb/s (theoretical maximum values)
NOTE:
The Gigabit Ethernet adapters transmit from the server only at 2000 Mbps,
full duplex per port. For more information, see the “Network Controller”
segment in the Standards Features section. | | IEEE
Compliance | 802.1p, 802.1Q, 802.3,
802.3ad, and 802.3x | | Standard
Features |
- 9K jumbo frames
- TCP/IP checksum offload (TCO)
- Large send offload (LSO)
- Interrupt coalescence
- Dual address cycles (DAC)
- Wake-on-LAN (WOL)
- Pre-boot execution environment (PXE) version 2.1
- ProLiant Teaming including Network Fault Tolerance, Transmit Load
Balancing, and Switch-Assisted Load Balancing
- IPv6 packet transmit and receive (excluding all offload capabilities);
IPv6 aware SNMPv1 agents for Windows, Linux, and VMware
|
|
|
Embedded NC373i Multifunction Gigabit Server Adapters | Network
Processor | Broadcom 5708S |
| Data Transfer Method | Four
lane (x4) PCI Express | | Network
Transfer Rate | 2000 Mb/s full
duplex per port (theoretical maximum value)
NOTE:
The Gigabit Ethernet adapters transmit from the server only at 2000 Mbps,
full duplex per port. For more information, see the "Network Controller"
segment in the Standards Features section. | | IEEE
Compliance | 802.1p, 802.1Q, 802.3,
802.3ad, and 802.3x | |
Standard Features |
- TCP/IP offload engine (TOE) for Microsoft Windows 2003
- iSCSI Boot for Microsoft Windows and Linux
- Optional accelerated iSCSI for Microsoft Windows and Linux
- 9K jumbo frames
- TCP/IP checksum offload (TCO)
- Large send offload (LSO)
- Interrupt coalescence
- Dual address cycles (DAC)
- Wake-on-LAN (WOL)
- Pre-boot execution environment (PXE) version 2.1
- ProLiant Teaming including Network Fault Tolerance, Transmit Load
Balancing, and Switch-Assisted Load Balancing
- IPv6 packet transmit and receive (excluding all offload capabilities);
IPv6 aware SNMPv1 agents for Windows, Linux, and VMware
|
|
| Environment-friendly Products and
Approach |
End-of-life Management and Recycling |
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
|
|
|
