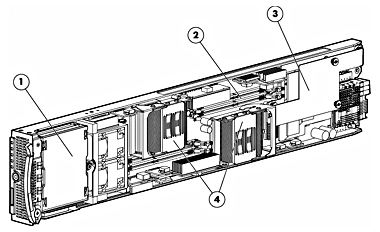

Up to two optional small form factor non-hot pluggable
ATA or SAS hard disk drives
2.
Up to 16 GB of memory (using optional PC2700 DDR
SDRAM)
3.
Mezzanine Card: Internal 4 Port SAS HBA (SAS models
only) or optional Dual-Port Fibre Channel Adapter
4.
Up to two Dual-Core AMD® Opteron™ 200 Series processors
What's
New
One year of 24 x 7 HP Software Technical Support and Update Service
included with Insight Control management suites and select ProLiant
Essentials Licenses.
Support for two (2) 146GB (SAS) SFF hard disk drives
Up to two Dual-Core AMD® Opteron™ 200 Series processors running
at 2.4 GHz, 2.2 GHz, 2.0 GHz, and 1.8 GHz with 1MB L2 cache per
core and 1GHz HyperTransport (lower CPU power rating per processor:
68 watt)
AMD® Opteron™ 8000 series chipset
Memory:
1024 MB (2 x 512 MB) or 2048 MB (4 x 512 MB) PC3200 DDR 400 MHz
memory, expandable to 8 GB (using optional PC3200 DDR SDRAM) or
16 GB max (using optional PC2700 DDR SDRAM)
Storage Controller:
Internal 4 Port SAS HBA (on a mezzanine card) supports RAID 0
or 1
Dual-Port Fibre Channel Adapter (2Gb) option for SAN connectivity
Internal Drive Support:
Supports up to two optional small form factor serial attached
SCSI (SAS) 146GB non-hot plug hard drives or two optional small
form factor ATA 60GB non-hot plug hard drives
BIOS-Enhanced RAID for Linux enables both primary and secondary
hard drives to be bootable
Network Controller:
Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card)
One 10/100T NIC (embedded) dedicated to iLO management
USB Ports:
Local I/O cable provides two USB ports, one video port, one iLO
port and serial port
Form Factor:
HP ProLiant BL35p server blade plugs vertically into HP BladeSystem
p-Class Blade Sleeve; sleeve plugs into 6U blade enclosure
Up to 96 HP ProLiant BL35p server blades fit in 42U rack in non-redundant
power configuration; up to 80 HP ProLiant BL35p server blades fit
in 42U in full power redundant configuration
Management:
Integrated Lights-Out (iLO) Advanced Pack with static IP bay
configuration and HP BladeSystem wizard features
Deployment/Serviceability:
Integrated Access Tool for blade management and enhanced server
blade documentation including Best Practices and Common Procedures
guides
Warranty:
Protected by HP Services and a worldwide network of resellers
and service providers. Three-year parts, 1 year labor and 1 year
on-site limited global warranty. Certain restrictions and exclusions
apply. Pre-Failure Notification on processors, memory, and SCSI
hard drives.
All ATA hard drives offered by HP carry a one year warranty regardless
of the base system in which they are installed
16 GB max (using
optional 333 MHz PC2700 DDR SDRAM)
8 GB max (using
optional 400 MHz PC3200 DDR SDRAM)
NOTE:
Memory must be installed in pairs. NOTE: PC2700 and PC3200 memory should not be mixed within the server
blade and is not an HP supported configuration.
Network Adapter
Three (3) network adapters total:
Two (2) NC7781 PCI-X Gigabit
NICs (on a mezzanine card) with WOL and PXE
One 10/100T NIC (embedded) dedicated
to iLO management
Expansion Slots
No PCI slots; all features are integrated.
Two (2) USB 1.1 ports, one (1)
video port, one (1) iLO port and one (1) serial port
Two (2) Local I/O cables ship
with each server blade enclosure with enhanced backplane components (281404-B22
and 243564-B22)
NOTE: Tested
USB devices (keyboard, mouse, floppy) are listed in options section below.
Integrated Manageability
Integrated Lights-Out (iLO) Management Advanced (ASIC on the system board)
Internal Storage
Hard Drives
None ship standard
Maximum Internal
Storage
120GB (2 x 60GB small form
factor ATA, 5,400 rpm non-hot plug hard drives)
292GB (2 x 146GB small form
factor SAS, 10,000 rpm non-hot plug hard drives)
Graphics
Integrated
ATI Rage XL Video Controller
with 8 MB SDRAM Video Memory
Graphics Resolution Supported
Resolution Color Depths
Depths 1280 x 1024, 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16
Fibre Channel on the HP ProLiant
BL35p server blade
Two optional fibre channel adapters are supported by the HP ProLiant
BL35p. Both adapters are mezzanine circuit boards which connect directly
to the server blade system board. These optional fiber channel adapters
are available via option kits and must be ordered separately.
QLogic-based
Utilizes a QLogic ISP2312 chipset
The HP ProLiant BL35p Dual-Port Fibre Channel
Adapter (P/N 354054-B21) is compatible with the HP ProLiant BL35p and
HP ProLiant BL30p server blades. It cannot be used with an HP ProLiant
BL20p, HP ProLiant BL25p, HP ProLiant BL35p SAS models, HP ProLiant
BL40p, or HP ProLiant BL45p server blade.
Includes two small form factor pluggable
transceivers with LC connectors for installation into the Patch Panel
2, CGESM or GbE2 Interconnect Switch (with the Storage Connectivity
Kit)
Emulex-based
Utilizes an Emulex Thor chipset
The Emulex-based FC Mezzanine for HP p-Class
BladeSystem dual port Fibre Channel HBA (P/N 394588-B21) is compatible
with the HP ProLiant BL25p, BL30p, BL35p, and BL45p server blades. It
cannot be used with an HP ProLiant BL20p, HP ProLiant BL35p SAS model,
or HP ProLiant BL40p server blade as these devices take a different
Emulex card.
Two ports on each Dual-port Fibre Channel
Mezzanine Card provide a redundant Fibre Channel connection to each
server blade
Supports up to 2Gb/s Fibre Channel equipment
There are no SFP's included in the Emulex mezzanine kit for use with
ProLiant BL p-Class Fibre Channel pass-through interconnects. If you
require SFPs for use with an Emulex mezzanine and a FC pass through
interconnect please order an SFP option kit (P/N 397577-B21) which will
provide 2 FC SFPs per option kit.
NOTE: Fibre Channel connectivity is
not available on the HP ProLiant BL35p SAS models.
Compatible SAN
HP ProLiant BL35p server blades are optimized for StorageWorks arrays:
Starting July 9, 2007, HP Insight Control management suites and most
HP ProLiant Essentials will include one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. From more information about this
service, please visit: http://www.hp.com/services/insight.
Insight Control Environment for BladeSystem delivers foundation management
for HP BladeSystem lifecycles, including hardware resource deployment,
health monitoring, software version control, performance monitoring, vulnerability
scanning and patch management.
Installs and licenses the following components by default using a wizard-based
integrated installer:
HP Systems Insight Manager
HP iLO Select Pack
HP Insight Power Manager
HP ProLiant Essentials Rapid Deployment Pack
HP ProLiant Essentials Performance Management Pack
HP ProLiant Essentials Vulnerability and Patch Management Pack
HP ProLiant Essentials Virtual Machine Management Pack
Additional ProLiant Essentials software and management tools included
on the Insight Control Management DVD can be installed manually.
Server Migration Pack
HP Open Service Event Manager
HP Instant Support Enterprise Edition
NOTE: Server Migration Pack - Physical
to ProLiant Edition can be installed from the SMP-P2P CD included in the
Insight Control Management media kit. NOTE: Insight Control Data Center Edition can be installed from
the Insight Control Management DVD, which can be delivered with HP BladeSystem
c-Class enclosures with a choice of licensing options. Licensing options
include a free 30 day evaluation license for 8 servers (default option
for every enclosure order), a full purchased license for 8 blade servers
or a full purchased license for 16 blade servers). For additional information
on HP c-Class Infrastructure please visit: HP BladeSystem c-Class Infrastructure
QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12517_div/12517_div.HTML NOTE: For additional product and licensing information about Insight
Control Environment for BladeSystem, HP Systems Insight Manager and Essentials
software refer to http://www.hp.com/servers/proliantessentials
ProLiant Essentials Foundation Pack Software for
the ProLiant BL Server
HP Systems Insight Manager
HP Systems Insight Manager (HP
SIM) provides a unified, secure and extensible environment to centrally
manage servers, storage and other infrastructure devices across multiple
operating system platforms.
Through a single management view, HP SIM provides core management services
that include device discovery and identification, event views, health
monitoring, inventory data collection, software version control and reporting.
HP SIM is built on industry standards and is extensible with value-added
ProLiant Essentials, Integrity Essentials and Storage Essentials software
to meet individual management needs. For more details on HP SIM visit
http://www.hp.com/go/hpsim.
HP SIM provides organizations with the following benefits:
Simplifies and consolidates infrastructure lifecycle management using
task and query based functionality
Provides the foundation for infrastructure automation and virtualization
Enables IT management based on business processes not hardware platforms
Lowers infrastructure maintenance cost and frees resources for innovation
Maximizes resource utilization with virtualization technologies
Provides a central point of integration between infrastructure and
Enterprise management tools such as HP OpenView
ProLiant Essentials Rapid Deployment
Pack
Rapid Deployment Pack (RDP)
is an automated deployment and provisioning solution for all ProLiant servers.
RDP includes the Altiris Deployment Solution and ProLiant Integration Module
featuring ProLiant server pre-configured events for OS installation, and
optimized software drivers, firmware and management agents. Every RDP CD
includes 10-node trial licenses for evaluation purposes. RDP requires a
license for each server deployed and is available for purchase with blade
servers. For more information, visit http://www.hp.com/servers/rdp.
ProLiant Essentials Performance
Management Pack
Performance Management Pack
(offered exclusively through the Insight Control suites) - a performance
management solution that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better utilize
their valuable resources
Virtual Machine Management Pack
Virtual Machine Management Pack
- provides central management and control of virtual machines from Microsoft
and VMware. Integrated approach provides the ability to manage both physical
and virtual resources from a single management console.
Vulnerability and Patch Management
Pack
Vulnerability and Patch Management
Pack (offered exclusively through the Insight Control suites) - identifies
and remediates software security vulnerabilities due to missing patches
as well operating system configurations that can be exploited by viruses,
worms, and other blended threats.
Insight Management Agents
Insight Management Agents should
be installed on all HP servers to present system instrumentation, health
and configuration information into HP Systems Insight Manager and the HP
System Management Homepage. The HP System Management Homepage aggregates
systems data from Insight Management Agents and other HP management tools,
providing a consolidated browser-based interface for managing individual
servers,
Insight Management Agents and The HP System Management Homepage are included
on ProLiant Support Packs, and can also be installed using the server
profiles provided with the ProLiant Essentials Rapid Deployment Pack.
For additional information about the Management Agents and the HP System
Management Homepage please visit the management Web site at http://www.hp.com/servers/manage
Subscriber's Choice
Subscriber's Choice Driver and
Support Alerts/Notifications is a web-based email subscription service that
provides software and driver change notifications for ProLiant products.
Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, support software, and
configuration utilities
The latest drivers and firmware
fully optimized and tested for your ProLiant server and options, available
on the RDP Media kit, SmartStart or downloadable from Software and Drivers
download pages, linked from the SmartStart website at http://www.hp.com/go/support.
Optional software offerings that selectively extend the functionality
of an Adaptive Infrastructure to address specific business problems and
needs:
Server Migration Pack - The Server Migration Pack automates the manual
processes required for migrating servers between physical or virtual
platforms (P2V, V2P, and V2V).
Server Migration Pack - P2P Edition - Upgrading or replacing your
existing server? Effortlessly transition to new servers with automated,
accurate and affordable migration of OS, application and data.
Virtualization Management Software - Get the most out of server virtualization
by unifying the management of physical and virtual servers in HP Systems
Insight Manager. The Virtual Machine Management Pack plug-in provides
central management and control of VMware and Microsoft virtual machines
and provides physical host to virtual machine association. The Server
Migration Pack plug-in automates the manual task of migrating servers
between physical or virtual platforms.
Vulnerability and Patch Management Pack (offered exclusively through
the Insight Control suites) - identifies and remediates software security
vulnerabilities due to missing patches as well operating system configurations
that can be exploited by viruses, worms, and other blended threats.
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information.
Optional Remote Management Packs
Insight Control Environment for BladeSystem - is based on HP Systems
Insight Manager and ProLiant Essentials software, and brings the value
of Insight Control to ProLiant customers by delivering comprehensive
health and performance monitoring, remote control, vulnerability scanning
and patch management as well as flexible deployment and power management
through an integrated installation package and streamlined licensing.
For more information, visit: http://www.hp.com/go/ice
Integrated Lights-Out Select Pack - upgrades the iLO 2 processor with
enhanced console sharing and replay, virtual media (floppy, CD/DVD,
USB key), virtual folders, historical power reporting, power capping
and enterprise security (directory services and two-factor authentication)
for servers managed using remote consoles available in iLO 2 Standard
and iLO 2 Standard Blade Edition.
Insight Power Manager (IPM) - upgrades the single-server remote management
capabilities of iLO Select/Advanced to include centralized reporting
and policy-based management of power consumption and thermal output
provided by the Insight Power Manager. IPM unifies all of this functionality
within a single user interface - HP Systems Insight Manager.
iLO Power Management Pack for BladeSystem is energy-efficient management
software that delivers centralized control, reliable security, and energy
savings for your BladeSystem infrastructure. iPMP combines the total
control of iLO 2 Advanced in the area of remote management with the
energy monitoring and control of the Insight Power Manager to deliver
a robust solution capable of full remote control and power management
of ProLiant servers through a unified interface within HP Systems Insight
Manager.
NOTE: Flexible and volume quantity license
kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: Selected software packages listed here include one year of
24 x 7 Software Technical Support and Update Service. If you have any
questions about this service please visit the HP website at http://www.hp.com/services/insight
SmartStart
SmartStart is a tool that simplifies
single server setup, providing a rapid way to deploy reliable and consistent
server configurations. To obtain a copy of SmartStart for your blade server,
redeem the coupon that is included with your Blade server or order your
copy from the SmartStart web site. For more information, please visit the
SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum): SmartStart 7.20
OS Support:
Dual-Core
1.8 GHz, 2.0 GHz, 2.2 and 2.4 GHz models
Microsoft Windows 2000 Server (licensed by core)
Microsoft Windows 2000 Advanced Server (licensed by core)
Windows Server 2003, Standard Edition
Windows Server 2003, Enterprise Edition
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Solaris 10 32/64-bit
Automatic Server Recovery-2
(ASR-2)
HP Systems Insight Manager
Redundant ROM
Remote Flash ROM
ROM Based Setup Utility (RBSU)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server and Interconnect Switch Health Logs
Redundant Power Supply Utility
Pre-Failure Warranty (covers processors, as well as SCSI hard drives and
memory)
Integrated Management Log (IML)
Network adapter teaming set-up utility
Availability
Dual-Port Fibre Channel Mezzanine
Card for redundant SAN connections Redundant ROM on each server blade ECC
Memory Network adapter teaming (network fault tolerance, transmit load balancing,
switch-assisted load balancing)
Security
Power-on password
Administrator's password
Integrated Lights-Out provides user authentication via directory services
or 12 customizable user accounts
Integration Lights-Out supports SSH and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and storage
products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple
configuration, racking, installation, complex configuration and design services as well
as individual factory services, such as image loading, asset tagging, and
custom packaging. HP products supported through Factory Express include a wide
array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant
Server Blades, HP BladeSystem, HP 9000 servers as well as the MSA1000,
VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to http://www.hp.com/go/factory-express.
HP Enterprise Configurator
The HP eCo-Enterprise Configurator
now provides factory default racking for our HP hardware portfolio. This
approach is aligned with our strategic direction to meet the needs and expectations
of our valued customers. If you require "custom" rack configuration,
please contact HP's Customer Business Center or an Authorized Partner for
assistance.
Service and Support
This product is covered by a global limited warranty and supported by
HP Services and a worldwide network of resellers and service providers.
Hardware diagnostic support and repair is available for three years from
date of purchase. Support for software and initial setup is available
for 90 days from date of purchase. Additional support may be covered under
the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service
agreements.
NOTE: Server Blade Limited Warranty
includes 3 year Parts, 3 year Labor, 3-year on-site support. This warranty
supports the HP ProLiant BL20p, HP ProLiant BL25p, HP ProLiant BL40p and
HP ProLiant BL45p Server Blades. NOTE: Server Blade Limited Warranty includes 3 year Parts, 1 year
Labor, 1-year on-site support. This warranty supports the HP ProLiant
BL30p and HP ProLiant BL35p Server Blades. NOTE: Server Blade Enclosure Limited Warranty includes 3 year Parts,
3 year Labor, 3-year on-site support. NOTE: Server Blade Interconnect Limited Warranty includes 3 year
Parts, 3 year Labor, 3-year on-site support. Additional information regarding
worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html NOTE: ATA drives have a 1 year warranty.
The HP Care Pack service part numbers below for ProLiant BL p-Class server
blades, cover the server blade and all HP branded hardware options qualified
for the server, purchased at the same time or afterwards, internal to
the server
HP Care Pack services for HP BladeSystem p-Class server blade enclosure
covers the enclosure including patch panels, HP supported Ethernet interconnects,
power enclosure with power supplies and power distribution.
HP services provide continuous care and support expertise with committed
response designed to meet your IT and business needs.
To fully capitalizing on your HP BladeSystem servers' capabilities requires
a service partner who thoroughly understands your server technology and
systems environment. HP Services, an industry leader in provision of multi
vender support solutions provides a range of support services designed
to meet the varying needs of business. Whether an SMB or large global
corporation HP has a HP BadeSystem server support offer to help you speedily
deploy and maximize system uptime.
Enhanced Care - Minimum recommended service support offer designed to
ensure customers have access to expert assistance, whenever they need
it.
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years.
Continuance Care - Recommended service delivering cost-effective support
options designed to extend HP Services committed response and guaranteed
fix times, designed to speed problem identification and resolution.
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years.
Total Care - Highest HP Support service level recommend to help increase
IT performance and availability with comprehensive, integrated hardware
and software services
Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft
O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response
time incl. HP holidays.
Deployment Services - HP Installation and Start Up services designed
to take time, risk, and worry out of the deployment of HP BladeSystem
servers - and free customers IT support staff to focus on what they do
best, their business.
Installation & Start-Up service for HP BladeSystem Infrastructure
plus HP BladeSystem Enhanced Network Installation and Start-UP as per
the Customer Description and/or Data Sheet. To be delivered on a scheduled
basis 8am-5pm, M-F, excl. HP holidays
Two (2) NC7781 PCI-X Gigabit
NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Storage Controller
Internal 4 Port SAS HBA (on
a mezzanine card) supports RAID 0 or 1
Hard Drives
None ship standard
Internal Storage
Up to 292GB maximum (with optional
non-hot plug SAS hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades,
or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically
into HP BladeSystem p-Class Enhanced Server Blade Enclosure
ProLiant BL35p
2.2GHz-1MB, DC, 2GB, SAS (2P)
395222-B21
Processor(s)
Two (2) Dual-Core AMD Opteron™
200 Series processors Model 275 2.2 GHz (68 Watts) standard
Two (2) NC7781 PCI-X Gigabit
NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Storage Controller
Internal 4 Port SAS HBA (on
a mezzanine card) supports RAID 0 or 1
Hard Drives
None ship standard
Internal Storage
Up to 292GB maximum (with optional
non-hot plug SAS hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades,
or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically
into HP BladeSystem p-Class Enhanced Server Blade Enclosure
ProLiant BL35p 1.8GHz-1MB, DC, 1GB, SAS (1P)
394876-B21
Processor(s)
One (1) Dual-Core AMD Opteron™
processor Model 265 1.8 GHz (68 Watts) standard (up to 2 supported)
Two (2) NC7781 PCI-X Gigabit
NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Storage Controller
Internal 4 Port SAS HBA (on
a mezzanine card) supports RAID 0 or 1
Hard Drives
None ship standard
Internal Storage
Up to 292GB maximum (with optional
non-hot plug SAS hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades,
or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically
into HP BladeSystem p-Class Enhanced Server Blade Enclosure
Two (2) NC7781 PCI-X Gigabit
NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120GB maximum (with optional
non-hot plug ATA hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades,
or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically
into HP BladeSystem p-Class Enhanced Server Blade Enclosure
Two (2) NC7781 PCI-X Gigabit
NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120GB maximum (with optional
non-hot plug ATA hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades,
or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically
into HP BladeSystem p-Class Enhanced Server Blade Enclosure
Two (2) NC7781 PCI-X Gigabit
NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120GB maximum (with optional
non-hot plug ATA hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades,
or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically
into HP BladeSystem p-Class Enhanced Server Blade Enclosure
Two (2) NC7781 PCI-X Gigabit
NICs (on a mezzanine card) with WOL and PXE
One (1) 10/100T NIC (embedded) dedicated to iLO management
Hard Drives
None ship standard
Internal Storage
Up to 120GB maximum (with optional
non-hot plug ATA hard drives)
Optical Drive
None
Form Factor
Plugs vertically into HP BladeSystem
p-Class Blade Sleeve. Blade sleeve supports 1 or 2 BL30p and BL35p blades,
or any combination of BL30p and BL35p blades. Blade sleeve plugs vertically
into HP BladeSystem p-Class Enhanced Server Blade Enclosure
Configuration Information - Factory Integrated Models (North America only)
NOTE: For Configure to Order requirements within EMEA region,
please consult local Sales Contact.
NOTE: HP does not allow factory integration of options into standard
models listed above.
Configure-to-order servers must start with a CTO Chassis. NOTE: This product offering does not support HP Factory Express
Server Configuration Level 1. NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Server
Blade Configuration
Model
HP ProLiant BL35p
Configurable Model CTO Blade (North America)
382734-405
Factory Integrated
Model ships with:
- One embedded 10/100T NIC for iLO
- Integrated Lights-Out (iLO) Management with Advanced Pack features
HP ProLiant BL35p
SAS Configurable Model CTO Blade (North America)
398605-405
Factory Integrated Model ships with:
- Internal 4 Port SAS HBA (on a mezzanine card)
- One embedded 10/100T NIC for iLO
- Integrated Lights-Out (iLO) Management with Advanced Pack features NOTE: HP ProLiant BL35p SAS Configurable
Model CTO Blade (P/N 398605-405) does not support single-core processors.
Step 2: Choose
Required Options (only one of the following from each list unless otherwise
noted)
Processor
Dual-Core AMD Opteron™
Model 280 2.4 GHz/68W FIO ALL NOTE:If dual processor configurations
are desired, select one 399602-B21 and one 399602-B21.
NOTE: Two-way
interleaving memory is enabled when an identical pair of DIMMs is installed. NOTE: Maximum performance in a two processor (2P) server blade is
achieved when Option B memory configurations are utilized.
Communications NOTE: Must select one
HP ProLiant BL25/35/45p NIC Mezz
FIO Base
382850-B21
Or upgrade to:
HP ProLiant BL25p/35p/45p Dual
NC370i Multifunction Network Adapter
384043-B21
NOTE:
NC370i adapter supports iSCSI, RDMA, TOE with applicable licenses.
NOTE: Accelerated iSCSI is not yet supported
for Linux environments, and RDMA is not yet supported for Windows or Linux
environments. Future support is planned for both.
NOTE: A minimum
of 1 GB of memory per port is required for NC370x adapters, with a maximum
of two NC370x ports permitted in a server.
Step 3: Choose Additional Options
for Factory Integration
Hard Drive
SAS Non-Hot Plug
HP 36GB 3G SAS 10K NHP SFF HDD
384038-B21
HP 72GB 3G SAS 10K NHP SFF HDD
384141-B21
HP 146GB 3G SAS 10K NHP SFF HDD
436649-B21
NOTE:
Supported on SAS models only
ATA Non-Hot Plug
HP BL30p/BL35p 60G ATA HDD ALL
354052-B21
Fibre Channel Option
Emulex-based BL25/30/35/45p Dual
Port Fibre Channel HBA NOTE: SFPs for use with pass through
SAN switches not included with the Emulex-based Fibre Channel Mezzanine
card. If SFPs required please order the SFP option kit (P/N 397577-B21)
which includes 2 2Gb SFPs per option kit.
394588-B21
HP 2-2Gb SFP for Fibre Channel
pass through kit NOTE: Must select if SFP for use
with pass through SAN switches is required when ordering Emulex-based Fibre
Channel Mezzanine card for HP p-Class BladeSystem (p/N 394757-B21.
BL30p/BL35p Dual Port Fibre Channel
Adapter NOTE: The BL30p/BL35p Dual Port Fibre
Channel Adapter is QLogic based.
354054-B21
NOTE: For additional
options, including HP BladeSystem p-Class blade sleeves, enhanced server
blade enclosure, interconnect options and power subsystem options please
refer to the "Options" section below. NOTE: Fibre Channel connectivity is not available on the HP ProLiant
BL35p SAS model (P/N 398605-405).
NOTE: For additional
options, please refer to the "Options" section below.
NOTE:
Some options may not be factory integratable. Please contact your local
sales representative for additional information.
Unique
Options
HP
BladeSystem p-Class Blade Sleeve Kit
354101-B21
NOTE:
Each blade sleeve supports one or two HP ProLiant BL30p/HP ProLiant BL35p
server blades. HP ProLiant BL30p and BL35p server blades may be mixed within
the blade sleeve.
ProLiant Essentials Value Pack Software
Insight Control Environment for
BladeSystem
HP Insight Control Environment
for BladeSystem, No Media 1-Server License including 1 year of 24x7 Technical
Support and Updates NOTE: Contains 1 license for each of RDP, PMP, VPM, IPM and iLO Select.
Includes one year of 24 x 7 HP Software Technical Support and Update Service. NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.HTML
453484-B21
ProLiant Essentials Rapid Deployment
Pack
ProLiant Essentials Rapid Deployment
Pack No Media 1-Server License including 1 year of 24x7 Technical Support
and Updates NOTE: This license allows 1 server to be deployed and managed via
RDP.
ProLiant Essentials Server Migration
Pack, Single-Migration License NOTE: Contains one license, enabling 1 server migration, with a unique
license activation key and documentation. NOTE: This license allows 1 server to be migrated from a physical
server to a virtual machine. Or this license can be used to migrate a virtual
machine from one virtualization layer i.e. VMware GSX to a different virtualization
layer such as VMware ESX or Microsoft Virtual Server 2005.
ProLiant Essentials Server Migration
Pack - P2P Edition, 1- Migration License, - License Only, No Media NOTE: This license allows 1 migration. Contains one license with
a unique license activation key and documentation NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12467_div/12467_div.HTML
ProLiant Essentials Virtual Machine
Management Pack, No Media, 1-Server License, including 1 year of 24x7 Technical
Support and Updates NOTE: For use with a single server. Contains one license with a unique
license activation key and documentation.
NOTE: Flexible
and volume quantity license kits are available for ProLiant Essentials Value
Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Remote Management
Insight Control Environment for
BladeSystem
HP Insight Control Environment
for BladeSystem, No Media 1-Server License including 1 year of 24x7 Technical
Support and Updates NOTE: Contains 1 license for each of RDP, PMP, VPM, IPM and iLO Select.
Includes one year of 24 x 7 HP Software Technical Support and Update Service
453484-B21
HP Insight Control
Linux Edition for HP BladeSystem
HP Insight Control Linux Edition
1.6 -No Media, 1-Server License, including 1 year of 24x7 Technical Support
and Updates NOTE: This license allows one (1) server blade to be deployed and
managed via HP Insight Control Linux Edition.
452155-B21
HP Insight Control Linux Edition
1.6,No Media, 8-Server License, including 1 year of 24x7 Technical Support
and Updates NOTE: This license allows eight (8) server blades to be deployed
and managed via HP Insight Control Linux Edition.
452156-B21
HP Insight Control Linux Edition
1.6, No Media, Flexible-Quantity License, including 1 year of 24x7 Technical
Support and Updates NOTE: For use with multiple servers (minimum of 5). This part number
allows you to specify the license quantity. When ordering this part number,
the quantity ordered will be the number of licenses embedded in a single
activation key. A single kit containing that key is then delivered to you.
Multifunction NIC with support
for iSCSI, RDMA, TOE:
HP ProLiant BL25p/35p/45p Dual
NC370i Multifunction Network Adapter
384043-B21
NOTE: NC370i adapter supports iSCSI, RDMA, TOE with applicable
licenses.
NOTE: Accelerated
iSCSI is not yet supported for Linux environments, and RDMA is not yet supported
for Linux environments.
ProLiant BL30p/BL35p
Fibre Channel Adapter
Emulex-based
BL25/30/35/45p Dual Port Fibre Channel HBA
394588-B21
Dual-Port Fibre Channel Adapter
(2Gb) Kit (option) for HP ProLiant BL30p or HP ProLiant BL35p server blades NOTE: This Fibre-Channel adapter
is QLogic-based NOTE: When using this adapter, Patch Panel 2, CGESM, or a GbE2 Interconnect
Switch Kit (with Storage Connectivity Kit) must be used to provide pass
through of the Fibre Channel signals.
HP BladeSystem p-Class Diagnostic
Station NOTE: The Diagnostic Station allows access to the HP ProLiant p-Class server
blades and the BL p-Class interconnect switch outside of the server blade
enclosure. The option provides power and a data interface so that
"offline" upgrade and diagnostic functions may be performed.
HP StorageWorks MSL4048 2 Ultrium
960 4GB FC Library
AG325B
HP StorageWorks MSL4048 1 Ultrium
920 Tape Library
AH171A
HP StorageWorks MSL4048 2 Ultrium
920 Tape Library
AH172A
HP StorageWorks MSL6000
Tape Library
Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium
960 Dr LVDS Library
AD606B
HP StorageWorks MSL6030 1 Ultrium
960 Dr FC Library
AD608B
HP StorageWorks MSL6030 2 Ultrium
960 Dr LVDS Library
AD607B
HP StorageWorks MSL6030 2 Ultrium
960 Dr FC Library
AD609B
Ultrium 460 technology
HP StorageWorks MSL6030 1 Ultrium
460 Dr LVDS Library
AD598B
HP StorageWorks MSL6030 1 Ultrium
460 Dr FC Library
AD600B
HP StorageWorks MSL6030 2 Ultrium
460 Dr LVDS Library
AD599B
HP StorageWorks MSL6030 2 Ultrium
460 Dr FC Library
AD601B
NOTE: Please reference
the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
HP
StorageWorks Virtual Library Systems
HP Virtual Library Systems 300
Base Unit
AH138A
HP StorageWorks 1002i 2TB Virtual
Library System
AG124A
HP StorageWorks 6105 Virtual Library
System
AF728A
HP StorageWorks 6510 Virtual Library
System
AF729A
HP StorageWorks 6840 Virtual Library
System
AG051A
HP StorageWorks 6109 Virtual Library
System
AG167A
HP StorageWorks 6518 Virtual Library
System
AG168A
HP StorageWorks 6870 Virtual Library
System
AG169A
NOTE: Please reference
the Virtual Library Systems QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution. Reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: xxxxxx-B22
(shock pallet) used to ship racks with equipment installed (by custom systems,
VARs and Channels). xxxxxx-B23 (crated) used for air shipments of empty
racks. NOTE: It is mandatory to use a shock pallet in order to ship racks
with equipment installed.
NOTE:
Cat5e cables are required to connect Interface Adapters to Consoles
Switches. Cat52e cables can be found at the following URL: http://www.hp.com/go/kvm
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
Service and Support Offerings (HP
Care Pack Services)
NOTE: The
HP Care Pack service part numbers below for HP ProLiant BL p-Class
server blades, cover the server blade and all HP branded hardware
options qualified for the server, purchased at the same time or afterwards,
internal to the server.
Hardware Services On-site Service
Next Business Day On-site
Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
UD186E
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
UD187E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
UD188E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UD189E
NOTE: The
HP Care Pack service part numbers below for HP BladeSystem p-Class
server blade enclosure covers the enclosure including patch panels,
HP supported Ethernet interconnects, power enclosure with power supplies
and power distribution.
Hardware Services On-site
Service
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
HC031E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
HC032E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
HC033E
NOTE:
The HP Care Pack service part numbers below covers the HP BladeSystem
Brocade and McData SAN Switches.
Hardware Services On-site
Service
Next Business Day On-site
Service, 5-Day x 9-Hour Coverage,
3 Years, Electronic
UC007E
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
UC008E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
UC009E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UC023E
Installation & Start-up
Services
HP Installation & Startup
Service for HP BladeSystem Infrastructure, Electronic NOTE: - provides for an integrated
hardware and software implementation that includes remote service
planning, onsite deployment of hardware and software, installation
verification testing and customer orientation. Hardware deployment
covers the installation of a single BladeSystem enclosure that include
server blades (up to 16), Ethernet network interconnect, and power
options. Software deployment covers the installation and configuration
of HP Systems Insight Manager (SIM), HP Rapid Deployment Pack (RDP),
and deploy up to two operating system editions of either Windows or
Linux, using scripted operating system installation software
UC905E
ProLiant BL p-Class Blade
Server Hardware Installation, Electronic
UA219E
ProLiant BL p-Class Enclosure
and Server Blade Hardware Installation, Electronic
U4971E
Provides for the Installation
and Start-up of Compaq's Rapid Deployment Pack, Electronic NOTE: Provides installation
on a Customer supplied server designated as a Deployment Server. Includes
the deployment of a single server. This new server will be deployed
using either one of the pre-configured scripts or an image. In addition,
the service will provide for the capture and storage of the configuration
of the newly deployed server and orientation on product usage. To
be delivered during standard office ours, standard office days.
U5683E
Provides for the Installation
and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment
Pack (Basic) (Electronic)
UA042E
HP ProLiant Essentials Vulnerability
and Patch Management Pack, Electronic NOTE: Installation and Startup
Service. Service coverage: onsite installation of the Vulnerability
and Patch Management (VPM) software on a customer designated server,
configuration of the VPM software to acquire security patches, enabling
the VPM software to scan up to five (5) systems, applying the security
patches to the designated servers, generating a report from VPM that
shows the vulnerability assessment results, and providing customer
with an orientation to the software.
UC929E
Provides for the Installation
and Start-up of System Insight Manager (Electronic)
UA041E
Provides for the Installation
and Start-up of System Insight Manager (Electronic)
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
DIMM installation guidelines:
All DIMMs must be PC3200 DDR 400 MHz SDRAM DIMMs,
or PC2700 DDR 333 MHz SDRAM DIMMS.
Both DIMM slots in a memory bank must be populated.
Both DIMMs in a memory bank must be identical.
Processor 1 memory bank must always be populated.
For optimal performance in most applications, populate
the memory bank for every populated processor socket.
DIMM banks are active only when the corresponding
processor socket is populated.
HP ProLiant BL35p Server Blade (1P model)
Standard Memory 1024 MB of PC3200 DDR SDRAM running
at 400 MHz (2 x 512 MB)
Standard Memory Replaced with Optional Memory
Up to 4096 MB of PC3200 DDR SDRAM DIMM memory is available with the removal
of standard memory and the installation of optional DDR SDRAM DIMM memory
expansion kits.
Up to 8192 MB of PC2700 DDR SDRAM DIMM memory is available
with the removal of standard memory and the installation of optional PC2700
SDRAM DDR DIMM memory expansion kits.
NOTE:Maximum memory configuration
with one processor installed using PC3200 DDR SDRAM DIMMs is 4096 MB (2
x 2048 MB), or 8192 MB using PC2700 DDR SDRAM DIMMs (2 x 4096 MB.) Second
processor must be installed in order to use the 2nd bank of memory (Slots
3 and 4.) Maximum memory configuration with two processors installed using
PC3200 DDR SDRAM DIMMS is 8192 MB (4 x 2048 MB), or 16384 MB using PC2700
DDR SDRAM DIMMs (4 x 4096 MB.)
Standard Memory
2048 MB of
PC3200 DDR SDRAM running at 400 MHz (4 x 512 MB)
Standard Memory Replaced with Optional Memory
Up
to 8192 MB of PC3200 DDR SDRAM DIMM memory is available with the removal
of standard memory and the installation of optional DDR SDRAM DIMM memory
expansion kits.
Up to 16384 MB of PC2700 DDR SDRAM DIMM memory is available
with the removal of standard memory and the installation of optional PC2700
SDRAM DDR DIMM memory expansion kits.
NOTE: Maximum memory configuration with one
processor installed using PC3200 DDR SDRAM DIMMs
is 4096 MB (2 x 2048 MB), or 8192 MB using PC2700 DDR
SDRAM DIMMs (2 x 4096 MB.) Second processor must be installed in
order to use the 2nd bank of memory (Slots 3 and 4.) Maximum memory configuration
with two processors installed using PC3200 DDR SDRAM DIMMS is
8192 MB (4 x 2048 MB), or 16384 MB using PC2700 DDR SDRAM
DIMMs (4 x 4096 MB.)
*NOTE: All
temperature ranges shown are for sea level. An altitude derating of 1°C
per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable.
No direct sunlight allowed. Upper operating limit is 3,048 m (10,000 ft)
or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or
30.3 KPa/4.4 psia.
**NOTE:
Storage maximum humidity of 95% is based on a maximum temperature of 45°C
(113°F). Altitude maximum for storage corresponds to a pressure minimum
of 70 KPa.
US Site
DL Quickspecs
Search:
397577-B21
© 2012 Canada PartsDirect
